Overview
Basic Info.
Certification
CE, Rosh, ISO9001
Size
2/3/5/8/12/15/18/24 Way
Application Range
Solar System/Electrical Equipment
Shell Material
ABS Body PC Cover
Shell Protection Grade
IP65
Color
Gray Body Transparent Cover
Temperature Range
-40℃~+80℃
Quality Assurance
2 Years
DIN Rail
Adjustable 35mm DIN Rail for Flush Mount Products
Production Capacity
100000 PCS/Month
Packaging & Delivery
Package Size
57.00cm * 41.50cm * 53.50cm
Package Gross Weight
16.950kg

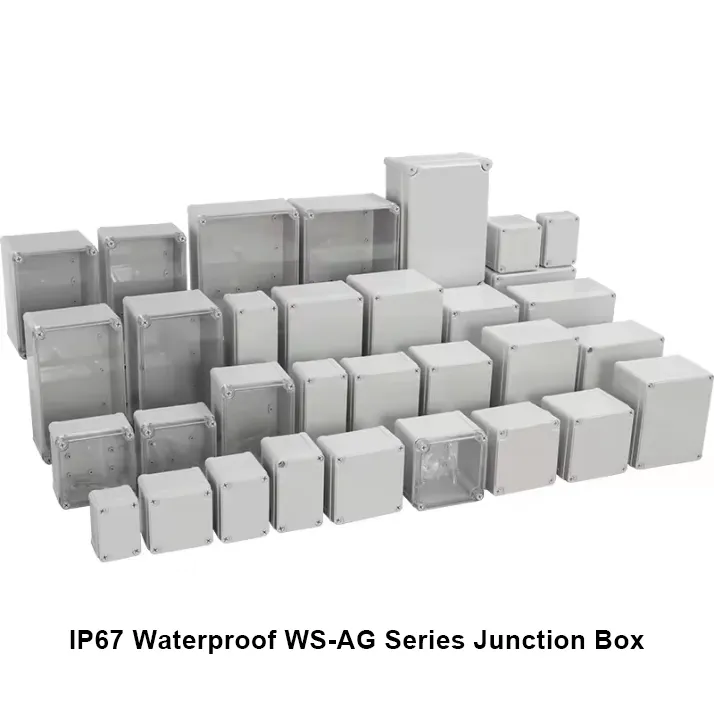

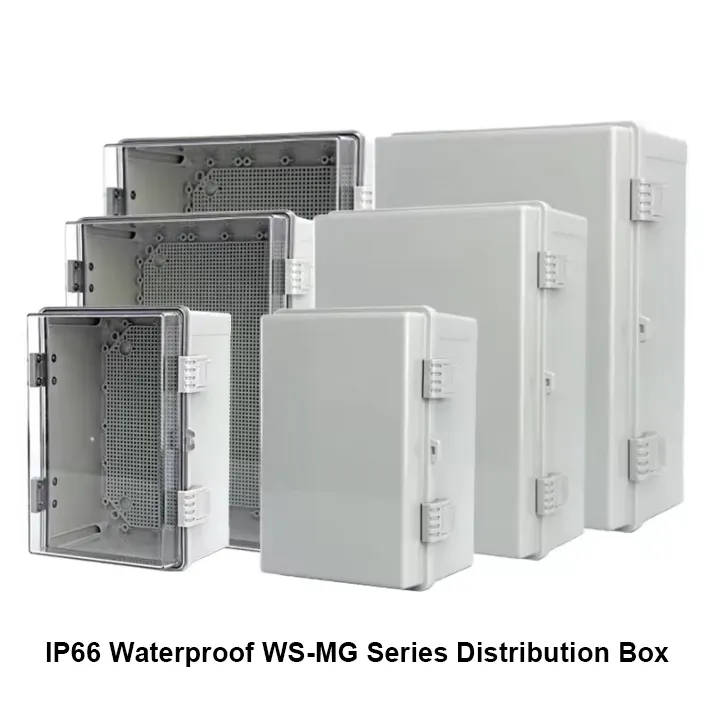

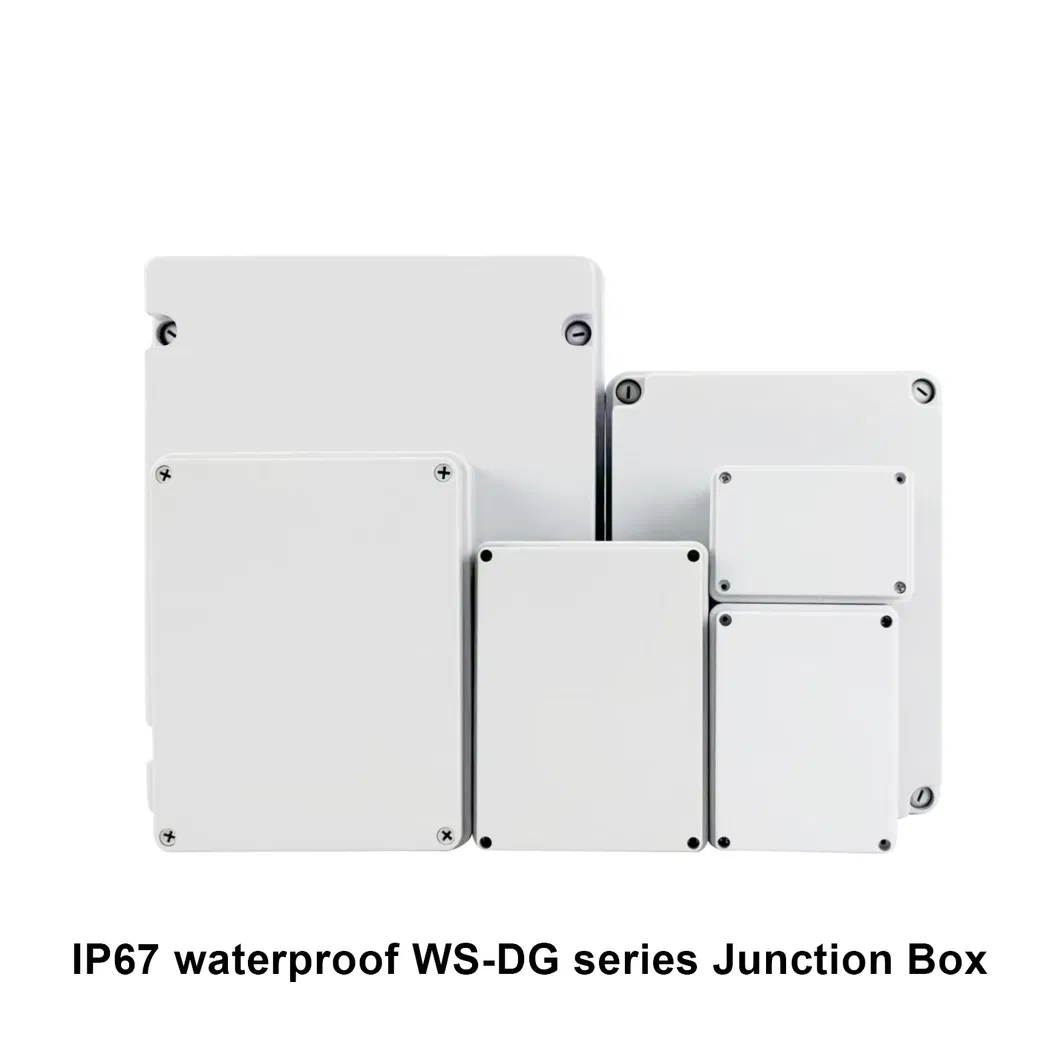

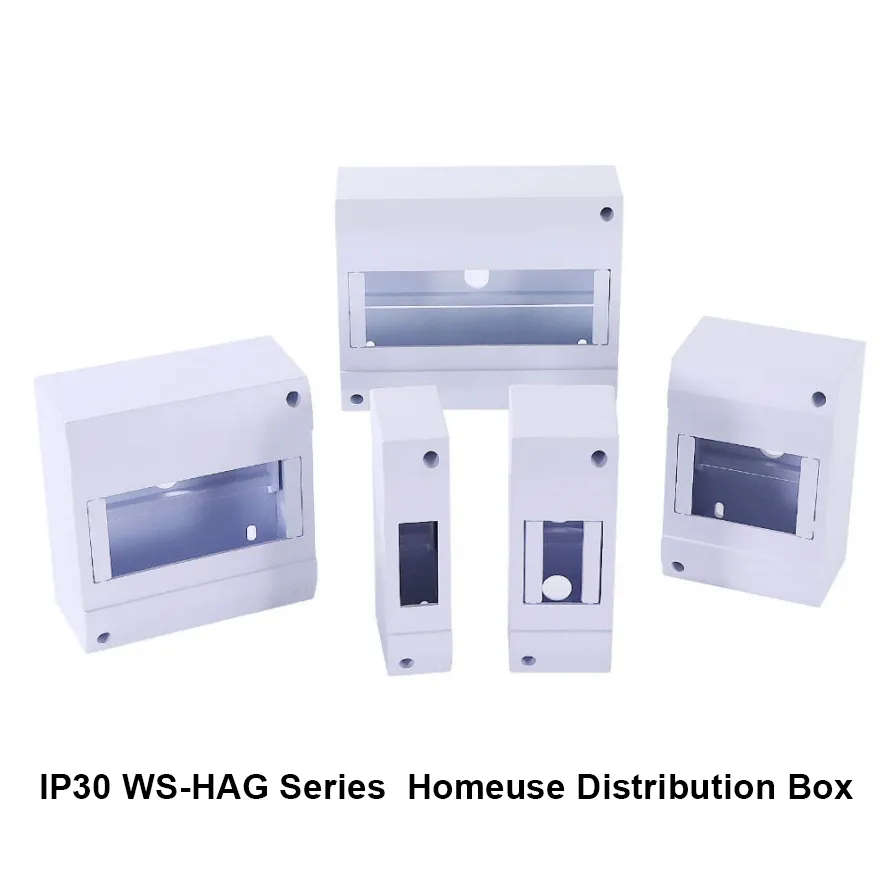

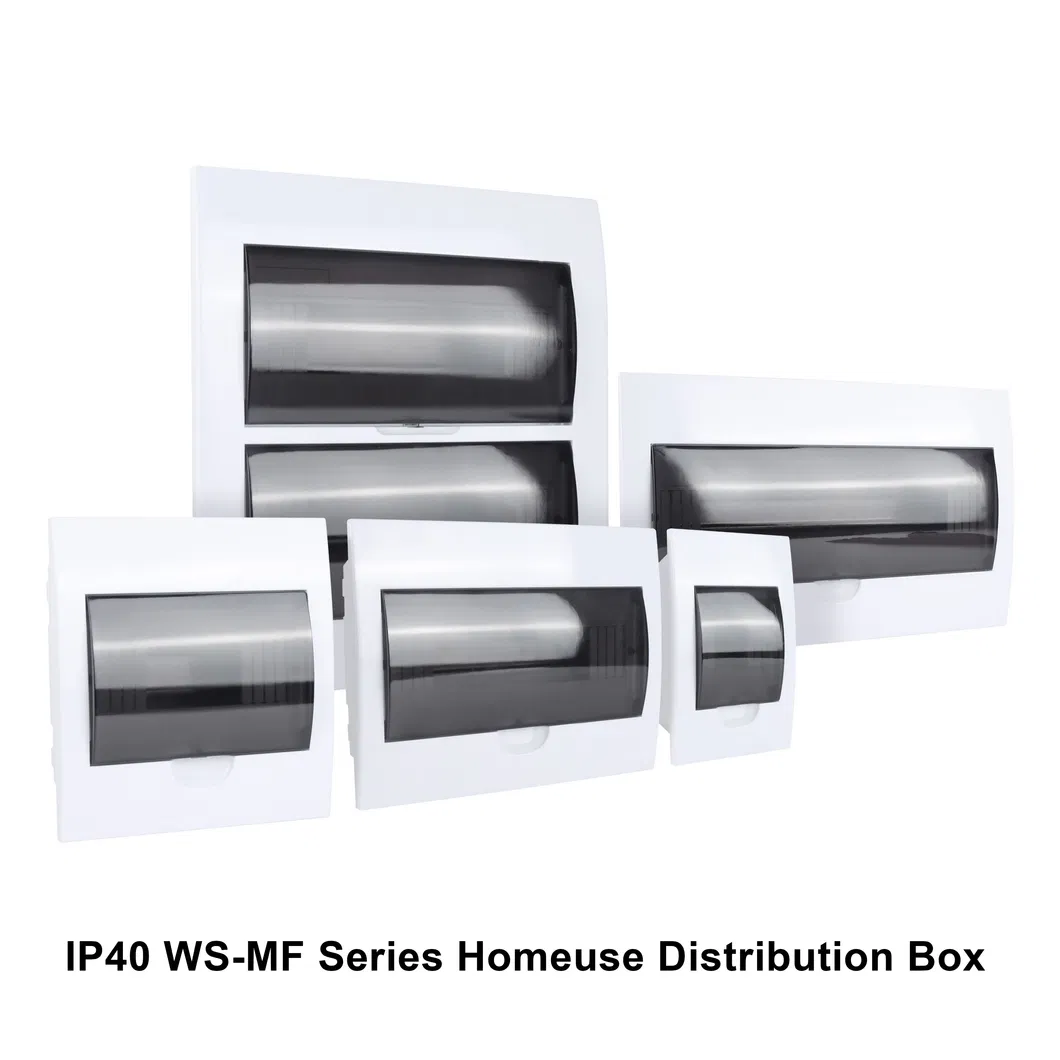

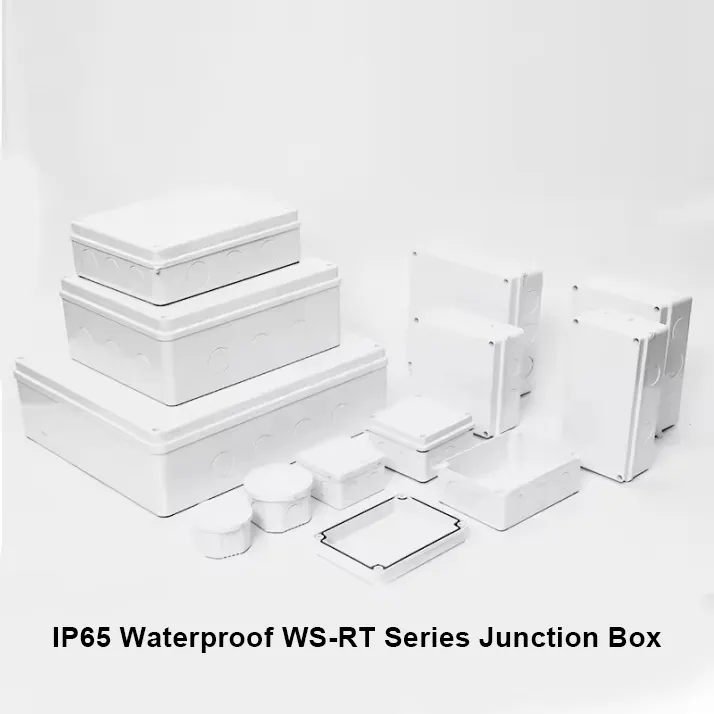

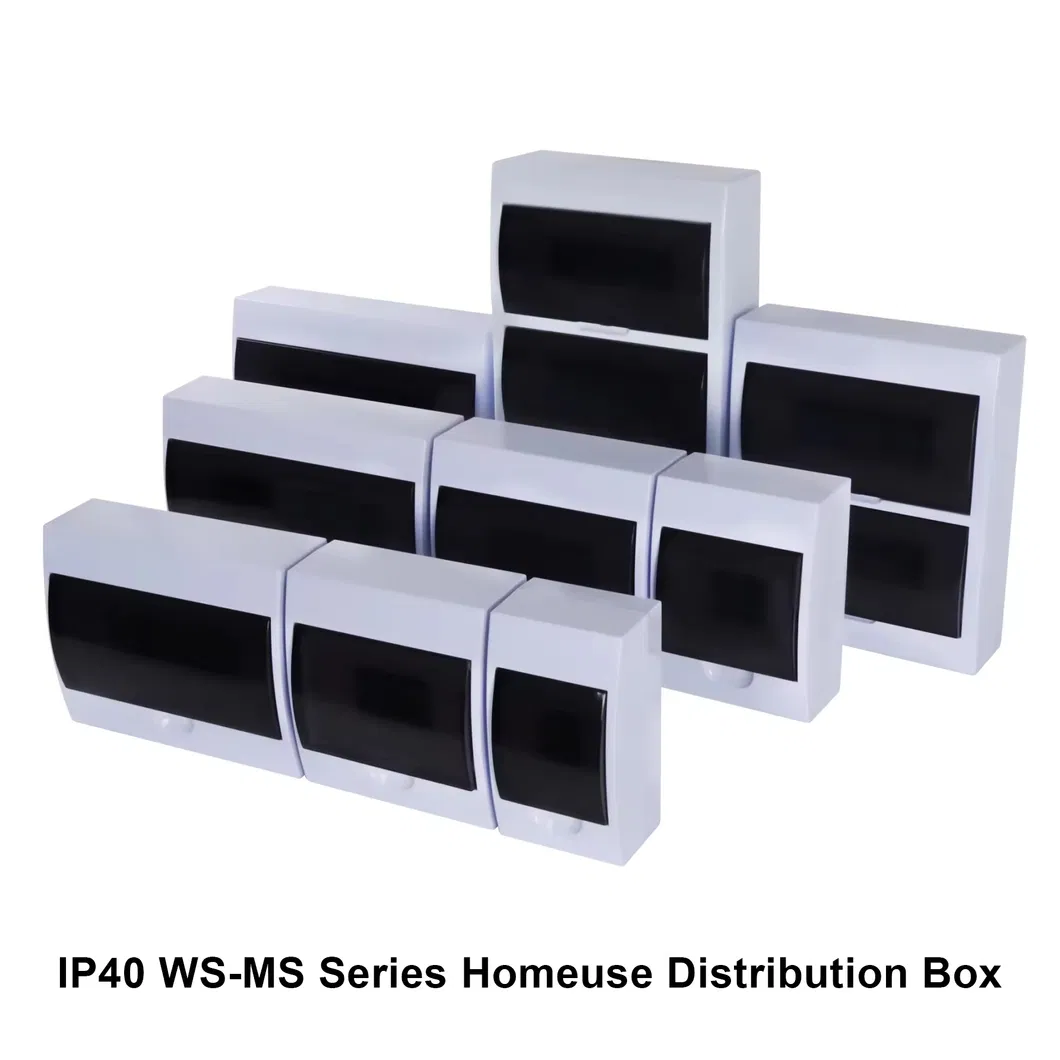

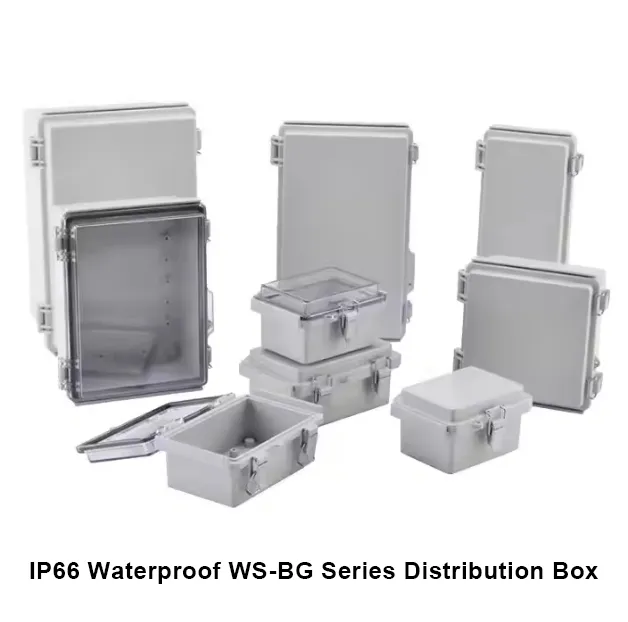

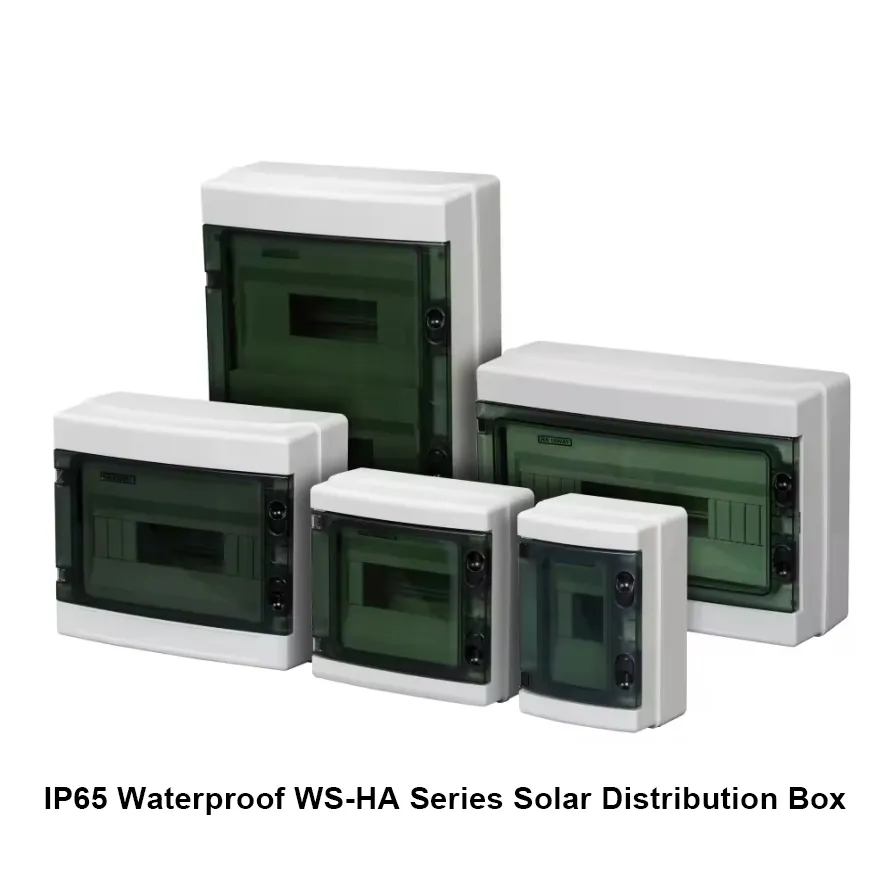

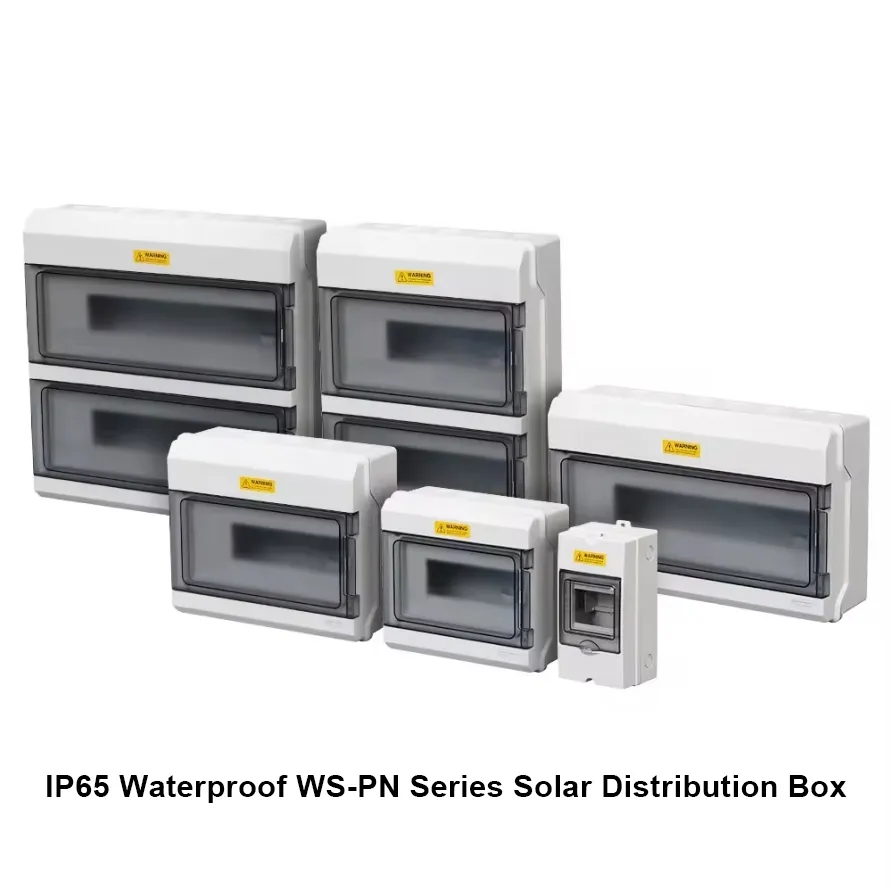

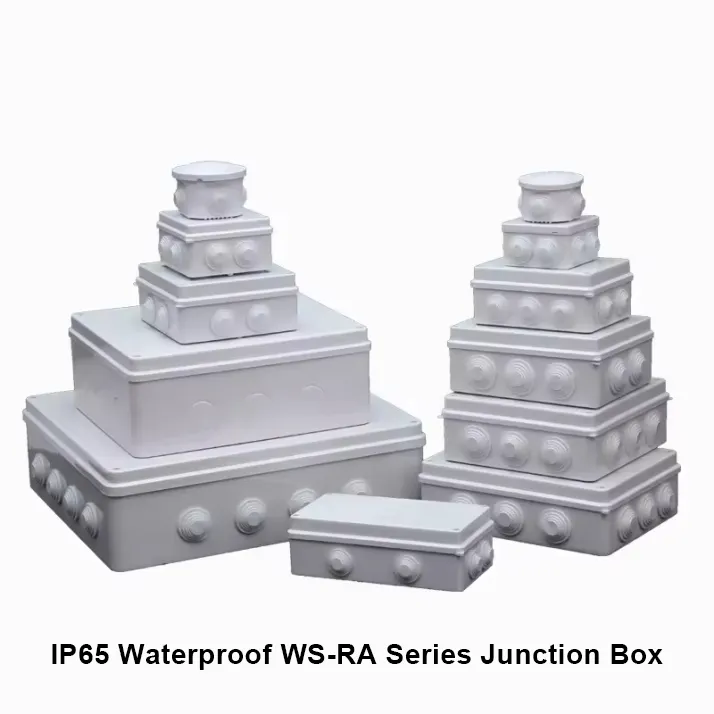

Related Products
Product Description
Application
WSHT Series lighting box is in line with IEC-493-1 standard, attractive and durable, safe and reliable, which is widely used in various places such as factory, mansion, residence, shopping center, solar system, and so on.
Technical Specifications
| Technical Specifications |
| Standard |
IEC-493-1 |
| Approval |
CE, RoHS, HF test, IK test, ISO9001 |
| Protection grade |
IP65 |
| Color of base |
Gray |
| The color of door |
Transparent |
| Mounting type |
Surface |

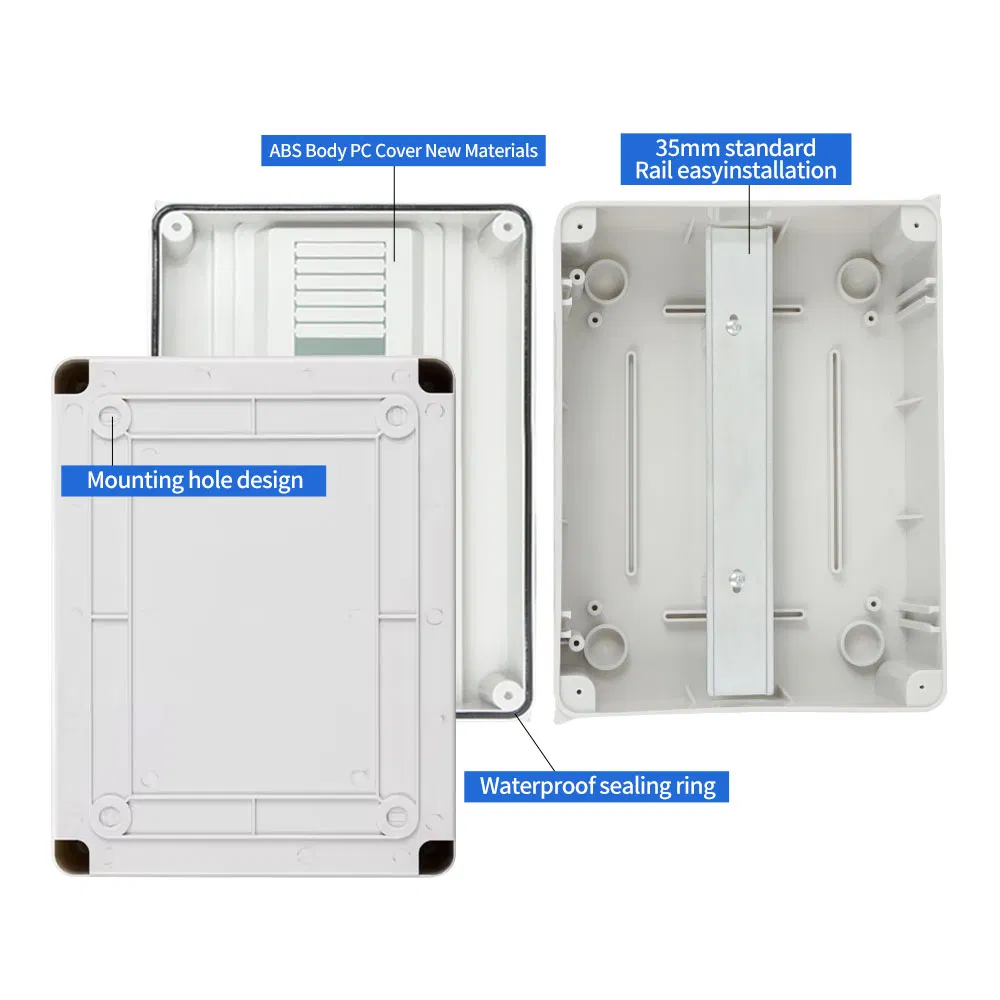

| Material |
ABS Body PC Cover |
| Zero bar/earth bar |
copper |
| guide |
35MM standard din rail |
| Fire resistance |
650°C /30s |
| Ambient temperature (°C ) |
-5 ~ +40, 50% humidity permitted under max +40°C |
| Storage temperature (°C ) |
-40 ~ +75 |
| Remark |

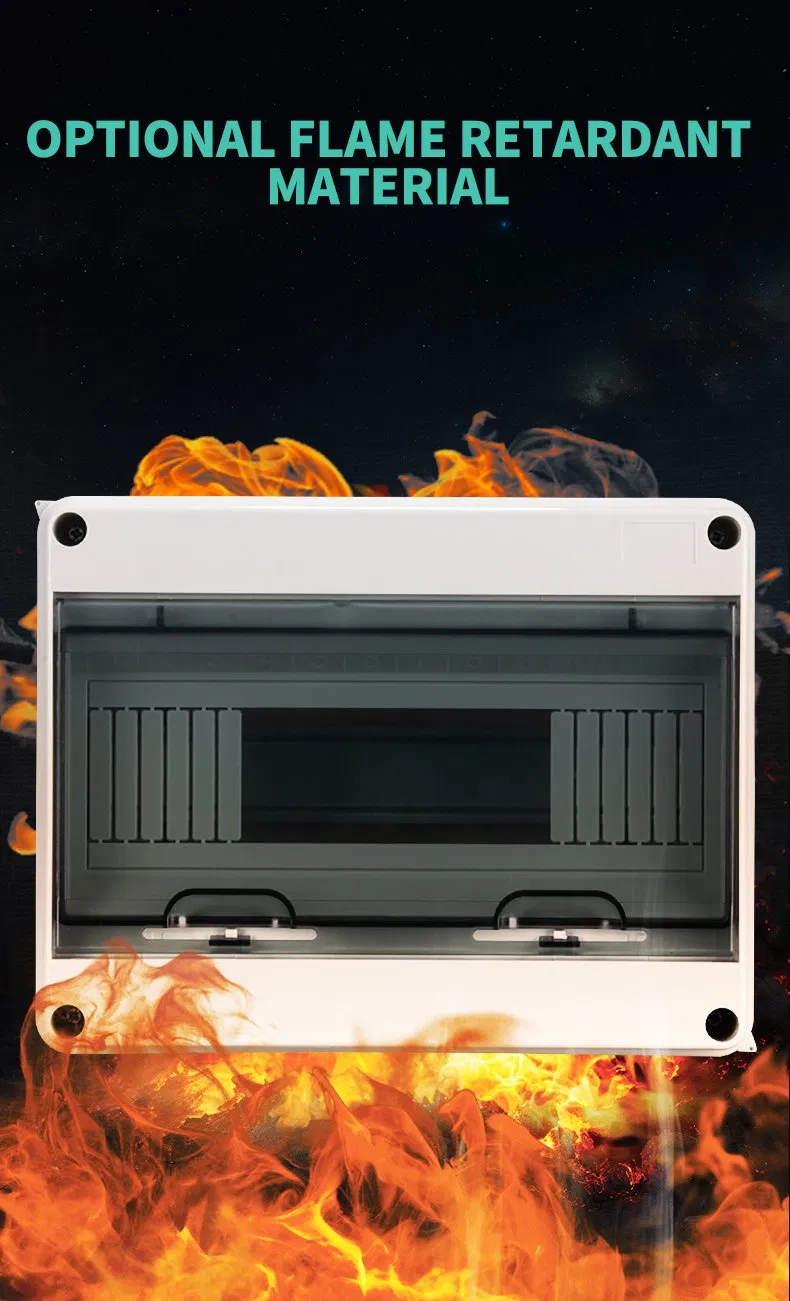

Conventional is not flame retardant, flame retardant needs to be customized |
Dimensions & Packing Data
| Model |
Product's size(mm) |
No.of breaker(pole) |
Net Weight(kg.) |
Qty/Carton |
Weight/Carton(KG) |
Carton Dimension(CM) |
| WSHT-2 |
50*116*95 |
2 |
0.15 |
100 |
15.3 |
56*28*48 |
| WSHT-3 |
80*160*95 |
3 |
0.3 |
50 |
15 |
44*35*54 |
| WSHT-5 |
115*155*90 |
5 |
0.34 |
40 |
15.2 |
50*34*51 |

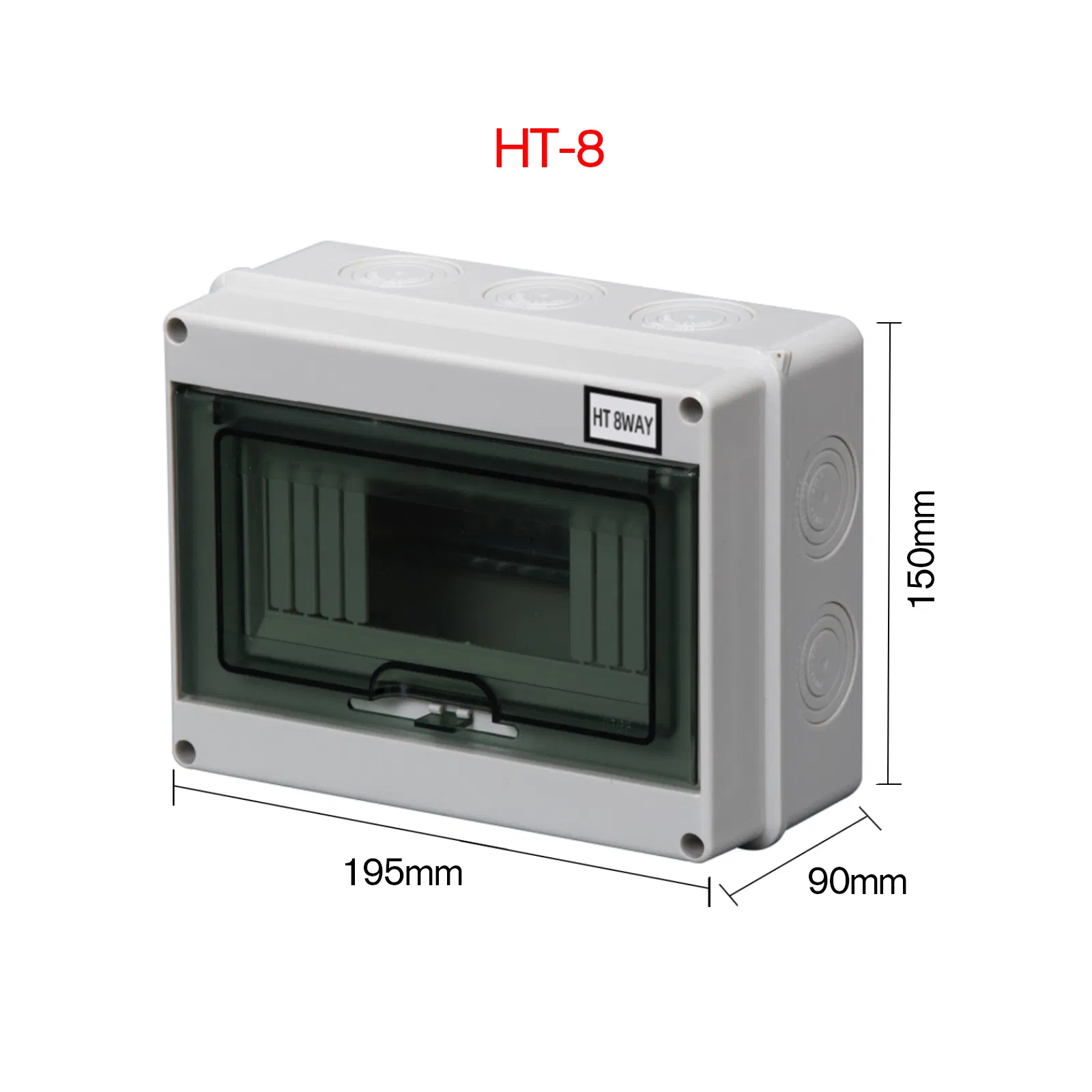

| WSHT-8 |
195*150*90 |
8 |
0.53 |
30 |
16.9 |
50*43*49.5 |
| WSHT-12 |
250*195*110 |
12 |
0.84 |
20 |
18 |
57*41.5*53.5 |
| WSHT-15 |
305*195*110 |
15 |
0.9 |
15 |
15.2 |
59*32.5*63.5 |
| WSHT-18 |
360*195*110 |
18 |
1.07 |
15 |
19.4 |
58*38*63 |
| WSHT-24 |
270*353*110 |
24 |
1.35 |
10 |
15.8 |
60*38*58.5 |
Our Professional Service
💬
Quick Reply
Average response time 2.75 hours
⚡
Quick Delivery
1000 PCS < 7 Days
📸
Photography Service
Free photos and videos of your products
👁️
Production Visualization
Synchronize the progress of your product production for you
🗣️
Barrier-free Communication
English major level 8 to improve communication efficiency
🛡️
After-sales Service
Two-year warranty and timely communication

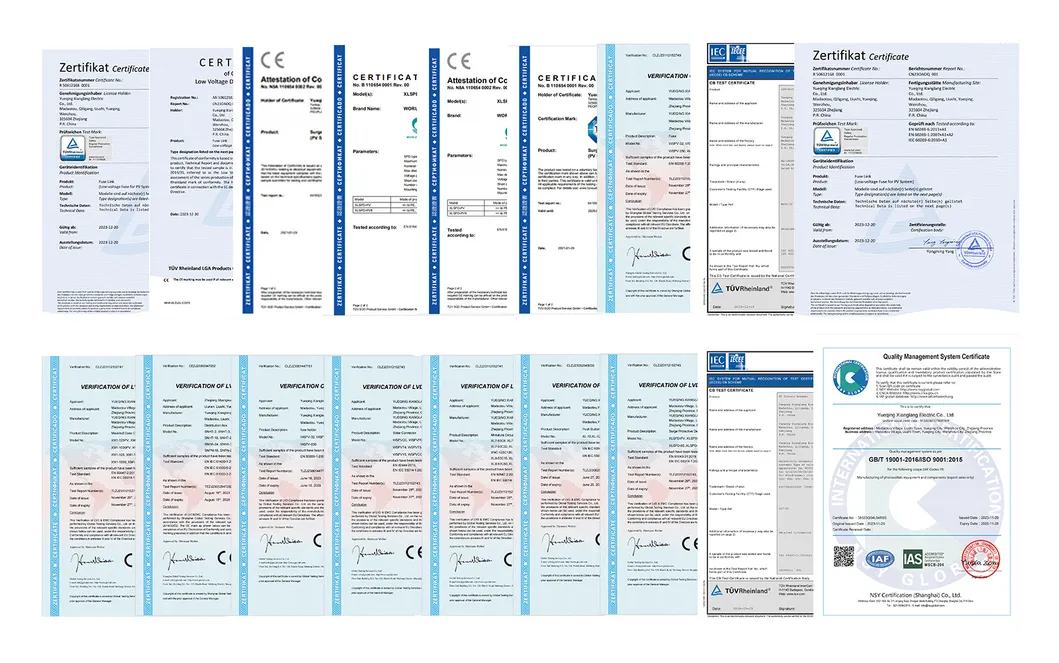

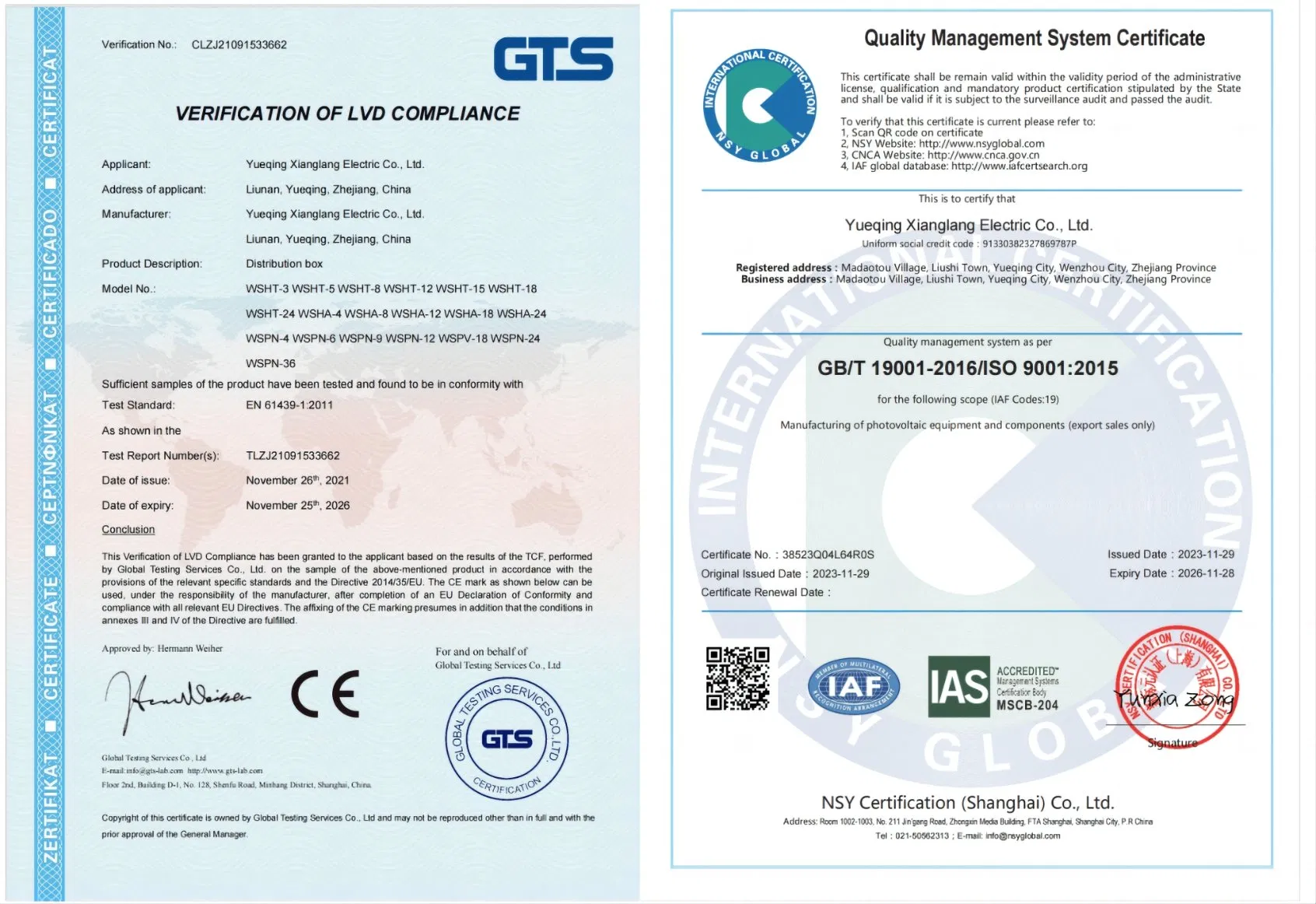

Certifications

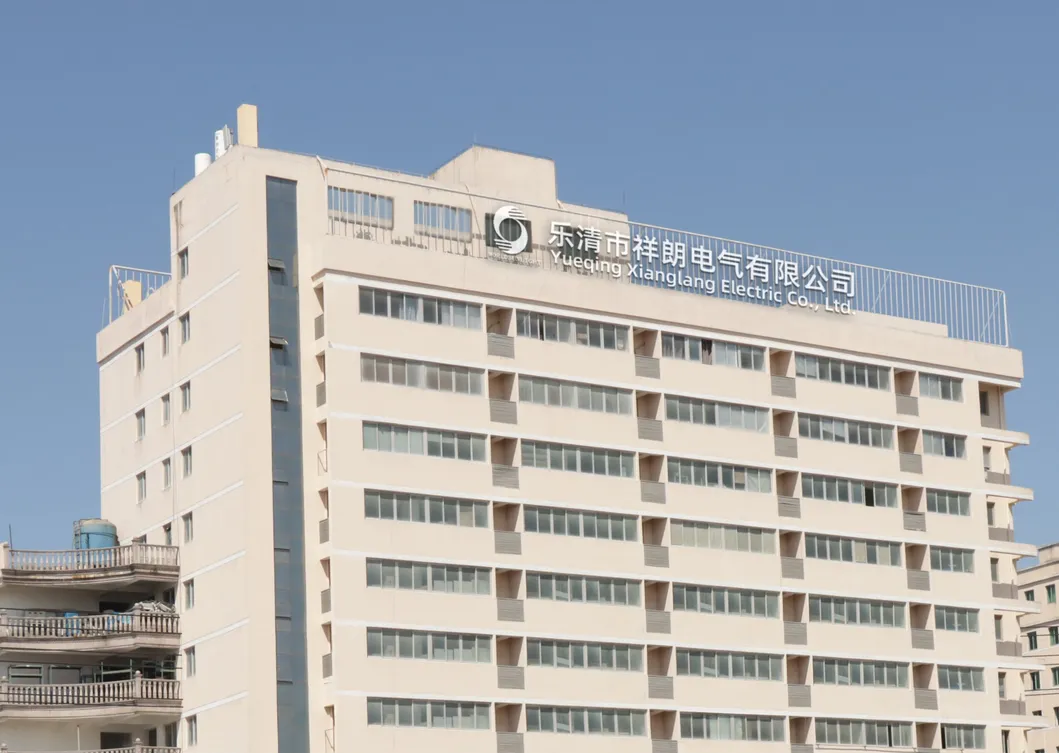

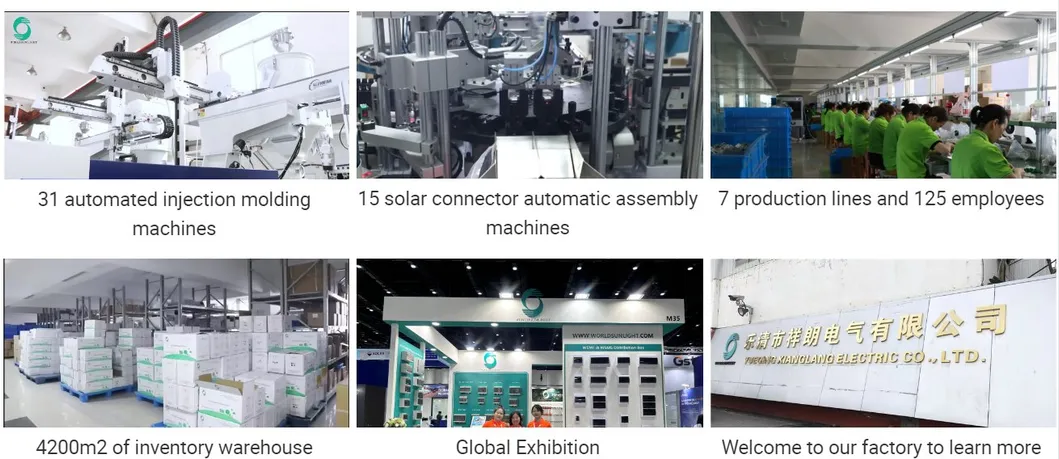

Company Profile
With over a decade of experience in the solar accessories industry, we have been dedicated to the manufacturing and R&D of solar products. With a factory spanning 10,700 square meters, our annual output exceeds US$20 million. Specializing in miniature circuit breakers, SPDs, fuses, solar connectors, distribution boxes, and combiner boxes, we boast CE, TUV, IEC, and ISO9001 certifications. Each product undergoes stringent quality control and testing. With over 10,000 project experiences, we have earned a reputation for high-quality products, competitive pricing, prompt delivery, and exceptional after-sales service. We look forward to a long-term partnership and mutual growth with you.
Packaging & Shipping
| Model |
Qty/Carton |
Weight/Carton(KG) |
Carton Dimension(CM) |
| WSHT-2 |
100 |
15.3 |
56*28*48 |
| WSHT-3 |
50 |
15 |
44*35*54 |
| WSHT-5 |
40 |
15.2 |
50*34*51 |
| WSHT-8 |
30 |
16.9 |
50*43*49.5 |
| WSHT-12 |
20 |
18 |
57*41.5*53.5 |
| WSHT-15 |
15 |
15.2 |
59*32.5*63.5 |
| WSHT-18 |
15 |
19.4 |
58*38*63 |
| WSHT-24 |
10 |
15.8 |
60*38*58.5 |
Each product is packed in plastic + paper box inner packaging, and then in standard carton outer packaging.
Frequently Asked Questions
When can I receive quotation and detail information after sending the enquiry?
A reply with complete details will be sent to you within 24 hours.
Do you provide samples? Is it free or extra?
Yes, we can offer product samples free of charge, but we do not cover the cost of freight.
How is the delivery time, especially for urgent needs?
Sample orders generally take 3-5 days. For larger orders exceeding 1000 pcs, it takes approximately 7-15 days.
What is the difference between your distribution boxes and other suppliers with lower prices?
Our distribution boxes are manufactured entirely using brand new raw materials, ensuring durability and safety, whereas some lower-priced alternatives in the market utilize recycled materials.
How is the warranty and how do you control the product quality?
We offer a 3-year warranty for our customers. Quality control follows strict IEC standards with four testing steps: 1) Raw material testing, 2) Production process supervision records, 3) Finished product performance tests, and 4) Pre-factory testing.
Do you support OEM & ODM services?
Yes, we support both OEM and ODM custom solutions. We can design and customize molds to match your specifications and ensure rapid production. Minimum Order Quantity (MOQ) applies to certain customized items.
