Durable Outdoor Power Distribution Box for Modular Grids

Customization: Available
Type: Distribution Metering Box
Structure: Protection

Product Description

Basic Info.
Model NO. Cable Branch Box
Certification CCC
Form All- packaged Type
Operation Voltage High Voltage
Application Range Power Plants
Shell Material Stainless Steel
Shell Protection Grade IP30
Rated Voltage 12 Kv
Rated Frequency 50Hz
Rated Current 630A
Transport Package Export Standard Wooden Case
Specification customized
Origin China
Product Description

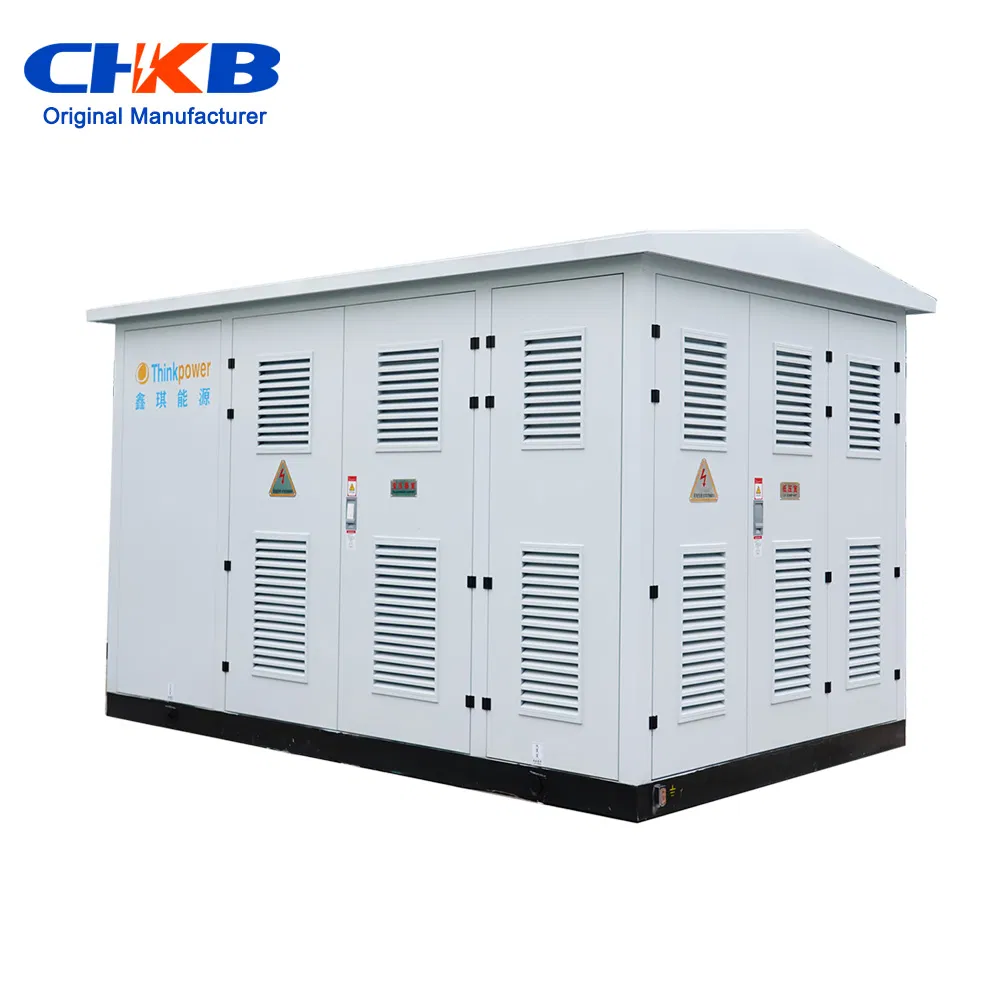

Durable Outdoor Power Distribution Box for Modular Grids Durable Outdoor Power Distribution Box for Modular Grids Durable Outdoor Power Distribution Box for Modular Grids
Durable Outdoor Power Distribution Box for Modular Grids Durable Outdoor Power Distribution Box for Modular Grids Durable Outdoor Power Distribution Box for Modular Grids
Durable Outdoor Power Distribution Box for Modular Grids
The interior of the box is divided into two parts: bus room and cable bin by cable silo roof plate. The bus room is a sealed chamber made of 2mm steel plate. The cable connector bracket is located at the upper part of the bus room and is used to support the casing, which is used to secure the cable connection, with an interphase distance of 180mm. In the case of a lightning arrester type, the rear of the cable connector mounted by the arrester. In addition, short-circuit indicators and live displays are also installed in the bus room. All live parts of the bus room are subjected to strict silicone rubber outsourcing insulation. The cable bin is located under the bus room, is the passage of the cable in and out, and there are cable clamps and grounding terminals in the cable bin.
Working Conditions
Ambient Temperature: Maximum temperature: +40°C, minimum temperature: -30°C.
💨
Wind Speed: Quite 34m/s (no more than 700Pa).
💧
Humidity: The average daily relative humidity should not be greater than 95%, and the average monthly relative humidity should not be greater than 95%.
⛰️
Shockproof: The horizontal acceleration shall not be greater than 0.4m/s².
🏗️
Installation Environment: The surrounding air is not corrosive, flammable gas, water vapor and other obvious pollution, the installation site is not violent vibration.
The Main Technical Parameters
Project Parameter
Rated insulation working voltage 400
Rated operating voltage AC380, AC220
Maximum rated current 100A
Short time withstand current 6kA
Protection level IP30
