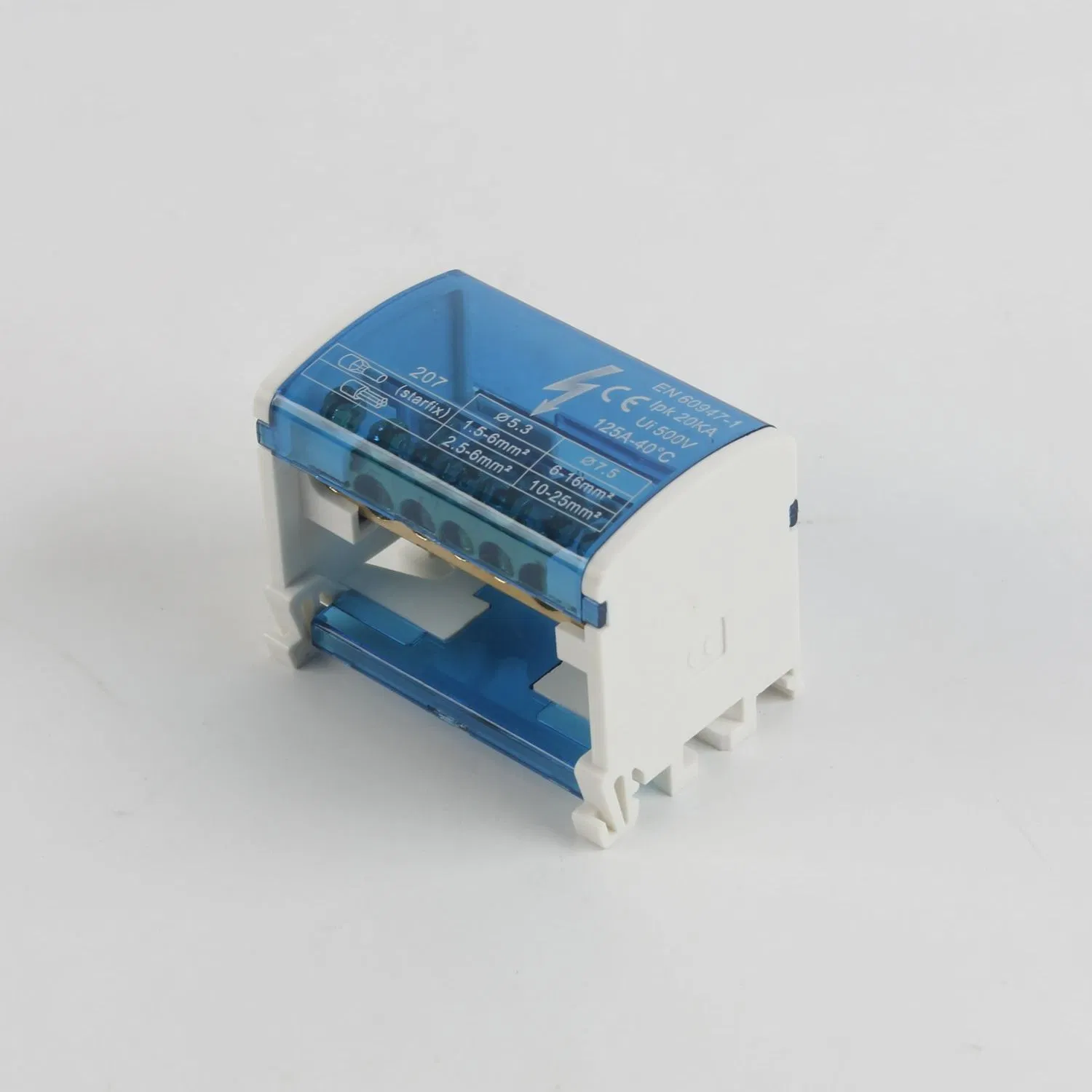

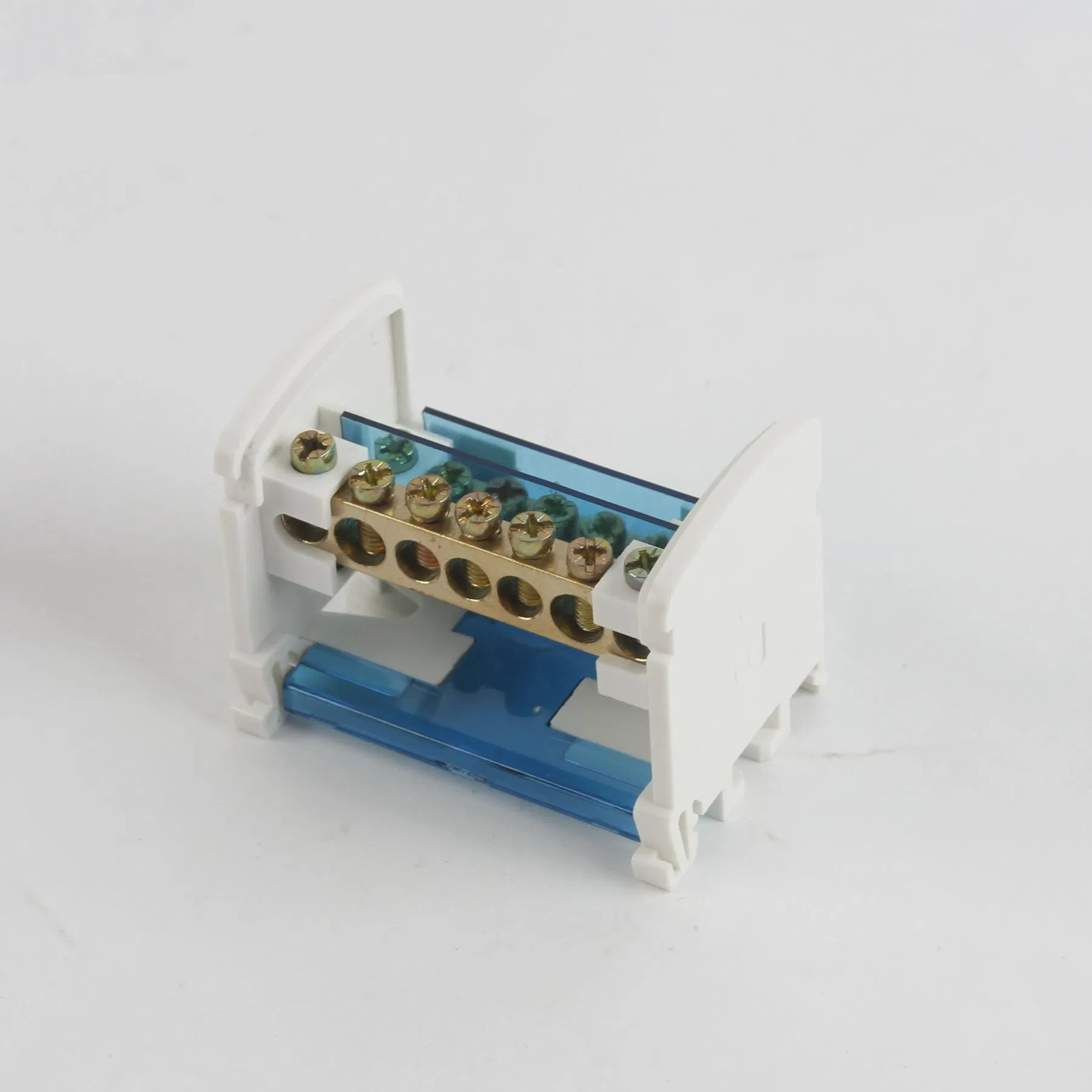

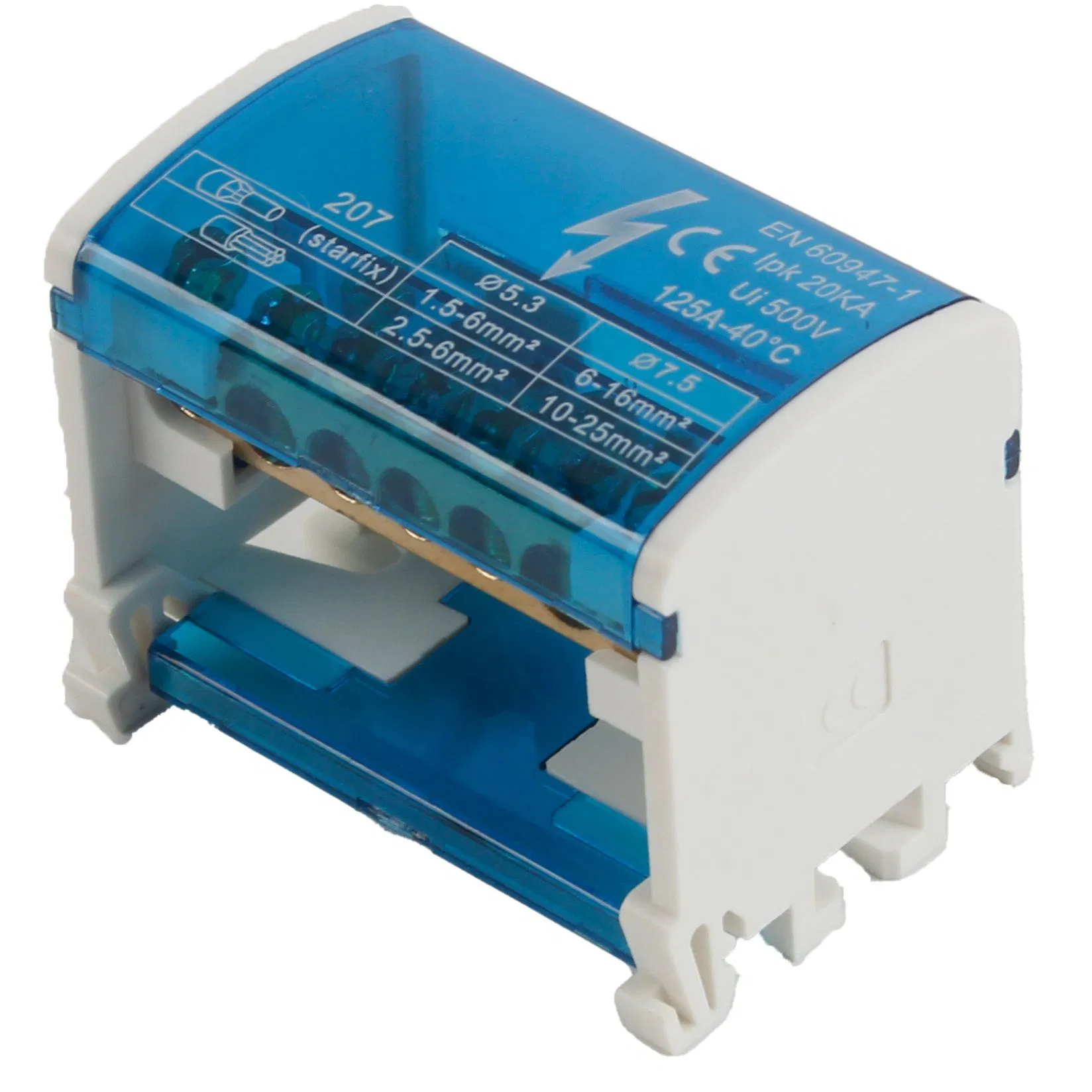

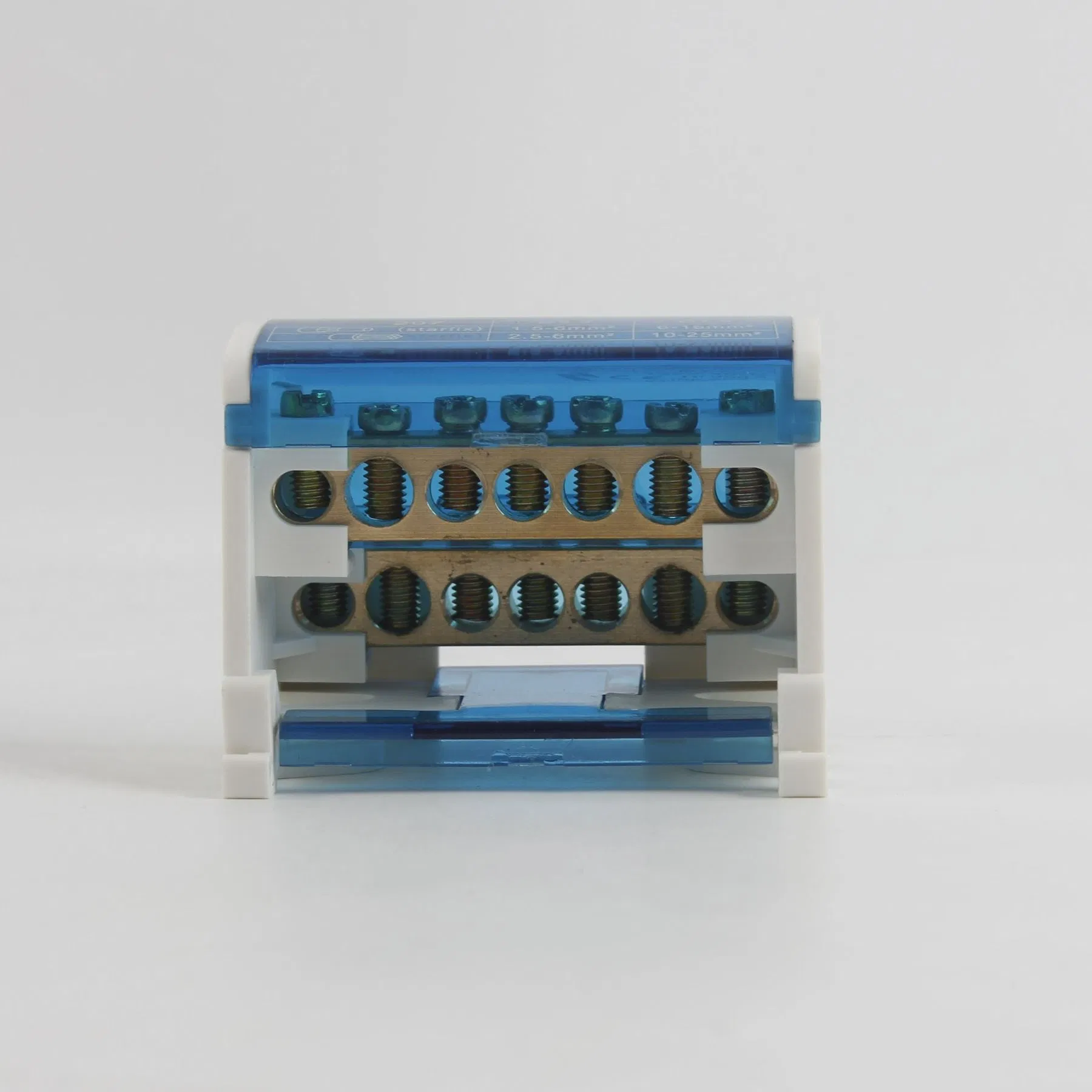

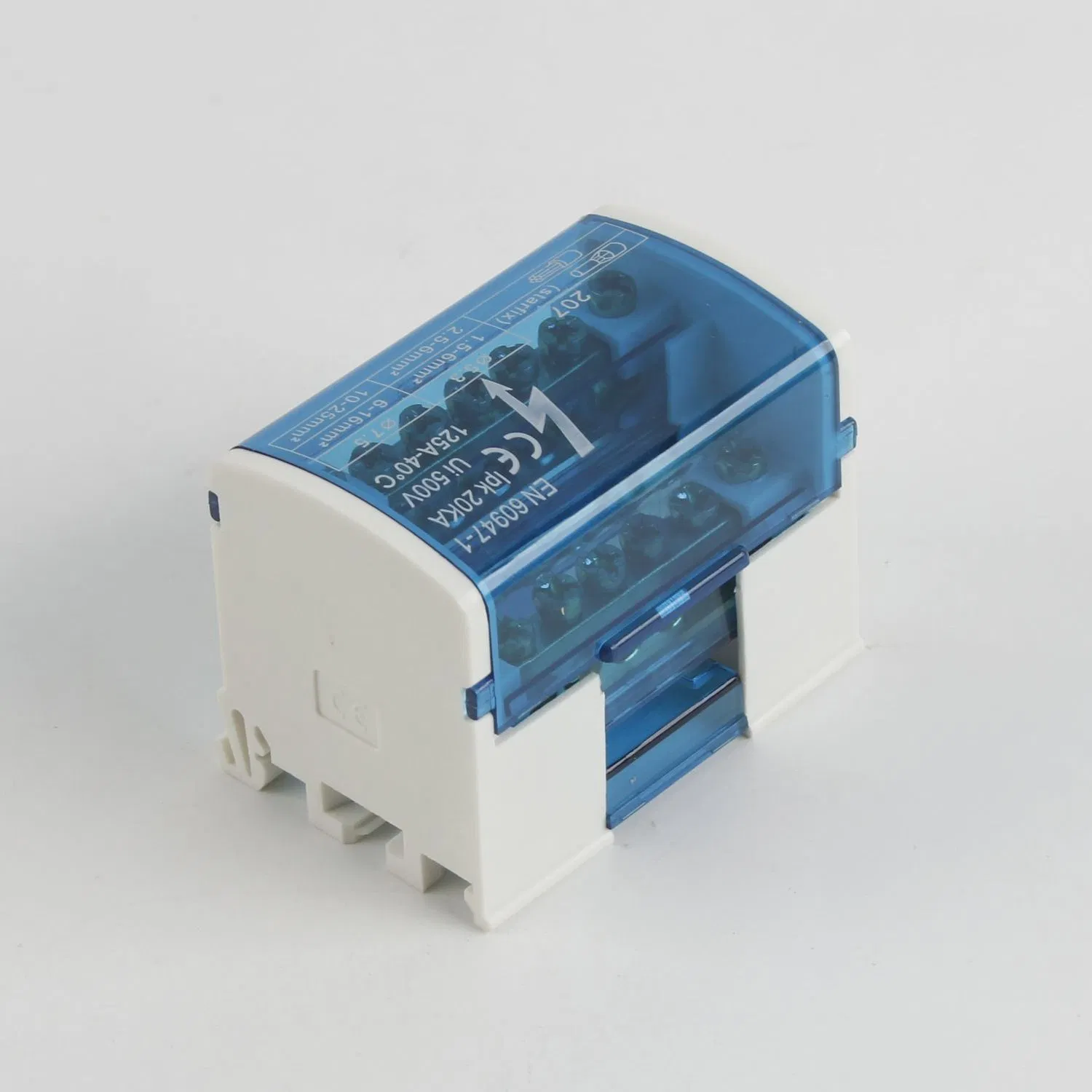

207 DIN Rail Electrical Junction Box Power Distribution Modular Terminal Block Connector

Basic Info

Model NO.

207

Character

Environmental Protection

Species

Terminal

Production Process

Injection Molding

Shape

Square

Interface Type

AC/DC

Model number

207

Rated Voltage

500V

Rated Current

125A

Selling Units

Single Item

Sample

If You Need Sample, We Can Supply for You.

Product Name

Terminal Junction Box

Package

Carton

Grade of Flame Retardant

UL94V0

Insulation Material

PA66 / PC

Color

Transparent Blue Cover

Transport Package

Carton

Packaging & Delivery

Package Size

42.00cm * 38.00cm * 30.00cm

Package Gross Weight

23.500kg

Product Recommendations

DIN Rail Electrical Junction Box Power Distribution Modular Terminal Block Connector

Product Description

Blue Terminal Junction Box

Our Transparent Blue Cover Modular Terminal Block is designed for reliable, efficient, and safe electrical distribution in industrial and commercial applications. Featuring a clear blue lid, users can easily inspect connections without dismantling the cover. The modular DIN rail design allows flexible installation, supporting quick assembly and future expansion.

MODEL	Current	Voltage	L1	L2	H	W	Max section	Hole Qty
207	125A	500V	67	48	50	45	35mm²	2×7

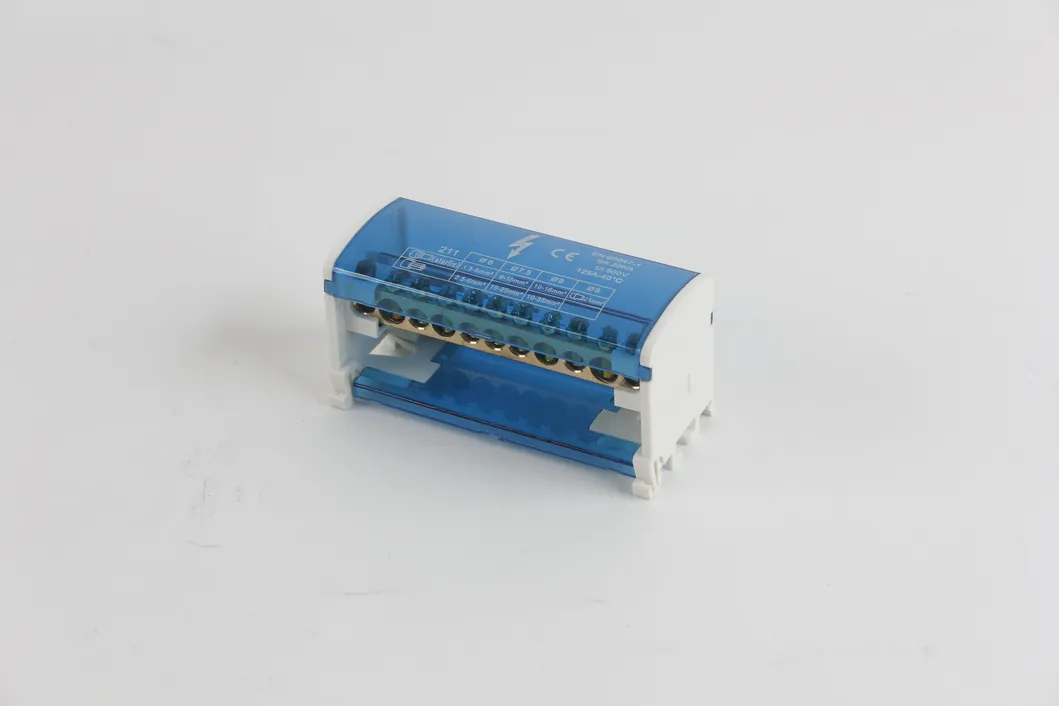

211	125A	500V	100	86	50	45	35mm²	2×11

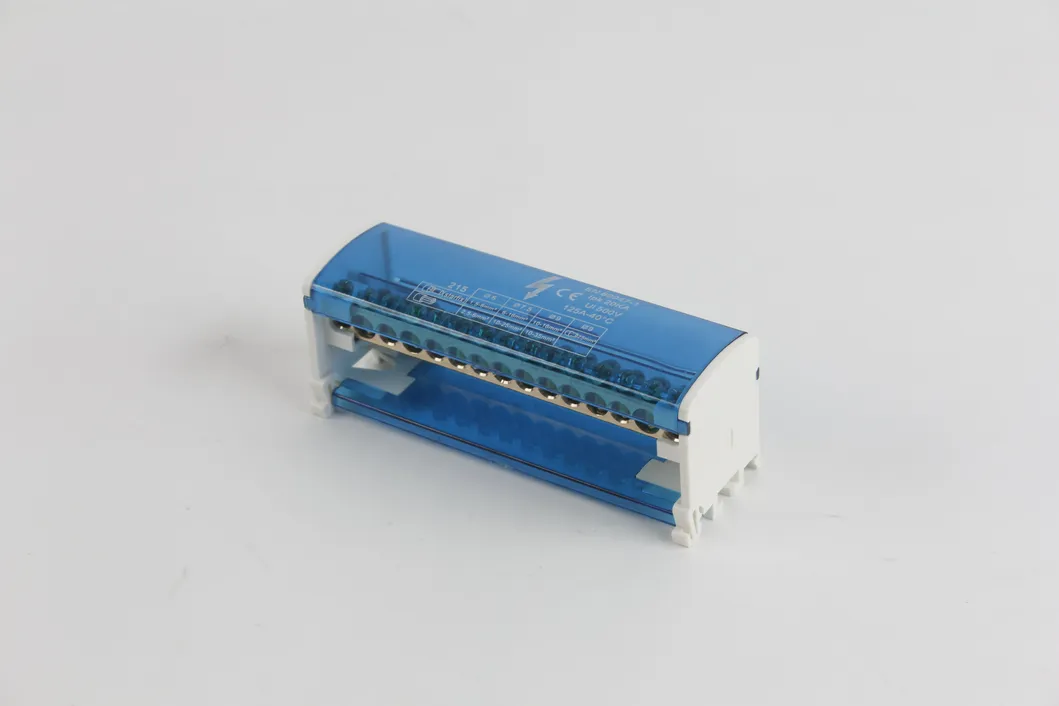

215	125A	500V	134	118	50	45	35mm²	2×15
407	125A	500V	67	48	50	90	35mm²	4×7

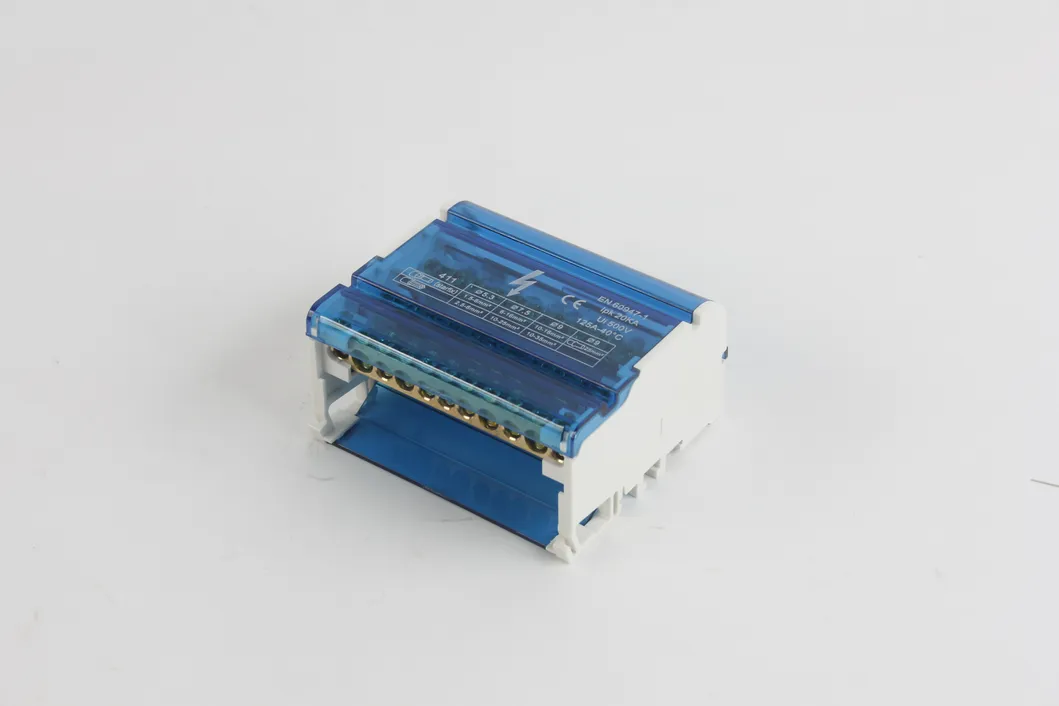

411	125A	500V	100	86	50	90	35mm²	4×11
415	125A	500V	134	118	50	90	35mm²	4×15

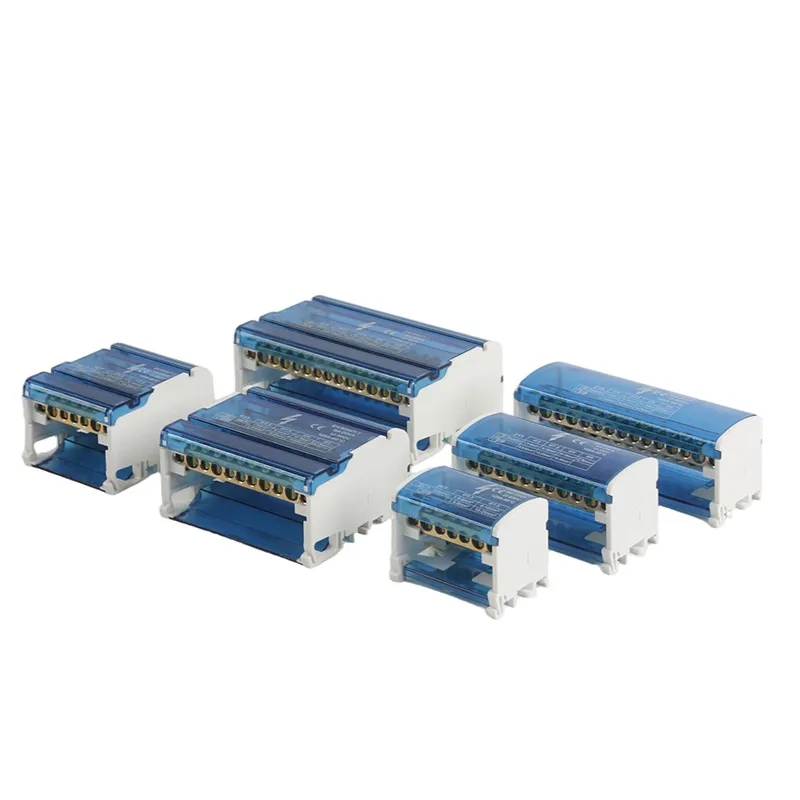

Key Features

Transparent Blue Cover: Provides clear visibility of wiring status, ensuring safety and easy inspection.
Modular Design: Units can be connected or expanded according to system requirements.
DIN Rail Installation: Standard 35 mm rail compatibility for fast mounting and removal.
High-Safety Material: Made of flame-retardant PA66/PC, with excellent insulation and high-temperature resistance.
Reliable Conductor: Tin-plated copper or nickel-plated conductor for stable, corrosion-resistant performance.
Multiple Outputs: Supports single input with multiple outputs (commonly 4-6 lines), ideal for main cable branching.

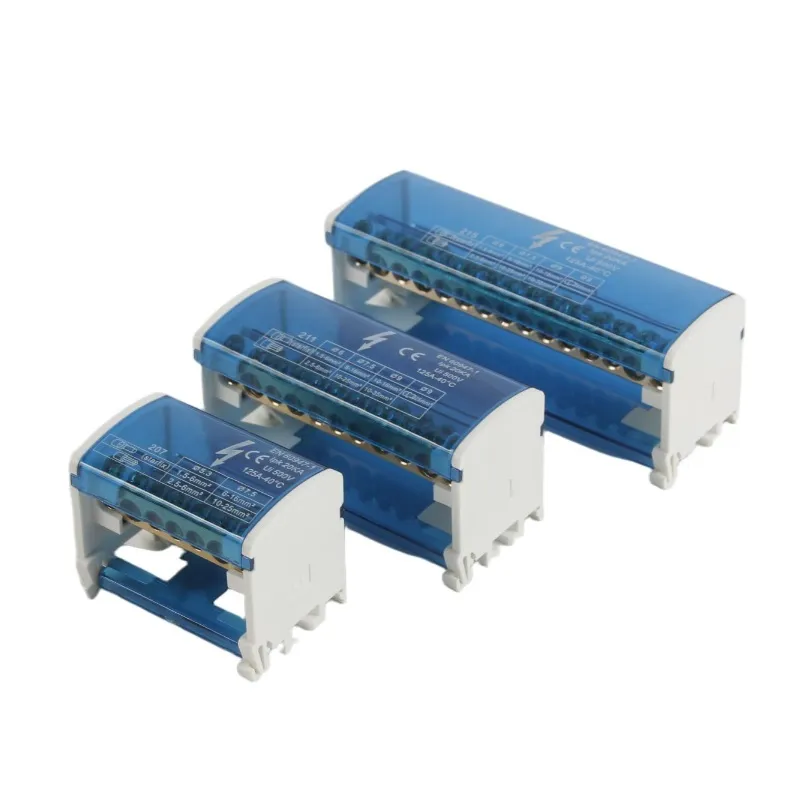

Applications

Power Distribution Boxes: Replaces traditional bolt connections with safer modular terminals.
Industrial Control Cabinets: Simplifies wiring, centralizes connections, and enhances safety.
Solar PV Systems: Effective for DC power distribution and combiner box connections.
Communication Power Systems: Provides secure and organized output terminations.

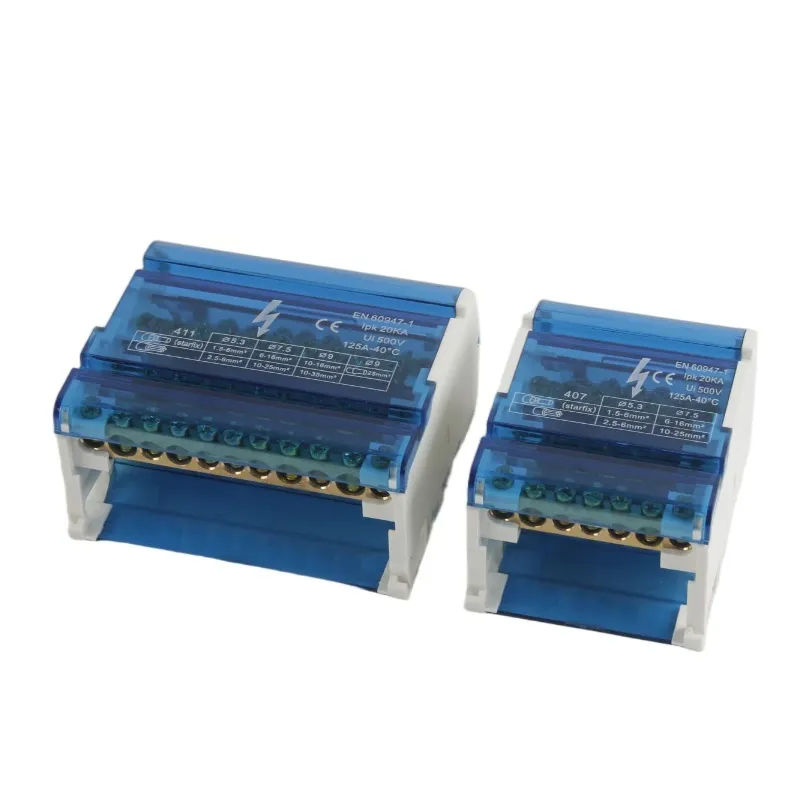

Advantages

Visual Safety - Transparent cover makes wiring inspection quick and intuitive.
Flexible Assembly - Modular design allows easy expansion and system adaptation.
Quick Installation - DIN rail mounting saves time and labor costs.
Durable & Reliable - High-quality materials ensure long service life under demanding conditions.

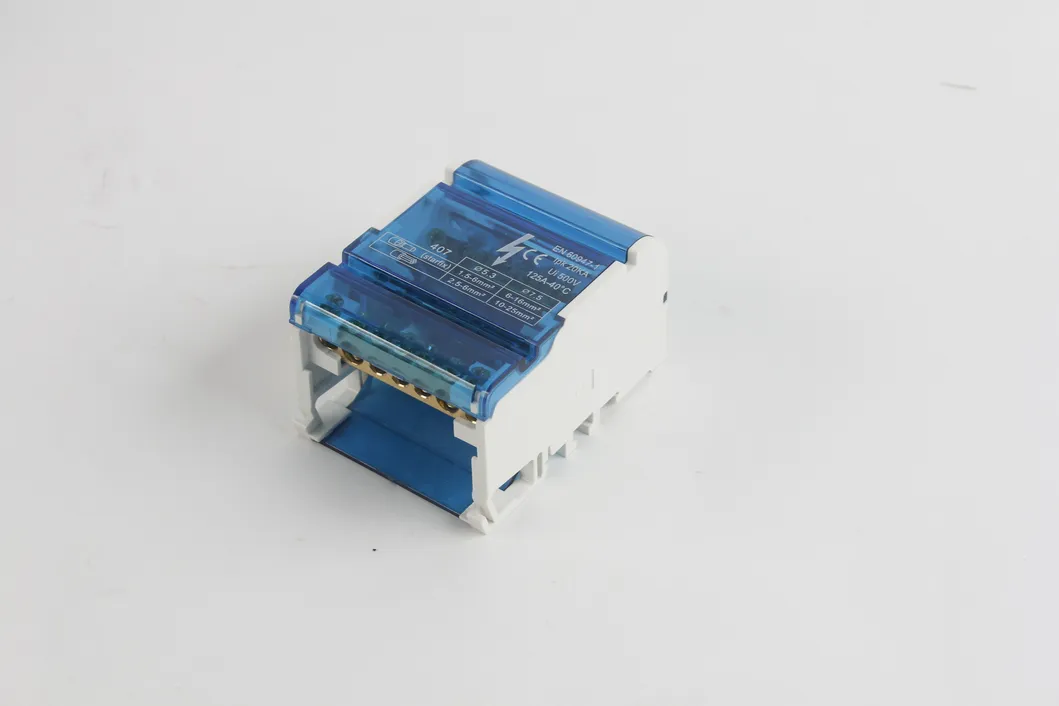

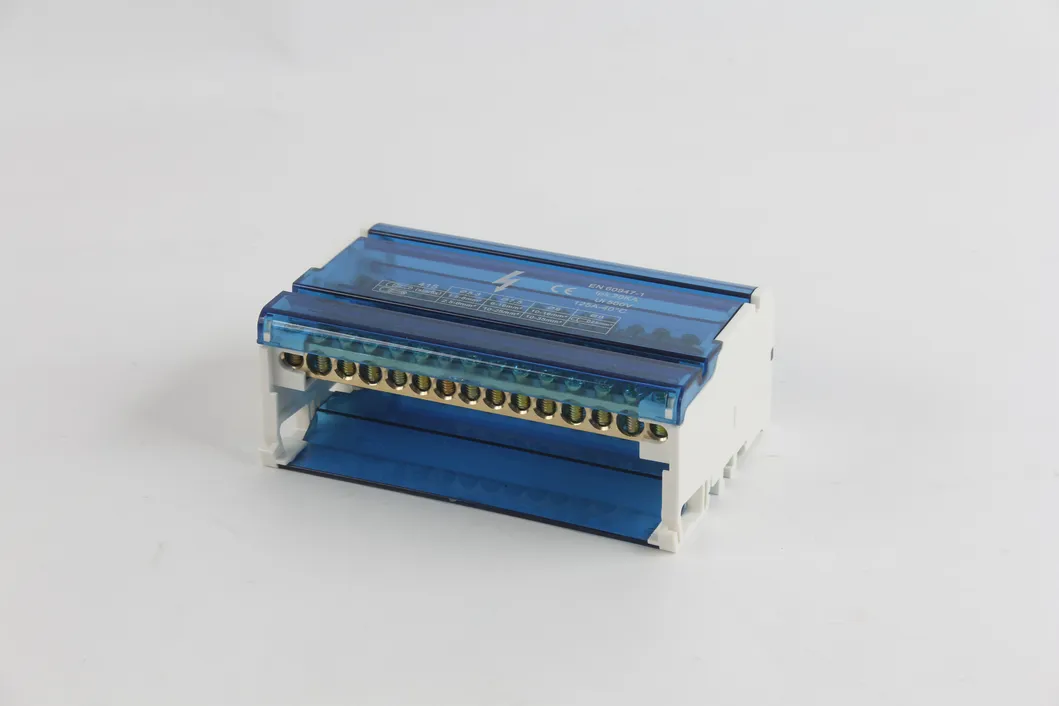

Product Parameters Diagrams

Manufacturing & Capacity

We are dedicatedly engaged in the production of industrial plugs & sockets, distribution boxes, junction boxes, isolators, and electrical accessories, and hold relevant patent certificates. Our facility operates under ISO9001, ISO14001, and ISO45001 management standards. Our products have earned international certifications including CE, ROHS, TUV, and CB.

Believing that quality is our lifeblood, we have established a professional technical R&D team and a highly skilled workforce. We are fully equipped with advanced production lines and high-tech machinery, allowing us to seamlessly handle OEM and ODM orders.

Quality Guarantee

Our pledge to excellence is embodied in our promise of swift 24-hour resolution for any quality complaints, nurturing customer satisfaction while driving continuous enhancement.

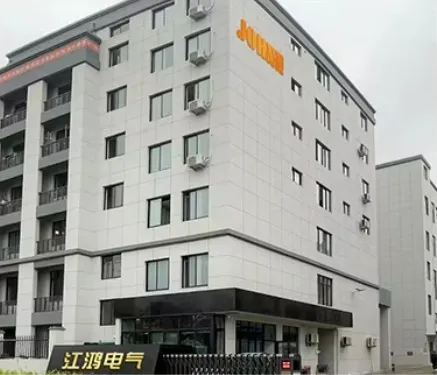

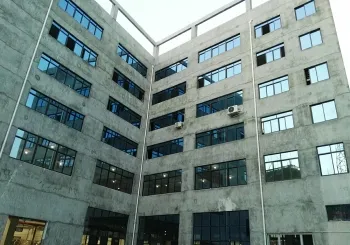

Welcome to the Factory

25+ Years

Dedicated expertise in the electrical industry.

5000 m²

State-of-the-art manufacturing facility.

100+ Countries

Trusted global footprint and client network.

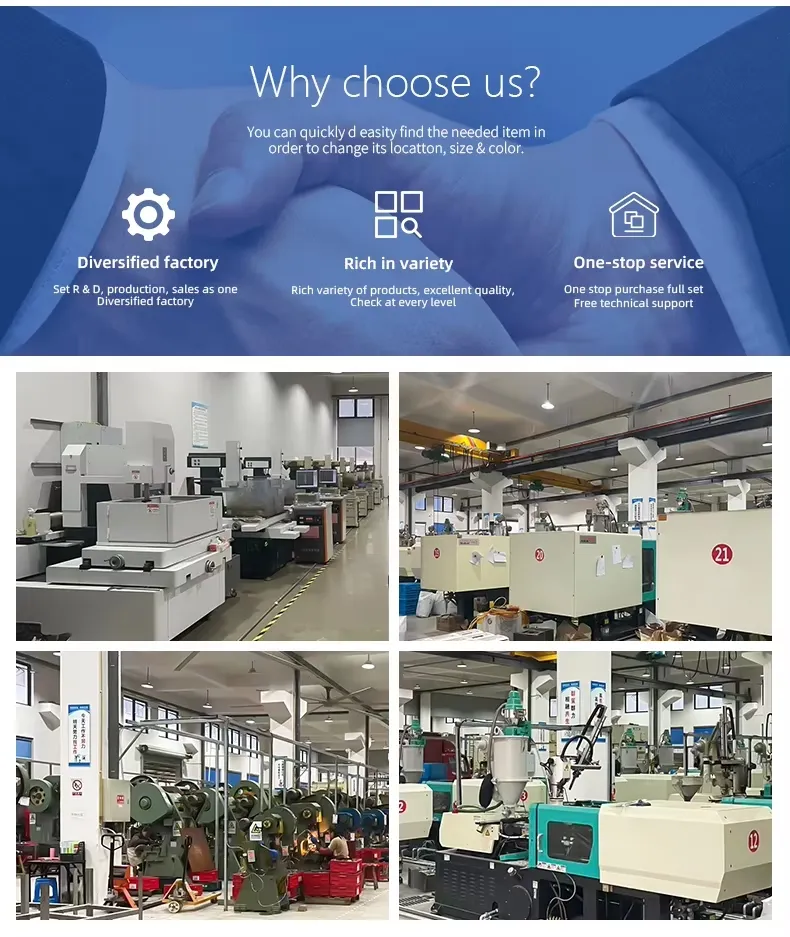

OUR PRODUCTION CAPACITY
