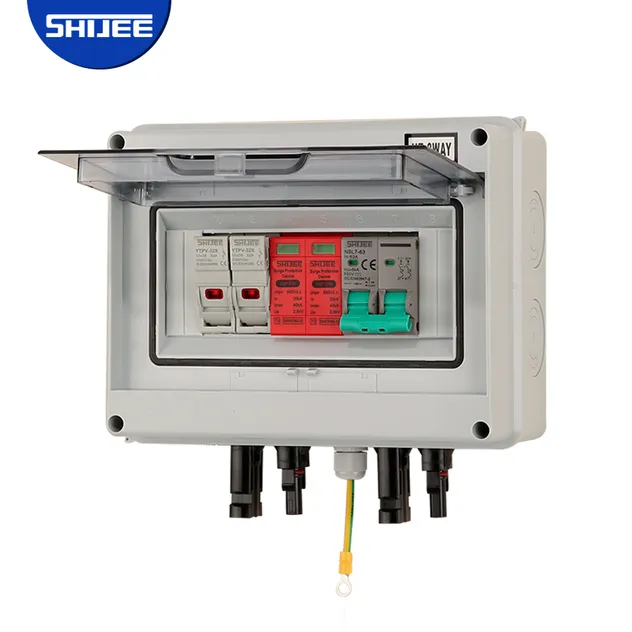

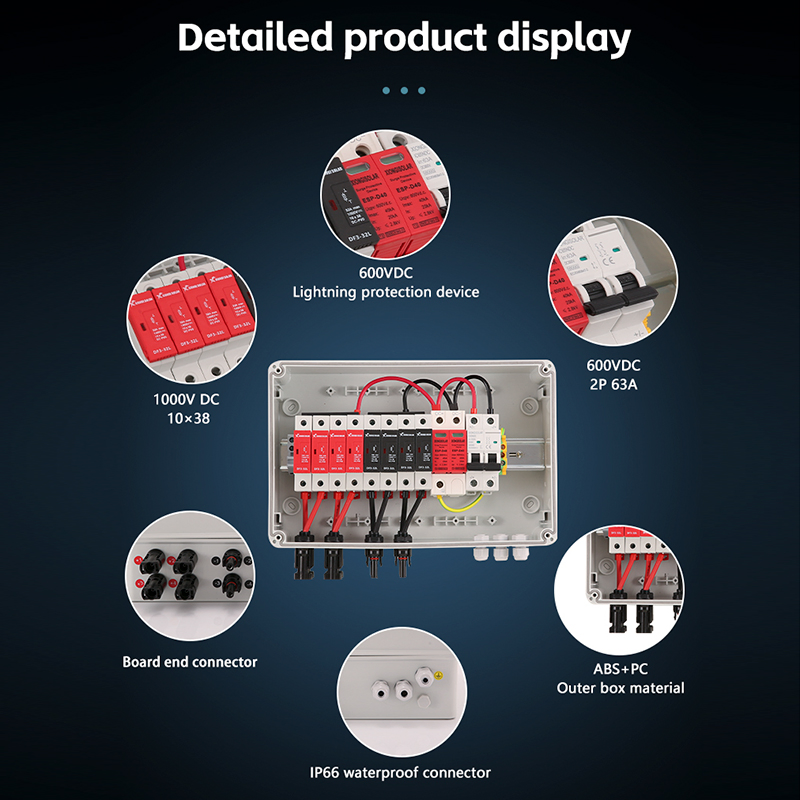

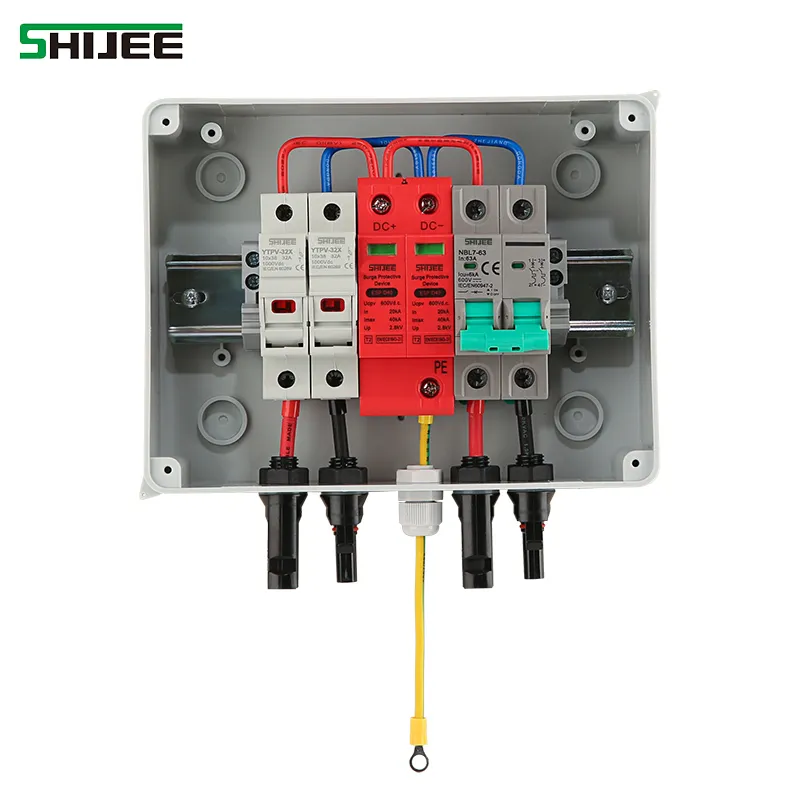

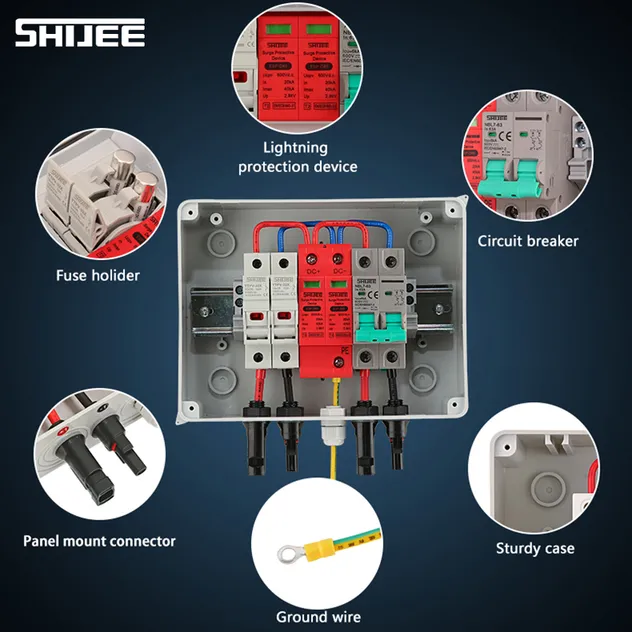

| Product Name | 1-in-1-out 600V DC Solar PV Combiner Junction Box |
| Rated Voltage (DC) | 600 V |
| Input Current Rating | 15 A |
| Circuit Breaker Rating | 63 A (DC MCB / DC Disconnector) |

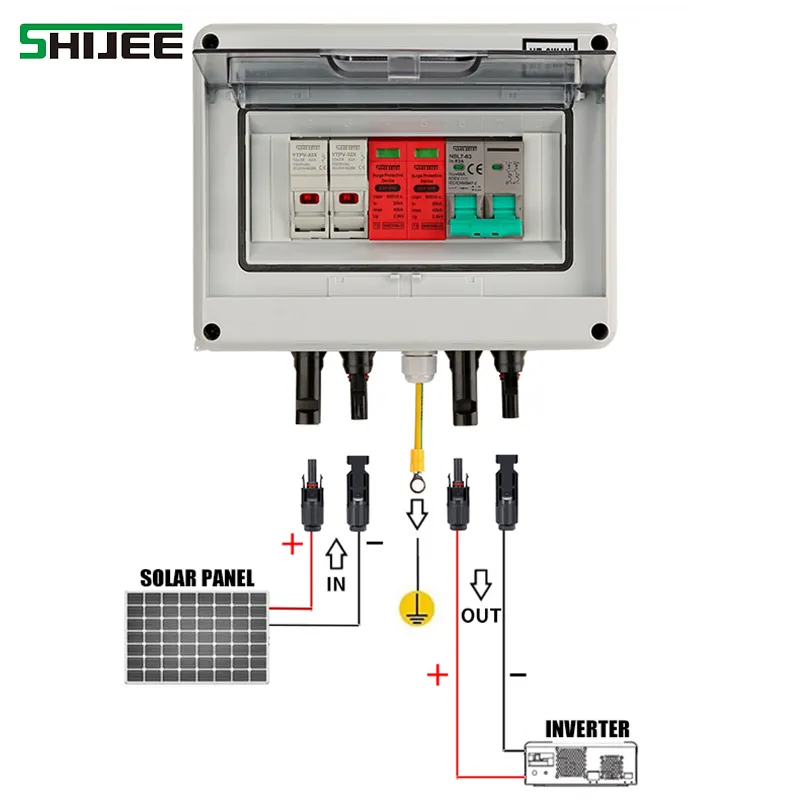

| Input / Output Configuration | 1 Input / 1 Output |
| Protection Level | IP65 (Dust-tight & Water-jet protected) |
| Enclosure Material | UV-resistant engineering plastic (PC/ABS) or fiberglass-reinforced polyester |
| Ingress Protection | IP65 (suitable for outdoor use) |
| Terminal Type | Screw terminals or pluggable connectors (MC4 compatible or similar) |
| Surge Protection (Optional) | Integrated SPD (Surge Protective Device) available |
| Operating Temperature | -25°C to +60°C (wider ranges optional) |
| Mounting | Wall-mounted, DIN rail mounted, or direct panel mounting |
| Cable Entry | PG glands or cable glands for 4–12 mm² cables |
| Certifications | CE, TUV, IEC 60947-3, IEC 62109 (depending on model) |
| Color | Typically gray or black (UV-stable) |

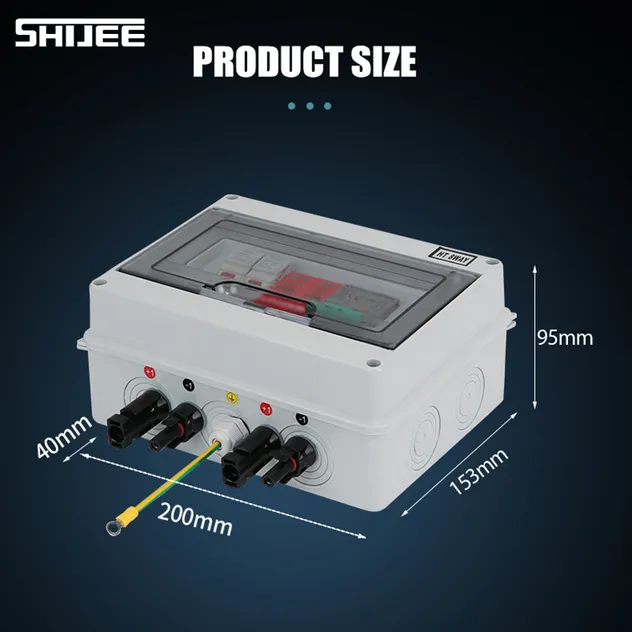

| Dimensions (L×W×H) | Approx. 200×150×80 mm (varies by model) |
| Application | Small-scale solar PV systems, balcony PV, single-string systems, monitoring or protection extension points |
| Key Features | Weatherproof, compact design, easy installation, reliable DC overcurrent protection, suitable for harsh outdoor environments |
