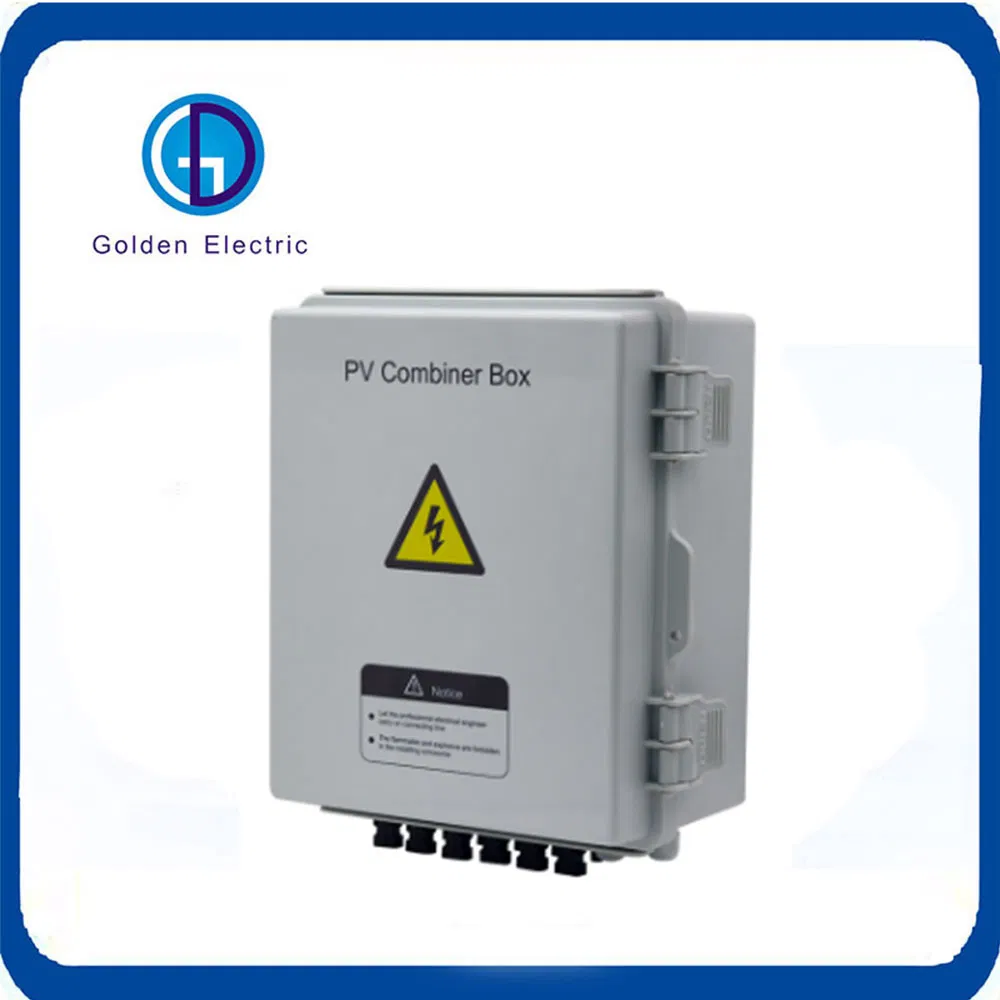

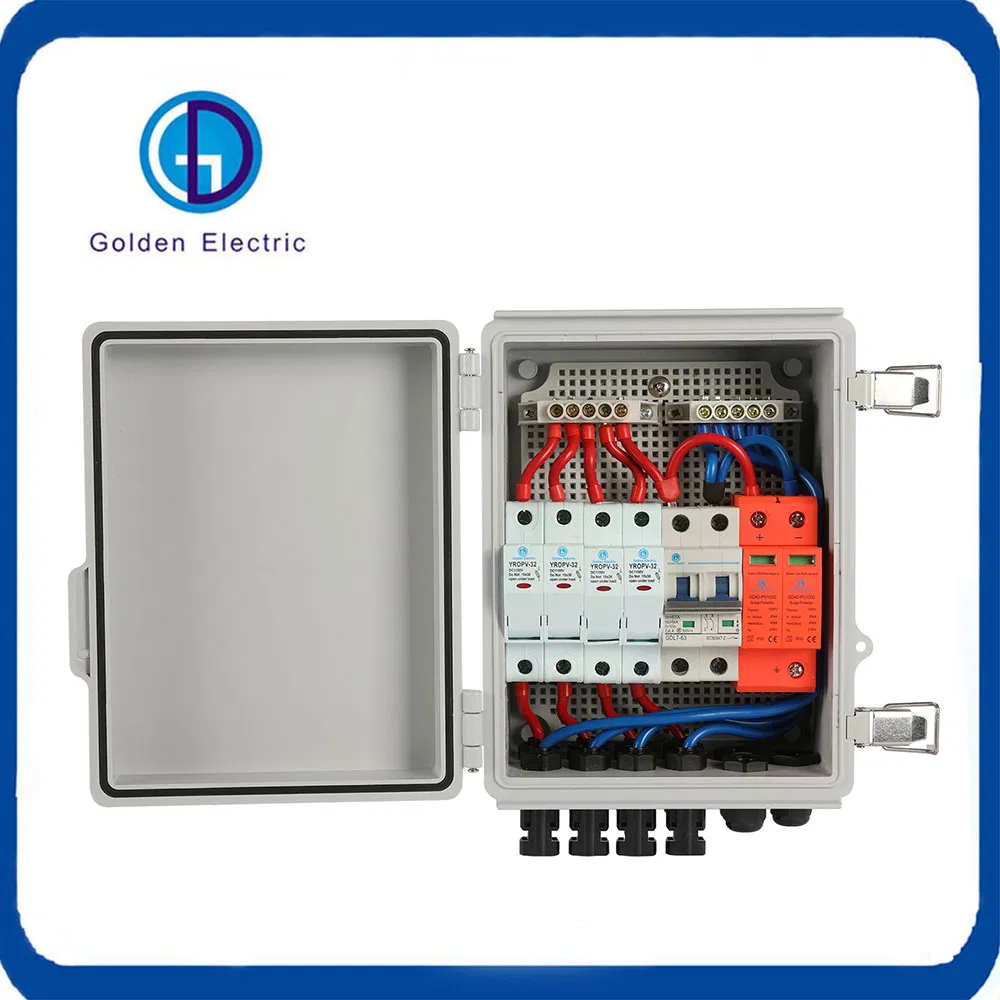

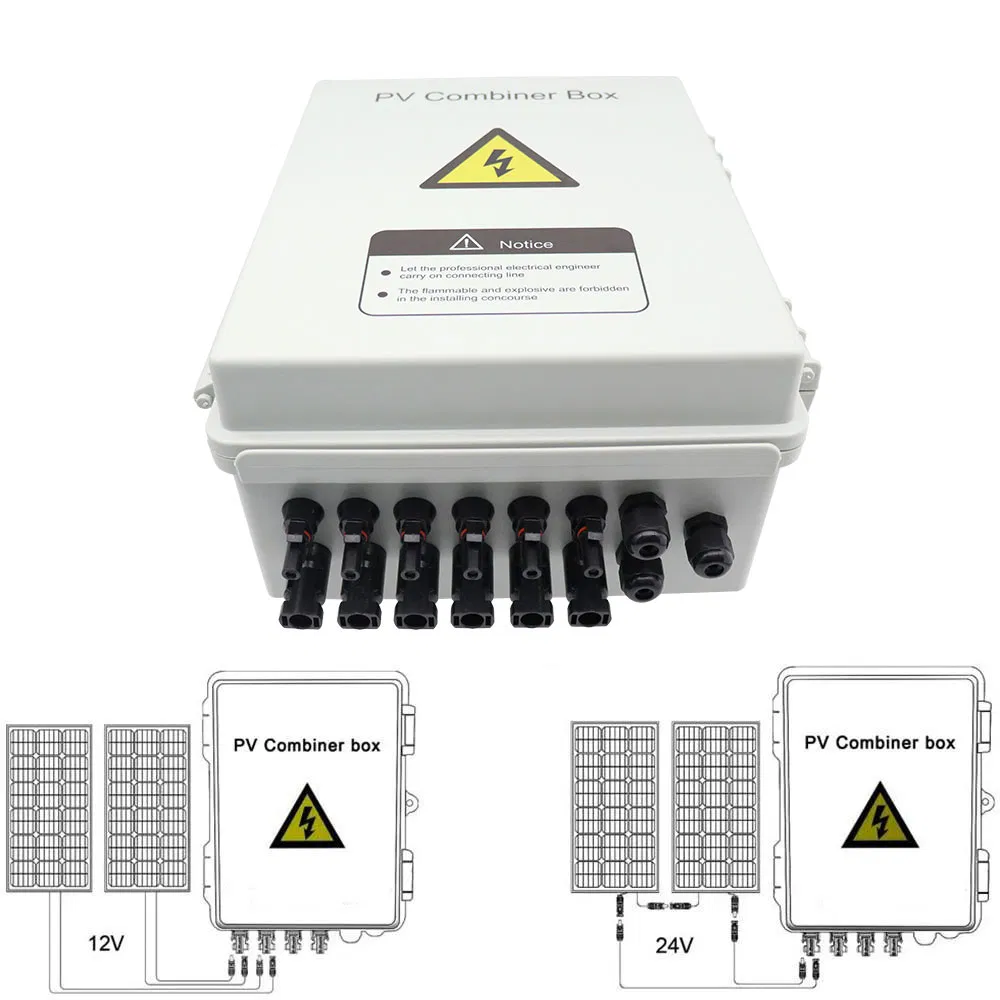

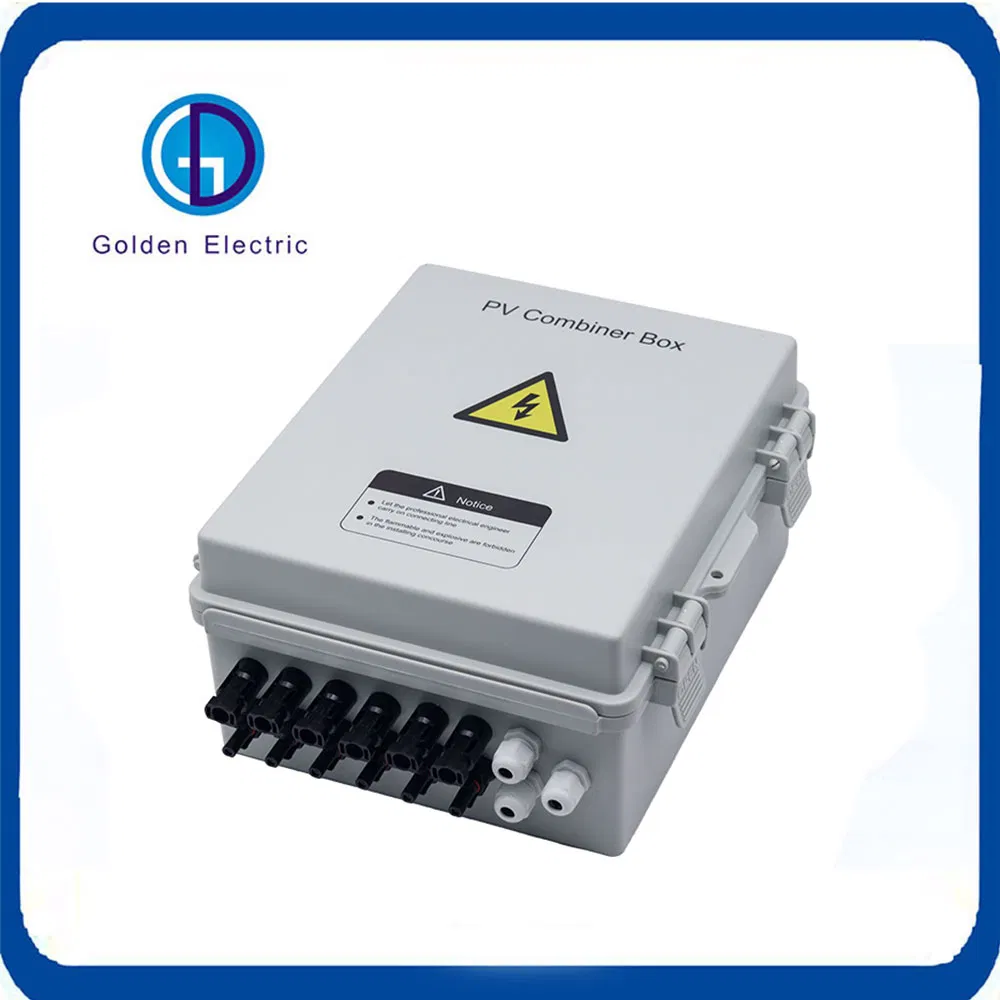

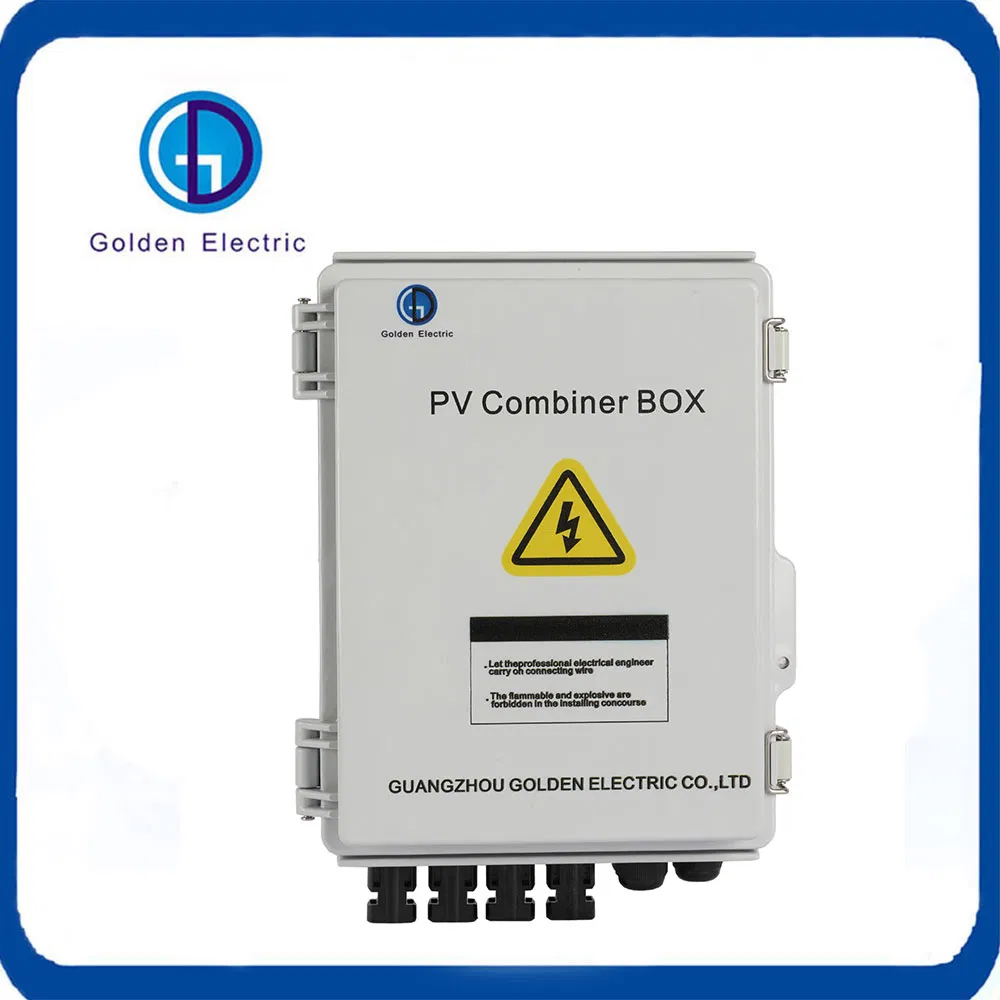

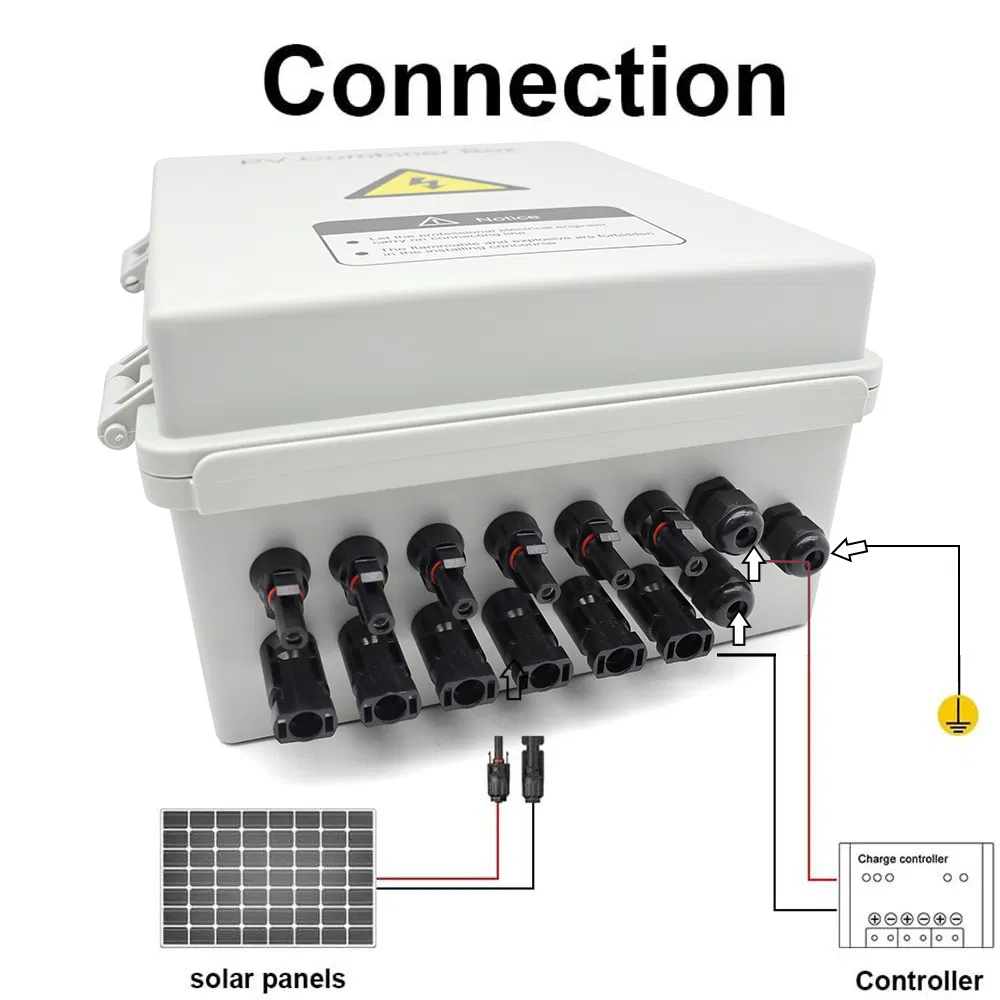

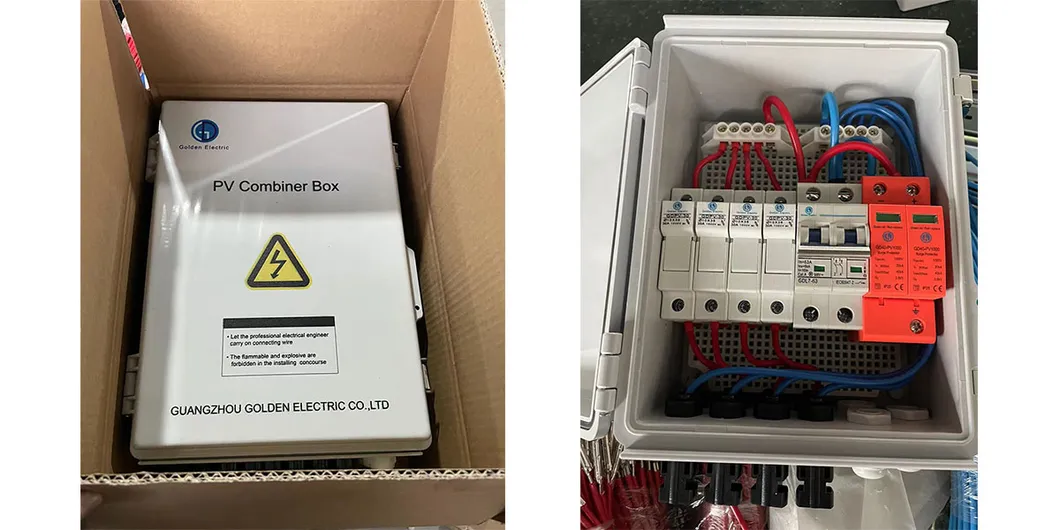

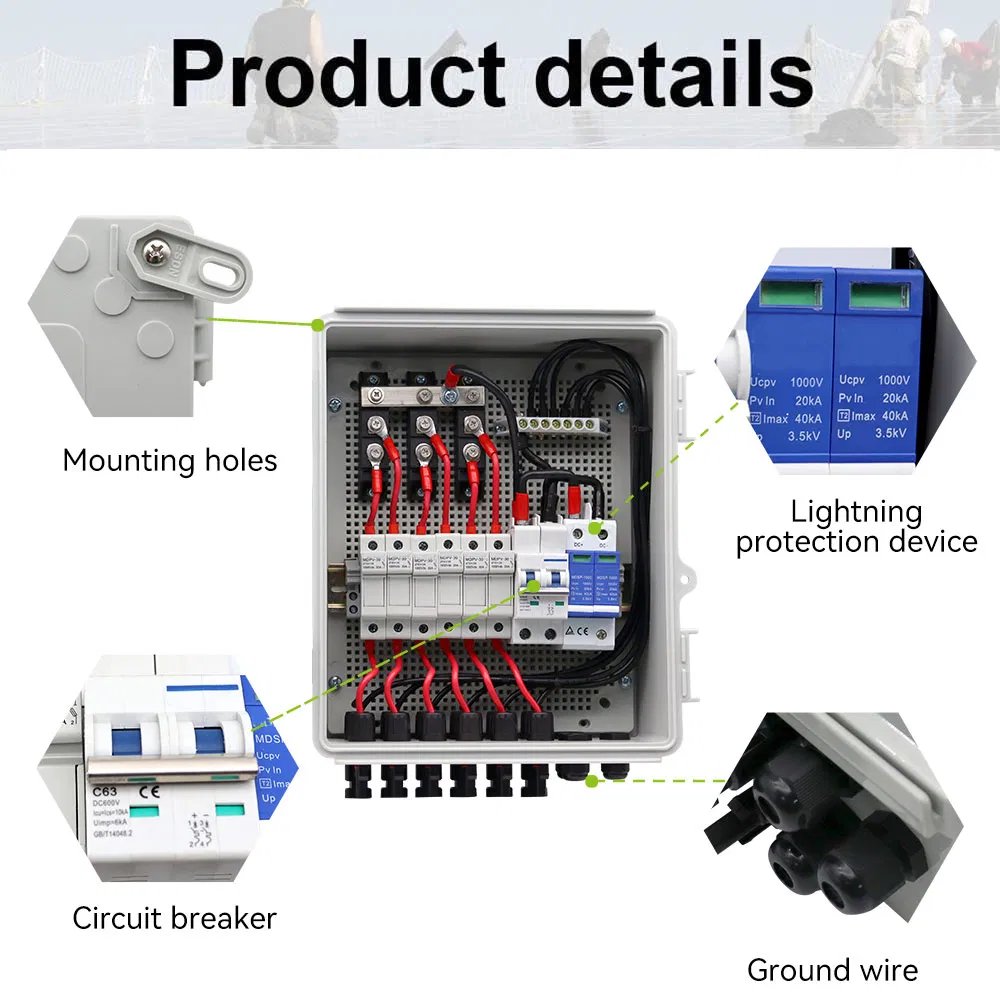

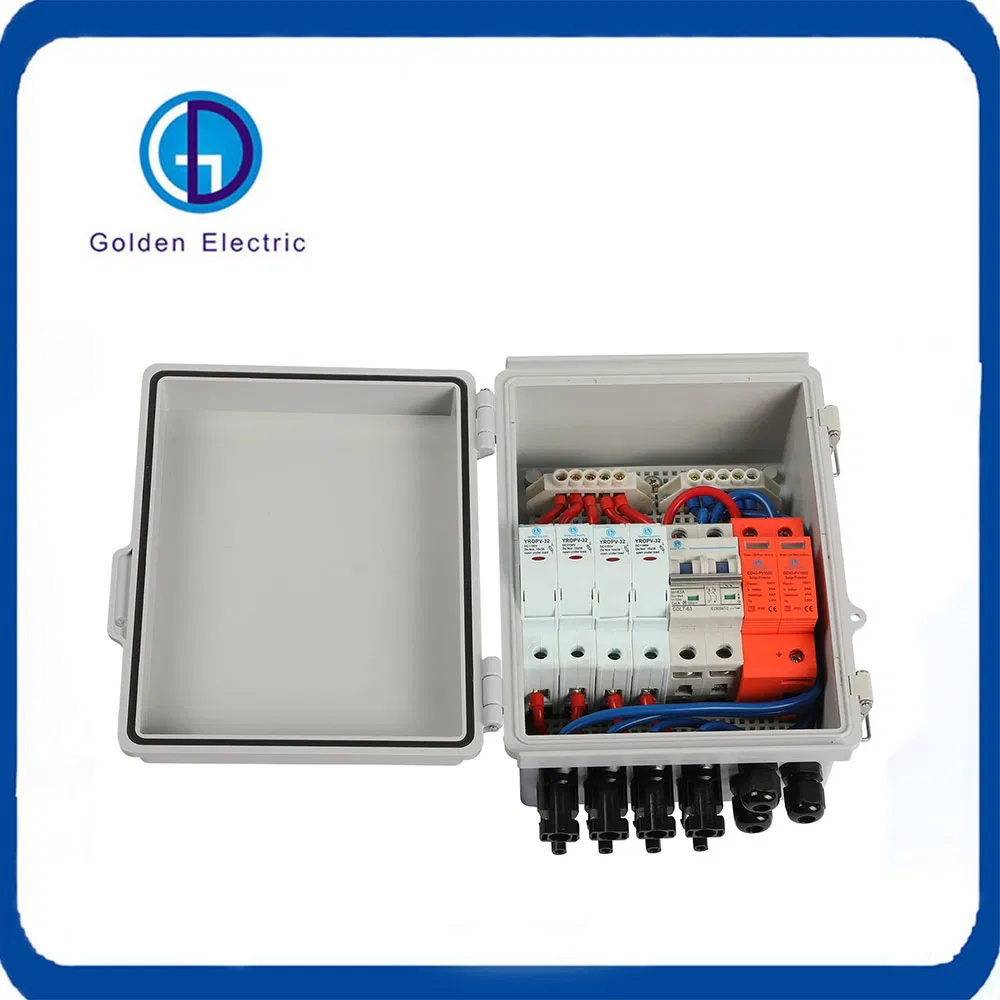

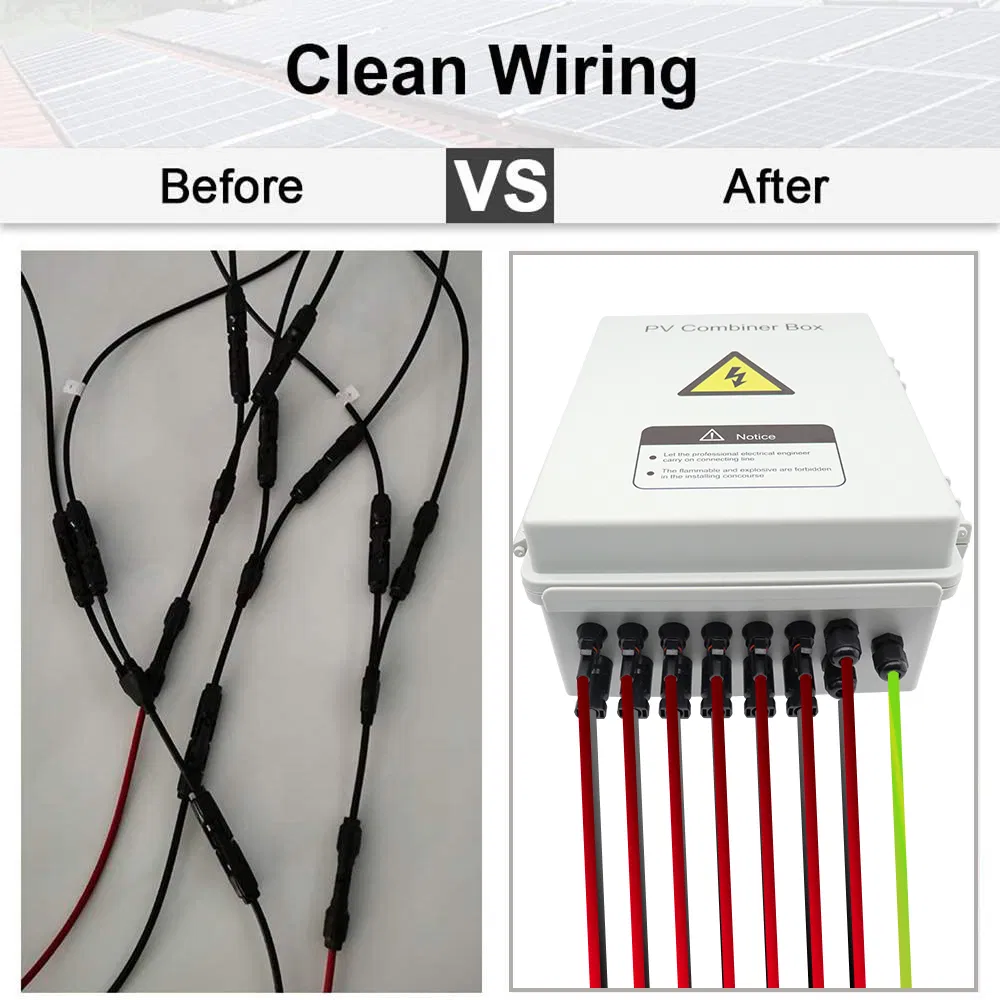

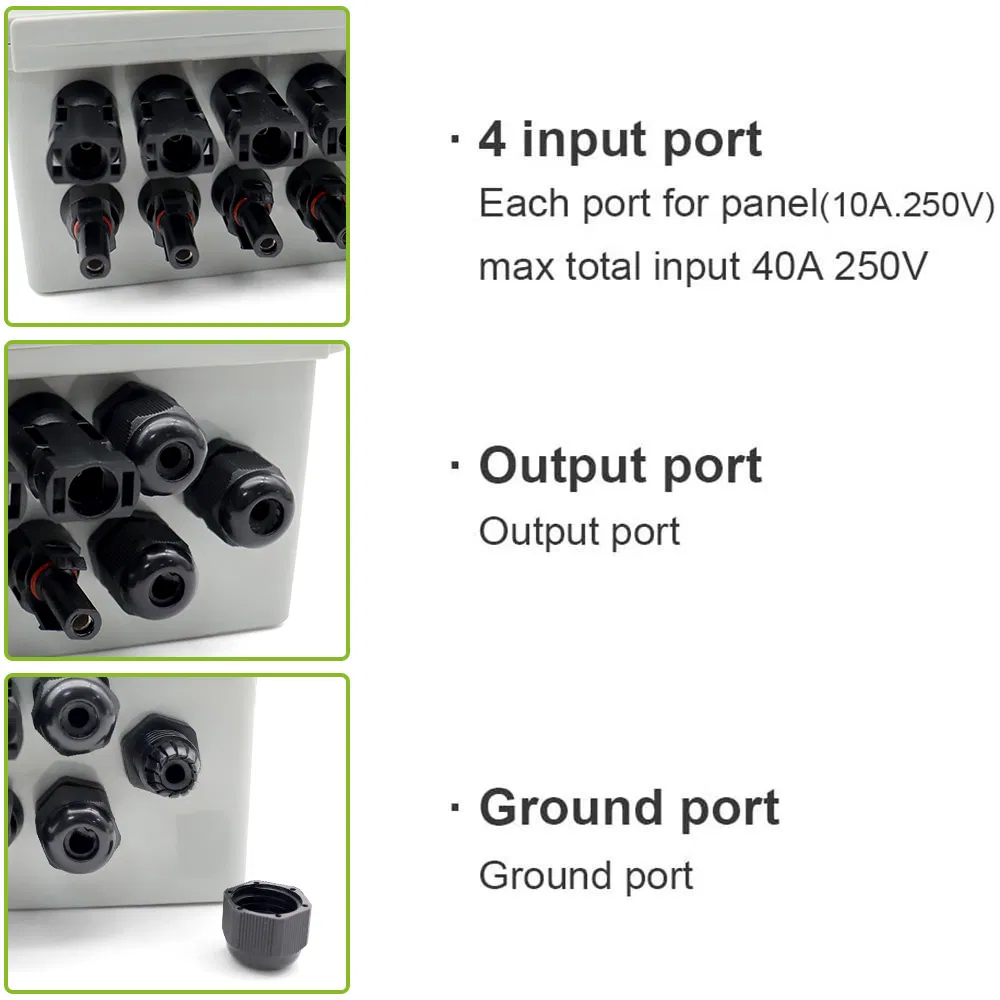

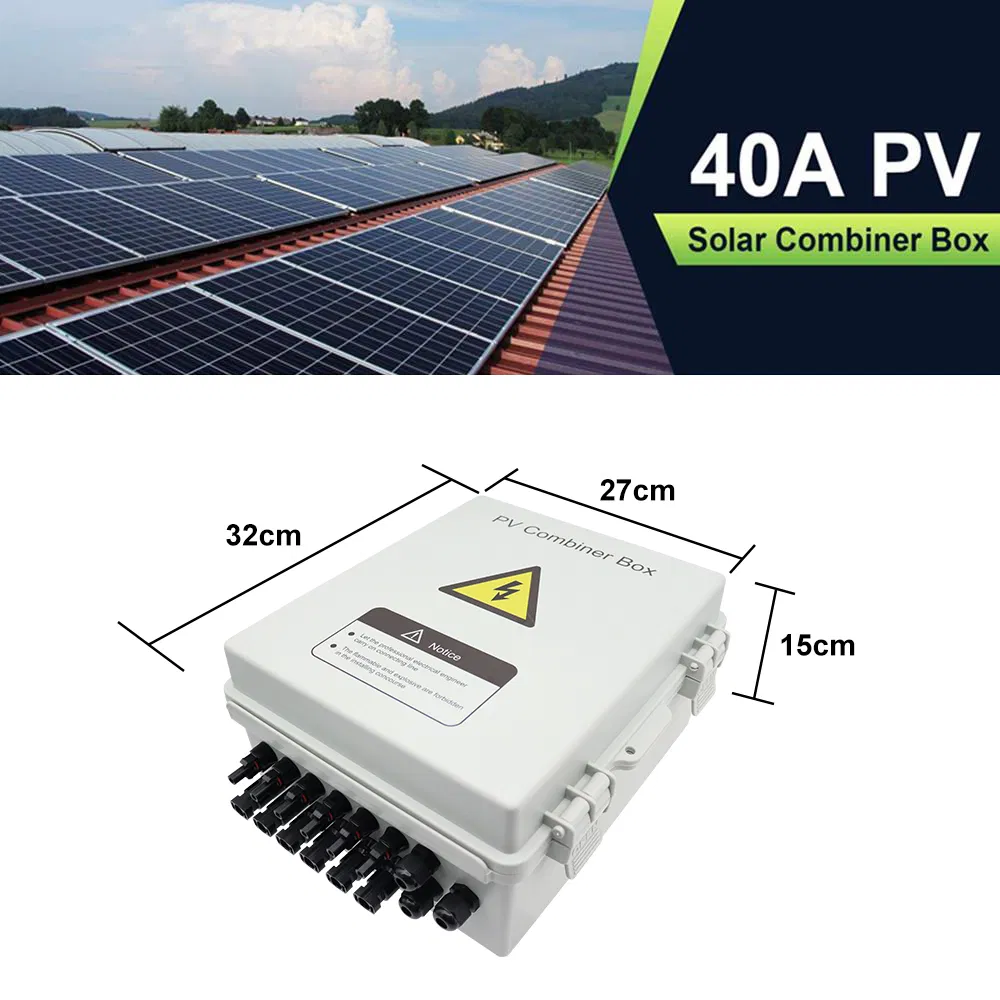

GD-PV6/1 combiner box is suitable for inverters (MAX input voltage DC550V/DC1000V, 6PV input channel, 1 output channel, single MPPT inverter). The box body is made of PVC engineering materials, tested for fire retardant, temperature rise, anti-impact, anti-ultraviolet, and other properties. Features IP65 protection grade.
Design and configuration strictly accord with the "Technical specification for photo-voltaic junction equipment" CGC/GF 037:2014.
Providing users with a safe, brief, beautiful, and applicable photo-voltaic system product.
| System maximum dc voltage | 550/1000 |
| Maximum input strings | 6 |
| Maximum input current for each string | 15A |
| Maximum output switch current | 20A/32A |
| Number of inverter MPPT | 1 |
| Number of output strings | 1 |
| Nominal discharge current | 20KA |
| Maximum discharge current | 40KA |
| Voltage protection level | 2.8KV/3.8KV |
| Maximum continuous operating voltage Uc | 630V/1050V |
| SMC4 Connectors/dc fuse/dc surge protector | Standard |
| Monitoring module/Preventing diode | Optional |
| Box material | PC/ABS |
| Installation method | Wall mounting type |
| Operating Temperature | -25ºC--+55ºC |
| Permissible relative humidity | 0-95%, no condensation |
