| Model | H4T | H6T | H8T | H10T |
| Input data | ||||
| Number of PV inputs | 4 | 6 | 8 | 10 |
| Max. current of each PV input array | 10A | |||
| Fuse for each PV input array | 10A | |||
| Wire number of each PV input array | PG7, 4mm2 | |||
| Output data | ||||
| Number of outputs | 1 | 2 | ||
| Maximum output current | 40A | 60A in all (30A/each output) | 80A in all (40A/each output) | 100A in all (50A/each output) |
| Wire number of each output | PG16, 8mm2 for each output | PG16, 10mm2 for each output | PG16, 10mm2 for each output | PG16, 12mm2 for each output |
| Maximum output voltage | 800V DC | |||
| DC output circuit breaker | Available | |||
| Other data | ||||
| Protection | IP65 | |||
| Temperature | -30 to 60°C | |||
| Net/gross weight (kg) | 5.3/9.3 | 8.4/12.9 | 9.5/14.3 | 10.8/15.6 |
| Dimensions | 340*300*140mm | 360*340*145mm | 400*420*145mm | |
| Cooling method | Natural cooling | |||
| Surge protection | Available | |||
| Ground wire number | ≥ 6mm2 | |||
Leveraging formidable expertise in crafting solutions involving power inverters, solar inverters with embedded solar controllers, and UPS systems, tailored for diverse applications such as household, telecommunication, electricity, infrastructure, and industrial sectors.
Additionally, our expansive portfolio includes solar panels, batteries, and solar PV combiner boxes, supporting solar power systems. Our seasoned technical engineers, boasting over a decade of experience, innovate and design state-of-the-art solar products.

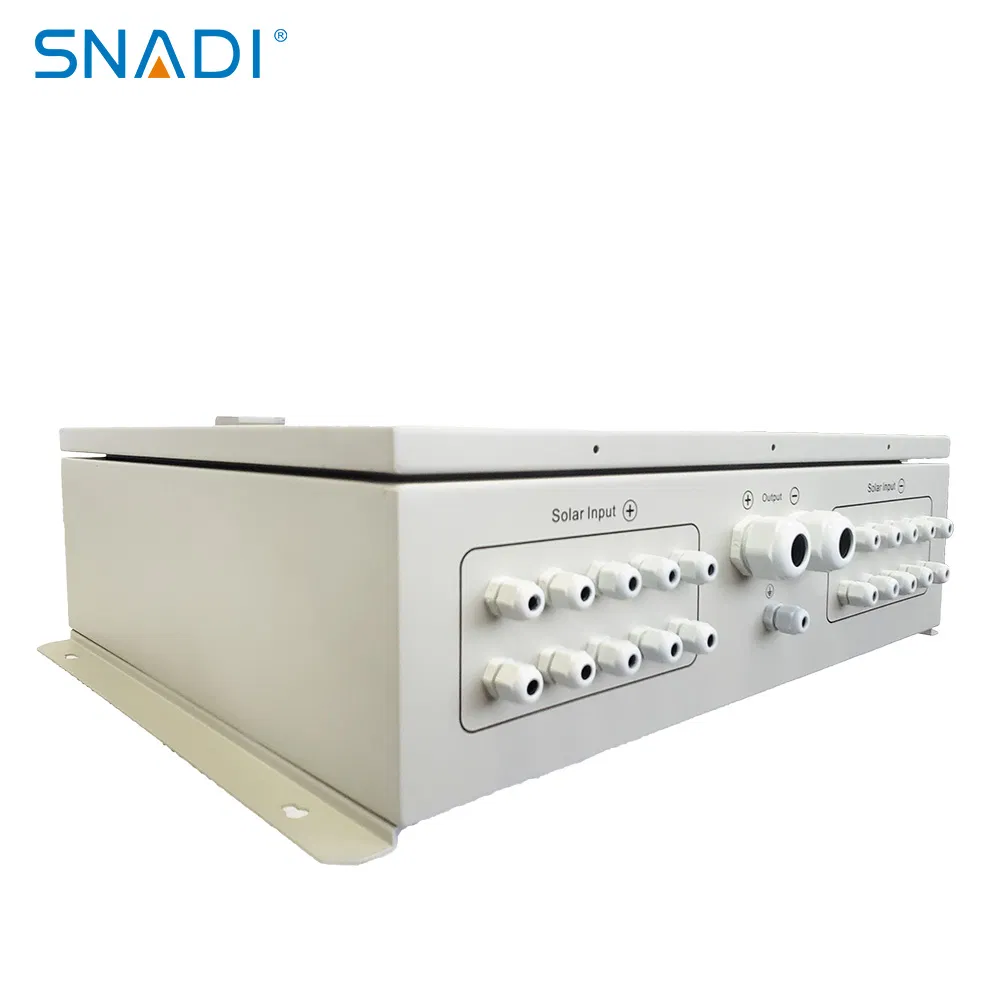

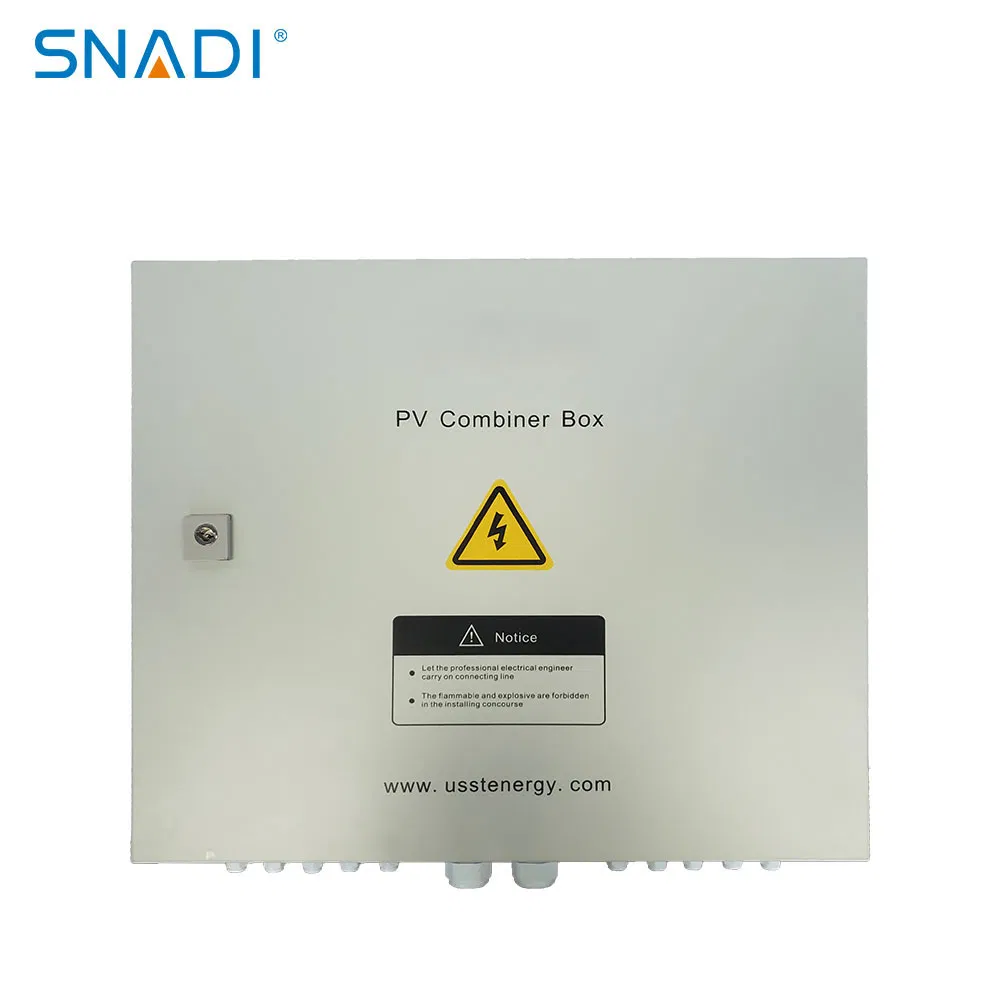

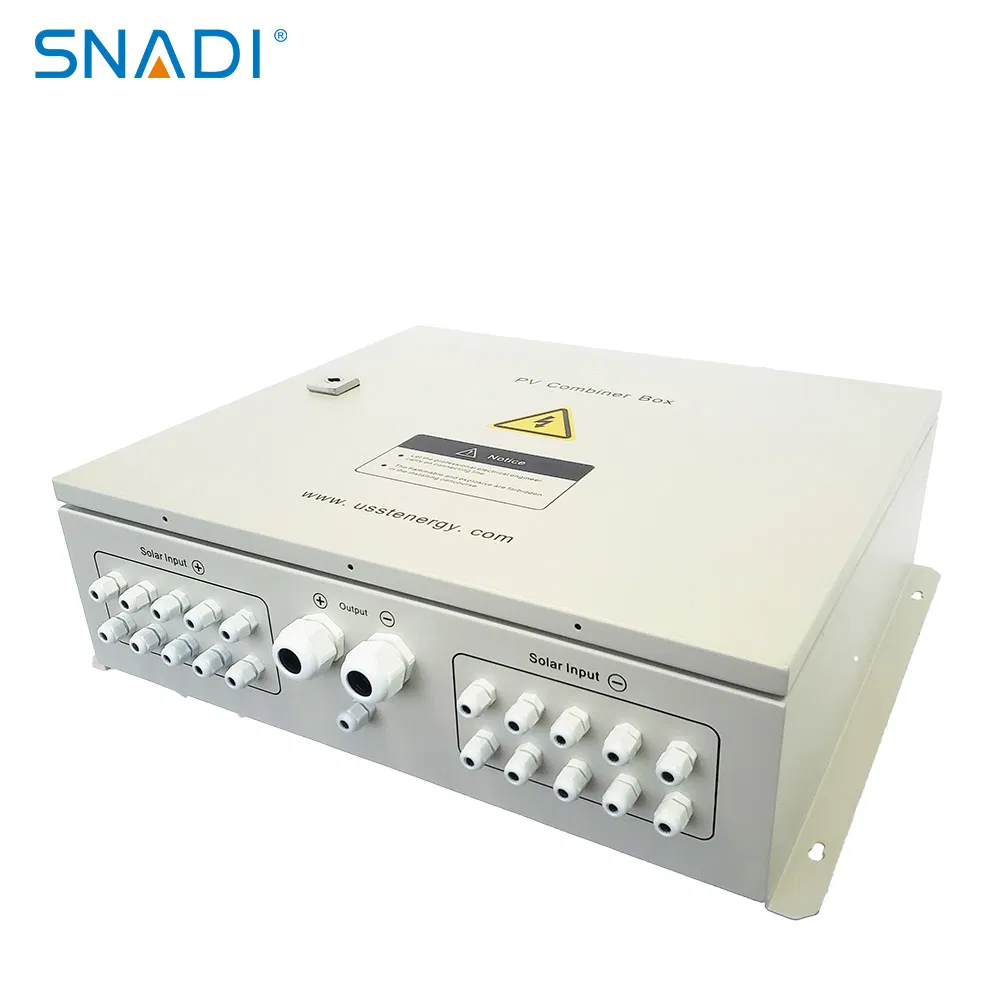

The combiner box has a protection level of IP65. This ensures it is dust-tight and highly waterproof, making it perfectly suited for reliable outdoor installations and harsh weather conditions.

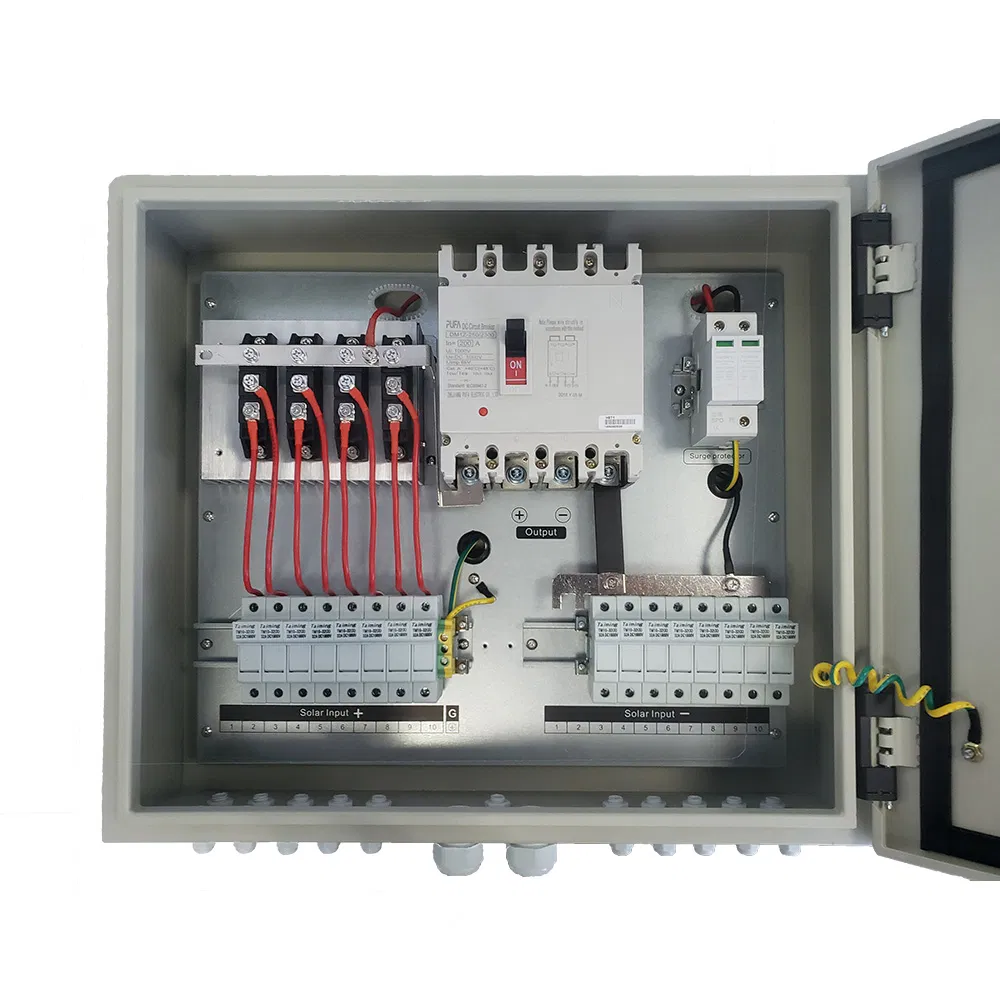

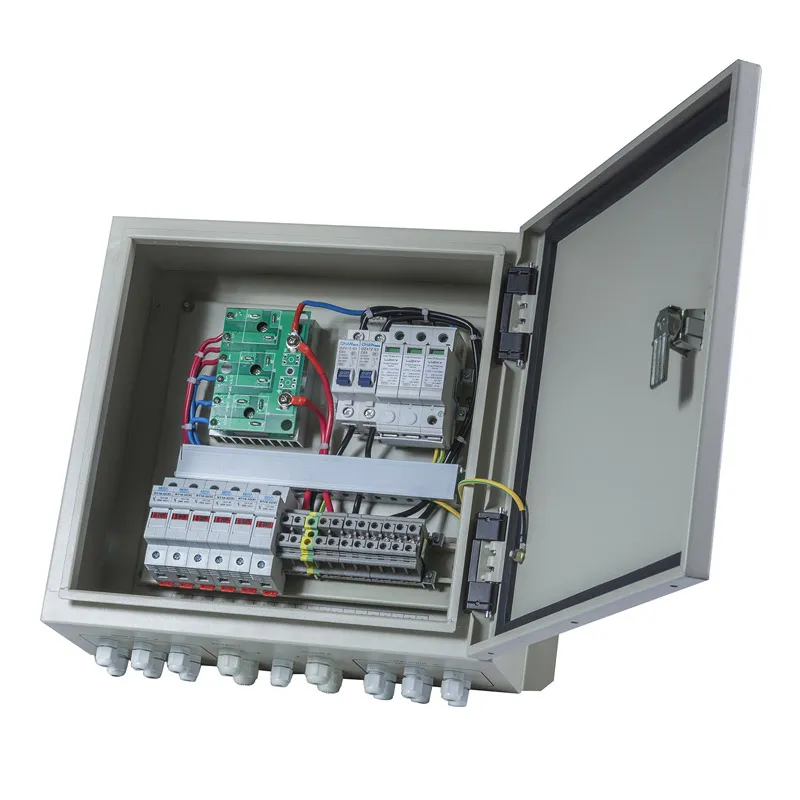

It features a high-voltage fuse for counterattack prevention on each input array, a specialized high-voltage lightning protection device (surge protection), and a unique high-voltage circuit breaker for precise output control and overall system protection.
The H10T model supports up to 10 input arrays. Each individual array can handle a maximum current of 10A, and the total maximum output current of the box is rated at 100A (50A per output).
Yes. We offer fully customizable OEM & ODM services. Our professional engineering team can tailormade electrical solutions and design layouts to suit your specific parameters and market requirements.
To guarantee optimal safety and durability, 80% of our electronic parts are sourced internationally. Our product lineup is fully certified with CE marking and operates under the ISO9001:2008 quality management standard.
All our products come with a 12-month quality warranty. Additionally, we provide prompt inquiry responses within 12 hours and resolve product-related support queries within 24 hours.
