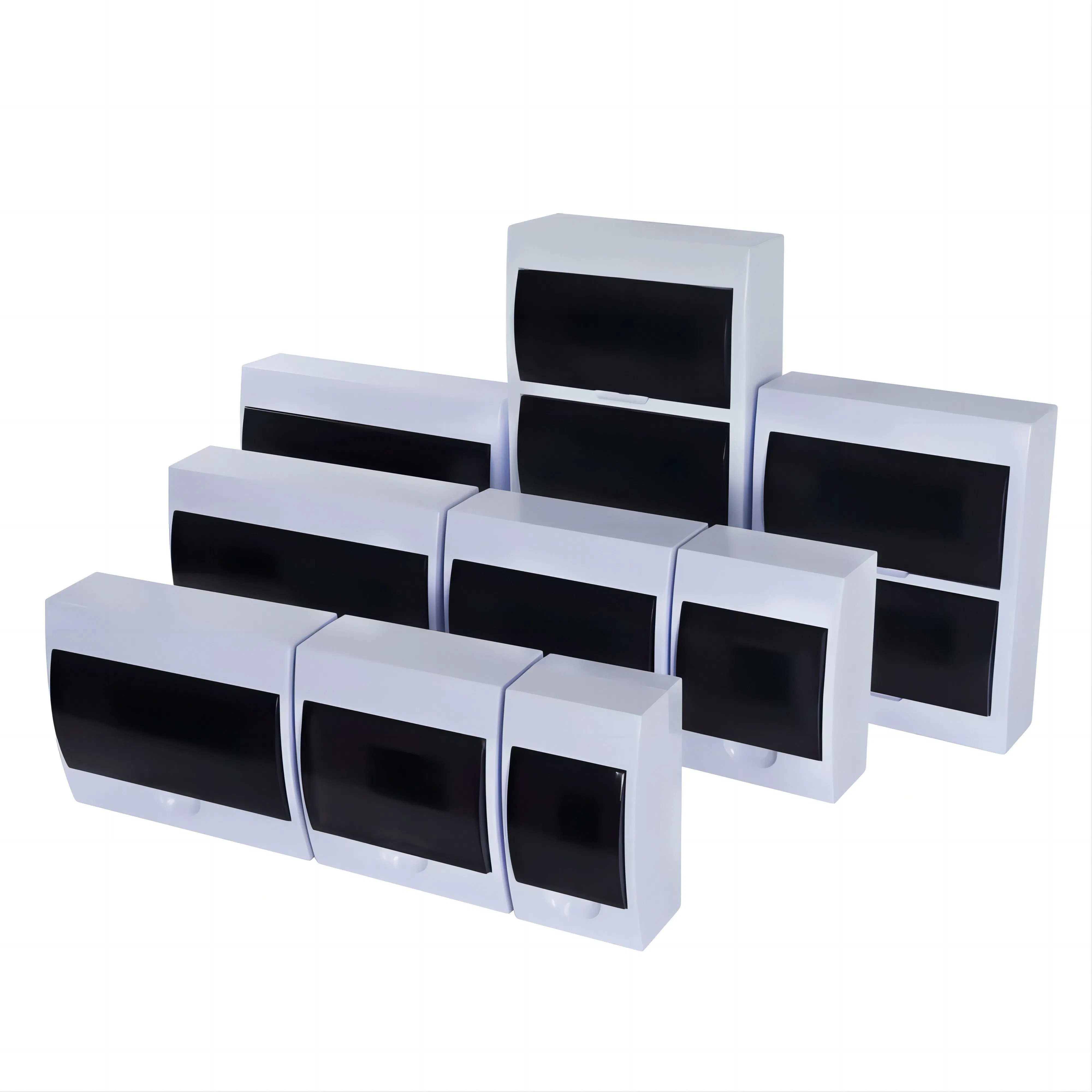

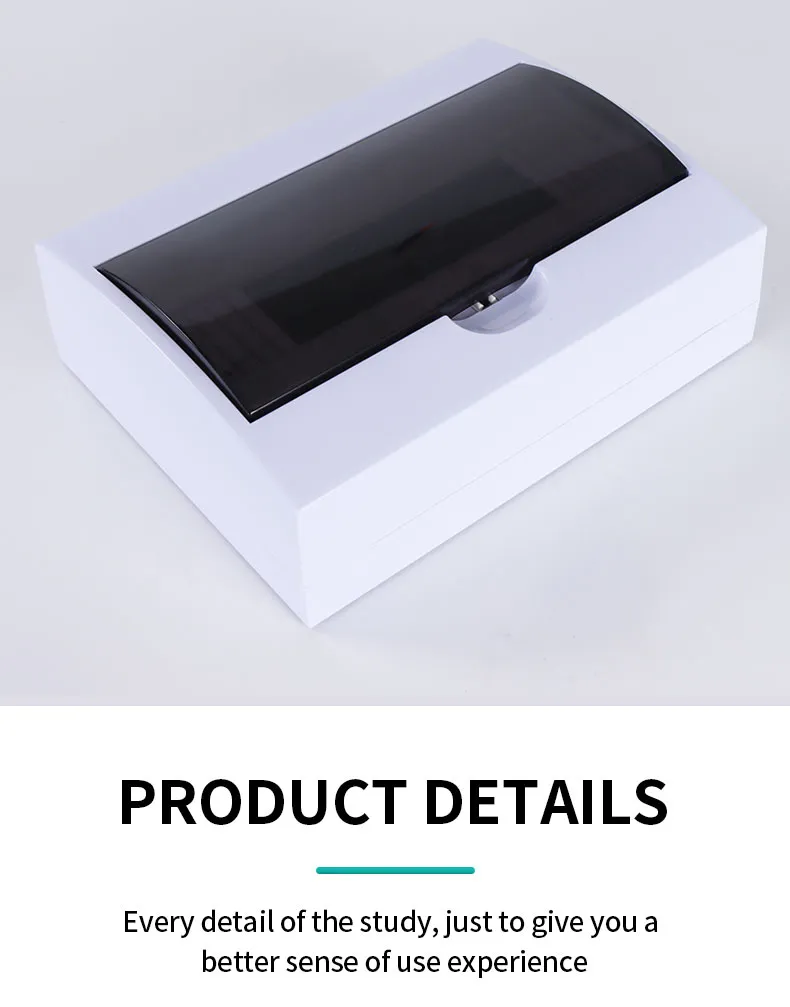

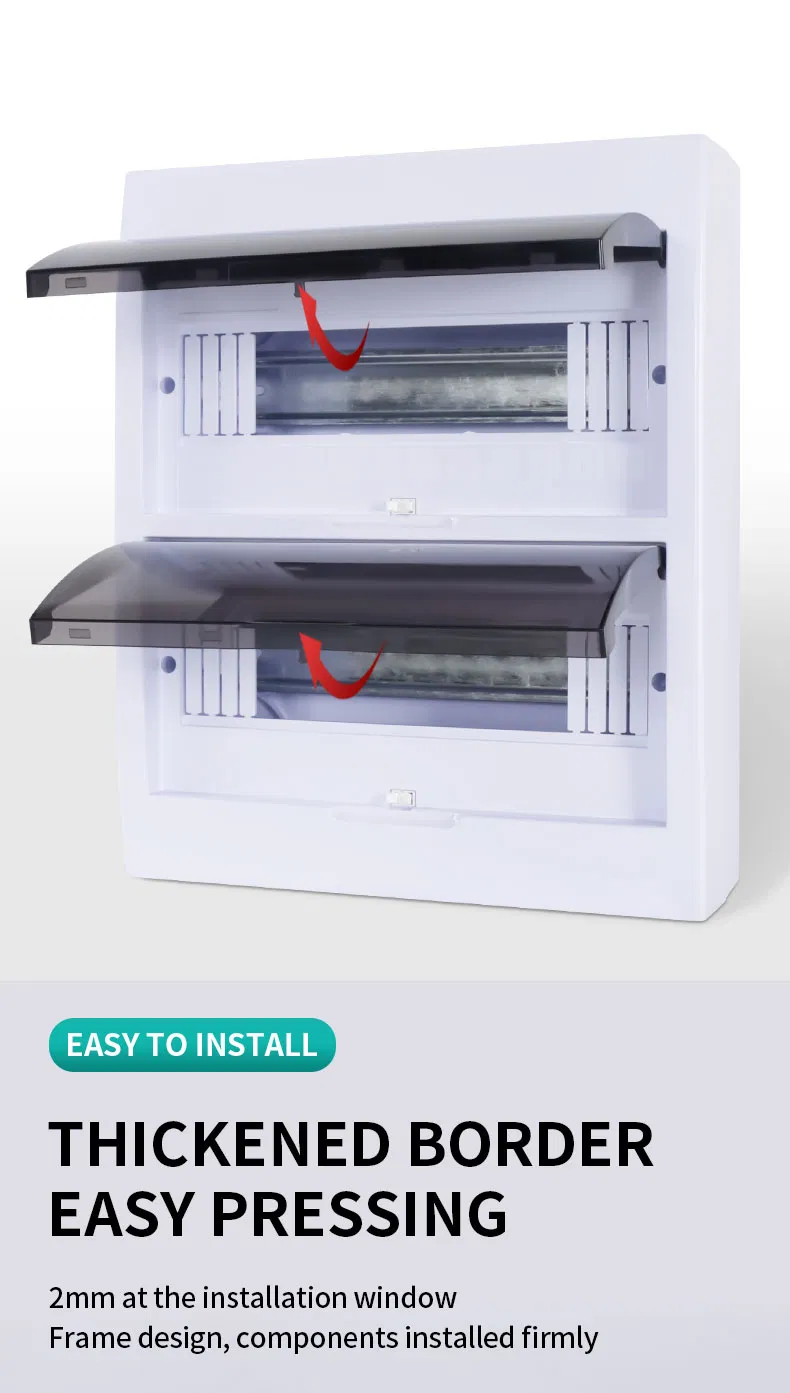

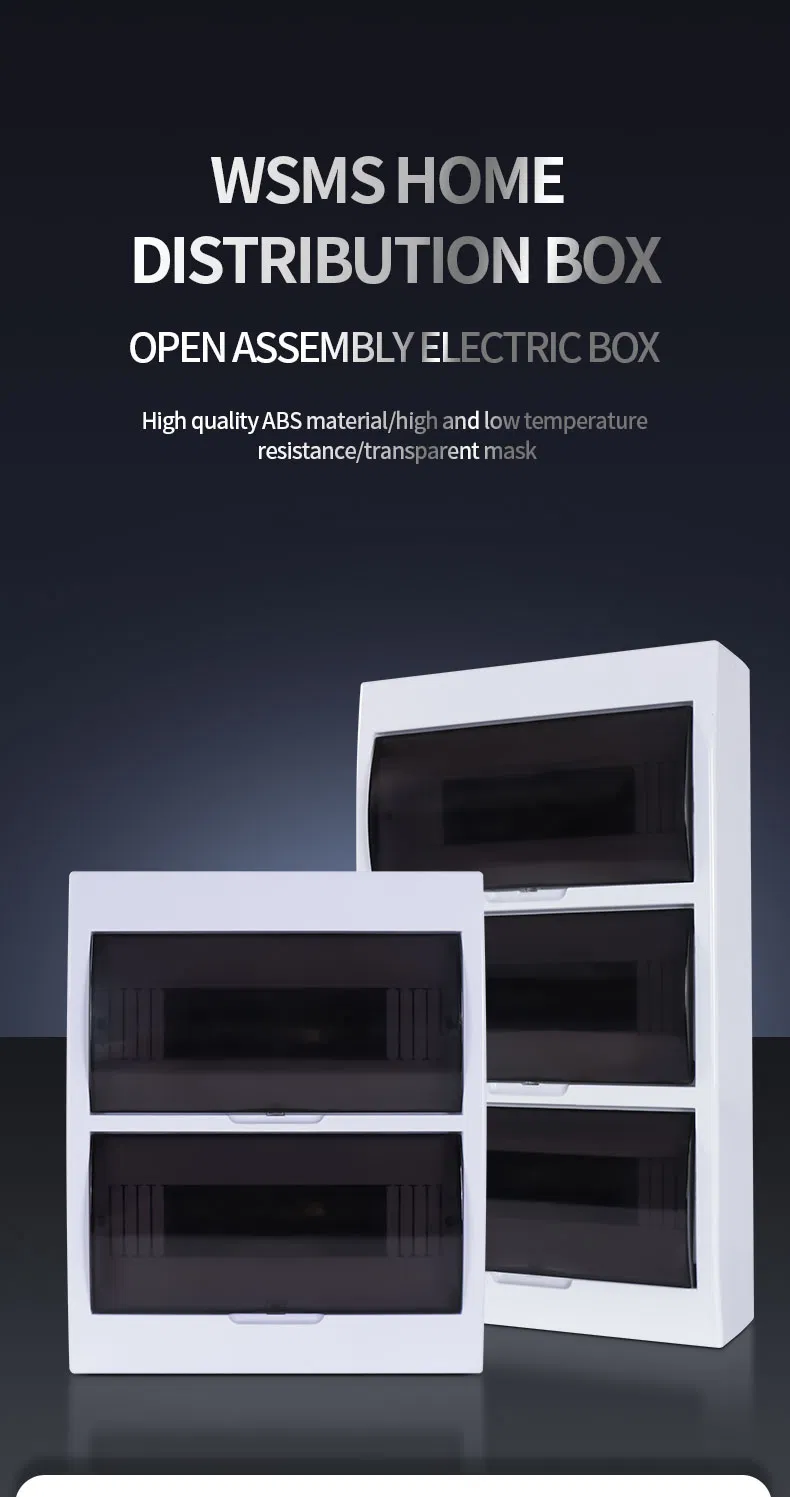

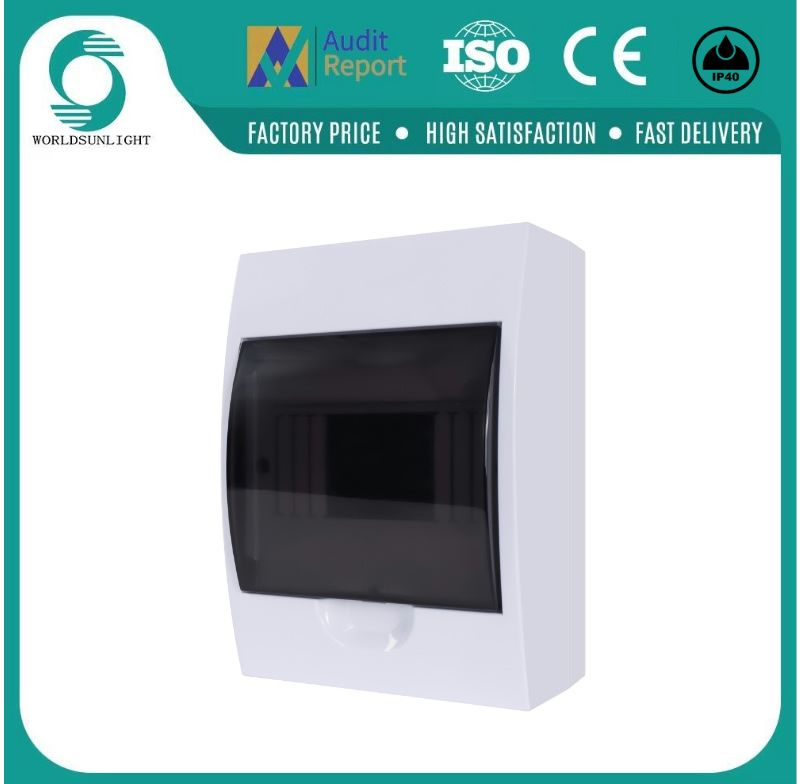

This is a classical distribution box with a plastic cover and metal base (0.8/1.0mm) which can be equipped with various modular electrics and is widely used in household power distribution, industrial, and commercial buildings.
| Specification Item | Details |
|---|---|
| Standard | IEC60439-3 IEC61000 |

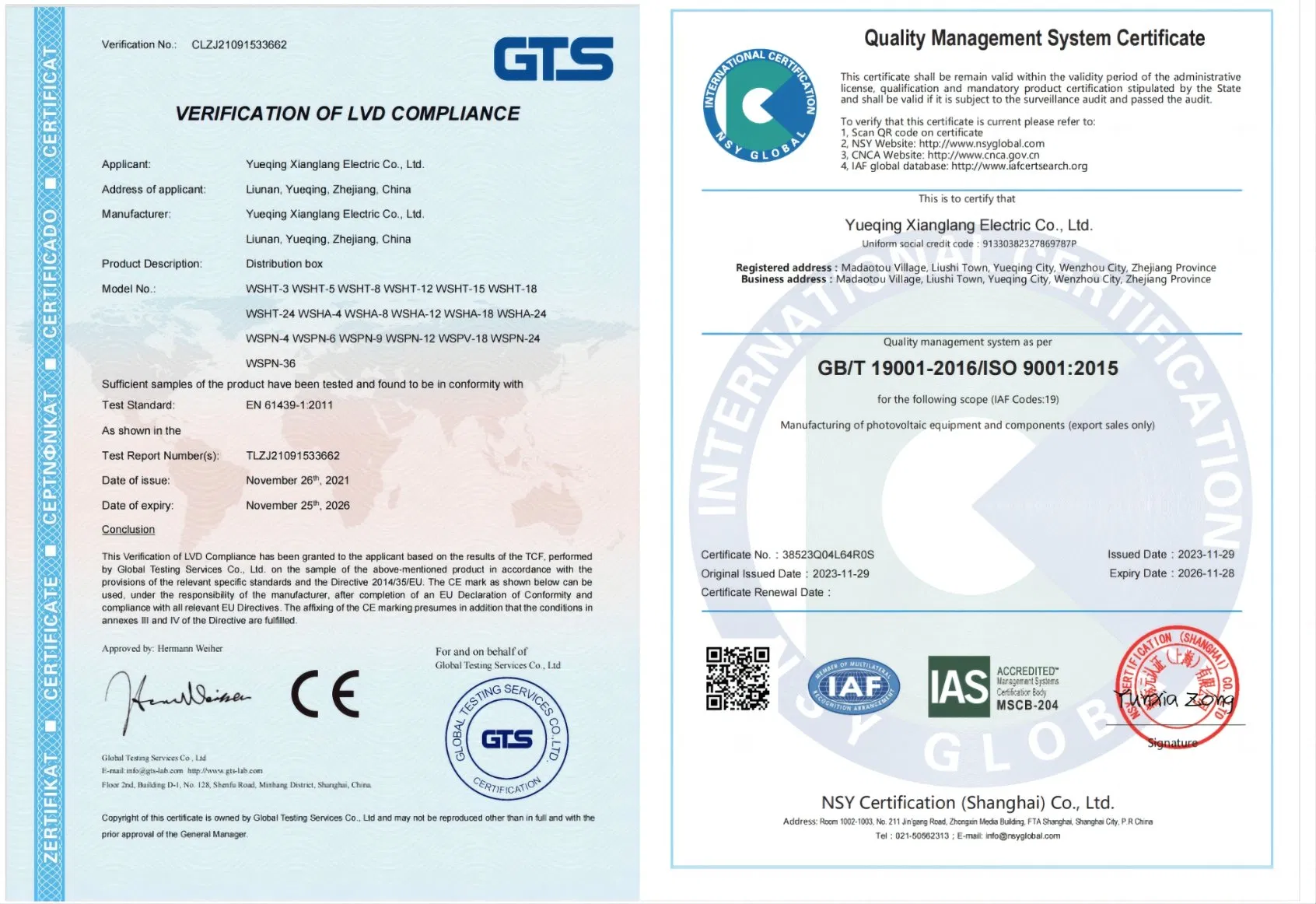

| Approval | CE, RoHS, HF test, IK test, ISO9001 |
| Protection grade | IP40 |
| Color of base | White |
| The color of door | Transparent |

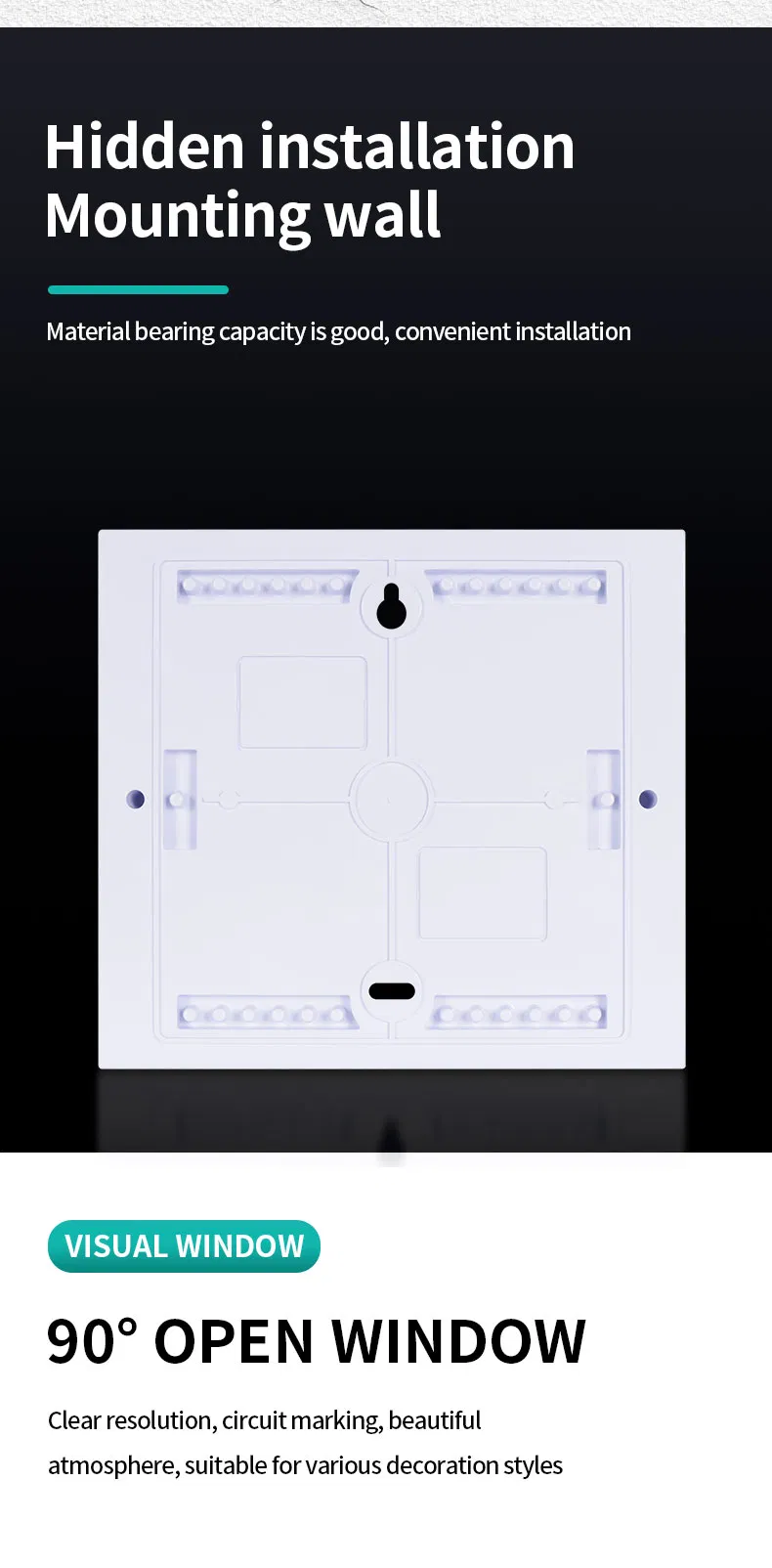

| Mounting type | Surface |

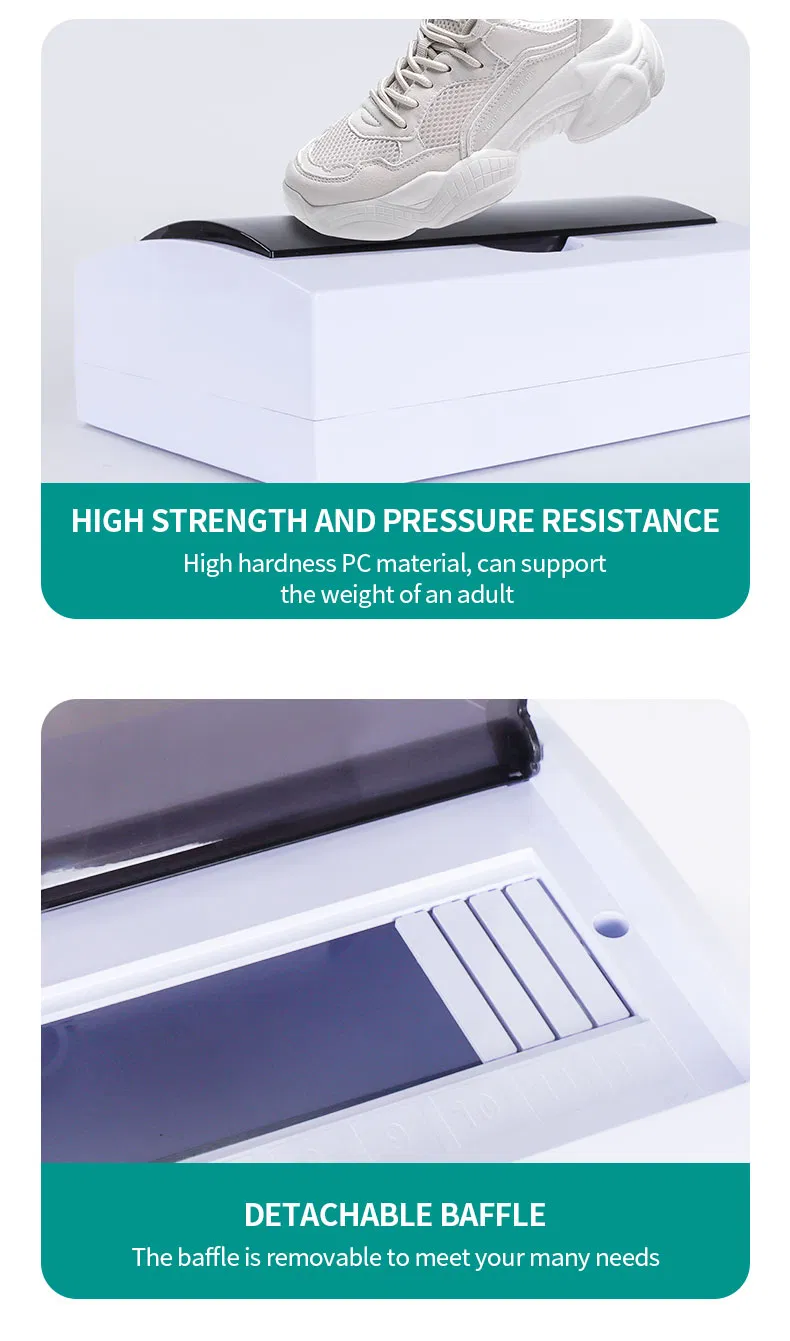

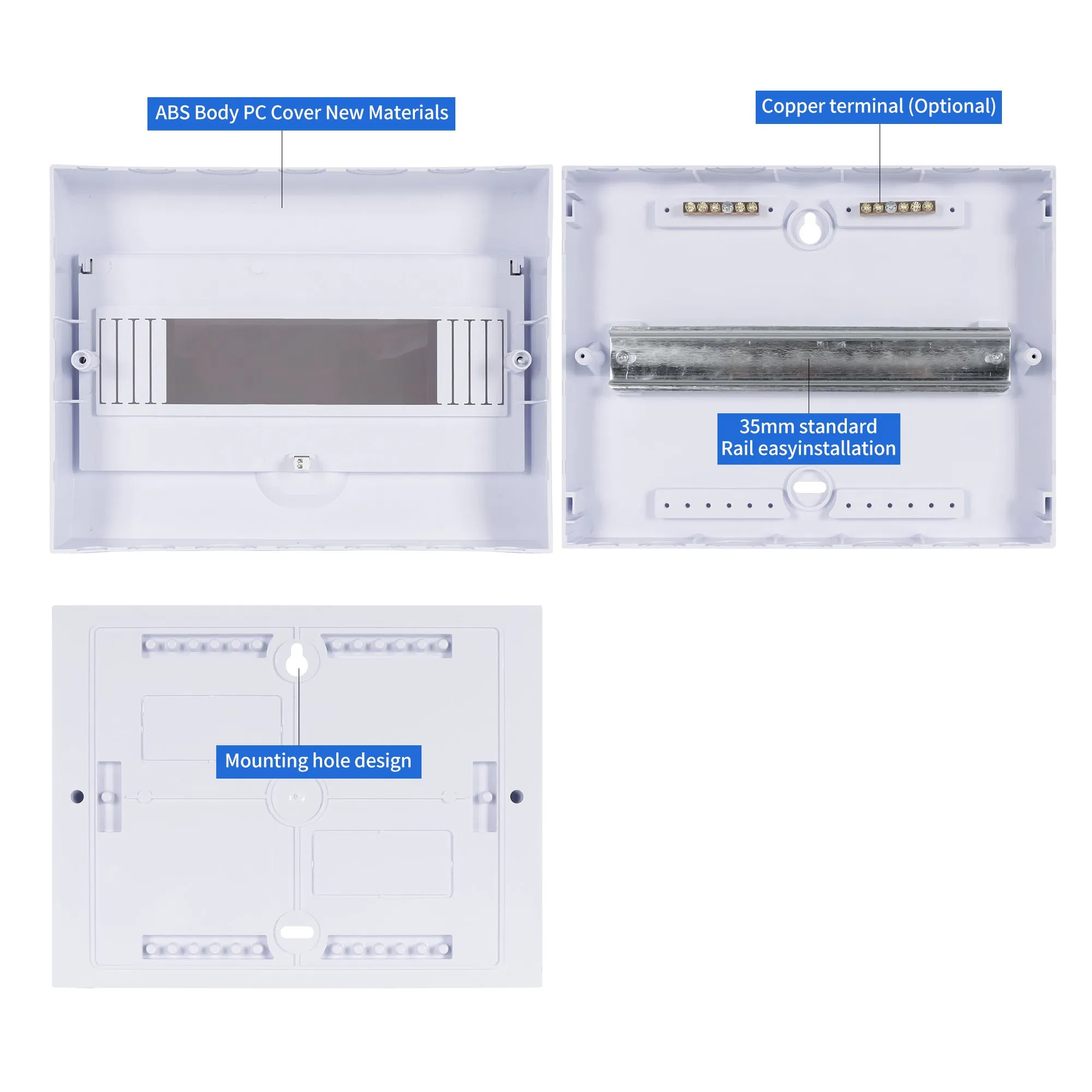

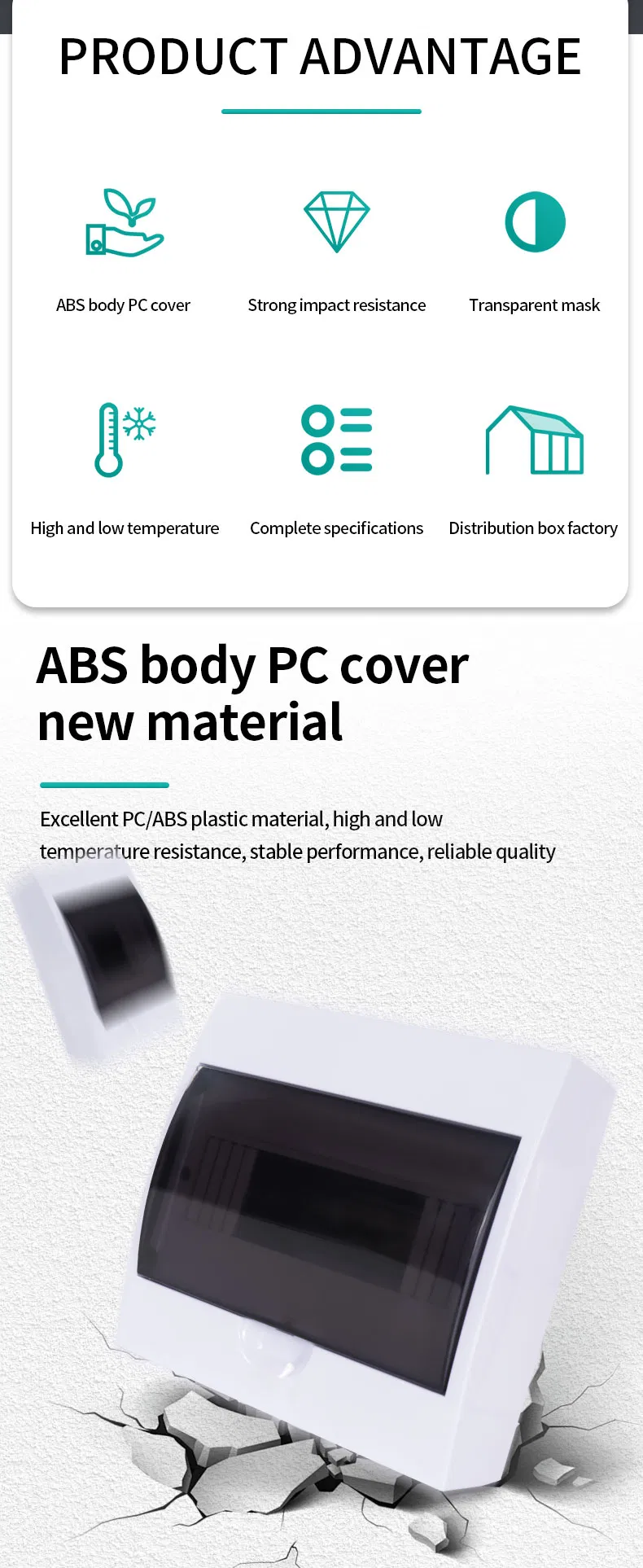

| Material | ABS Body PC Cover |

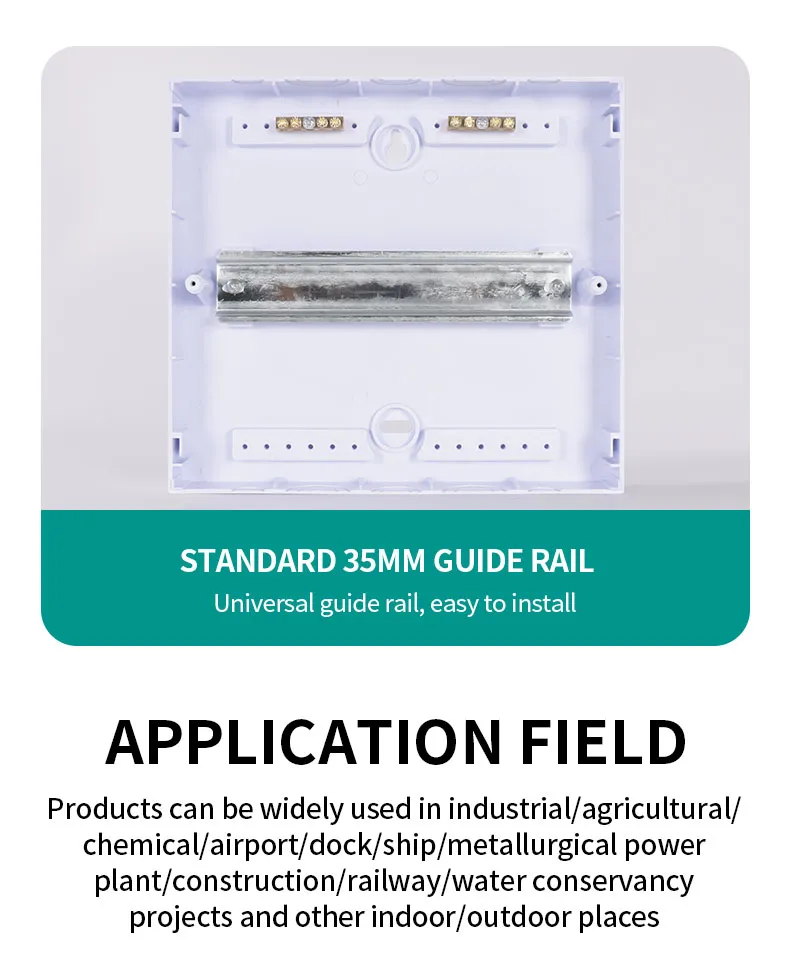

| Guide | 35MM standard din rail |
| Fire resistance | 650°C / 30s |
| Ambient temperature (°C) | -5 ~ +40, 50% humidity permitted under max +40°C |
| Storage temperature (°C) | -40 ~ +75 |
| Remark | Conventional is not flame retardant, flame retardant needs to be customized |
| Model | Product's size (mm) | No. of breaker (pole) | Net Weight (kg) | ||
|---|---|---|---|---|---|
| L (mm) | W (mm) | H (mm) | |||
| XL-MS 2-3WAY | - | - | - | 2-3 | 0.24 |
| XL-MS 4WAY | 112 | 200 | 95 | 4 | 0.29 |
| XL-MS 6WAY | 148 | 200 | 95 | 6 | 0.38 |
| XL-MS 8WAY | 184 | 200 | 95 | 8 | 0.43 |
| XL-MS 10WAY | 222 | 200 | 95 | 10 | 0.49 |
| XL-MS 12WAY | 256 | 200 | 95 | 12 | 0.58 |
| XL-MS 15WAY | 310 | 200 | 95 | 15 | 0.66 |
| XL-MS 18WAY | 365 | 222 | 95 | 18 | 0.85 |
| XL-MS 24WAY | 271 | 325 | 95 | 24 | 1.03 |
| XL-MS 36WAY | 271 | 462 | 95 | 36 | 2.96 |

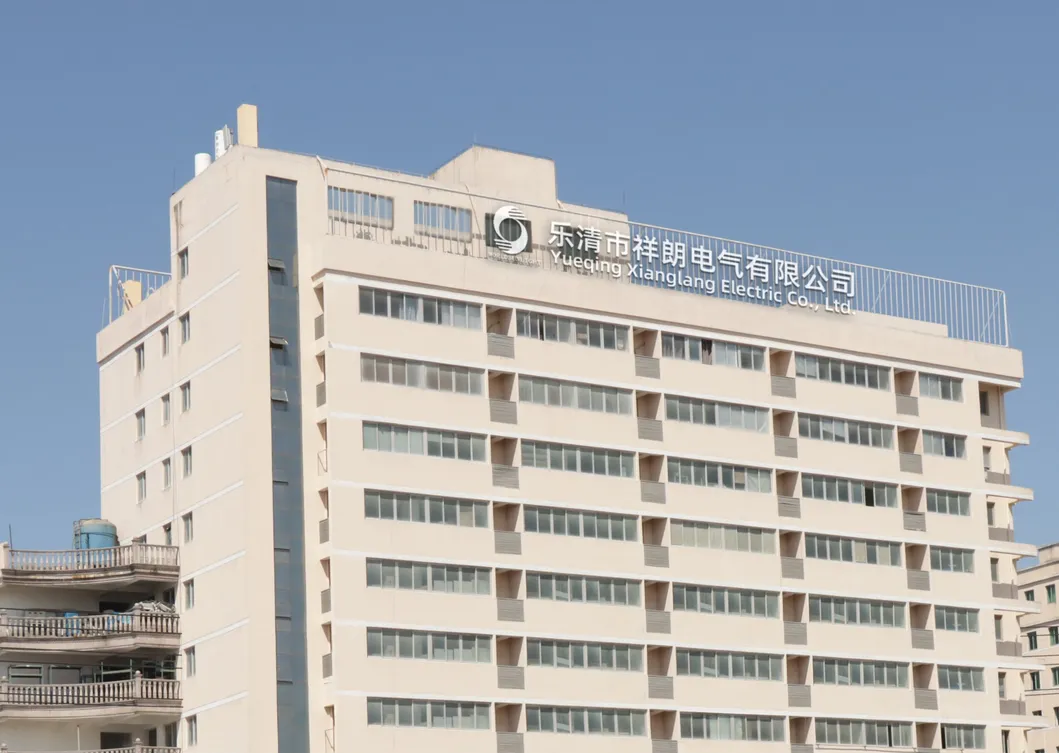

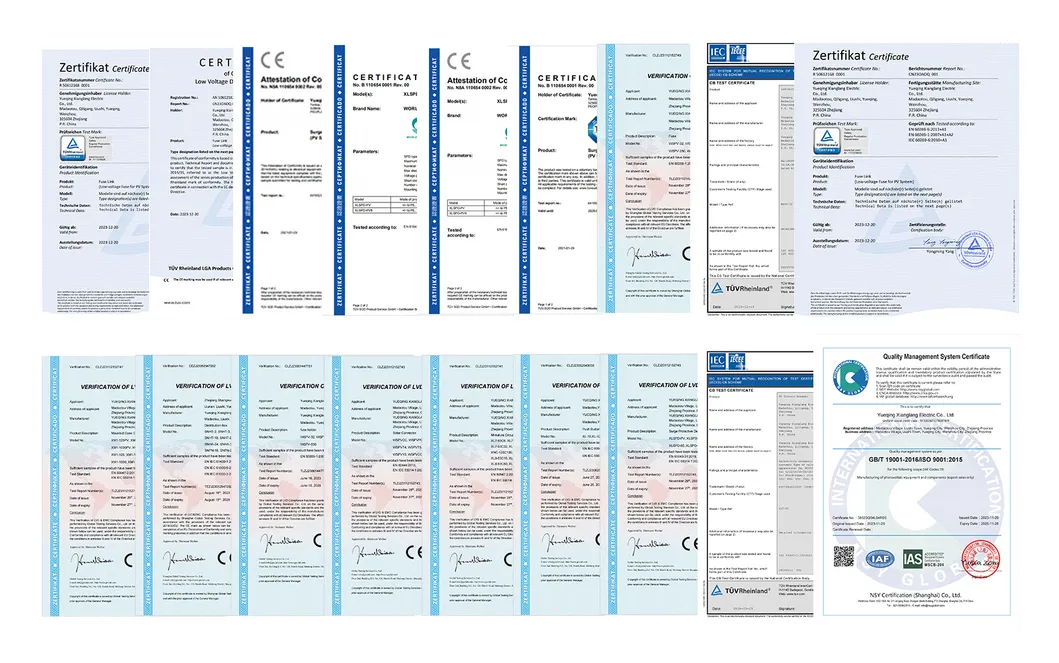

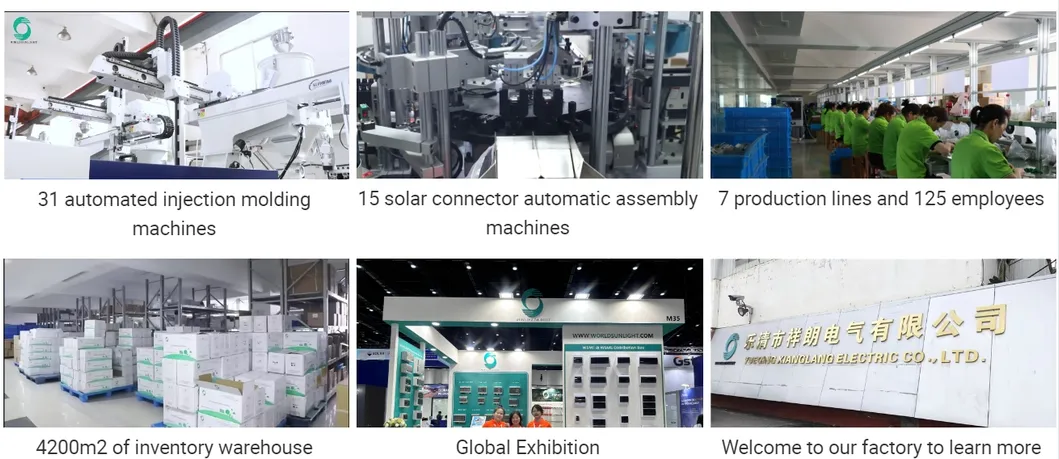

With over a decade of experience in the solar accessories industry, we have been dedicated to the manufacturing and R&D of solar products. With a factory spanning 10,700 square meters, our annual output exceeds US$20 million. Specializing in miniature circuit breakers, SPDs, fuses, solar connectors, distribution boxes, and combiner boxes, the products boast CE, TUV, IEC, and ISO9001 certifications. Each product undergoes stringent quality control and testing. With over 10,000 project experiences, we have earned a reputation for high-quality products, competitive pricing, prompt delivery, and exceptional after-sales service. We look forward to a long-term partnership and mutual growth with you.

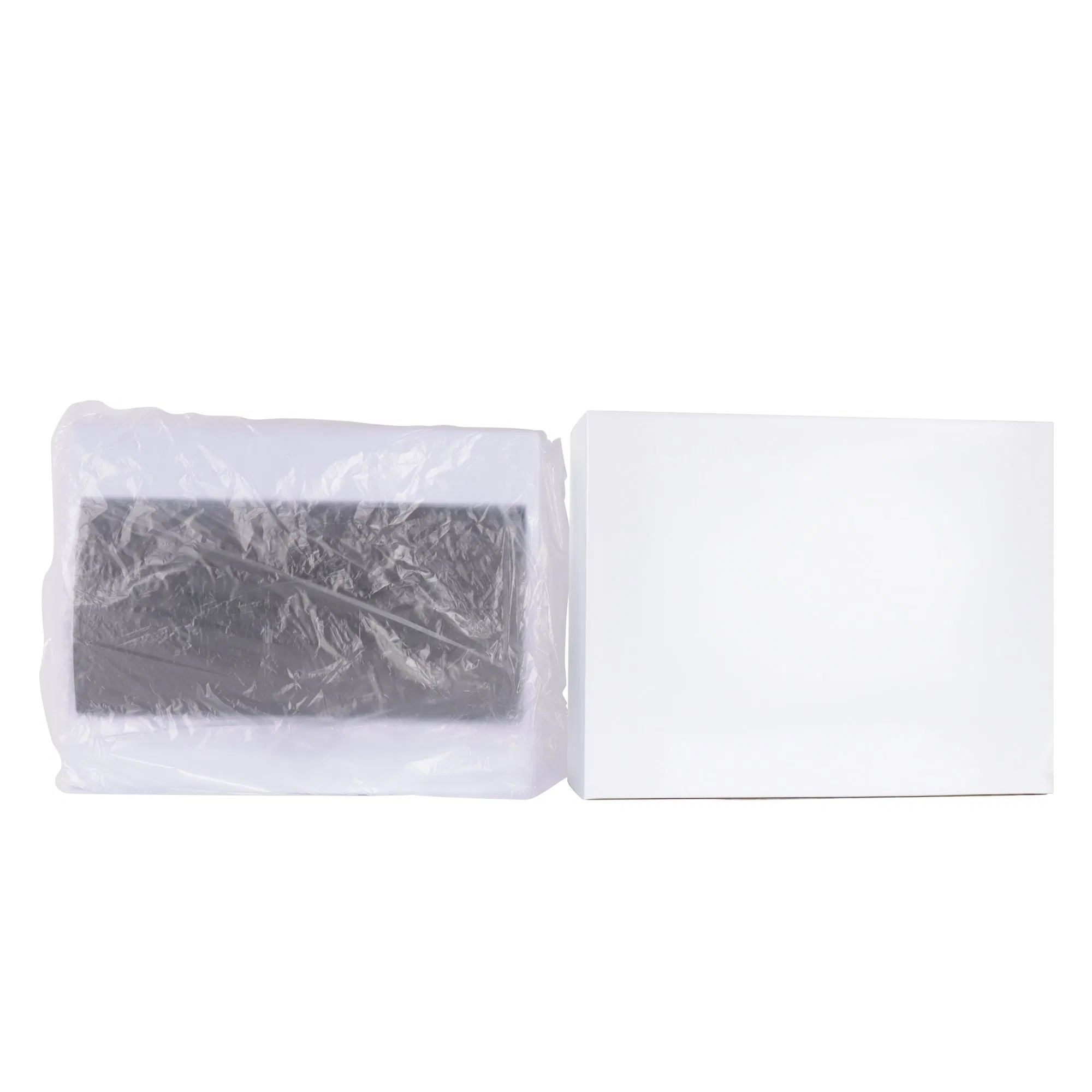

| Model | PCS/Carton | KG/Carton | Volume | Size (CM) |
|---|---|---|---|---|
| XL-MS 2-3WAYS | 50 | 15 | 0.080 | 52*48*32 |
| XL-MS 4WAYS | 30 | 11.5 | 0.078 | 51*36*42.5 |
| XL-MS 6WAYS | 30 | 14.9 | 0.105 | 51*42.5*48.5 |
| XL-MS 8WAYS | 30 | 16.7 | 0.129 | 52*42.5*58.5 |
| XL-MS 10WAYS | 20 | 13 | 0.104 | 51*43*47.5 |
| XL-MS 12WAYS | 20 | 14.8 | 0.118 | 51*43*54 |
| XL-MS 15WAYS | 15 | 12.8 | 0.107 | 51*33*63.5 |
| XL-MS 18WAYS | 15 | 15.2 | 0.140 | 52.5*38*70 |
| XL-MS 24WAYS | 10 | 13.2 | 0.103 | 53.5*34*56.5 |
| XL-MS 36WAYS | 5 | 18.5 | 0.075 | 54.5*28.5*48 |
