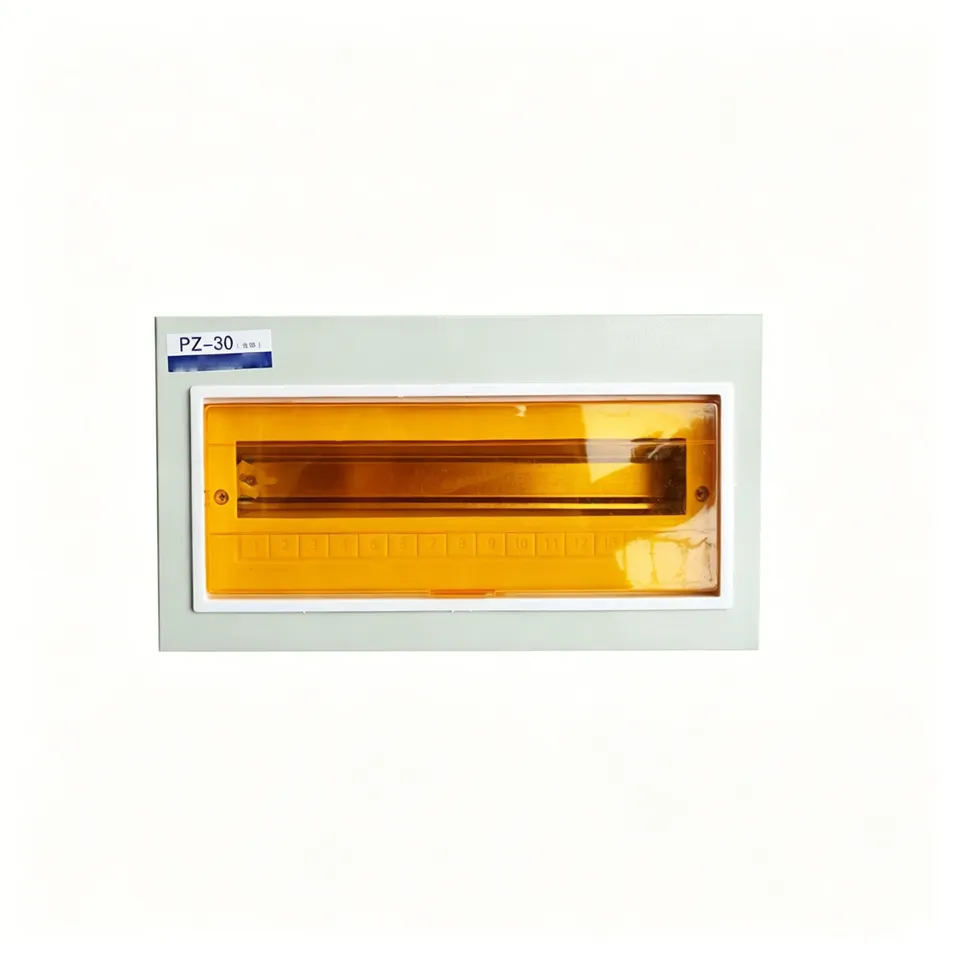

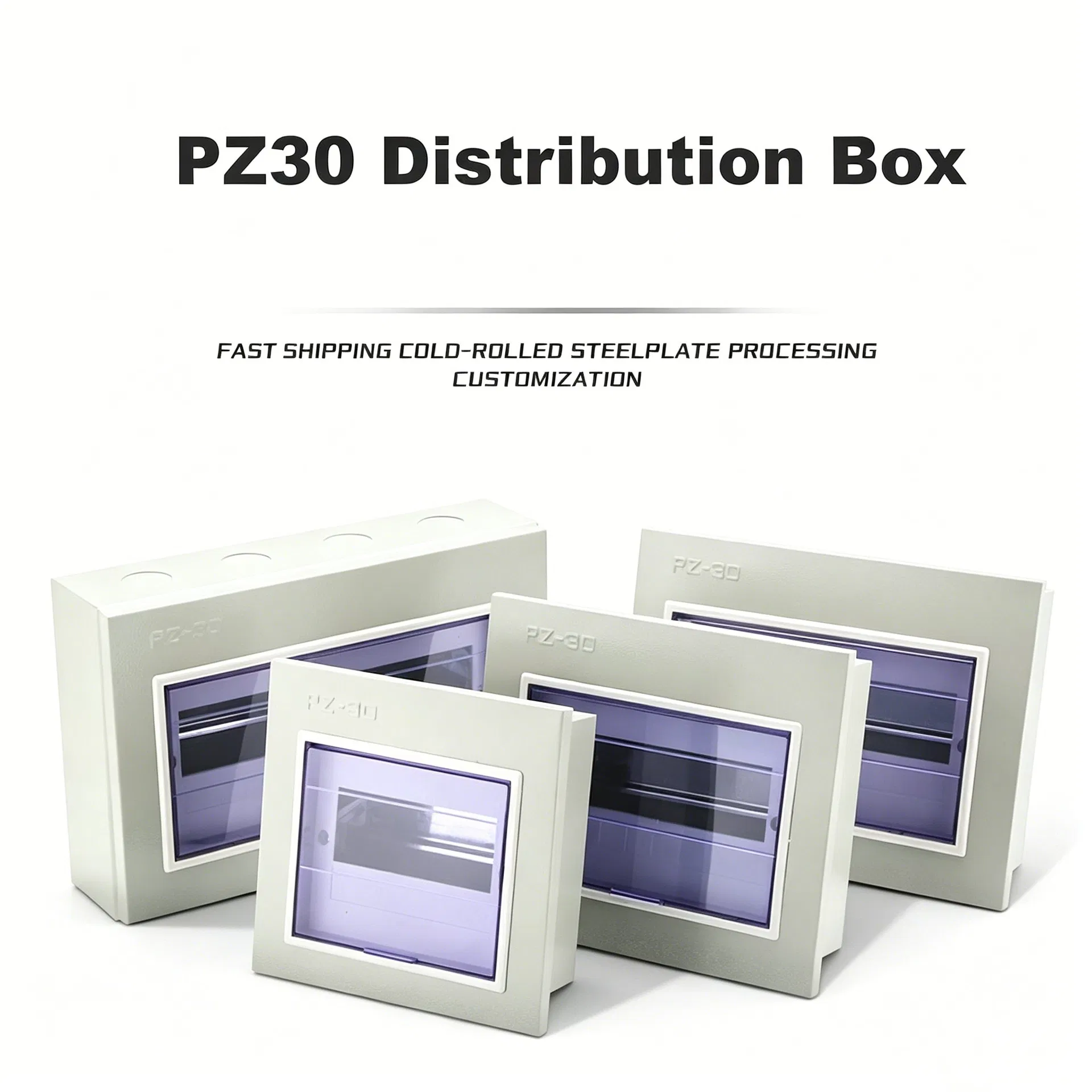

Combination illuminating distribution box is suitable for distribution control of modern buildings, such as large stores, guesthouse, stations, commercial net points, laboratories, factories and enterprises, used in AC 50-60hz, below 500V illuminating and mini power controling circuit as over current, overload and short circuit protection and frequency switch under the rated working state, 1way to 45ways are available.
This Series Flush Type and Surface Type Suitable for indoor use, meanwhile, the plastic-sprayed surface has a stylish appearance. Products are available for the installation of terminal substitution rail, button box, small terminal, sigal, relay and sensor, communication and joint box etc.
Functional Advantages
High impact resistance material: HIPS, ABS, ABS-UV Fire Resistant.
Automatically open and lock of lid, control by pressing the on-off button on the cover.
Safe and full material copper terminal.

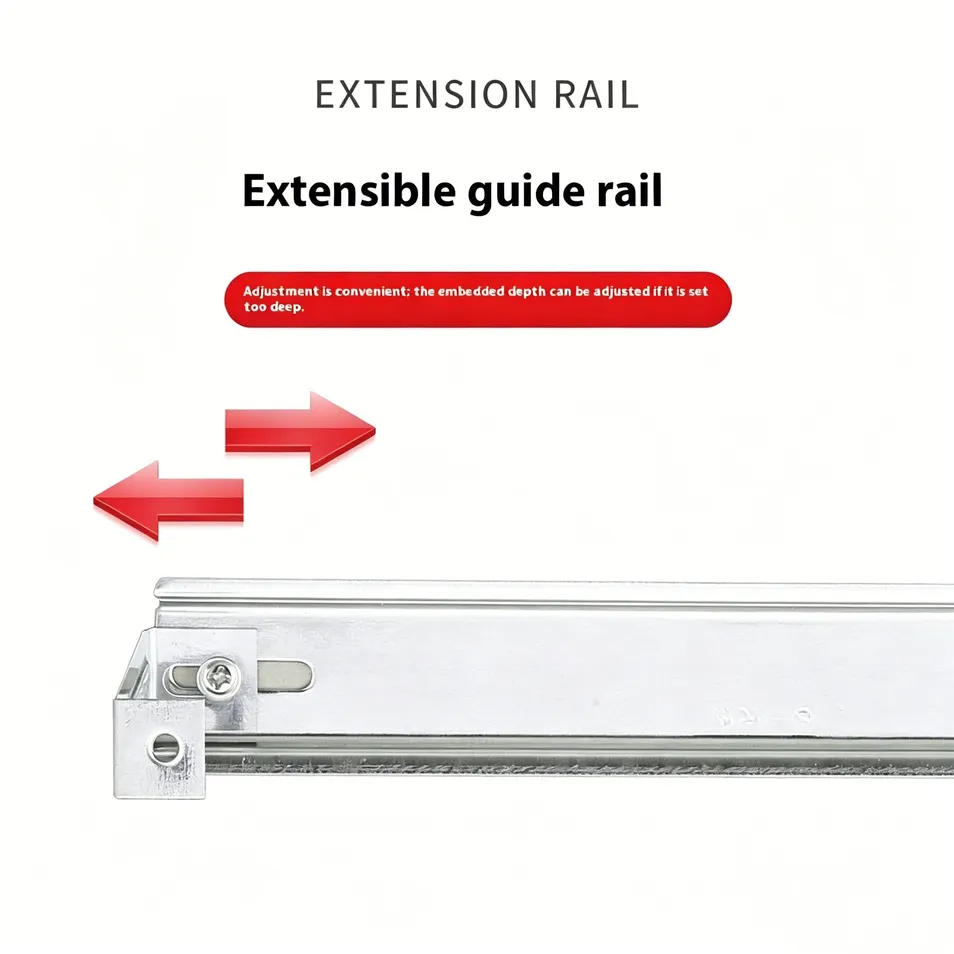

Adjustable din-rail: move ascend and descend.
Ultra-large space box for moving and easy wiring.
Flush mounting and surface mounting available.
Function of Distribution box: leakage of electricity, overload, short-circuit protection.
Application: widely used in low voltage distribution networks for power supplying of consumers and commercial buildings, etc.
Specifications
TECHNICAL PARAMETERS
Product Name

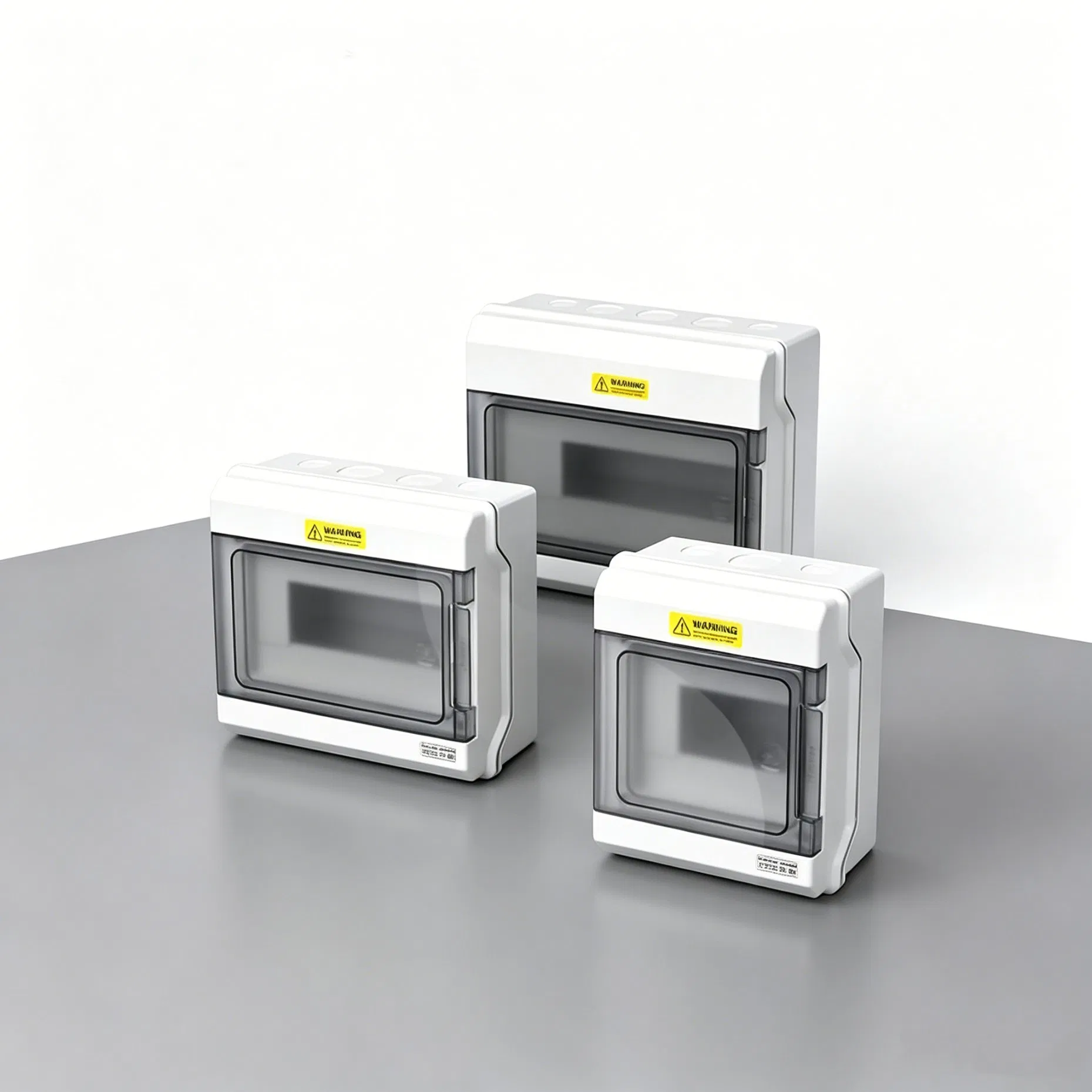

IP65 Waterproof Distribution Box
Protection Grade
IP65 rated, dustproof and water-resistant, suitable for outdoor use
Enclosure Material
High-strength PC (polycarbonate), flame-retardant, impact & UV resistant

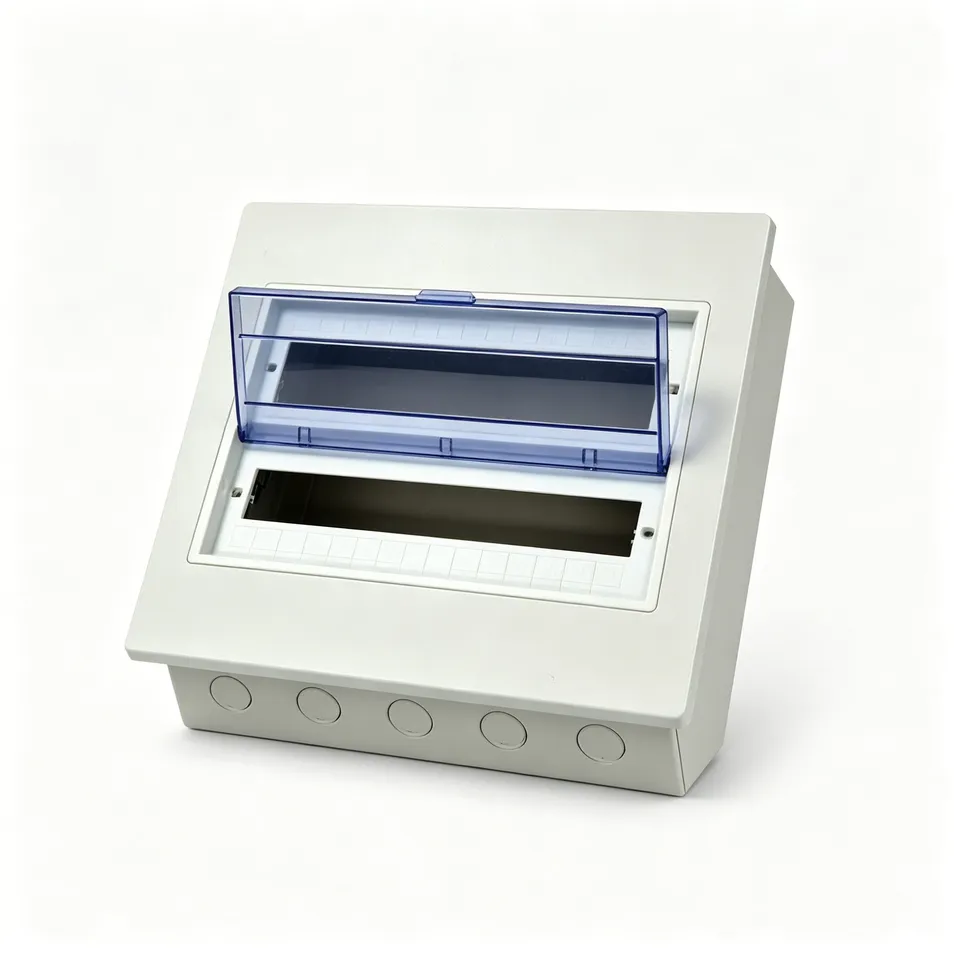

Cover Type
Side-hinged cover for convenient access and maintenance
Mounting Method

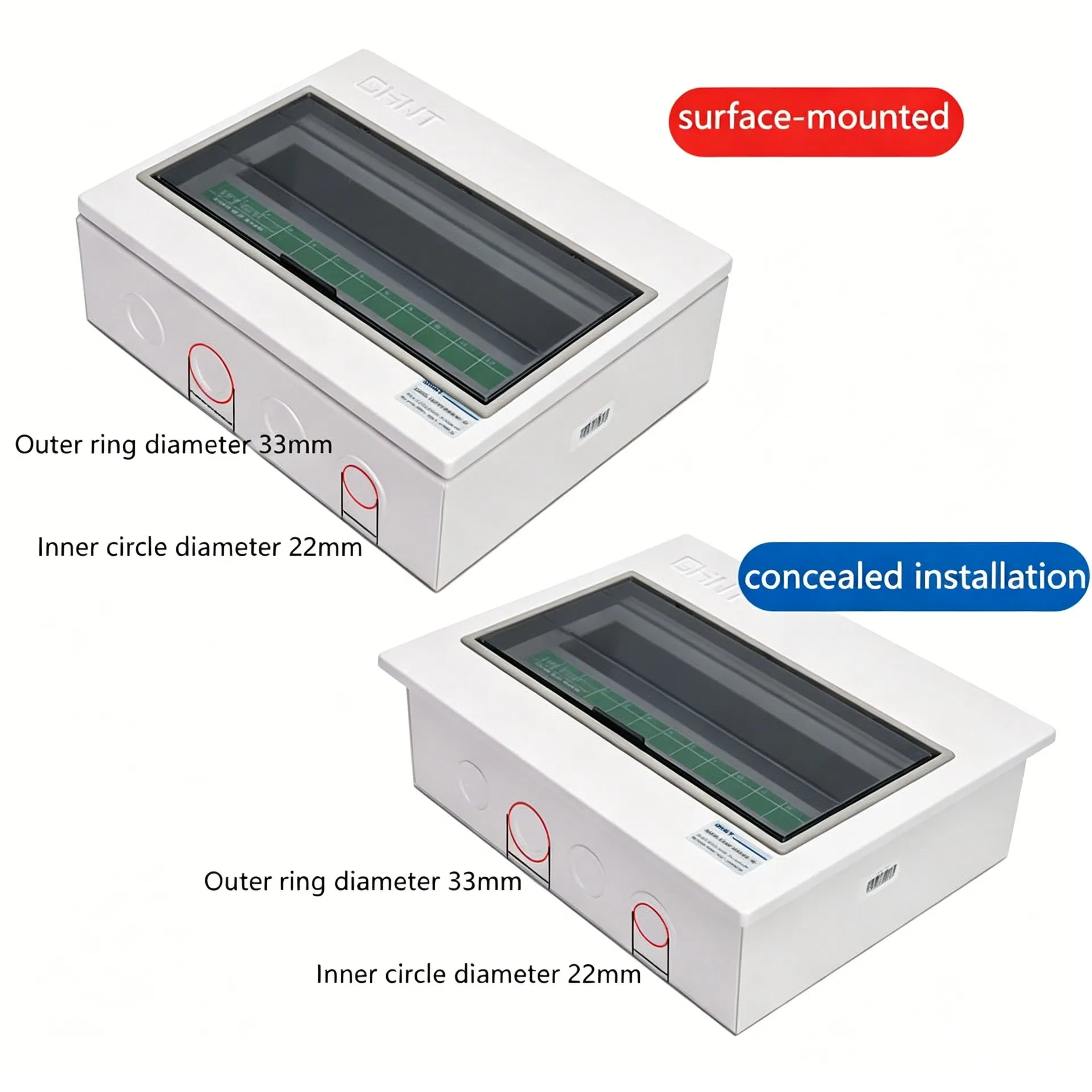

Wall-mount with pre-drilled holes and multiple cable entry knockouts
Internal Structure

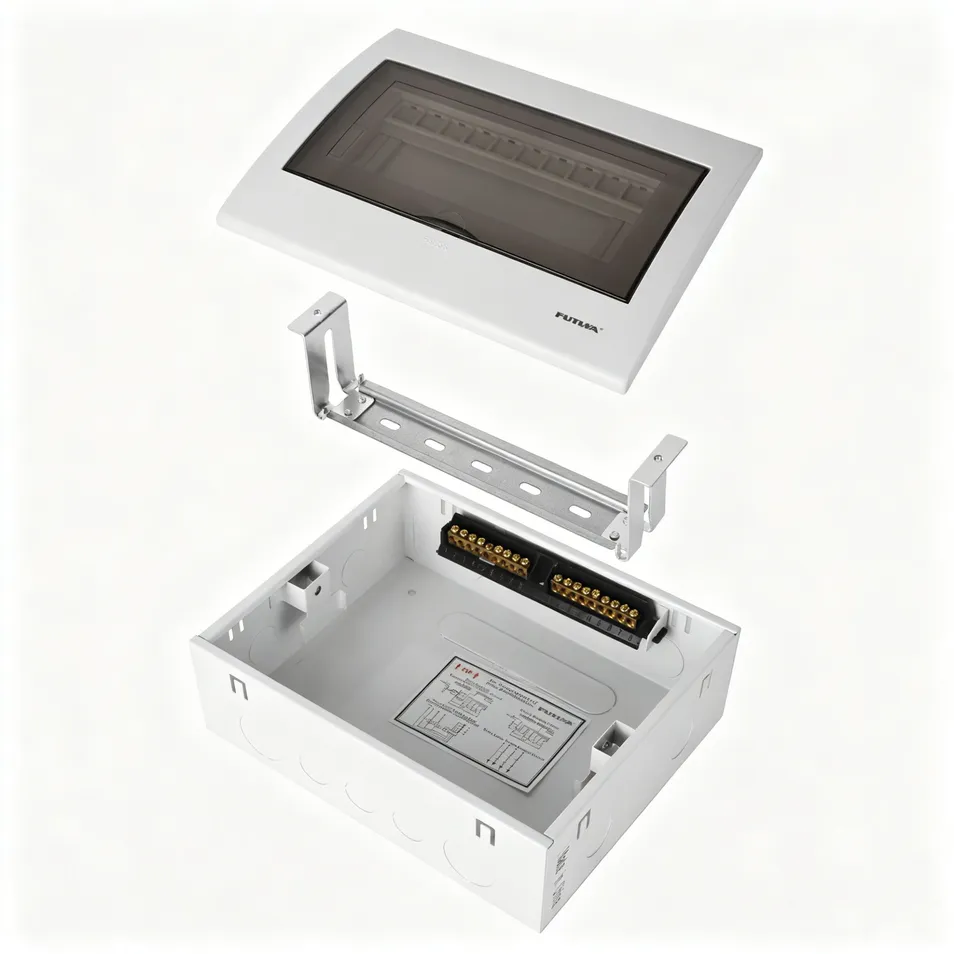

Built-in 35mm standard DIN rail with terminal blocks
Application
Indoor/outdoor distribution, solar systems, gate controls, lighting, HVAC
Temperature Range
-25°C ~ +60°C (depending on material and sealing)
Cover Options
Transparent/semi-transparent options for easy inspection
Certification
CE, RoHS available upon request
Waterproof Seal
Integrated waterproof seal for tight and secure closure
Specification
Length (L)
Width (W)
Height (H)
2 ways
90
140
60
4 ways
112
210
100
6 ways
148
210
100
8 ways
184
210
100
10 ways
222
210
100
12 ways
256
210
100
15 ways
312
210
100
18 ways
364
222
100
24 ways
270
325
100
36 ways
305
473
100
45 ways
473
326
100
Use Environment and Conditions
The altitude does not exceed 2000m.
The ambient air temperature should not exceed +40°C and not lower than -25°C.
At +20°C, the monthly average relative humidity of the air is not more than 40%.
Suitable for installation in a place free from severe vibration and shock.
There should be no explosive hazard, no gas and conductive dust in the medium that can corrode metals and damage insulation.
Frequently Asked Questions
Q1: Can I customize the logo, color, and size of the product?
Yes. On-demand customization is fully supported, including custom logos, shell colors, and overall appearance size to fit your system installation requirements.
Q2: What is the protection grade of the PZ30 Distribution Box?
The distribution box features an IP65 protection grade, making it dustproof and water-resistant. It is constructed with high-strength, flame-retardant PC and ABS material, rendering it suitable for outdoor environments.
Q3: What methods of installation do you support?
The series supports both Flush-Mounting (inside walls for a clean finish) and Surface-Mounting / Wall-Mounting options. Pre-drilled holes and multiple cable entry knockouts are built-in for convenience.
Q4: What payment methods are accepted?
We support multiple payment methods including T/T, Western Union, PayPal, cash, and other negotiable payment models to facilitate easy transactions.
Q5: How are the products transported for delivery?
The appropriate modes of transportation (sea, air, or land freight) are chosen based on the size and weight of the goods, or customized according to your specific requirements.
Q6: What is the operation temperature range and altitude limit for the box?
The PZ30 distribution box can operate safely at altitudes of up to 2000m. The ambient air temperature should be within the range of -25°C to +40°C, under conditions free from severe vibration or corrosive gases.
