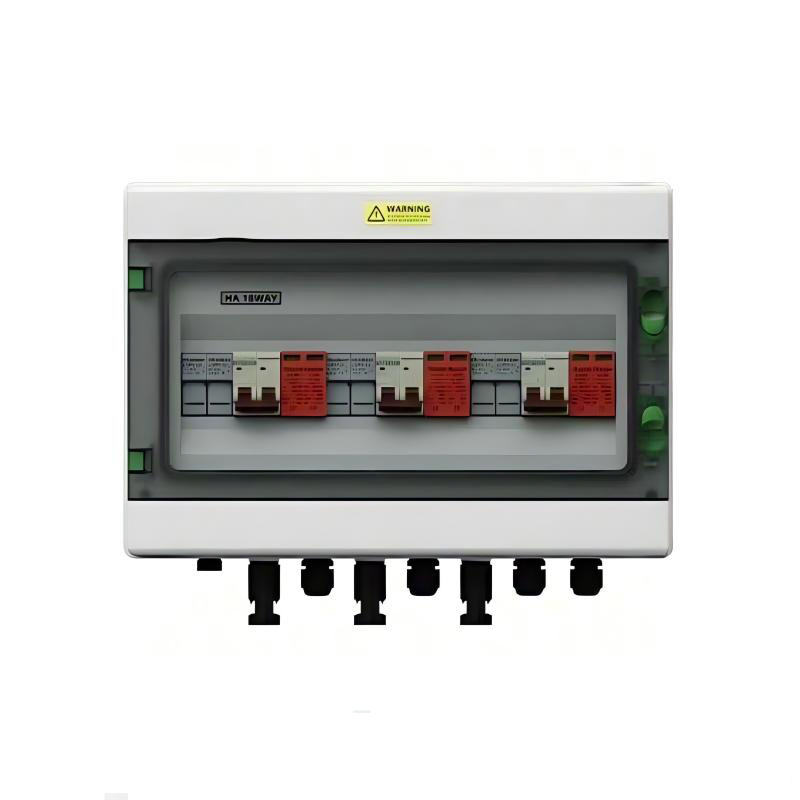

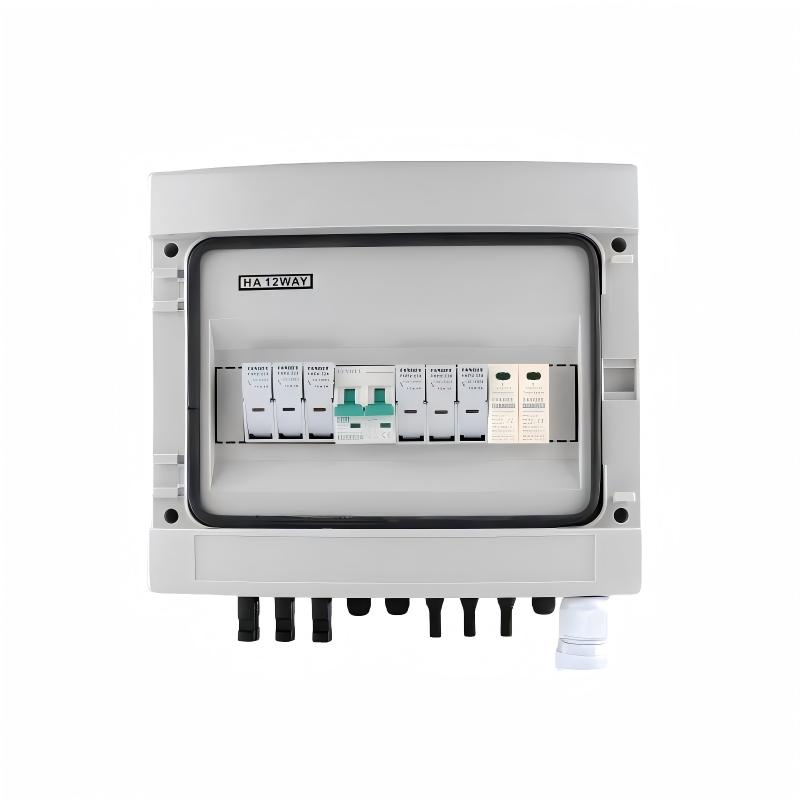

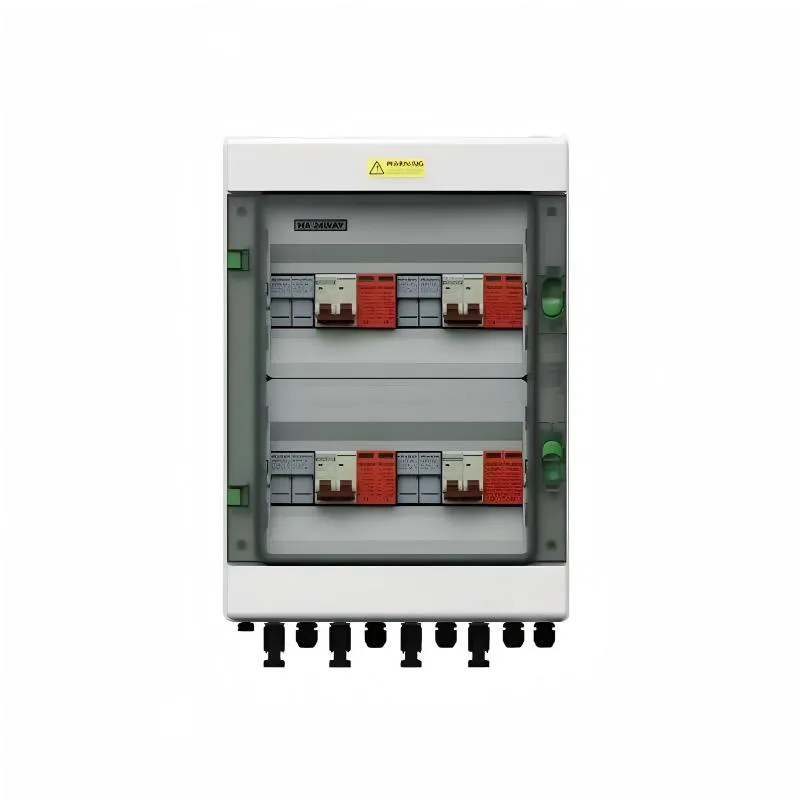

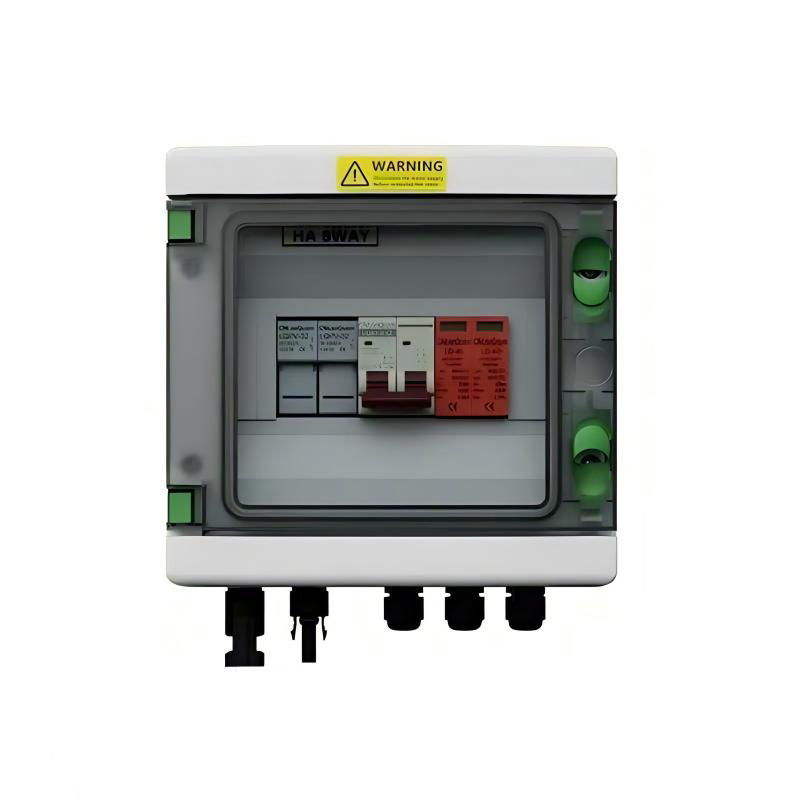

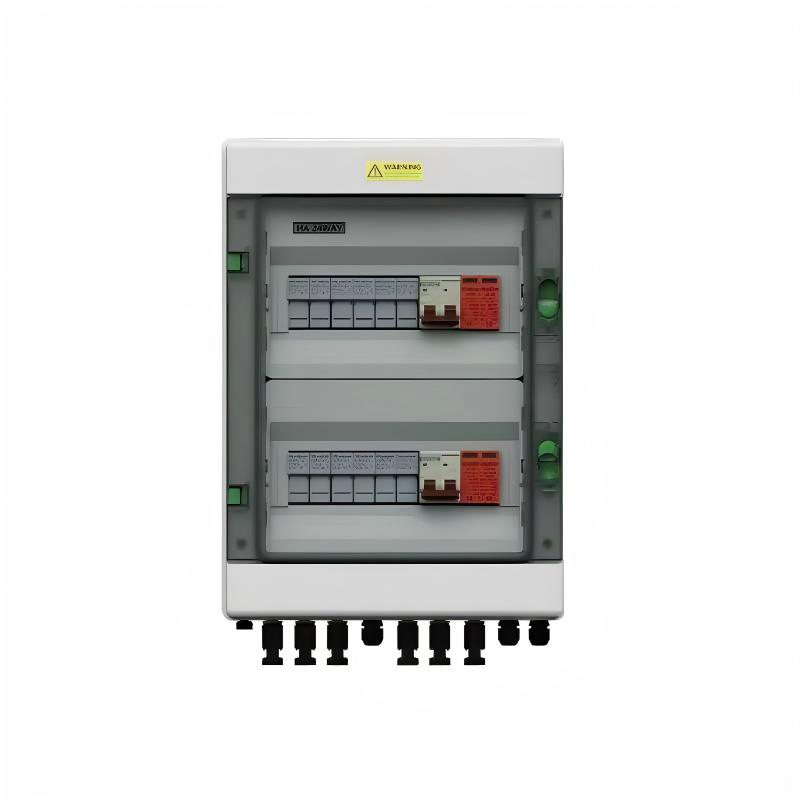

PV combiner box is used to bring together the output DC current of the PV array. It will combine the same solar panels which in series to form a PV array, supporting the use of photovoltaic grid connected inverter, so as to constitute a complete photovoltaic system, with the city electric grid.
By using PV array combiner box, according to the input voltage of the inverter, Clients can connect a fixed number of similar PV modules to form a PV array. Then different strings of PV array can be converged into the PV array string box. After that, together with lightning arresters and circuit breakers, it is connecting to the inverter to reduce the system installation time and increase the system safety.

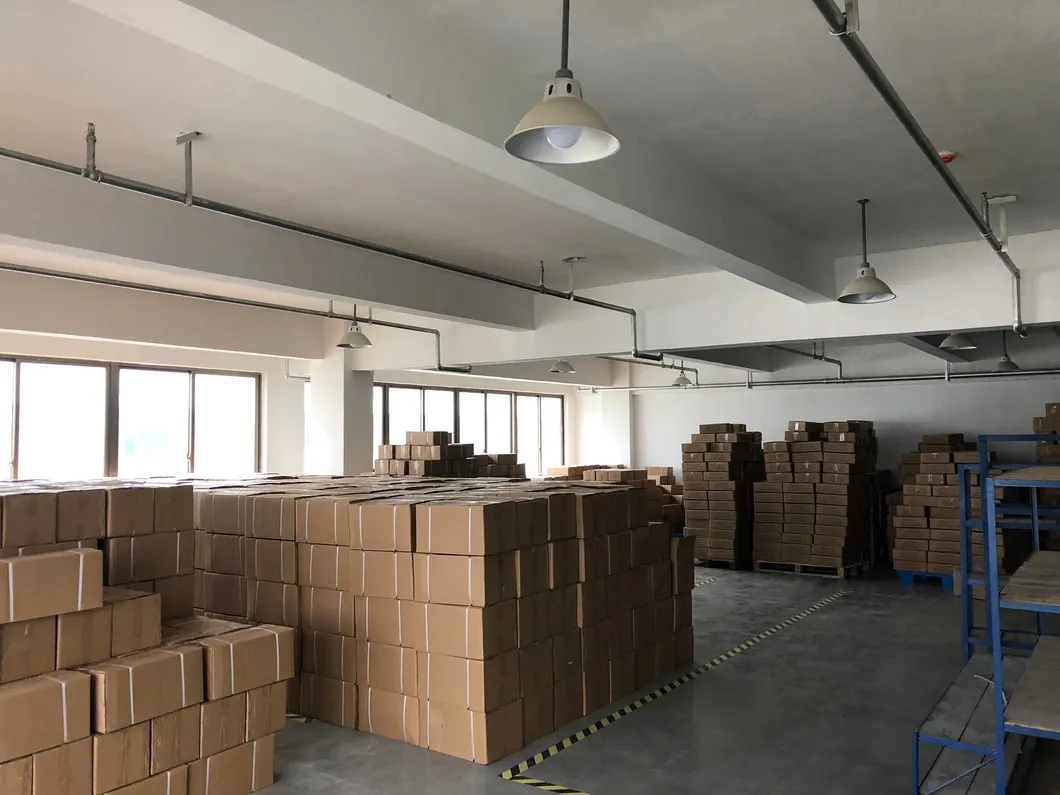

Packaging & Shipping
Frequently Asked Questions
What is the primary function of a PV combiner box?
A PV combiner box brings together the output DC current of multiple PV arrays. It combines identical solar panels connected in series to form a unified PV array, supporting the integration with grid-connected solar inverters to ensure system safety and efficiency.
What protection grade does this DC box offer for outdoor installations?
This DC box features an IP65 protection grade shell made from durable PVC material, making it dust-tight and highly resistant to water, suitable for outdoor operations.
What is the maximum DC voltage input allowed?
The maximum DC voltage input is compatible with DC 500V, 1000V, and 1500V, depending on your system configuration and installation requirements.
Is customization available for different solar string requirements?
Yes, customization is available. We accept OEM/ODM orders and can configure strings from 1 to 24 strings depending on customer specifications.
What is the operating temperature range for this equipment?
The unit functions reliably in demanding environments with a working temperature range of -25ºC to 80ºC.
What is the warranty period for this combiner box?
The product comes with a standard 1-year warranty to guarantee reliable performance and customer satisfaction.
