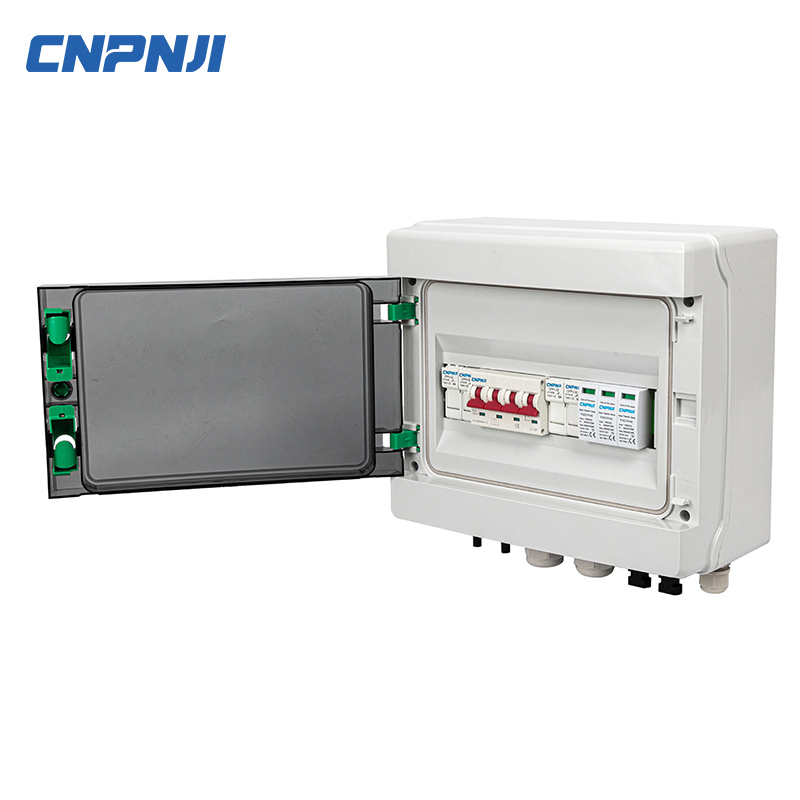

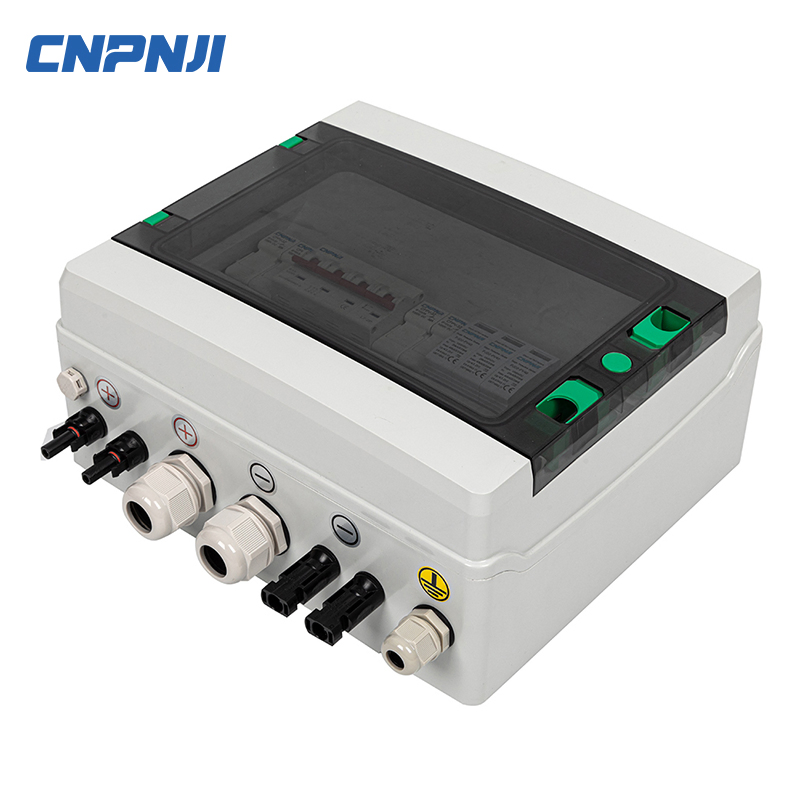

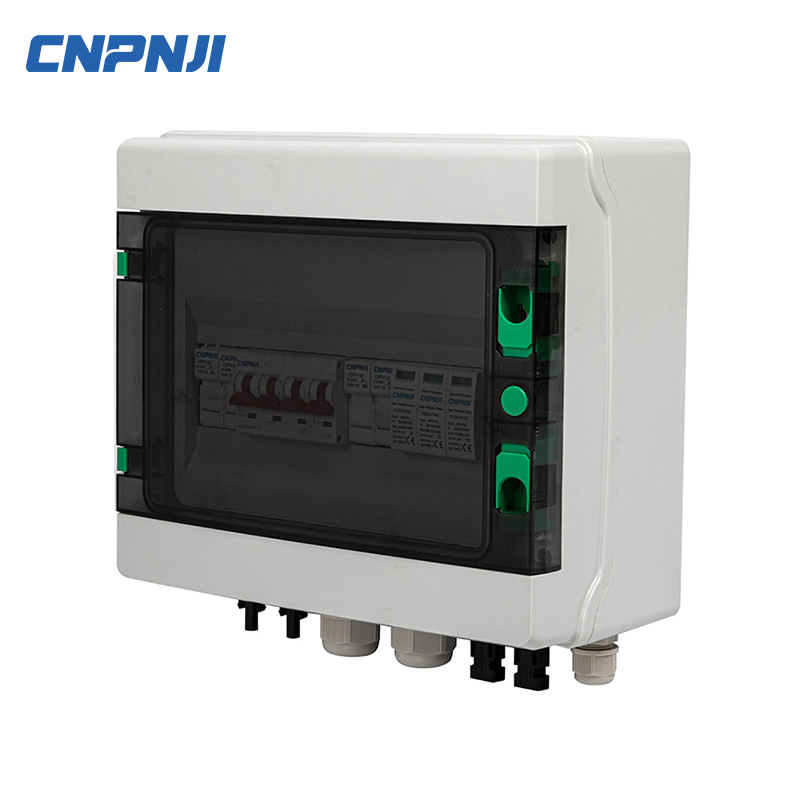

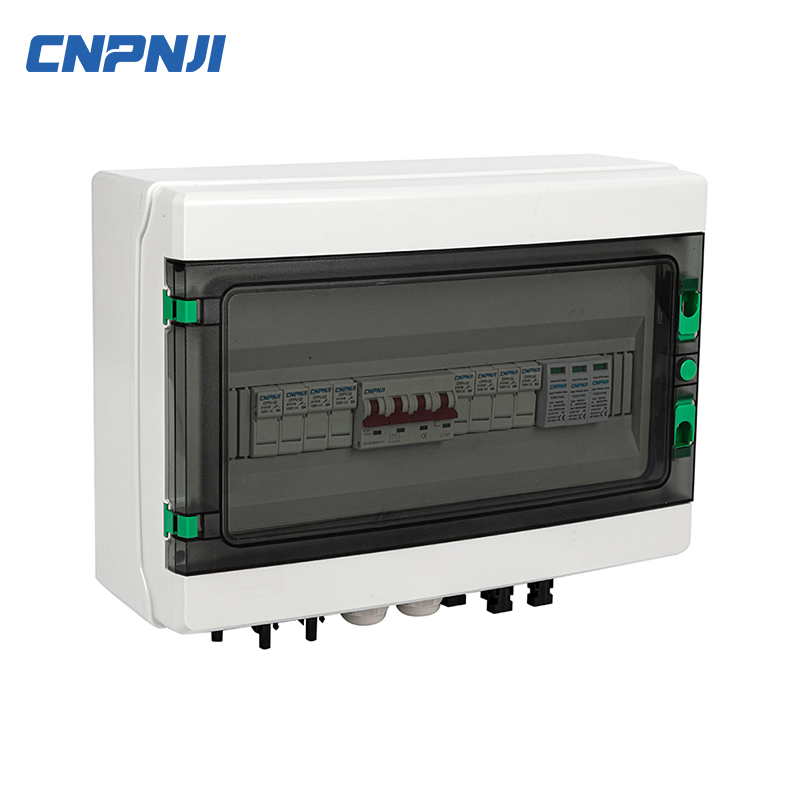

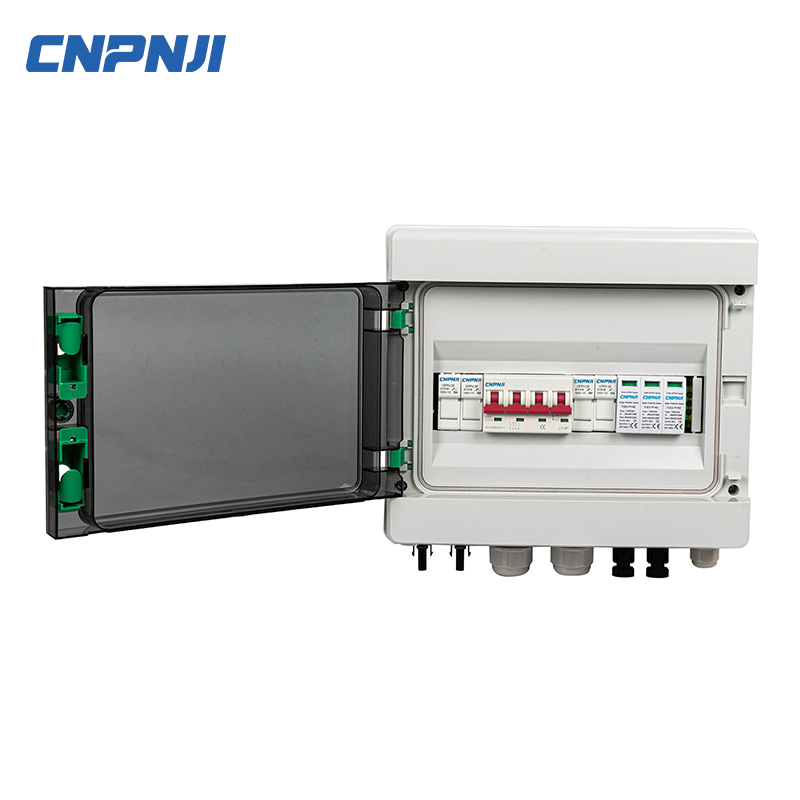

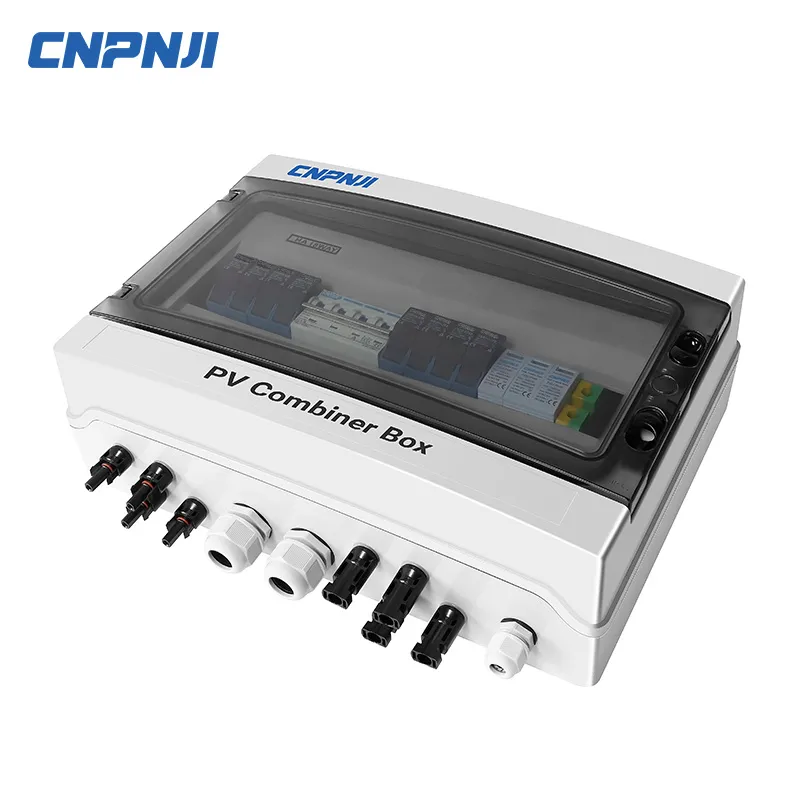

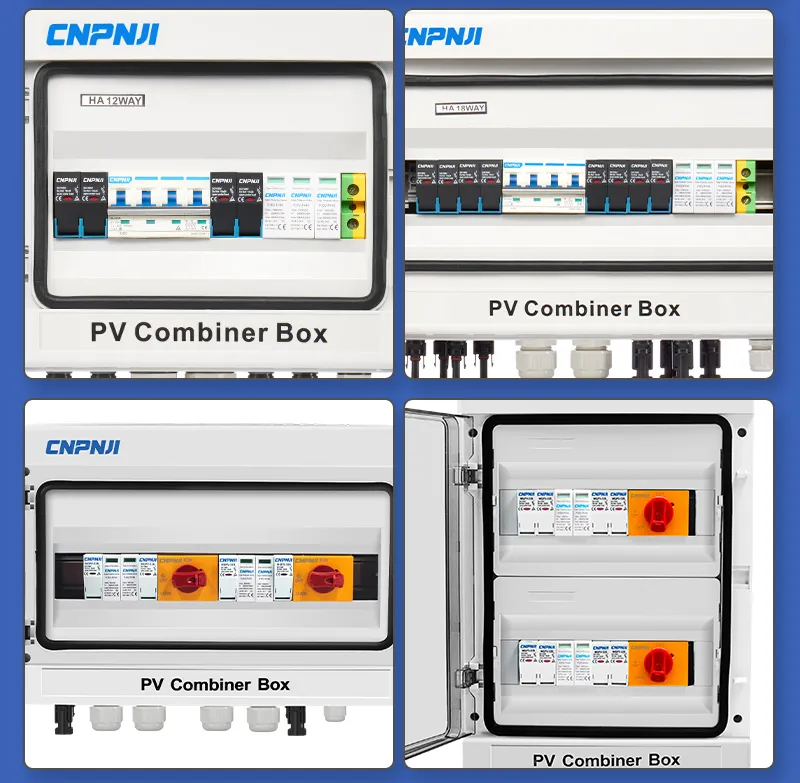

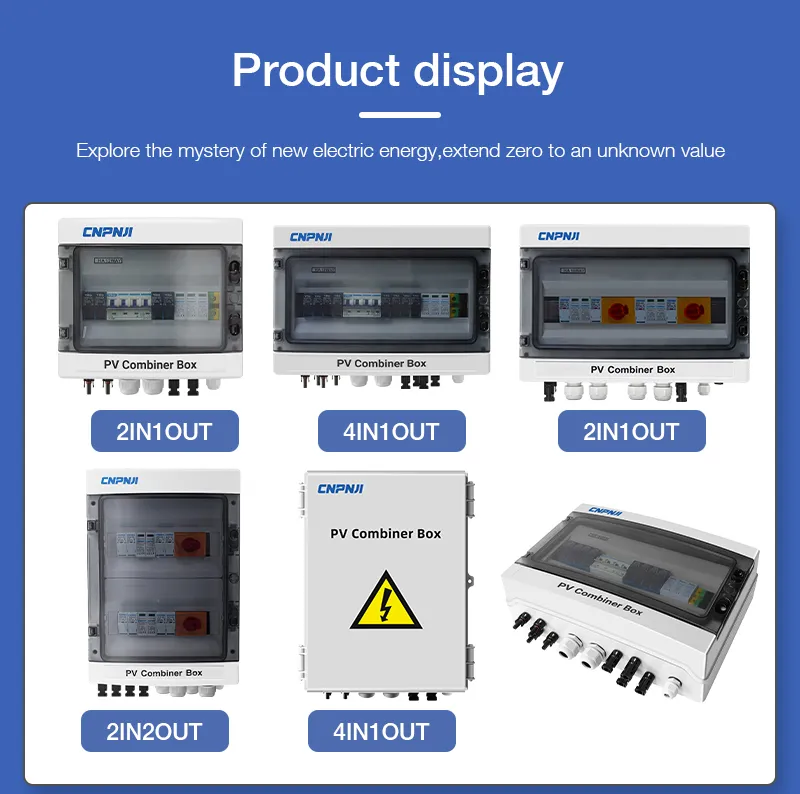

Cnpnji IP65 Combiner Box Solar DC Power Distribution Box for Solar System

Overview

Basic Info.

Model NO. 2 in 1 out 1000V

Certification ISO9001:2000, CCC, TUV CE CQC

Form All-packaged Type

Operation Voltage High Voltage

Size 1 Unit

Application Range Power Plants

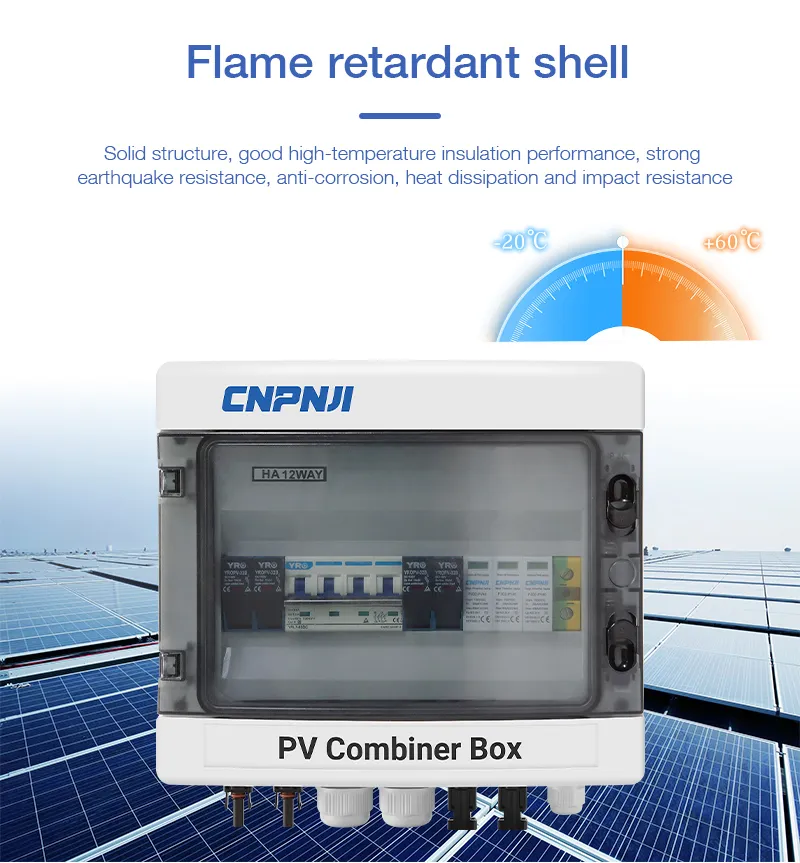

Shell Material Plastic ABS

Shell Protection Grade IP65

Name PV Combiner Box

Input Current of Each Circuit 20A

Maximum Output Switching Current 40A

Strings 2

Voltage 1000V

Transport Package Paper /Wooden Carton

Specification 250*195*110mm

Origin China

HS Code 8537109090

Production Capacity 500PCS/Month

Packaging & Delivery

Package Size 30.00cm * 25.00cm * 20.00cm

Package Gross Weight 4.000kg

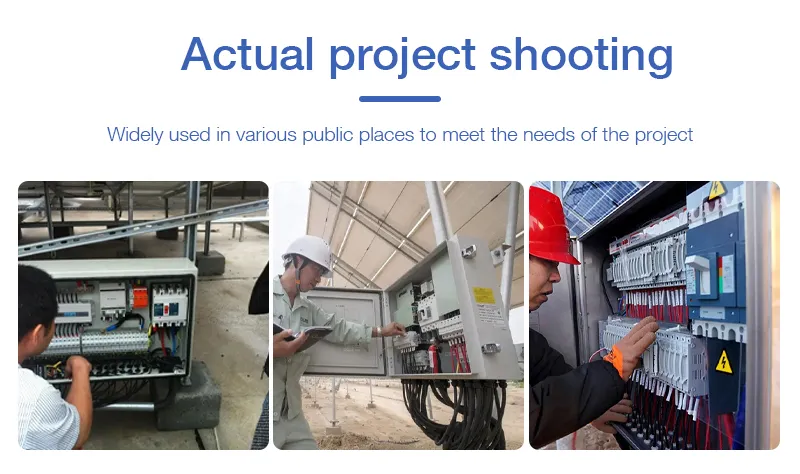

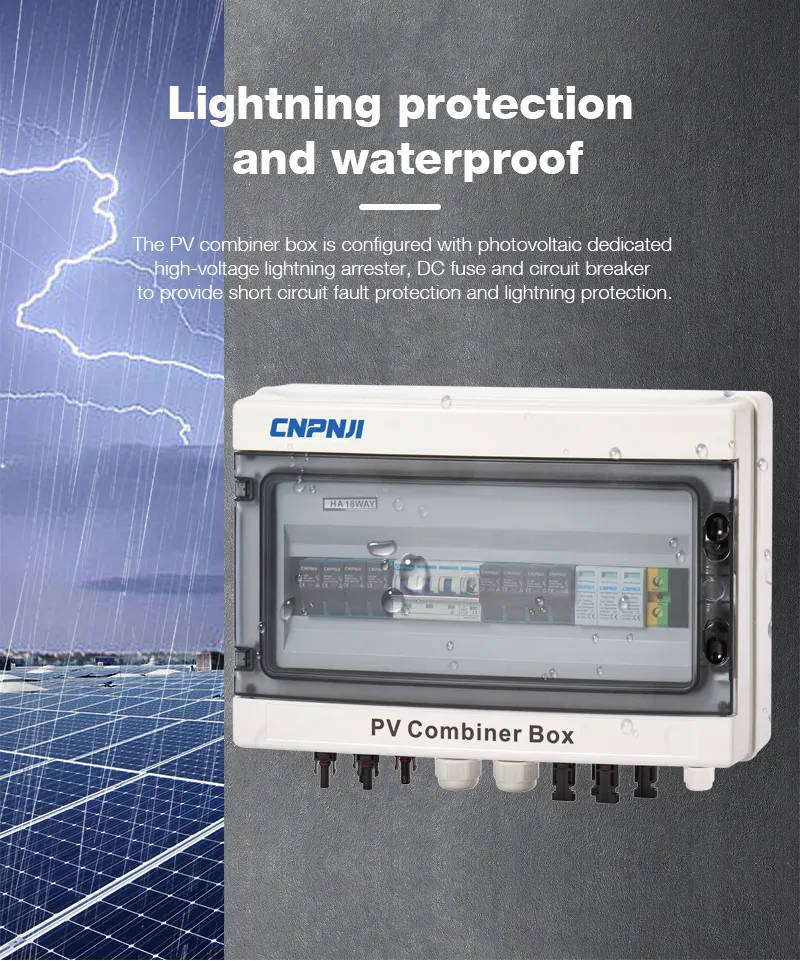

Product Features

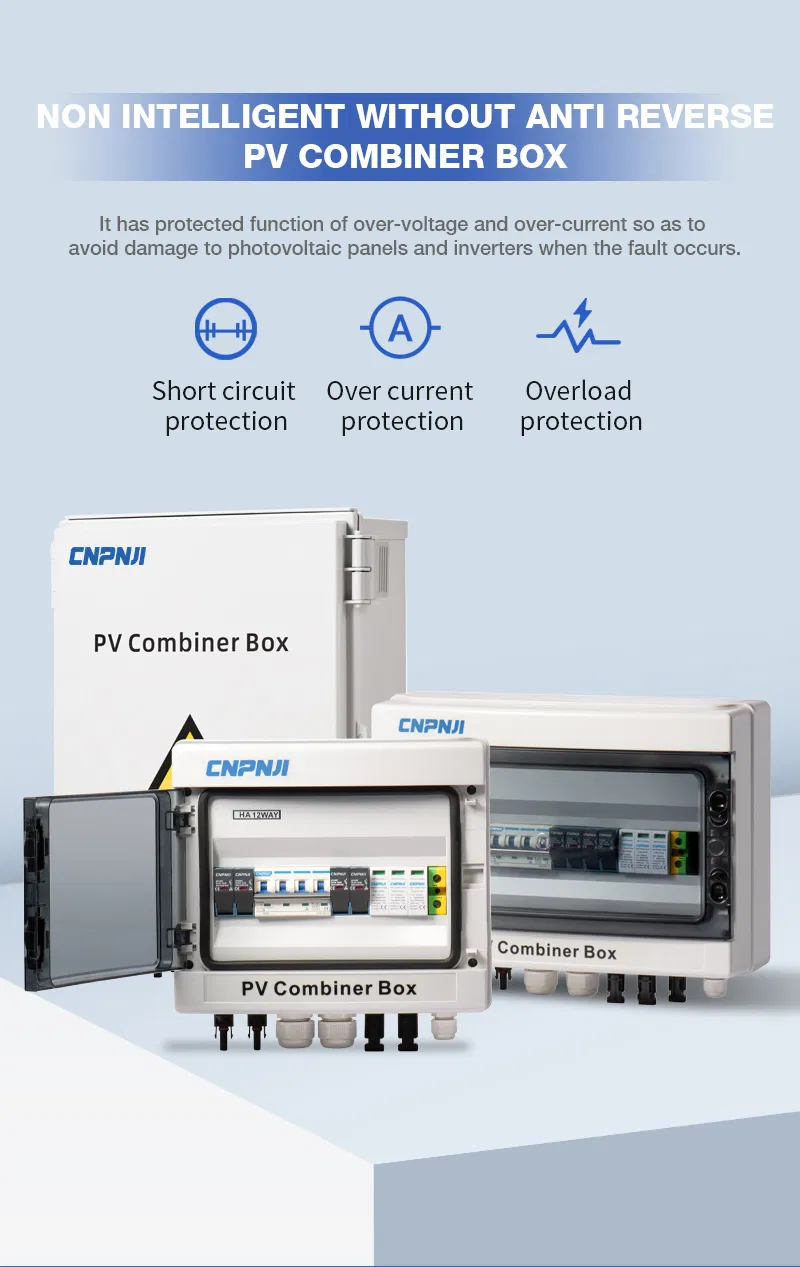

The combiner box can be divided into three types in terms of function. The first type is the basic type, without anti backflow and monitoring functions; The second type is equipped with anti reverse function and does not have monitoring function; The third type, which has both anti backflow and monitoring functions, is the most versatile, cost-effective and cost-effective combiner box.

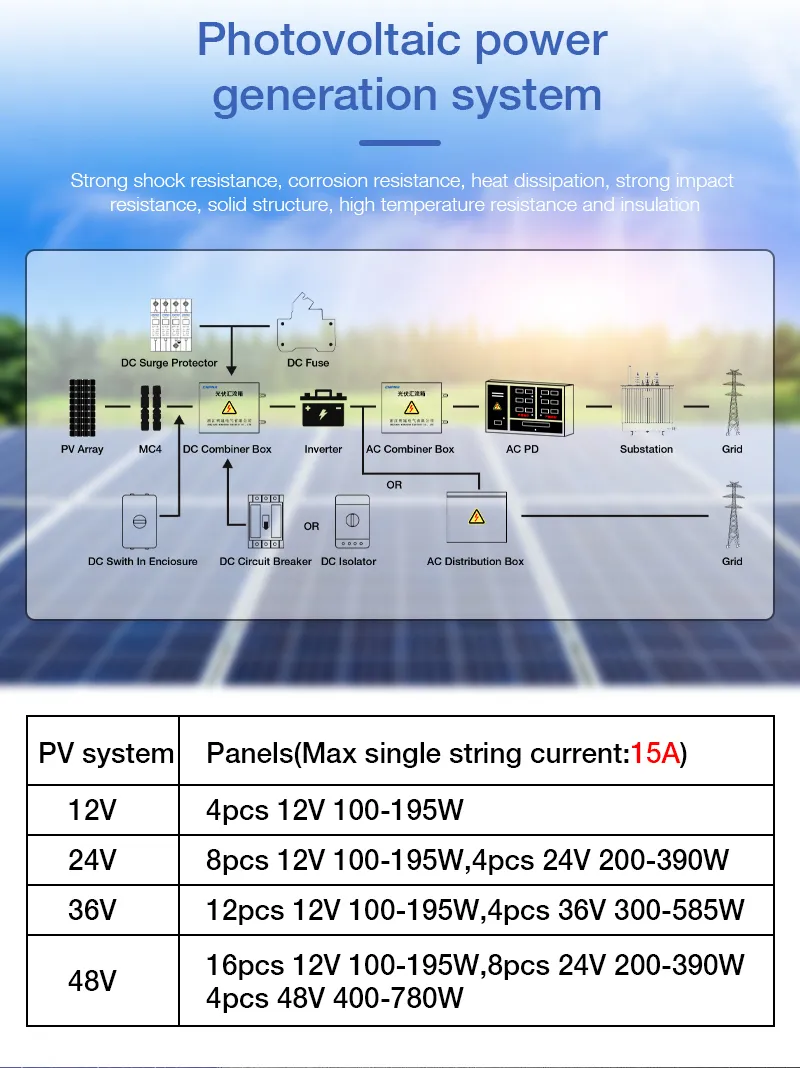

Name of combiner box components and their main impacts:

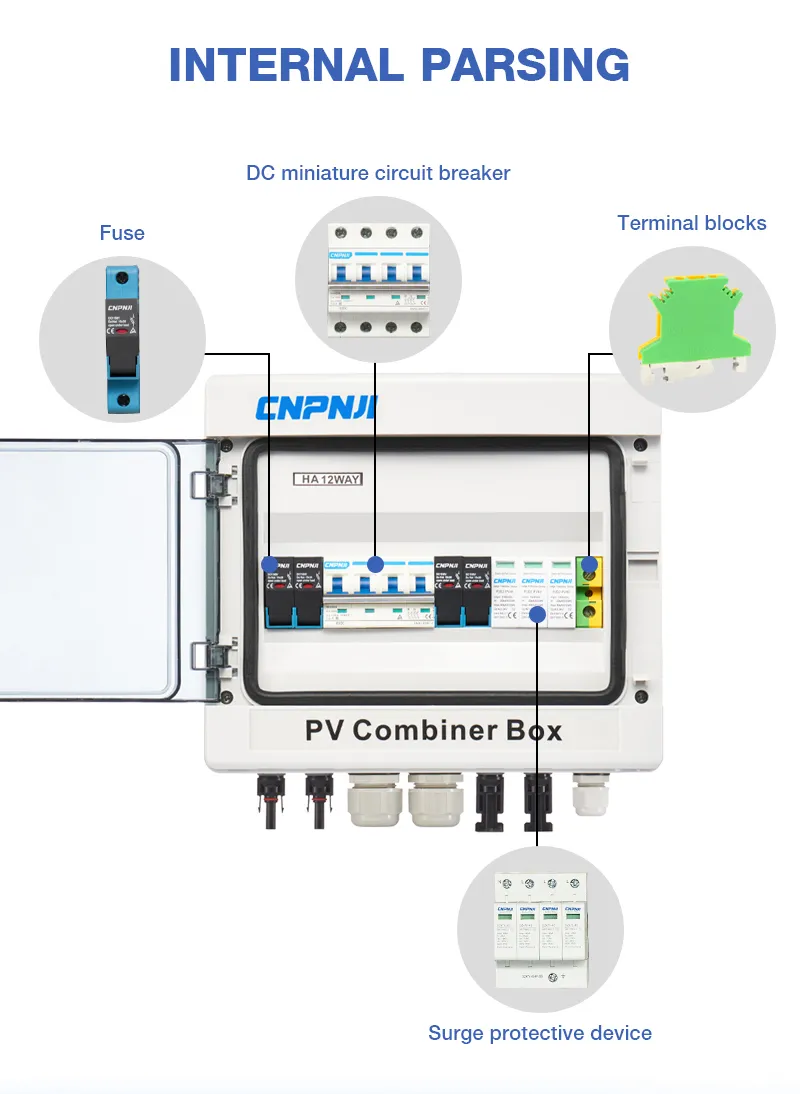

Circuit breaker and isolation switch: used for isolation; Easy to cut off power for maintenance on the load side
Photovoltaic fuse: prevents the line from withstanding excessive current or short-circuit current, and protects photovoltaic modules
DC Surge protector: to prevent inductive lightning stroke
Anti reverse current diode: To prevent reverse power transmission from high voltage string to low voltage string, but it will cause power loss and require additional heat dissipation devices
Monitoring unit (intelligent controller): monitoring current, Surge protector status, etc. to realize data communication
Voltage transmitter and self powered power supply: providing working power to the intelligent controller

Recommend Products

IP65 Combiner Box Solar DC Power Distribution Box for Solar System

Product Description

Name	PV combiner box
System maximum de voltage	1000
Maximum input current for each string	20A
Maximum input strings	2
Maximum output switch current	40A
Number of inverter MPPT	1
Number of Output strings	1
Category of test	II grade protection
Nominal discharge current	20kA
Maximum discharge current	40kA
Voltage protection level	3.8kV
Maximum continuous operating voltage Uc	1000V
Poles	3P
Structure characteristic	Plug-push module
Operating Temperature	Wall mounting type
Installation method	Wall mounting type
