Model NO.ECB
CertificationSAA CE
FormAll-packaged Type
Operation VoltageLow Voltage
Application RangeSolar
Shell MaterialPP/ABS
Shell Protection GradeIP65
Voltage Ui600V/1000V
Current10A/15A/20A/30A/40A
Warranty1 Year
in1/2/3/4/5/6 String
out1/2/3/4/5/6 String
Installing PositionBetween Panels and Inverter
Transport Packageby Sea/Air/Courier
Specificationbox
OriginChina
HS Code85361000
Production Capacity1000000PC/Year

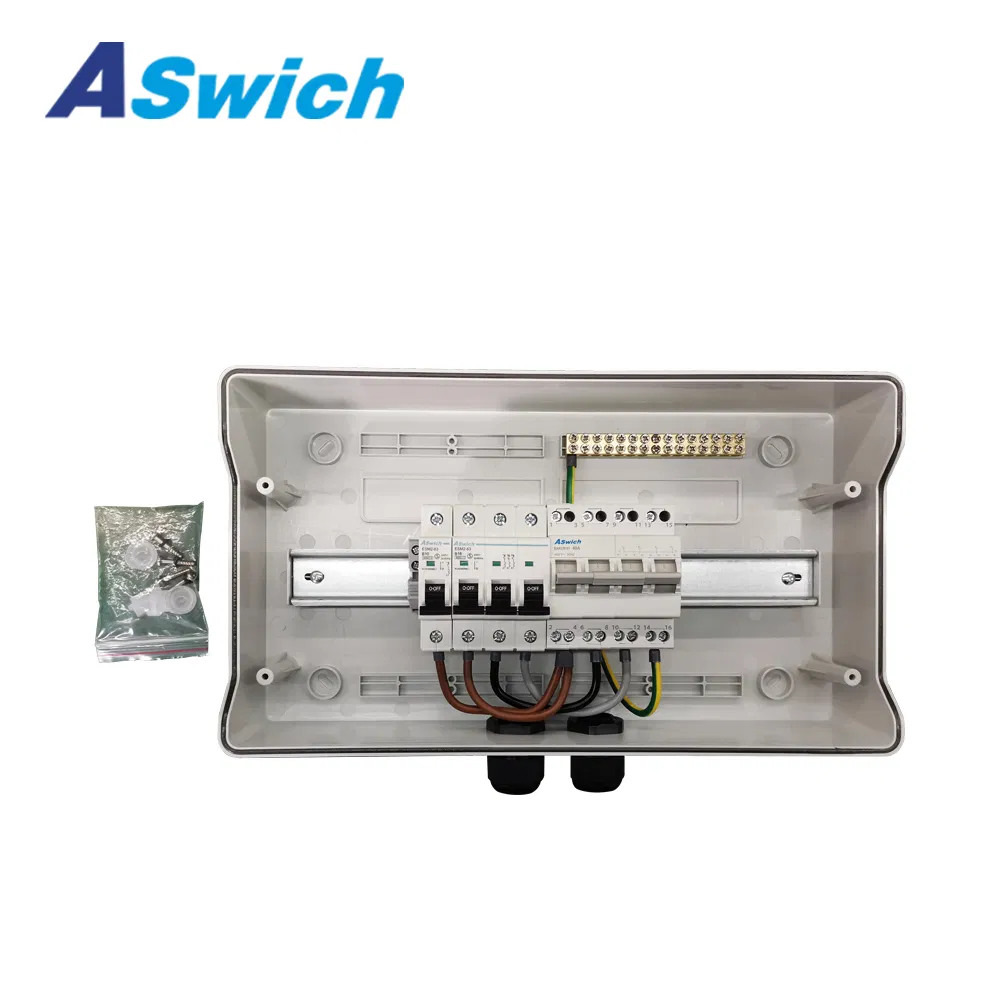

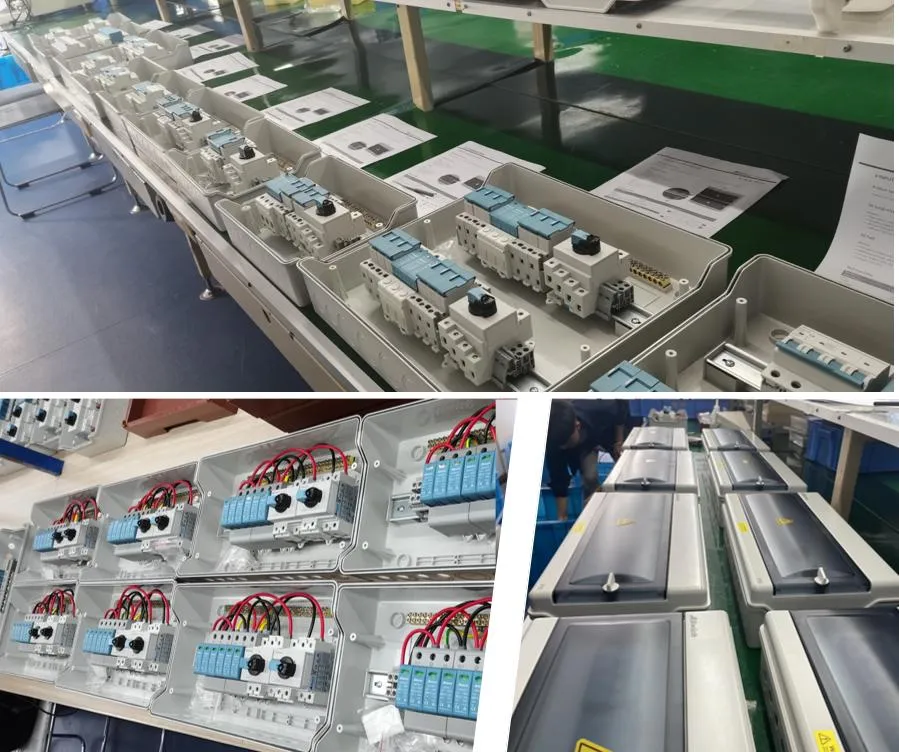

Combiner Box Types
1. 600V (1in 1out, 2in 2out, 2in 1out, 3in 1out, 3in 3out)
| NO. |
ECBX Type |
ECBY Type |
| configuration |
isolator + SPD + Fuse |
SPD + MCB |
| Voltage Ui |
600V |
600V |
| Current |
10A/15A/20A/25A/30A/40A |
10A/16A.20A/25A/30A/40A/63A |

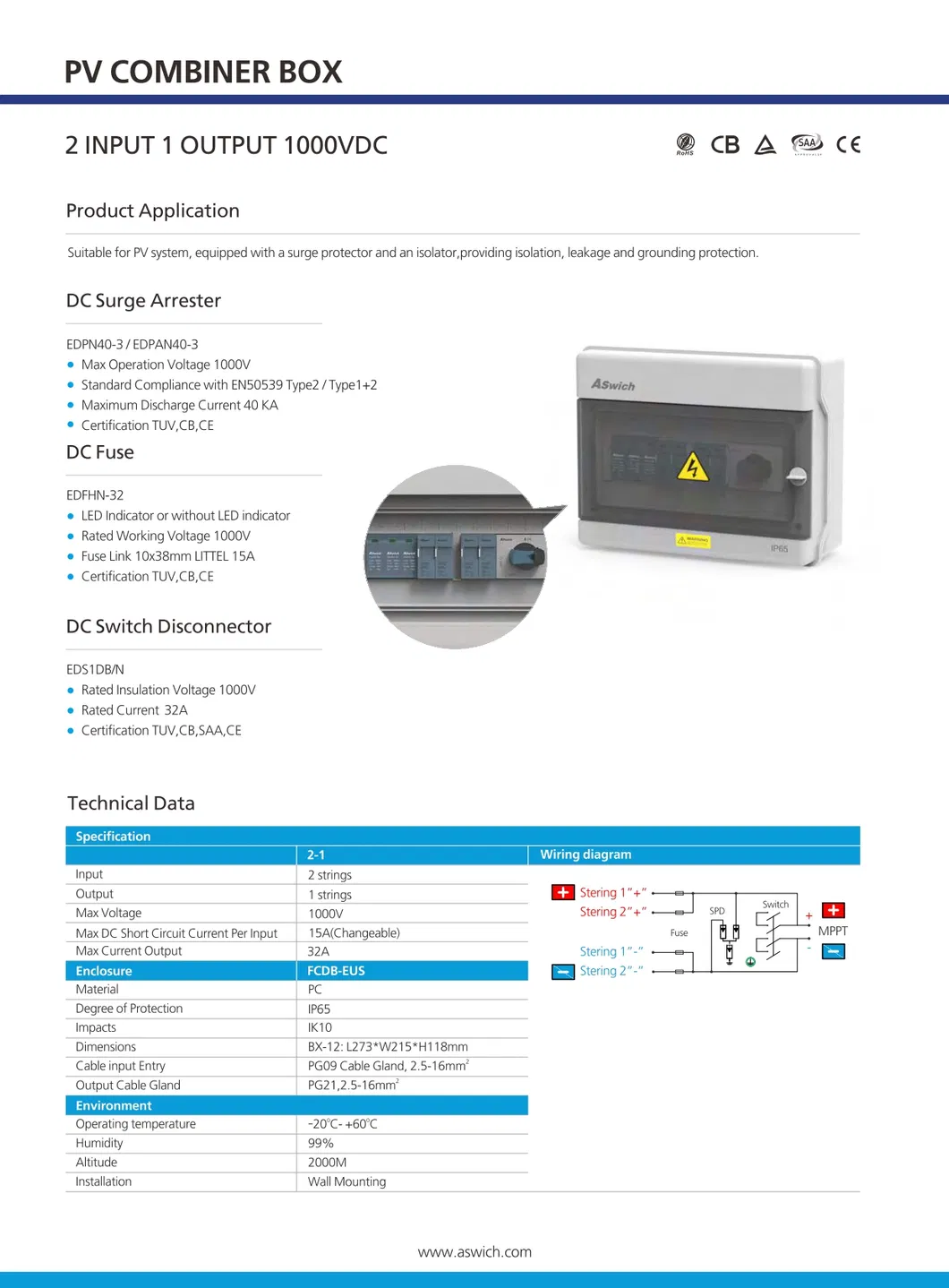

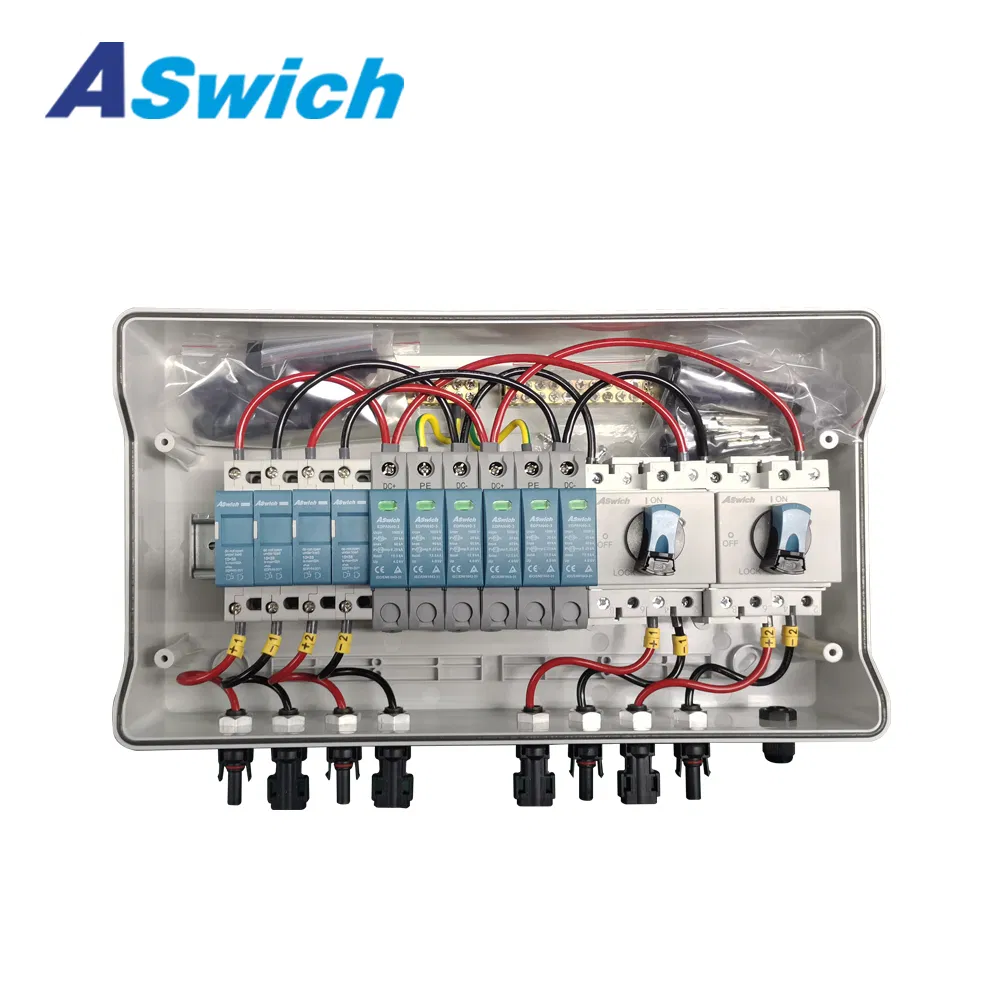

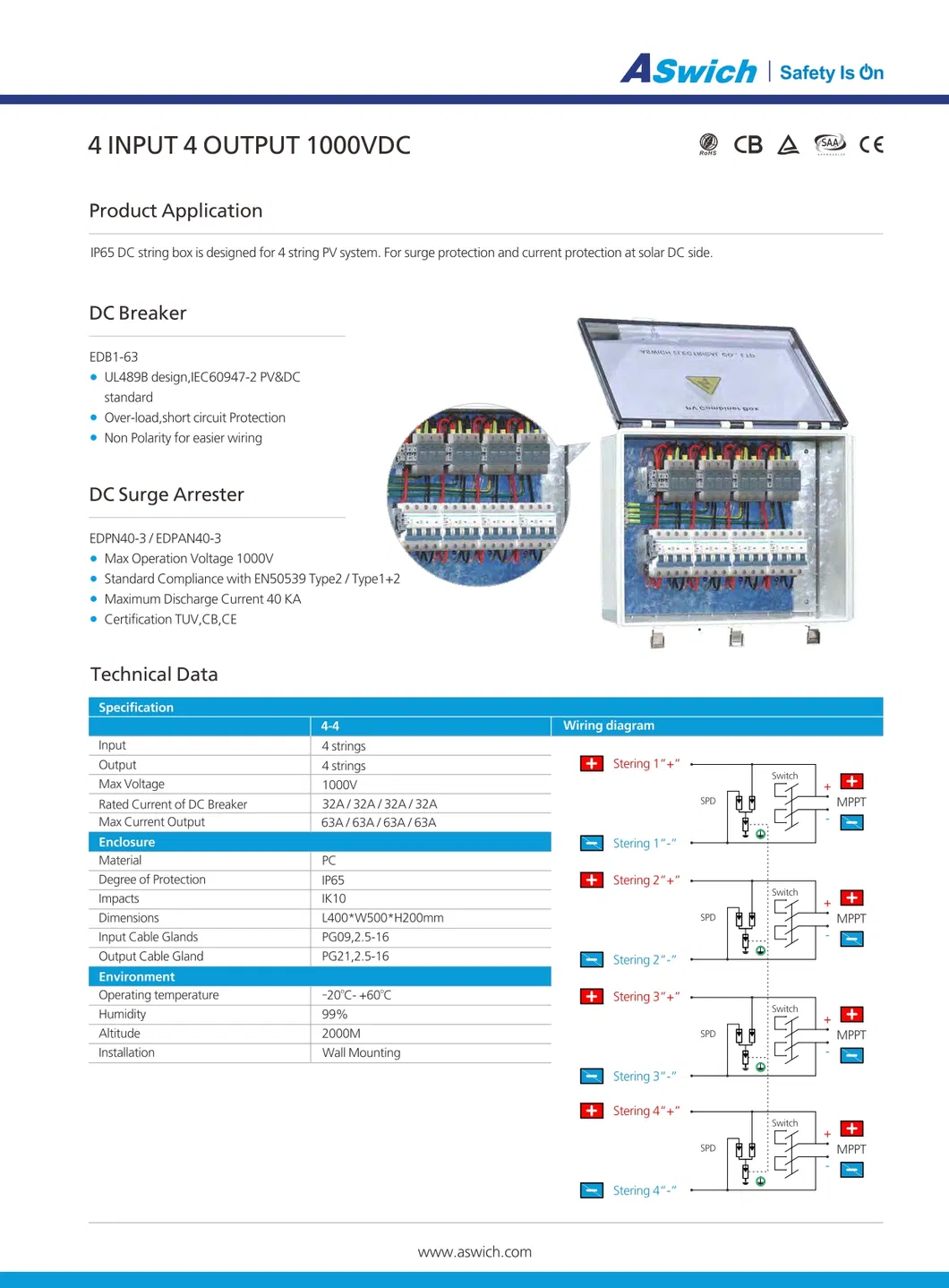

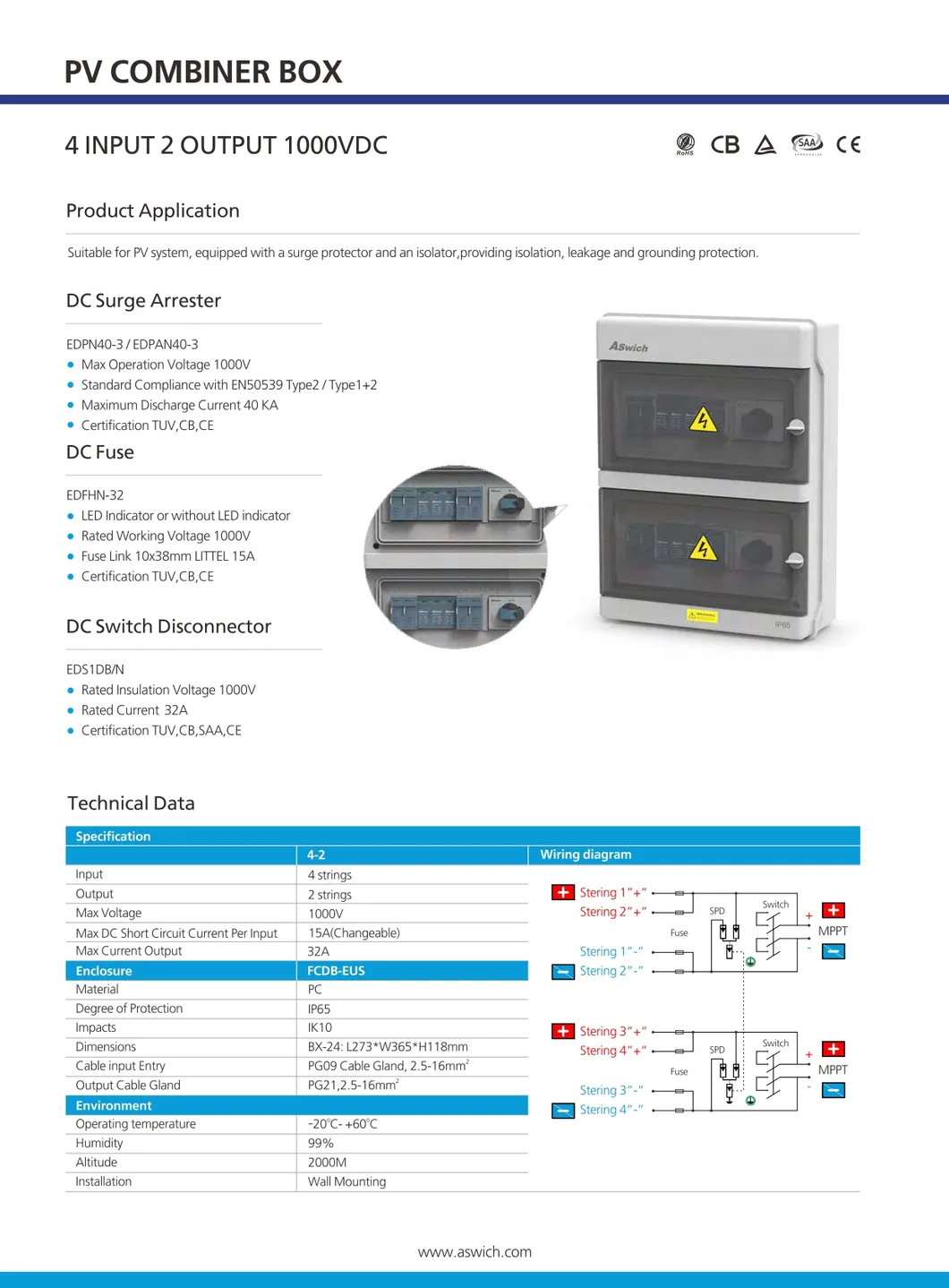

2. 1000V (1in 1out, 2in 2out, 2in 1out, 3in 1out, 3in 3out)
| NO. |
ECBX Type |
ECBY Type |
| configuration |
isolator + SPD + Fuse |
SPD + MCB |
| Voltage Ui |
1000V |
100V |
| Current |
10A/15A/20A/25A/30A/40A |
10A/16A.20A/25A/30A/40A/63A |
They are suitable for use in residential, commercial and utility scale projects.
Frequently Asked Questions
QWhat is the max output wire size?
It could run max 58A. You should use 4-6 AWG wire for the output. But we could only fit for 6 AWG wire now. We would update this unit in the next version and make it could fit 4 AWG wires.
QIt says 1400w for 24v system, I have 1600w because of 4s 4p 100w 12v panels. This combiner box 1400w max? Mine is 1600w which is 200w over.
You should get 4 panels in 1 string. Then you would get a 48v combination and use 1 string in this box. 4 string = 16 panels and it would work since the max current for 1 string would be 15A for this system. The cords and fuses are fitted.
QWhere can I buy replacement 15a fuses?
We provide some as the replacements in our original package. It should be 4 more in the package. If you want to purchase more, you could purchase standard 15A DC fuses.
QI have 12 * 400 watts panels. I have 3 connect together in series, so 4 in total. During the day the panels pushes about 60a. Would this work?
No, the fuse is 15A rated.

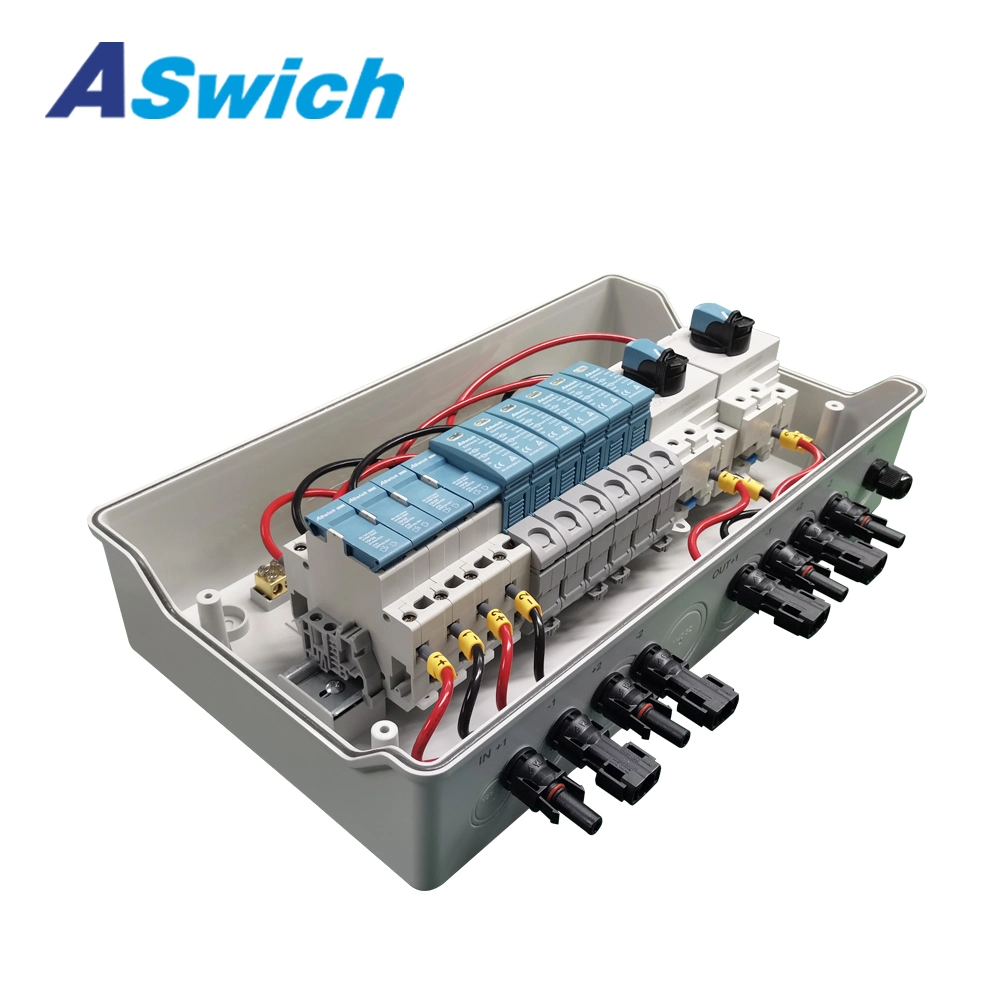

QWhat protection features are included in this PV combiner box?
The solar PV combiner box features short circuit, lightning surge, over-voltage, over-current, and grounding protection to prevent damage to solar panels and inverters.

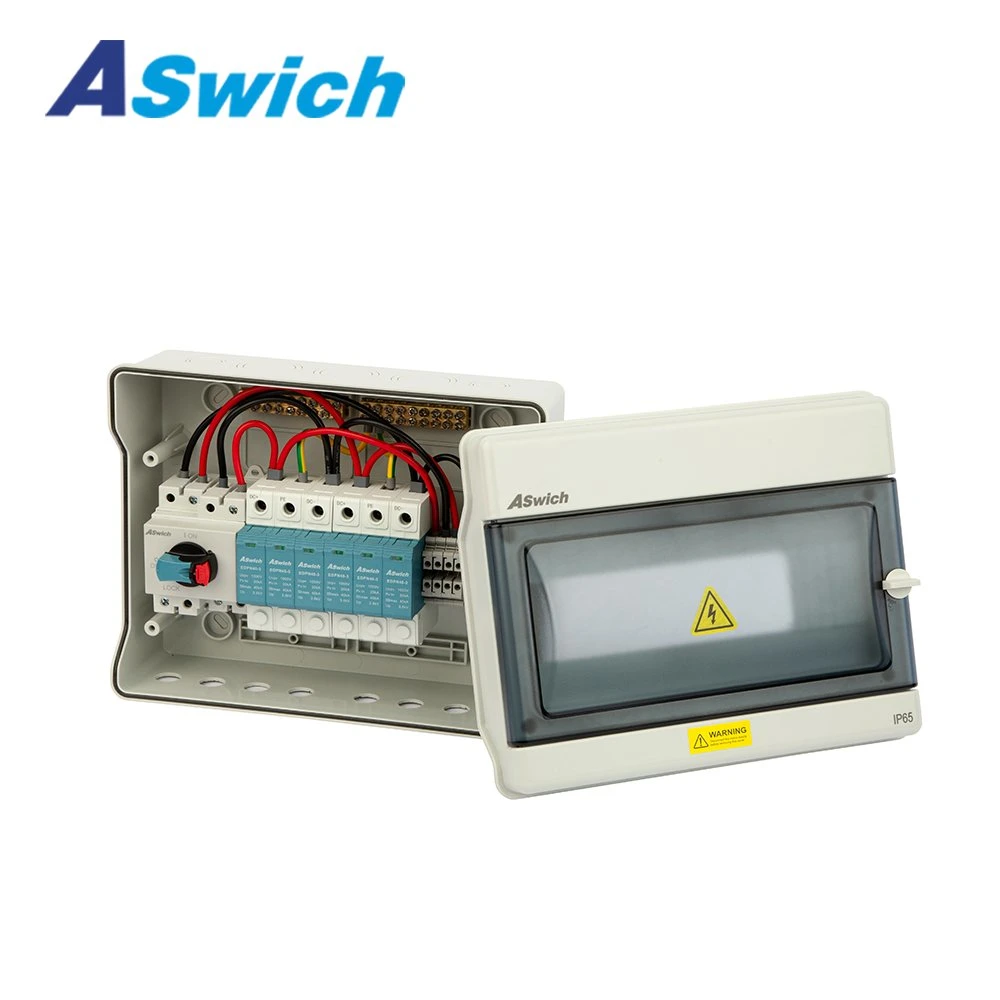

QIs the shell waterproof and durable for outdoor installations?
Yes, the IP65 design of the solar PV combiner shell is waterproof and dustproof. The sturdy shell is constructed of high-quality ABS plastic material which is insulating, moisture-proof, and impact-resistant.
