We are deeply engaged in the industrial electrical field, focusing on the core business of customizing complete sets of power distribution cabinets. We provide new factory supporting services, old factory renovation and special scenario adaptation services. With precise customization, efficient delivery and reliable quality, we empower customers to achieve safe commissioning and cost reduction & efficiency improvement.
We professionally manufacture a full range of products including high and low voltage switchgear components, distribution boxes and control boxes, which can be accurately adapted to industrial, commercial, municipal and special scenarios on demand. We support a minimum order quantity of 1 unit, achieve 30-day fast delivery relying on an efficient supply chain, and provide full-process product service support from scheme design to finished product delivery.
We strictly control all links of production and factory commissioning to ensure stable operation of cabinets; establish a rapid response mechanism to fully connect with customer needs, and provide full-cycle services from consultation to delivery, ensuring worry-free cooperation.
With professional customization capabilities and efficient services, we strive to be your trustworthy industrial electrical equipment partner and help your projects land efficiently.

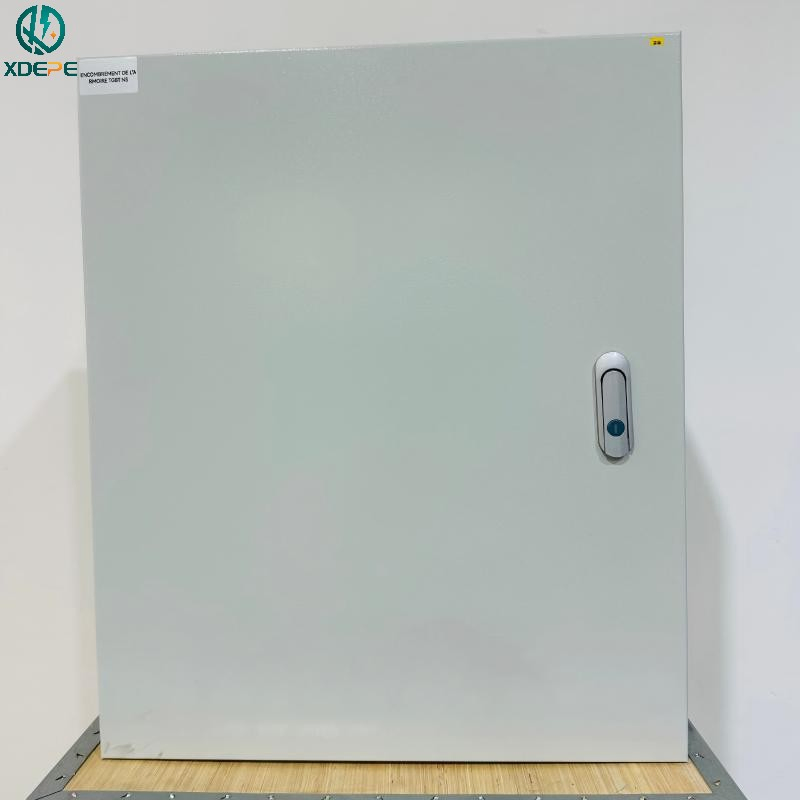

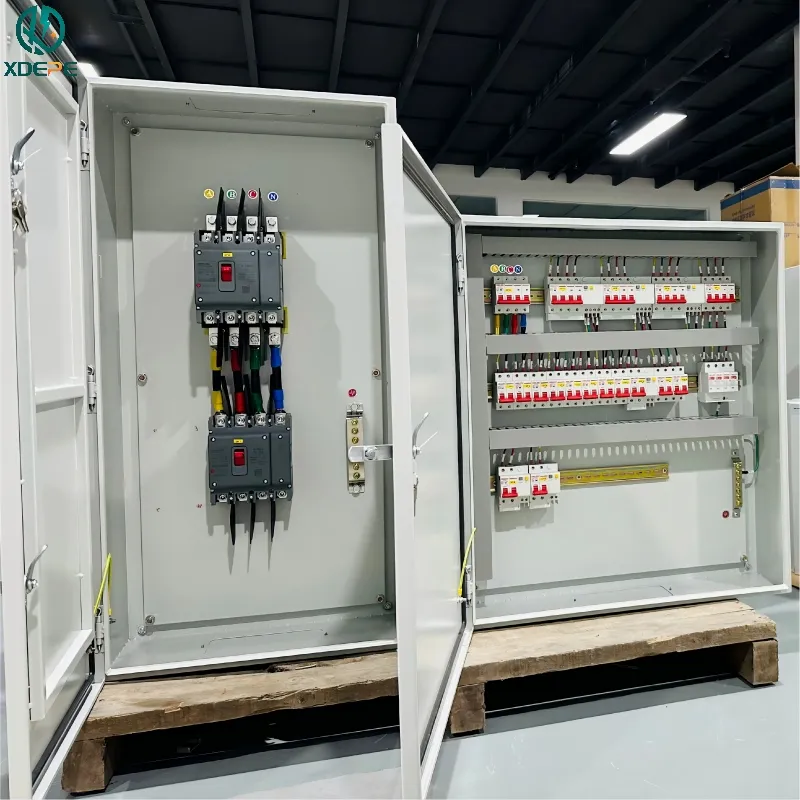

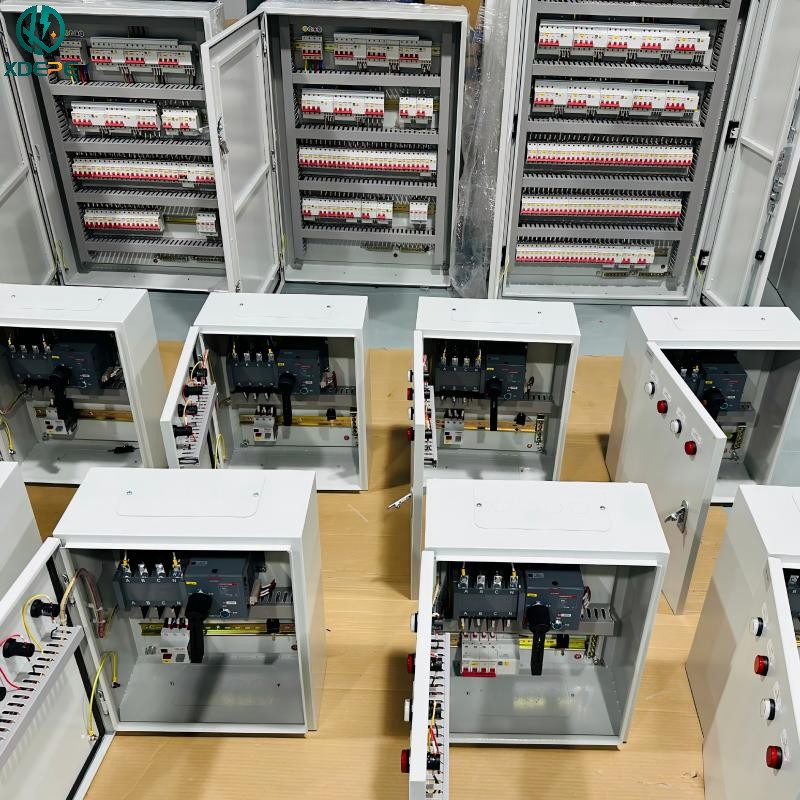

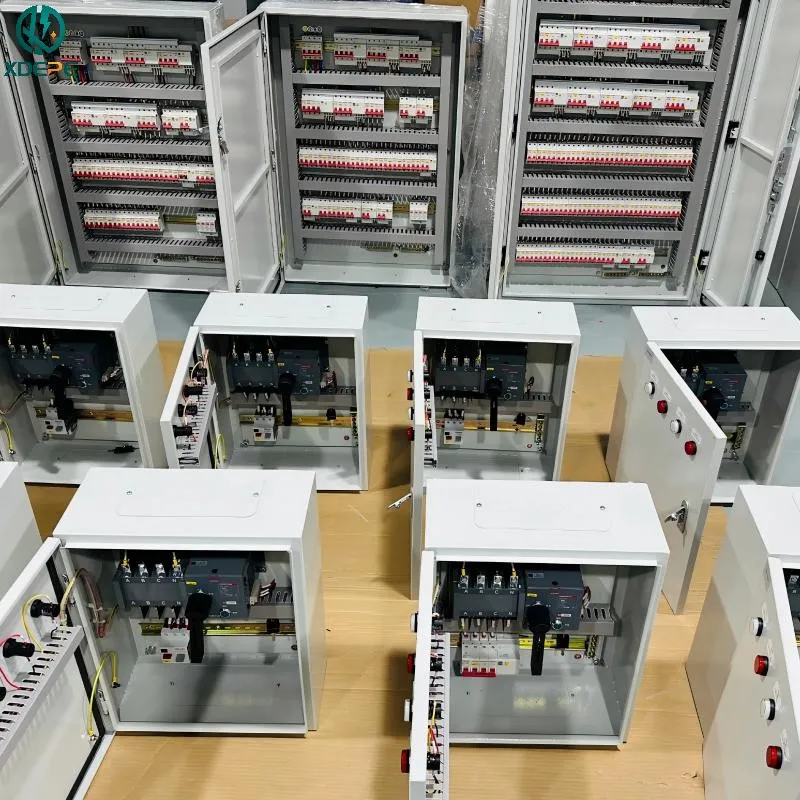

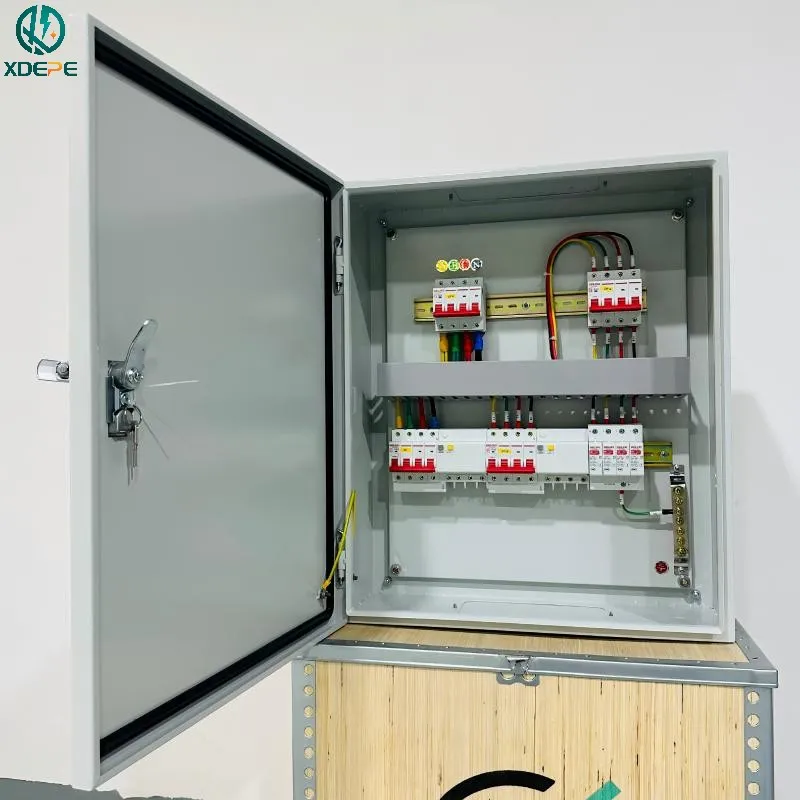

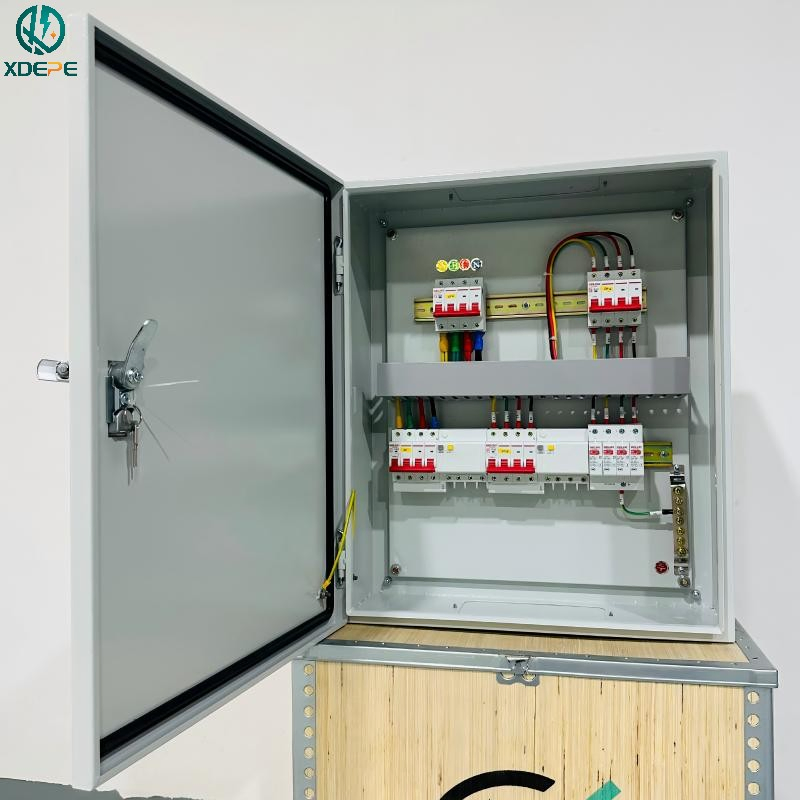

Internal Structure: This wall-mounted surface distribution cabinet features neat internal layout and standardized wiring. It is equipped with core electrical components including 3-phase main circuit breakers, branch MCBs, residual current protection devices, and dedicated neutral/ground copper bars. All circuits are independently partitioned to provide reliable protection against overload, short circuit and electric leakage. Sufficient reserved expansion space allows optional installation of surge protectors, ATS automatic transfer modules and other accessories. Clear phase color marking and standard wiring greatly simplify later maintenance and troubleshooting.
Selling Points: The cabinet body is made of thick cold-rolled steel plate with electrostatic powder spraying finish, delivering excellent moisture-proof, dust-proof, anti-corrosion and rust-resistant performance to adapt to humid and harsh working environments. Equipped with sealing rubber strips and lockable safety door, it effectively prevents unauthorized access and misoperation for maximum safety. The wall-mounted surface installation design requires no wall embedding, ensuring quick and on-site easy installation and high construction efficiency. With outstanding power supply stability and long service life, it supports customized ATS emergency switching function to guarantee uninterrupted power supply, perfectly meeting strict power demands of high-reliability buildings.
Customized for the Guinea-Bissau Airport project, this product is perfectly applied to airport control towers and airport technical buildings. It is also widely suitable for industrial plants, commercial buildings, municipal projects, rail transit infrastructure and other scenarios. It can serve as conventional power and lighting distribution equipment, and can also be upgraded to ATS uninterrupted emergency power distribution cabinet, providing continuous and stable power guarantee for critical primary loads.
| Specific parameters | Details Description |
|---|---|
| Protection level | Usually IP30 IP40,IP54 |
| Cabinet material | Generally, high-quality cold-rolled steel plates with a thickness between 1.2-2.0mm are used |
| External dimensions | The height is generally 2200mm and can be customized according to needs |
| Rated working voltage | Common 380V, 400V, 660V, etc., suitable for different power system requirements |
| Rated insulation voltage | Generally 660V or 1000V to ensure electrical insulation performance |
| Rated frequency | 50Hz or 60Hz, matching different regional power grid frequencies |
| Rated current of busbar | From 630A to 5000A |
| Short circuit withstand current | Divided into different levels, such as 25kA, 31.5kA, 40kA, 50kA, etc |

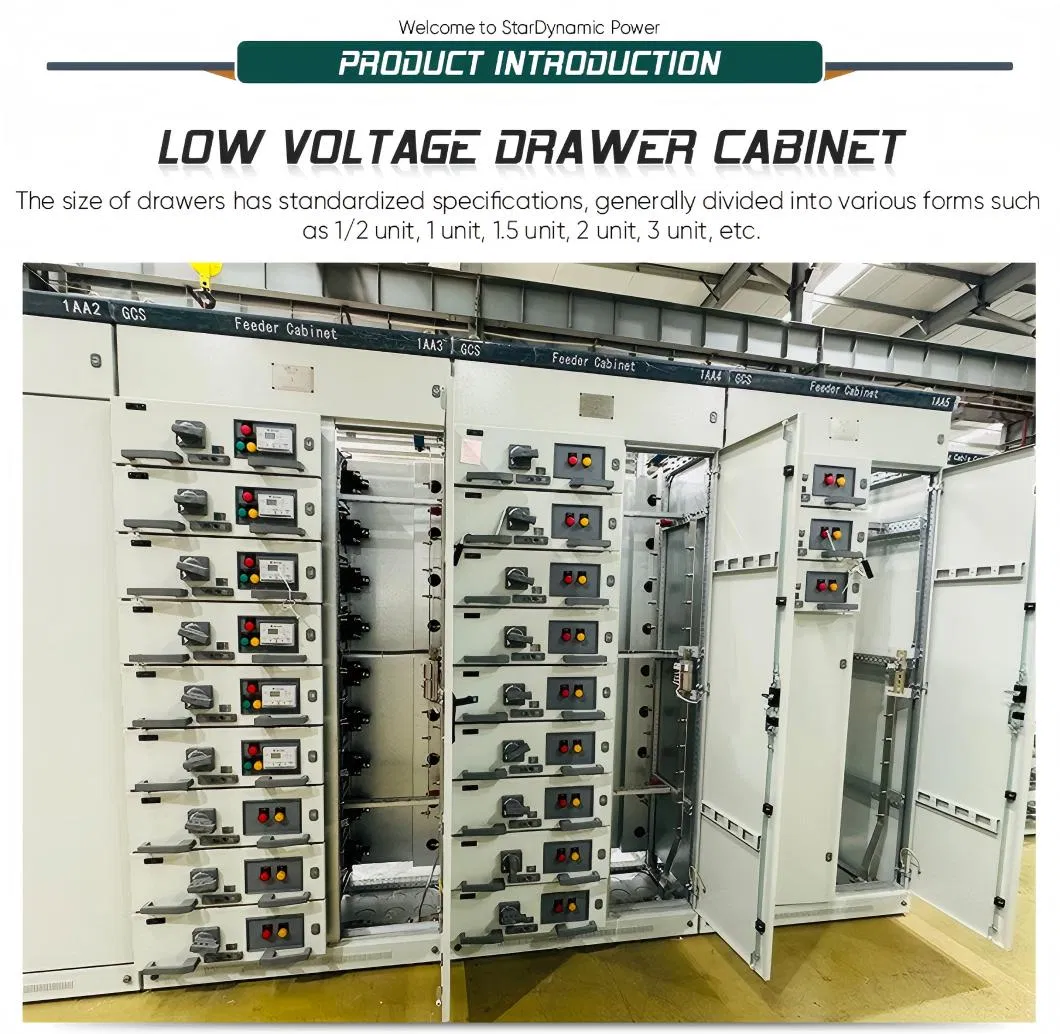

| Drawer Size | 1/2 unit, 1 unit, 1.5 unit, 2 unit, 3 unit |
| Rated current of drawer | 100A - 1600A |
| Mechanical lifespan | Not less than 2000 times |
| Electrical lifespan | Not less than 1000 times |
