Outdoor Wall-Mounted IP54 Stainless Steel Photovoltaic Box Low-Voltage Power Distribution Equipment with Customizable Size

Customization: Available
Type: Distribution Metering Box
Structure: Protection

Product Description

Basic Info
Certification ISO9001:2000, VDE, CCC
Form Partly-welded Type
Operation Voltage High Voltage
Size Muti
Application Range Outdoor Power Systems
Shell Material Stainless Steel
Shell Protection Grade IP56
Product Type Battery Rack Enclosure / Solar Power Cabinet
Material 304 Stainless Steel Panels
Ingress Protection Rating IP65 Waterproof & Dustproof
Application Energy Storage System, Solar Power Station
Mounting Type Floor-Standing, Wall-Mountable (Optional)
Internal Structure Adjustable Battery Rack Slots
Cooling System Natural Ventilation, Optional Fan Kit
Transport Package Box
Specification Per Customer's Requirement
Origin China
HS Code 8537109090
Production Capacity 500 Piece/Pieces Per Month
Product Description
Outdoor Wall-Mounted IP54 Stainless Steel Photovoltaic Box Low-Voltage Power Distribution Equipment with Customizable Size

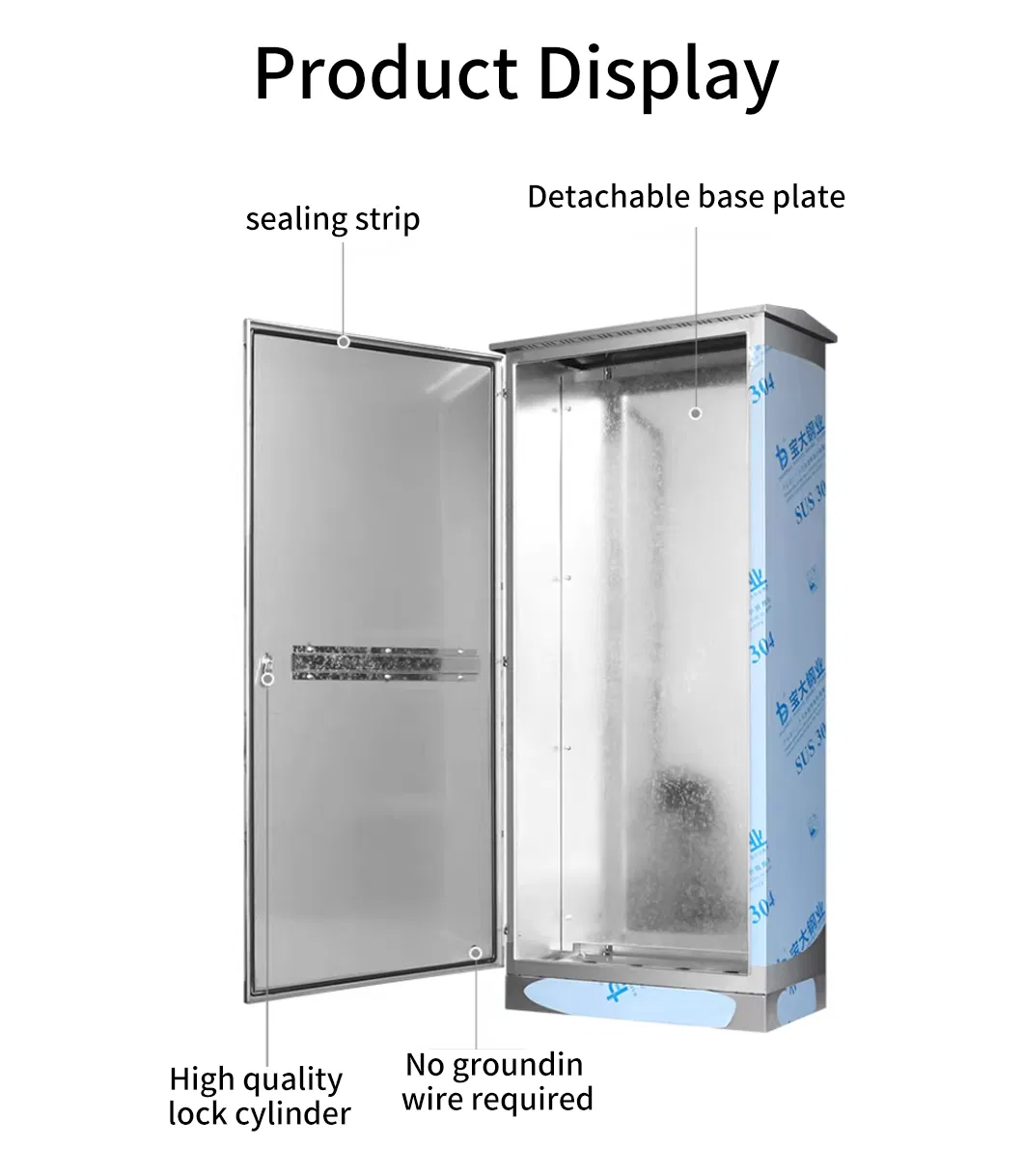

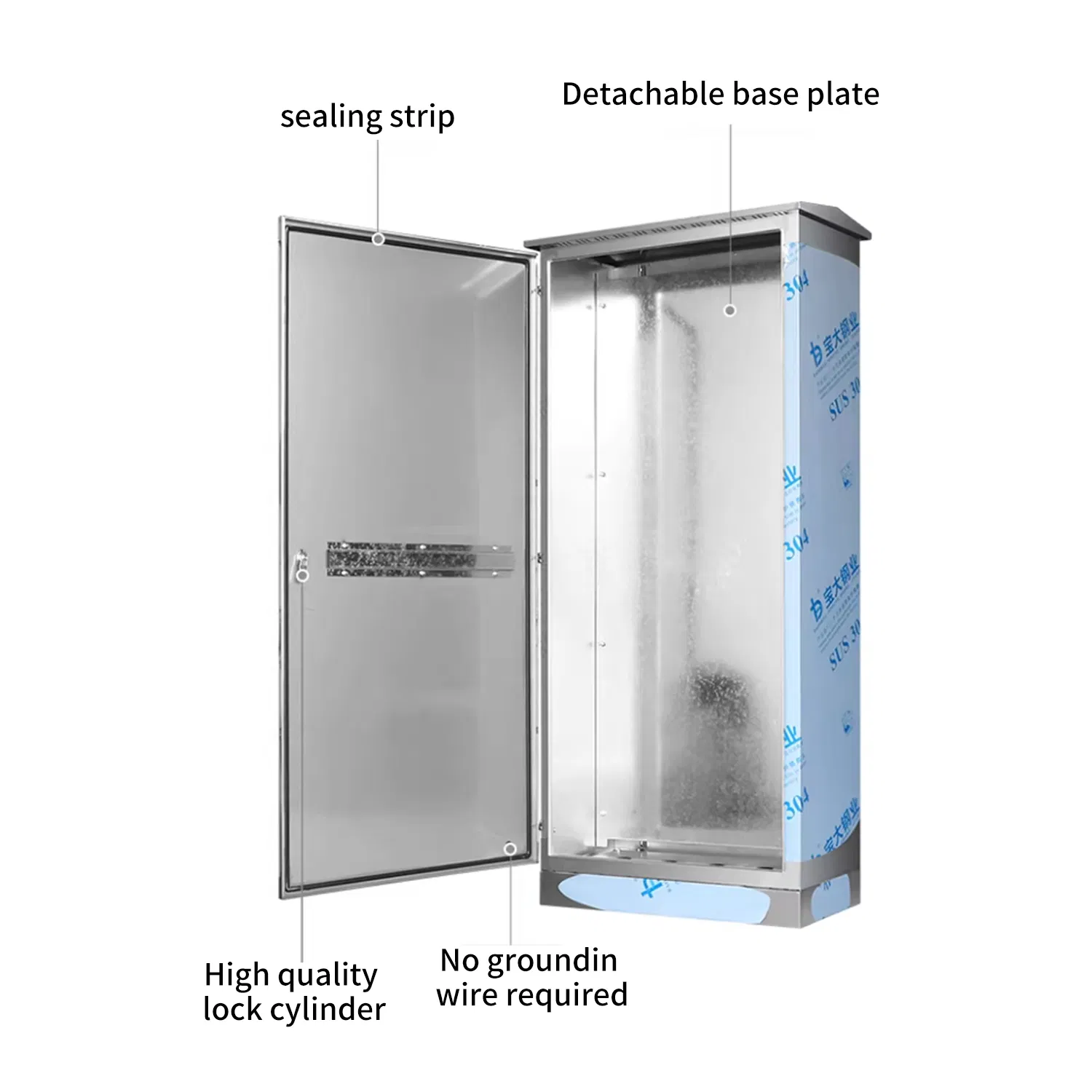

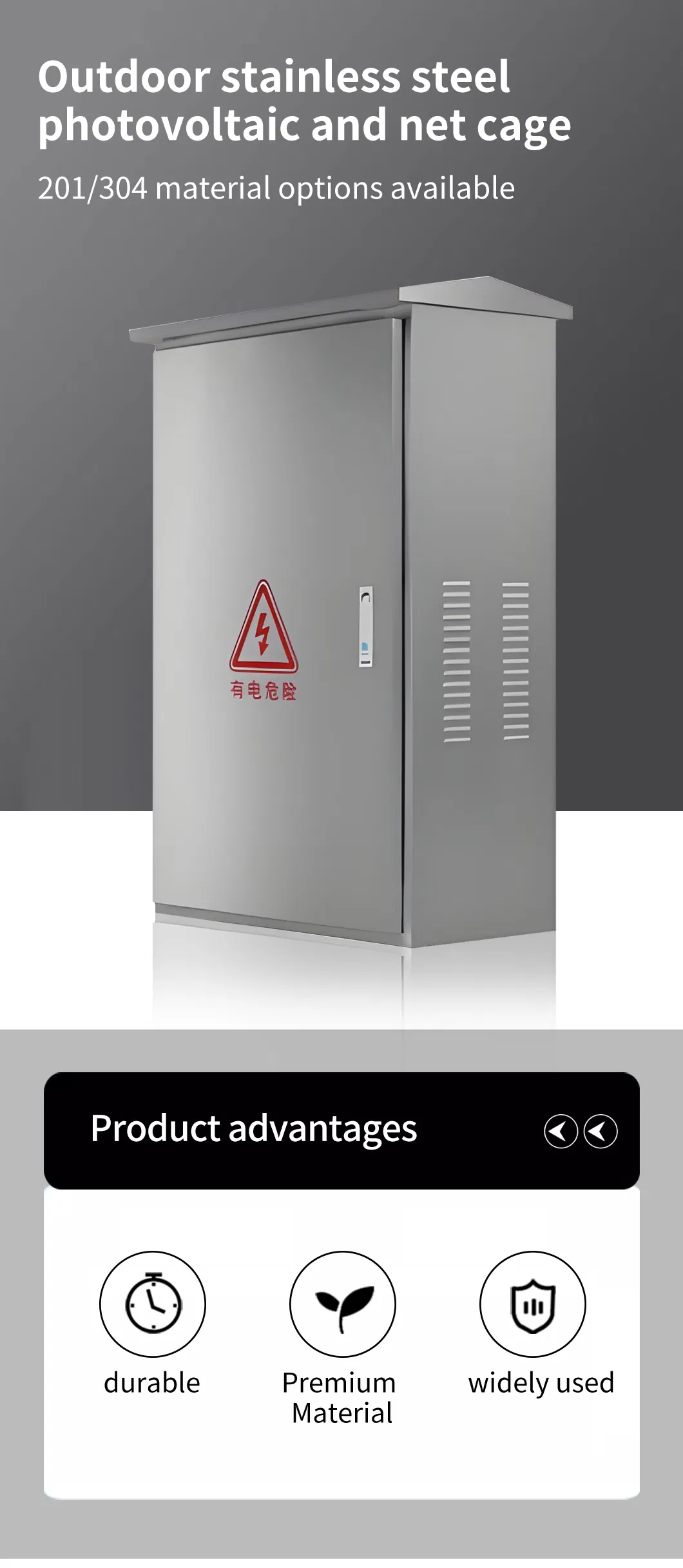

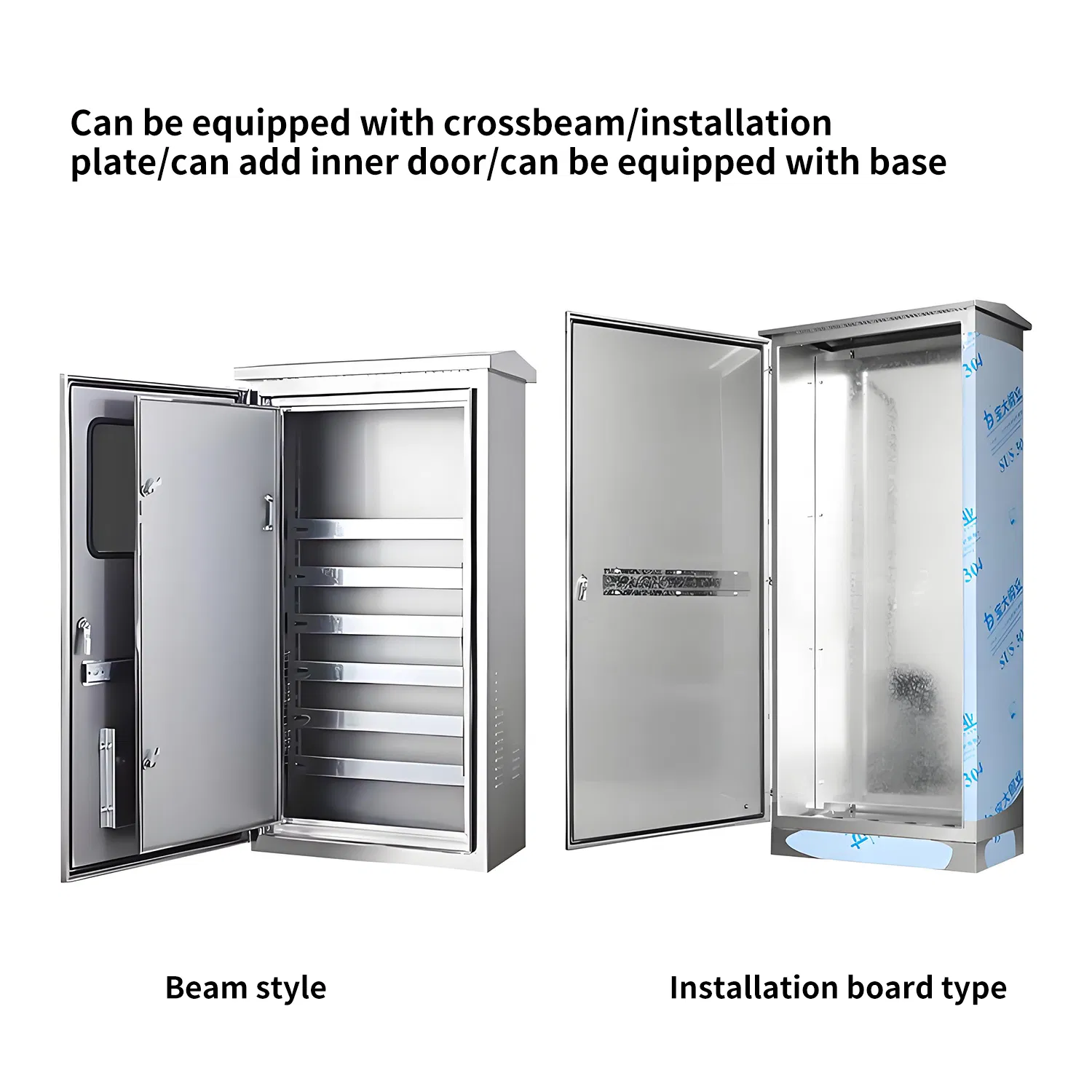

Product details display 1 Product details display 2

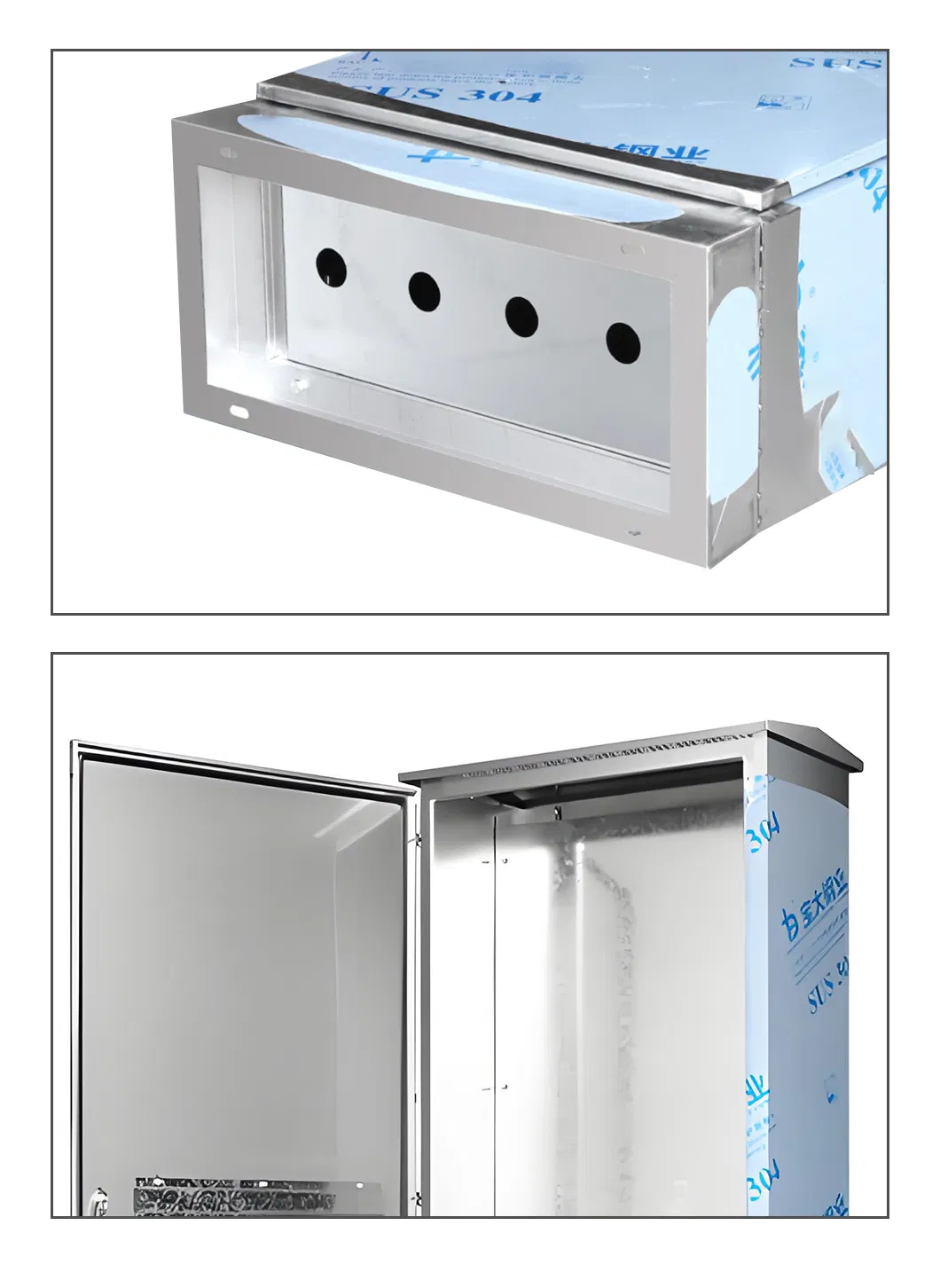

Product details display 3 Product details display 4 Product details display 5
Model / Size Code (mm) External Dimensions (L x W x H, mm) Material Options (Stainless Steel) Protection Rating (Typical) Application Profile
ODPC-600-1000-350 600 x 1000 x 350 201 / 304 IP65 / NEMA 4 Large Power Distribution Node: Ideal for housing main breakers, busbars, and extensive metering equipment in outdoor industrial settings.

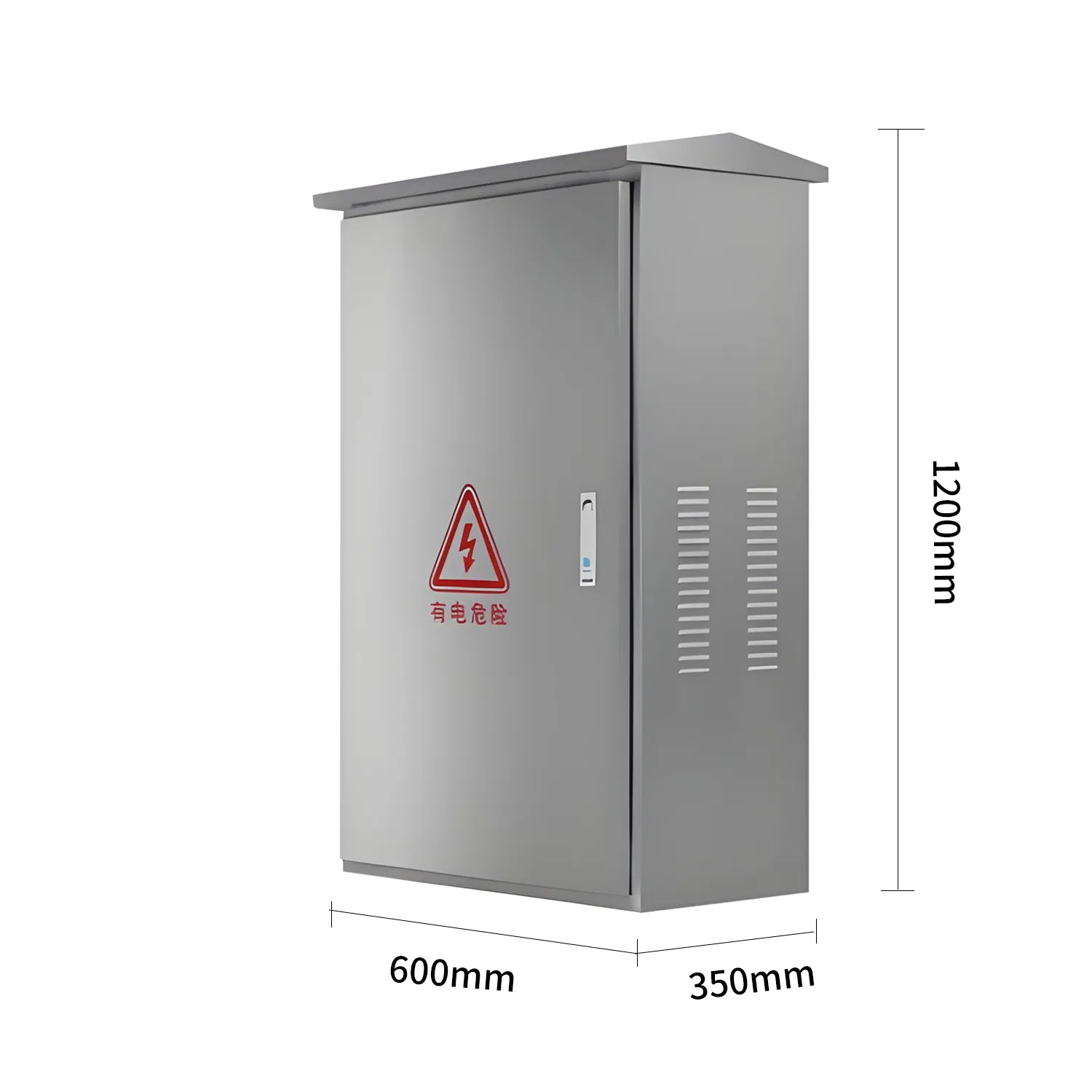

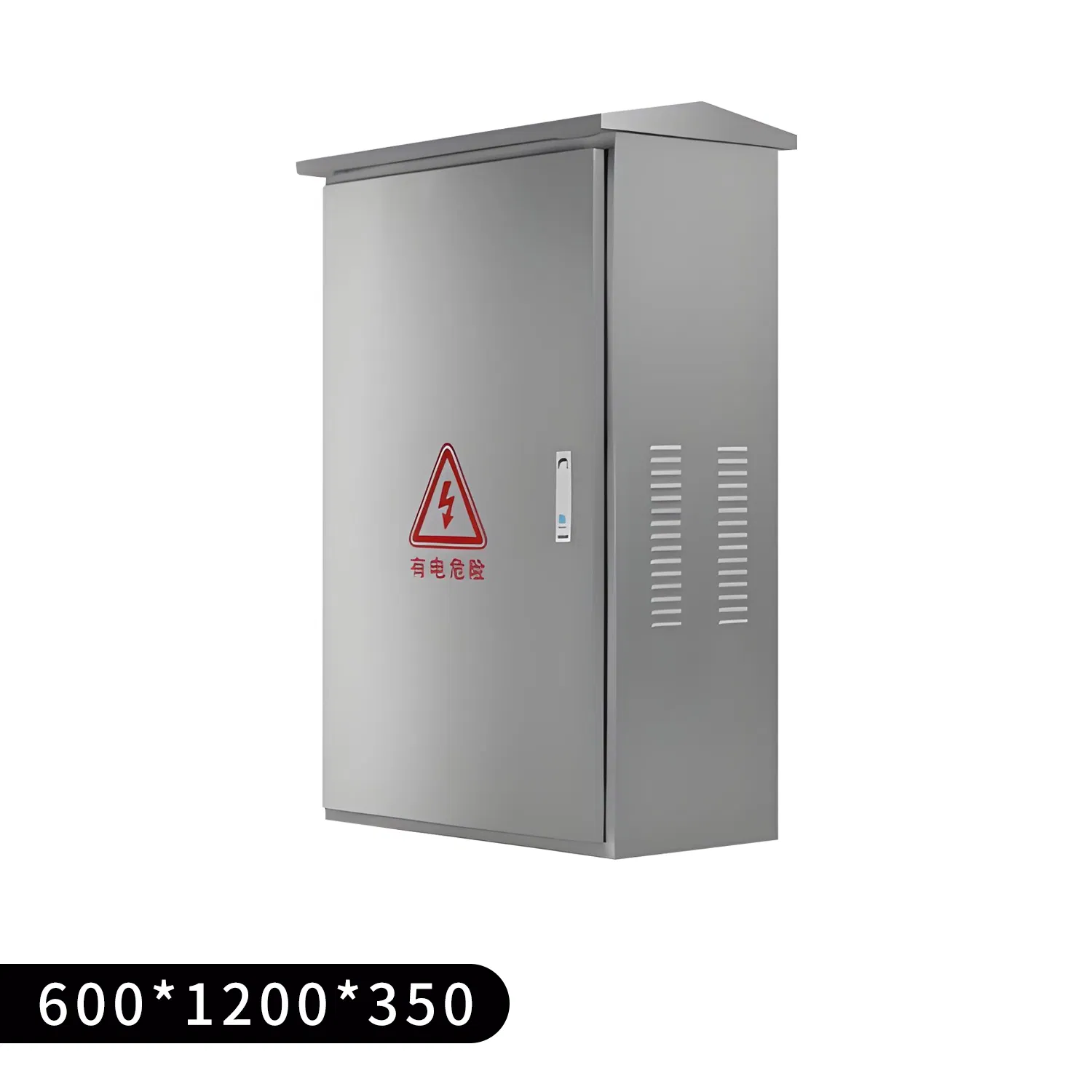

ODPC-600-1200-350 600 x 1200 x 350 201 / 304 IP65 / NEMA 4 Vertical Power Cabinet: Tall design perfect for stacking multiple large components or for installation in spaces with limited floor area.
ODPC-700-1500-370 700 x 1500 x 370 201 / 304 IP65 / NEMA 4 High-Capacity Utility Cabinet: Designed for solar farm combiners, water treatment plant controls, or as a main outdoor substation cabinet.
ODPC-700-1700-370 700 x 1700 x 370 201 / 304 IP65 / NEMA 4 Communication & Power Hybrid Cabinet: Ample space for both heavy-duty electrical gear and telecommunication/PLC hardware in roadside or remote installations.
ODPC-800-1800-370 800 x 1800 x 370 201 / 304 IP65 / NEMA 4 Master Outdoor Control Panel: The flagship model for large-scale industrial complexes, mining operations, or port machinery, offering maximum internal volume.
Main Products

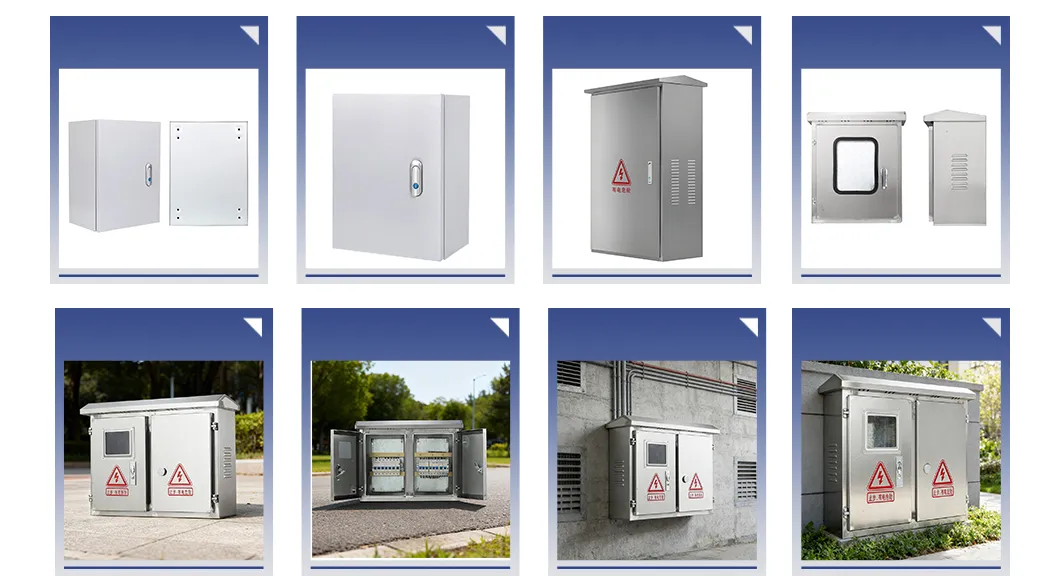

Main Products Lineup
Company Profile
Manufacturing Facility
We have been deeply engaged in the power and electrical field, specializing in the research and development, production, customization and integrated engineering services of high-end power distribution equipment. We are committed to providing safe, reliable, efficient and energy-saving overall power system solutions for customers in multiple fields such as new energy power generation, industrial manufacturing and infrastructure construction.
Our core product range includes: high and low voltage distribution cabinets, complete distribution boxes, photovoltaic grid connection boxes/cabinets, photovoltaic prefabricated cabins, photovoltaic energy storage complete equipment, box-type substations and other full series of power distribution equipment. All products strictly follow domestic and international authoritative standards such as GB and IEC, and have undergone rigorous performance tests and quality control to ensure stable operation under complex working conditions, providing a solid core support for the safe and efficient operation of power systems.
In the field of new energy, relying on profound technical accumulation and rich project experience, we provide an integrated solution from photovoltaic grid connection equipment to energy storage systems for the entire life cycle of photovoltaic power stations, covering the modular design of photovoltaic prefabricated cabins and the integrated research and development of photovoltaic energy storage equipment. It can precisely match the grid connection and energy storage needs of photovoltaic power stations of different scales, helping new energy projects achieve efficient grid connection, stable energy storage and economic operation.

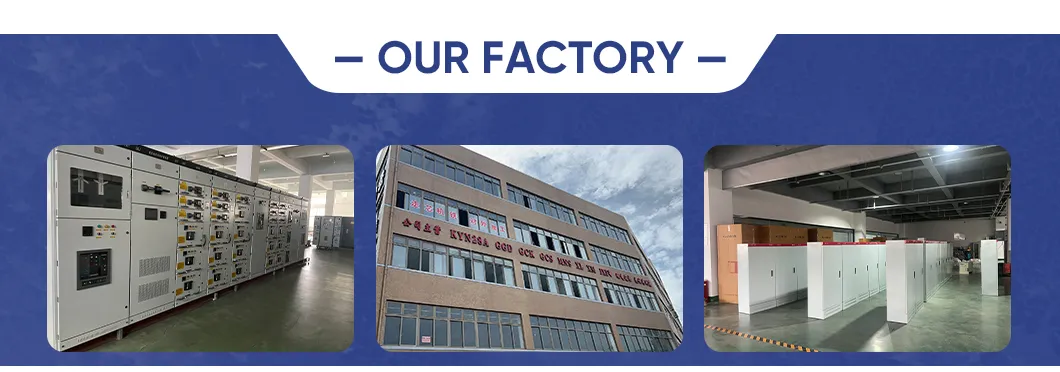

Advanced Engineering and Equipment
Certifications
Quality Certifications
Packaging & Shipping
Packaging and Logistics
Exhibition
Exhibition Booth
Frequently Asked Questions
Q1 Is a stainless steel meter box never going to rust?
Not absolutely rust-proof. Stainless steel relies on a passive film to prevent rust; corrosion may occur if the film is damaged or in harsh environments. Selection recommendation: For inland areas, choose 304 stainless steel; for high-corrosion environments like coastal or industrial areas, choose 316/316L stainless steel.
Q2 How to determine if the purchased stainless steel meter box is made of genuine 304/316 material?
Three identification methods:
1. Magnet test: 304/316 stainless steel is mostly non-magnetic—strong magnetic attraction indicates inferior quality;
2. Request a material test report;
3. Check surface smoothness and weld uniformity.
Q3 What protection rating should be chosen for an outdoor-installed meter box?
Select the protection rating according to the environment:
1. Ordinary outdoor use requires at least IP54;
2. For rainy or spray-prone areas, choose IP55/IP65;
3. For high-pressure washing or dusty areas, select IP66 or higher. This model is IP65 by default, suitable for most outdoor environments.
Q4 What should be noted during the installation of outdoor stainless steel meter boxes?
Installation points:
1. Choose a location that is shaded, vibration-free, away from flammable materials, and easy to maintain;
2. The bottom of the box should be at least 1.8 meters above ground;
3. Install vertically, protect incoming and outgoing wires, seal any gaps, and ensure reliable grounding for the metal box;
4. Confirm parameters such as cut-out dimensions in advance.
Q5 How to select the size of the meter box?
Size selection: Choose standard single-meter size for single households; for multiple households, select based on the number of users, reserving 2-3 extra slots for expansion; choose a model with ample internal space if additional components need to be installed. Consult customer service for precise selection.
Q6 Can the cabinet specifications and internal structure be customized?
Yes, our equipment sizing is customizable per customer's requirements. We provide flexible internal structural designs, such as adjustable battery rack slots, to meet varying power configuration needs.
