We provide a wide range of electrical equipment such as Distribution Box, Junction Box, Circuit Breaker, Solar Connector, Cable Gland, Industrial Plug And Socket, Transparent Protective Window Cover...

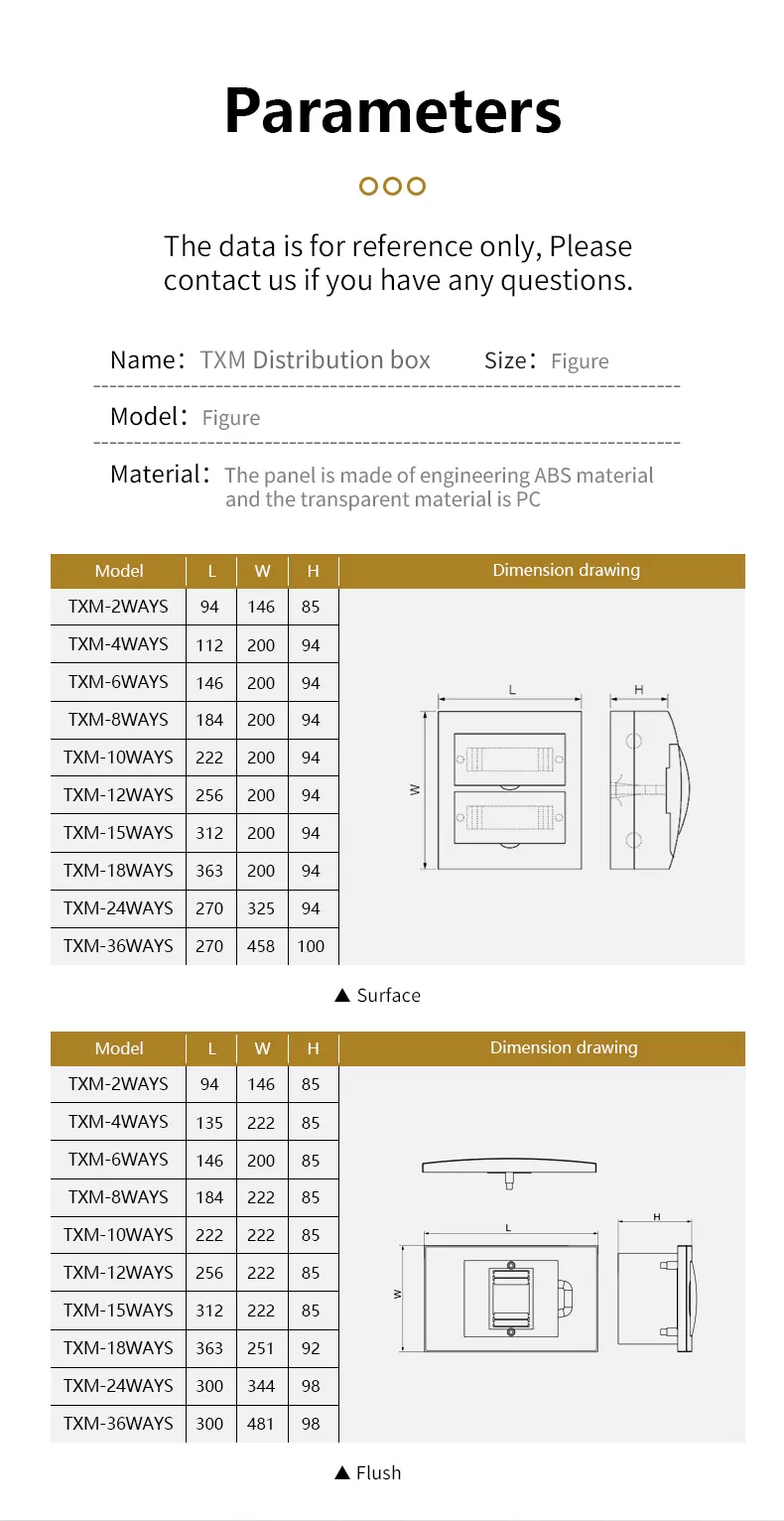

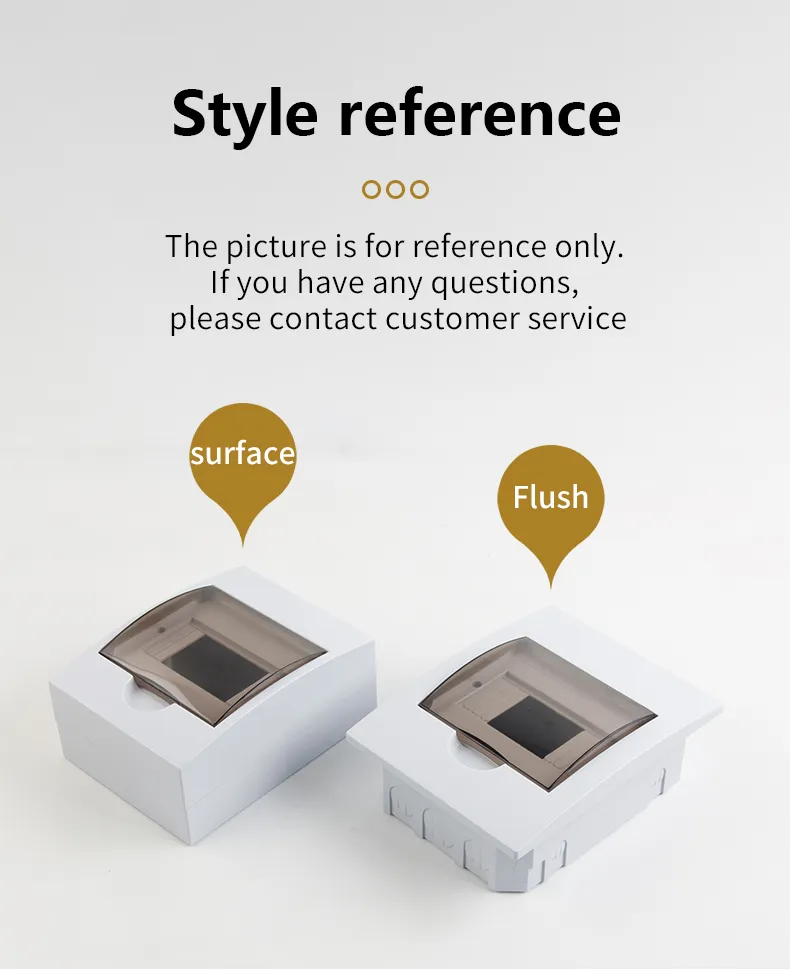

| MODEL | SIZE(MM) SURFACE | SIZE(MM) FLUSH | PCS/CTN | G.W.(KG) | CTN BOX SIZE(CM) SURFACE | CTN BOX SIZE(CM) FLUSH |
|---|---|---|---|---|---|---|
| TXM-2 | 94*146*85 | 94*146*85 | 300/200 | 28.7/22 | 67.5*52*51.5 | 71.5*55.5*44 |
| TXM-4 | 112*200*94 | 135*222*85 | 30 | 11.3/13.7 | 50*36.7*43 | 47*44*47.3 |
| TXM-6 | 146*200*94 | 171*222*85 | 30 | 15.2/16.8 | 51.5*47.5*43 | 54.3*46.8*47 |
| TXM-8 | 184*200*94 | 207*222*85 | 30 | 17.5/18.8 | 63.5*52*40 | 47*47*66.5 |
| TXM-10 | 222*200*94 | 244*222*85 | 20 | 14.1/14.6 | 52.5*42.5*47.5 | 48*46*51 |
| TXM-12 | 256*200*94 | 280*222*85 | 20 | 15.1/16.4 | 52*42.5*54 | 48*48*59 |
| TXM-15 | 312*200*94 | 334*222*85 | 15 | 13.69/13.63 | 53*33*63 | 45.5*35*70 |
| TXM-18 | 363*200*94 | 399*251*92 | 15 | 18/18.15 | 68.5*54*38.5 | 78.5*50.5*42 |
| TXM-24 | 270*325*94 | 300*344*98 | 10 | 16/17 | 53.5*34.5*56.5 | 52*36*63.5 |
| TXM-36 | 270*458*100 | 300*481*98 | 5 | 11.65/12.3 | 54.5*28.5*48 | 54*31.5*50.5 |

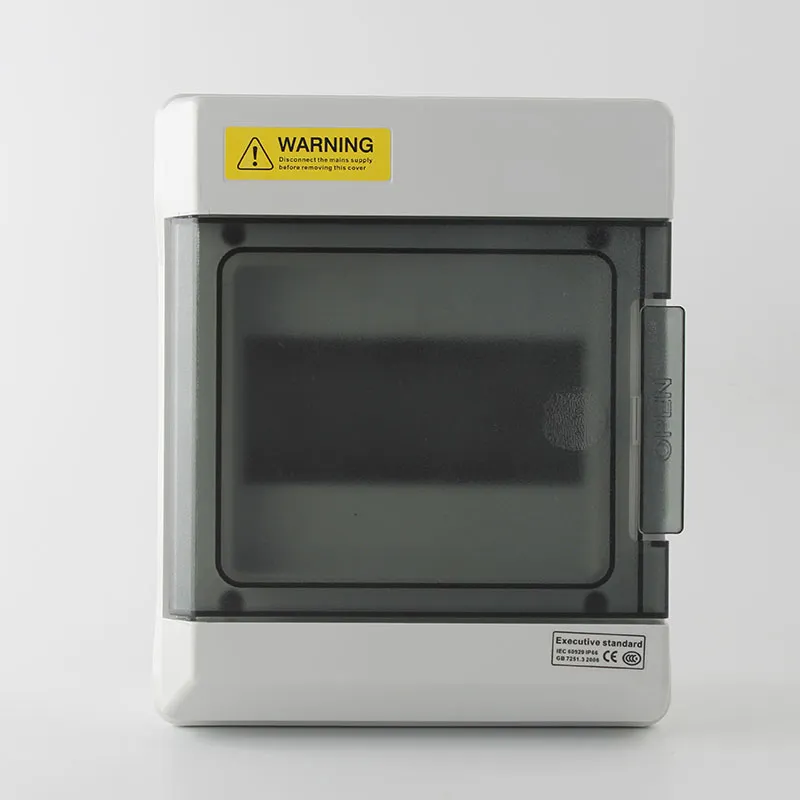

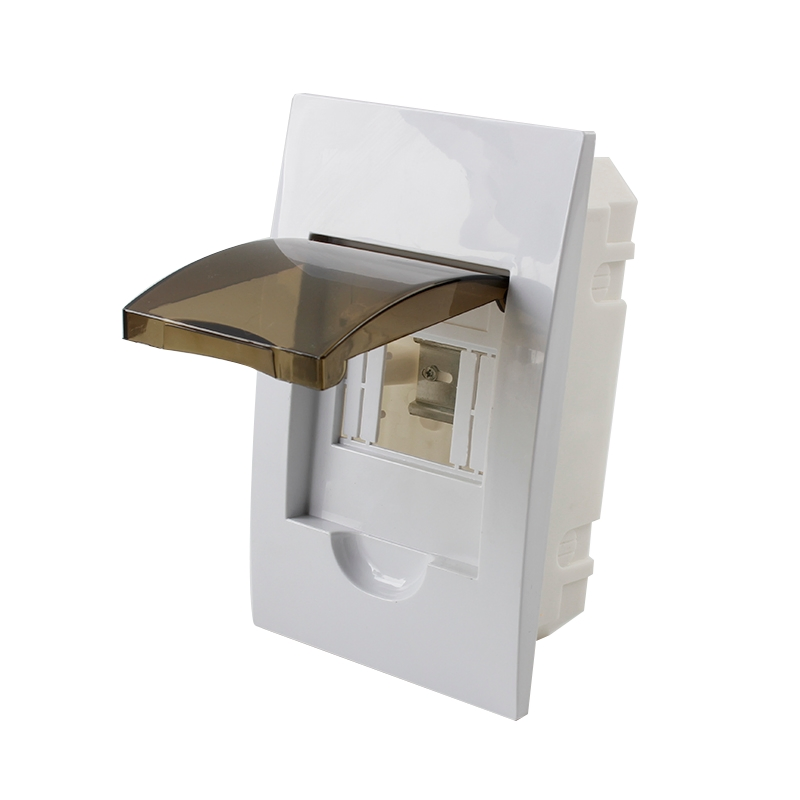

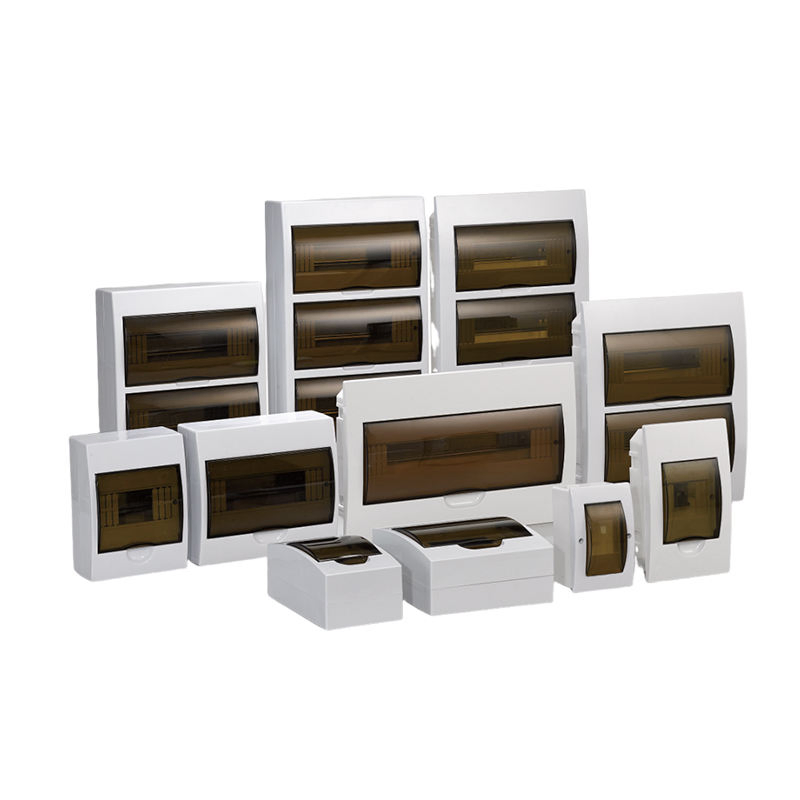

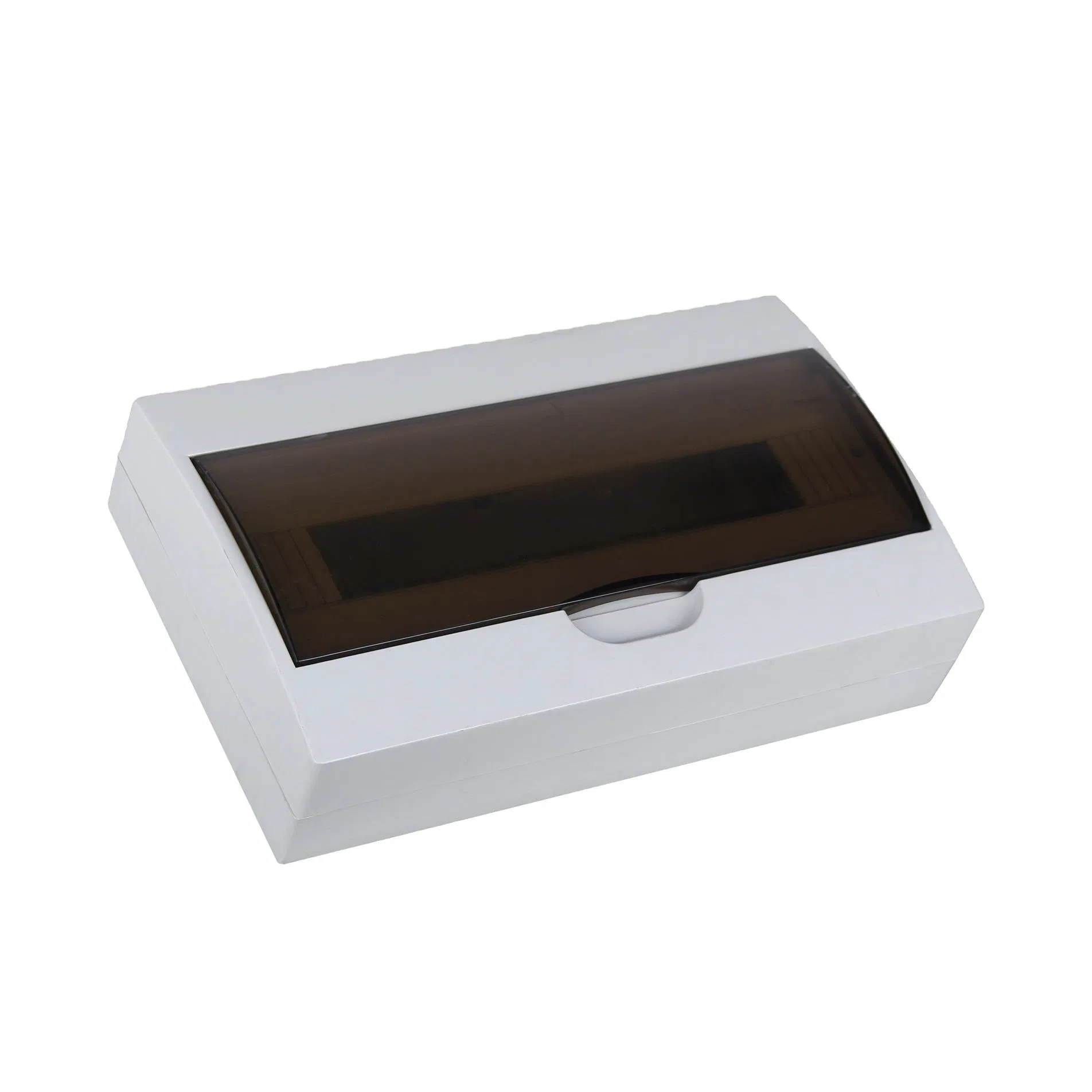

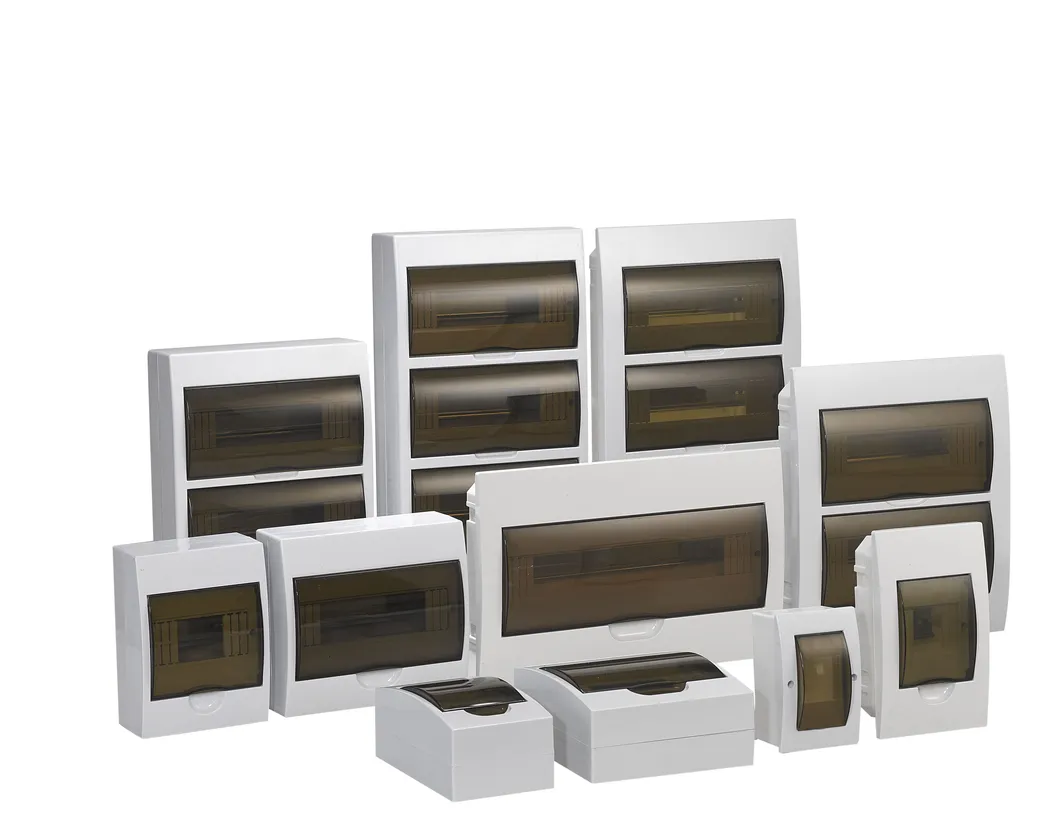

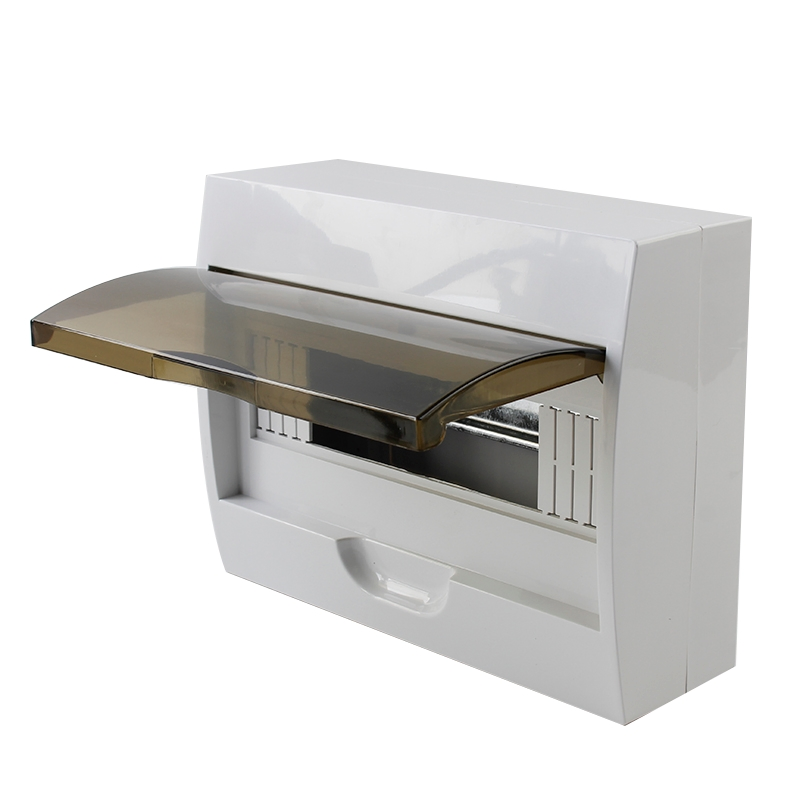

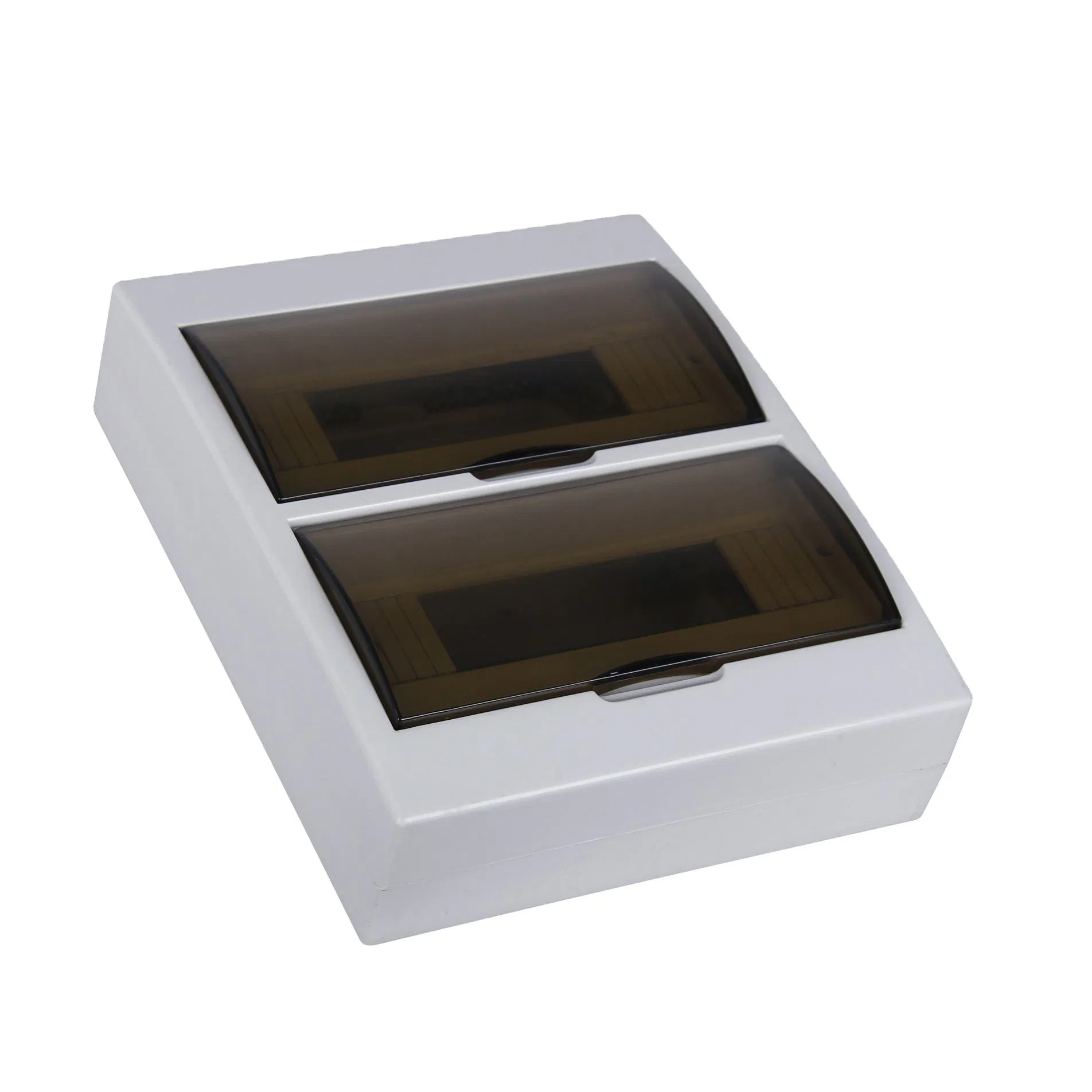

High-end distribution box. Overall panel design is luxury and attractive. The material is PC which makes it really resistant, fireproof and UV protection. Fixed frame, simple structure, and easy to install.
It can allocate one power source to multiple branches according to different demands to supply power to different electrical equipment. Meanwhile, the on and off of the equipment can be independently controlled through the switches of each branch, which is convenient for operation and management.
Equipped with circuit breakers, fuses and other protective devices, when faults such as overload, short circuit and under-voltage occur in the circuit, it can automatically cut off the circuit to protect electrical equipment and lines from damage.
The distribution box installs electrical components in a relatively independent space, with a clear layout, which is convenient for staff to troubleshoot and carry out maintenance. Once an electrical fault occurs, maintenance personnel can quickly locate the faulty branch.
It has a good grounding system and protective casing, which can effectively prevent the occurrence of electric shock accidents. The grounding system introduces leakage current into the ground. The protective casing of the outdoor box also provides waterproofing, dustproofing, and sun protection.

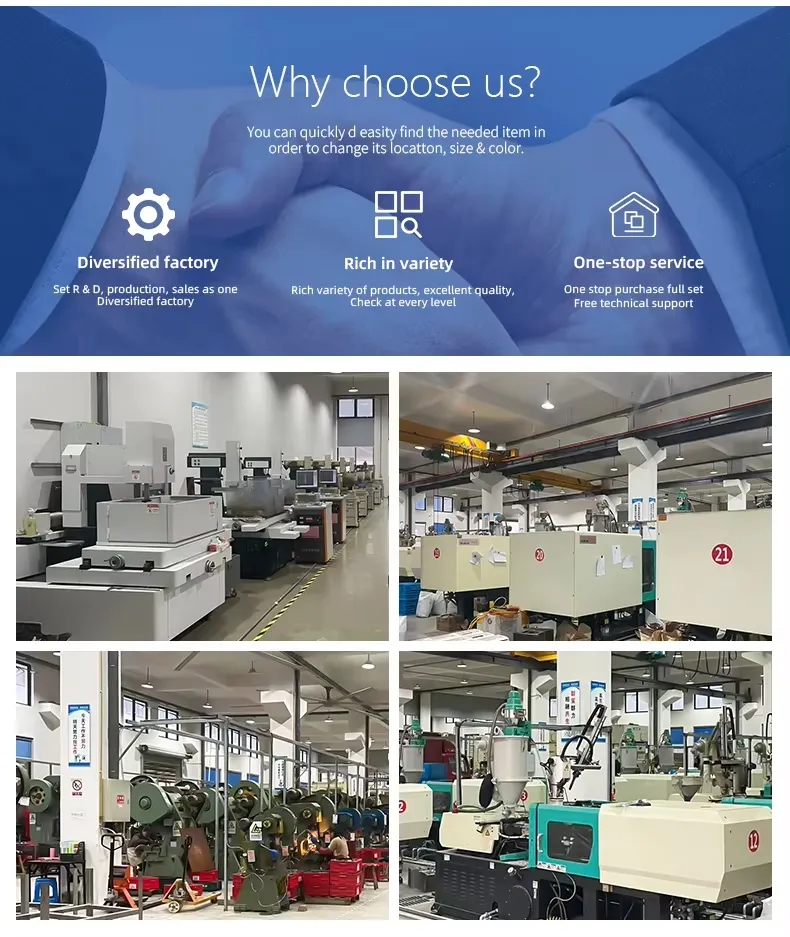

Our factory is engaged in the production of industrial plug & socket, distribution box, junction box, isolator and electrical accessories, and have relevant patent certificates. We have passed ISO9001, ISO14001, ISO45001. The products have certifications of CE, ROHS, TUV, CB. We believe quality is our life, having established a professional technical R&D team and skilled staff. At the same time, we are equipped with advanced production lines and high-tech equipment. We also welcome ODM and OEM orders. We cherish every cooperation and trust, and sincerely welcome you to work together to create a brilliant tomorrow.
Founded in 2000, we specialize in developing, manufacturing and selling electrical appliances & accessories. The products enjoy an excellent reputation both in domestic and overseas markets. The main products include Circuit Breakers, Distribution Boards, load centers, Electrical Accessories, etc.
Our pledge to excellence is embodied in our promise of swift 24-hour resolution for any quality complaints, nurturing customer satisfaction while driving continuous enhancement.
