Product Description

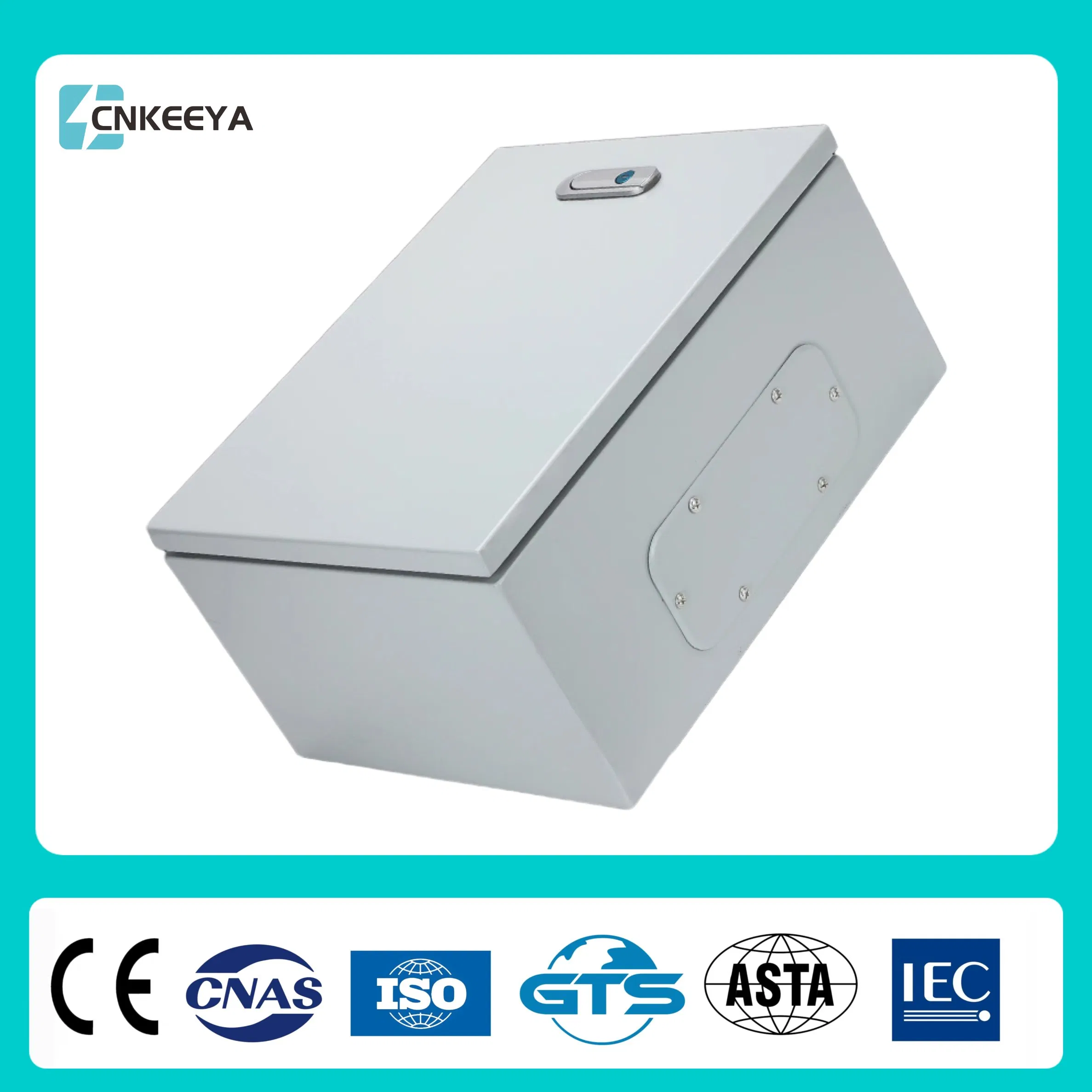

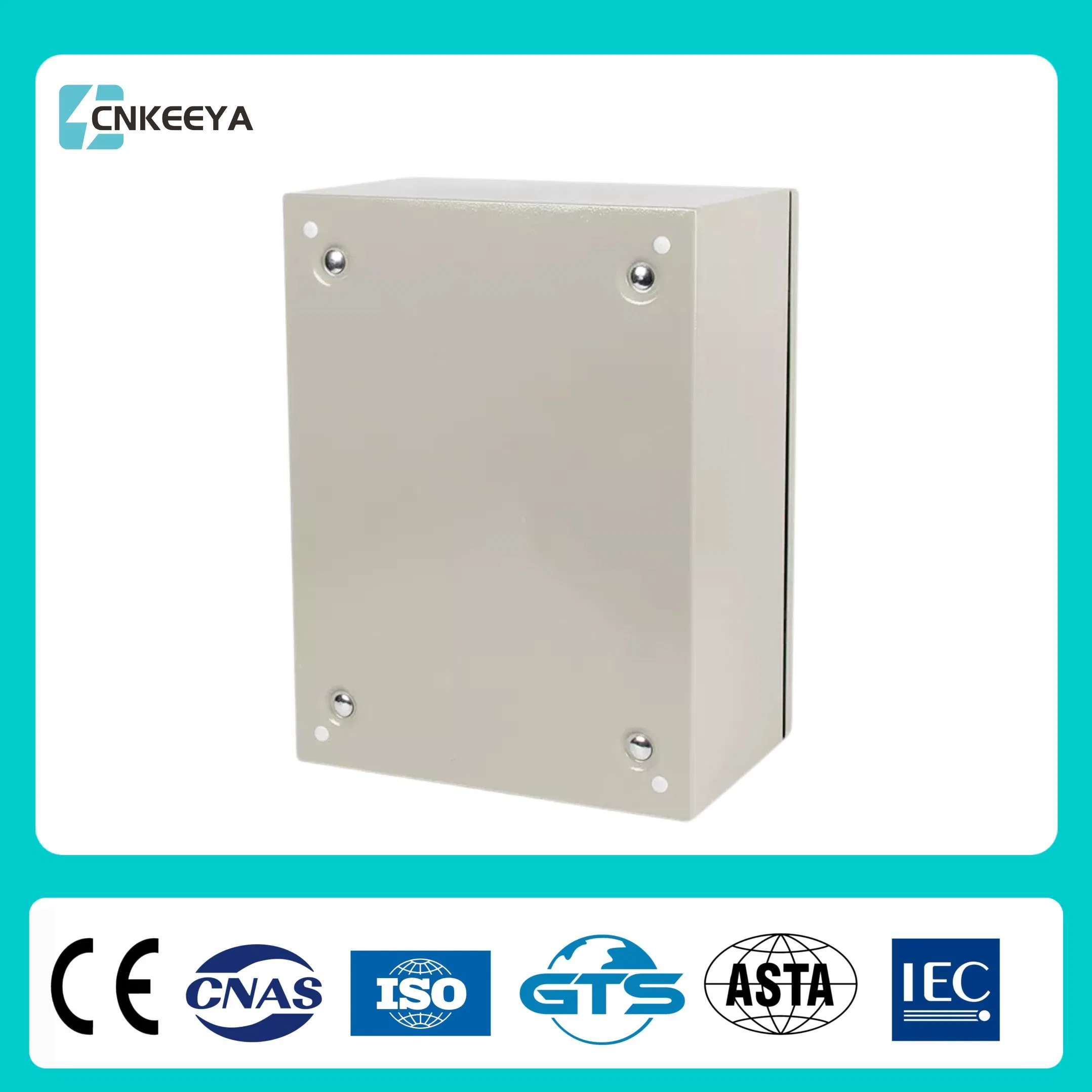

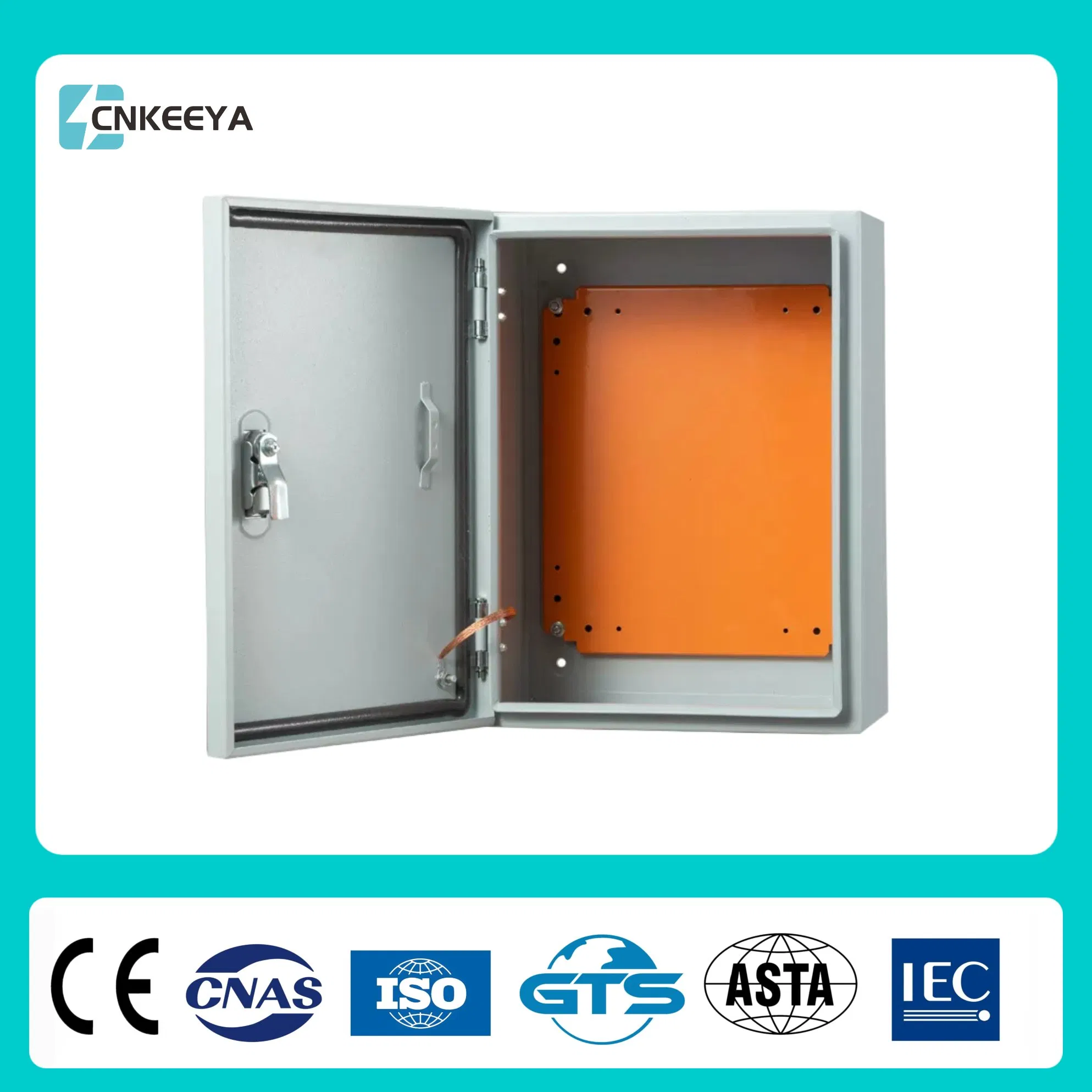

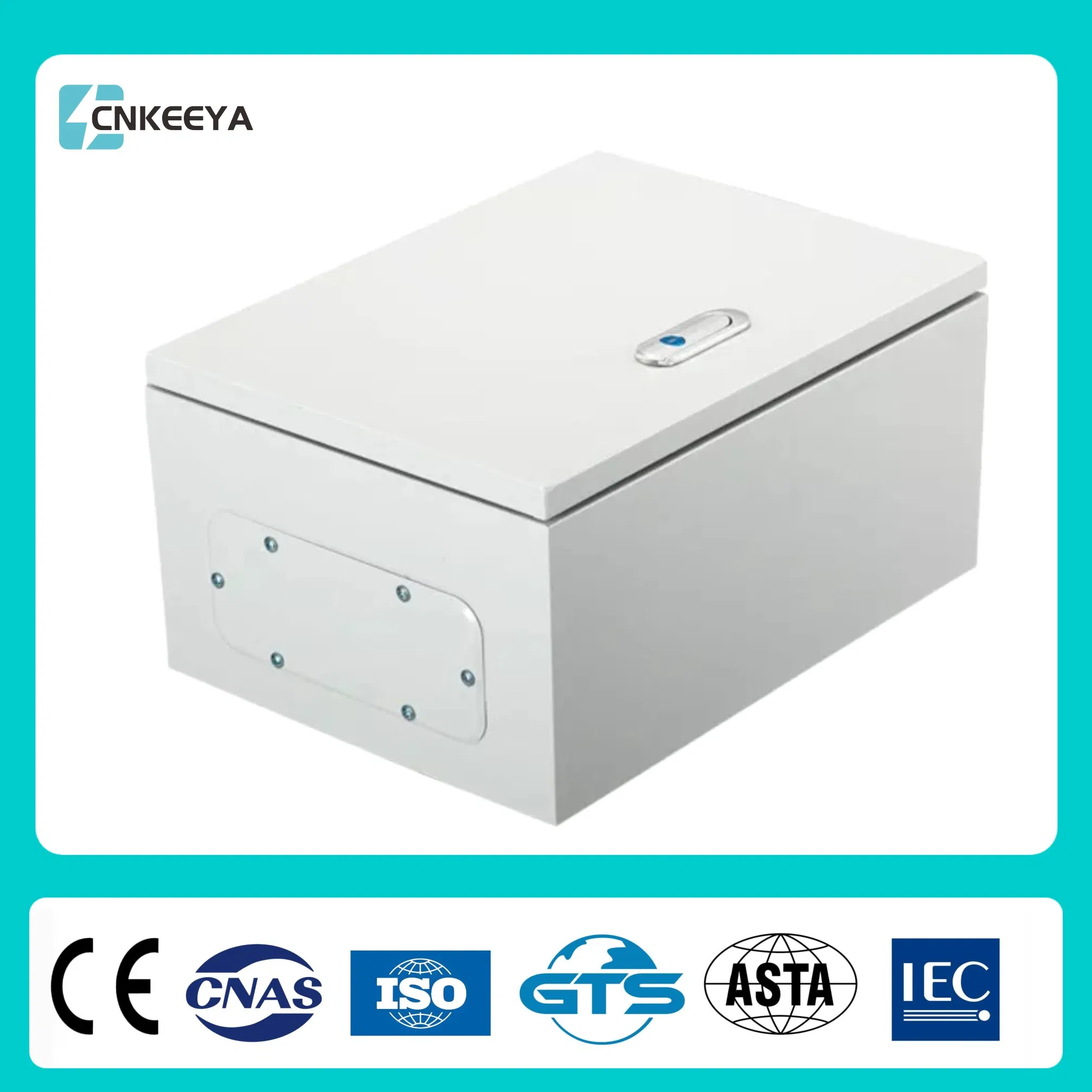

JXF control box is suitable for three-phase three-wire, three-phase four-wire, three-phase five-wire systems with 50Hz, 500V and below, and load current not greater than 250A. It controls the power distribution system, leakage protection, and motor overload, short circuit, and lack of phase protection and various controls. The box is reasonable in design, small in size, beautiful in appearance, safe and reliable in use, and is widely used in metallurgy, petrochemical, medical and health, aviation, residential quarters, shopping malls, schools, and urban reconstruction.

Operating Conditions

• The altitude does not exceed 2000m.
• The ambient air temperature does not exceed +40°C, and is not lower than -25°C.
• The monthly average relative humidity of the air at +20°C is not more than 40%.
• The installation site should be free from severe vibration and impact.
• The site should be free from explosion hazards, and without gases or conductive dust that can corrode metals and destroy insulation.

Key Structural Features

• Multi-series, multi-structure design: including welding type, split type, assembly type, and option for both indoor and outdoor layouts.

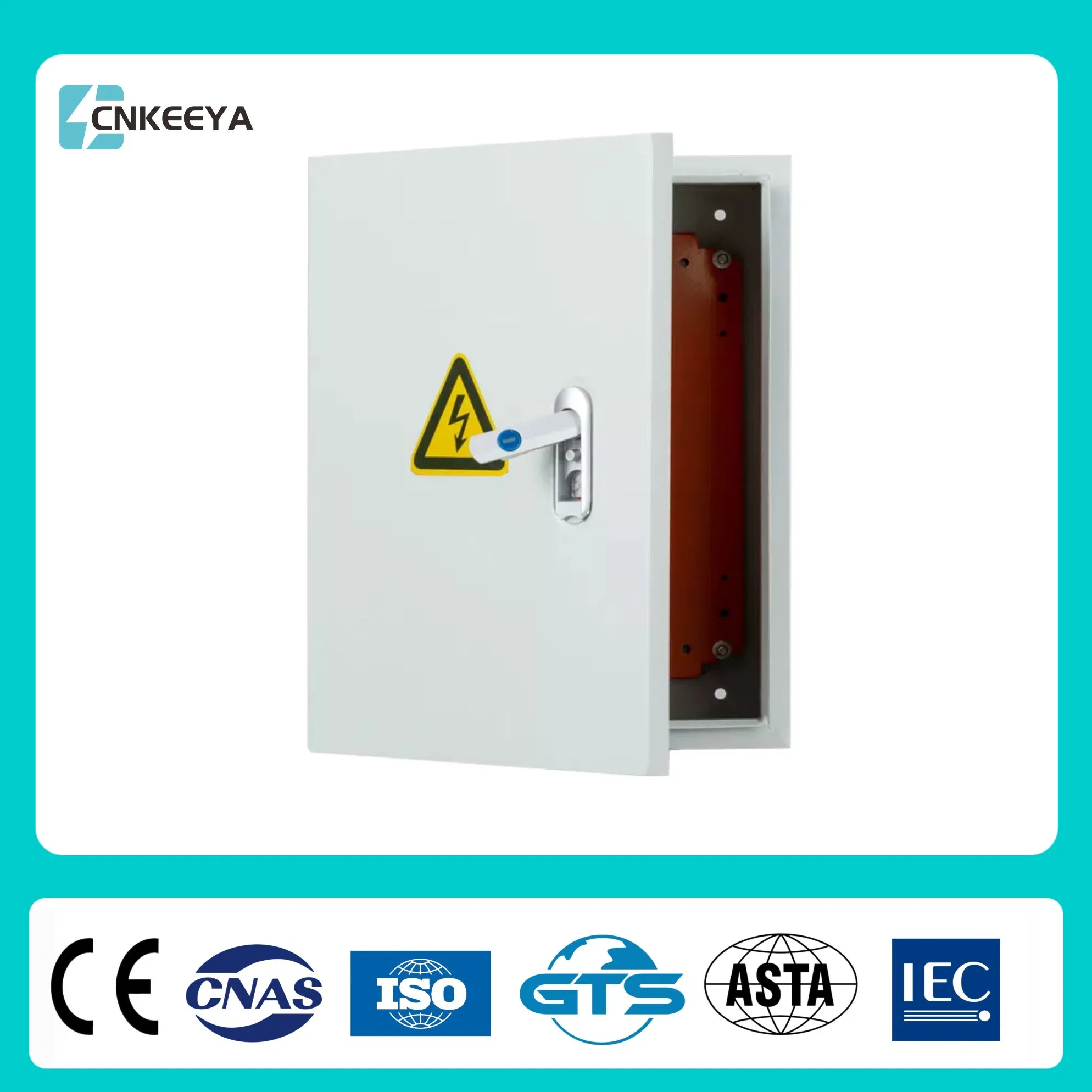

• Double door structures are available, ensuring safe and reliable operation.
• Multiple protection ratings: IP20, IP40, IP43, IP54, IP65 to fit diverse operating environments.

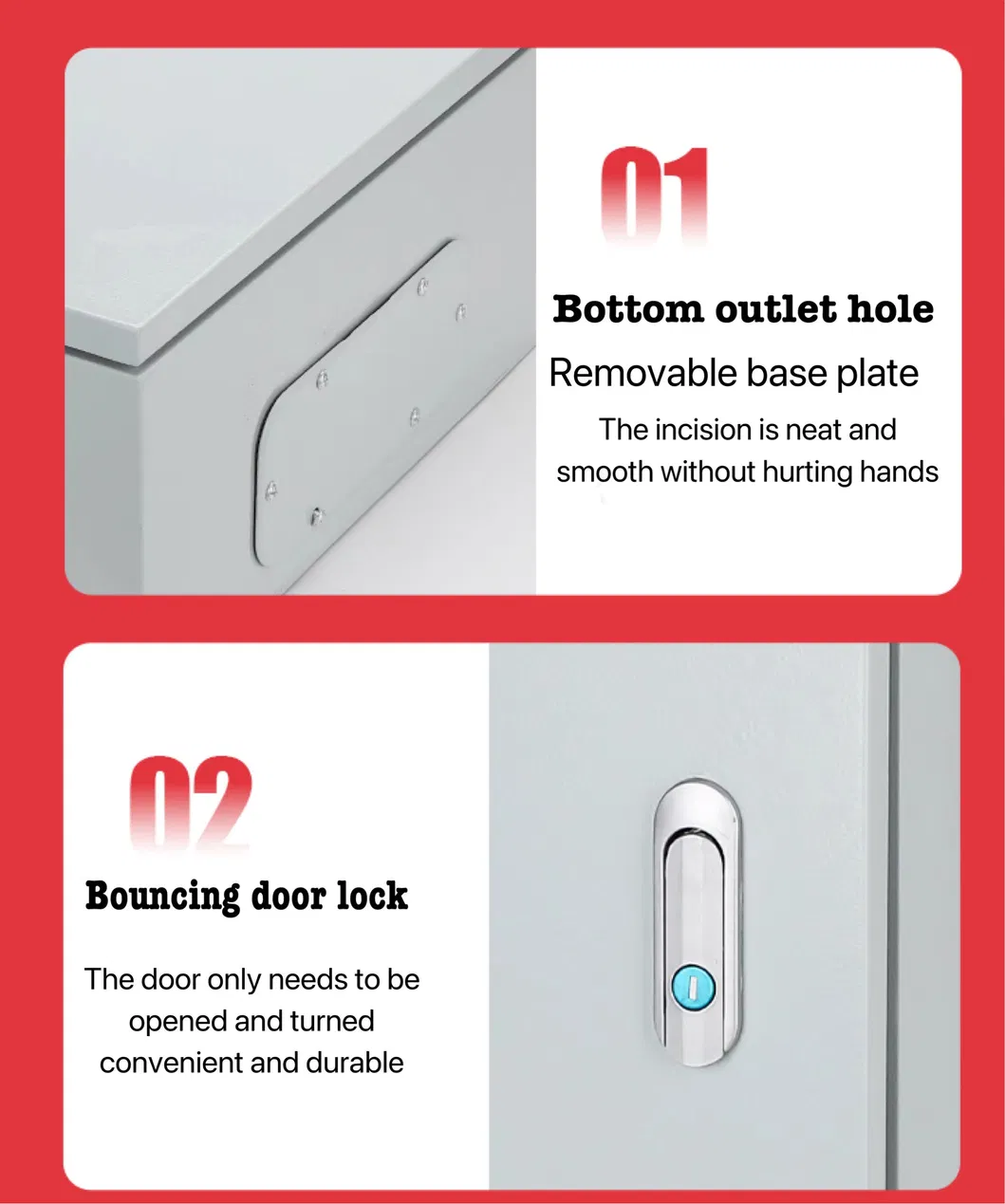

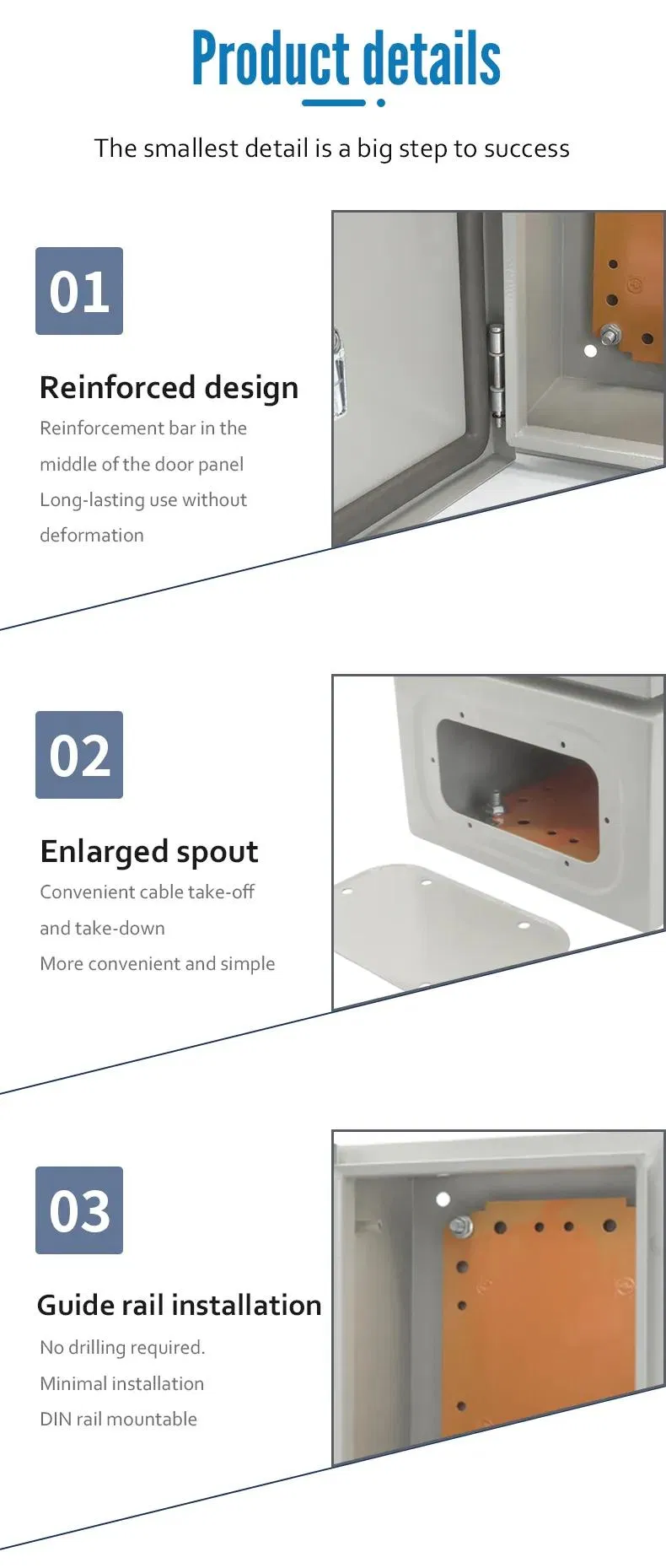

Detailed Photos
