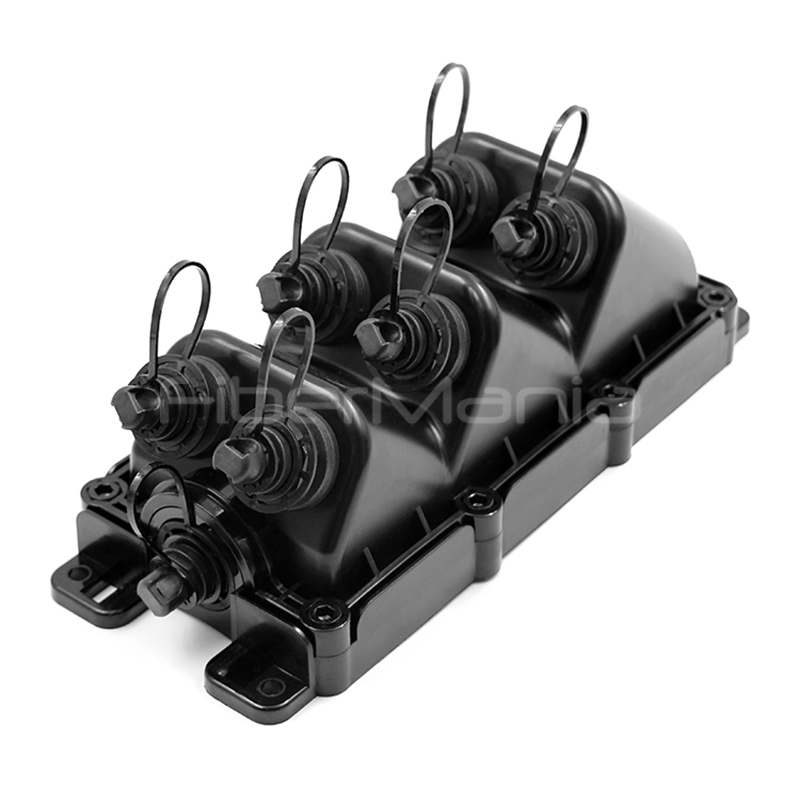

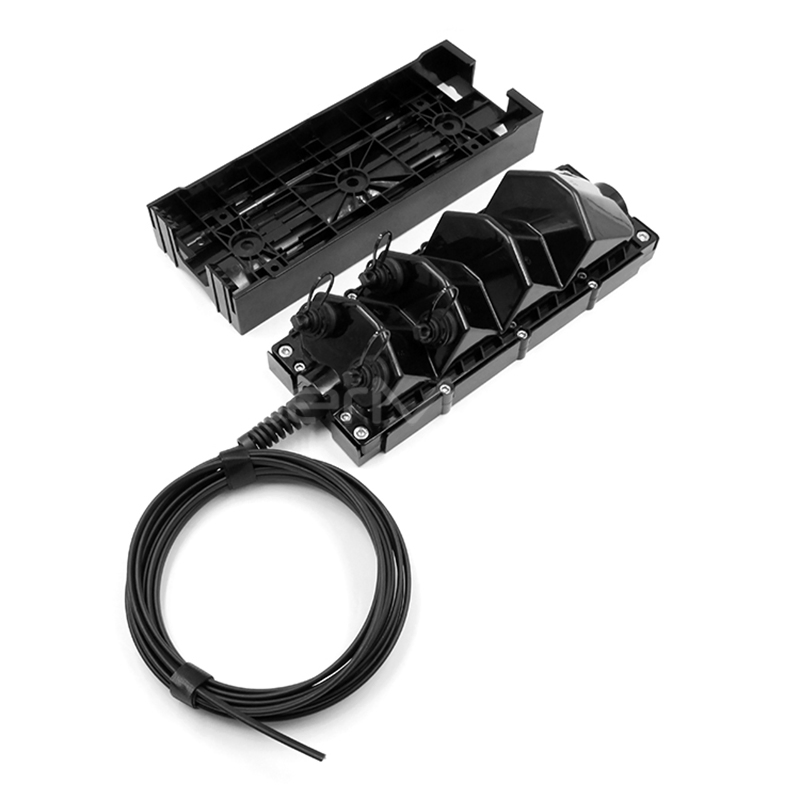

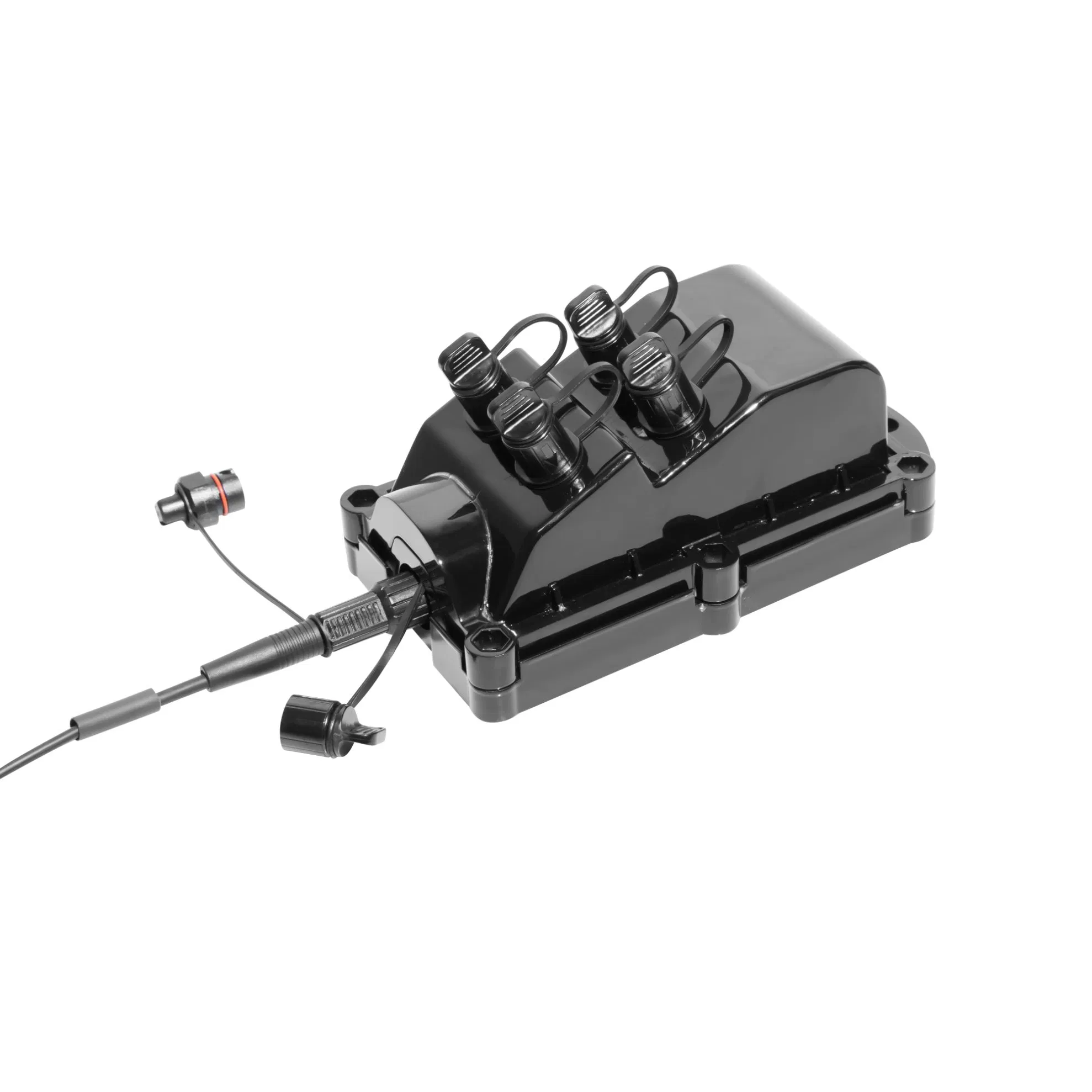

China Factory OEM IP68 Waterproof Corning OptiTap Compatible MST Multiport Service Terminal Box 4-12 Ports Outdoor FTTA FTTH Fiber Optic Distribution

Product Description

IP68 Waterproof Corning Optitap Compatible MST Box Multiport Service Terminal for Outdoor FTTA Networks Available In 4 to 12 Ports
IP68 Waterproof Corning OptiTap Compatible MST Multiport Service Terminal Box
The OptiTap Multiport Service Terminal Box serves as an access point for the FTTx-ODN network. This product comes with all inlet and outlet cables already connected, which removes the need for opening closures and fiber splicing. Each port features durable adapters, allowing operators to deploy the ODN without needing fiber splicing or box openings, thus enhancing service provisioning efficiency. The MST box represents a cost-effective fiber distribution solution for outdoor applications. Compared to traditional products, the MST box is user-friendly and highly compatible, resulting in a 15-30% reduction in total operational costs (TCO). It can be installed on walls, aerially, or on poles, depending on the specific requirements. The MST box is suitable not only for FTTH applications but also for FTTA and other challenging environments.
Features
  • High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
  • Factory-sealed or field assembly.
  • IP68 water and dust protection.
  • Strong enough: working under 1200N pulling force long term.
  • From 2 to 12 ports for single or multifiber harsh connectors.
  • Available with PLC or splice sleeve for fiber divide.
  • IP68 waterproof rating.
  • Wall-mounting, aerial installation or holding pole installation.
  • Decreased angle surface and height make sure no connector interfering when operating.
  • Meet IEC 61753-1 standard.
  • Cost effective: save 40% operating time.

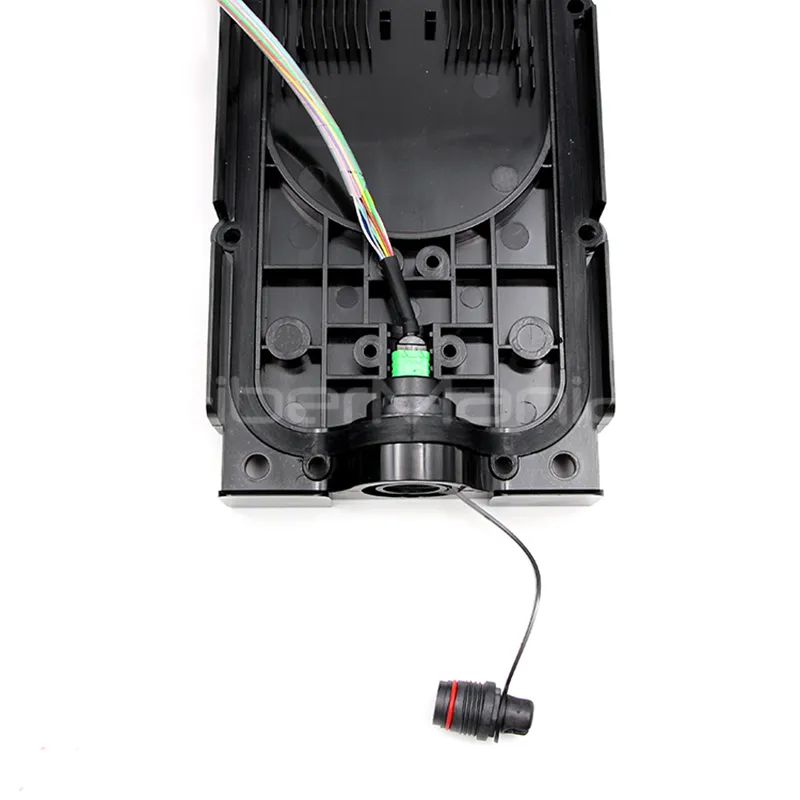

MST Box Detail

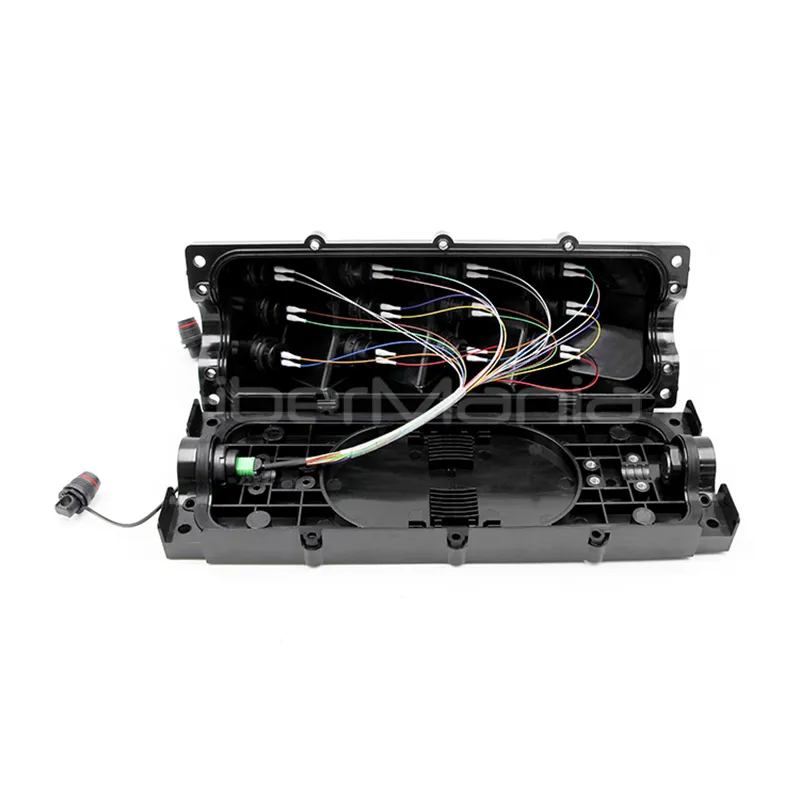

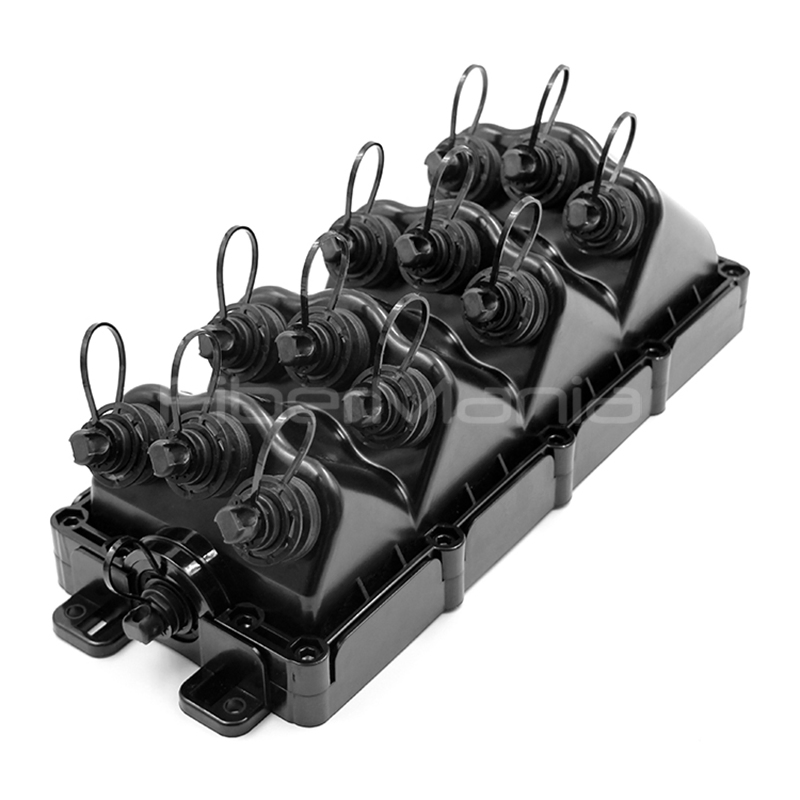

MST Box Port

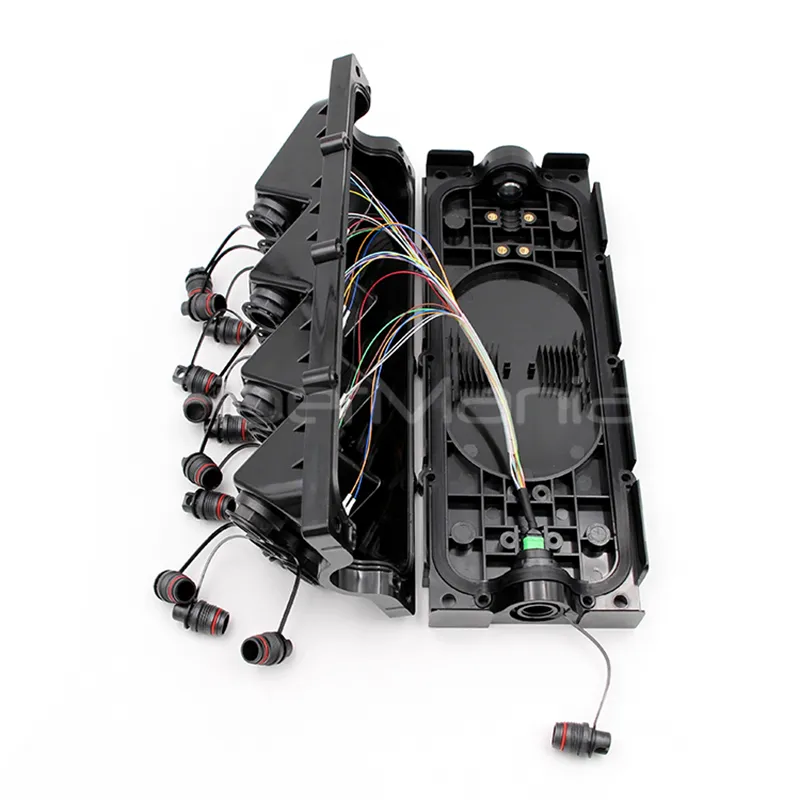

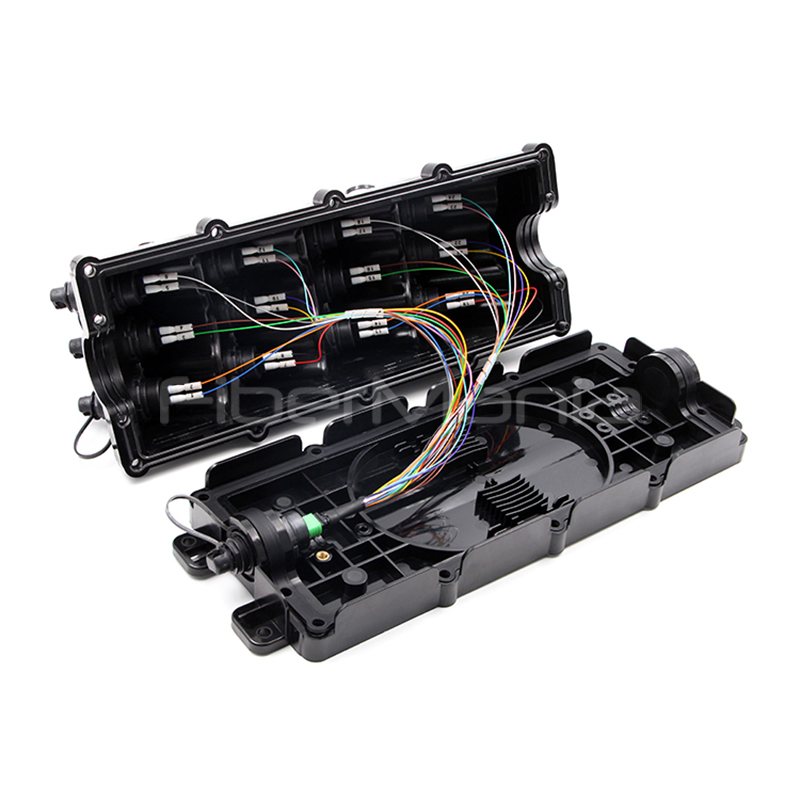

MST Box Connections
Applications
  • FTTH field
  • FTTA field
  • Trunk cable connecting
  • Prospecting or communication

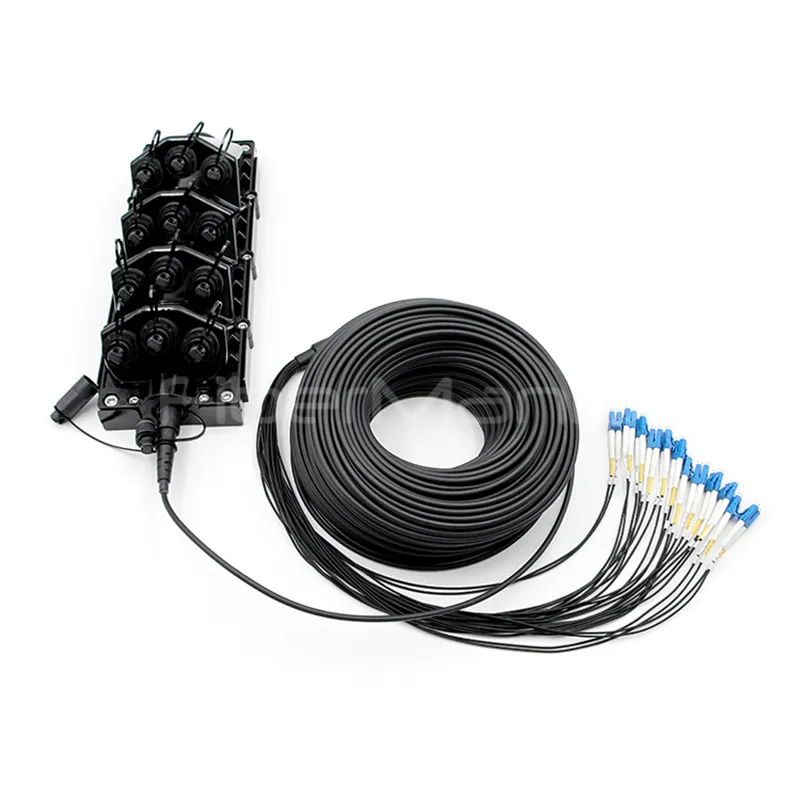

Application Diagram 1

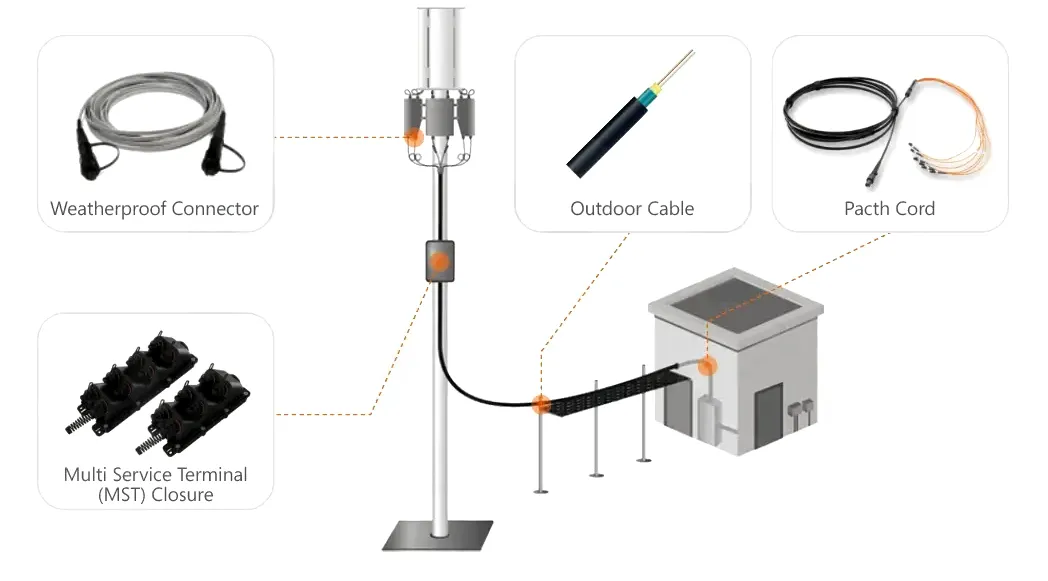

Application Diagram 2
Specification
Port 2, 4, 6, 8, 10, 12
Product Type Access Terminal
IP Rate IP68
Components Compliant RoHs
Operating Temperature -40 to +85ºC
Adapter OptiTap SC, OptiTap LC Duplex, OptiTap MPO
Entrance Cable gland or OptiTap adapter
Feed Cable 1, 2, 4, 6, 8 cores for options
Feed Cable Length Customized
Stub Type Stub Tail
Mounting Method Hand-hole, Pedestal, Pole, Strand, Aerial
Cable Type Flat drop cable
Cable Size 3.0x4.5mm; 4x7mm; 4.5x8.1mm; 4.5x9.8mm
Cable Quantity 1
Cable Stub Length 50meter to customized
Attenuation, maximum 0.30 dB/km @ 1550 nm | 0.40 dB/km @ 1310 nm
Directivity, minimum 60 dB
Wavelength Range 1260-1635 nm
Insertion Loss, Terminal Connector, max 0.4dB
Return Loss, Connector, minimum 65dB
Technical Box Drawing
Item Dimension
2Port 210x112x87mm
4Port 210x112x87mm
6Port 267x112x89mm
8Port 337x112x93mm
12Port 365x138x110mm
Main Products

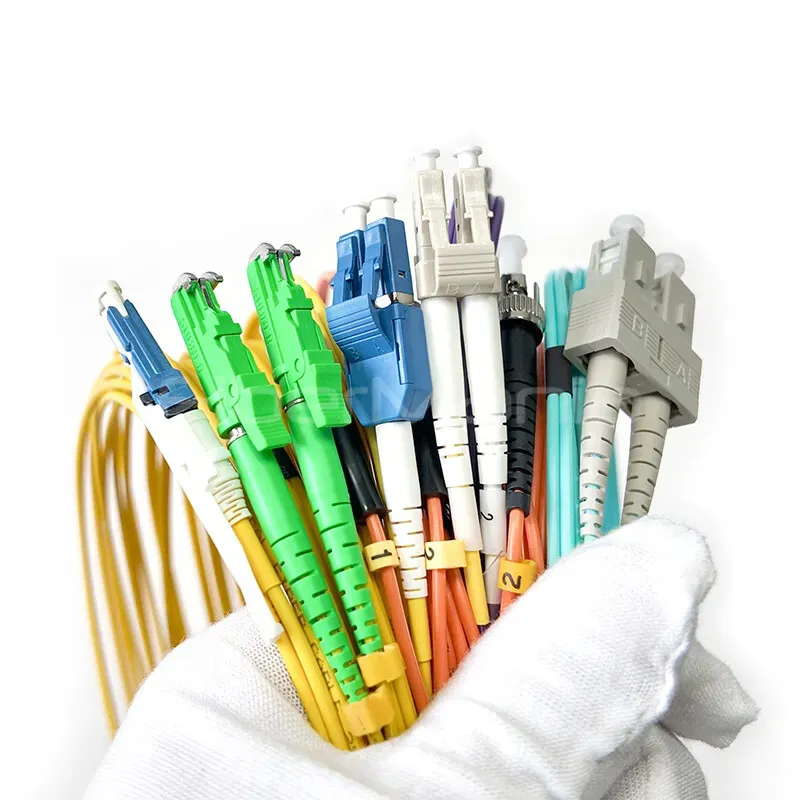

Fiber optic cables
Fiber optic cables
We provide a wide selection of single-mode and multi-mode fiber optic cables designed for maximum performance, durability, and flexibility. With customizable lengths, jacket materials, and connector options, our cables meet the diverse needs of global customers.

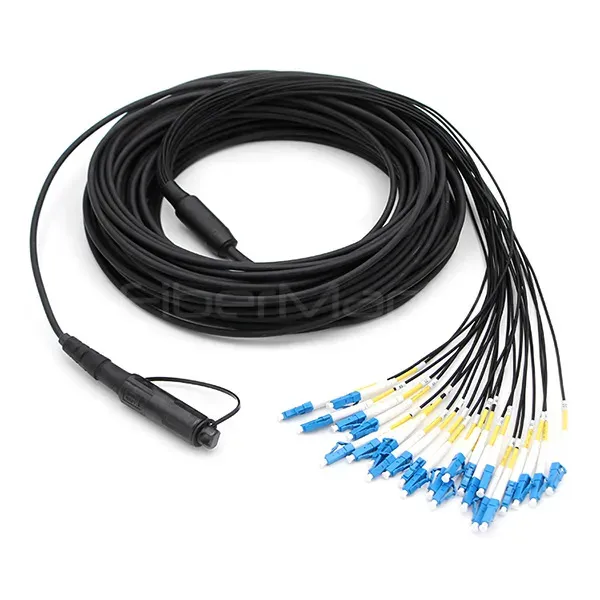

FTTA solutions
