Short-Circuit Protected Power Box Low Voltage Distribution Board

1 / 5

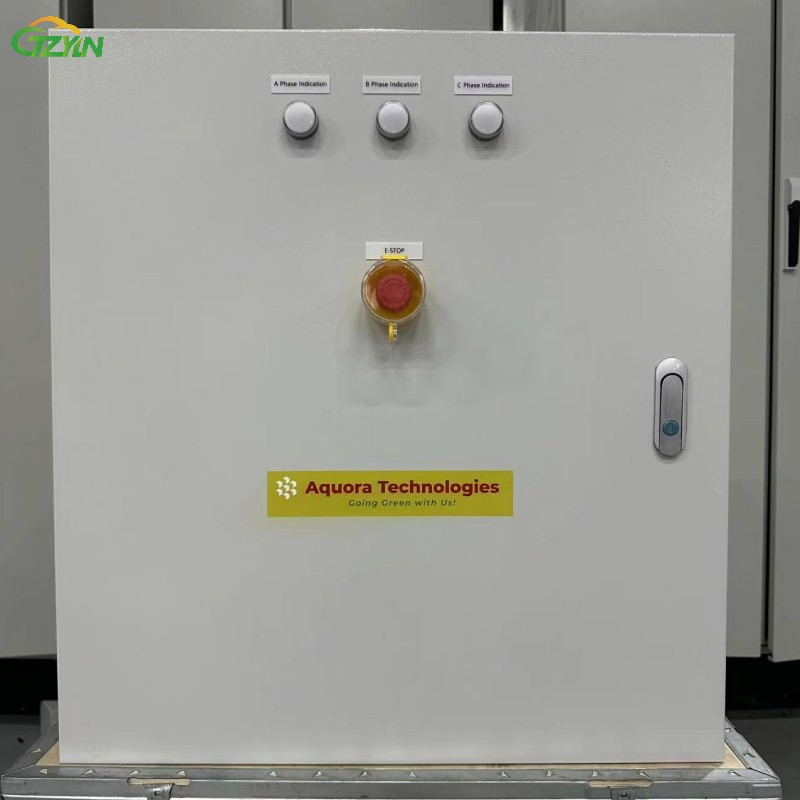

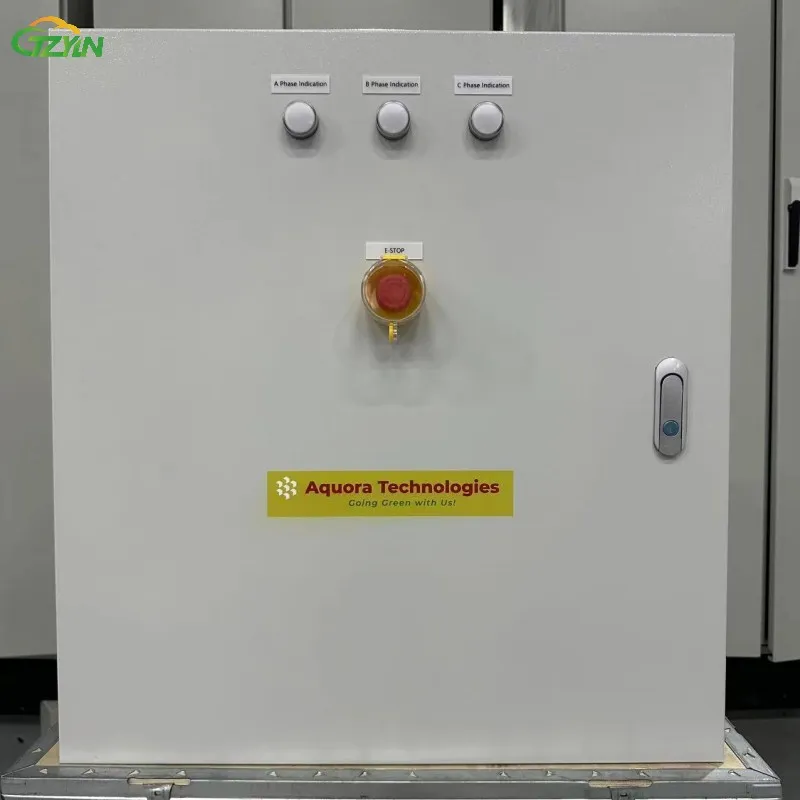

Short-Circuit Protected Power Box Low Voltage Distribution Board

Customization:	Available
Type:	Distribution Metering Box
Structure:	Protection

Send Inquiry

Product Description

Basic Info

Model NO.SP-DB

CertificationISO9001:2000, VDE, CCC, CE

FormAll-packaged Type

Operation VoltageLow Voltage

Size3 Unit

Application RangeHigh-rise Buildings

Shell MaterialSteel Plate

Shell Protection GradeIP55

BrandSchneider, ABB, Omron, Delixi, Eaton, Siemens

Warranty12 Month

Box/Cabinet SizeCustomized

ColorCustomized

Product NameControl Cabinet/Panel

Product TypeOne Control by One

FeatureOverload Protection

FunctionStart Stop

SpecificationsSupport Customization

Protection ClassIP54~66

Voltage220/380/415/440/460/480V

Box/Cabinet Thickness0.8/1.2/1.5mm

CurrentCustomized

Output Frequency0-60Hz

Transport PackageStandard Export Wooden Box with Pallet

SpecificationCustomized

HS Code8537109090

Production Capacity500 Piece/Pieces Per Month

Packaging & Delivery

Package Size45.00cm * 25.00cm * 45.00cm

Package Gross Weight40.000kg

Product Description

Can Undertake Various Power Distribution Projects

1. VFD cabinet

2. PLC control cabinets

3. Energy-saving projects

4. Capacitance cabinet

5. Industrial control cabinet

6. Explosion-proof cabinet

7. Generator sync panel

8. ATS cabinet

9. Distribution cabinet

10. Electrical cabinet

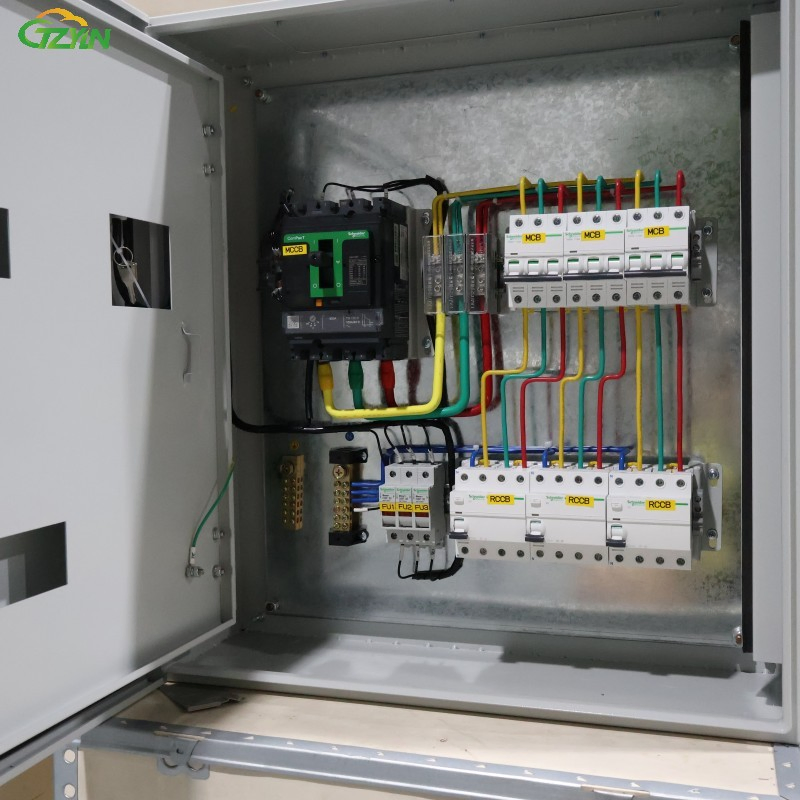

Distribution Cabinet Detail

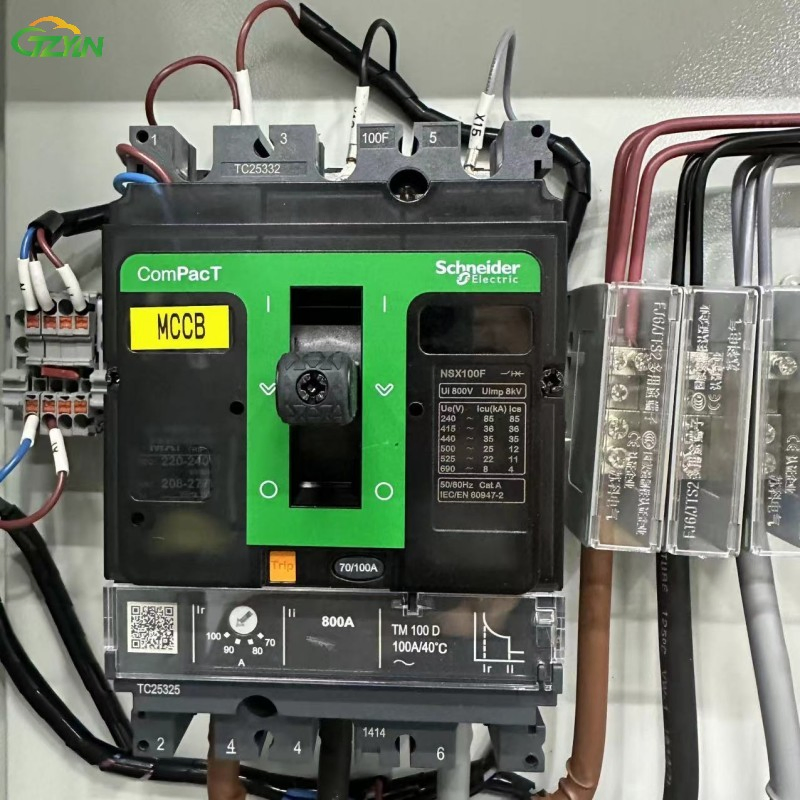

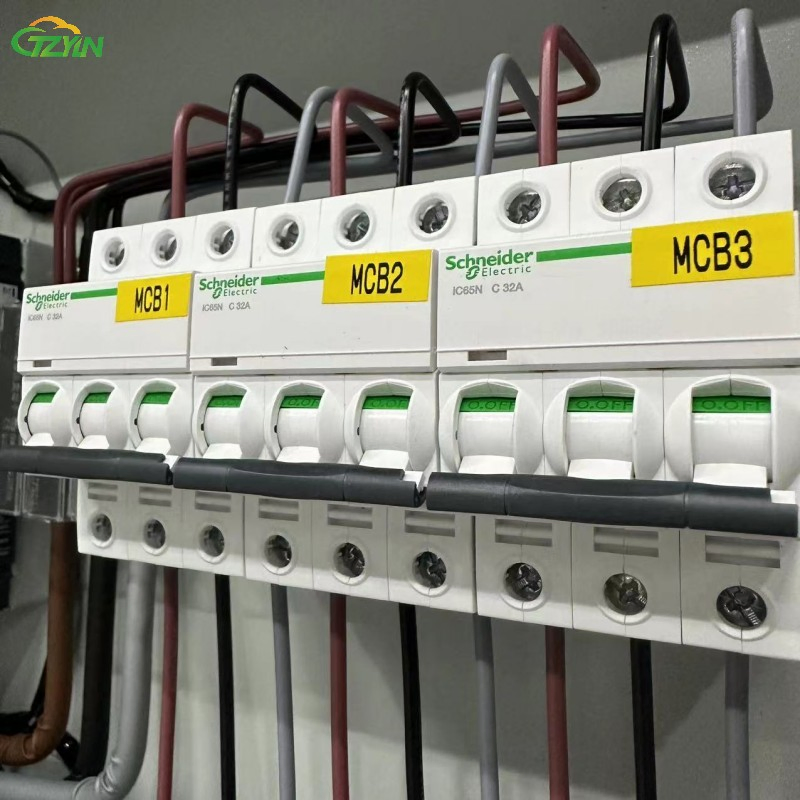

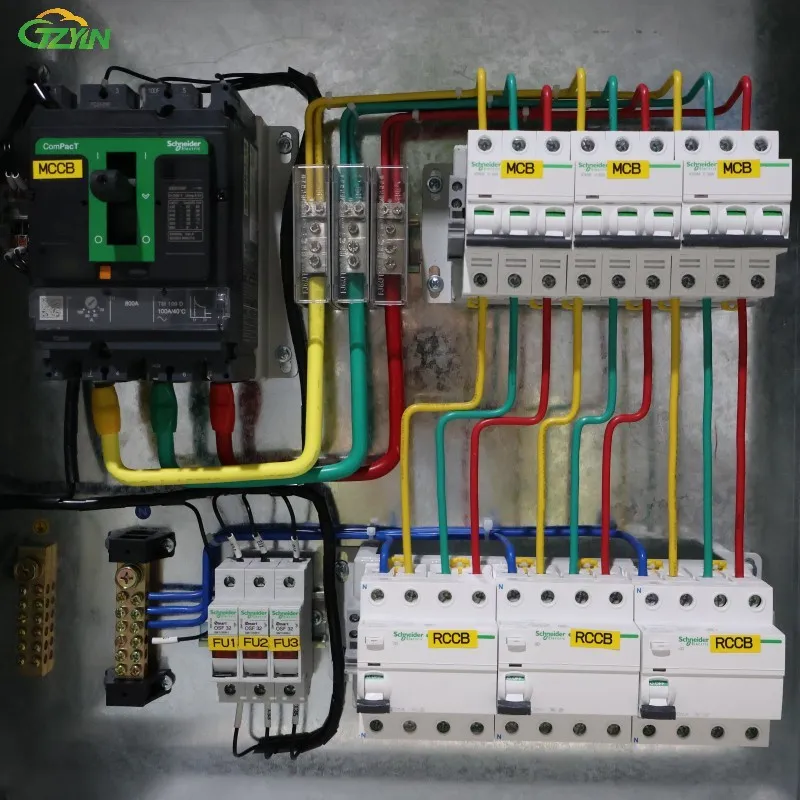

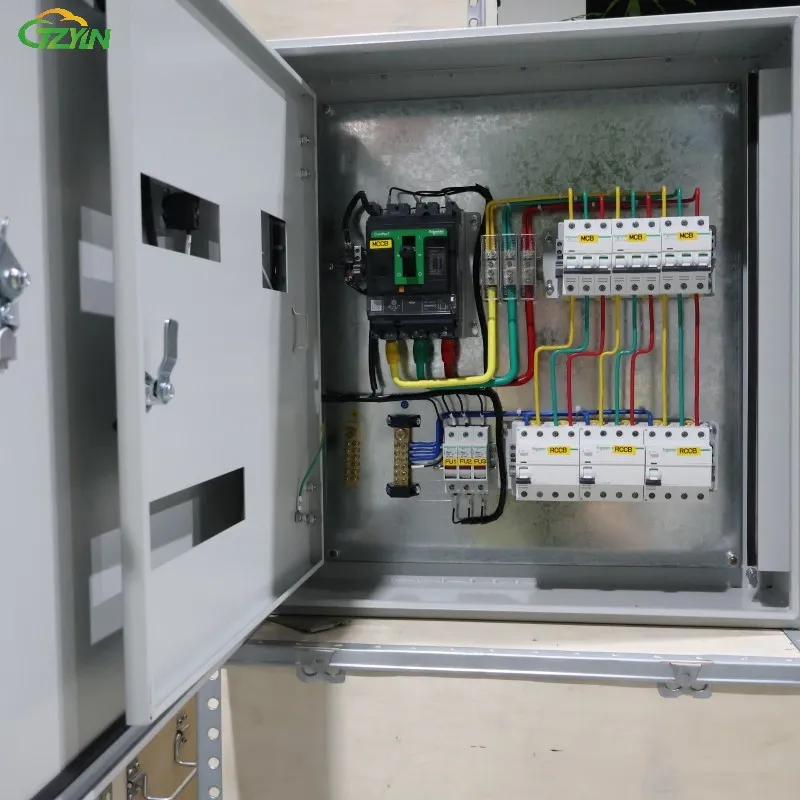

Inter Components Equipped with Schneider molded-case circuit breakers (for overload/short-circuit protection, high insulation/impulse withstand voltage), miniature circuit breakers (branch control/protection), and residual current operated circuit breakers (leakage detection & quick power-off).
Functional Features It has overload, short-circuit and leakage protection: overload triggers circuit breaking to avoid equipment overheating; short-circuit cuts large current fast to prevent damage; leakage shuts down power when over-limit current is detected for safety.
Application Scenarios Suitable for all electric vehicle charging piles, installable in public parking lots, residential areas, commercial centers, etc. It provides stable, safe power distribution for charging piles to ensure operation and meet EV charging needs.

Parameters	Specifications Details
Name	Distribution cabinet
Product type	Power distribution
Box/cabinet size	Customizable
Box/cabinet thickness	0.8/1.2/1.5mm
Instal type	wall mounting/console mode
Component brand	Schneider, ABB, Omron, DELIXI, Eaton, Siemens
Shell material	Carbon steel, stainless steel, explosion-proof
Major component	Shell, circuit breaker, power input interface, distribution unit, protective device, and auxiliary equipment
Protection level	IP40, IP44, IP54, IP65
Type of AC power supply	Single phase and three-phase

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer. Our production facility is strategically located to allow efficient transport access, close to major logistics hubs and shipping ports.

What products can I buy from you?

You can purchase complete sets of distribution boxes, distribution panels, control panels, control boxes, power supply cabinets, and electrical cabinets. We provide customized design, production, and PLC programming solutions for electrical automation.

How can I place an order?

Please provide detailed technical specifications, single line diagrams (SLD), or relevant drawings. Our engineering and sales team will coordinate with you to supply quotations and detailed product specifications.

How long does it take to get a quote and what is the lead time?

We generally provide a quotation within 2 days after receiving specifications. Sample production takes about 15 days, and mass production takes about 26 days. The exact lead time depends on the order items and quantities.

What are your payment terms?

We accept flexible payment terms, including irrevocable L/C at sight, or a 30% advance deposit with the remaining 70% balance settled when the goods are ready for dispatch (supporting wire transfers and other secure payment methods).

Do you provide overseas technical support?

Yes, our technical team is available to assist on-site to guide installation, testing, debugging, and general maintenance as requested.
