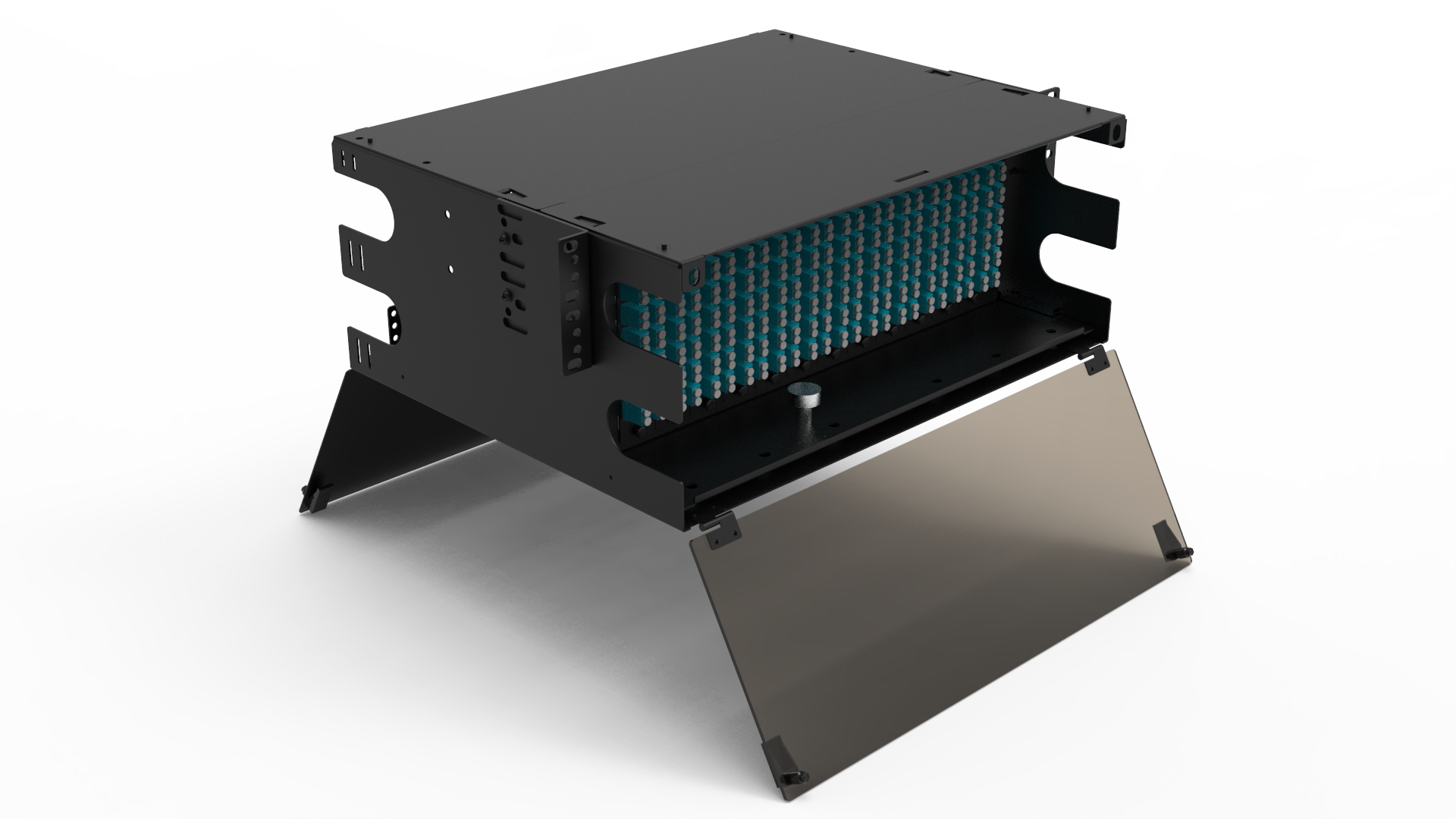

PP1004 4U LGX Adapter Panel Sliding Fiber Enclosure

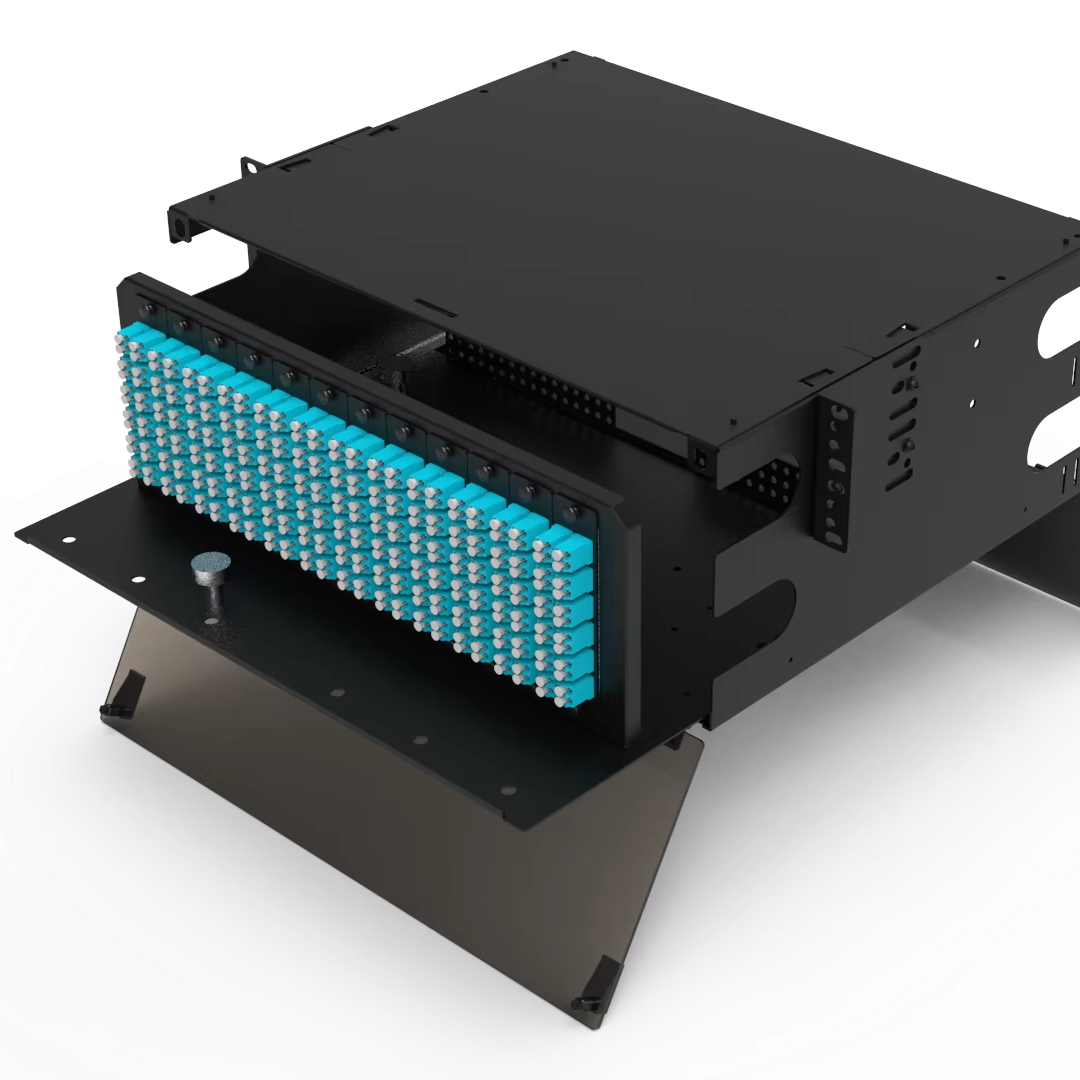

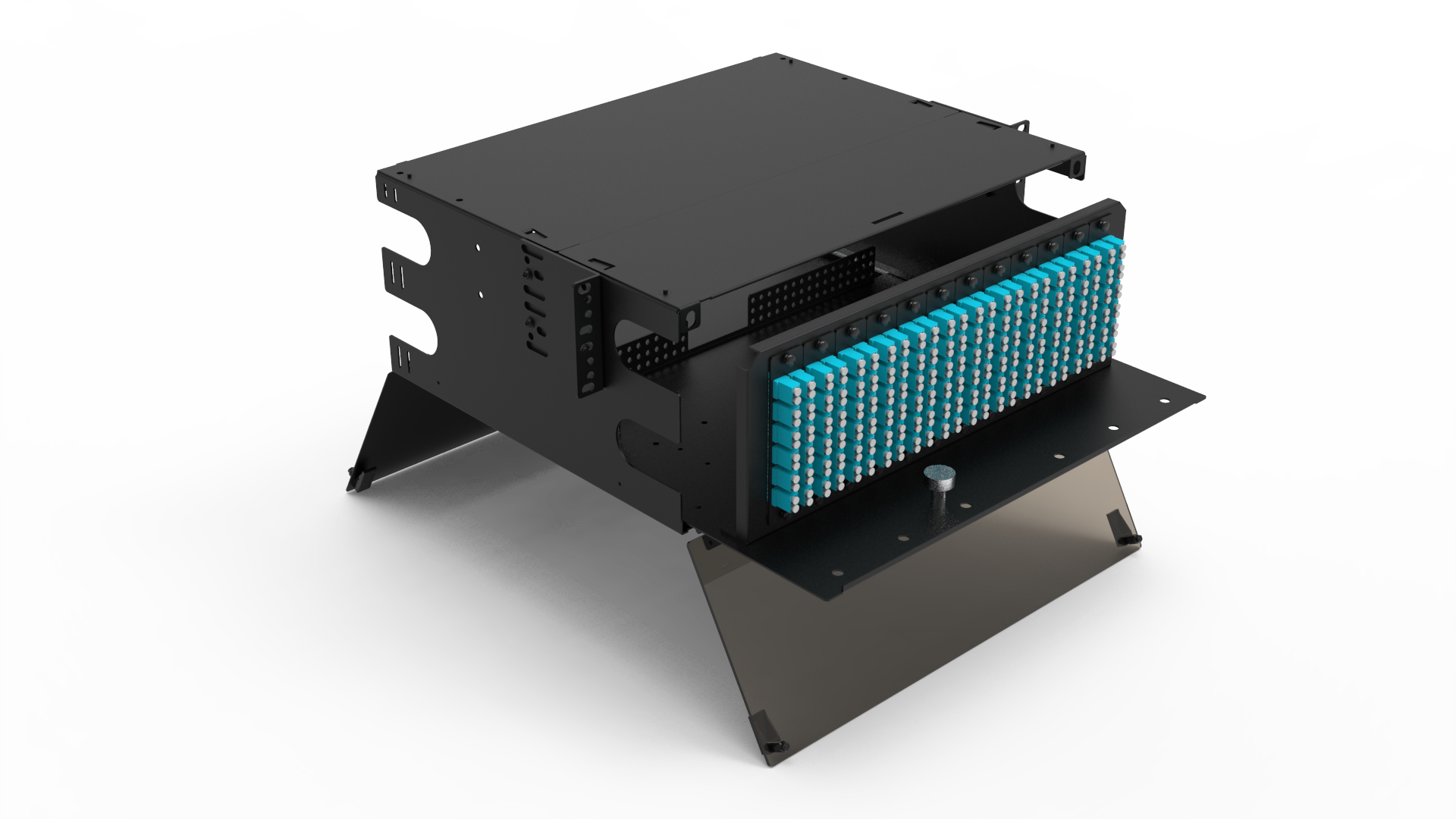

The PP1004 is a 4 Rack Unit (RU) 12 termination panels, 19-inch or 23-inch rack mount fiber distribution unit designed to support patching and splicing in one unit. The unit features a slide-out master panel that allows for accessing terminations or for splicing if used as a patch/patch splice housing. The PP1004 has a front & rear both-direction slide tray with a locking spring pin at the rear side.
| Product Type |
Fiber Optic Enclosure / Box / Terminal |
| Type |
PP1004 |
| Capacity |
12 LGX adapter panels |
| Mounting Type |
4U / 19 & 23-inch rack mounting |
| Dimensions |
433 * 352.3 * 178 (mm) |
| Fiber Count |
Up to 288 Fibers (LC) |
| Weight |
10.2KG |
| Coating |
RAL9005 / Black |
| Feature |
Front & rear access, Lock on front |
| Cable Entry Direction |
Side Cable Entry |
| Material |
1.5mm (16GA) Powder Coated Steel |

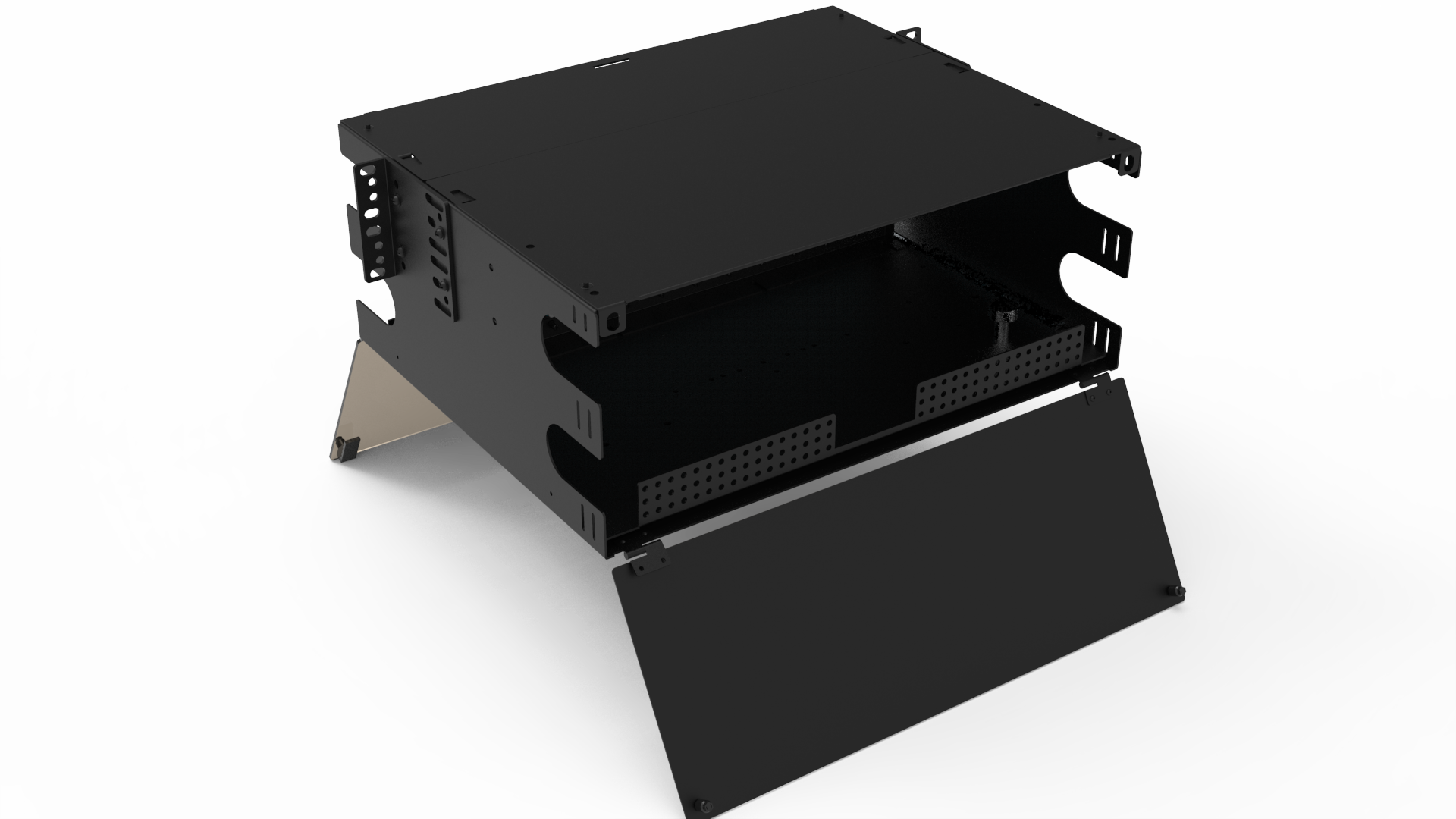

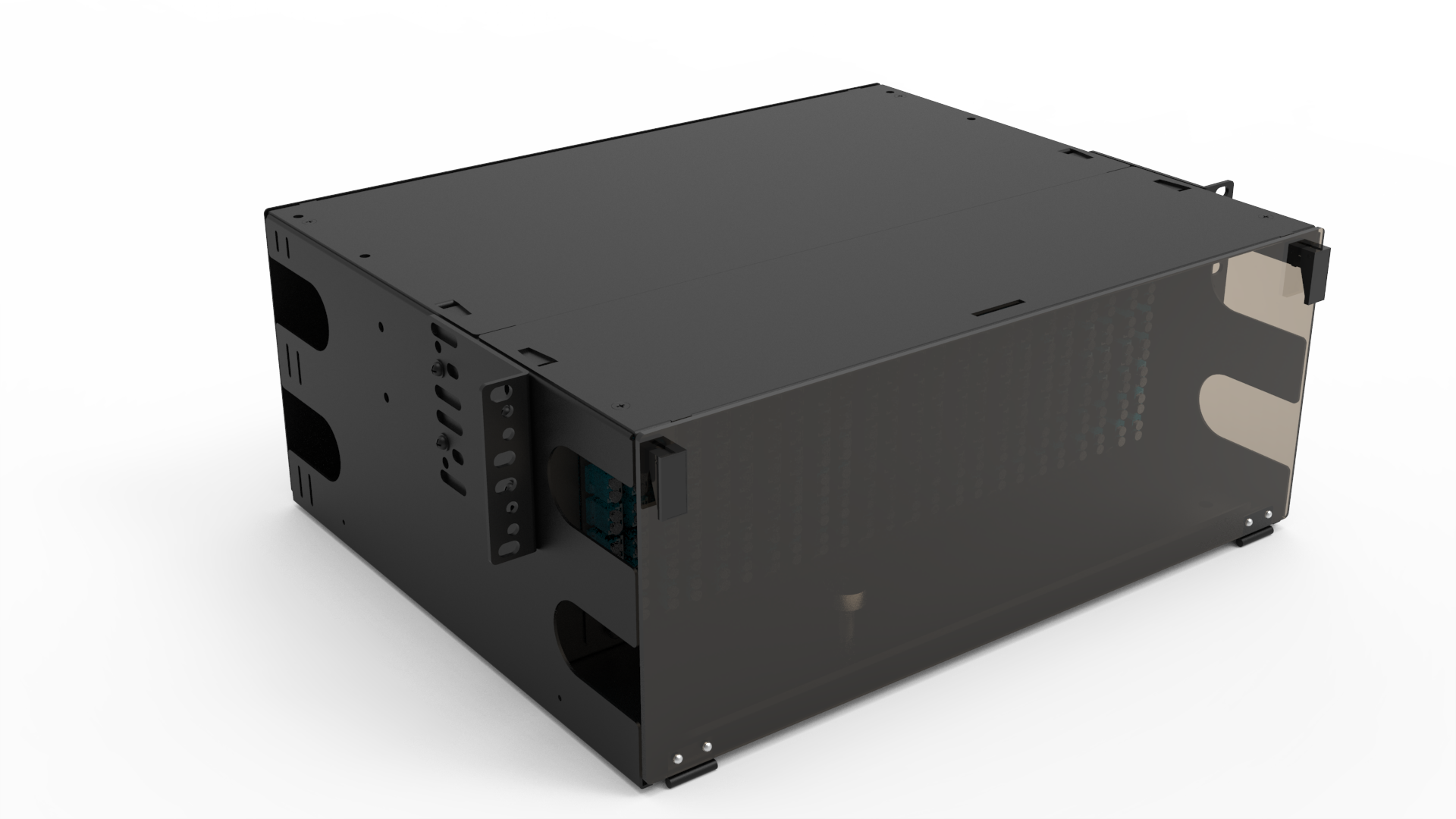

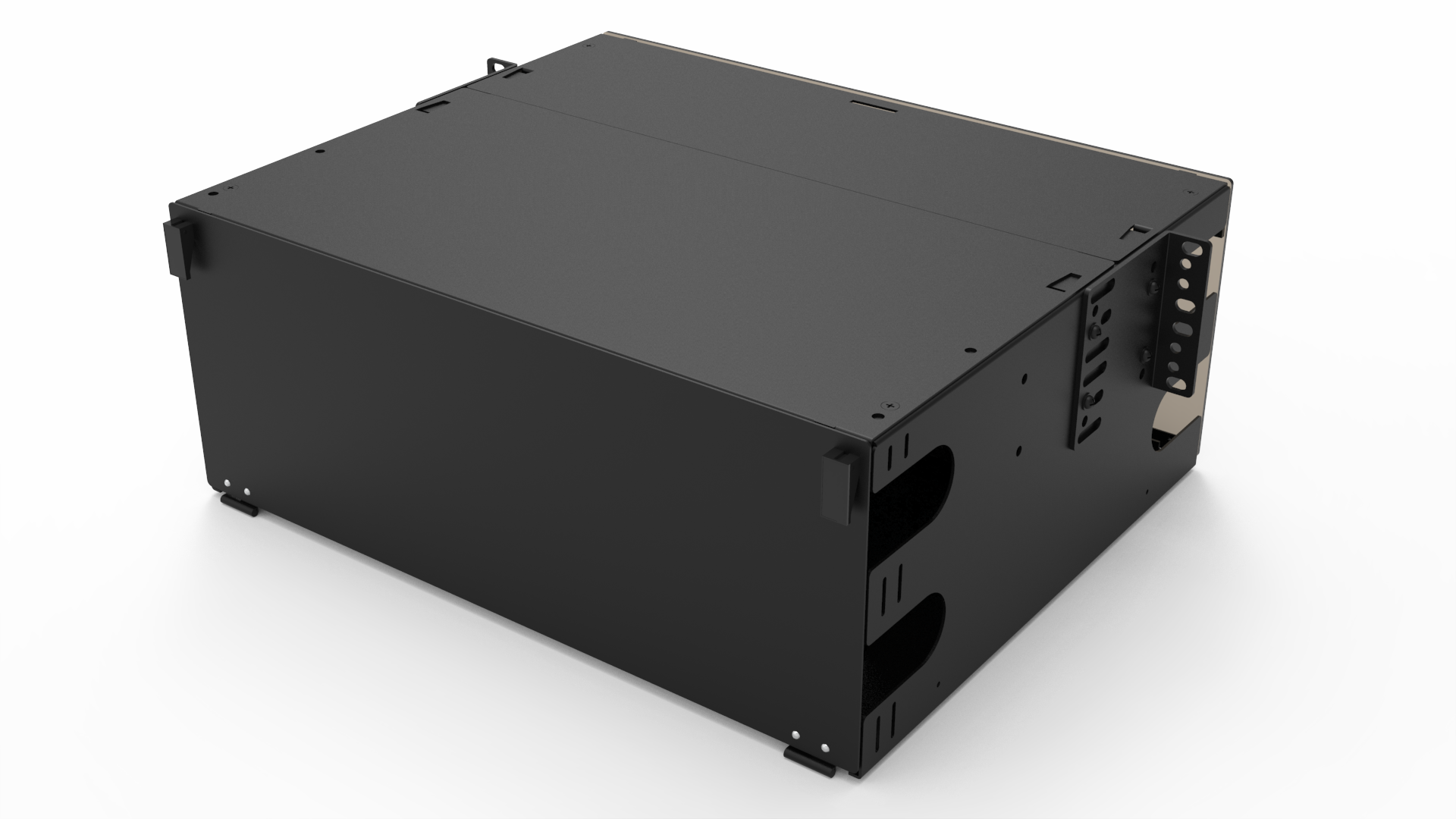

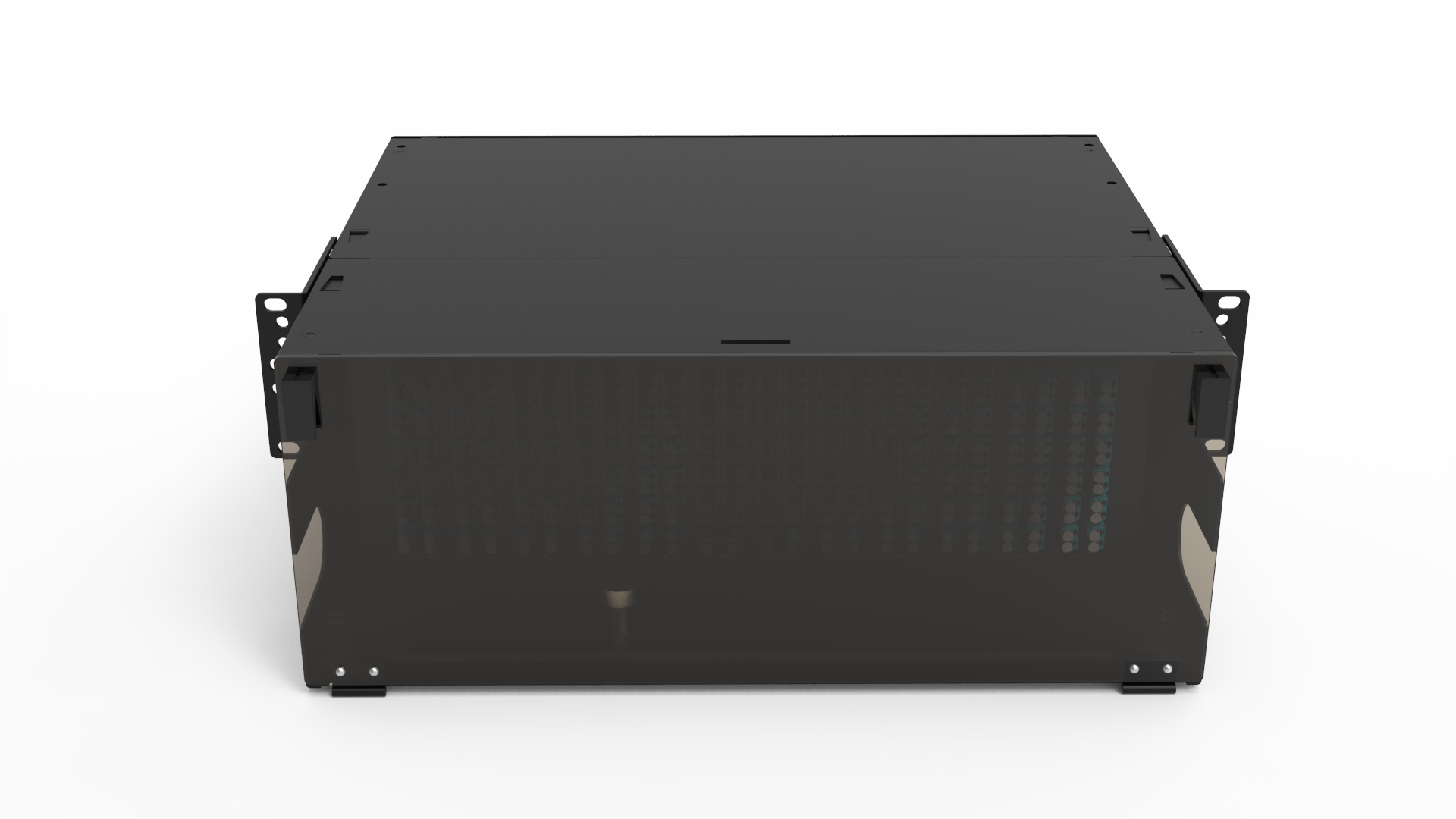

Product Gallery
Frequently Asked Questions (FAQ)
What is the capacity of the PP1004 Fiber Enclosure?
The enclosure supports up to 12 LGX adapter panels, accommodating a total capacity of up to 288 fibers when utilizing LC connectors.
What mounting rack sizes is this enclosure compatible with?
It is designed for standard 19-inch or 23-inch rack mount installations with a 4U rack unit height specification.

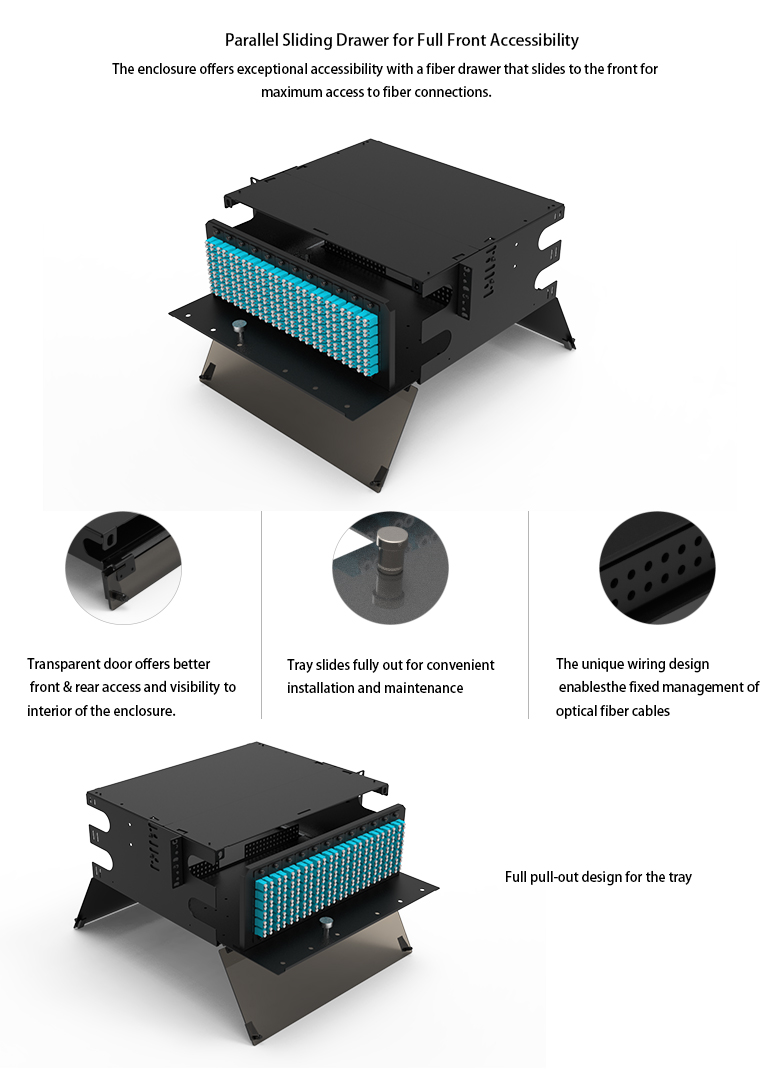

Does the tray slide out for easier maintenance?
Yes, the PP1004 features a front and rear dual-direction slide-out tray, secured by a locking spring pin at the rear side, providing excellent accessibility for splicing and patching.
What material is the enclosure made of?
The unit is manufactured using high-quality 1.5mm (16GA) powder-coated steel with a durable RAL9005 black finish.
Does the PP1004 support both patching and splicing?
Yes, it is specifically designed to support patching, splicing, or a combination of both functionalities in one unit.

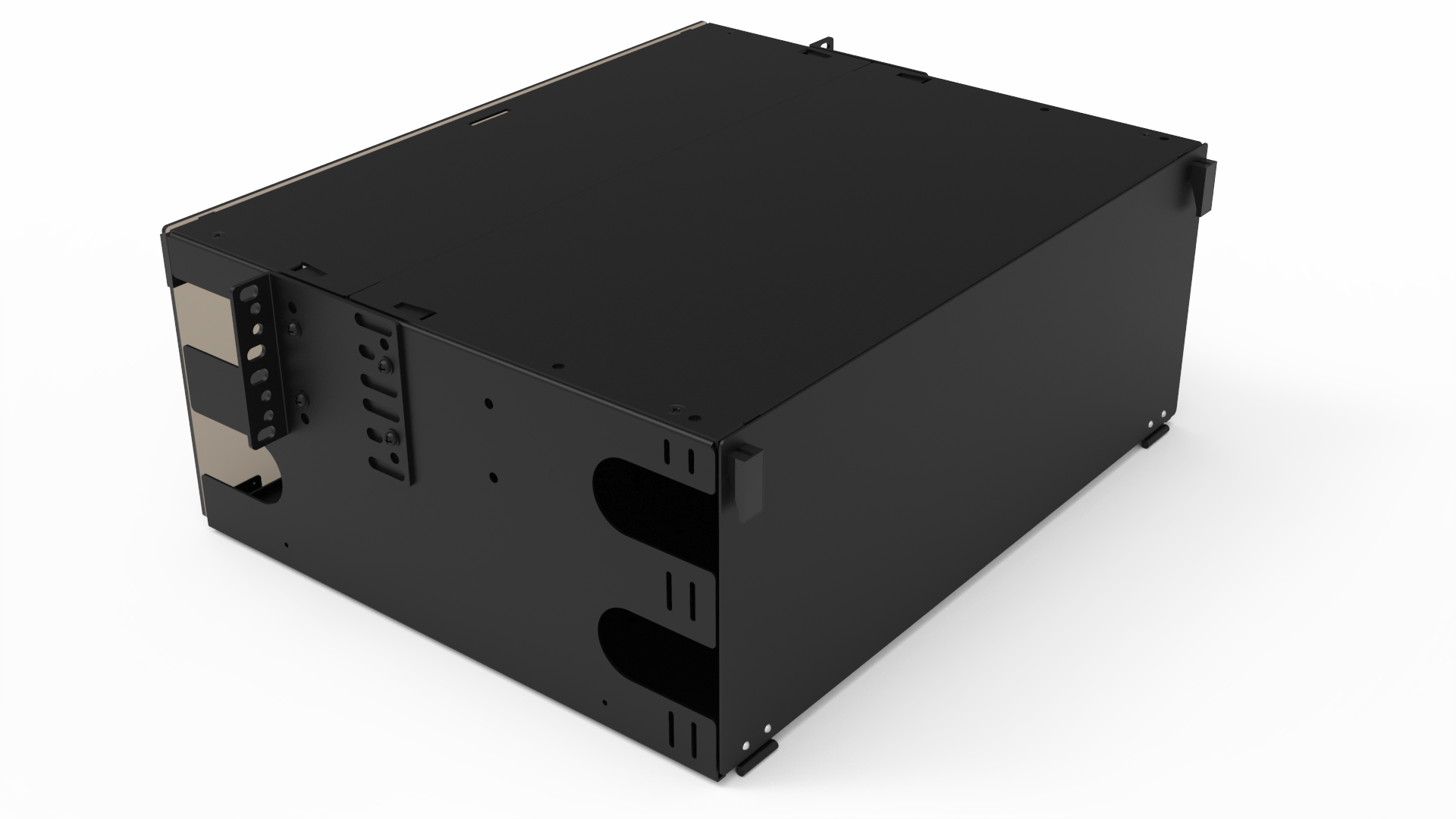

Where are the cable entries located on this unit?
This model is designed with side cable entry points for structured and secure fiber routing.
