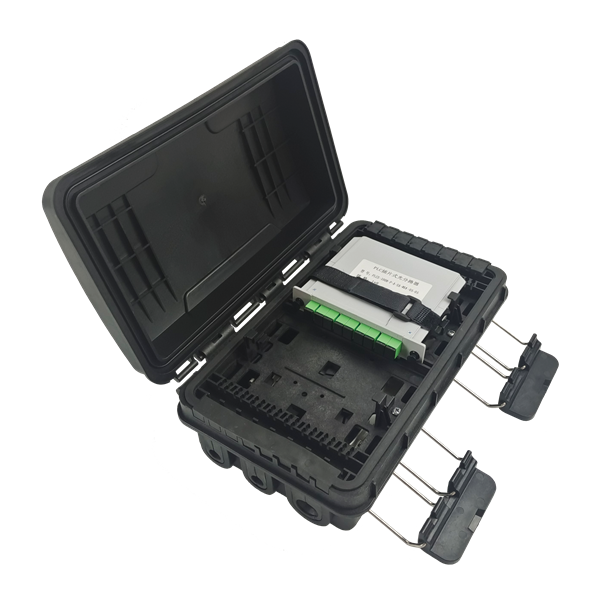

16-Core Outdoor Fiber Distribution Box (IP55) - Integrated with POE, 5G/4G Modem, and 1x16 Splitter

1 / 5

16-Core Outdoor Fiber Distribution Box (IP55) - Integrated with POE, 5G/4G Modem, and 1x16 Splitter

Send Inquiry

Product Description

16 cores outdoor FTTX BOX YY-H010

Product Overview

The 16 Cores Outdoor FTTX Box is an indispensable component in modern fiber optic communication networks. With its exceptional design, durable materials, and versatile functionalities, it meets a wide range of fiber connection and management needs. Whether in residential, commercial, or public settings, it reliably ensures the efficient operation of fiber optic networks.

Technical Specifications

Parameter	Details
Model Number	YY-H010
Use	FTTX
Color	Customizable
Network	Wireless Lan, 4g, 3G
Max capacity	16 cores
Main material	PP GF

Product Features

1. Appearance and Design

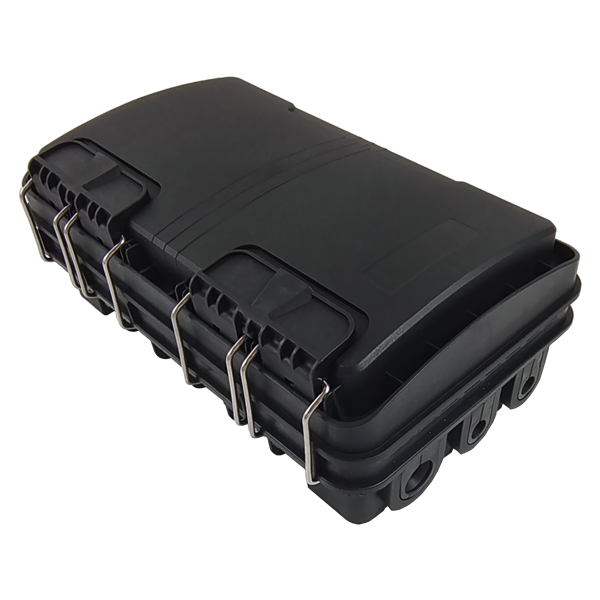

Dimensions and Shape: The FTTX Box typically has a rectangular or oval shape with moderate dimensions, making it easy to install and stack.
Surface Treatment: The outer surface is treated for durability, featuring a smooth or anti-slip texture for easy handling.
Color: Common colors include black or gray, adapting well to various installation environments.

2. Materials and Protection Level

High-Strength Materials: Casing is made from Polypropylene (PP) and Glass Fiber (GF) to boost strength, stiffness, creep resistance, and heat tolerance.
Fire Retardancy: Internal fiber protection devices use fire-retardant materials.
Protection Level: Achieves an IP55 rating or higher for water and dust resistance, with anti-corrosion properties.

3. Core Functions and Technical Parameters

Fiber Capacity: Supports up to 16 fiber connections and distribution.

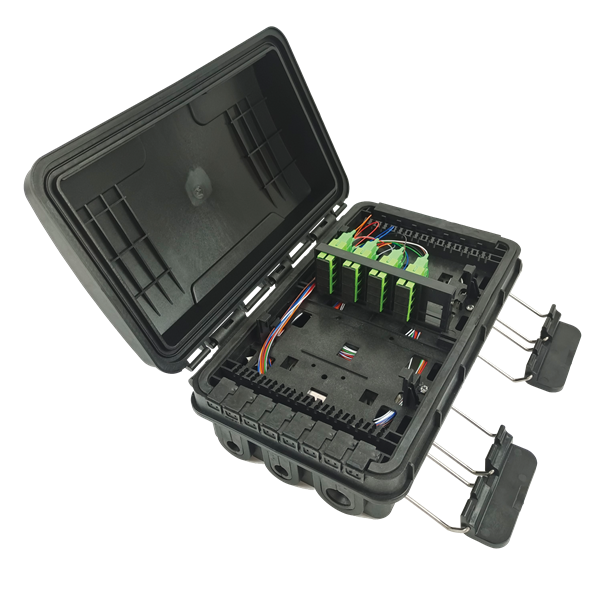

Connection Interfaces: Equipped with diverse connector types (SC/APC, LC/UPC) with clear labels for easy routing.

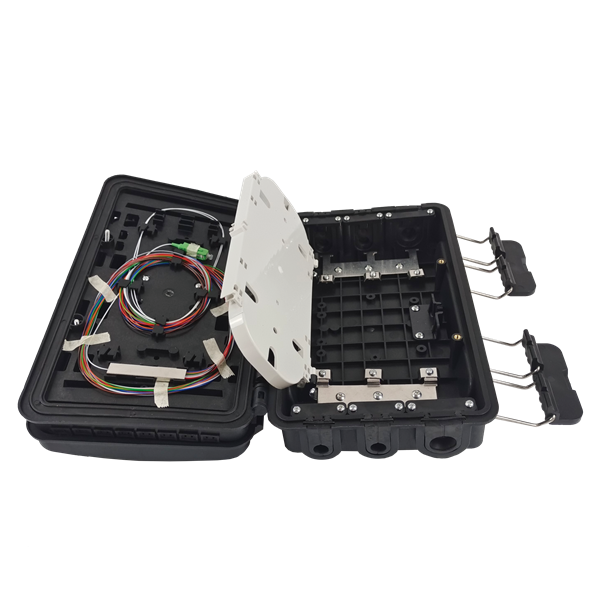

Fiber Management: Integrated system with dedicated slots and guides to prevent tangles and ease replacement.

4. Installation and Operation

Installation Methods: Features pre-drilled mounting holes and hooks for wall, floor, or pole installations.
Safe Operation: Enclosed design protects internal fibers while keeping data and power cabling organized.

5. Maintenance and Troubleshooting

Easy Disassembly: Simplifies routine maintenance, recommended every 6 to 12 months.

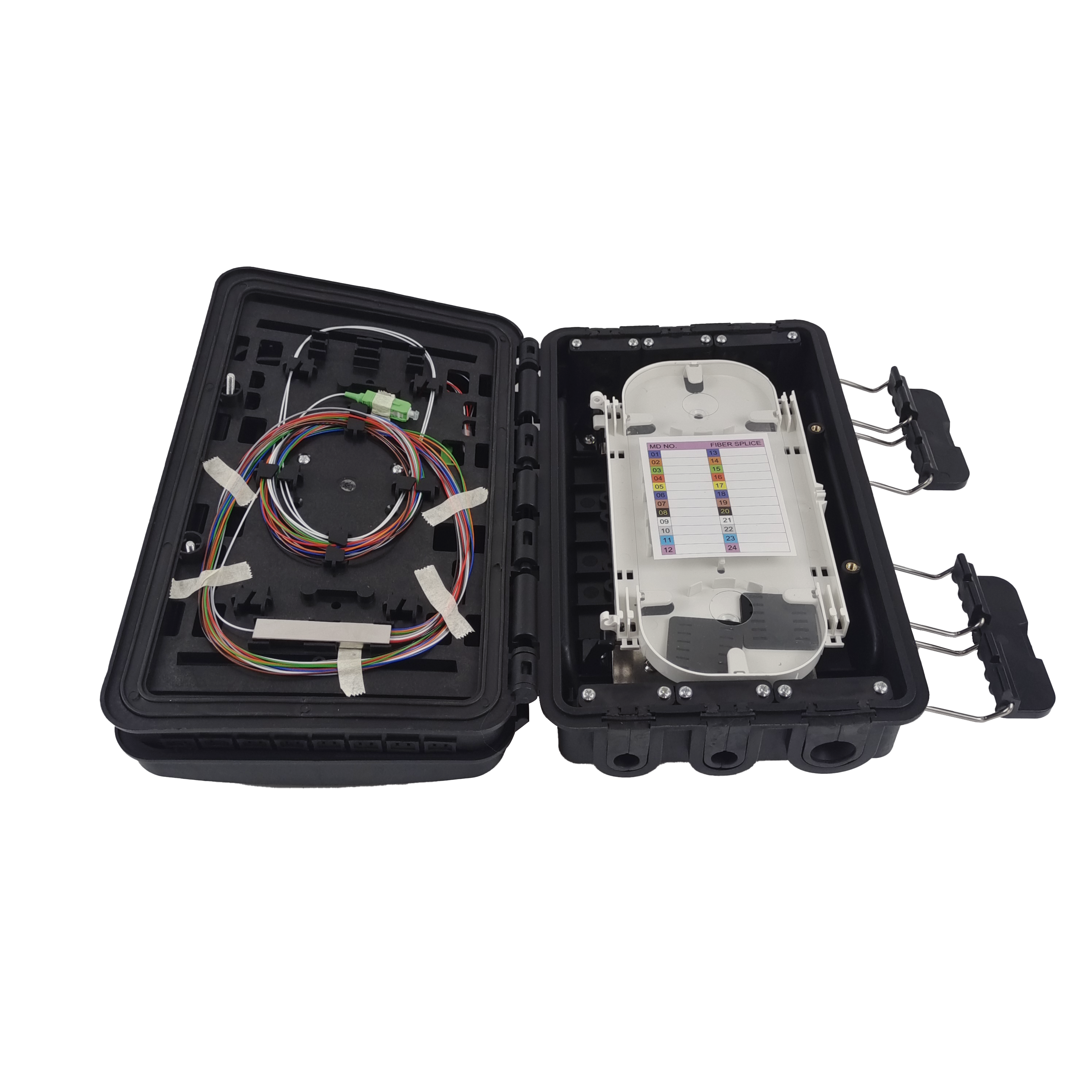

Visual Navigation: Built-in fiber distribution maps help identify connections.
Diagnostic Tools: Accessible internal test points allow rapid detection and response.

6. Applications

Residential: Used as terminal access points in newly developed housing communities.
Commercial: Distributes main fiber cables to businesses in commercial districts.
Base Stations: Provides protection and routing for mobile and wireless networks.

Product Showcase

Summary

Frequently Asked Questions

1. Are you a factory or trading company?

We are a factory. We can produce and customize fiber optic cables, fiber optic distribution boxes, terminal boxes, and various accessories.

2. Where is your factory located and how can I visit?

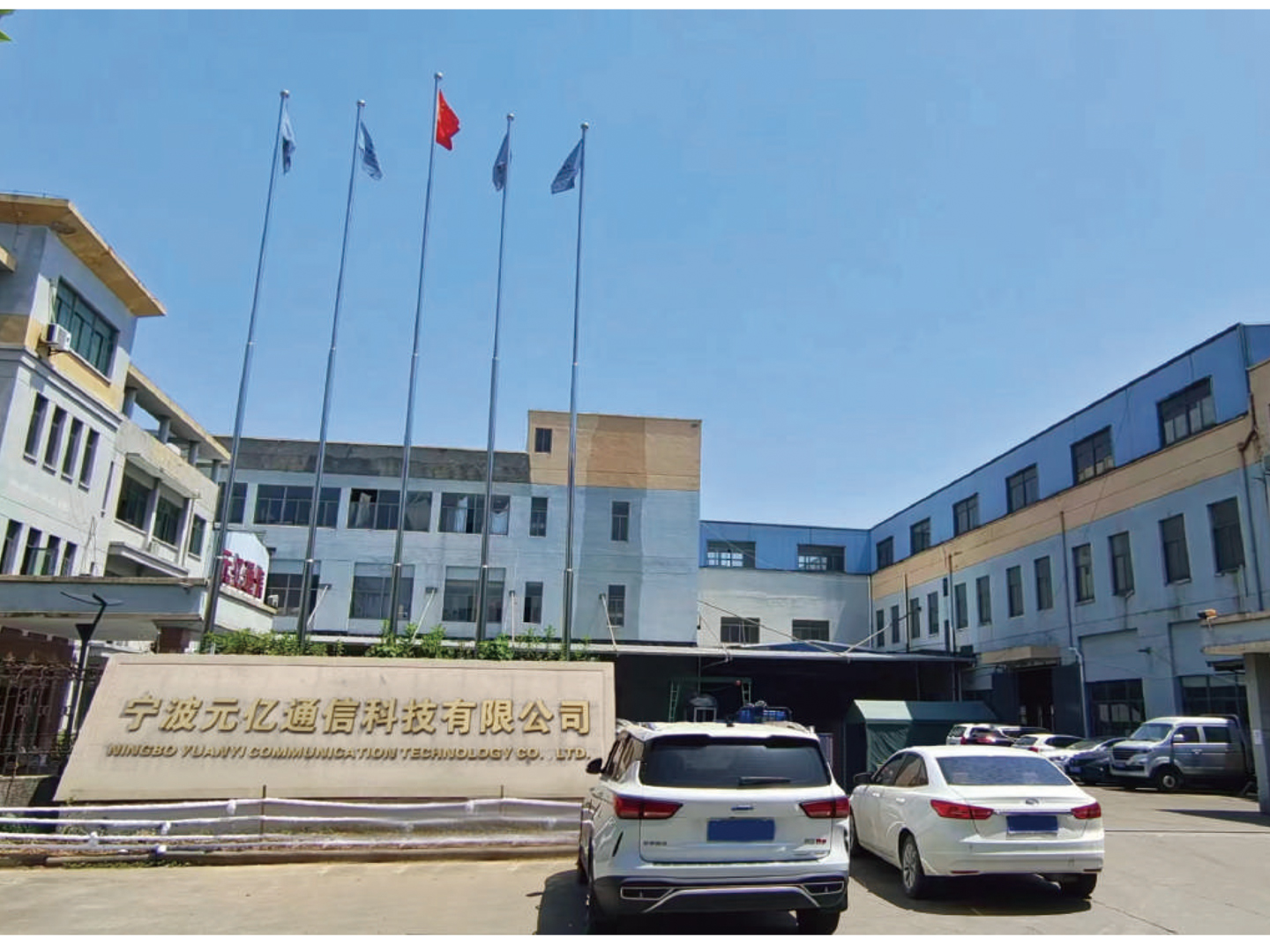

Our factory is located in an industrial manufacturing hub. You can fly to the nearby international airport and share your flight details with us. We will arrange to pick you up for your visit.

3. How long is your delivery time?

Generally, it is 3-5 days if the goods are in stock. If the goods are not in stock, it takes 20-30 days, depending on the order quantity.

4. Do you provide samples? Is it free or extra?

Yes, we can offer the sample for free, but the shipping fee is not included.

5. What are your terms of payment?

We support payment via T/T, L/C, Western Union, and Money Gram.

6. May I know the status of my order?

Yes. The order information and photos at different production stages will be sent to you, and the status details will be updated in time.
