Supports network auto-sync and manual/local time adjustment
Housing Color
Black
Wire Specification
2.5 mm²
Length
2.0 meters
Input Voltage Range
110V–250V
Rated Current
Max 16A
Operating Frequency
50-60Hz
Interface
RS232 (optional), RS485 (default), TCP
Supported Peripherals
2 access control inputs, 1 smoke detector input, 1 water leak detector input
Operating Temperature
-10 to 40°C
External Dry Contacts
4 units
Operation Records
1000 entries
Alarm Records
1000 entries
Supported Protocols
SNMP, TELNET, MQTT, RS485, DHCP, NTP, TCP
IP Protocols
IPV4, IPV6
Sequential Power On/Off Delay
1–199 seconds, customizable
Power-off State Retention
Auto On / Off / Last State
Display Panel
2.0-inch High-Definition LCD
Label
Replaceable
On/Off Control
Individual control per outlet
Current Measurement
Current measurement per outlet
Firmware Upgrade
Online upgrade or TFTP upgrade
Network Port
10/100 Mbps auto-negotiation
485 Cascading
Up to 128 units
Voltage Specs
Resolution: 0.1V
Accuracy: ±1%
Range: 100-260V
Current Specs
Resolution: 0.1A
Accuracy: ±1%
Range: 0–70 A
Power Specs
Resolution: 1W
Accuracy: ±1%
Range: 0–99999 kWh
Temperature Sensors
Resolution: 0.1°C
Accuracy: ±1%
Range: -20 to 60 °C
Alarm Methods
Email notification, local logging
Output Indicator Light
Individual output indicator per outlet
Alarm Types
Low, Near, Over
Supported Browsers
Chrome, Firefox, IE 9.0 and above
Switching Methods

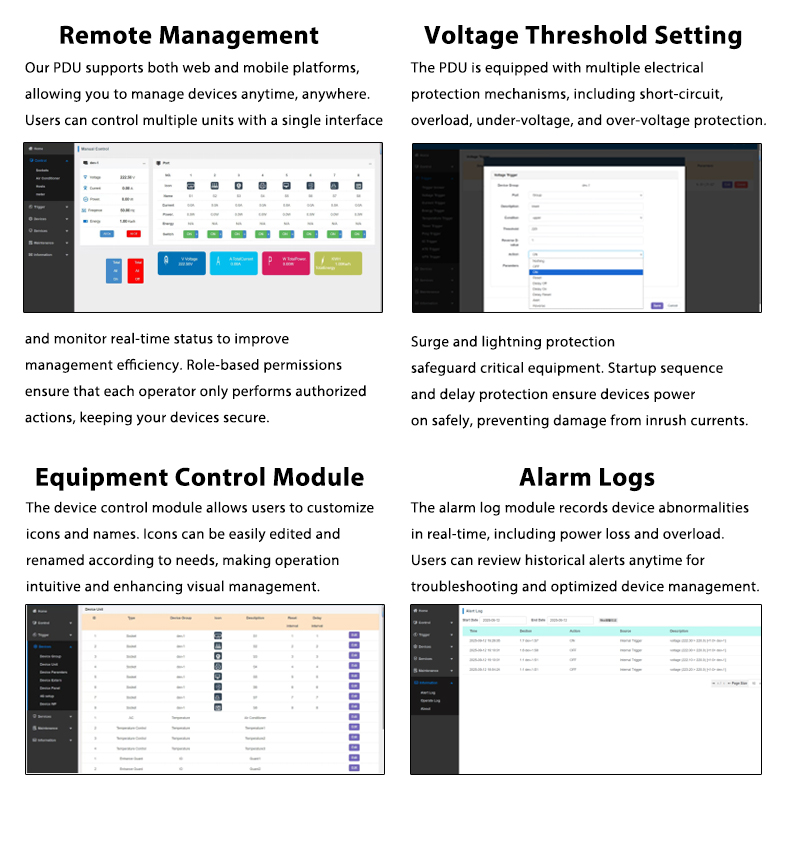

Web interface, manual, protocol control
AUTO PING
Supports up to 8 targets
Timer
Supports up to 64 groups
Timer Modes
Specific time, daily, weekly, monthly
Language Support
Auto-switch between Chinese and English
We have a professional sales service team and technical engineers ready to solve any issues for you. Please feel free to contact our online sales manager directly.

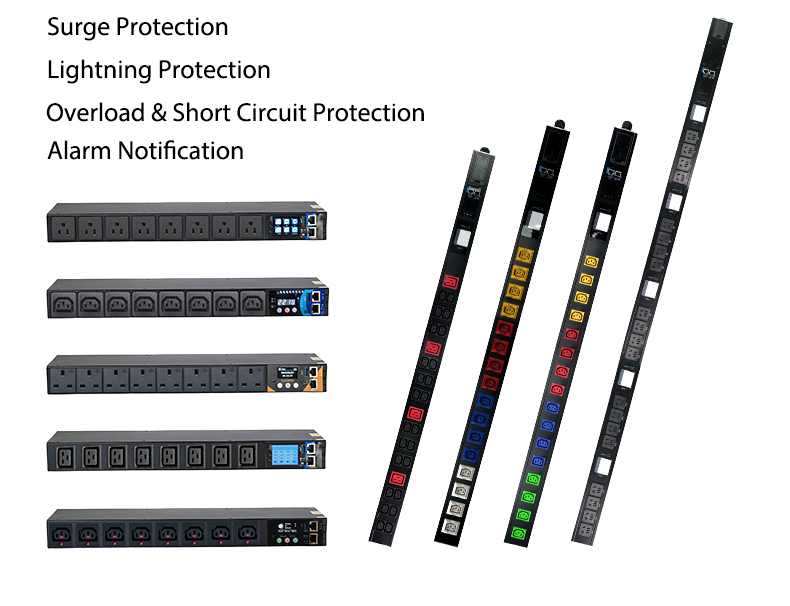

Product Series Display

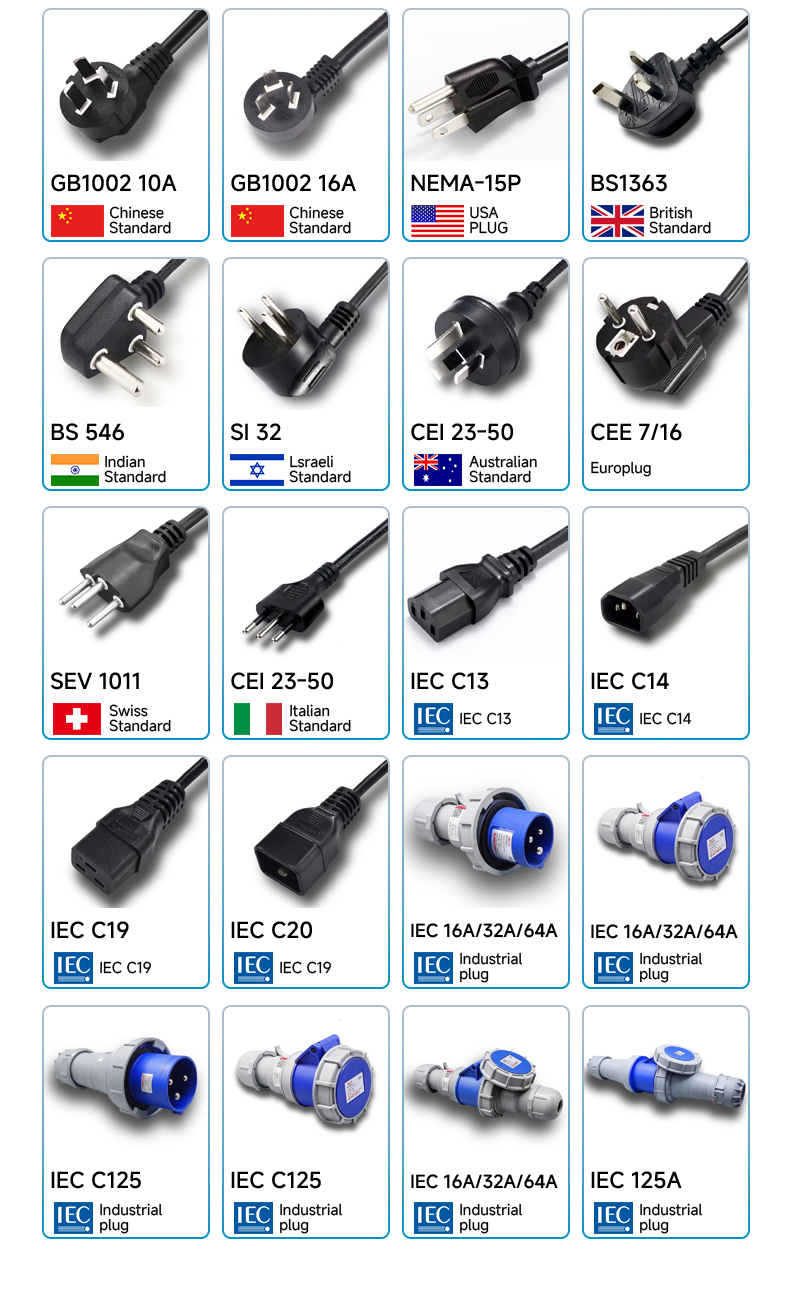

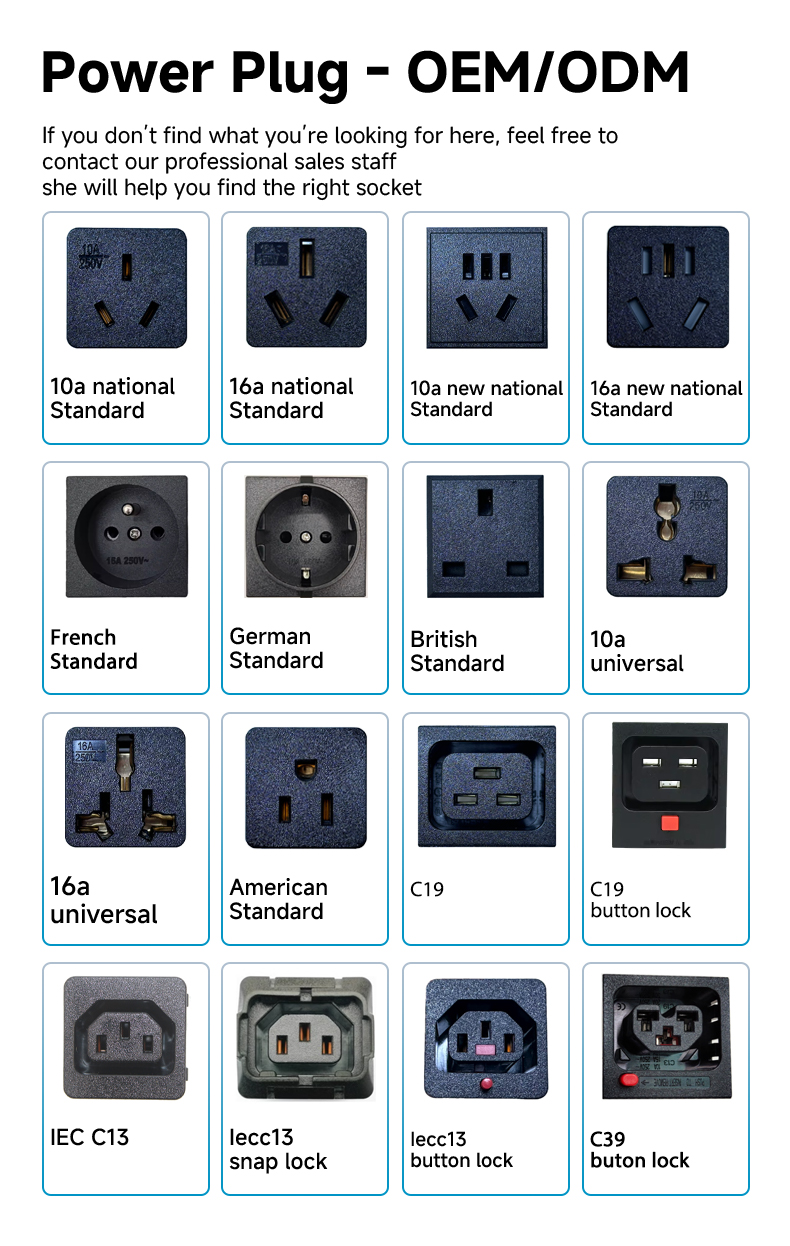

We are dedicated to the R&D and manufacturing of Smart PDUs, supported by an experienced engineering team and a complete production system. We offer flexible customization of plugs, sockets, and functions to meet the diverse requirements of various applications.
If you’re unsure about what you need, feel free to reach out to create your custom PDU. We offer complete customization for all PDU components and logos based on your specifications. Our team is available 24/7 to assist you with any questions regarding our products!

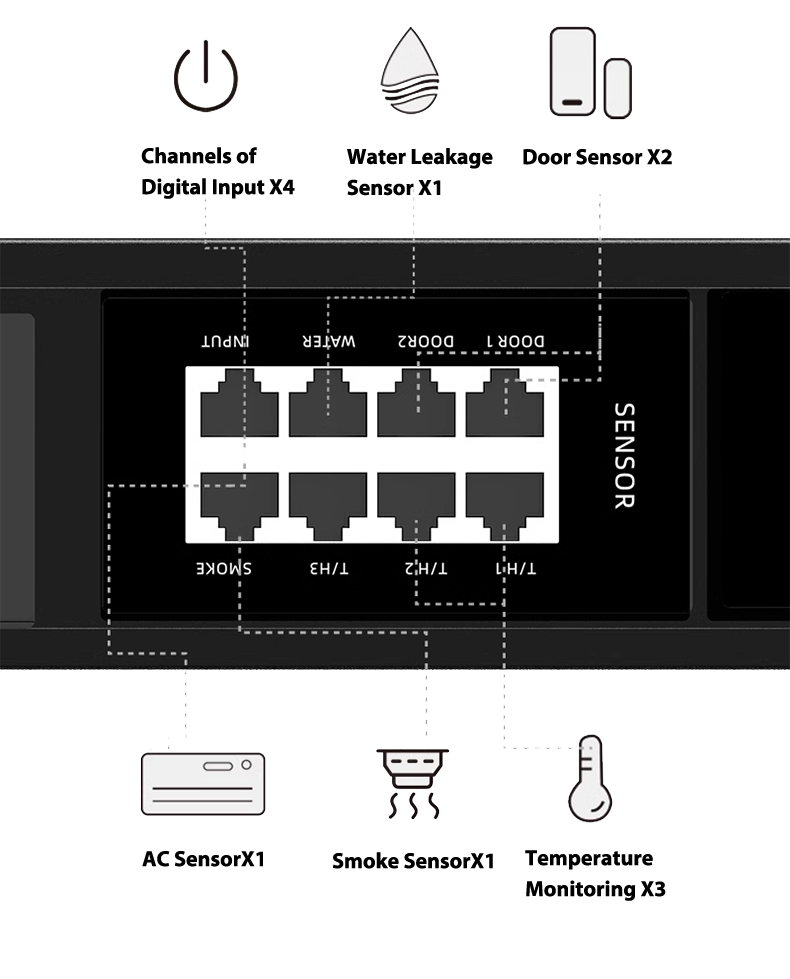

Supports I/O Expansion Interfaces
Supports I/O expansion interfaces with powerful expansion capabilities.
Professional Intelligent Power Solutions
Our team has been established for 17 years and is a high-tech enterprise that integrates R&D, manufacturing, sales, and services. In an era where intelligent technology is advancing rapidly, we noticed that intelligent power distribution systems still rely on outdated software applications. Our team resolutely devoted ourselves to the research and development of networked intelligent power distribution systems.
Over the past 17 years, we have remained true to our original aspiration, focusing on the R&D and manufacturing of networked intelligent PDUs. Through countless product iterations and upgrades, we have developed 3 sets of refined intelligent power distribution management systems and 4 series of highly intelligent power distribution products. We have established partnerships with LENOVO, HIKVISION, 12306 CHINA RAILWAY, AERO RICH, PHILIPS, CISCO, CHINA MOBILE, and CETC.

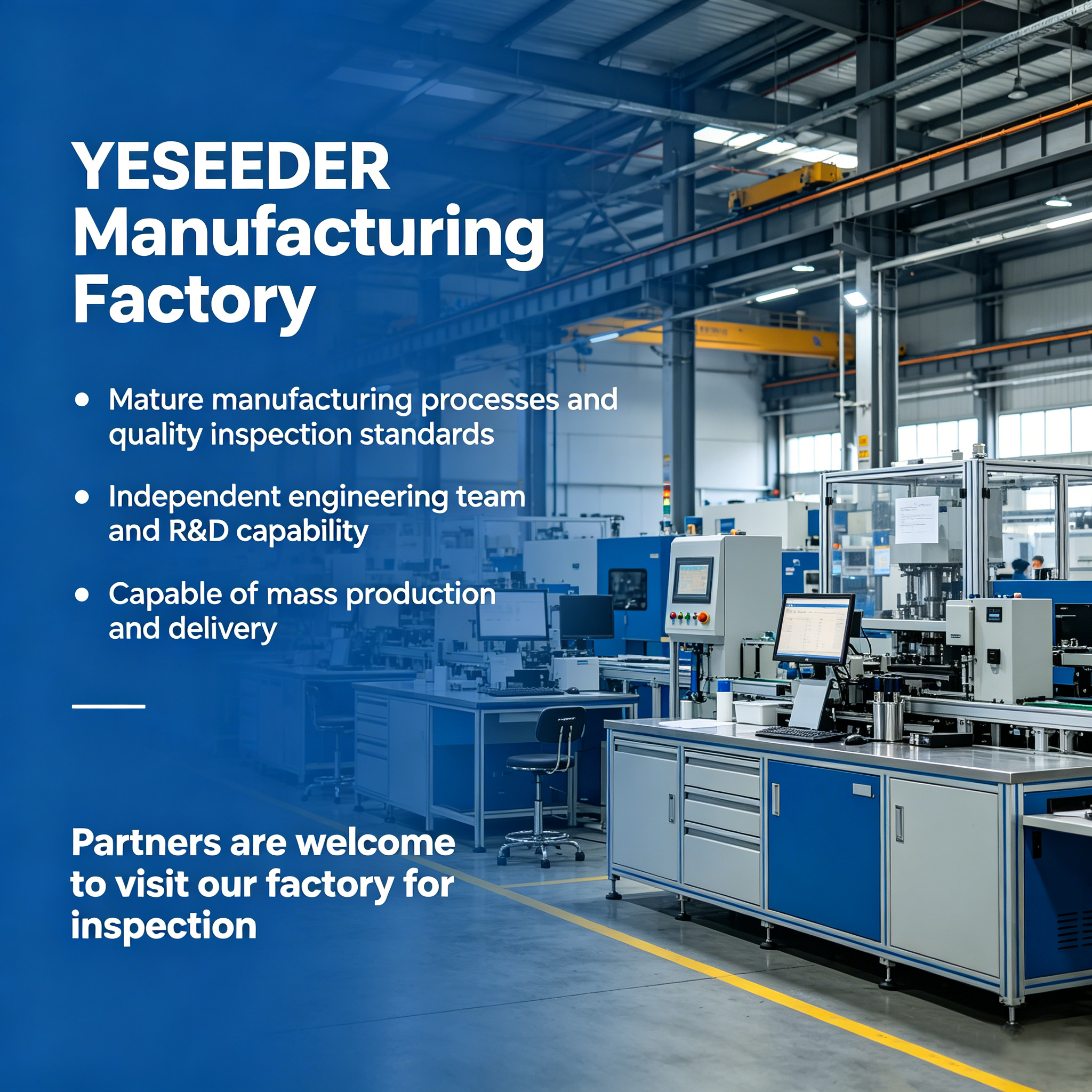

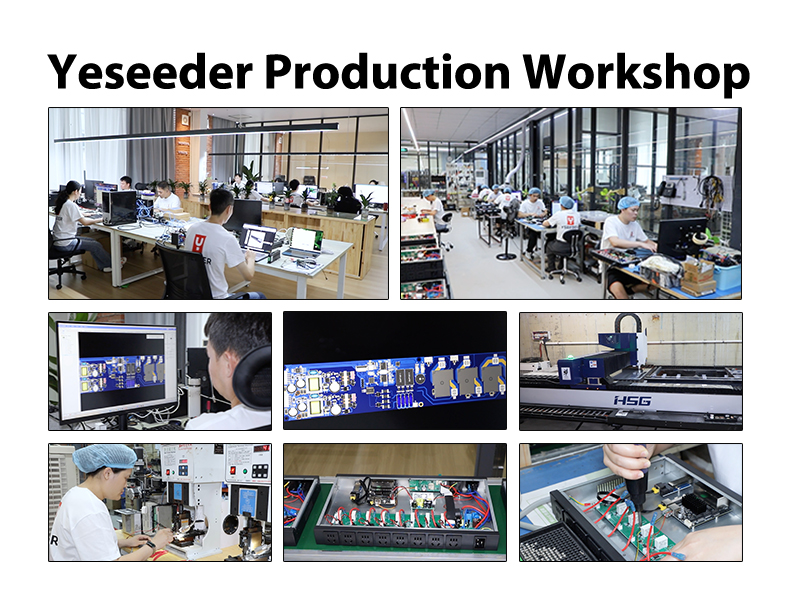

Our new production building covering 1,300 square meters was completed in 2025. Complete production equipment, an experienced production team, standardized production processes, and a professional sales and after-sales team form our core strength to handle various mass production orders. An engineering team integrating capabilities in electrical engineering, network engineering, and software application R&D is our core competitiveness for continuous progress in intelligent power distribution.
In 2024, our brand became an intelligent partner for many PDU manufacturers, thanks to our outstanding intelligent power distribution systems, highly compatible electrical circuits, incredibly refined management systems, and attractive, user-friendly control interfaces. In 2025, we went global for the first time, bringing our products to the world stage. We aim to secure a position on this stage, and we are indeed working hard toward this goal.
We have set up a professional sales team, invited many partners to visit our factory, and they have entrusted their projects to us. This is a great honor and encouragement for us, and also recognition of our years of research and investment. Our products have been successfully exported to countries and regions including the United States, Canada, Poland, Germany, Italy, Jamaica, Colombia, Azerbaijan, Oman, Iran, Turkey, Russia, Thailand, Vietnam, Côte d'Ivoire, the United Arab Emirates, Slovenia, and others.
Our projects with customers cover railway telecommunications, station electrical control, road and bridge monitoring, hospital uninterrupted power supplies, bank power distribution management, new energy for green environments, mining site power distribution, CBD building power distribution, library power facilities, and more. These partnerships preliminarily demonstrate our development potential and prove that our products stand out in market competition with their unique intelligent advantages. We offer in-stock transactions and also support OEM/ODM services.
If you also need a highly intelligent, refined network remote management power distribution solution, please contact our online sales manager. Our online service team is available 24/7 and will reply to any of your inquiries within 1 minute.
Frequently Asked Questions
Q: Are you a manufacturer or a trader?
A: We have our own production factory and we are also a trader. We have focused on the R&D and manufacturing of network intelligent PDUs for 17 years.
Q: What are the advantages of your products?
A: High-quality intelligent PDUs with a stable and secure refined power distribution management system, enabling easy remote network power monitoring and management.
Q: Do you provide samples and what is the delivery time?
A: We support sample orders starting from 1 piece. For bulk orders, production and delivery are usually completed within 45 to 60 days depending on customization requirements.
Q: Can we print our logo on your products?
A: Absolutely! We accept all OEM orders. Please send us your logo, and we will apply it to the products after obtaining your brand authorization.
Q: How do you ensure product quality before delivery?
A: Each product undergoes 18 production process inspections. Only after passing inspection at each stage will the finished product be assembled. A final factory test is conducted on the finished product before packaging.
