Real-time monitoring of total load current, total load power, total input voltage, and total power usage. Monitors voltage upper and lower limits, alongside input power AC and DC status.
Provides complete control with user-defined configuration for both voltage upper/lower limits and total load current upper/lower limits.
Custom threshold alarms. If total load current or voltage exceeds safety ratings, the system triggers alerts via buzzer, SNMP trap, or Email notifications.

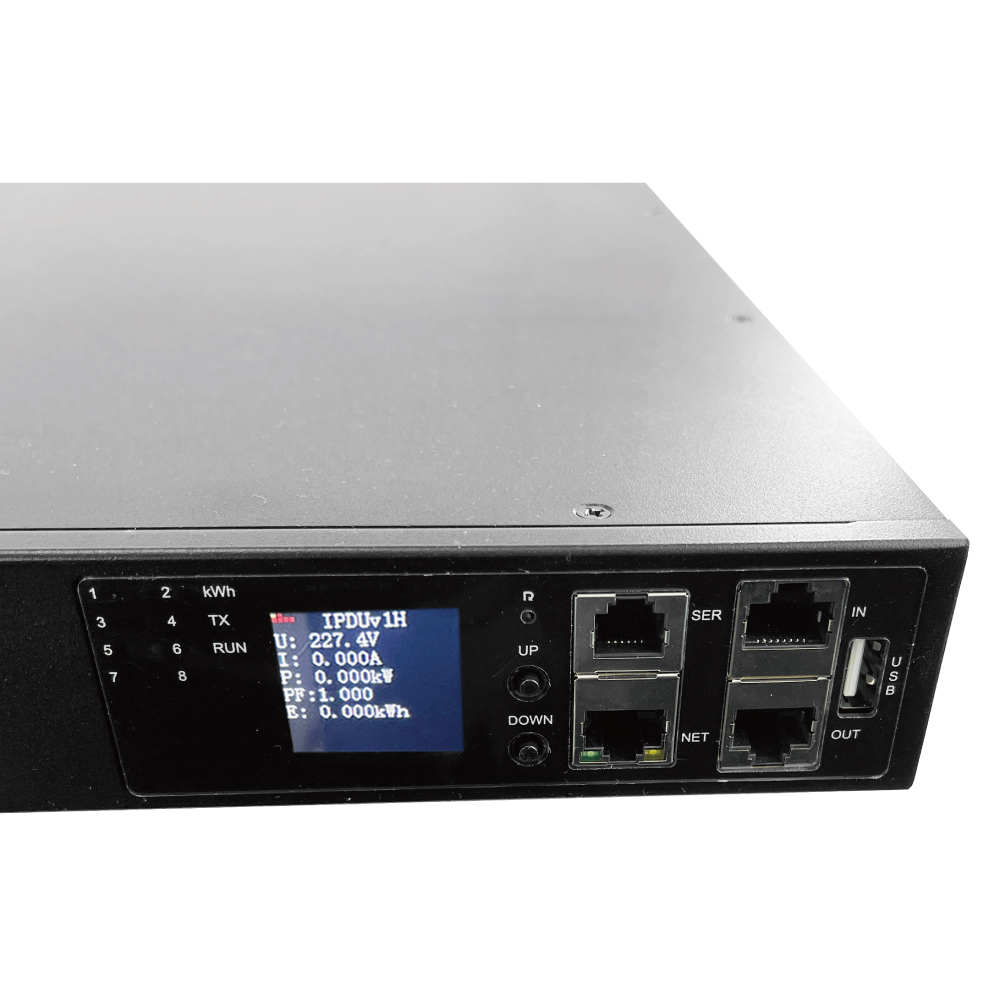

Features an energy-saving screen that auto-offs after 3 minutes (customizable on web interface). Supports manual control, IP switching (dynamic/static), and system restarts via interface buttons.
| Specification Item | Value / Detail |
|---|---|
| Model Number | XY -2G16-C |
| Smart Control | Yes |
| Application Scope | Industrial, power distribution systems |
| Enclosure Material | Metal |

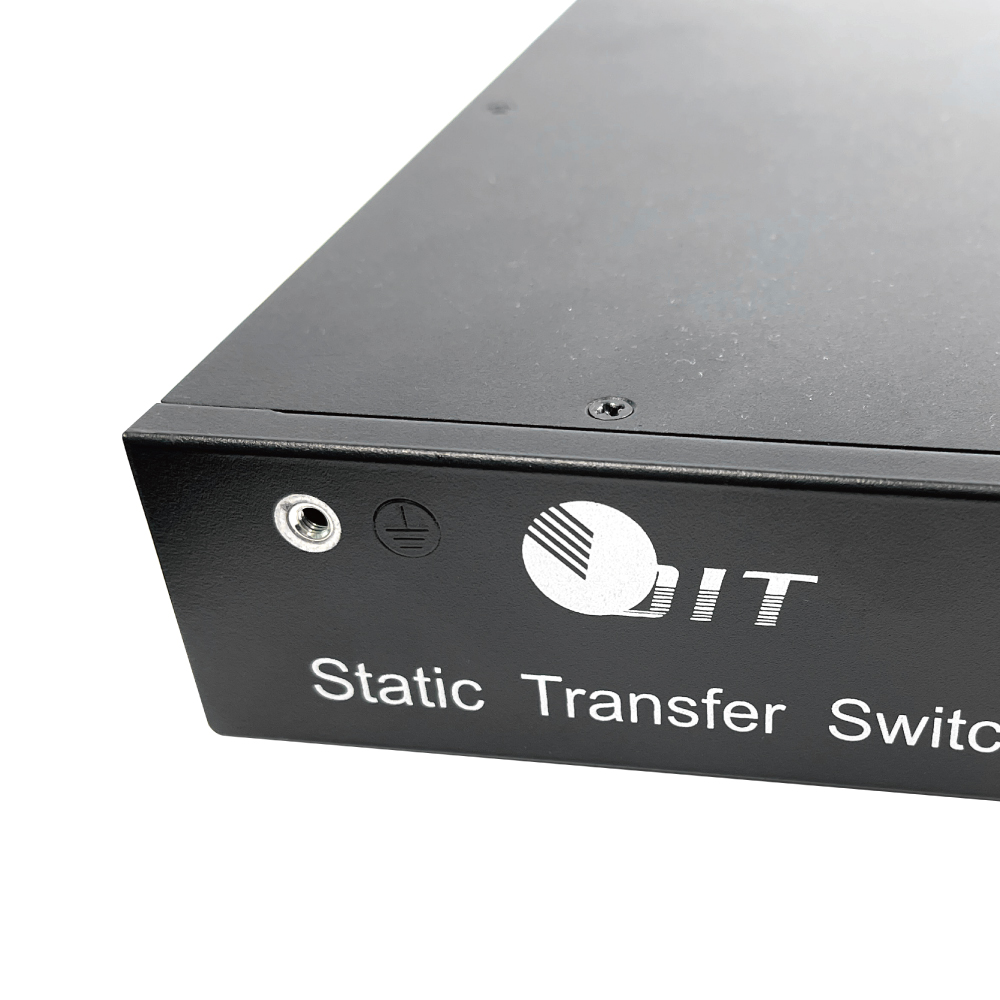

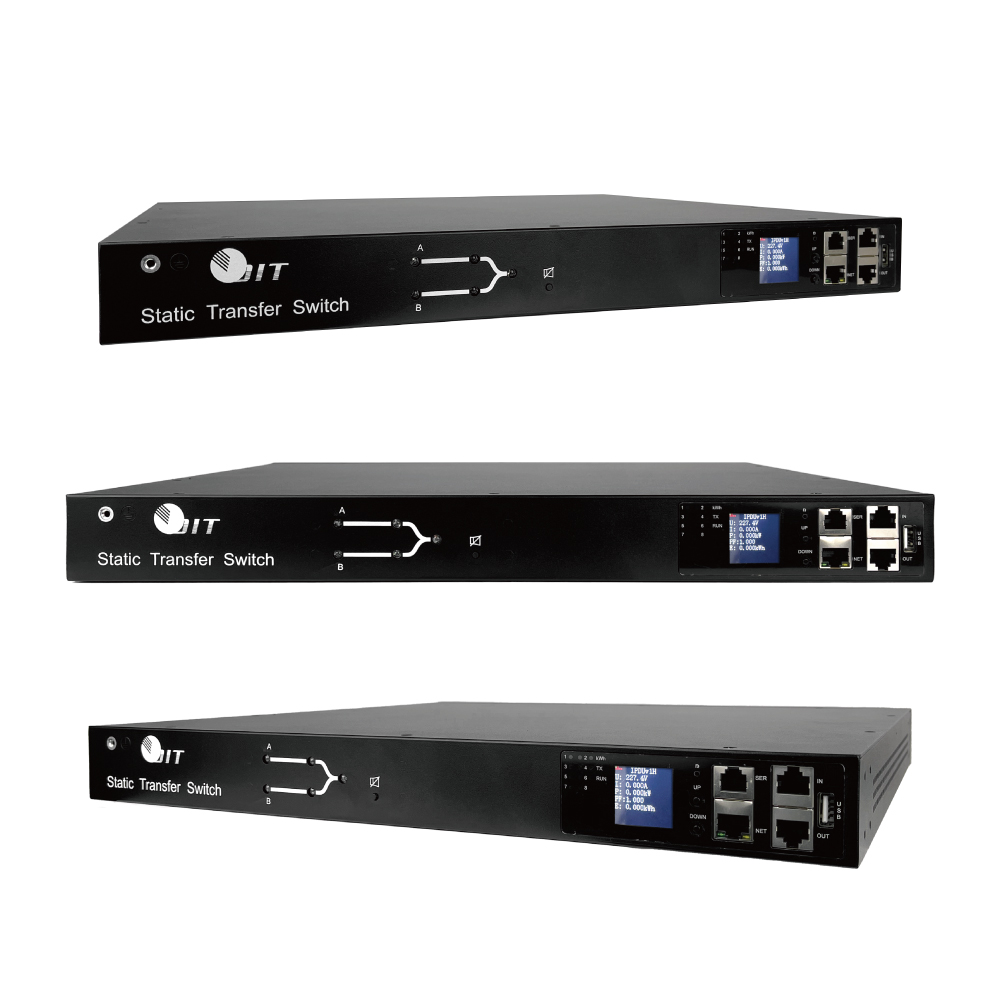

| Product Name | Intelligent STS static transfer switch |

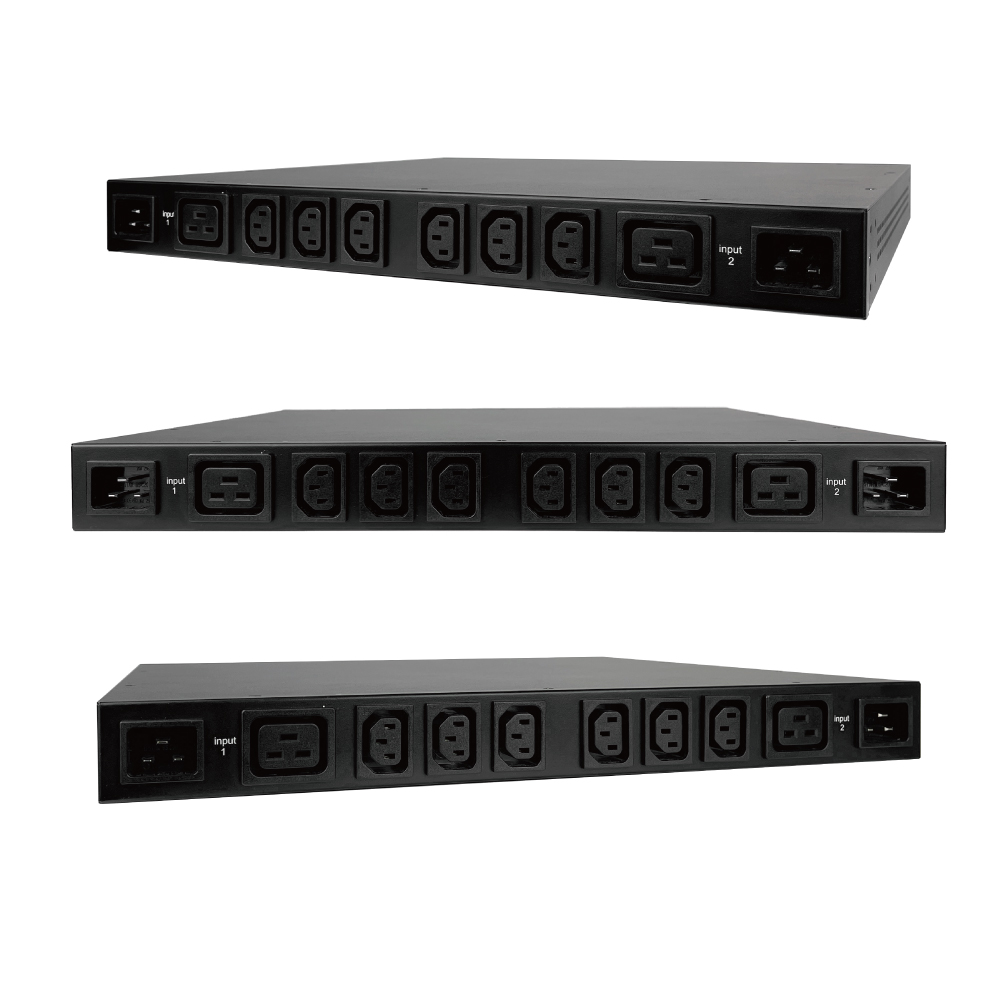

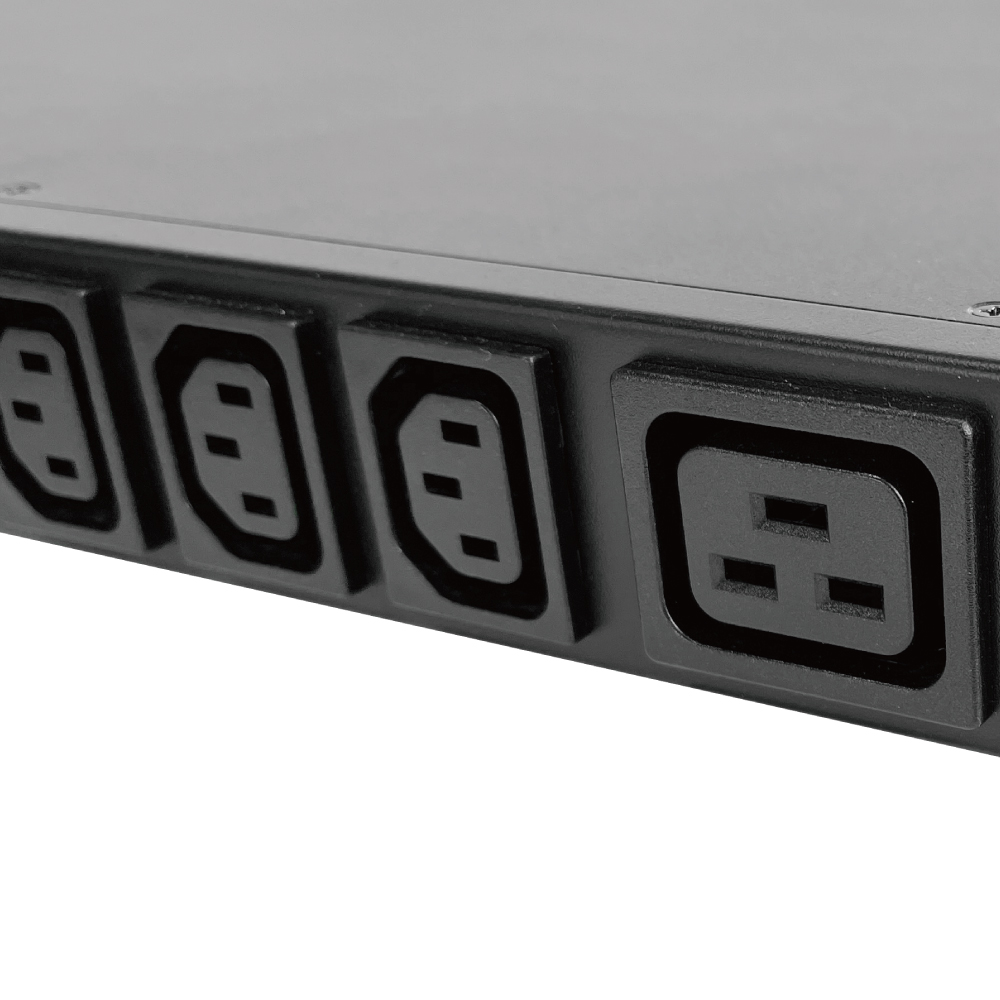

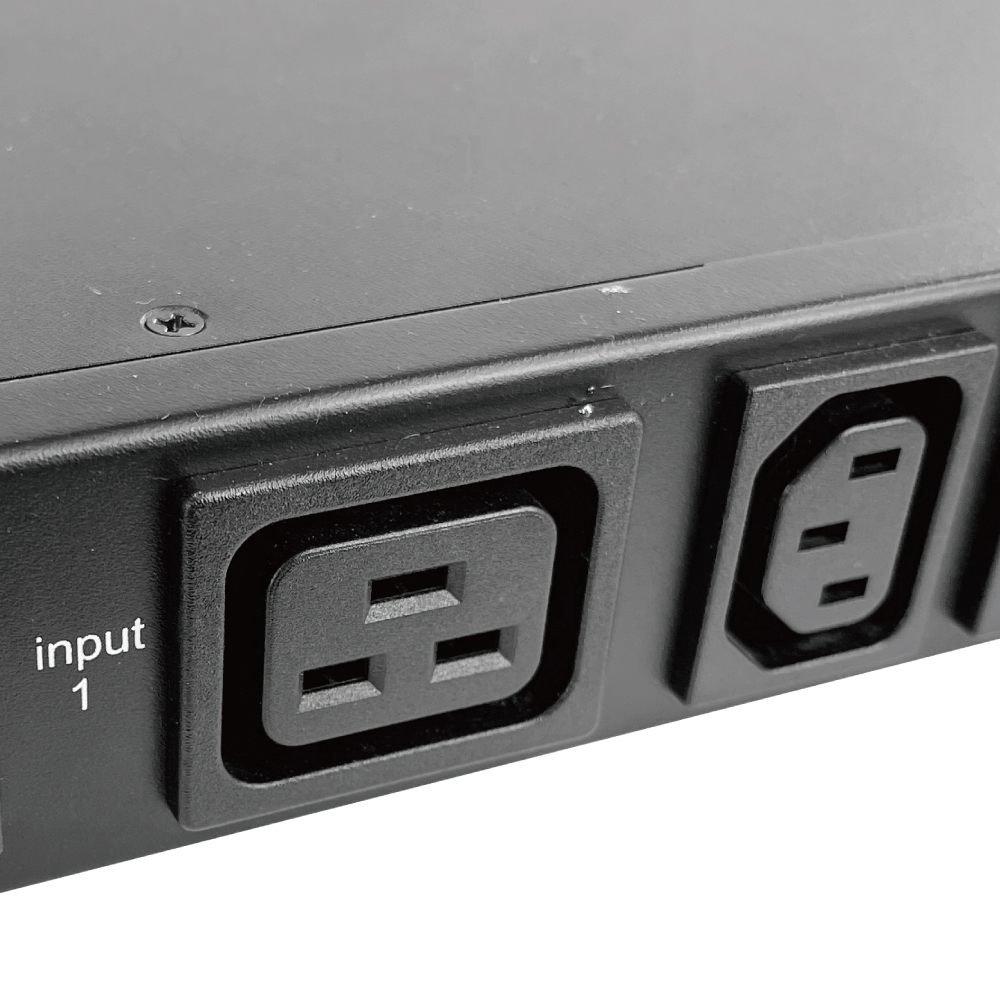

| Socket Combination | 6 * C13 + 2 * C19 |

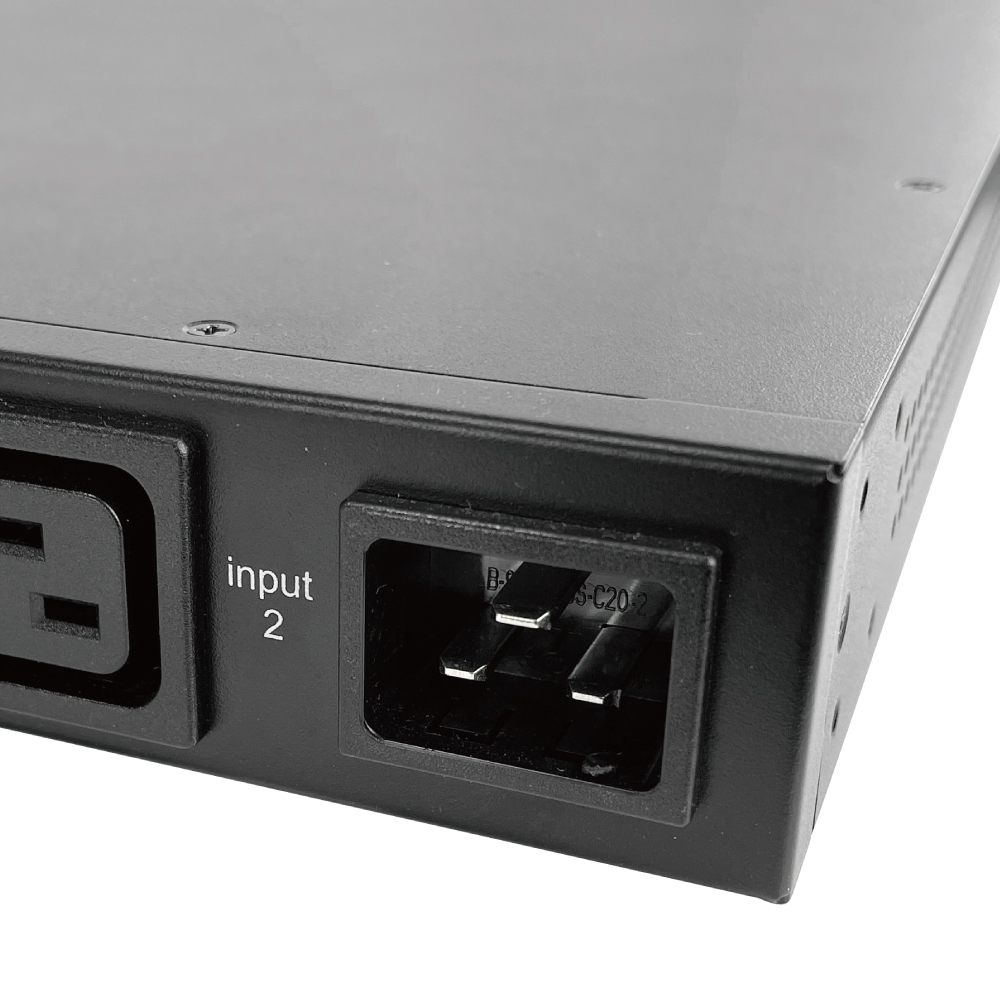

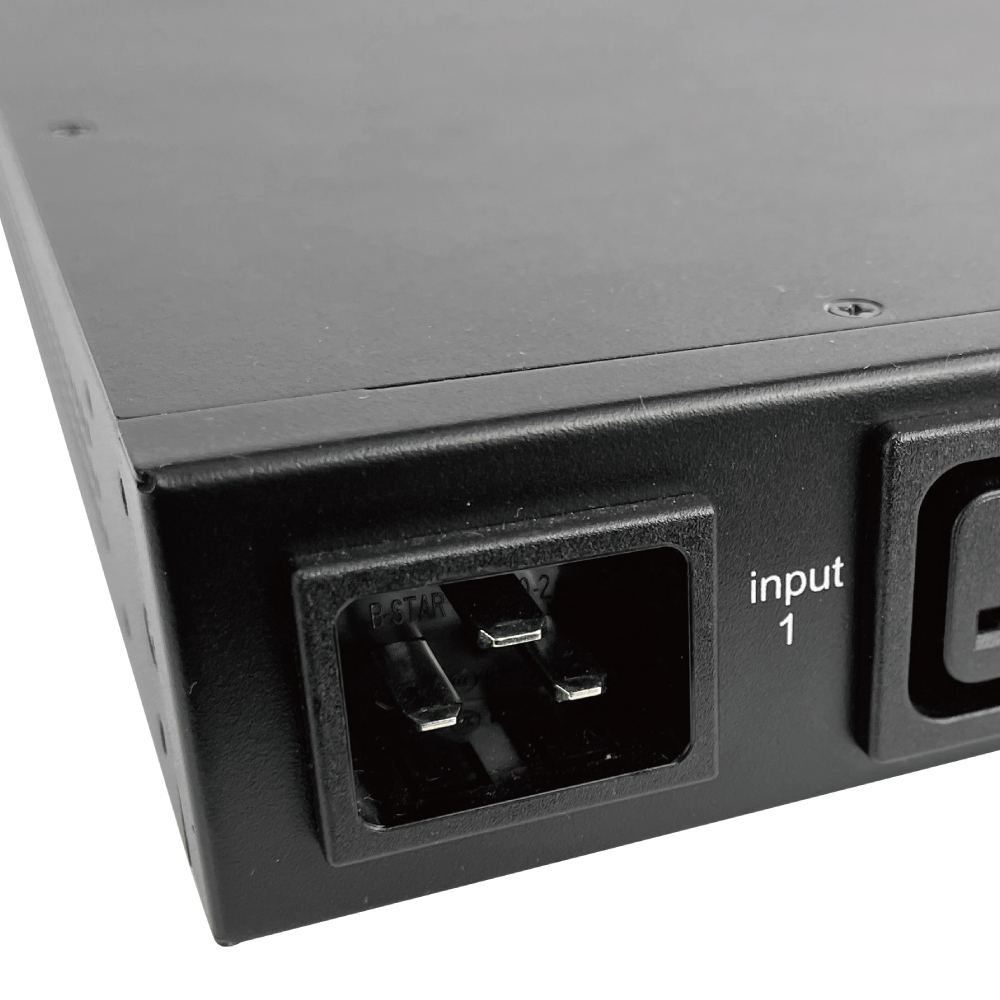

| Cable Plug Type | C20-C19 or 16A-C19 |
| STS Switching Time | ≤ 4ms |
| Net Weight | 4.9 kg |
| Dimension (W*D*H) | 483 * 440 * 45 mm |
| Included Accessories | M6 Screws & nuts (4 pcs), User manual (1 pcs) |
| Rated Voltage | 220VAC |
| Safety Certification | IEC60227 |
| Core Functions | Real-time monitoring, intelligent alarm system, LCD display status |
