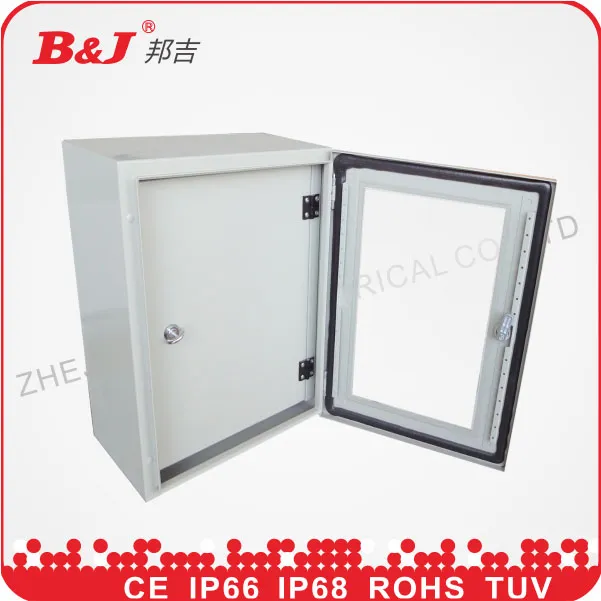

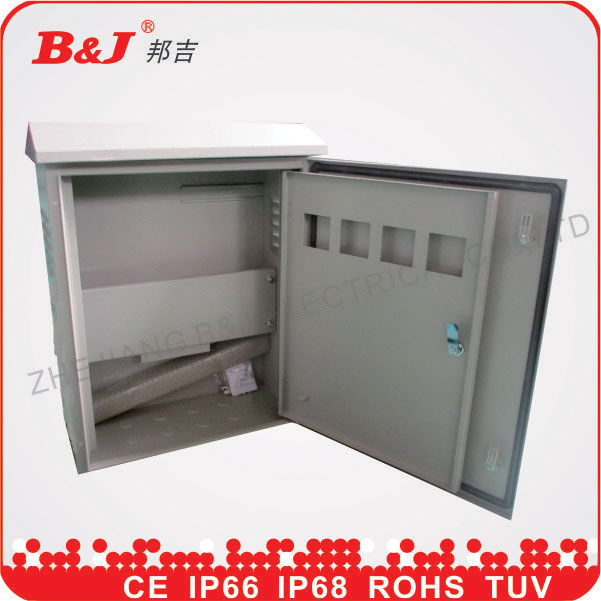

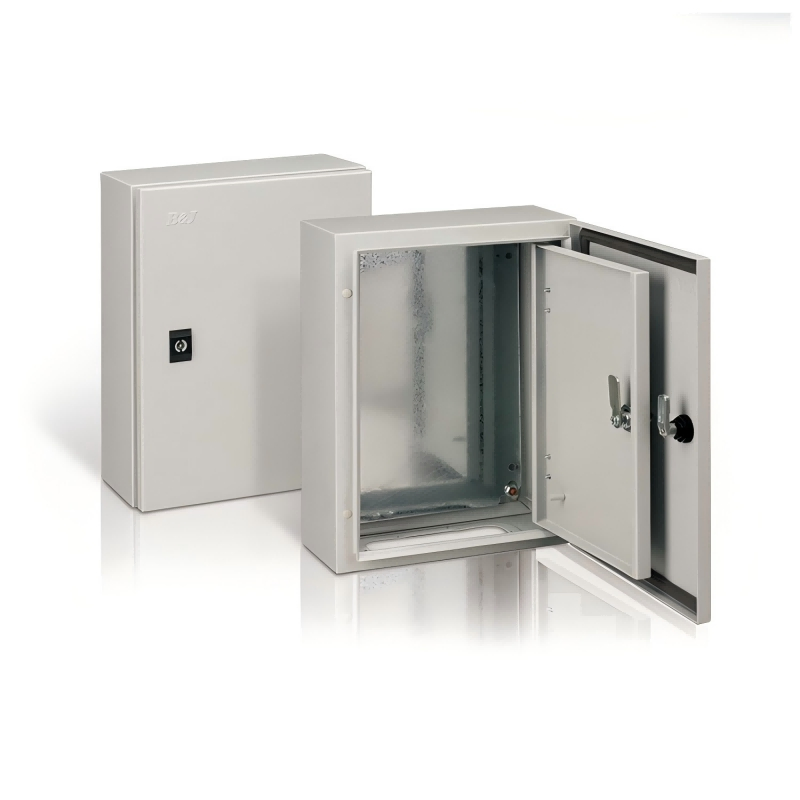

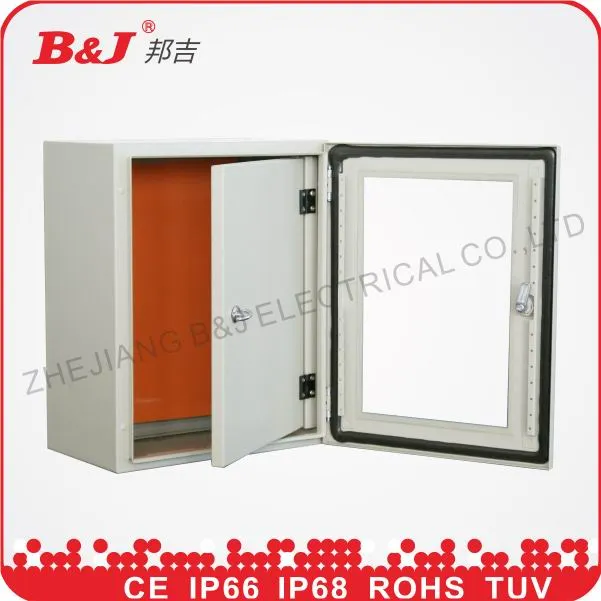

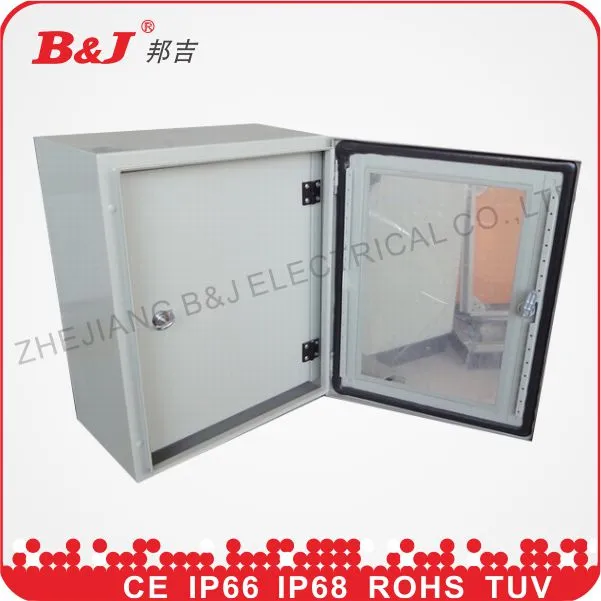

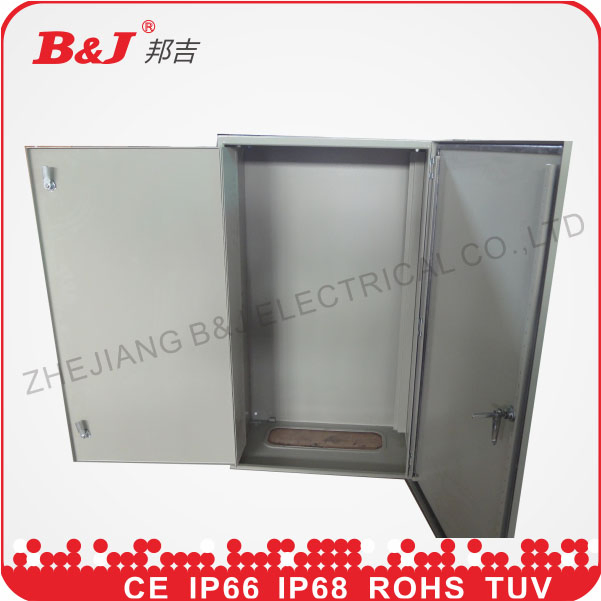

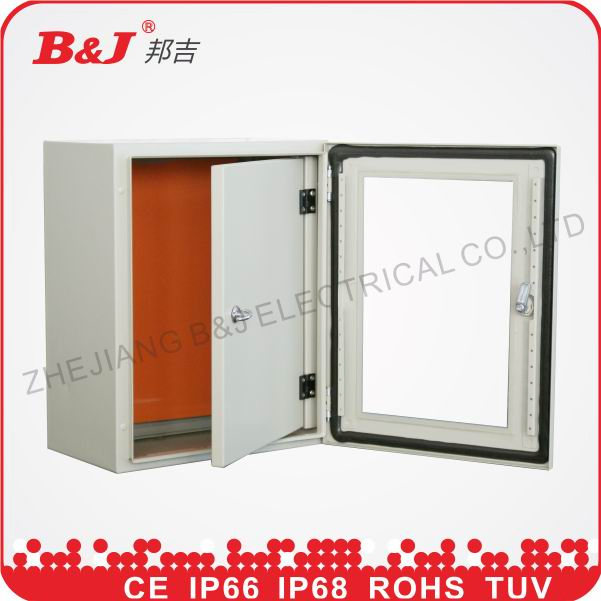

Metal Electric Panel Box IP66 Enclosure Box IP66 Waterproof Distribution Box

Product Description

Product Parameters

Material

Sheet steel
Enclosure: 1.2mm
Door: 1.2mm
Mounting plate: 2.0mm

Surface Finish

Enclosure and door: Dipcoat-primed, powder-coated in textured Ral7032 or Ral7035 outside
Mounting plate: RAL2000 or galvanized

Protection

Protection degree: IP66
Impact resistance: IK10

Supply Includes

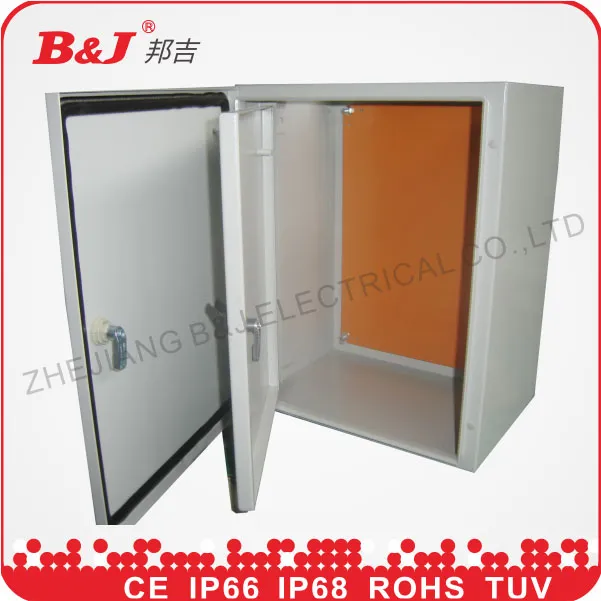

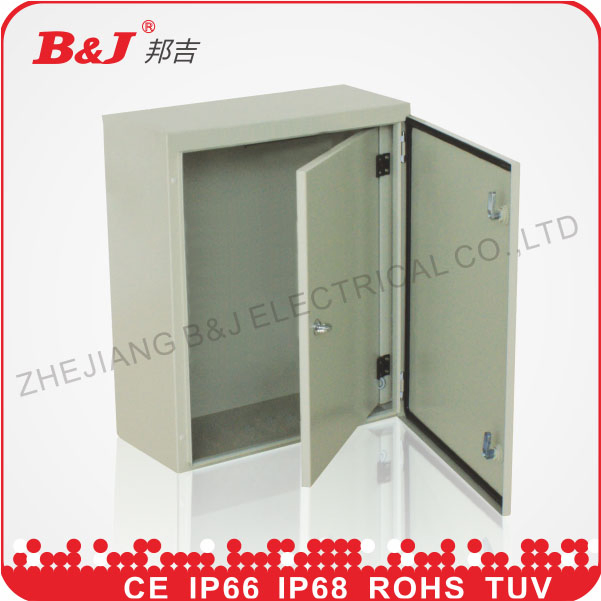

Enclosure, Door & inner door, gland plate with sealing gasket, lock.

Warranty Service

100% Satisfaction Guaranteed
1. Please report to us if there is any problem, we will solve it ASAP.
2. This item comes with 1 YEAR warranty.
Equivalent replacements can be provided with shipment of your next order if the products are broken due to non-artificial factors within 1 YEAR; photos are required to identify damage causes.
3. Shipping and handling fees are not refundable for return or exchange items.

Our Advantages

20 Years OEM & ODM Experience

Spain Design

Colors Remain for Over 5 Years

Professional Team

Our Philosophy

"Excellent design, Excellent make, Excellent service"

Dimensions & Specifications

Reference	Height (mm)	Width (mm)	Depth (mm)
BJID-2020/150	200	200	150
BJID-3025/150	300	250	150
BJID-3025/200	300	250	200
BJID-33/150	300	300	150
BJID-33/200	300	300	200
BJID-34/200	300	400	200
BJID-43/150	400	300	150
BJID-43/200	400	300	200
BJID-44/200	400	400	200
BJID-46/250	400	600	250
BJID-46/300	400	600	300
BJID-54/150	500	400	150
BJID-54/200	500	400	200
BJID-54/250	500	400	250
BJID-55/250	500	500	250
BJID-64/150	600	400	150
BJID-64/200	600	400	200
BJID-64/250	600	400	250
BJID-65/150	600	500	150
BJID-65/200	600	500	200
BJID-65/250	600	500	250
BJID-66/250	600	600	250
BJID-66/300	600	600	300
BJID-68/300	600	800	300
BJID-75/200	700	500	200
BJID-75/250	700	500	250
BJID-86/200	800	600	200
BJID-86/250	800	600	250
BJID-86/300	800	600	300
BJID-86/400	800	600	400
BJID-88/200	800	800	200
BJID-88/300	800	800	300
BJID-810/300	800	1000	300
BJID-106/250	1000	600	250
BJID-106/300	1000	600	300
BJID-108/250	1000	800	250
BJID-108/300	1000	800	300
BJID-108/400	1000	800	400
BJID-1010/300	1000	1000	300
BJID-1012/300	1000	1200	300
BJID-128/300	1200	800	300
BJID-128/400	1200	800	400
BJID-1210/300	1200	1000	300

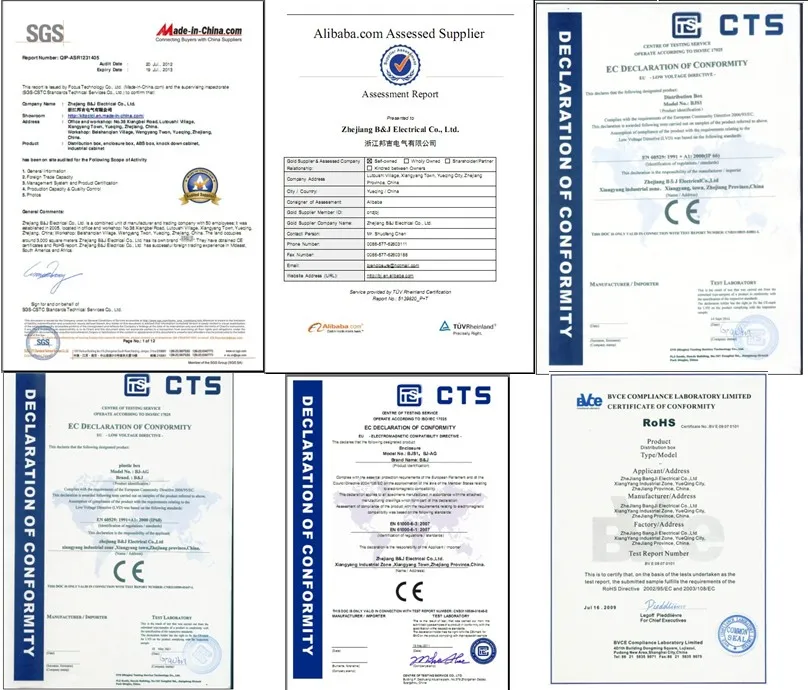

Certifications

Frequently Asked Questions

What protection rating does the metal electrical panel box have?

The distribution box has an IP66 protection rating, ensuring robust defense against water and dust ingress, and an IK10 impact resistance rating for excellent structural protection.

What are the materials and thicknesses of the components?

The enclosure and door are constructed with 1.2mm thick sheet steel, and the mounting plate is made of 2.0mm thick steel for solid component support.

What kind of surface finish is applied to the metal enclosure?

The enclosure and door are dipcoat-primed and powder-coated with a textured Ral7032 or Ral7035 finish. The mounting plate features a RAL2000 or galvanized finish.

What does the standard supply includes?

The standard package includes the enclosure, door & inner door, a gland plate equipped with a sealing gasket, and a lock.

How long is the warranty and what does it cover?

This product comes with a 1-year warranty. If products are broken due to non-artificial factors within 1 year, equivalent replacements can be provided with your next order shipment (photos of the damage are required).

Do you support custom sizes or configurations?

Yes. Backed by 20 years of OEM and ODM experience and professional design capabilities, a wide range of size specifications can be accommodated to meet your project specifications.
