1800*700*500 Meter Power Strong Control Low Voltage Switchgear Electrical Frequency Distribution Box

Product Description

Product Profile

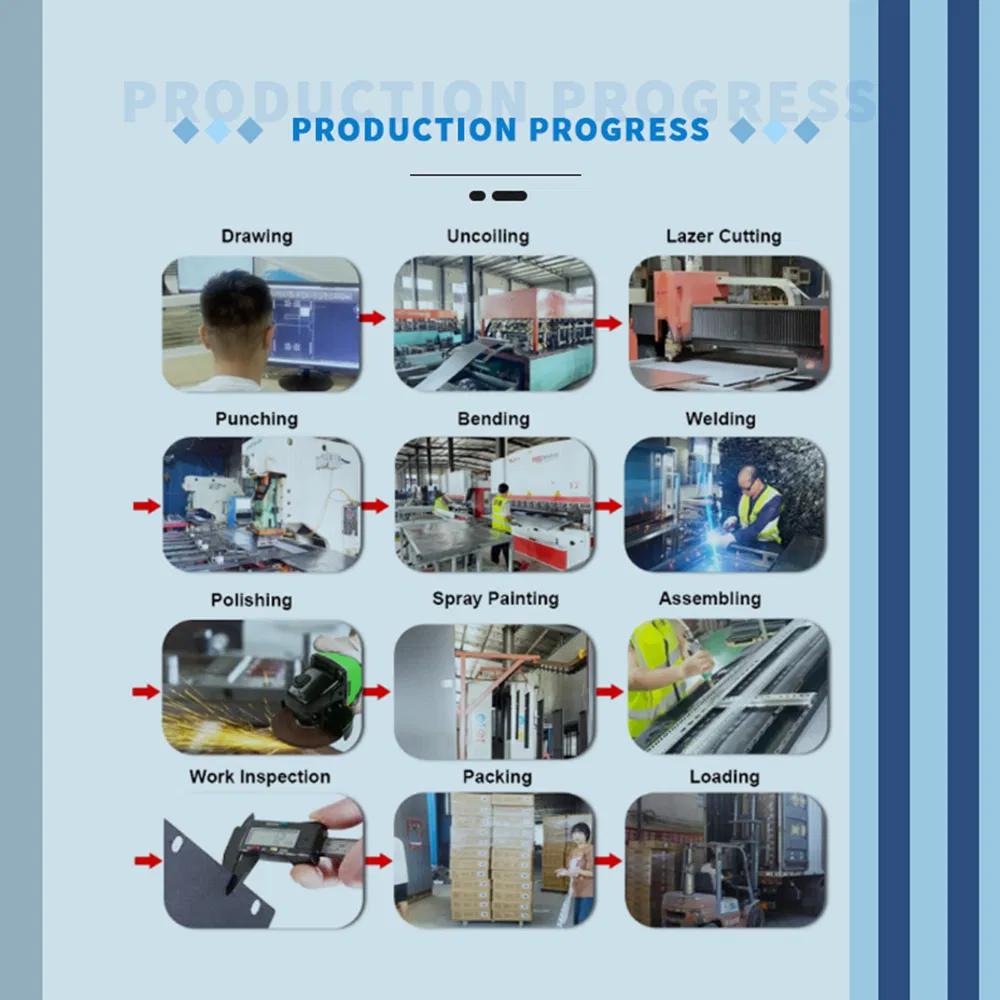

Certified with ISO9001:2000 quality systems, operations are backed by strong technical strength, advanced fabrication methods, and excellent equipment. The production facility features a series of advanced sheet metal processing equipment, including CNC turret punching machines, CNC bending machining centers, and press machines. With a complete system for design, processing, and new product development, standard and non-standard chassis and cabinet designs are provided, as well as processing and manufacturing according to drawing design requirements. Main product lines include operation consoles, monitoring TV walls, standard 19-inch cabinets, standard 19-inch chassis, monitoring poles, sheet metal chassis, and associated structures.

The equipment structures cover key industrial sectors, including electronic computers, communication networks, aerospace and navigation, transportation, broadcasting and television, digital monitoring, power transmission and distribution engineering, and automatic control systems. Continuous improvements in design and processing capabilities, product structure, and overall quality are implemented to adapt to rapid technology developments. Adhering to the principle of "quality first, customer first", there is a dedication to developing refined, beautiful, and highly functional products.

Technical Specifications

Product Name Electrical control cabinet
Purpose Indoor & outdoor protection
Main Material Cold rolled steel plate
Product Model Power Cabinet Series
IP Rating IP55
Sheet Thickness 1.5MM
Entry Method Bottom
Installation Floor, stand
Size Table (Width * Height * Depth in mm)
1200 * 600 * 500 1400 * 600 * 500 1500 * 600 * 500
1500 * 700 * 500 1600 * 600 * 500 1600 * 700 * 500

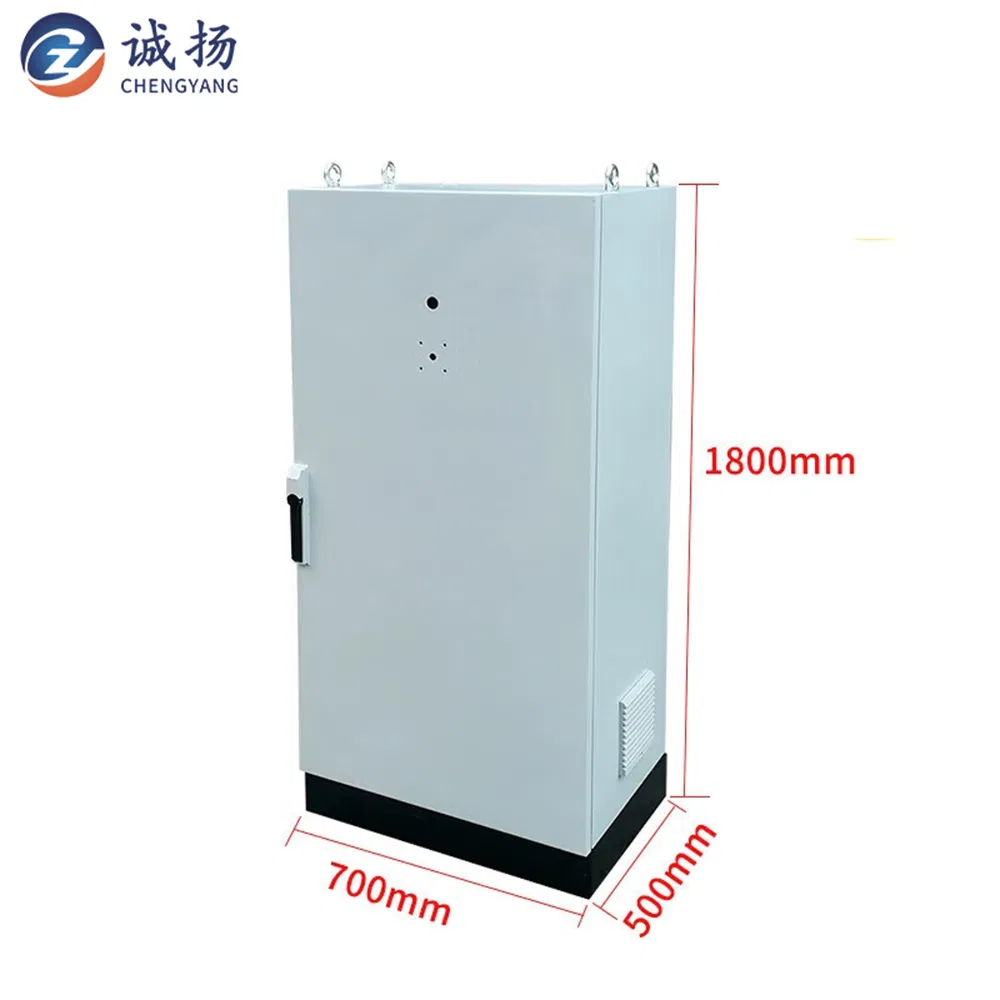

1700 * 700 * 500 1700 * 800 * 500 1800 * 700 * 500
1800 * 800 * 500 2000 * 800 * 500 2000 * 800 * 600

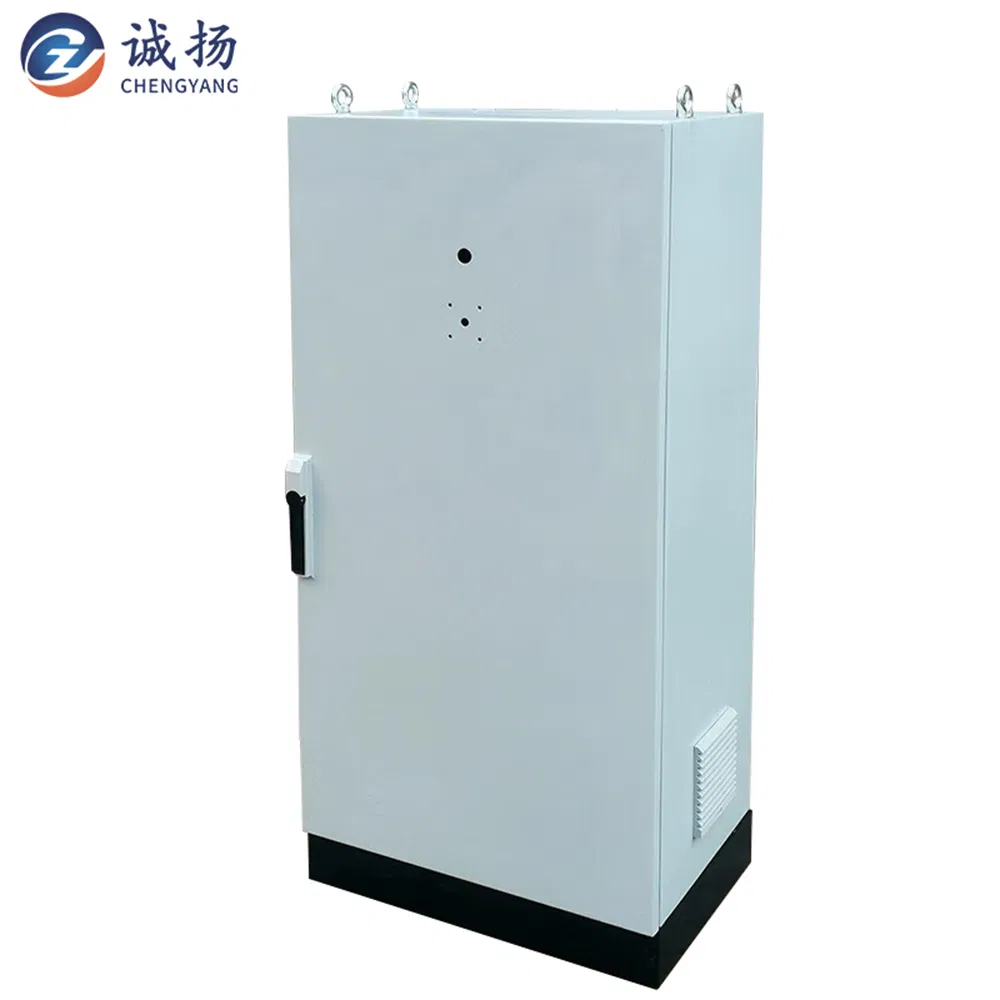

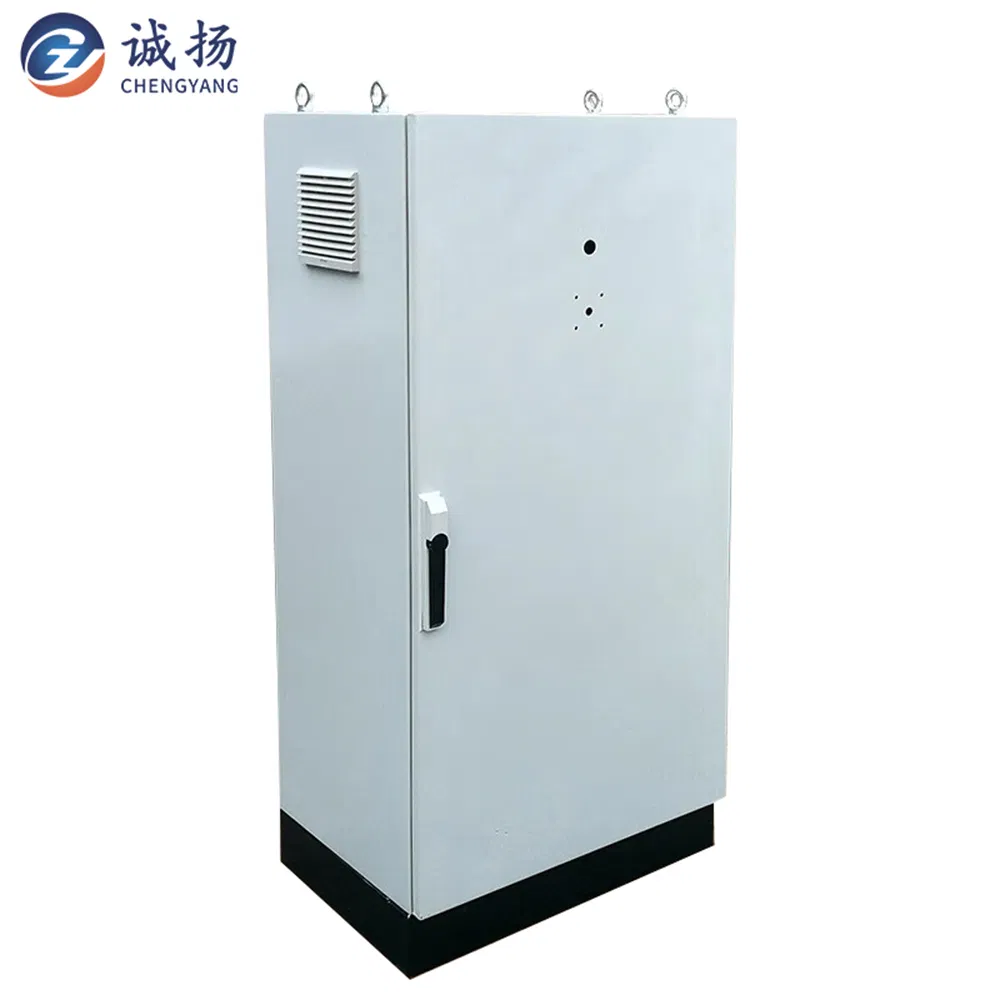

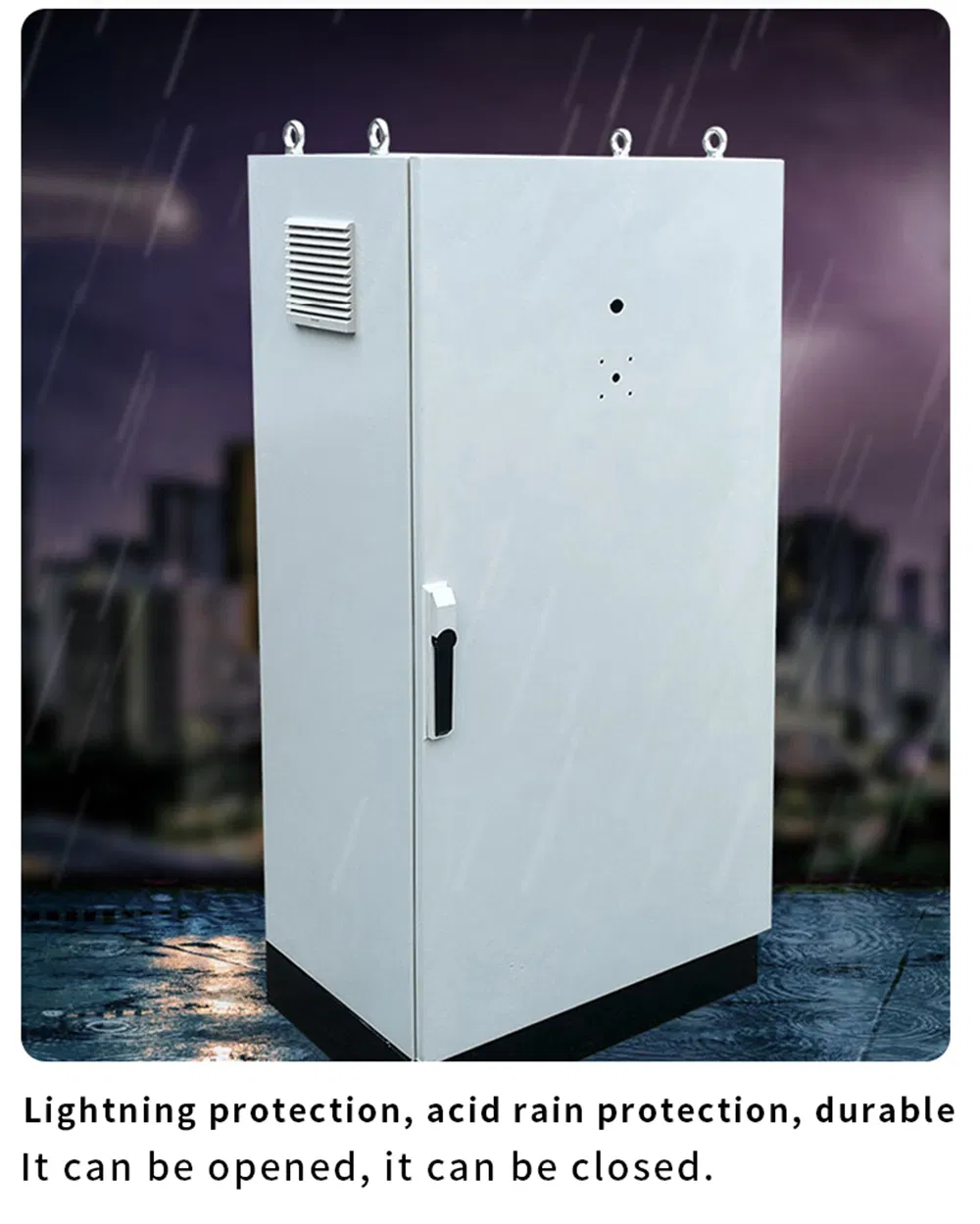

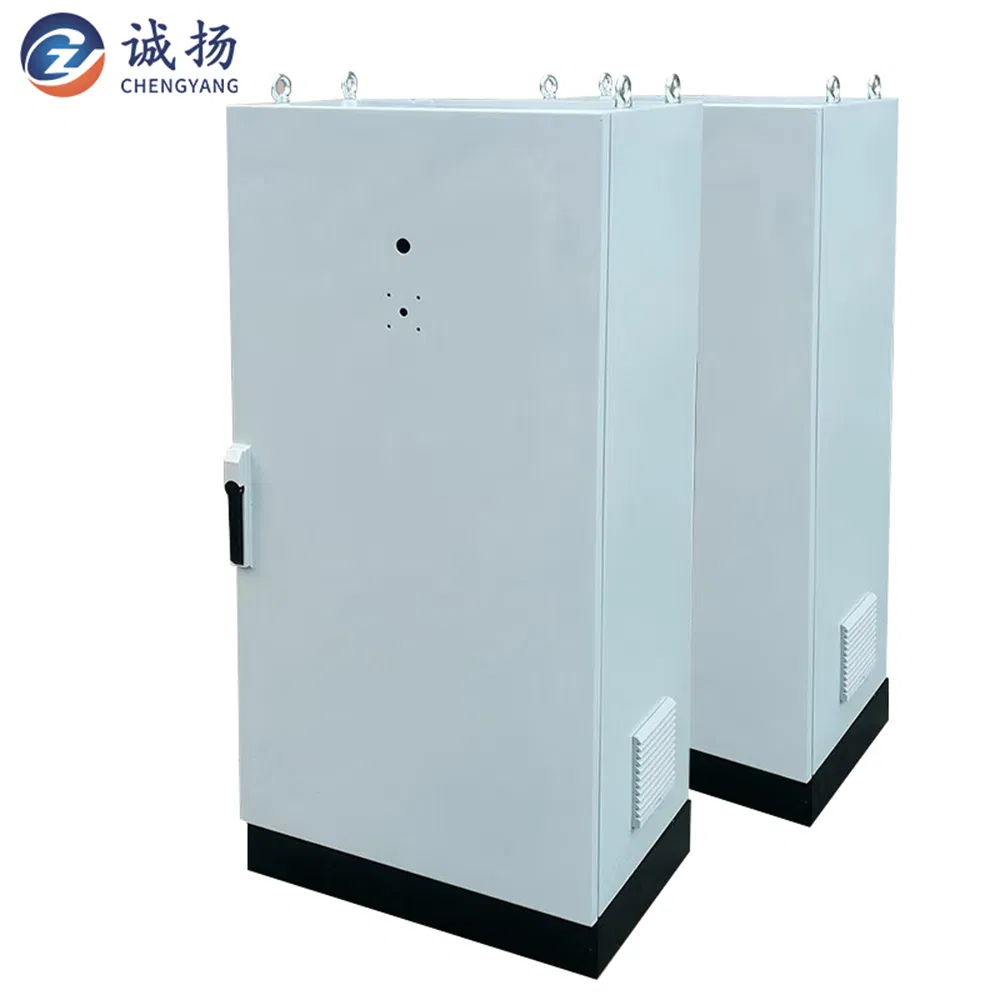

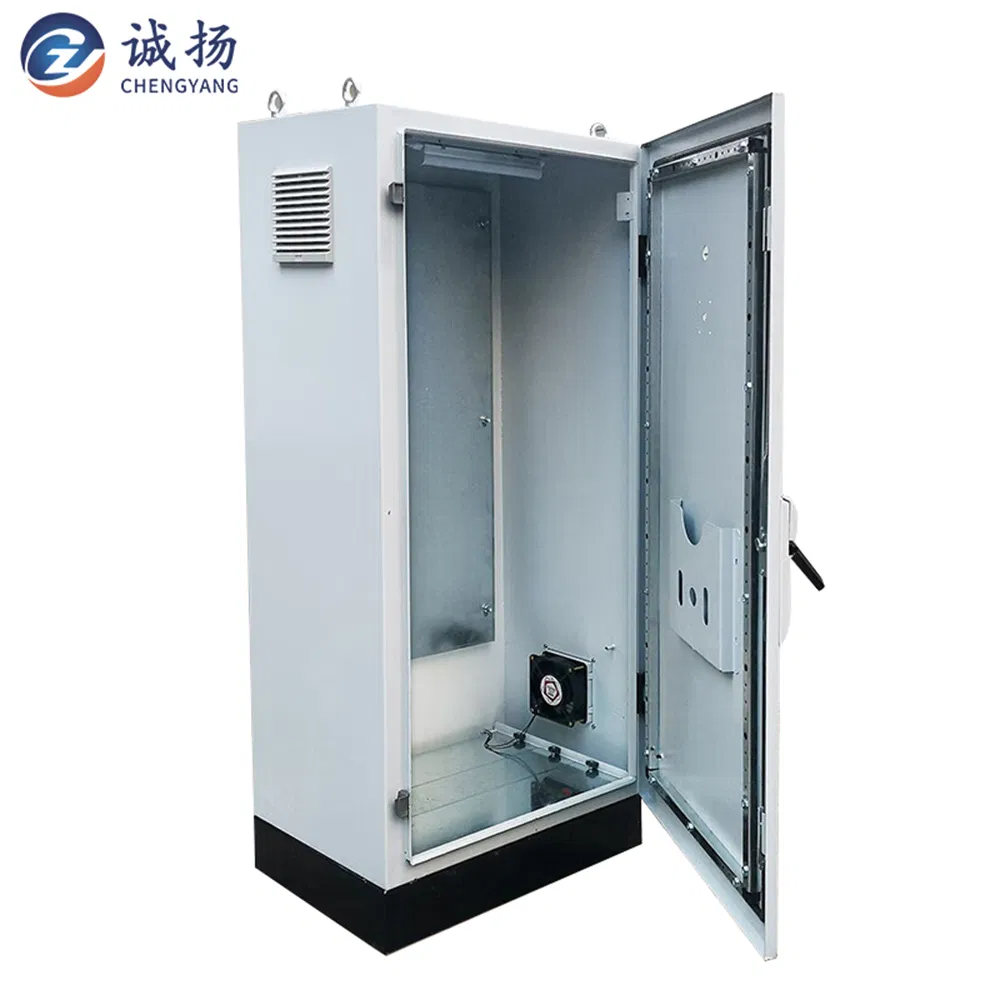

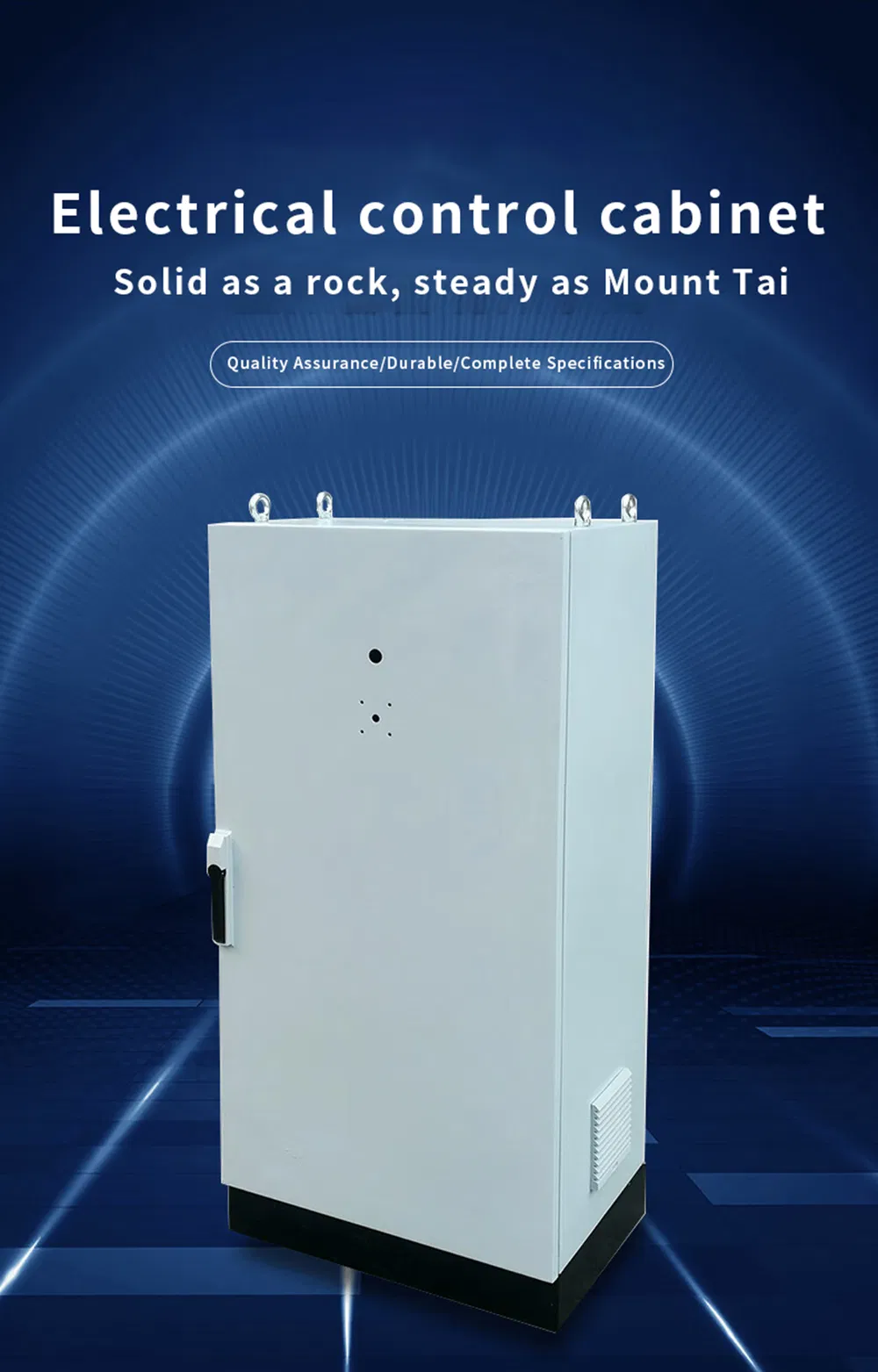

Product Gallery

Frequently Asked Questions

What are the main materials and sheet thickness of this electrical control cabinet?
The main material used is high-quality cold-rolled steel plate, with a standard sheet thickness of 1.5mm. This ensures structural strength, rigidity, and long-term durability for heavy-duty industrial environments.
What is the IP rating, and can it be used outdoors?
The power cabinet series is rated IP55. This provides reliable protection against dust ingress and low-pressure water jets from any direction, making it suitable for both indoor and outdoor protective installations.
Are custom sizes available for this cabinet series?
Yes. While we provide a comprehensive range of standard sizes (ranging from 1200*600*500 mm to 2000*800*600 mm), we also specialize in standard and non-standard chassis and cabinet designs. We can process and manufacture custom cabinets based on your design drawings and technical specifications.
What are the installation options and cable entry methods?
The cabinets support versatile installation methods, including floor-mounted and stand-mounted setups. The cable entry is designed through the bottom of the enclosure to provide safe, organized, and sealed routing.
What industries and applications are these cabinets suitable for?
Our products are widely used in automatic control systems, electronic computers, communication networks, aerospace and navigation, transportation, broadcasting and television, digital monitoring, and power transmission and distribution engineering.
What quality certifications do your manufacturing processes follow?
Our production systems are fully compliant and certified under the ISO9001:2000 quality certification. High-precision manufacturing is guaranteed using advanced CNC turret punching machines, CNC bending machining centers, and press machines.
