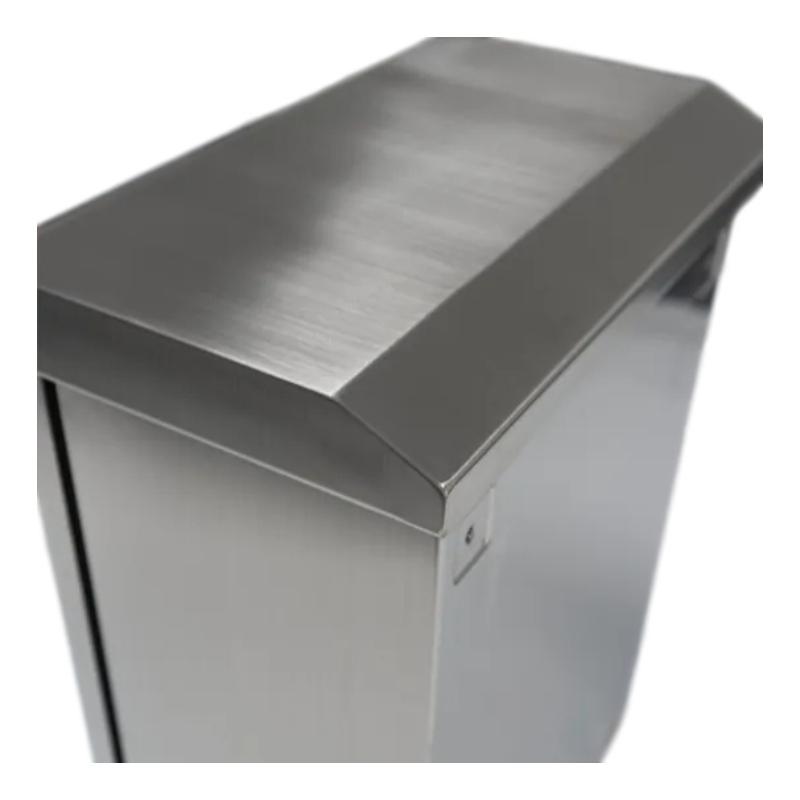

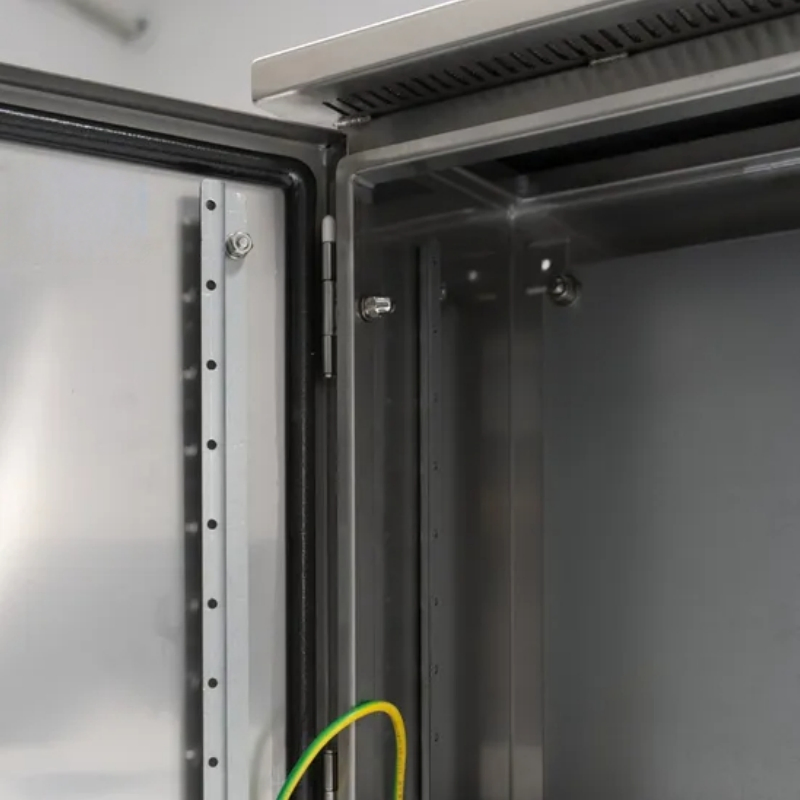

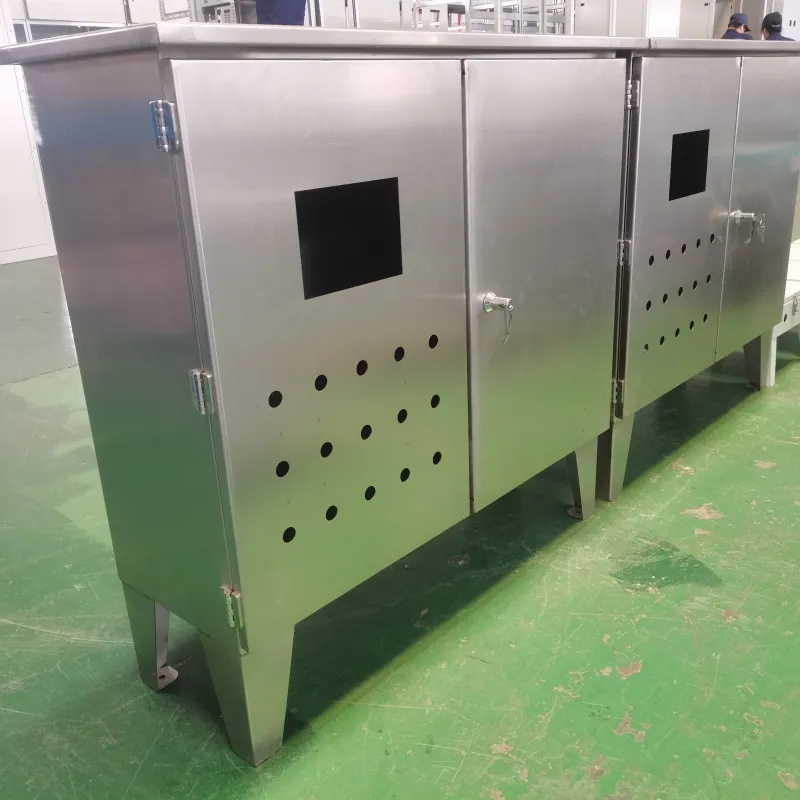

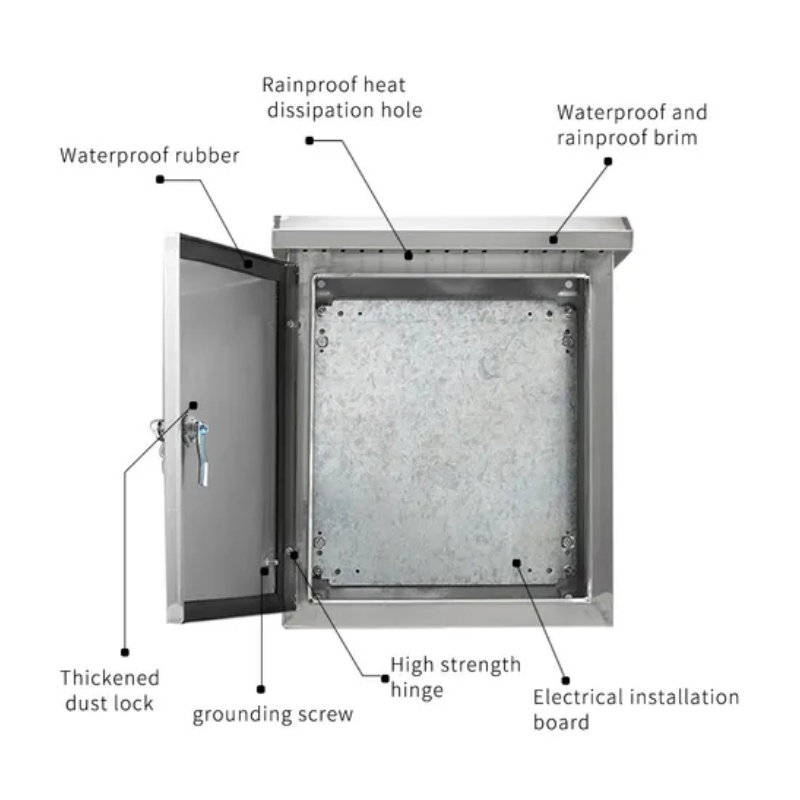

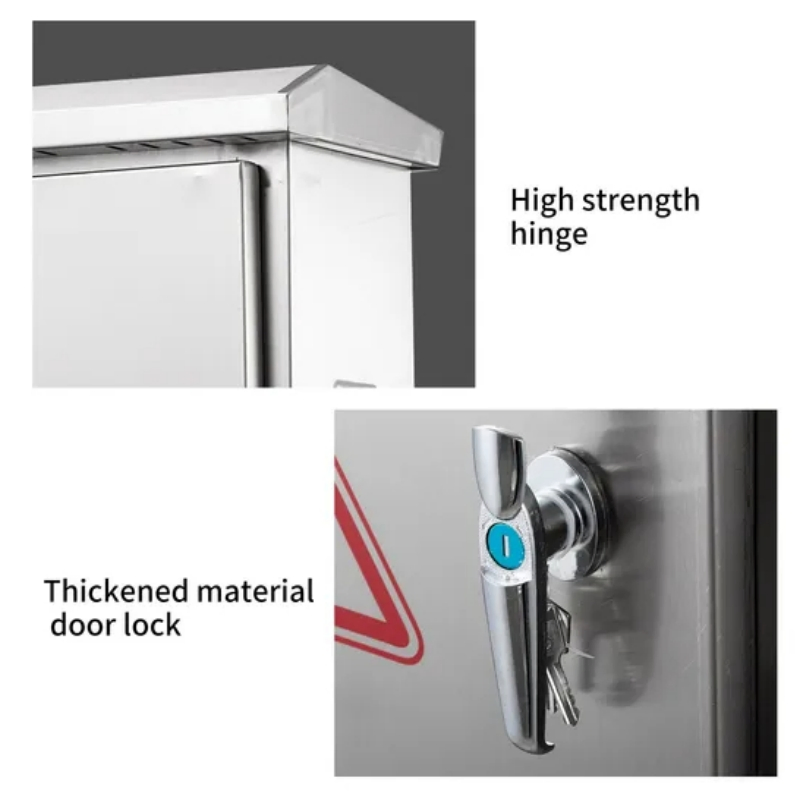

The cabinet is fabricated from high-quality cold-rolled steel plates. It adopts a front-opening door design, with the side panels and rear panel welded together. The incoming power is via bottom cable entry. Electrical components are mounted on brackets inside the cabinet. The outgoing side can be configured for multiple circuit outputs. The inner door of the cabinet can be equipped with a voltmeter, ammeter, indicator lights, and operating buttons. The inner door can be opened for inspection and maintenance of the equipment inside the cabinet.
Power Distribution Cabinet Products
Analyzer Cabinet
GGD Low Voltage AC Distribution Cabinet
High Voltage Switchgear Cabinet
Reactive Power Compensation Cabinet
Non-standard Distribution Box
Control Console
DC Power Supply Panel

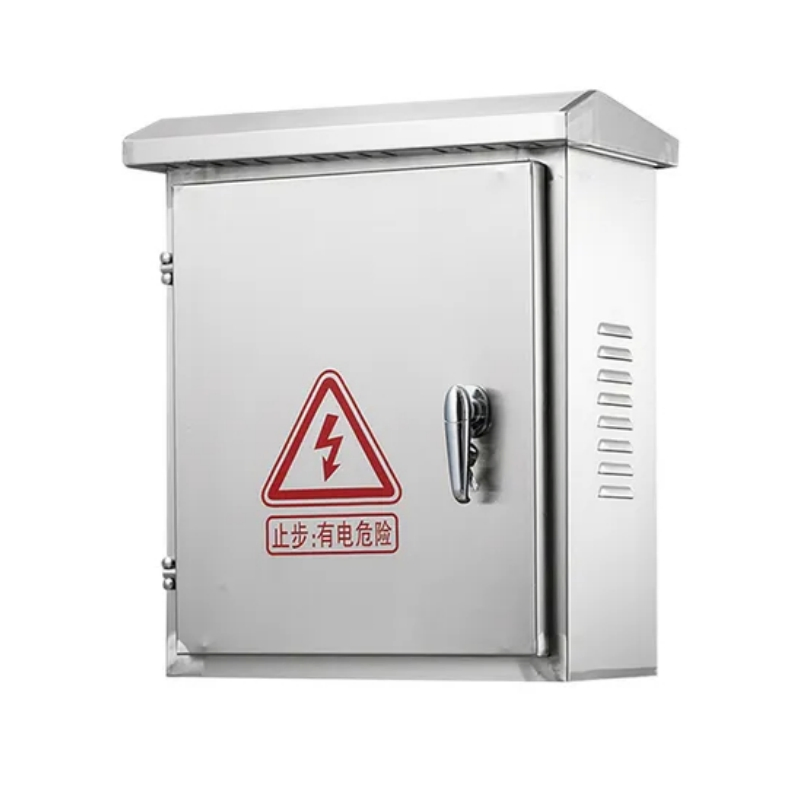

Non-standard Distribution Box
The cabinet is made of high-quality cold-rolled steel plates. It adopts a front-opening door structure, and the side panels and rear panel of the cabinet are welded together. The incoming cables enter from the bottom. Electrical components are mounted on brackets inside the cabinet. The outgoing side can be configured for multiple outgoing circuits. The inner door of the cabinet can be equipped with a voltmeter, ammeter, indicator lights, and operating buttons. The inner door can be opened for inspection and maintenance of the equipment inside the cabinet.

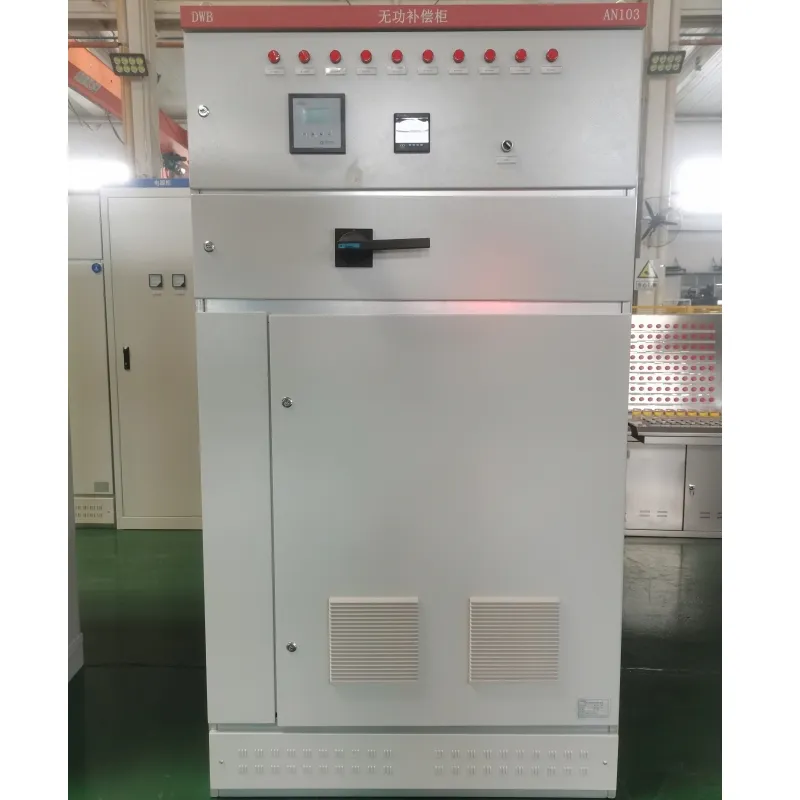

Reactive Power Compensation Cabinet
Reactive Power Compensation Cabinet is equipped with automatic switching of capacitor banks, and can record and test the economic and technical parameters of distribution transformers. It automatically adjusts compensation according to reactive power, voltage, and current. The cabinet is suitable for different power system environments and can operate stably under conditions such as high temperature, low temperature, and high altitude. It also has a certain capability to suppress harmonics.

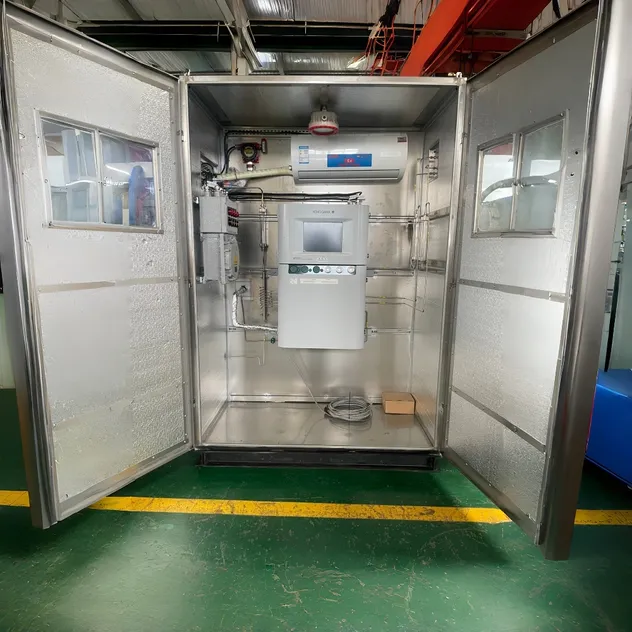

Analyzer Cabinet

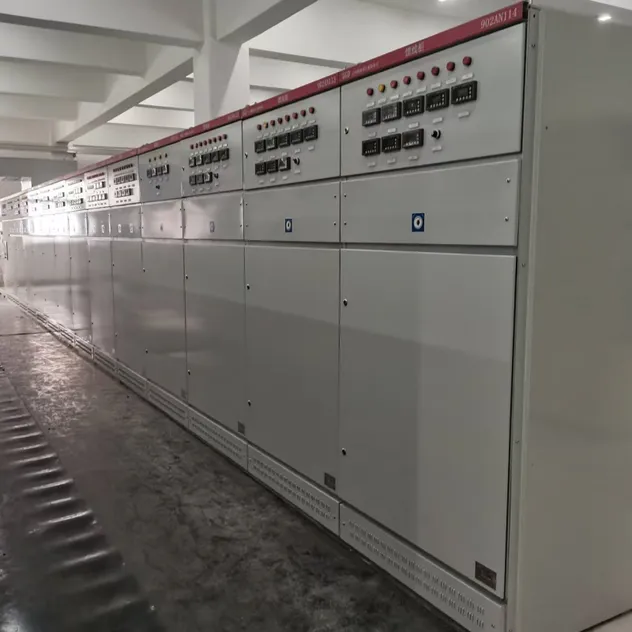

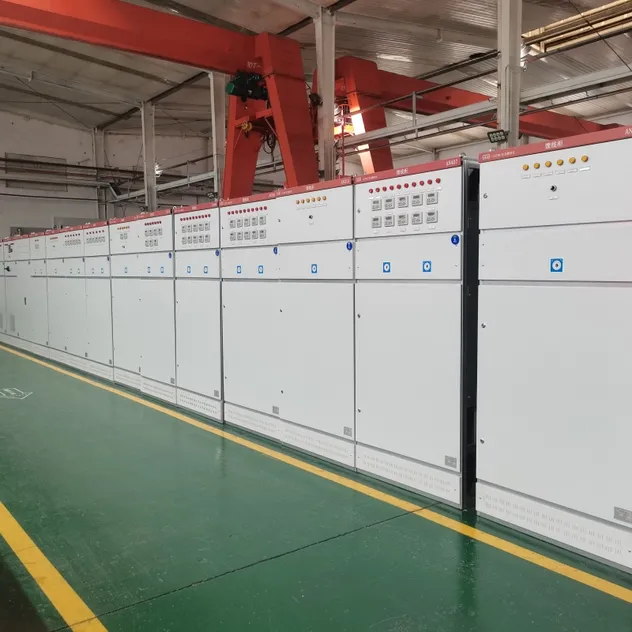

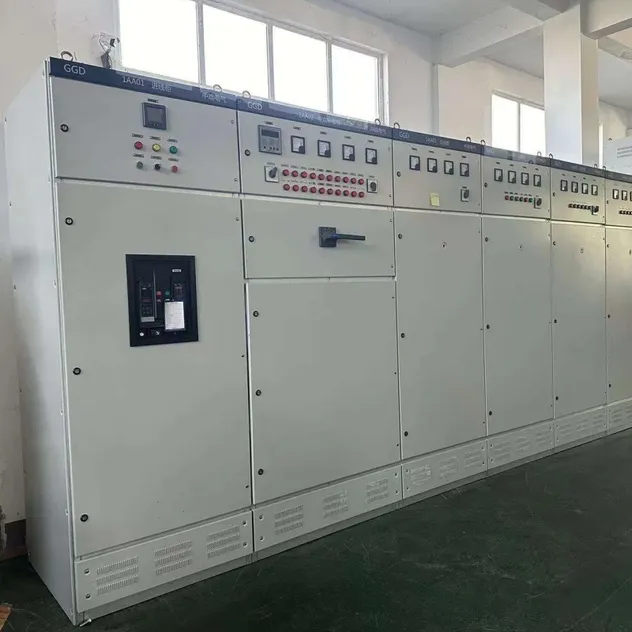

Low Voltage AC Distribution Cabinet (GGD)

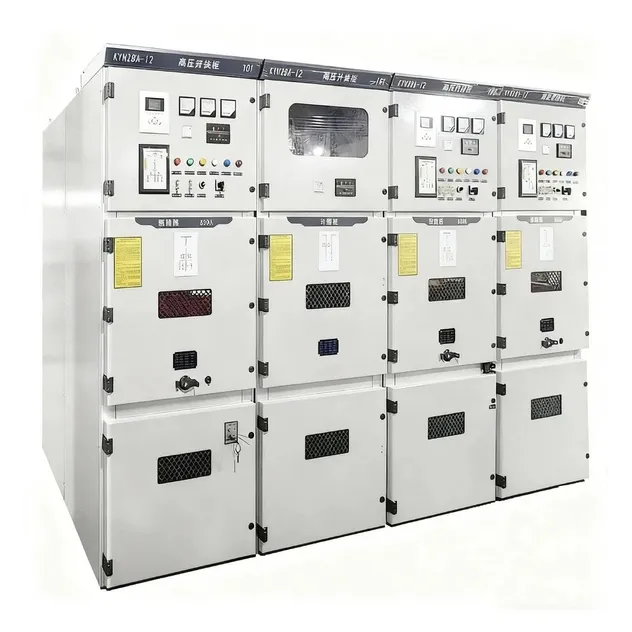

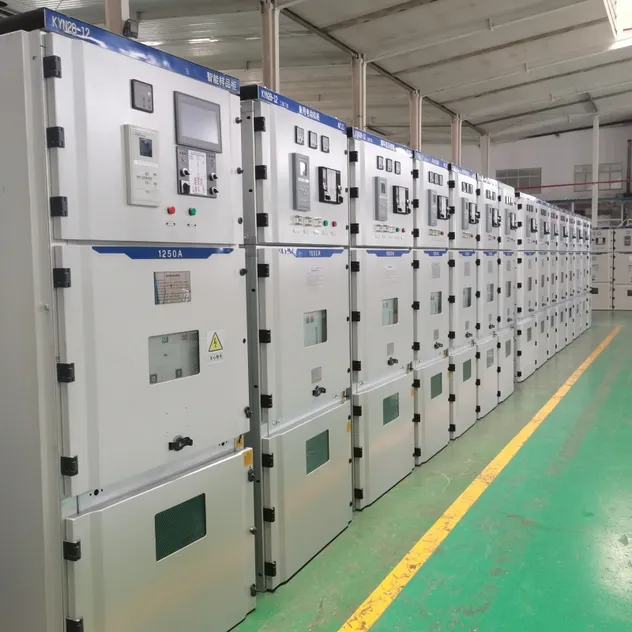

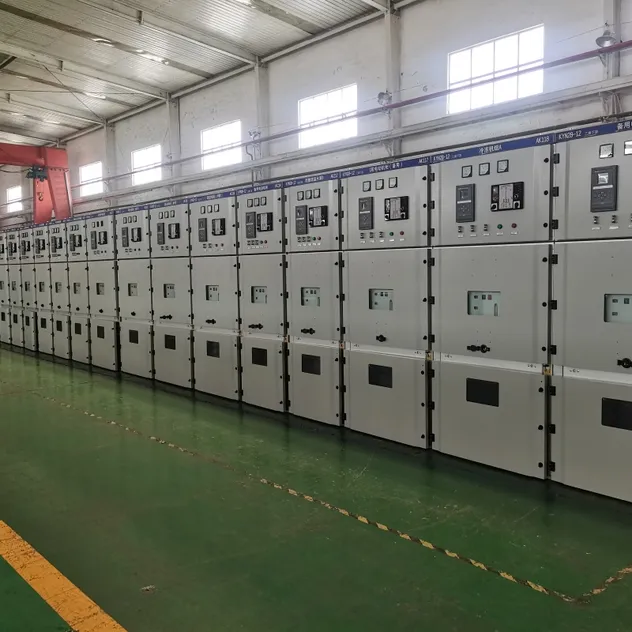

High Voltage Switchgear Cabinet
Certificates
Factory Overview
Frequently Asked Questions
What materials are used in the construction of the distribution cabinets?
The cabinets are constructed using high-quality cold-rolled steel plates with a robust welded layout to guarantee long-term stability and structural durability.
Are these power distribution cabinets customizable?
Yes, we manufacture non-standard distribution boxes that can be customized with multiple outgoing circuit options to suit your specific engineering requirements.
How does the Reactive Power Compensation Cabinet perform in challenging environments?
Our Reactive Power Compensation Cabinet is designed to operate reliably under extreme conditions, including high and low temperatures as well as high altitudes, and it features harmonic suppression.
What equipment can be mounted on the inner door of the cabinets?
The inner door is designed to support various controls and instrumentation, including voltmeters, ammeters, status indicator lights, and operational buttons.
How is maintenance conducted on these cabinets?
Maintenance and inspection are highly accessible thanks to the front-opening door structure, allowing engineers to easily inspect and service components mounted inside.
