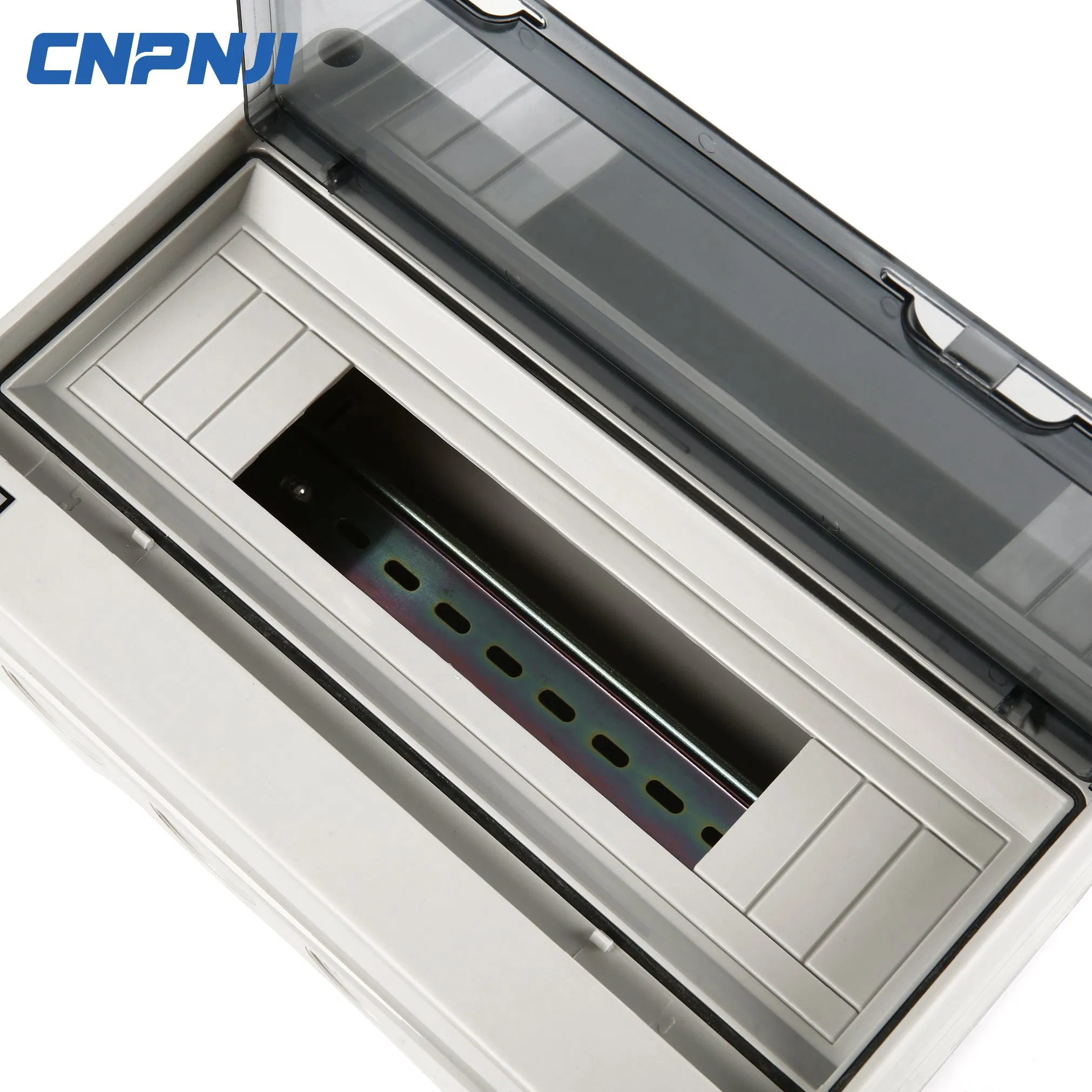

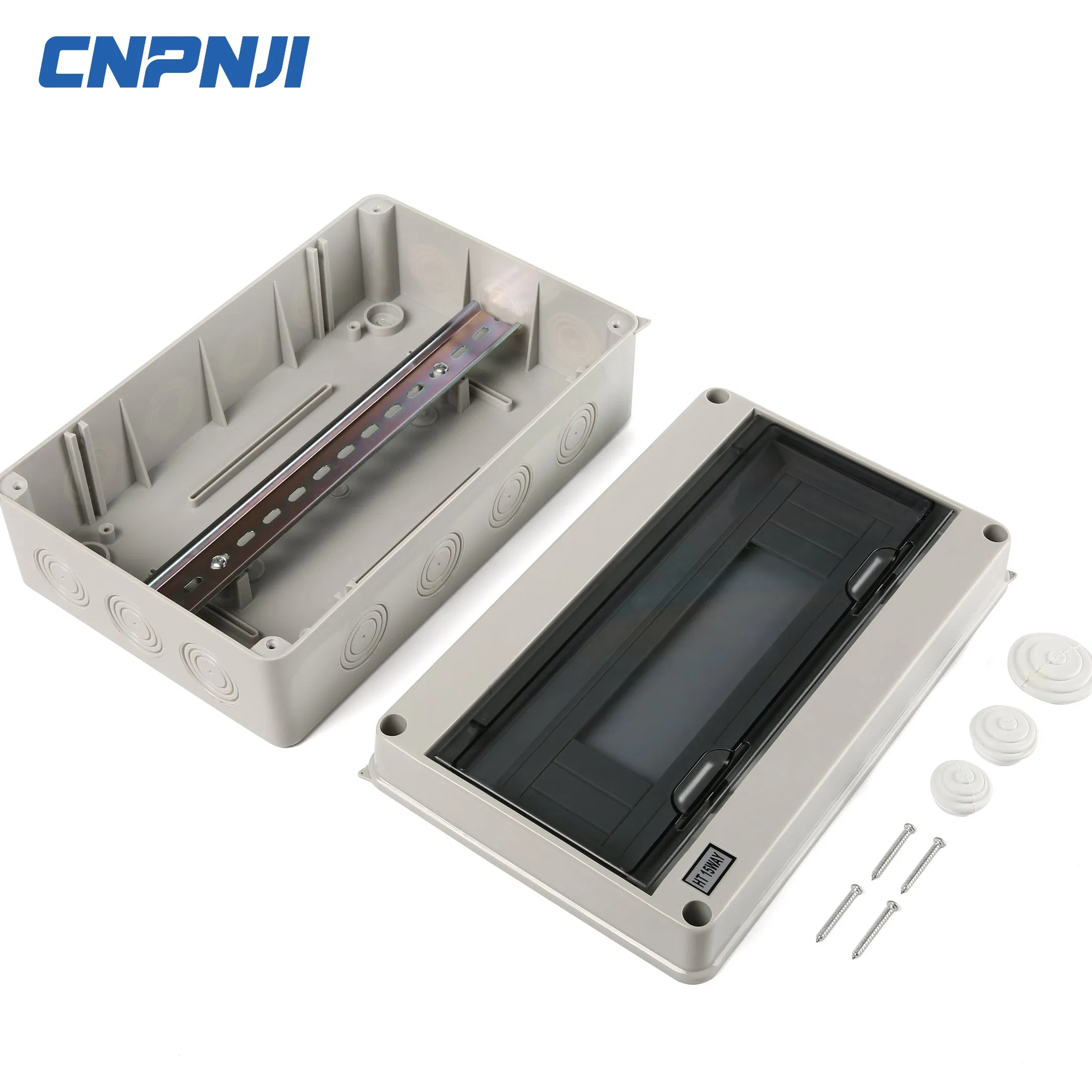

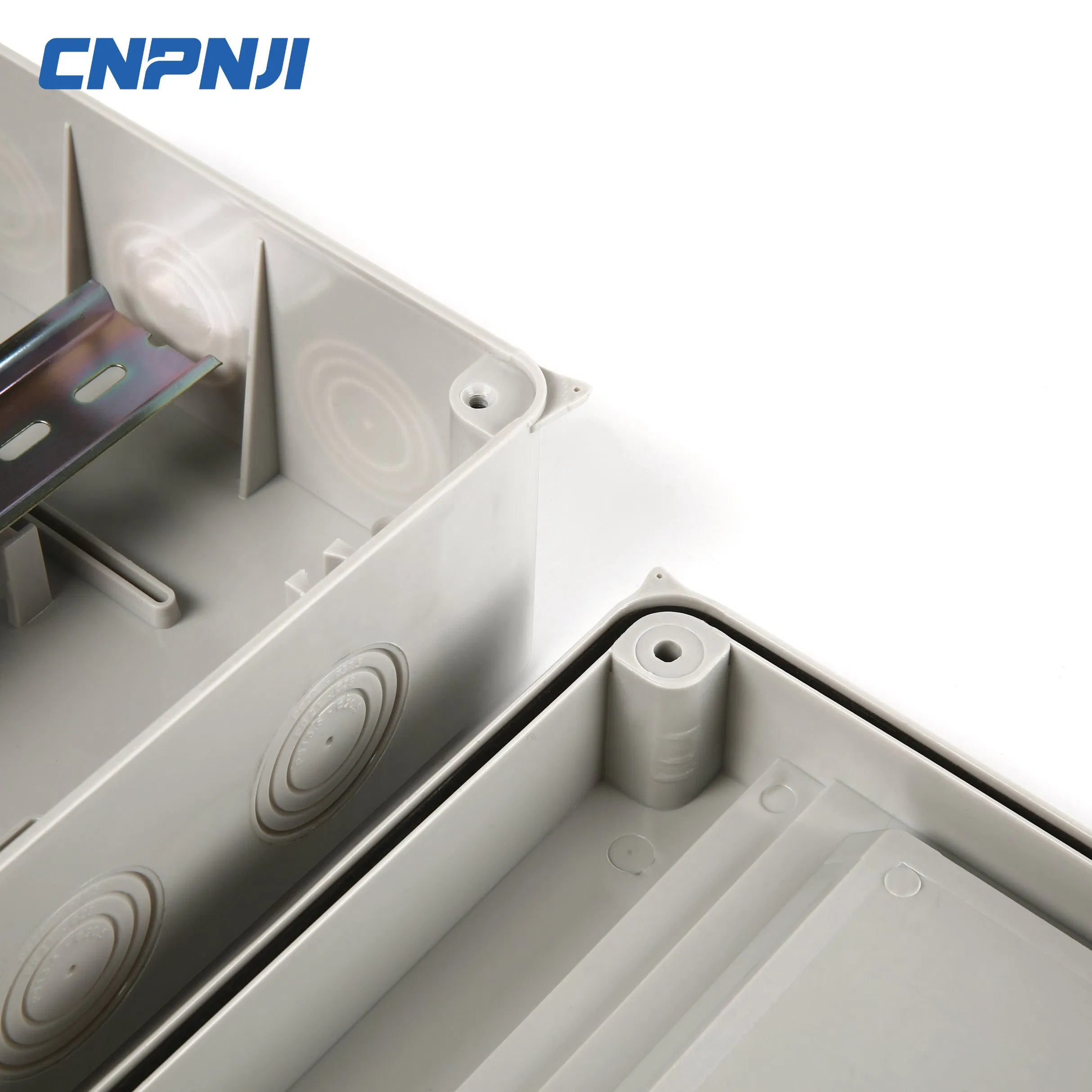

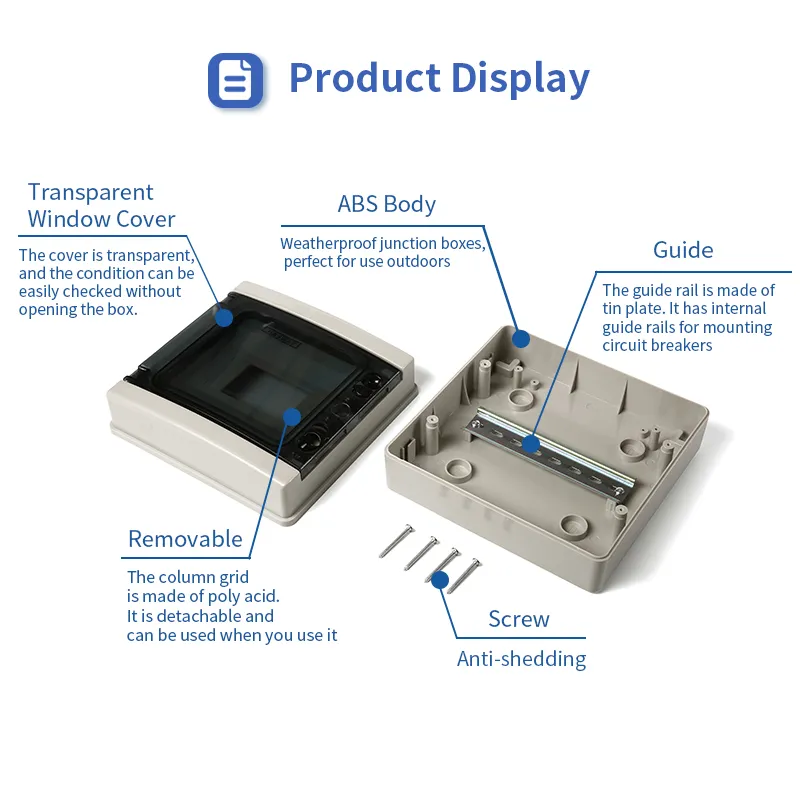

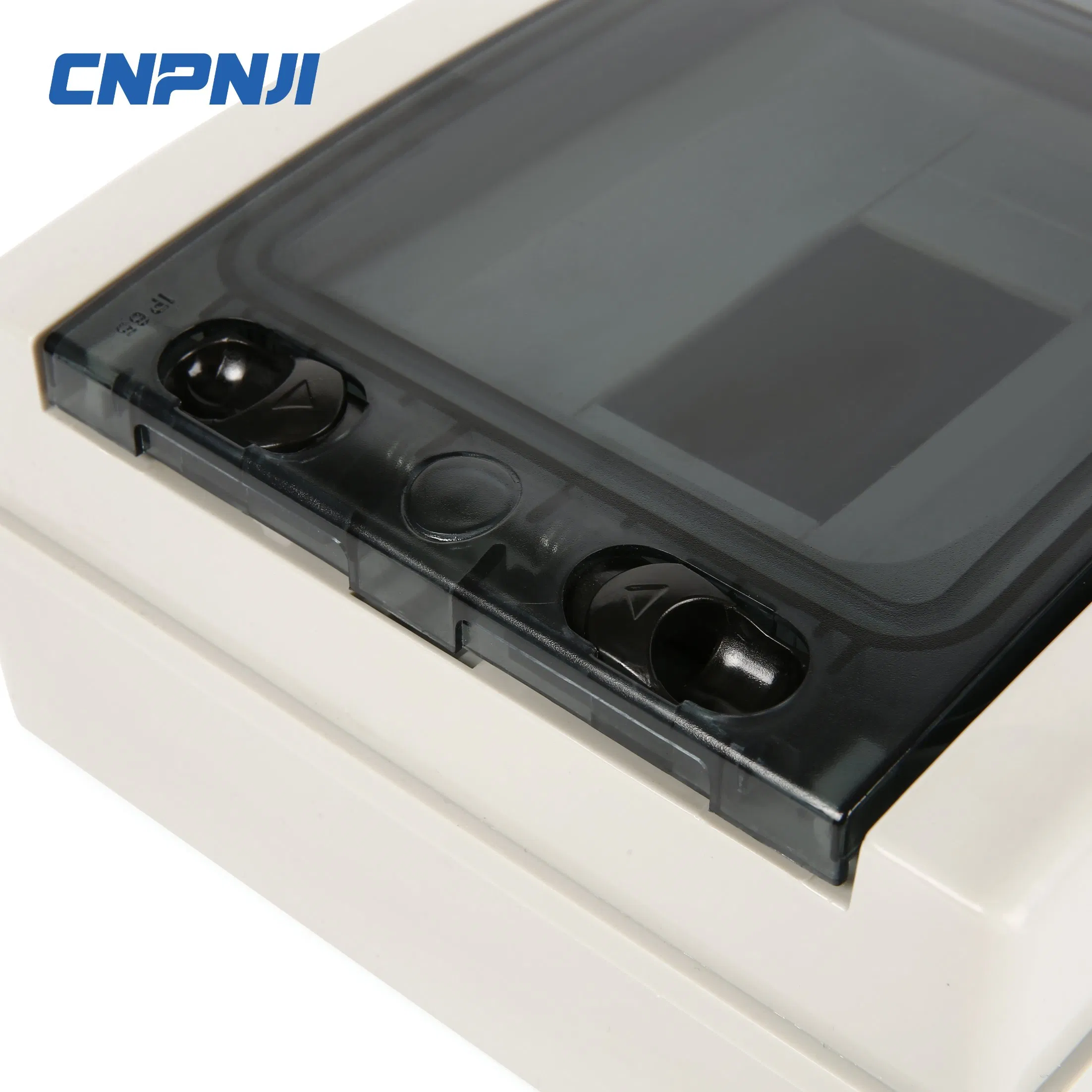

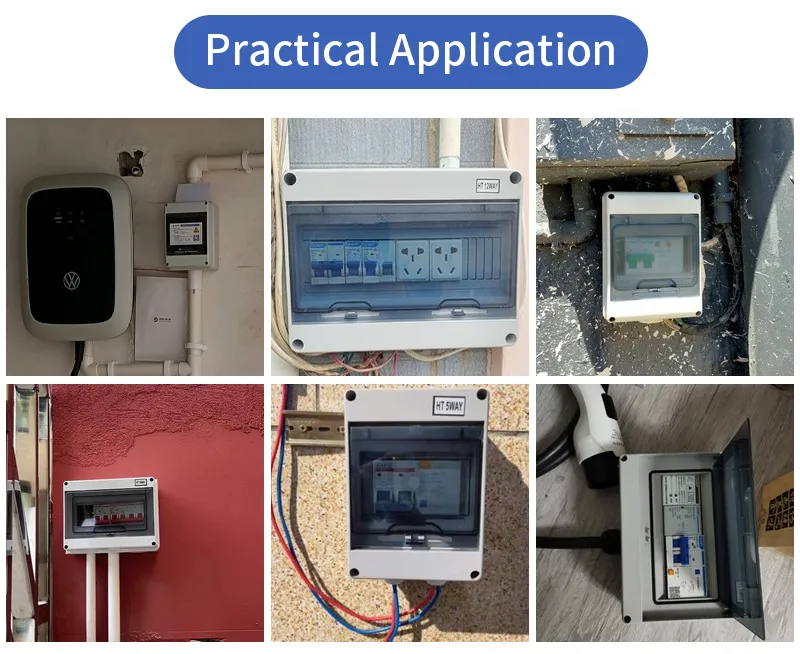

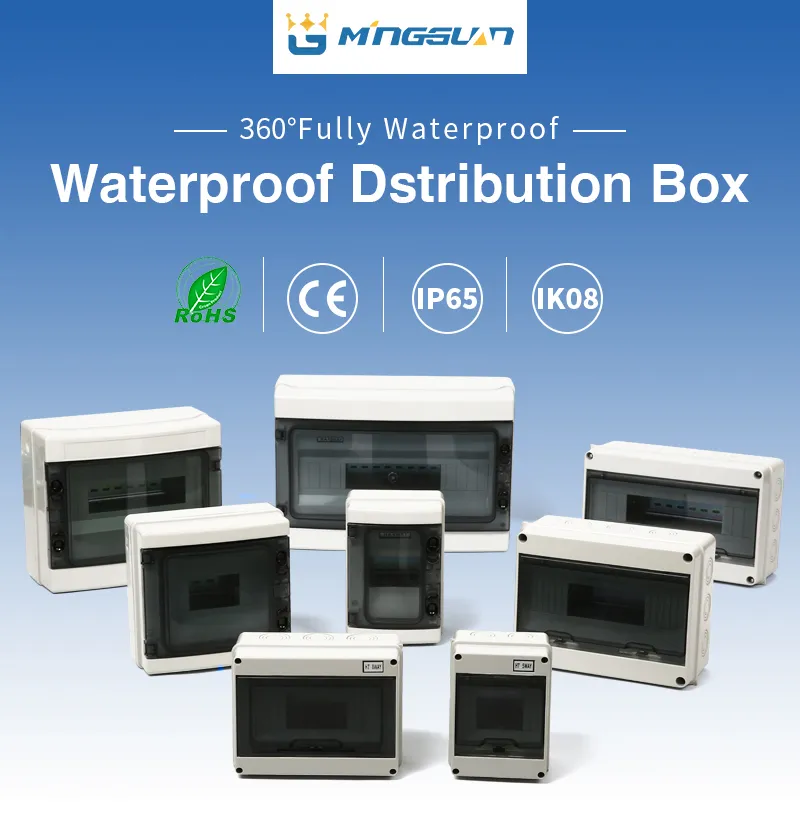

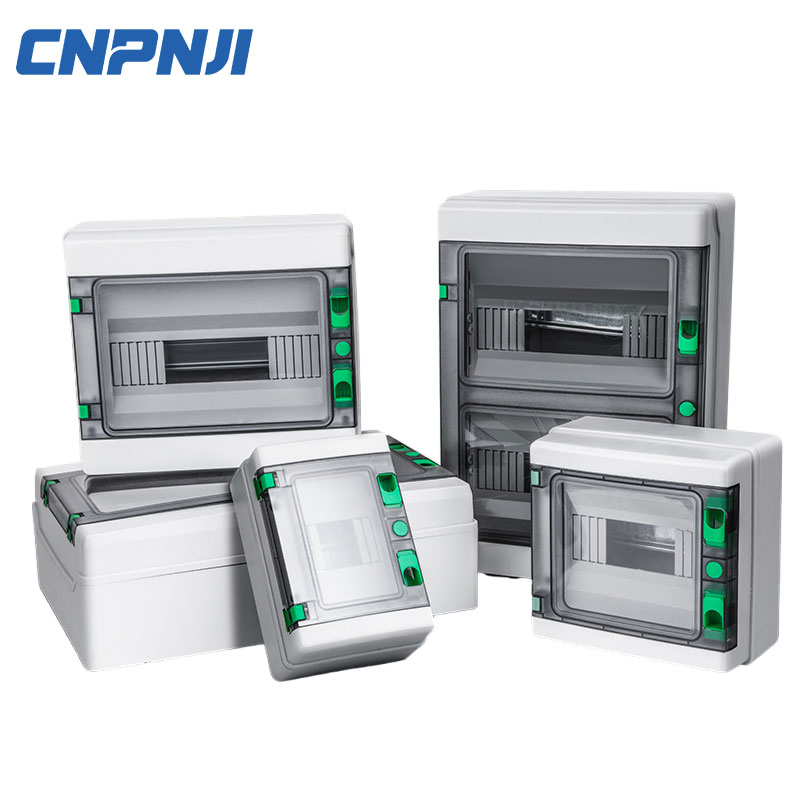

HA series distribution box, composed of ABS and PC materials, offer excellent impact resistance, corrosion resistance, insulation, and flame-retardant properties. Their modular structure not only allows for flexible and convenient installation but also provides a safe and organized mounting space for various miniature circuit breakers and earth leakage protectors. They are widely used in power distribution, circuit protection, and electricity management systems for residences, shopping malls, office buildings, and industrial plants, ensuring safe, stable, and efficient operation of electrical systems.
| Technical Parameters | |
|---|---|
| Product Name | HA-18WAY Waterproof distribution box |
| Material | ABS / PC New material |
| Waterproof Level | IP65 |
| Product Color | Gray white |
| Certification | ROHS, CE, IP67 |
| Impact Resistance | IK08 |

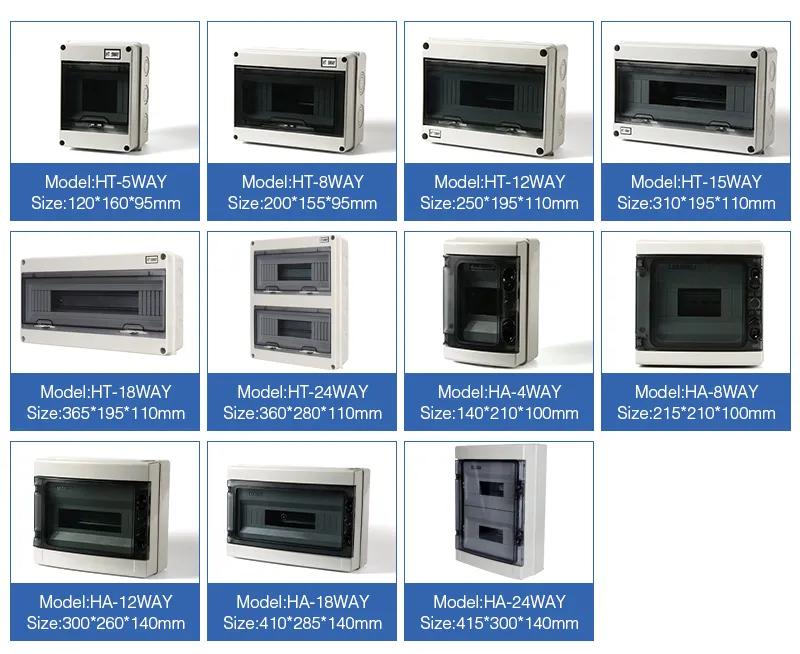

| Model | Size (mm) | Weight |
|---|---|---|
| HA-4WAY | 140*210*100 | 0.52KG |
| HA-8WAY | 215*210*100 | 0.78KG |
| HA-12WAY | 300*260*140 | 1.46KG |
| HA-18WAY | 410*285*140 | 1.93KG |
| HA-24WAY | 415*300*140 | 2.34KG |
| HT-5WAY | 120*160*95 | 0.34KG |
| HT-8WAY | 200*155*95 | 0.53KG |
| HT-12WAY | 250*195*110 | 0.84KG |
| HT-15WAY | 310*195*110 | 0.9KG |
| HT-18WAY | 365*195*110 | 1.07KG |
| HT-24WAY | 360*280*110 | 1.35KG |

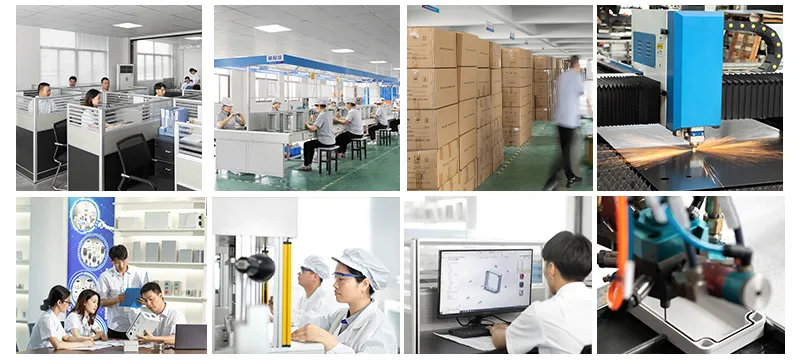

We are specialized in manufacturing high-quality waterproof junction boxes, cable glands, flexible pipes, plastic wiring ducts, nylon cable ties, and various electrical components. Equipped with advanced production facilities and supported by a robust technical force, we ensure all products deliver lasting reliability. Currently, we comply with ISO9001:2000 systems, and our product line holds certified IP68, CE, SGS, and RoHS approvals. Widely applicable in electrical power networks, automotive systems, mechanical engineering, and heavy installations, our products offer optimal performance. We continuously strive to construct a global service system, driving value through quality and innovation.
Our ABS/PC boxes are lightweight, highly corrosion-resistant, and feature excellent insulation properties, making them ideal for most indoor and general outdoor applications. Metal boxes offer superior physical protection and are better suited for harsh industrial environments where heavy-duty durability is required. We can help you select the right material based on your specific application.
Yes, absolutely! We specialize in providing OEM and ODM services. We can customize the color of the box, print your logo, and even adjust the internal configuration (like the number of modules) to meet your specific market needs. Please contact us with your details for a custom solution.
Our HA series is designed and manufactured in compliance with international standards, primarily IEC 61439 for low-voltage switchgear and controlgear assemblies. Our products also conform to CE and ROHS directives, ensuring safety and environmental compliance for global markets.
The HA series distribution box is rated at IP65 waterproof level. This certifies that it is fully protected against dust ingress and resistant to low-pressure water jets from any direction, ensuring safety in damp environments.

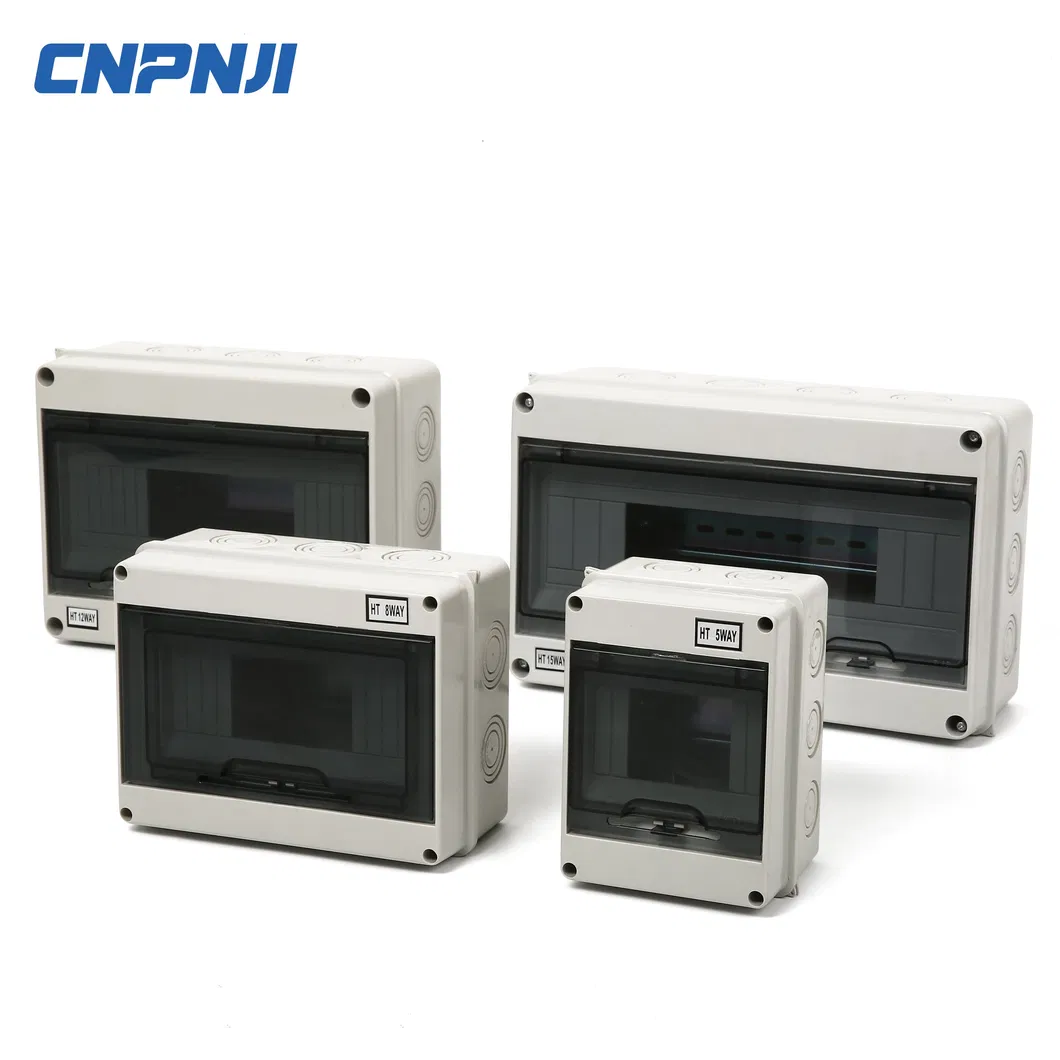

We offer the HA series in 4-way, 8-way, 12-way, 18-way, and 24-way configurations, and the HT series ranging from 5-way to 24-way configurations. These options satisfy various mounting requirements for miniature circuit breakers and protection devices.
Made of high-strength, premium ABS and PC plastics, our distribution boxes achieve an IK08 impact resistance rating. This provides high durability against physical impacts, rust, and degradation from typical outdoor environmental weathering.
