Basic Info.
Model NO.:
YB-12/0.4
Certification:
ISO9001:2000, VDE, CCC
Form:
All-packaged Type
Operation Voltage:
High Voltage
Size:
3 Unit
Application Range:
High-rise Buildings
Shell Material:
Stainless Steel
Shell Protection:
IP68
Capacity:
6000 pieces/Year
Frequency:
50Hz
Keywords:
Box Type Substation
Vector Group:
Dyn 11, Yyn0
Transport Package:
Customized Solid Wooden Case
Specification:
Standard Specifications or Customized
Origin:
China
Package Size:
489.00cm * 290.00cm * 279.00cm
Package Gross Weight:
300.000kg
Product Description
⚡ Transformer Substation Overview

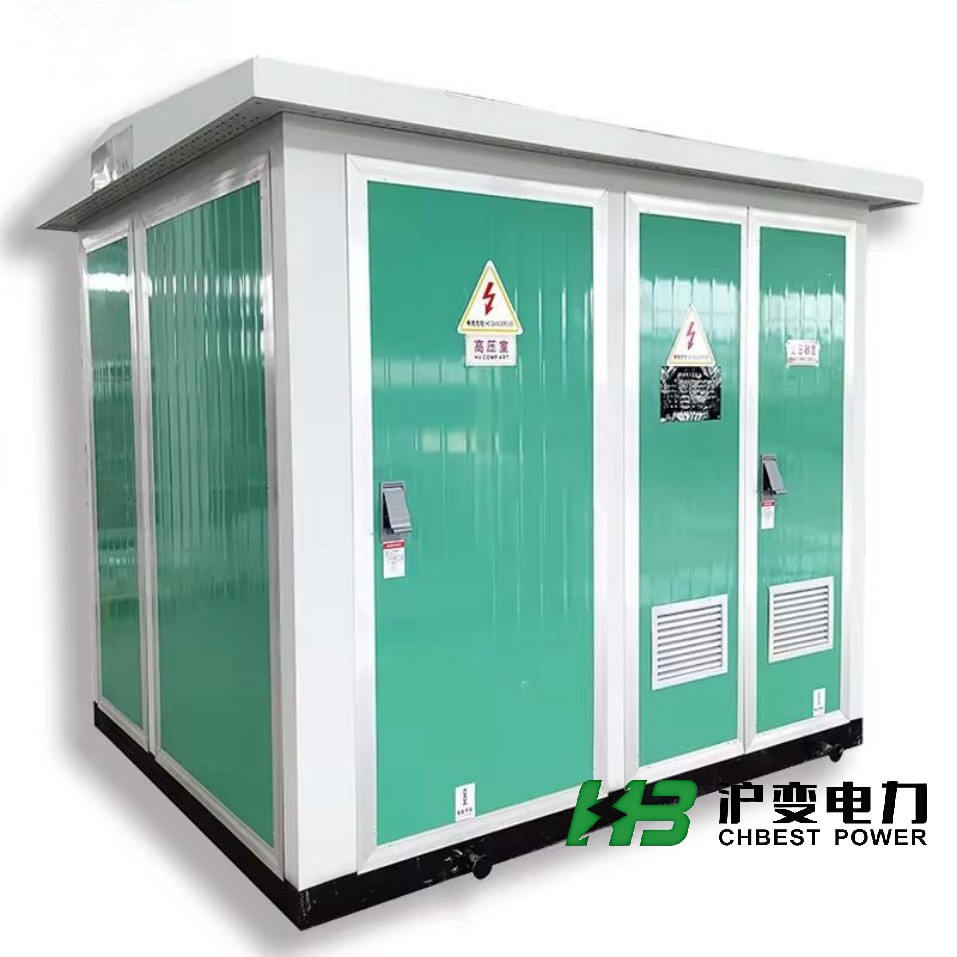

Prefabricated Substation is also called European type transformer substation. It can complete the transformation, distribution, transmission, measurement, compensation of electrical energy, system control, protection, and communication functions.
Product Composition & Features
A wide range of package substations are manufactured, which primarily comprise of transformer unit, high voltage unit and low voltage unit. The shell material of substation mainly uses stainless steel, Aluminum alloy, Cold-rolled plate, non-metal material.

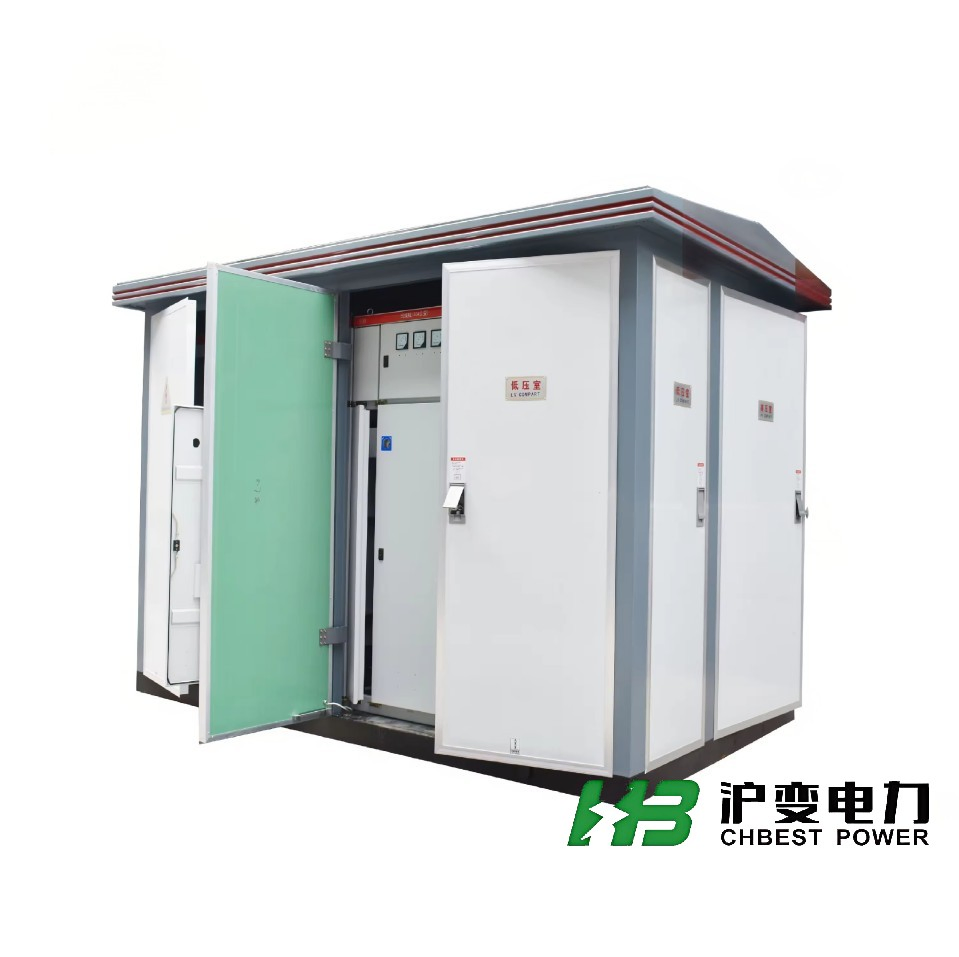

This substation normally comprises three compartments inside: High voltage compartment (equipped with high/medium voltage switchgear, such as ring main unit, gas insulated switchgear, rated voltage up to 40.5kv max), Low voltage compartment, and Transformer compartment (equipped with three phase oil immersed transformer or cast resin dry type transformer).
Working Environment & Conditions
- Ambient temperature: -25ºC ~ +40ºC
- Altitude: no more than 1000m
- Relative humidity: Daily average < 95% (vapor pressure < 2.2kpa); Monthly average < 90% (vapor pressure < 1.8kpa)
- Seismic intensity: less than magnitude 8
- Outside wind speed: less than 35m/s
- Installation Site: Apply to places with no fire, no explosion danger, and no chemical corrosion.
This substation is a critical power distribution supply unit in the electrical cable power network. It is a complete set of power supply with H.V. controlling, protection, converting, and distribution, used in 3 phase AC 50Hz and rated current max 1600KVA transformer. It is widely used in industrial and mining enterprises, residential quarters, hospitals, malls, high-rise buildings, and other distribution systems.
Manufacturing Profile
The manufacturing facility has a registered capital of 50 million yuan and nearly 200 employees. With strong technical force, bringing together a group of power engineering design and development, manufacturing for many years of power automation technology elite, the enterprise has developed new products in environmental protection, miniaturization, intelligence, maintenance-free and other aspects to achieve a number of technological breakthroughs. Customer satisfaction is always a priority, with the establishment of a nationwide customer service network, equipped with a hard-working, technical customer service team to respond to all needs.
Frequently Asked Questions
Q
Are you a trading company or manufacturer?
We are a professional factory with 10 years of experience in the field of High and Low voltage switchgears, substations, transformers, cable distribution boxes, and various electrical equipment, such as vacuum circuit breakers, load break switches, etc. Our factory is an excellent supplier to the State Grid Corporation.
Q
Do you accept customized service?
Yes, we offer OEM/ODM services and can print your logo on the products. Our professional technical and quotation teams can provide a satisfactory project layout according to your drawings and parameters.
Q
What is your Minimum Order Quantity (MOQ)?
Our Minimum Order Quantity (MOQ) is 1 piece.
Q
How long is your delivery lead time?
It depends on your product requirements and quantity. Generally, a delivery lead time of 5 to 10 working days is available.
Q
How do you solve quality problems?
Please provide detailed photos of the quality issues. Our technical and quality testing department will analyze the issue and provide a satisfactory solution within 2 days.
Q
What are your payment terms?
We require 30% T/T in advance, and the remaining 70% before shipment. West Union and L/C are also acceptable.
SN Electrical
