| Certificates | Cross Section, Ampere Voltage | Connection Type | Model | Pin Version | Suitable Cable Diameter | Dimension |
|---|---|---|---|---|---|---|
| ETL, ENEC, UKCA, NSW, SAA, CE, CB, RoHS | 0.5 ~ 2.5mm² 24A 450VAC |
2 way junction box | M686-2A | 2-5PIN | 4-8mm or 6-11mm | Outer: 126*67*39mm Inner: 60*33*30mm |
| M686-2B | 2-5PIN | 4-8mm or 6-11mm | Outer: 162*67*39mm Inner: 93*40*32mm |
|||
| 3 way junction box | M686-3A | 2-5PIN | 4-8mm or 6-11mm | Outer: 126*85*39mm Inner: 60*33*30mm |
||
| M686-3B | 2-5PIN | 4-8mm or 6-11mm | Outer: 162*94*39mm Inner: 93*40*32mm |
|||
| M686-3C | 2-5PIN | 2x(4-8mm or 6-11mm) 1x(4-8mm) |
Outer: 132*82*35mm Inner: 71*43*27mm |
|||
| M686-T | 2-5PIN | 4-8mm or 8-12mm or 10-14mm | Outer: 127*103*36mm Inner: 68*57*30mm |
|||
| M686-Y | 2-5PIN | 4-8mm or 8-12mm or 10-14mm | Outer: 130*107*36mm Inner: 80*70*31mm |
|||
| 0.5 ~ 4.0mm² 32A 450VAC |
4 way junction box | M686-4A | 2-5PIN | 4-8mm or 6-11mm | Outer: 126*98*39mm Inner: 60*33*30mm |
|
| M686-4B1 | 2-5PIN | 4-8mm or 6-11mm | Outer: 162*94*39mm Inner: 93*40*32mm |
|||
| M686-4B2 | 2-5PIN | 4-8mm or 6-11mm | Outer: 162*108*39mm Inner: 93*40*32mm |
|||
| M686-4C1 | 2-5PIN | 2x(4-8mm or 6-11mm) 2x(4-8mm) |
Outer: 132*97*35mm Inner: 71*43*27mm |
|||
| M686-4C2 | 2-5PIN | 2x(4-8mm or 6-11mm) 2x(4-8mm) |
Outer: 132*82*35mm Inner: 71*43*27mm |
|||
| M686-H | 2-5PIN | 4-8mm or 8-12mm or 10-14mm | Outer: 115*107*36mm Inner: 70*57*31mm |
|||
| M686-S (1 in 3 out) | 2-5PIN | 4-8mm or 8-12mm or 10-14mm | Outer: 163*152*60mm Inner: 115*93*49mm |
|||
| 0.5 ~ 2.5mm² 24A 450VAC |
5 way junction box | M686-5B | 2-5PIN | 4-8mm or 6-11mm | Outer: 162*108*39mm Inner: 93*40*32mm |
|
| M686-5C | 2-5PIN | 2x(4-8mm or 6-11mm) 3x(4-8mm) |
Outer: 132*97*35mm Inner: 71*43*27mm |
|||
| 6 way junction box | M686-6B | 2-5PIN | 4-8mm or 6-11mm | Outer: 162*108*39mm Inner: 93*40*32mm |
||
| M686-6C | 2-5PIN | 2x(4-8mm or 6-11mm) 3x(4-8mm) |
Outer: 162*108*39mm Inner: 93*40*32mm |
|||
| Customized junction box | M686-O | 2-5PIN | 4-8mm or 8-12mm or 10-14mm | Outer: 170*170*50mm Inner: 84*84*38mm |
||
| M686-S | 2-5PIN | 4-8mm or 8-12mm or 10-14mm | Outer: 183*163*60mm Inner: 115*93*49mm |
|||
| M686-14 | 2-5PIN | 4-8mm or 8-12mm or 10-14mm | Outer: 289*208*112mm Inner: 255*156*96mm |
Submersible up to 10 meter for 150 hours, withstands heavy rain, splashes, and dust. Impact-Resistant Housing: UV-resistant, corrosion-proof PC composite (optional), operable from -40°C to +105°C.

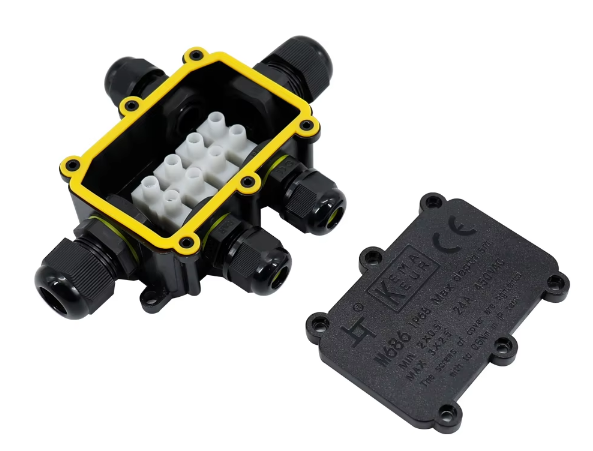

Screw/plug wire/lever clamp terminals compatible with 0.5-4mm² wires, cutting installation time by 50%.

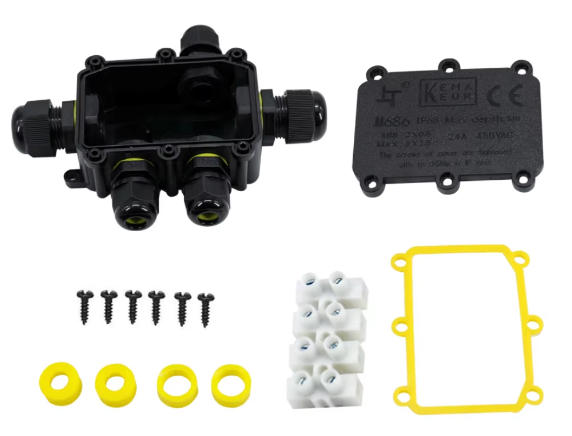

Industrial-grade silicone sealing rings. Multiple sizes to support different cable ranges. Silicone gasket+screws mechanism ensures long-term aging resistance and airtight performance.
Household garden distribution boxes, weatherproof enclosures for surveillance cameras, outdoor landscape lighting wiring, pool equipment control panels.
Solar photovoltaic panel connections, street light cable junctions, waterproof encapsulation for stadium lights, port equipment distribution boxes.
Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units. Custom OEM/ODM solutions are supported to meet diverse client specifications.
Waterproof testing (20m depth/72h), high-voltage resistance (2750V), and flame-retardant certification (V0/2 standards). All processes adhere to industrial safety and durability benchmarks.
4000m² warehouse to keep enough materials in stock, ample warehouse size for efficient and speedy shipments, your orders delivered promptly.
⏱️ Technical specifications and product samples are guaranteed to be provided within 24 hours, ensuring rapid decision-making for clients.
⚡ Global 24x7 customer support delivers real-time tech and logistics assistance. Expedited orders ship in 7-10 days via automated production.
🛡️ A comprehensive 3-year warranty is offered, covering non-human-induced defects in materials or manufacturing.
Diverse retail-ready designs tailored for supermarkets, hardware stores, and bulk distribution.
Professional private-label manufacturing with precision logo imprinting for brand identity enhancement.
Flexible integration of modular terminals and adaptable configurations to meet specialized requirements.
