Customized IP66 Waterproof Dustproof Wall Mount Stainless Steel Metal Electrical Power Distribution Switch Project Junction Box for Outdoor Application

Overview & Technical Specifications

Basic Info

Model NO.AE BOX

CertificationISO9001:2000, CCC, CE, UL, CQC, RoHS

FormAll-packaged Type

Operation VoltageLow Voltage

SizeCustomization

Application RangePower Distribution, Telecommunications, Machinery

Shell MaterialSteel Plate

Shell Protection GradeIP66

ColorRal7035/Ral7032/Ral2000/Ral9032

OEMOffered

Thickness1.0/1.2/1.5/2.0/2.5mm

Customised SizeAccepted

SpecificationFrom 200*200*150mm to 1400*1000*400mm

TrademarkDT

OriginChina

HS Code8538109000

Production Capacity1000 PCS/Day

Packaging & Delivery

Transport PackageStandard Export Carton

Package Size31.00cm * 21.50cm * 41.00cm

Package Gross Weight7.600kg

Product Description

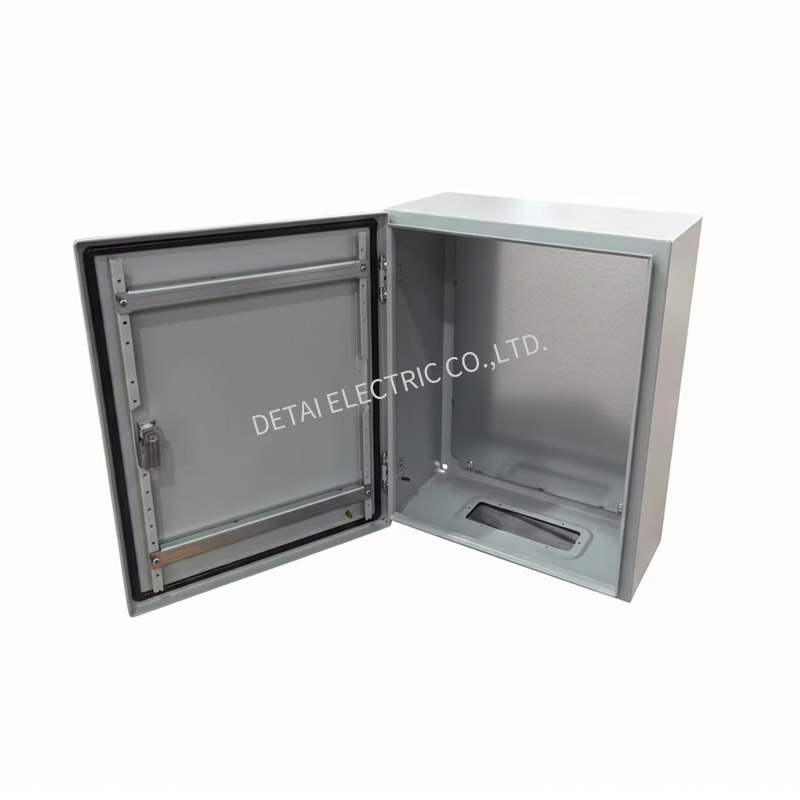

Waterproof Dustproof Wall Mount Metal Electrical Power Distribution Box

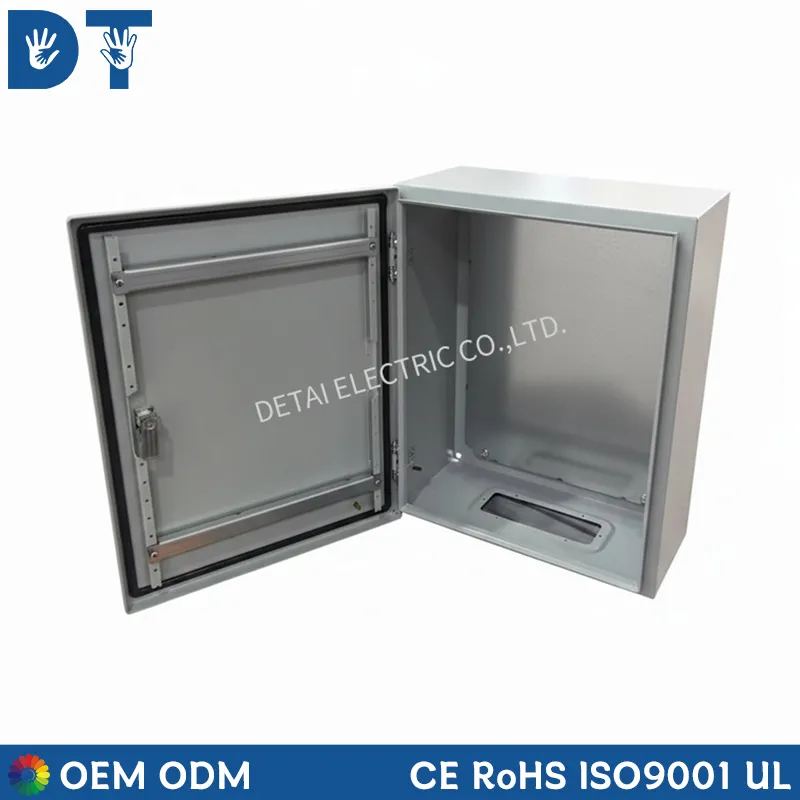

Power Distribution Switch Cabinet Inside

Specification Item	Details
Trademark	DT
Customised Size	Accepted
Type	Distribution Cabinet

Company Profile

About Us
We are a leading source factory in China with 20 years of experience in sheet metal manufacturing, certified with CE, UL, and ISO9001 Quality Management System. We specialize in distribution boxes, distribution cabinets, and custom non-standard sheet metal products, integrating sheet metal manufacturing with complete electrical systems.

Main Products

Rittal-style Series: 90%-fold Cabinets, 50%-fold Cabinets, AK Cabinets, AE Boxes, and Operation Tables
Cabinet Series: Outdoor Industrial Cabinets, Outdoor Waterproof Integrated Communications Cabinets, Indoor Totem-like Server/Network Cabinets
Stainless Steel Cabinet Series: Outdoor Stainless Steel Distribution Boxes, Indoor Stainless Steel Distribution Boxes, Outdoor Stainless Steel Distribution Cabinets

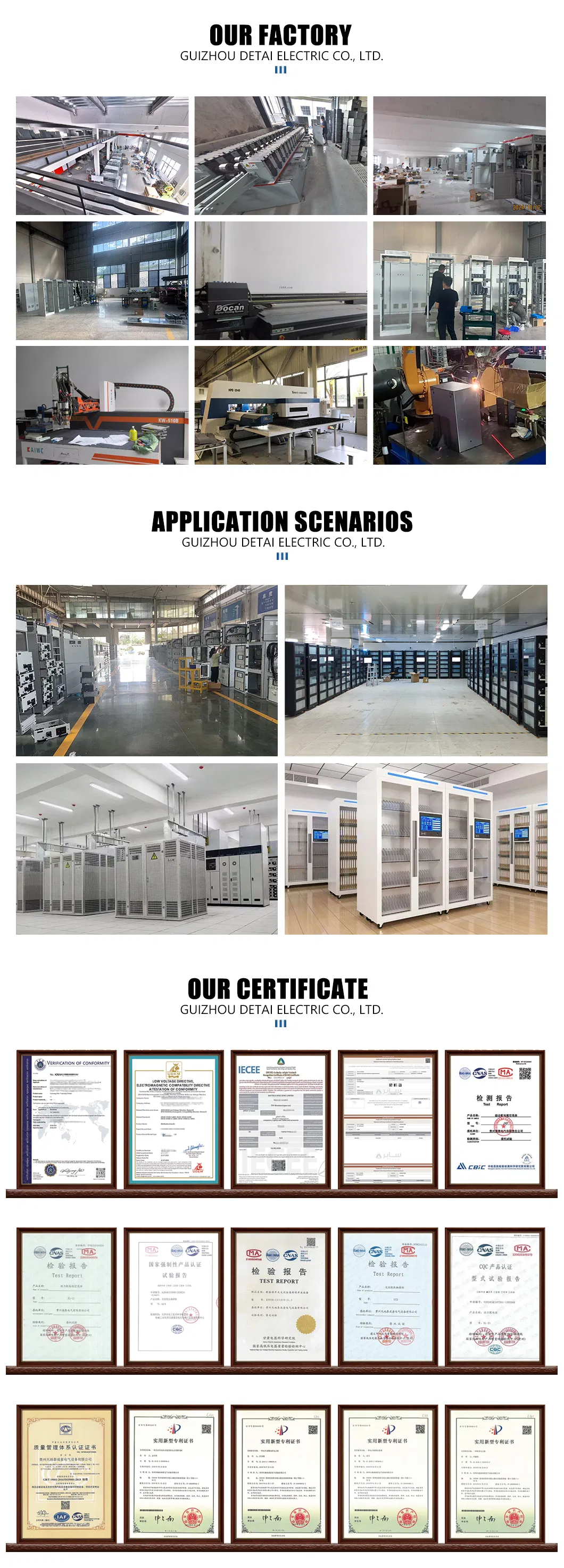

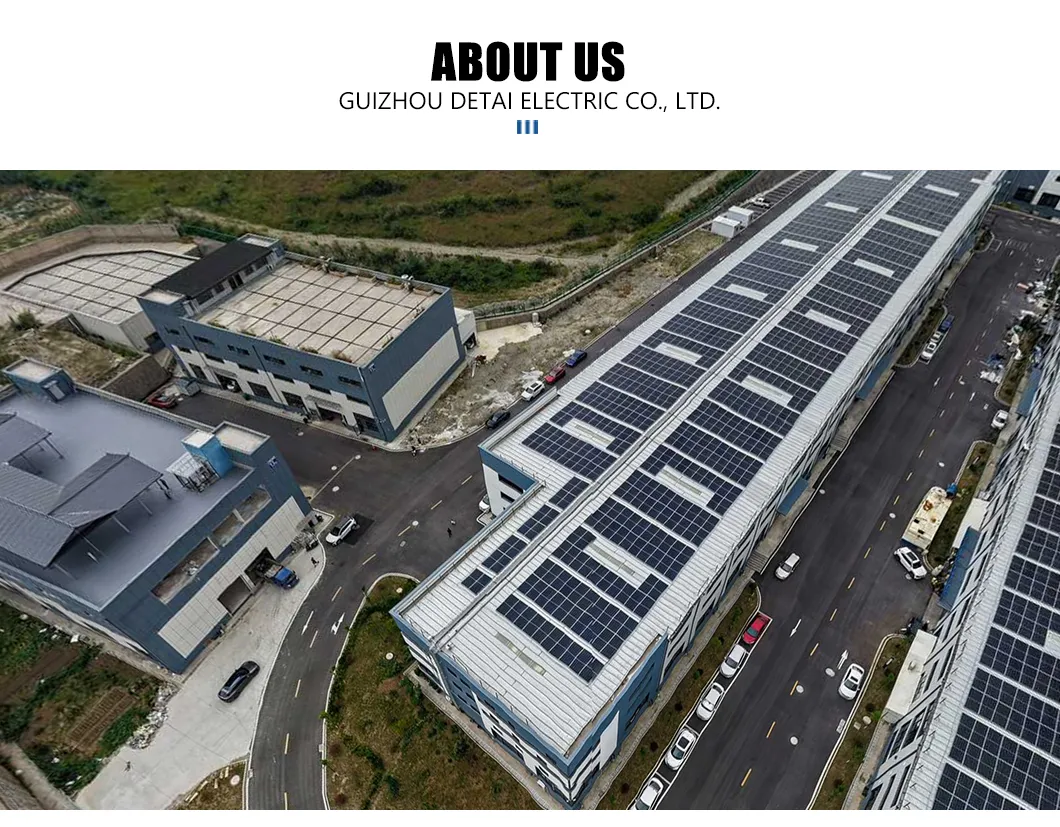

Factory Strength

Floor Area: 4,000 Square Meters
Standing Inventory: Over 5,000 Units
Annual Output Value: RMB 30 Million
Equipped with Modern Production Equipment, Automated Assembly Lines, and Automatic Welding Platforms
Ensuring Efficient Production and Stable Quality

Service Advantages

Nationwide marketing and service network covering 30 provinces and cities
Providing end-to-end services from solution design → product customization → installation guidance
72-hour rapid response mechanism, ensuring worry-free operation for customers

Market Applications

Our products are widely used in shopping malls, buildings, and power distribution systems, and are exported to Southeast Asia, the Middle East, and Africa. We also serve industries such as power, communications, machinery manufacturing, and automation, offering one-stop industrial solutions.

Corporate Vision

In the future, we will continue to develop efficient and intelligent equipment for the global market, helping customers enhance their international competitiveness.

Factory & Detailed Specifications

Material

Enclosure: Cold-rolled sheet steel, thickness 1.2 mm (up to size AE-40-30/20), and 1.5 mm for larger sizes.
Door: Cold-rolled sheet steel, thickness 1.2 mm (up to size AE-40-30/20), and 1.5 mm for larger sizes.
Mounting plate: 2.0 mm sheet steel.

Surface Treatment

Enclosure & Door: Dip-coated with primer, followed by powder coating in textured finish, standard RAL7032 or RAL7035.
Mounting Plate: Supplied in RAL2000 orange coating or hot-dip galvanized finish.

Protection

Ingress protection: IP65, dust-tight and protected against water jets.
Impact resistance: IK10, offering high mechanical durability.

Scope of Supply

Fully welded enclosure body.
Gland plate fitted with sealing gasket.
Hinged door equipped with secure lock.

Warranty & After-Sales Service

We guarantee 100% customer satisfaction. Please notify us immediately if any issue occurs, and we will provide a quick solution. Each unit comes with 1-year warranty. If products fail due to non-artificial reasons within one year, equivalent replacements can be included in your next shipment (damage photos are required for verification). Shipping and handling costs are non-refundable for returned or exchanged items.

Name	Code No.	Height (mm)	Width (mm)	Depth (mm)	Code No.	Height (mm)	Width (mm)	Depth (mm)
AE box	DETAI-20-20/15	200	200	150	DETAI-70-60/20	700	600	200
AE box	DETAI-25-20/15	250	200	150	DETAI-70-60/25	700	600	250
AE box	DETAI-30-20/15	300	200	150	DETAI-70-60/30	700	600	300
AE box	DETAI-30-20/20	300	200	200	DETAI-70-70/20	700	700	200
AE box	DETAI-30-25/15	300	250	150	DETAI-70-70/25	700	700	250
AE box	DETAI-30-25/20	300	250	200	DETAI-70-70/30	700	700	300
AE box	DETAI-30-30/15	300	300	150	DETAI-80-60/20	800	600	200
AE box	DETAI-30-30/20	300	300	200	DETAI-80-60/25	800	600	250
AE box	DETAI-30-30/25	300	300	250	DETAI-80-60/30	800	600	300
AE box	DETAI-40-30/15	400	300	150	DETAI-90-70/20	900	700	200
AE box	DETAI-40-30/20	400	300	200	DETAI-90-70/25	900	700	250
AE box	DETAI-40-30/25	400	300	250	DETAI-90-70/30	900	700	300
AE box	DETAI-40-40/20	400	400	200	DETAI-100-80/20	1000	800	200
AE box	DETAI-40-40/25	400	400	250	DETAI-100-80/25	1000	800	250
AE box	DETAI-40-40/30	400	400	300	DETAI-100-80/30	1000	800	300
AE box	DETAI-50-40/20	500	400	200	DETAI-100-100/20	1000	1000	200
AE box	DETAI-50-40/25	500	400	250	DETAI-100-100/25	1000	1000	250
AE box	DETAI-50-40/30	500	400	300	DETAI-100-100/30	1000	1000	300
AE box	DETAI-50-50/20	500	500	200	DETAI-120-60/20	1200	600	200
AE box	DETAI-50-50/25	500	500	250	DETAI-120-60/25	1200	600	250
AE box	DETAI-50-50/30	500	500	300	DETAI-120-60/30	1200	600	300
AE box	DETAI-60-50/20	600	500	200	DETAI-120-80/20	1200	800	200
AE box	DETAI-60-50/25	600	500	250	DETAI-120-80/25	1200	800	250
AE box	DETAI-60-50/30	600	500	300	DETAI-120-80/30	1200	800	300
AE box	DETAI-60-60/20	600	600	200	DETAI-120-100/20	1200	1000	200
AE box	DETAI-60-60/25	600	600	250	DETAI-120-100/25	1200	1000	250
AE box	DETAI-60-60/30	600	600	300	DETAI-120-100/30	1200	1000	300
AE box	DETAI-70-50/20	700	500	200	DETAI-140-100/25	1400	1000	250
AE box	DETAI-70-50/25	700	500	250	DETAI-140-100/30	1400	1000	300
AE box	DETAI-70-50/30	700	500	300	DETAI-140-100/40	1400	1000	400

Packaging & Shipping

Additional Product Features

This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years. Moreover, we can provide various styles to meet your needs.

Frequently Asked Questions

Q1: What are your main product lines?

Our main product lines include:
1. AE boxes, Rittal-style Series: Nine-fold cabinets, Five-fold cabinets, AK cabinets, Operation consoles.
2. Cabinet Series: Outdoor industrial cabinets, Outdoor waterproof integrated telecom cabinets, Indoor server/network cabinets.
3. Stainless Steel Series: Outdoor/Indoor stainless steel distribution boxes and distribution cabinets.
We also provide customized sheet metal solutions (OEM/ODM) and support complete electrical system design and assembly to deliver one-stop solutions.

Q2: How quickly can I get a quotation?

You can submit the specifications and dimensions of the products you need through our contact channels, and our professional quotation staff will provide you with a quote as quickly as possible within two hours.

Q3: How can I obtain a product sample?

If you are unable to buy our products locally, we can ship a sample directly to you. You will be charged the sample price plus all related transport/shipping costs.

Q4: Do you support product customization?

Yes, we support complete customization. We can design and model any custom ideas for you using professional 3D tools according to your technical requirements.

Q5: What are the typical lead times for samples and mass production?

Sample production typically takes around 7 days. Batch mass production takes between 15-30 days depending on the final order quantity. We can adjust the schedule in urgent cases based on current circumstances.

Q6: What manufacturing strengths does your factory offer?

We are a source manufacturer with 20 years of sheet metal manufacturing experience, certified under CE, UL, and ISO9001. Operating out of a 4,000 square meters facility with over 5,000 units in stock, we utilize modern automated production lines and welding platforms to guarantee stable quality, rapid delivery, and end-to-end service support.
