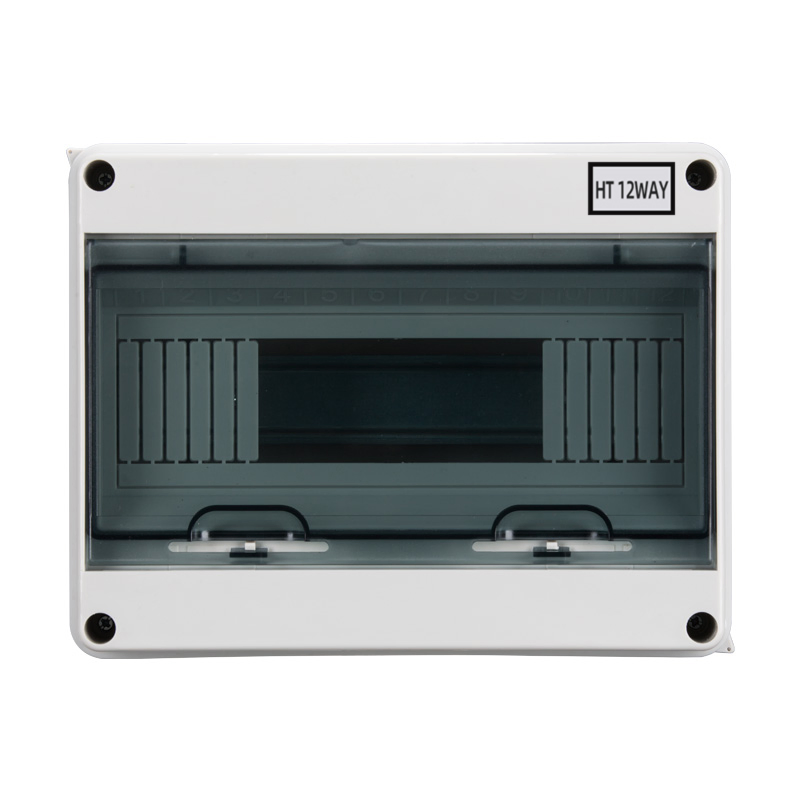

| Model NO. | WSHT |
| Certification | CE, Rosh, ISO9001 |

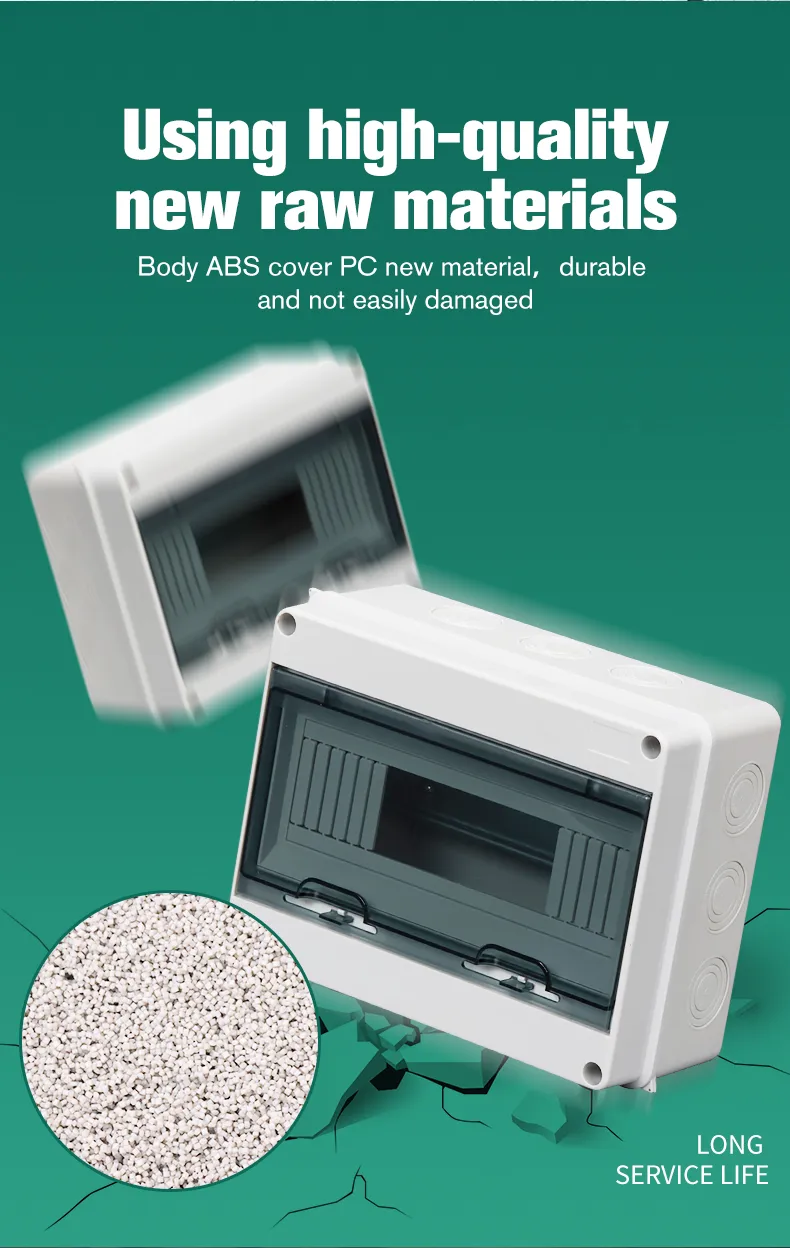

| Form | ABS Body PC Cover |
| Size | 2/3/5/8/12/15/18/24 Way |
| Application Range | Solar System/Electrical Equipment |
| Shell Material | ABS Body PC Cover |
| Shell Protection Grade | IP65 |
| Color | Gray Body Transparent Cover |
| Sample Service | Ok |
| Temperature Range | -40℃~+80℃ |
| Standard | IEC-493-1 |
| Quality Assurance | 2 Years |
| DIN Rail | Adjustable 35mm DIN Rail for Flush Mount Products |

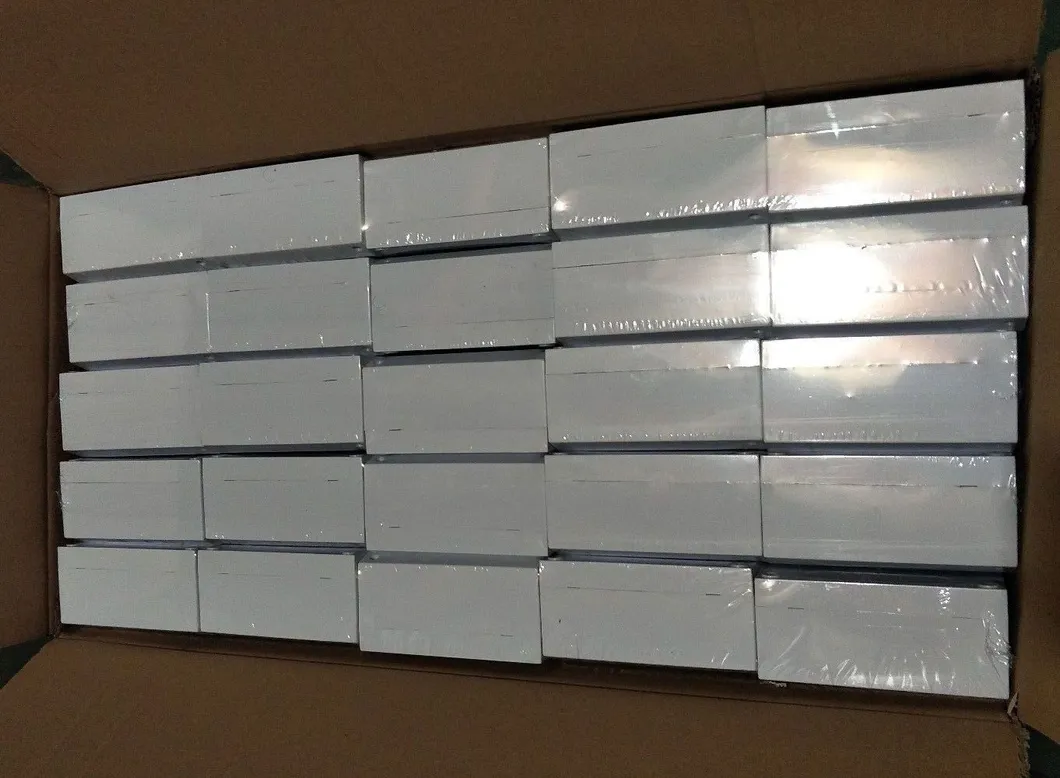

| Transport Package | Carton |
| Origin | China |
| Production Capacity | 100000 PCS/Month |
| Package Size | 57.00cm * 41.50cm * 53.50cm |
| Package Gross Weight | 16.950kg |
| Technical Specifications | |
|---|---|
| Standard | IEC-493-1 |
| Approval | CE, RoHS, HF test, IK test, ISO9001 |
| Protection grade | IP65 |
| Color of base | Gray |
| The color of door | Transparent |
| Mounting type | Surface |

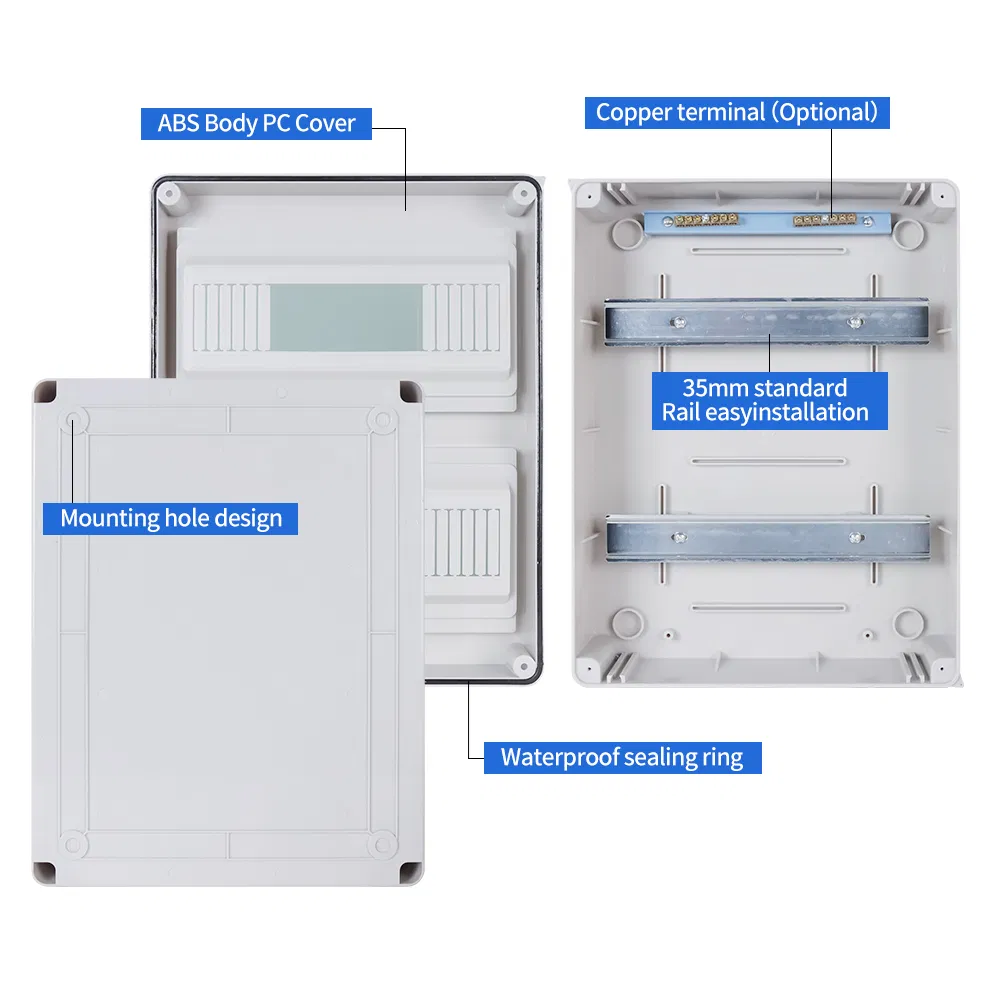

| Material | ABS Body PC Cover |
| Zero bar/earth bar | copper |
| Guide | 35MM standard din rail |
| Fire resistance | 650°C /30s |
| Ambient temperature (°C ) | -5 ~ +40, 50% humidity permitted under max +40°C |
| Storage temperature (°C ) | -40 - +75 |
| Remark | Conventional is not flame retardant, flame retardant needs to be customized |

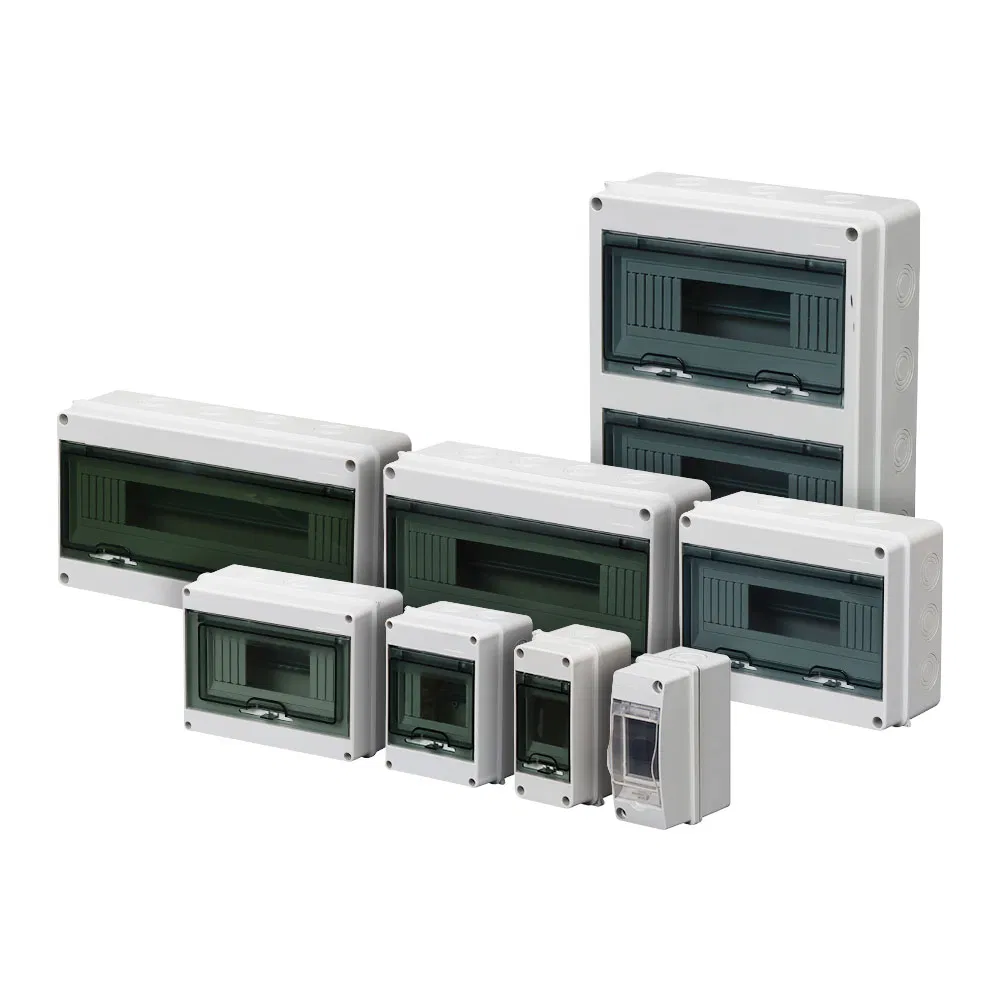

| Model | Product's size(mm) | No. of breaker(pole) | Net Weight(kg.) | Qty/Carton | Weight/Carton(KG) | Carton Dimension(CM) |
|---|---|---|---|---|---|---|
| WSHT-2 | 50*116*95 | 2 | 0.15 | 100 | 15.3 | 56*28*48 |
| WSHT-3 | 80*160*95 | 3 | 0.3 | 50 | 15 | 44*35*54 |
| WSHT-5 | 115*155*90 | 5 | 0.34 | 40 | 15.2 | 50*34*51 |
| WSHT-8 | 195*150*90 | 8 | 0.53 | 30 | 16.9 | 50*43*49.5 |
| WSHT-12 | 250*195*110 | 12 | 0.84 | 20 | 18 | 57*41.5*53.5 |
| WSHT-15 | 305*195*110 | 15 | 0.9 | 15 | 15.2 | 59*32.5*63.5 |
| WSHT-18 | 360*195*110 | 18 | 1.07 | 15 | 19.4 | 58*38*63 |
| WSHT-24 | 270*353*110 | 24 | 1.35 | 10 | 15.8 | 60*38*58.5 |
Average response time 2.75 hours
1000 PCS < 7 Days
Free photos and videos of your products
Synchronize the progress of your product production for you
English major level 8 to improve communication efficiency
Two-year warranty and timely communication
| Model | Qty/Carton | Weight/Carton(KG) | Carton Dimension(CM) |
|---|---|---|---|
| WSHT-2 | 100 | 15.3 | 56*28*48 |
| WSHT-3 | 50 | 15 | 44*35*54 |
| WSHT-5 | 40 | 15.2 | 50*34*51 |
| WSHT-8 | 30 | 16.9 | 50*43*49.5 |
| WSHT-12 | 20 | 18 | 57*41.5*53.5 |
| WSHT-15 | 15 | 15.2 | 59*32.5*63.5 |
| WSHT-18 | 15 | 19.4 | 58*38*63 |
| WSHT-24 | 10 | 15.8 | 60*38*58.5 |
