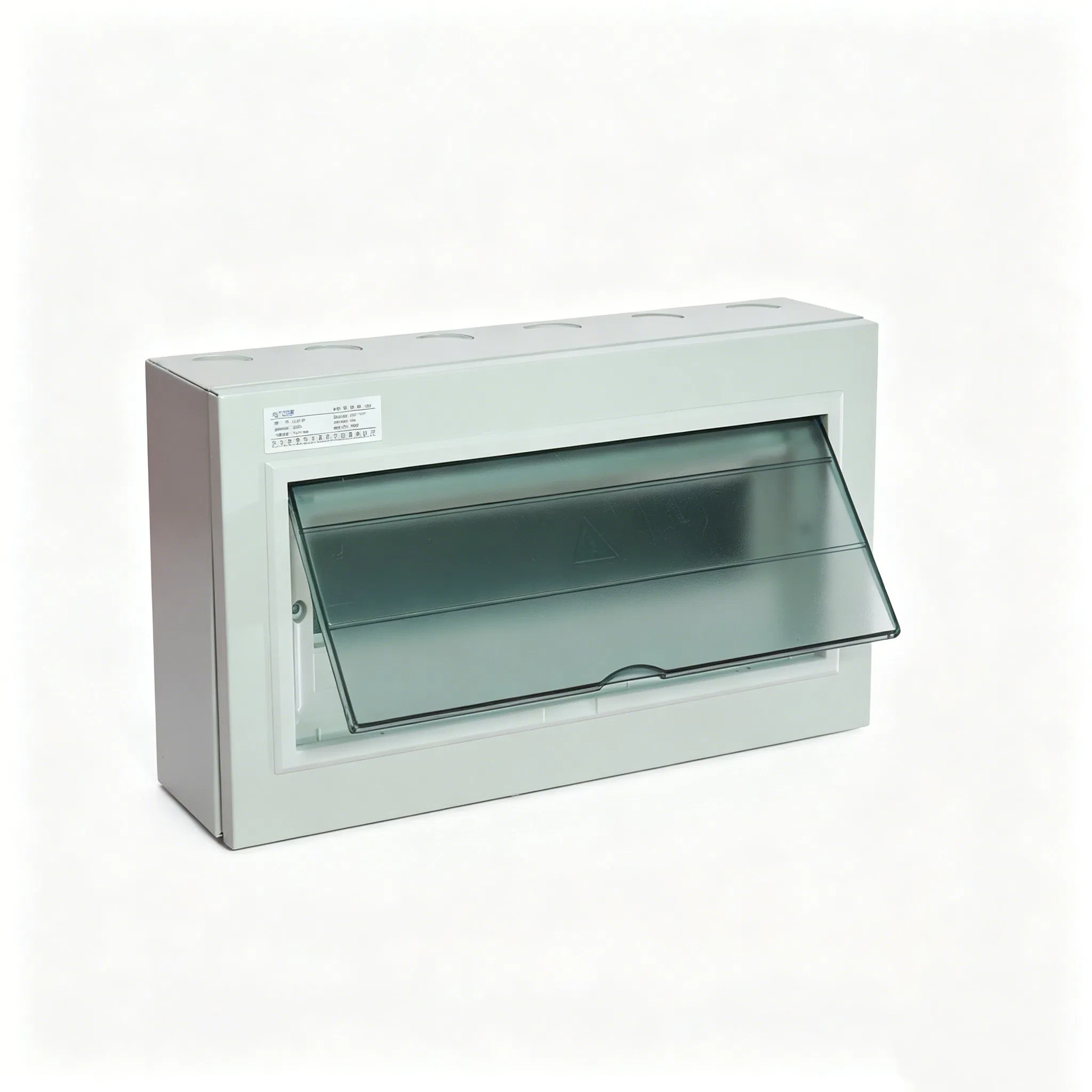

Universal Pz30 Lighting Distribution Electric Box for Residential Industrial

1 / 5

Universal Pz30 Lighting Distribution Electric Box for Residential Industrial

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview
Product Description
Functional Advantages
Specification
FAQ

Basic Info.

Model NO.

PZ30

Form

Partly-welded Type

Operation Voltage

Low Voltage

Size

Customized

Application Range

High-rise Buildings

Shell Material

Steel Plate

Shell Protection Grade

IP65

Product Name

Pz30 Distribution Box

Model No.

Pz30

Ground Row

3-8 Holes

Mounting Type

Wall-Mounted

Material

PC/ ABS/ Steel Plate

Frequency

50Hz

Installation Method

Surface-Mounted

Size Customization

Fully Customizable

Surface Treatment

Powder Coating

Steel Thickness

0.8mm

Peculiarity

Dustproof/Waterproof/ Corrosion-Proof

Body Color

off-White

Rated Current

63 a

Transport Package

Cartoon Packaging or Customized

Specification

4-39 Ways

HS Code

853890000

Production Capacity

100000sets/Year

Product Description

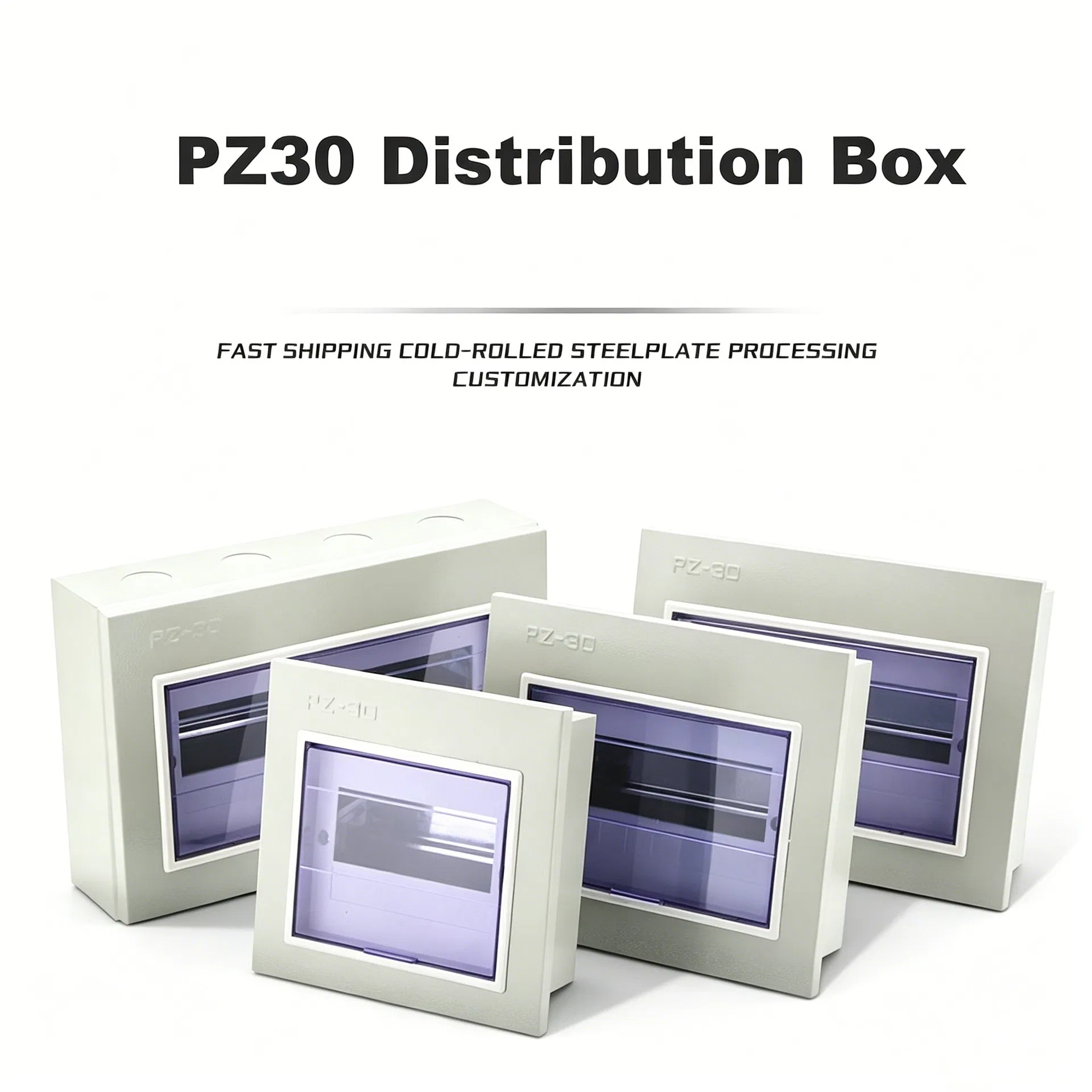

PZ30 DISTRIBUTION BOX

Combination illuminating distribution box is suitable for distribution control of modern buildings,such as large stores,guesthouse,stations,commercial net points,laboratories,factories and enterprises,used in AC 50-60hz,below 500V illuminating and mini power controling circuit as over current,overload and short circuit protection and frequency switch under the rated working state,1way to 45ways are available.

This Series Flush Type and Surface Type Suitable for indoor use, meanwhile, the plastic-sprayed surface has a stylish appearance.

Products are available for the installation of terminal substitution rail, button box, small terminal, sigal, relay and sensor, communication and joint box etc.

Funcational Advantages

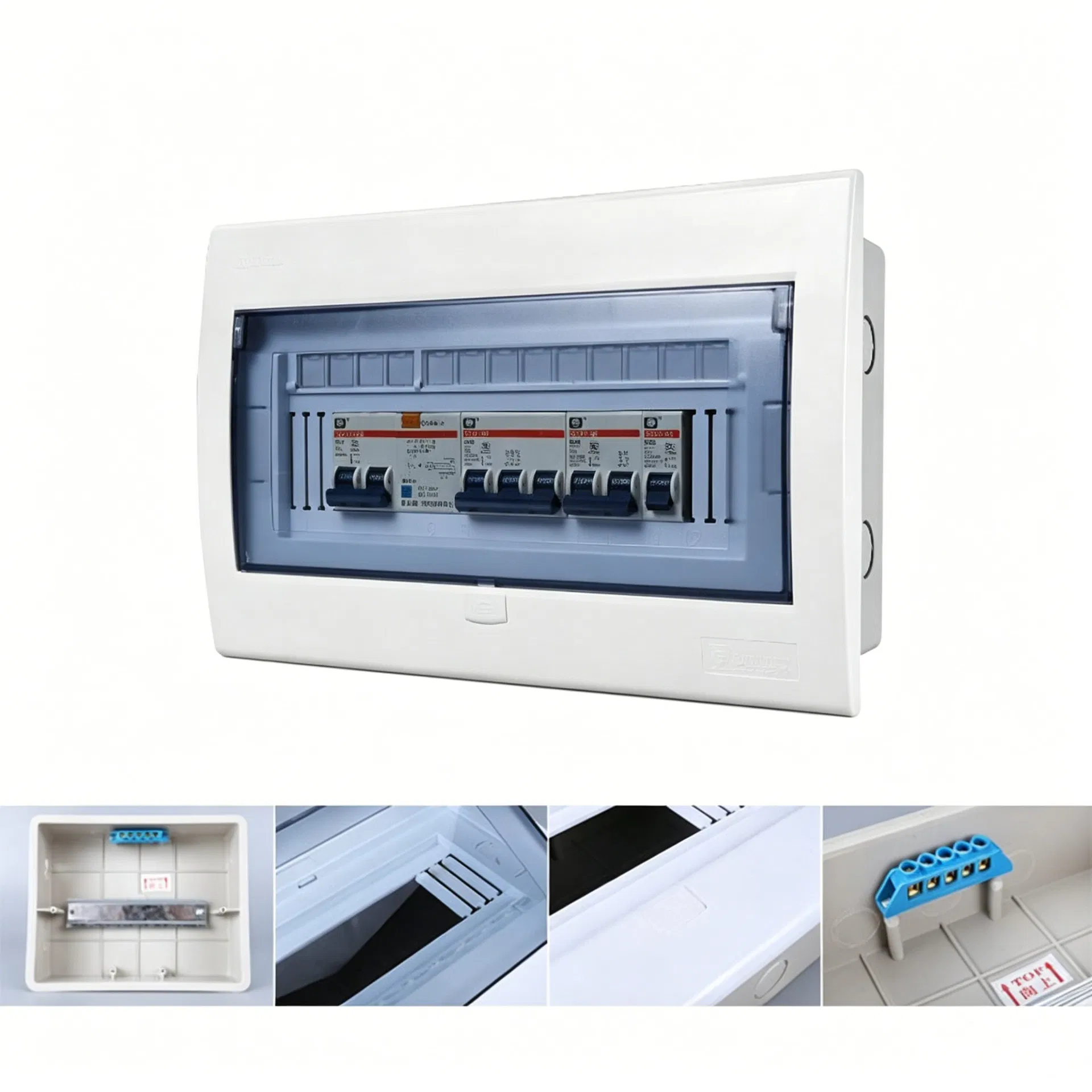

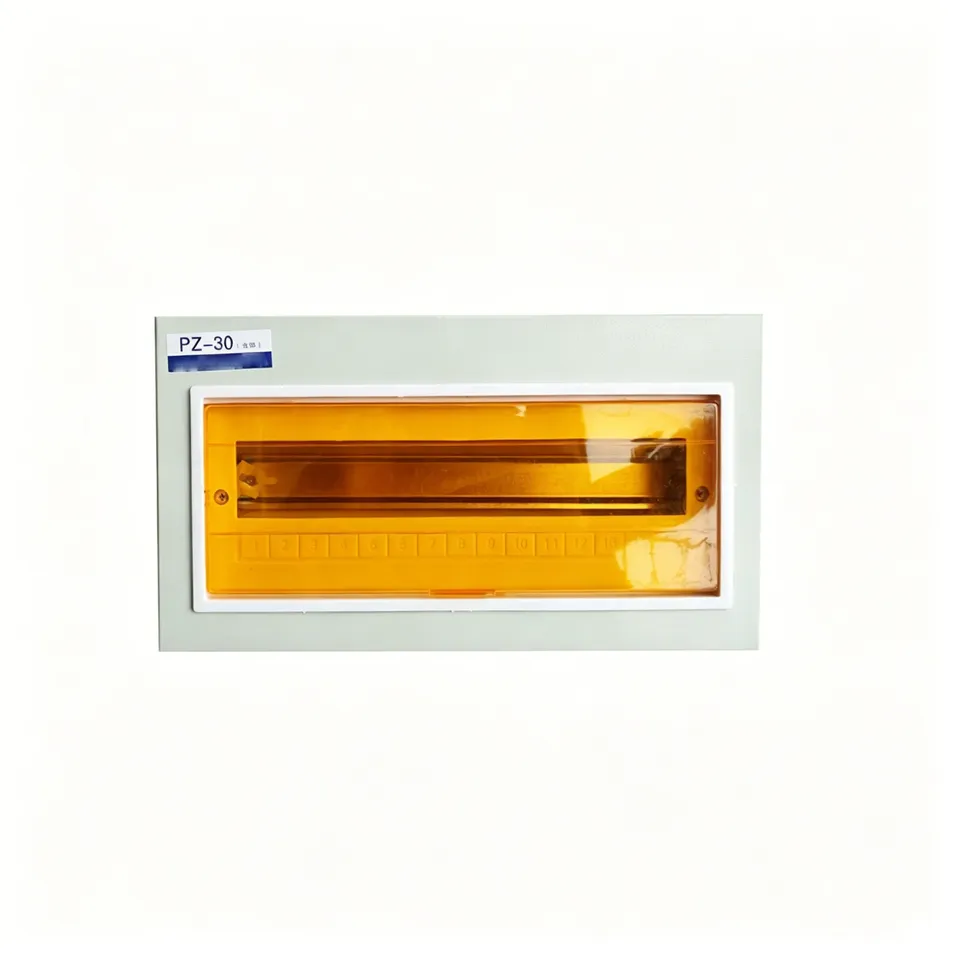

Universal Pz30 Lighting Distribution Electric Box detail view

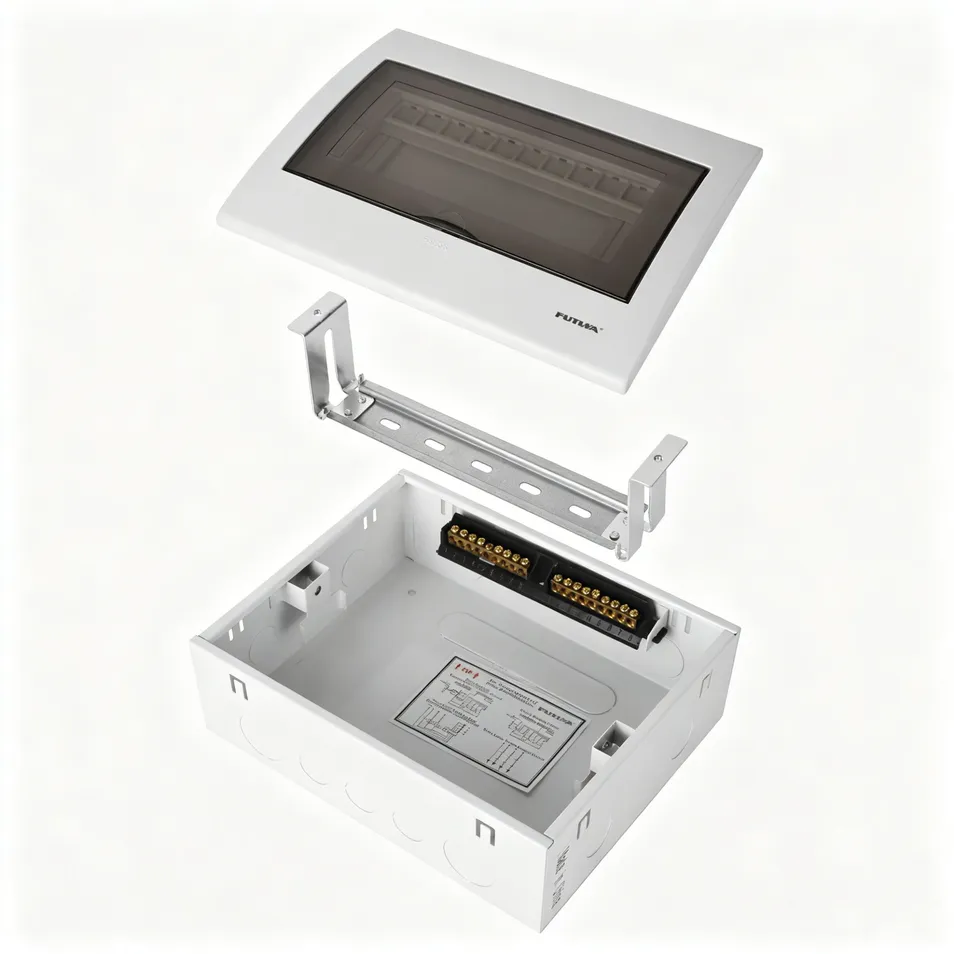

Universal Pz30 Lighting Distribution Electric Box inner component

High impact resistance material: HIPS, ABS, ABS-UV Fire Resistant
Automatically open and lock of lid, control by pressing the on-off button on the cover
Safe and full material copper terminal

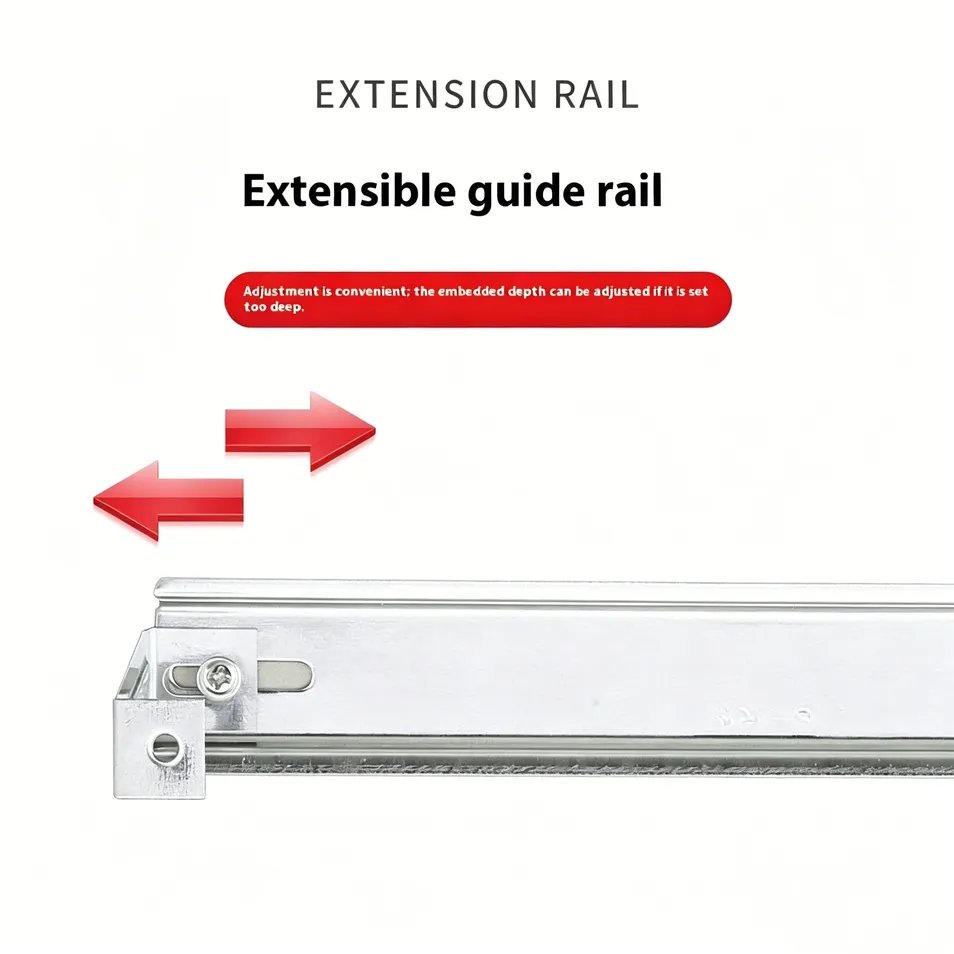

Adjustable din-rail: move ascend and descend

Ultra-large space box for moving and easy wiring

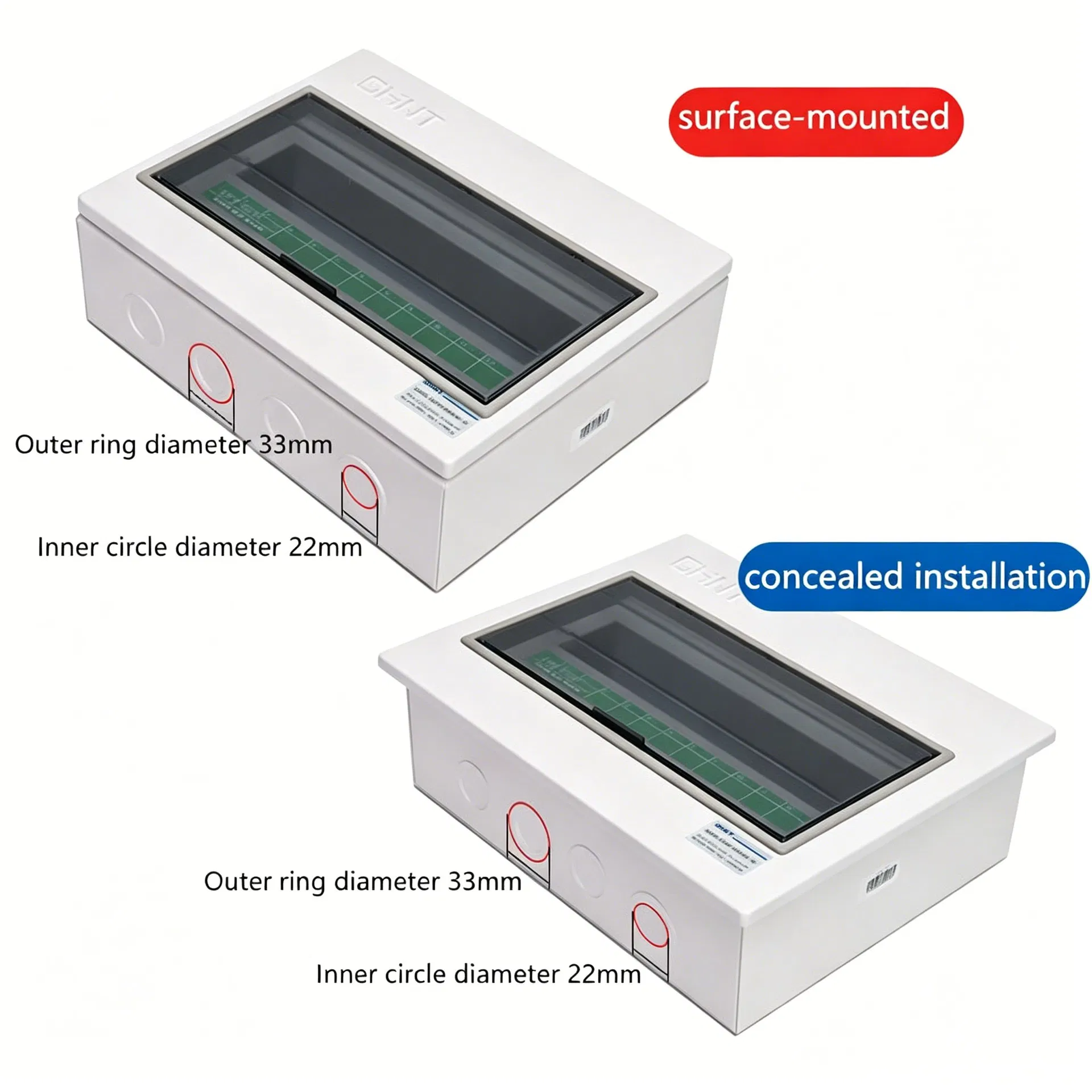

Flush mounting and surface mounting available
Function of Distribution box: leakage of electricity, overload, short-circuit.
Application: widely used in low voltage distribution networks for power supplying of consumers and commercial buildings, etc.

Specification

TECHNICAL PARAMETERS
Product Name	IP65 Waterproof Distribution Box
Protection Grade	IP65 rated, dustproof and water-resistant, suitable for outdoor use
Enclosure Material	High-strength PC (polycarbonate), flame-retardant, impact & UV resistant
Cover Type	Side-hinged cover for convenient access and maintenance
Mounting Method	Wall-mount with pre-drilled holes and multiple cable entry knockouts
Internal Structure	Built-in 35mm standard DIN rail with terminal blocks
Application	Indoor/outdoor distribution, solar systems, gate controls, lighting, HVAC
Temperature Range	-25°C ~ +60°C (depending on material and sealing)
Cover Options	Transparent/semi-transparent options for easy inspection
Certification	CE, RoHS available upon request
Waterproof Seal	Integrated waterproof seal for tight and secure closure

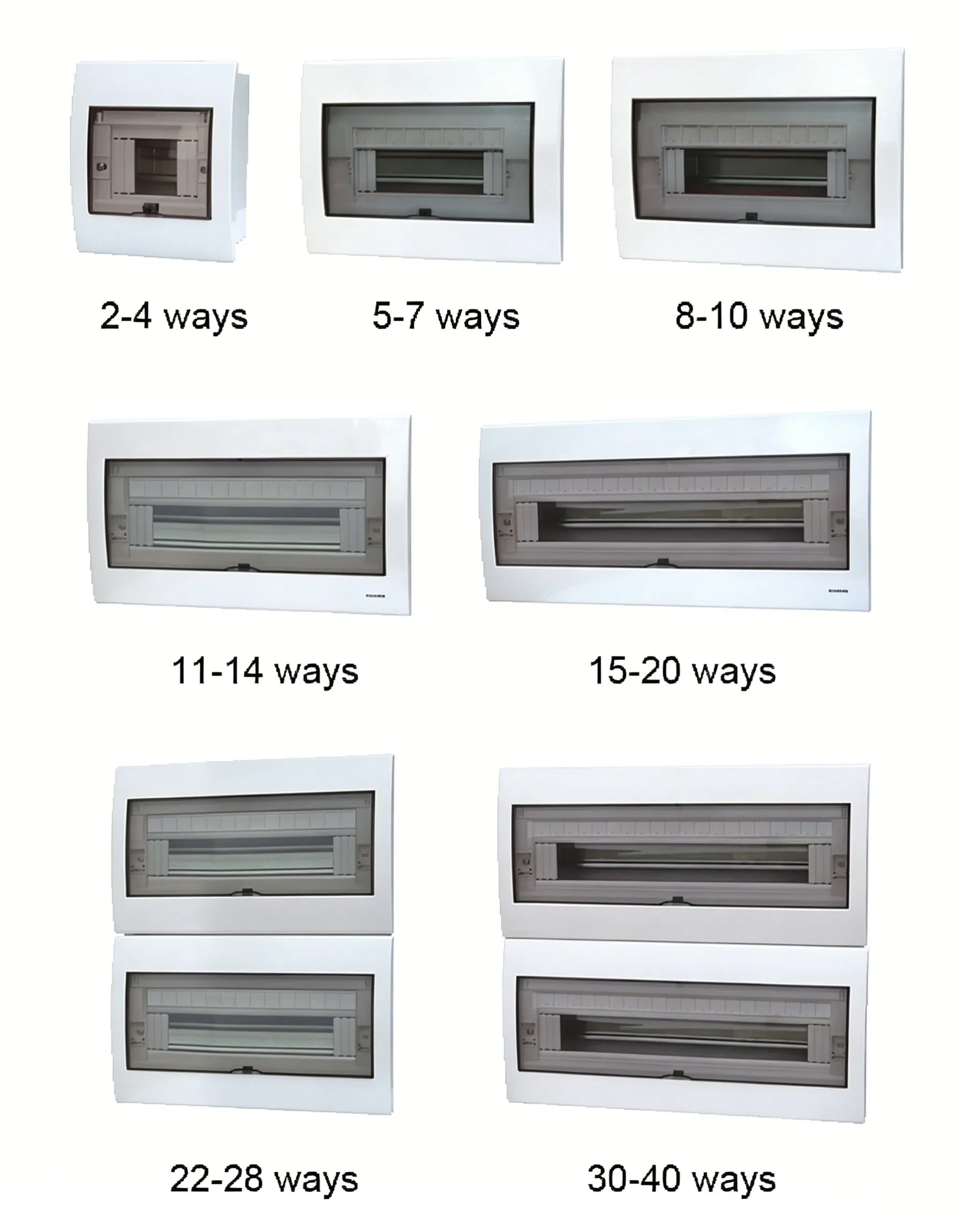

Specification	L	W	H
2ways	90	140	60
4ways	112	210	100
6ways	148	210	100
8ways	184	210	100
10ways	222	210	100
12ways	256	210	100
15ways	312	210	100
18ways	364	222	100
24ways	270	325	100
36ways	305	473	100
45ways	473	326	100

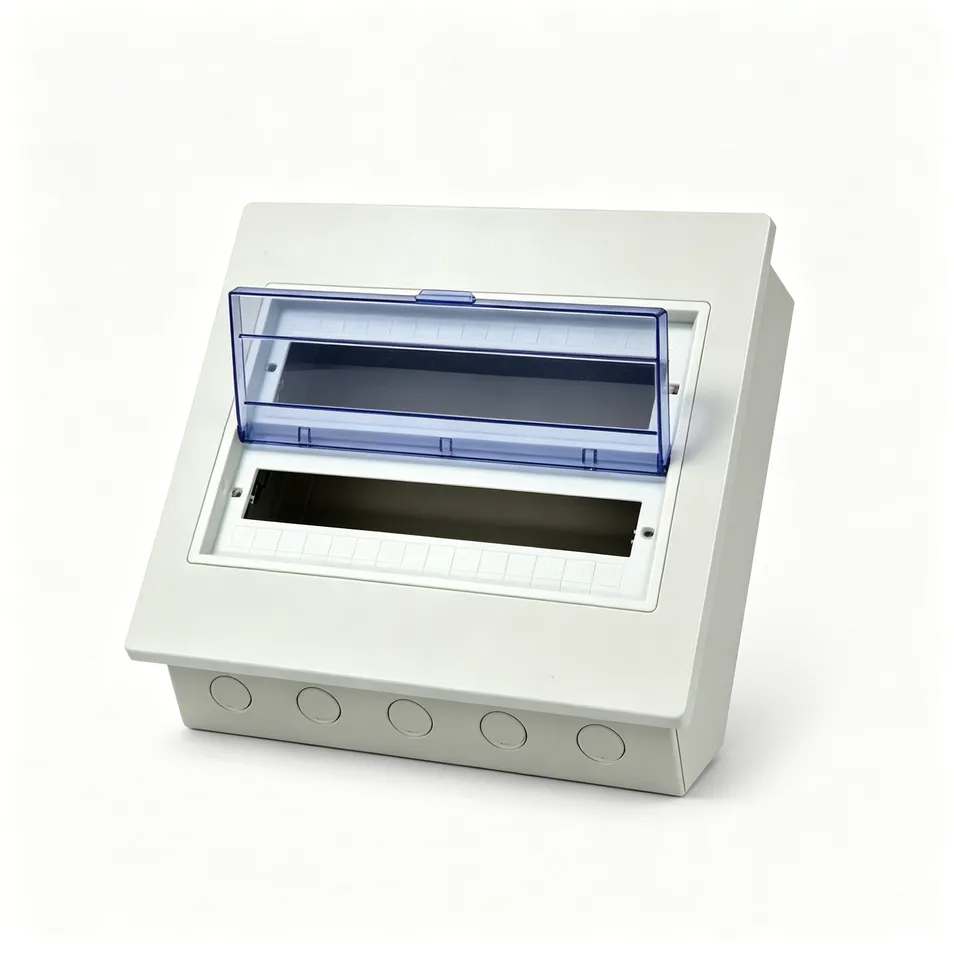

Universal Pz30 Lighting Distribution Electric Box installation environment

Use environment and conditions

The altitude does not exceed 2000m;
The ambient air temperature should not exceed + 40 ° C and not lower than -25 °C.
At + 20° C, the monthly average relative humidity of the air is not more than 40%.
A place free from severe vibration and shock.
There is no explosive hazard, no gas and conductive dust in the medium that can corrode metals and damage insulation.

FAQ

Q1: Are you a factory or a trader?

A: We are a manufacturer integrating industry and trade.

Q2: Can I add my LOGO to the product?

A: We support on-demand customization, including LOGO customization, color customization, appearance size customization, etc.

Q3: What payment methods do you support?

A: We support T/T, Western Union, PayPal, cash, etc. The details can be negotiated.

Q4: What are your modes of transportation?

A: We usually choose the appropriate mode of transportation (sea, air, land) according to the conditions of the goods, or we can choose the mode of transportation according to your requirements.

Q5: How can I get an accurate quotation?

A: You can first send your specific demand information and product pictures, and we will customize a solution for you according to your needs and inform you of the specific price.

Q6: What is the protection grade and suitability of the PZ30 distribution box?

A: The protection grade is IP65 (dustproof/waterproof/corrosion-proof). It is widely used in low voltage distribution networks for supplying power to consumers, commercial buildings, high-rise buildings, etc.
