Professional Complete Set of Power Distribution Cabinet Customization and Engineering Supporting Services
We are deeply engaged in the industrial electrical field, focusing on the core business of customizing complete sets of power distribution cabinets. We provide new factory supporting services, old factory renovation and special scenario adaptation services. With precise customization, efficient delivery and reliable quality, we empower customers to achieve safe commissioning and cost reduction & efficiency improvement.
Core Business and Supporting Services
Focusing on full-scenario needs, we offer three core services: new factory construction supporting (power planning adaptation, power distribution cabinet customization, project node coordination, connecting architectural and new energy needs to assist in early commissioning); old factory power distribution renovation (old cabinet replacement, energy efficiency optimization, designed with "minimum downtime" to balance safety and economy); special scenario customization (deeply rooted in new energy, chemical industry and other fields, customizing power distribution cabinets with high and low temperature resistance, corrosion resistance and dust-free performance to adapt to extreme working conditions).
Core Advantages of Complete Set Cabinet Customization

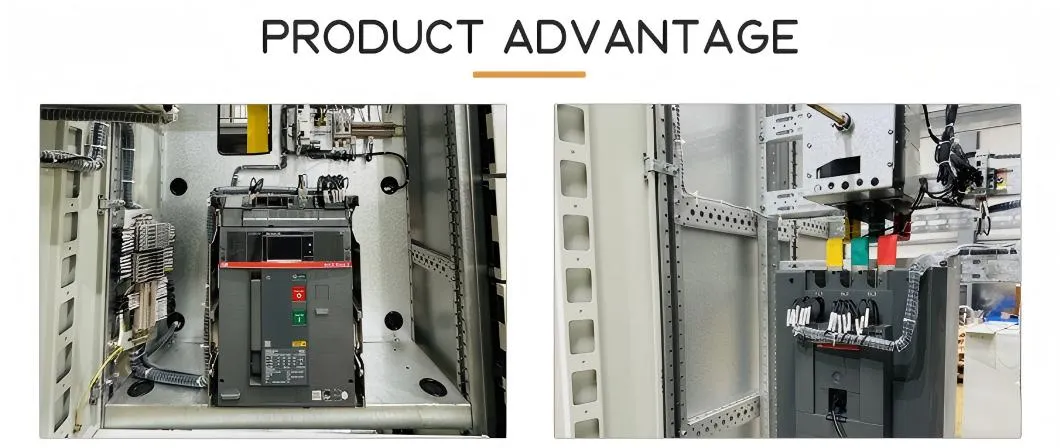

We professionally manufacture a full range of products including high and low voltage switchgear components, distribution boxes and control boxes, which can be accurately adapted to industrial, commercial, municipal and special scenarios on demand. We support a minimum order quantity of 1 unit, achieve 30-day fast delivery relying on an efficient supply chain, and provide full-process product service support from scheme design to finished product delivery.
Quality and Service Commitments

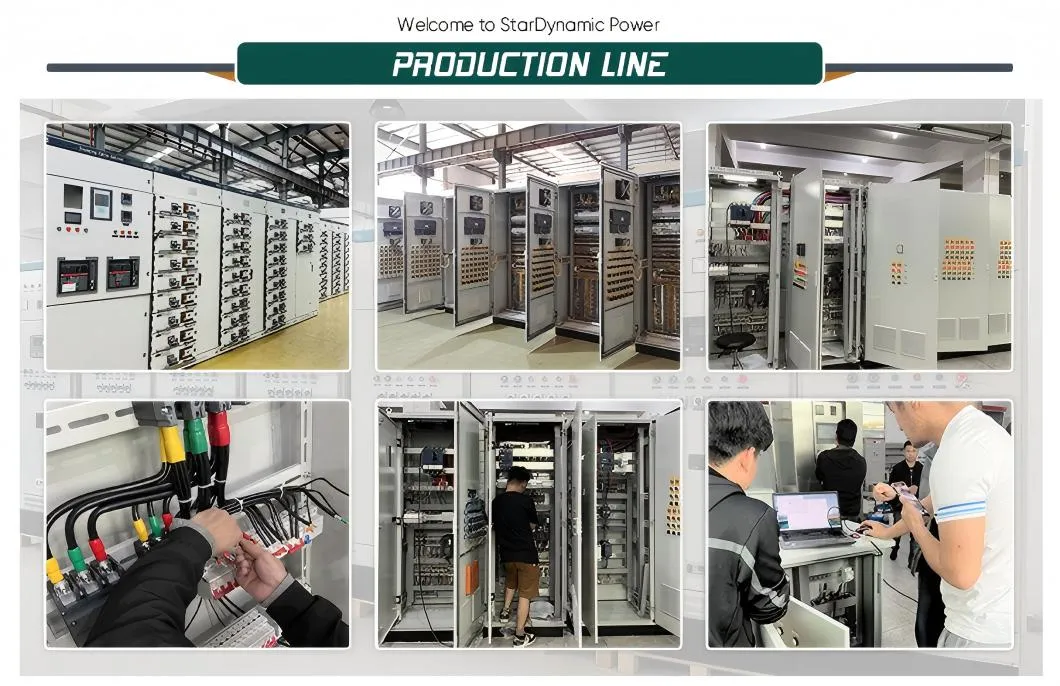

We strictly control all links of production and factory commissioning to ensure stable operation of cabinets; establish a rapid response mechanism to fully connect with customer needs, and provide full-cycle services from consultation to delivery, ensuring worry-free cooperation.
With professional customization capabilities and efficient services, we strive to be your trustworthy industrial electrical equipment partner and help your projects land efficiently.
3 Phase Power Distribution Cabinet

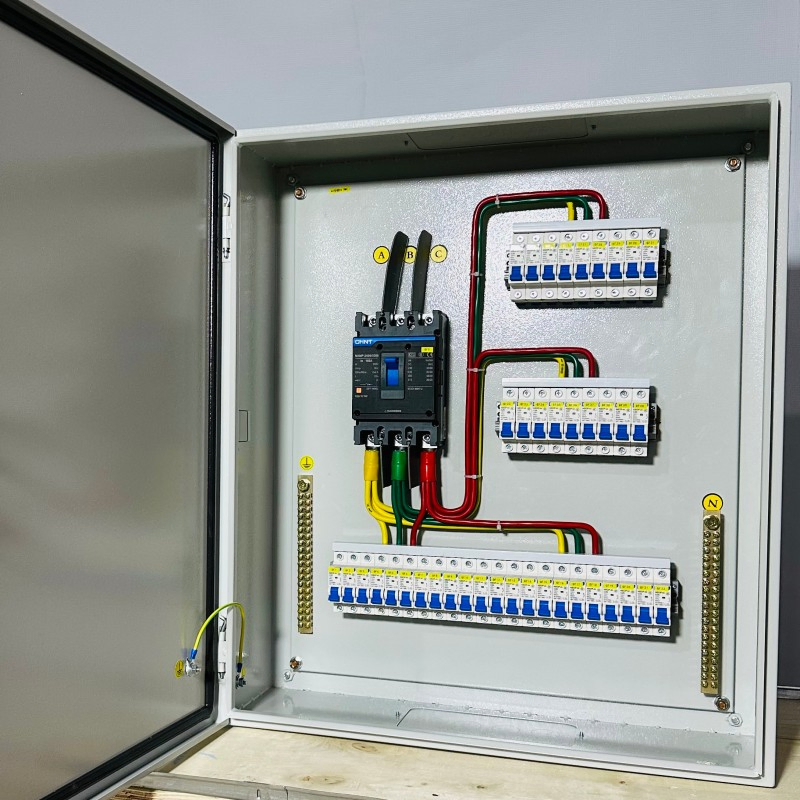

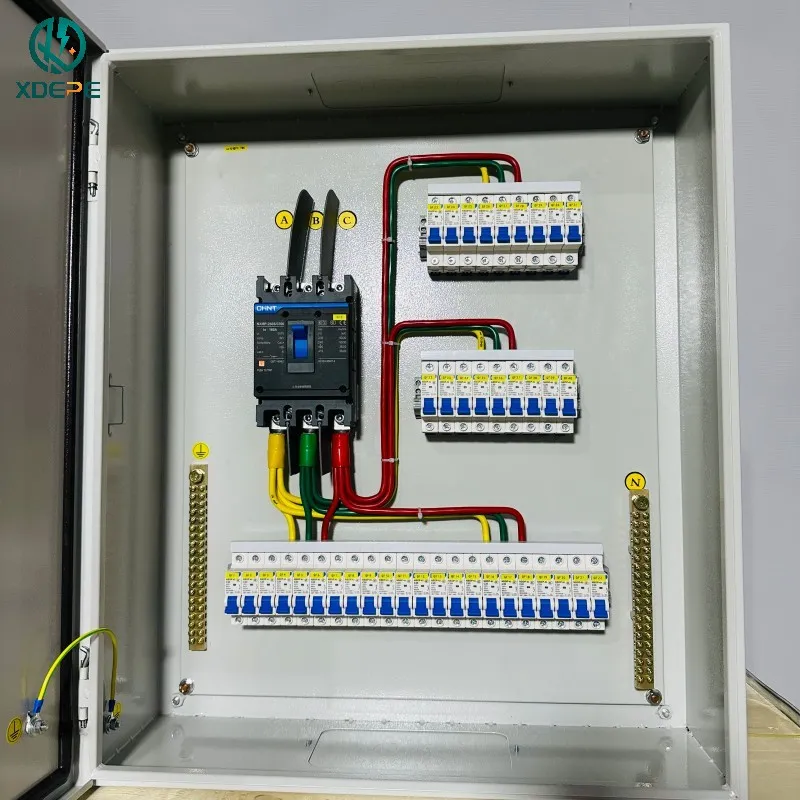

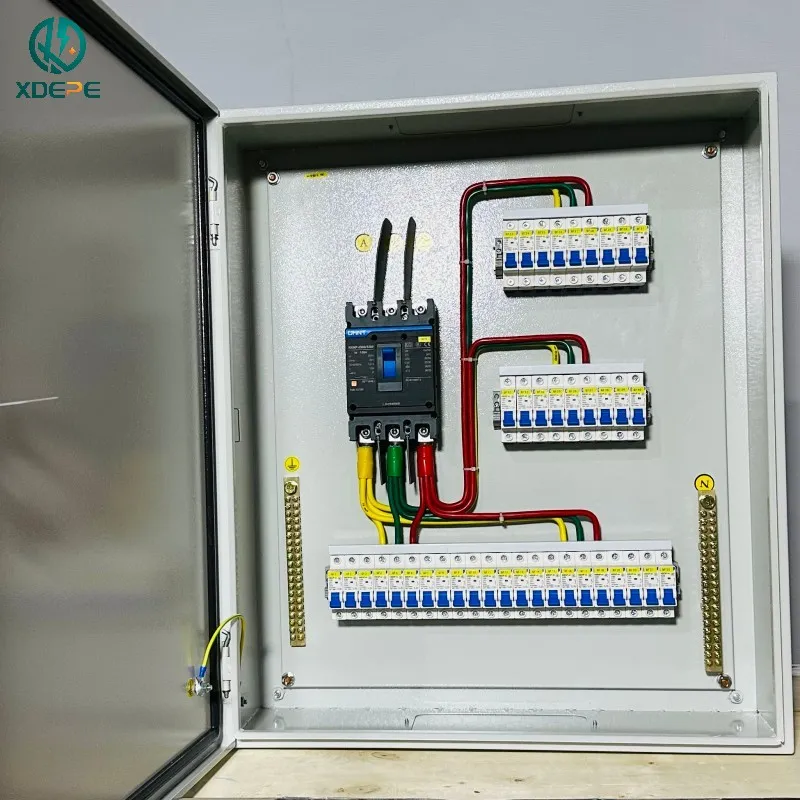

Internal Structure:

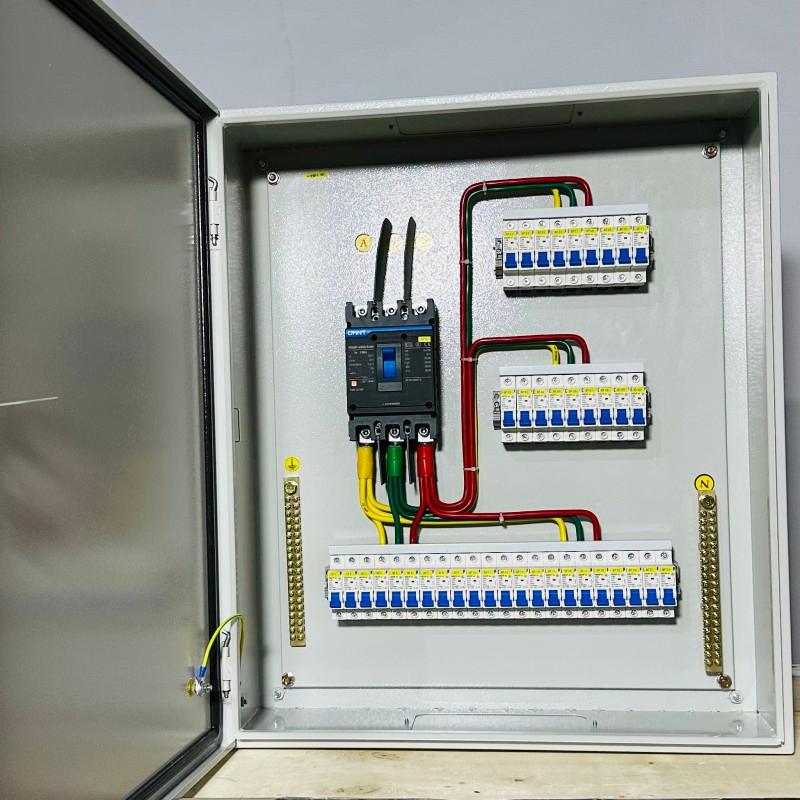

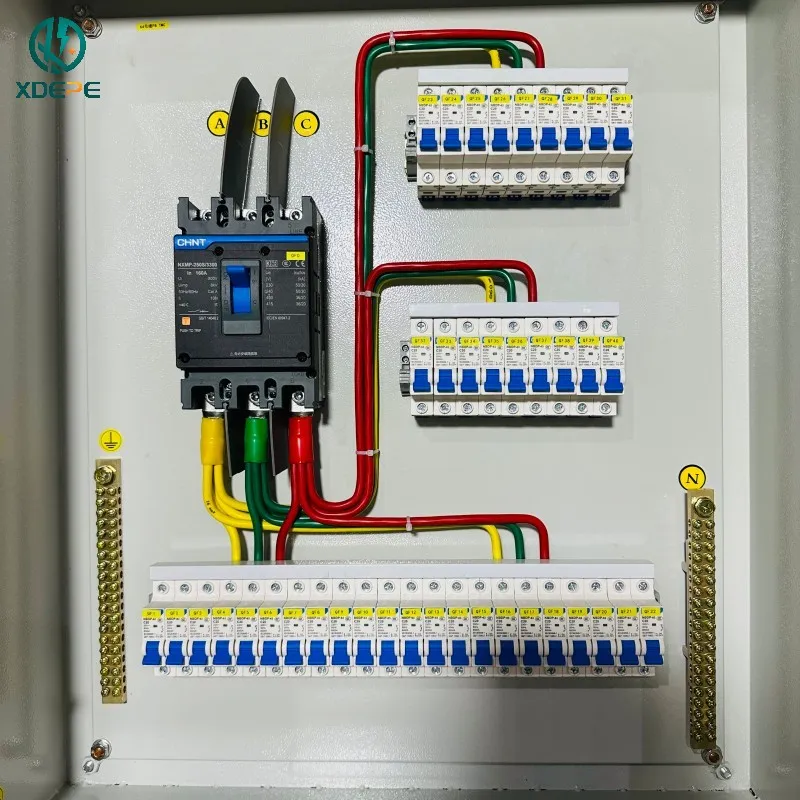

The distribution box is equipped with high-quality, brand-name components for reliable power distribution and protection. It features a CHNT molded case circuit breaker (MCCB) as the main switch, offering robust overload and short-circuit protection for the entire system. The main breaker feeds power to three banks of miniature circuit breakers (MCBs), which provide individual control and protection for each branch circuit. All live conductors are clearly color-coded: yellow, green, and red for the three phases (A, B, C). A dedicated PE (protective earth) terminal bar and an N (neutral) terminal bar are provided for safe grounding and neutral connections, ensuring compliance with standard electrical codes.
Selling Points:
This distribution box is designed for safety, durability, and ease of use. The enclosure is made of high-quality steel with a powder-coated finish, providing excellent corrosion resistance and mechanical strength. All wiring is neatly organized and routed, minimizing clutter and simplifying maintenance. The box door is fitted with a rubber gasket for dust and water resistance, and an earthing strap connects the door to the main enclosure for added safety. The layout ensures even distribution of the three phases to prevent unbalanced loads, while clearly labeled terminals and color-coded wires reduce installation errors.
Application Scenarios:
This three-phase distribution box is suitable for a wide range of commercial and industrial applications. It is commonly used in factories, workshops, office buildings, shopping malls, and residential complexes to distribute power to lighting circuits, power outlets, and small machinery. It can also be deployed in construction sites, warehouses, and public facilities, providing a safe and organized solution for power distribution and circuit protection in environments that require reliable electrical infrastructure.
| Specific parameters |
Details Description |
| Protection level |
Usually IP30 IP40,IP54 |
| Cabinet material |
Generally, high-quality cold-rolled steel plates with a thickness between 1.2-2.0mm are used |
| External dimensions |
The height is generally 2200mm and can be customized according to needs |
| Rated working voltage |
Common 380V, 400V, 660V, etc., suitable for different power system requirements |
| Rated insulation voltage |
Generally 660V or 1000V to ensure electrical insulation performance |
| Rated frequency |
50Hz or 60Hz, matching different regional power grid frequencies |
| Rated current of busbar |
From 630A to 5000A |
| Short circuit withstand current |
Divided into different levels, such as 25kA, 31.5kA, 40kA, 50kA, etc |

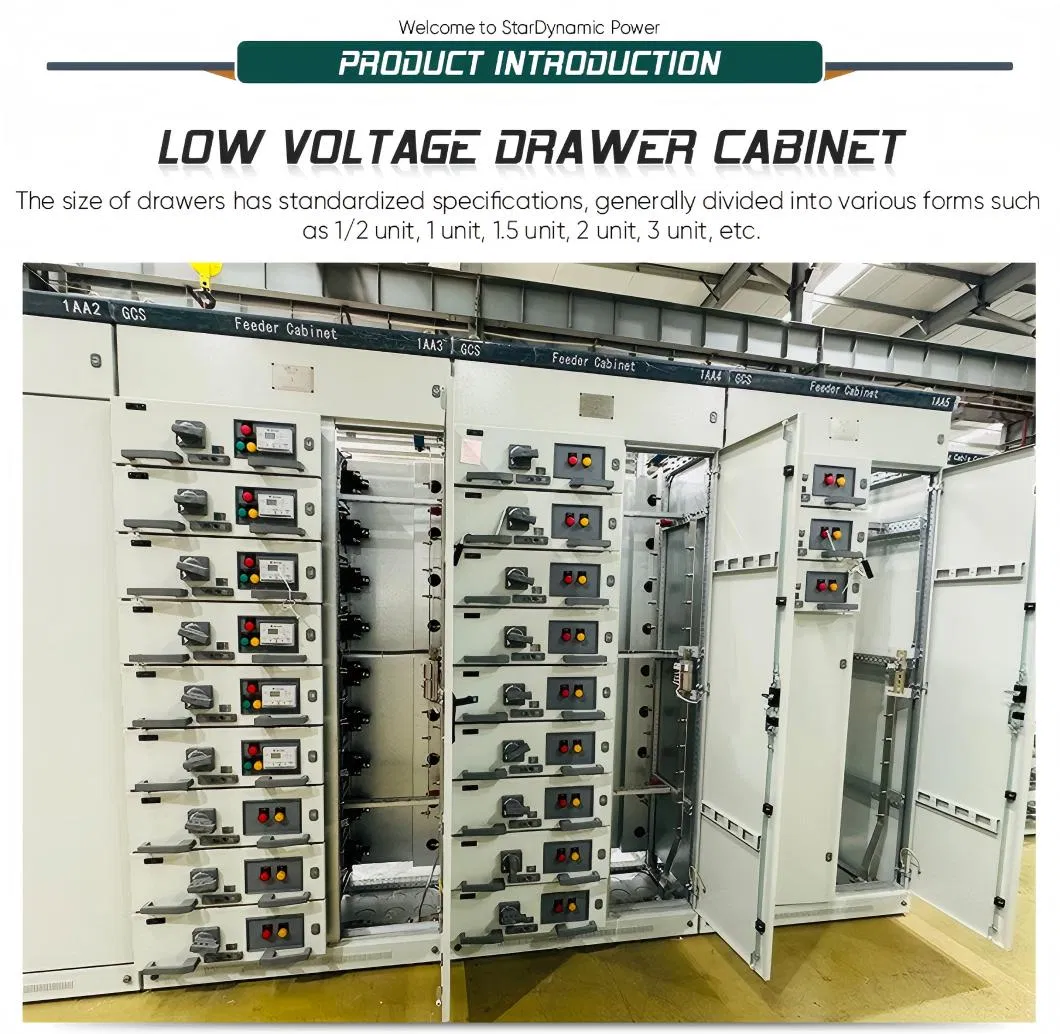

| Drawer Size |
1/2 unit, 1 unit, 1.5 unit, 2 unit, 3 unit |
| Rated current of drawer |
100A - 1600A |
| Mechanical lifespan |
Not less than 2000 times |
| Electrical lifespan |
Not less than 1000 times |
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer. Our factory is equipped with advanced production facilities to specialize in customizing complete sets of power distribution cabinets and switchgear components.
What products can I purchase from you?

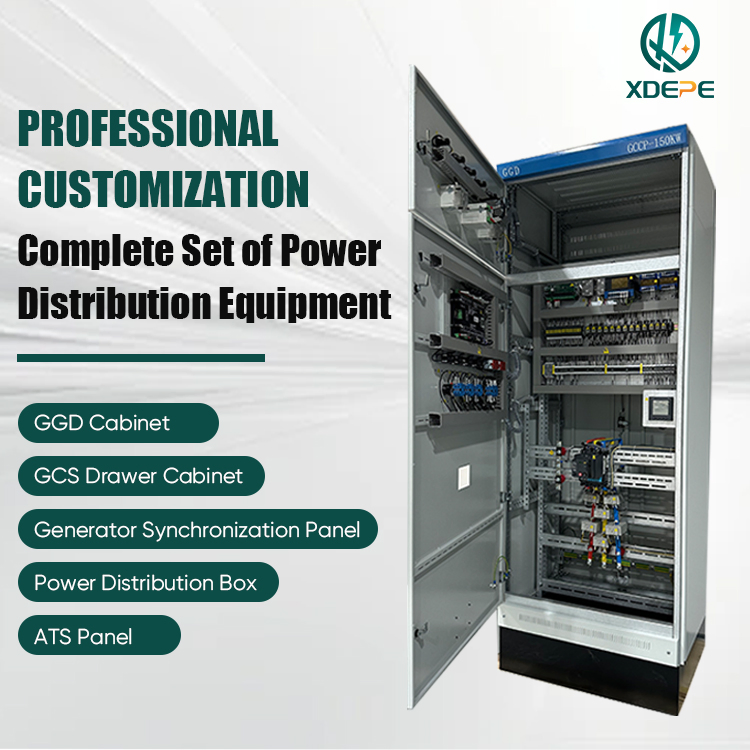

We offer a complete set of low voltage distribution cabinets, drawer cabinets, distribution boxes, electrical cabinets, power cabinets, ATS cabinets, generator synchronization panels, and medium/high voltage switch cabinets.
How can I place an order with you?
Please provide us with detailed technical specifications, a single line diagram (SLD), or related technical drawings. Our technical and sales teams will analyze your requirements and provide you with a customized quotation.
How is the price of the distribution cabinets calculated?
The price is comprehensively calculated based on your specific configuration requirements, component specifications, quantity, and design complexity. Please reach out to us with your requirements for an accurate proposal.
What is the lead time for quotation and production?
We provide a quotation within 2 days after receiving complete specifications. Generally, sample production takes around 15 days, and mass production takes 25 to 30 days depending on the project scale and order quantity.
What payment terms do you support?
We accept flexible payment terms, including irrevocable L/C at sight, and T/T with a 30% deposit upfront and the remaining 70% balance settled once the goods are ready for delivery.
