| HT product parameters | |||||
|---|---|---|---|---|---|
| Specifications | Size CM | Product weight g | Packing quantity | Dimensions | Volume |
| SHPN-4WAY | 5.4*12*9 | 369 | 100 | 56*36*44.5 | 0.046 |

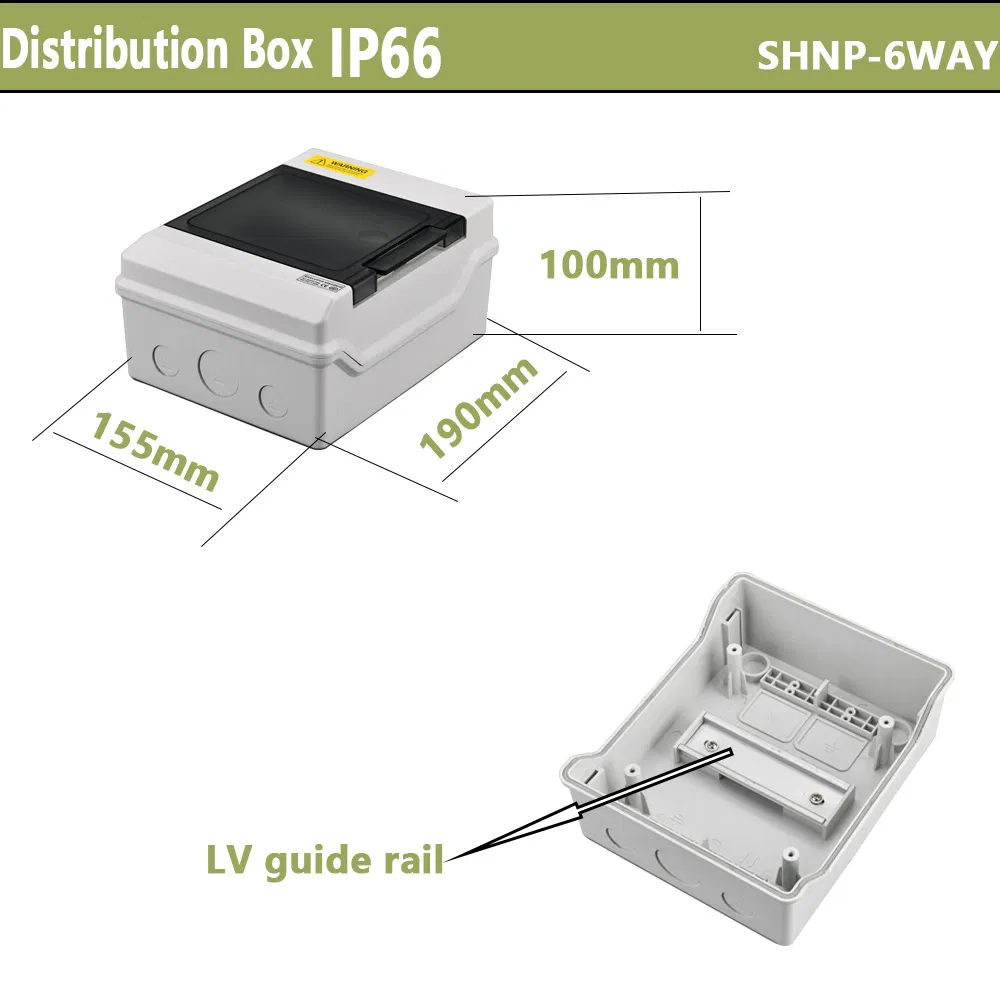

| SHPN-6WAY | 15.5*19*10 | 500 | 20 | 56*36*44 | 0.086 |
| SHPN-9WAY | 21*19*10 | 625 | 20 | 56.5*43*47.5 | 0.1 |
| SHPN-12WAY | 26.5*22*11 | 855 | 20 | 61.5*49*59 | 0.141 |
| SHPN-18WAY | 37*22*11 | 1132 | 20 | 65*32*57 | 0.129 |
| SHPN-24WAY | 26.5*37*11 | 1386 | 10 | 65*37.5*57 | 0.151 |
| SHPN-36WAY | 37*37*11 | 2126 | 10 | 57.5*37.5*57 | 0.109 |
Q1: What is the protection rating of the SHPN series distribution box?
A1: The SHPN series offers a protection grade of IP65/IP66, ensuring reliable protection against water, rain, and dust in both indoor and outdoor environments.

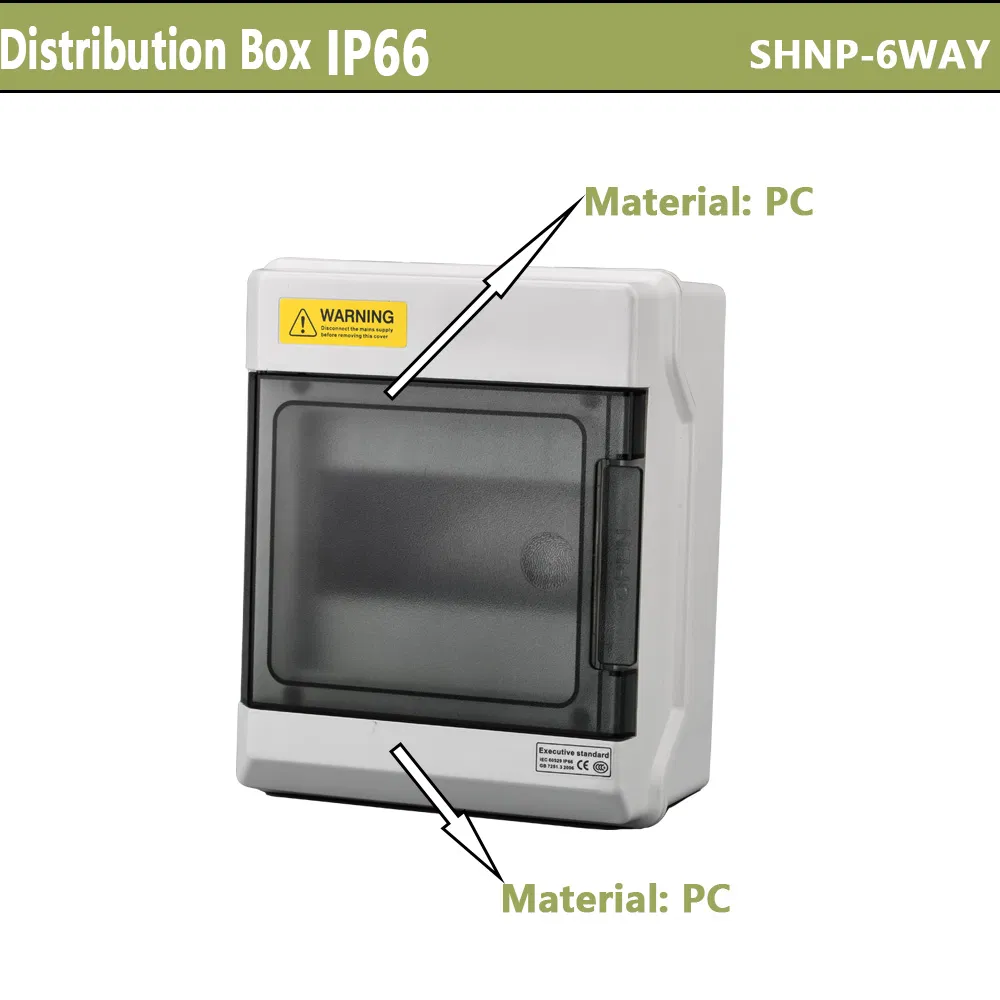

Q2: What materials are used for the window and the shell?
A2: The transparent window is made of durable PC (polycarbonate) material, while the shell options include ABS and Alloy materials to deliver high impact resistance.
Q3: How many ways/modules can this product range accommodate?
A3: The series spans multiple specifications including 4-way, 6-way, 9-way, 12-way, 18-way, 24-way, and 36-way options to suit different distribution requirements.
Q4: What are the typical application ranges for these distribution boards?
A4: They are widely applied in low voltage operations, power plants, and residential or commercial circuit breaker installations.
Q5: Is it suitable for surface mounting?
A5: Yes, the SHPN series is designed for surface mounting, making installation simple and straightforward on wall surfaces.
