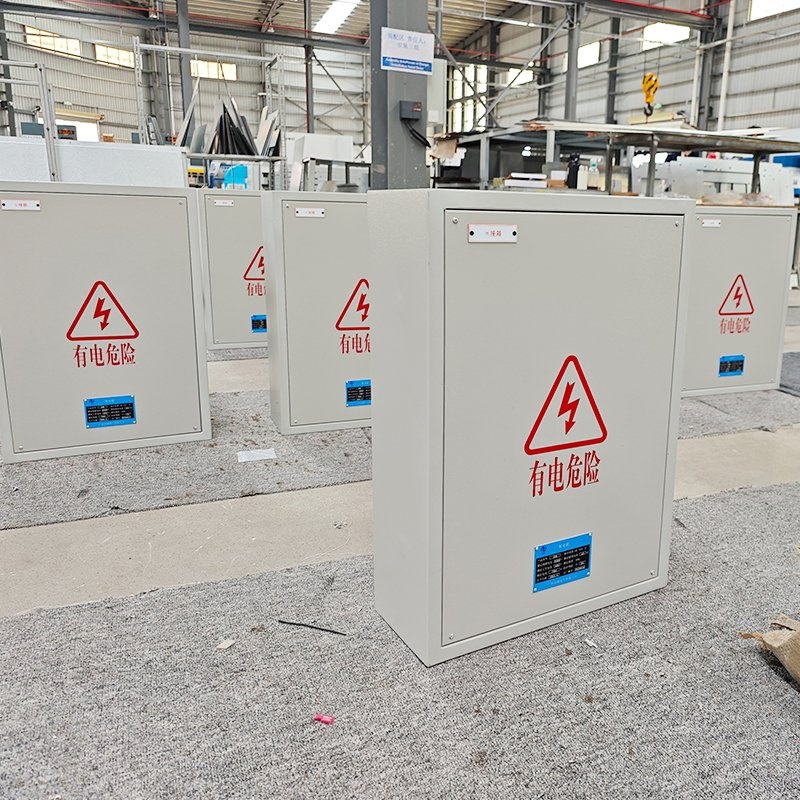

Smart Remote-Monitored Power Distribution Box Equipped with Precision Breaker

1 / 5

Smart Remote-Monitored Power Distribution Box Equipped with Precision Breaker

Customization:	Available
Certification:	ISO9001
Shell Material:	Steel Plate

Send Inquiry

Product Description

Overview
Product Description
Detailed Photos
Specification
Packing & Delivery
FAQ

Basic Info.

Model NO.

Voltage Level

Low Voltage

Installation

Fixed

Structure

Cabinet

Current

Application Range

Power Plants

Shell Protection Grade

IP30

Online Support

Available

Form

All- Packaged Type

Size

1 Uint

Onsite Support

Available

Project Support

Available

Transport Package

Plywood Case

Specification

375*900*1900, 500*900*1900, 750*900*1900

HS Code

8537109090

Production Capacity

5000 Pieces/Year

Packaging & Delivery Info

Package Size

80.00cm * 100.00cm * 150.00cm

Package Gross Weight

80.000kg

Product Description

XM Low voltage distribution box is sorted into lighting and motor control box, including common type, outdoor type, with observation window. Both recess mounting and indoor wall mounting can be supplied according to customer requirement. Meanwhile, a series of structural dimensions are designed to meet the different needs of customers.

Distribution Box Product Overview

This series of products are widely used and can be assembled into control systems with different electrical properties as required such as air conditioning control box, machine tool transmission control box, water pump control box, fire control box, etc.
The box adopts detachable color galvanized (or aluminum zinc coated) mounting plate for easy installation and maintenance. The door plate adopts standard hinge to connect with the box for fast and convenient assembly.
The front of the distribution box can be embedded or hung on the wall for operation and maintenance.
The grounding metal structure shall be designed separately to ensure good grounding, safety and reliability.
The inlet and outlet lines can be installed in different ways up and down according to the user's use conditions, which is convenient and flexibly.

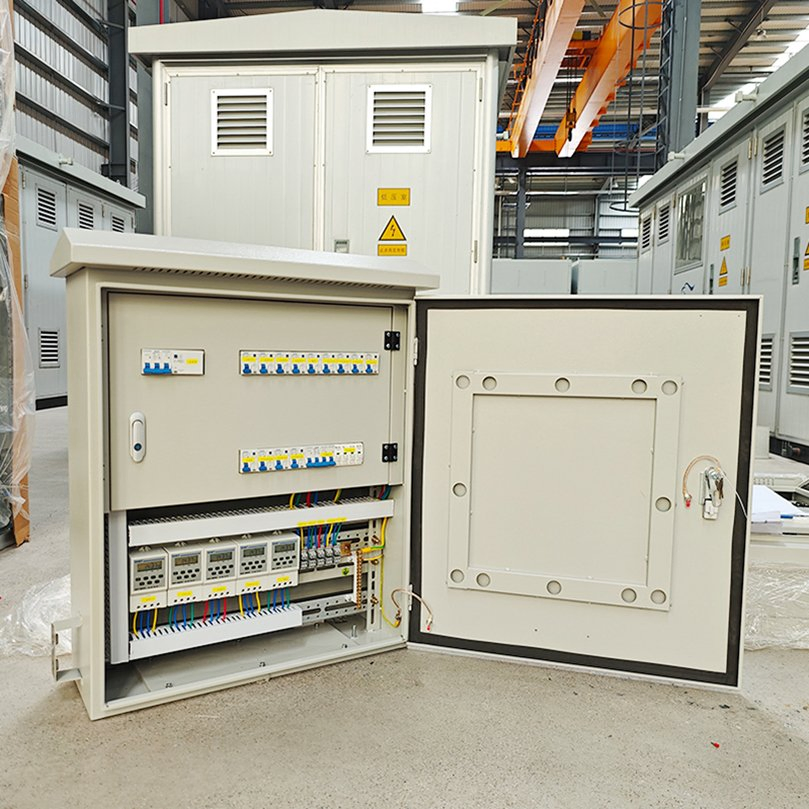

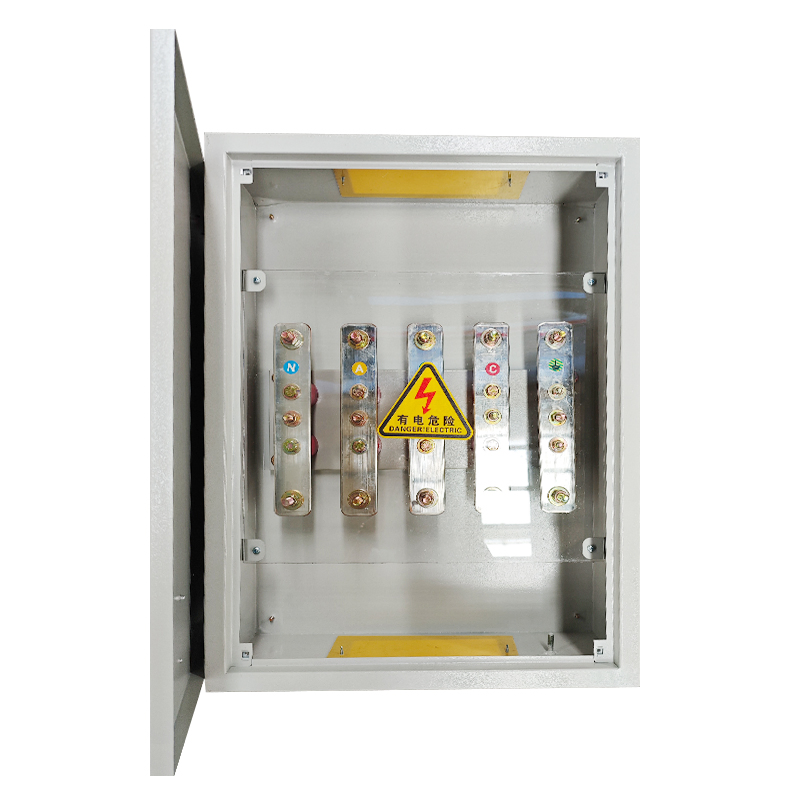

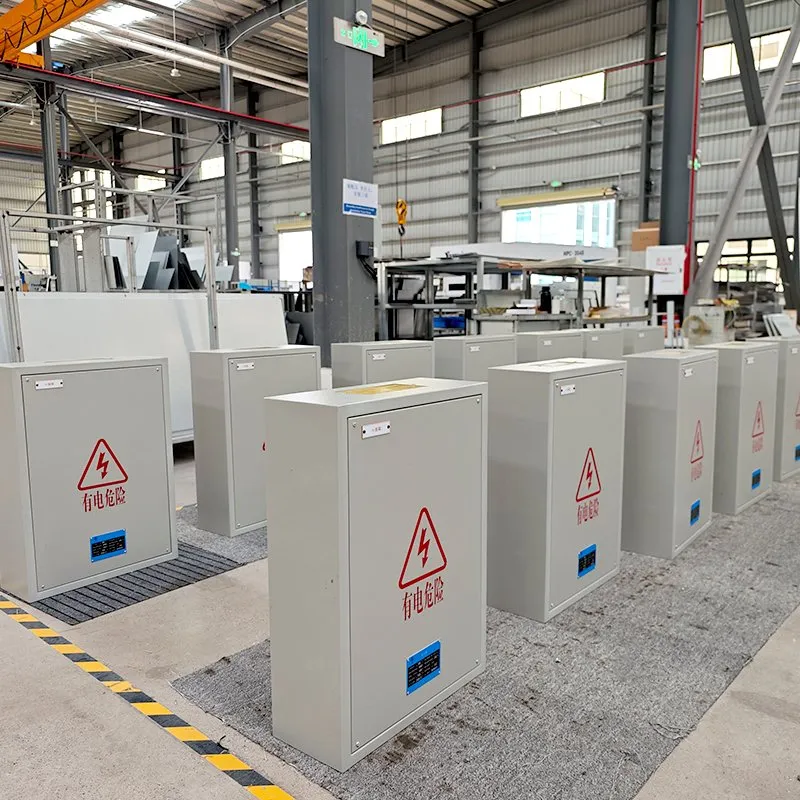

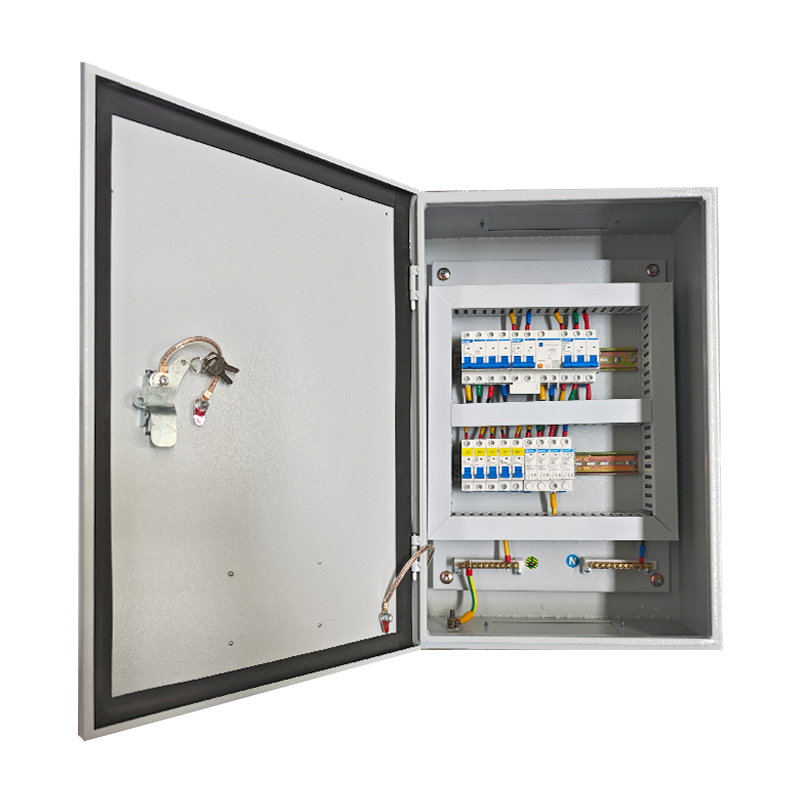

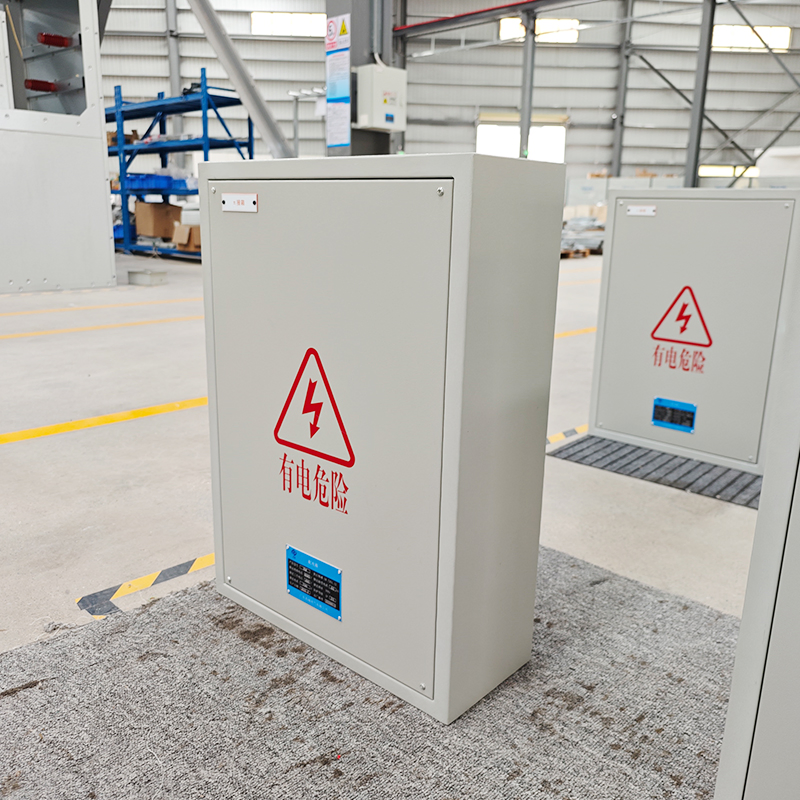

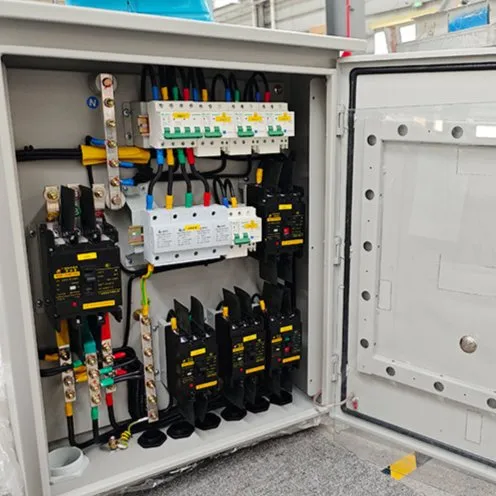

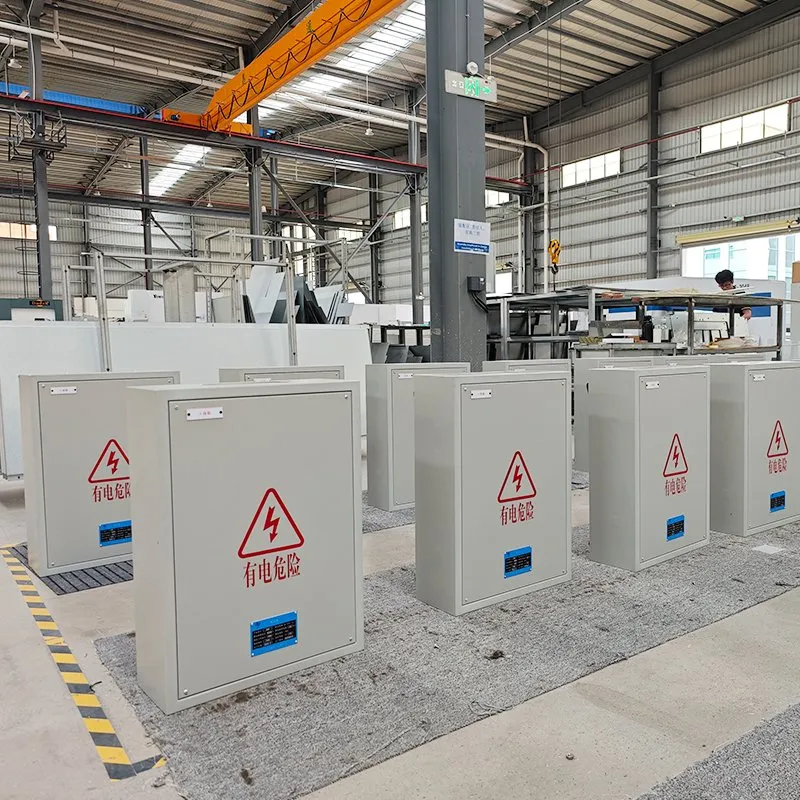

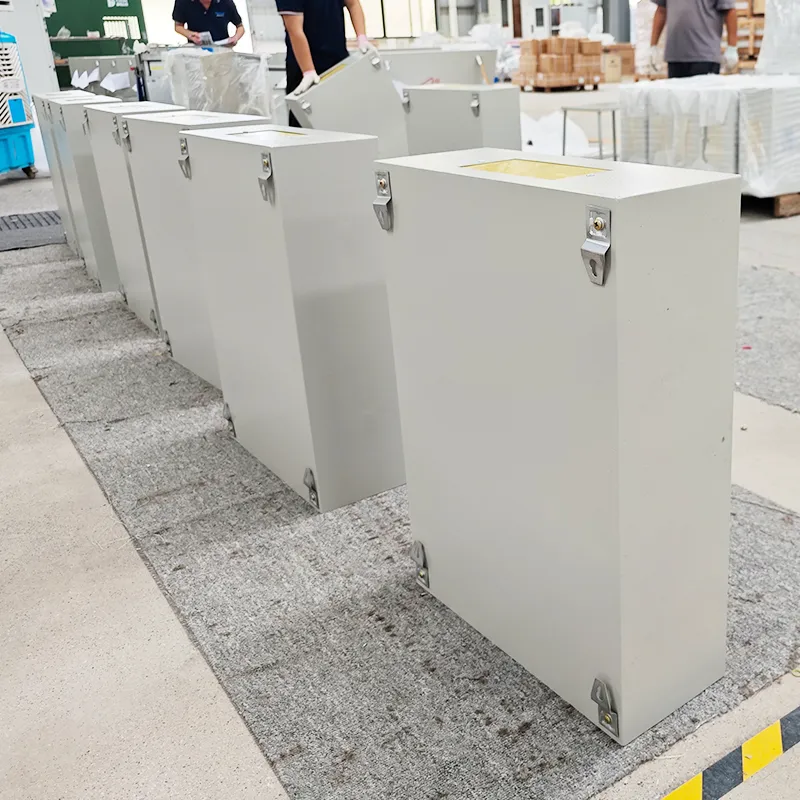

Detailed Photos

Specification

Item	Unit	Technical parameter
Rated operating voltage	V	380
Rated current	A	400
Rated insulation voltage	V	660
Frequency	Hz	50
lP class	IP	IP30
Rated short time withstand current	kA	10
Rated peak withstand current	kA	17
