Power Cable Distribution Box High Voltage Cable Branch Box

Technical Specifications

Model NO. DFW-12

Certification ISO9001:2000, VDE, CCC

Form All-packaged Type

Operation Voltage High Voltage

Size 2 Unit

Application Range Power Plants

Shell Material Steel Plate

Shell Protection Grade IP30

Rated Voltage 12kv / 24kv / 35kv

Rated Current 630A

Ambient Temperature -30°C ~ +40°C

Seismic Resistance Horizontal ≤0.4m/S², Vertical≤0.15m/S²

Load Breaking Capacity 200A

Lifespan ≥30 Year

Application Cable Connection, Grid Transformation

Max Outgoing Branches 7 Ways

Maintenance Maintenance-Free Design

Wiring System European Standard Connector

Origin China

HS Code 8535210000

Transport Package Export Standard Wooden Case

Specification Customized

Production Capacity 100 Pieces/Week

Package Size 220.00cm * 150.00cm * 180.00cm

Package Gross Weight 150.000kg

Product Description

The DFW series high-voltage cable distribution box is a key piece of equipment for cable node connection in 35kV, 24kV, and 10kV power systems. It serves as a hub for collecting and distributing cables after they exit from switchgear. This product is designed for outdoor, maintenance-free operation, with a protection class of IP33, and can even be buried underground for flood resistance. It is widely used in urban industrial zones, residential areas, commercial centers, mines, steel plants, automotive, chemical, and cement industries, especially suitable for urban power grid transformation projects, significantly saving electrical equipment investment and improving power supply reliability.

Compact Structure & Easy Installation

The product has a compact design, small footprint, and is easy to install, operate, and maintain, requiring no routine maintenance.

Robust & Durable Casing

The casing is made of metal plates or stainless steel (2mm thick), with anti-corrosion design and special spray treatment, ensuring reliable operation in harsh environments for a lifespan of over 30 years.

All-Weather Outdoor Operation

It features a fully enclosed structure with full insulation, suitable for high temperatures, severe cold, flood immersion, and high dust areas.

Safe & Reliable Insulation

The high-voltage live parts are all made of silicone rubber and EPDM prefabricated cable connectors, ensuring personal safety with no exposed live parts.

Flexible Configuration

The flexible combination can achieve up to 7 outgoing branches. Combined with SF6 load switches, it can form a loop power supply. Cable joints allow live plugging and unplugging to break a load current of 200A.

Fault Detection & Cost-Effectiveness

Equipped with a fault indicator for quick circuit fault detection. One-time investment reduces cable length, saves floor space, and saves capital.

Technical Parameters

Parameter Item	Specification
Rated Voltage	12kV (also available in 24kV, 35kV)
Rated Current	630A
Dynamic Stable Current	50kA/0.3s
Thermal Stable Current	20kA/3s
1-minute Power Frequency Withstand Voltage	42kV
15-minute DC Withstand Voltage	52kV
Lightning Impulse Withstand Voltage	105kV
Protection Class	IP33
Ambient Temperature	-30°C ~ +40°C
Wind Speed	≤34m/s (≤700Pa)
Humidity	Daily average relative humidity ≤95%, monthly average ≤95%
Seismic Resistance	Horizontal acceleration ≤0.4m/s², vertical acceleration ≤0.15m/s²
Installation Site Inclination	≤3°

Product Showcase

Power Cable Distribution Box High Voltage Cable Branch Box

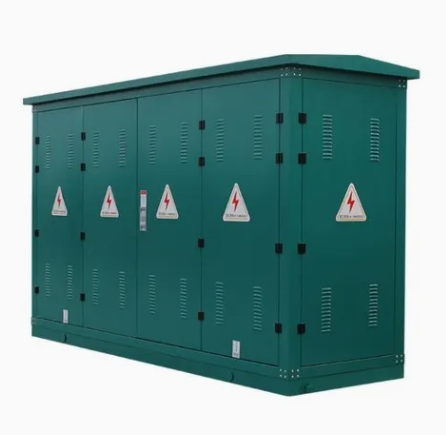

Product Overview View 1

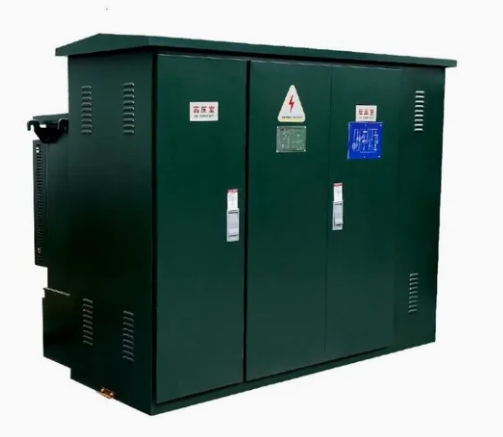

Product Overview View 2

Internal Structure Details

Cable Joints Detail

Side View Design

Enclosure Interface View

Visual Selection Guide

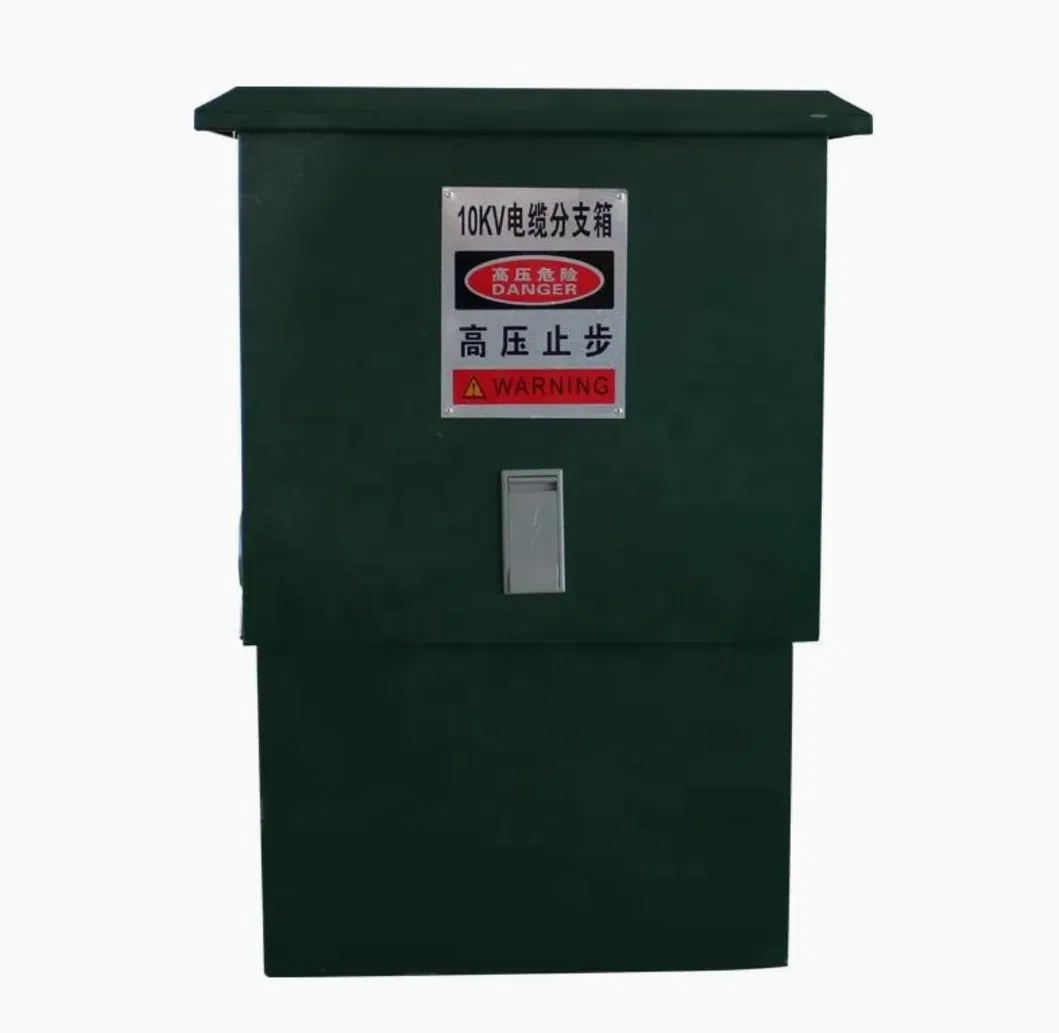

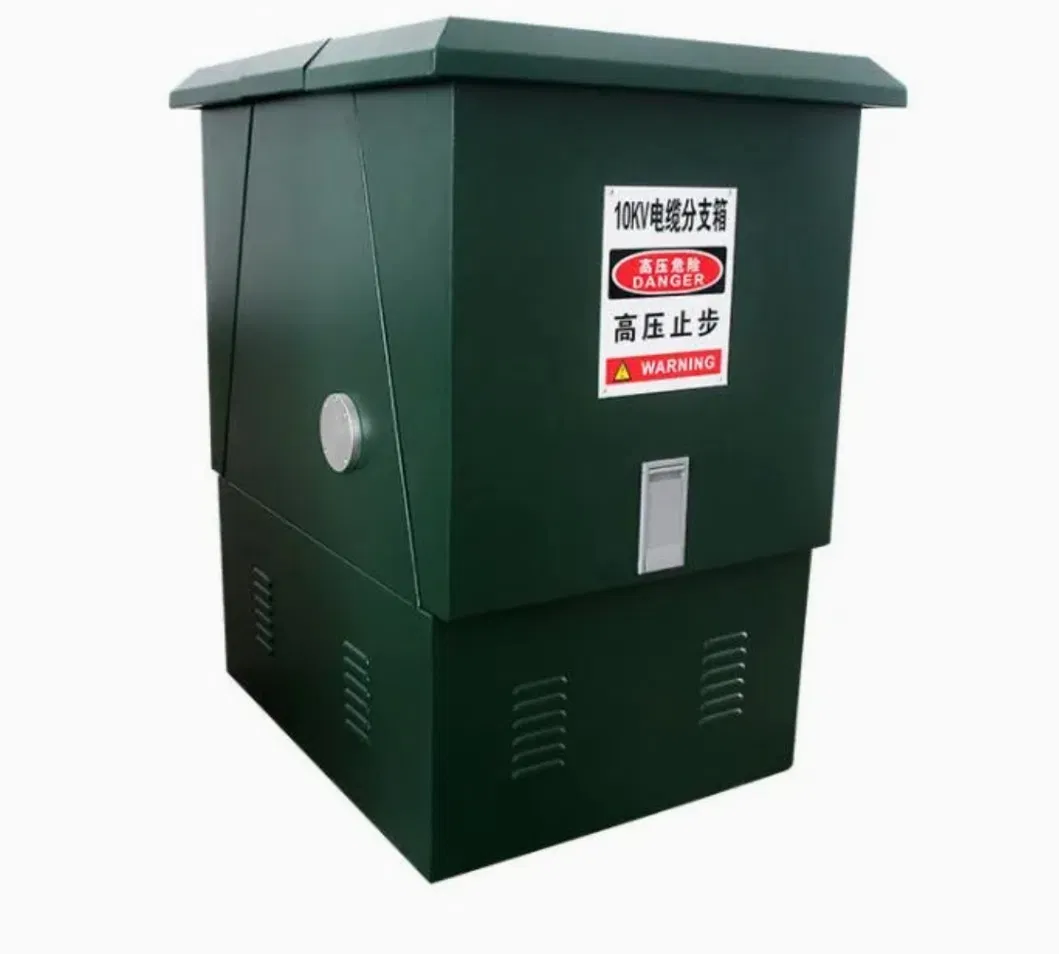

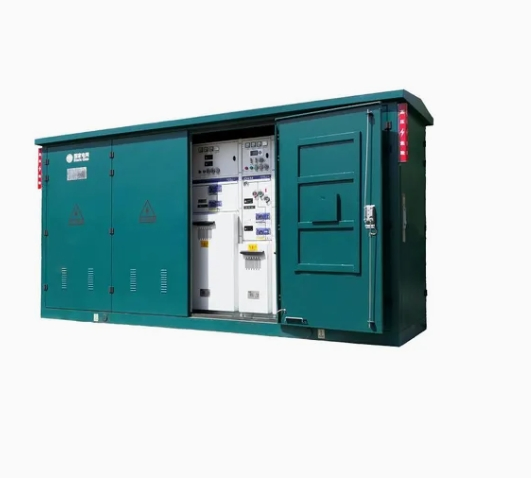

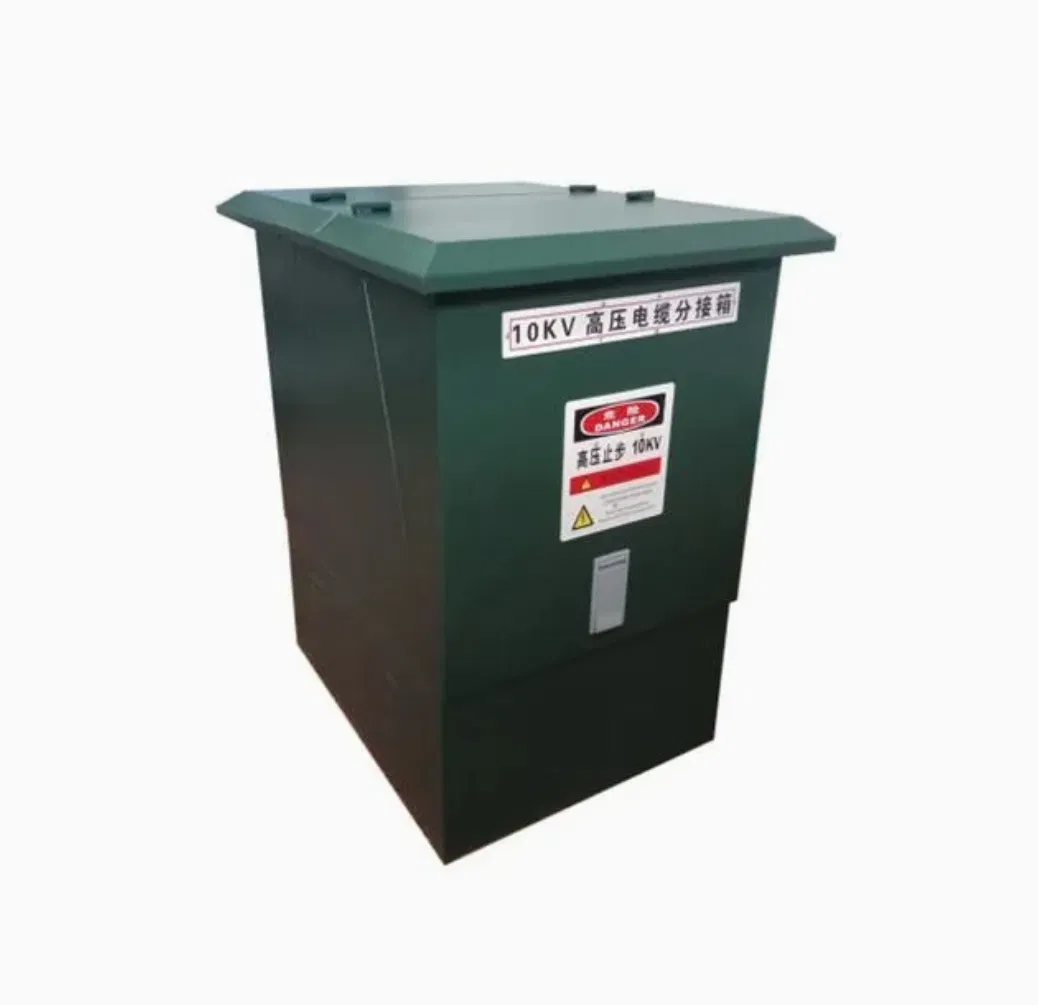

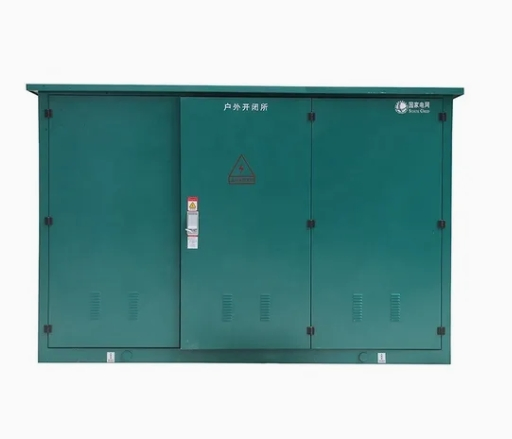

Front View: Shows the closed green metal casing with the 24kV Cable Distribution Box label and warning signs.
Open Door View: Displays the internal structure with cable joints and busbars clearly visible.

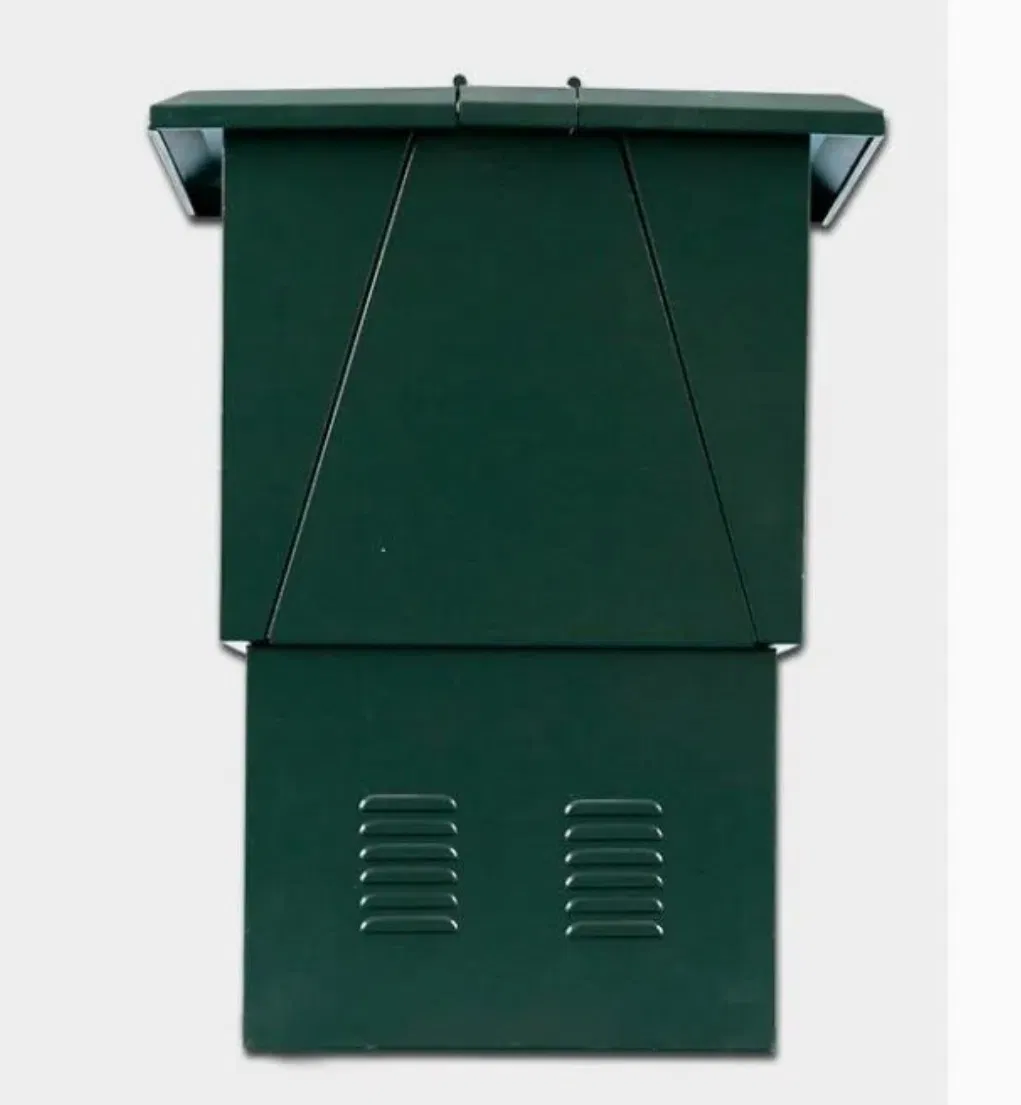

Side View: Shows the overall dimensions and the double-door design of the European type.

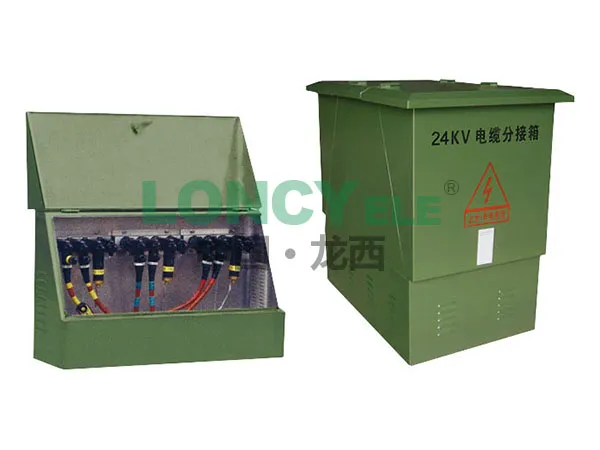

Internal Close-up: Focuses on the European front/back joints, fault indicators, and live part indicators.
Wiring Diagram: Outlines the internal wiring scheme diagram (e.g., DFW10-2 to DFW10-8).
Cable Connector Installation Diagram: Shows the exploded view of the European cable joint installation.
Foundation Diagram: Provides the foundation drawing for installation reference.

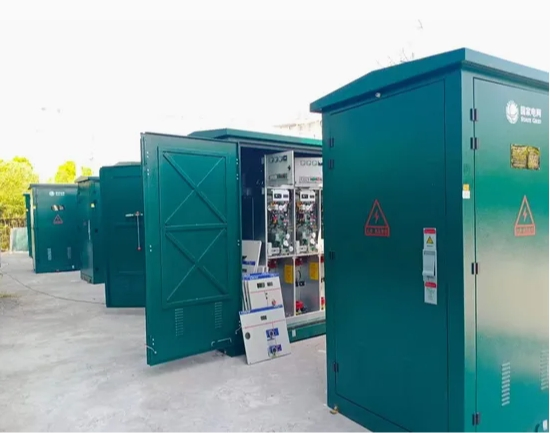

Application Scenario: Displays the product installed in an outdoor environment or substation.

System Attributes

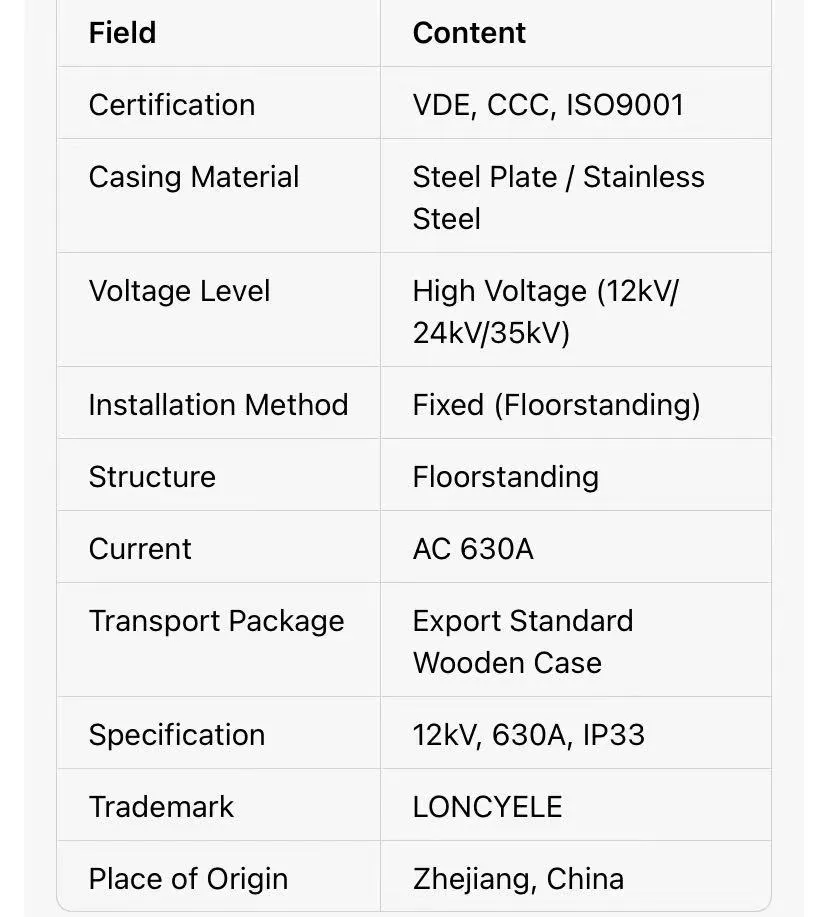

Field	Content
Certification	VDE, CCC, ISO9001
Casing Material	Steel Plate / Stainless Steel
Voltage Level	High Voltage (12kV/24kV/35kV)
Installation Method	Fixed (Floorstanding)
Structure	Floorstanding
Current	AC 630A
Transport Package	Export Standard Wooden Case
Specification	12kV, 630A, IP33
Place of Origin	China

Sample & Pricing

Sample Availability: 1 set of sample is provided.

Sample Price: Negotiable, generally in the range of $1,800 - $2,500 per set (FOB Ningbo/Shanghai), depending on configuration (voltage level, number of branches).

Frequently Asked Questions (FAQ)

What is the primary application of the DFW-12 cable distribution box?

It is designed for outdoor, maintenance-free cable node connection in 35kV, 24kV, and 10kV power systems, serving as a hub for collecting and distributing cables after they exit from switchgear. It is widely used in industrial zones, residential areas, commercial centers, and power grid transformations.

Does this high-voltage distribution box require regular maintenance?

No, it is designed for outdoor, maintenance-free operation. The high-voltage live parts are fully enclosed and insulated using silicone rubber and EPDM prefabricated cable connectors, requiring no routine maintenance.

What are the casing specifications and expected lifespan of the product?

The casing is made of 2mm thick steel plate or stainless steel with anti-corrosion and special spray treatments. It is designed to operate reliably in harsh environments for a lifespan of 30 years or more.

Can this distribution box handle harsh weather conditions or floods?

Yes. The equipment has a protection class of IP33 (IP30 for basic shell grade) and can even be buried underground for flood resistance. It is fully insulated and suited for high temperatures, severe cold, and high dust areas.

What are the configuration limits for outgoing branches and load current?

The system supports up to 7 outgoing branches. When combined with SF6 load switches, it can form a loop power supply. The cable joints can be plugged or unplugged live to break a load current of up to 200A.

Are samples available and what is the pricing?

Yes, samples are available (1 set minimum order). The sample price is negotiable and generally ranges from $1,800 to $2,500 per set (FOB Ningbo/Shanghai), depending on the configuration and voltage requirements.
