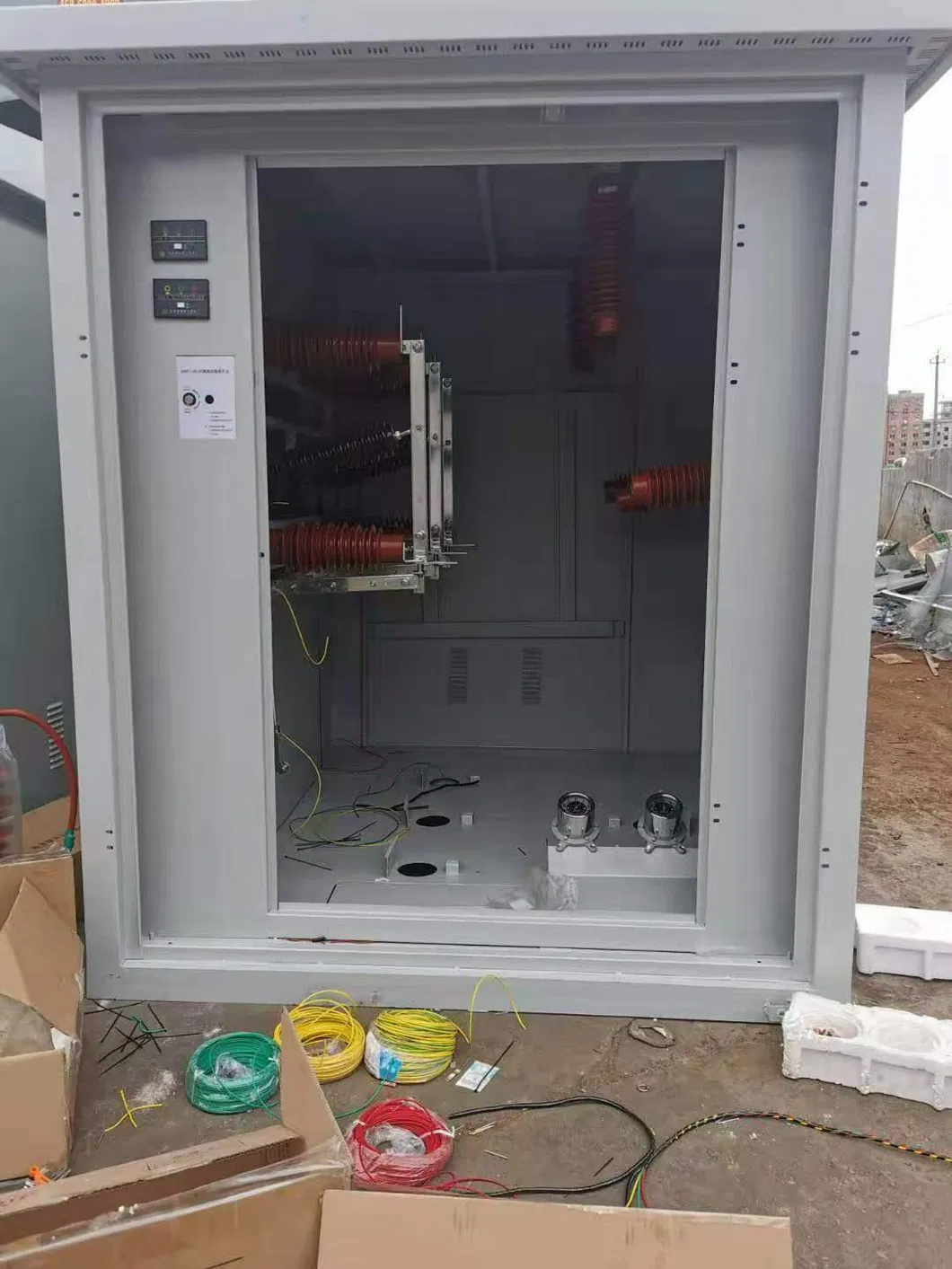

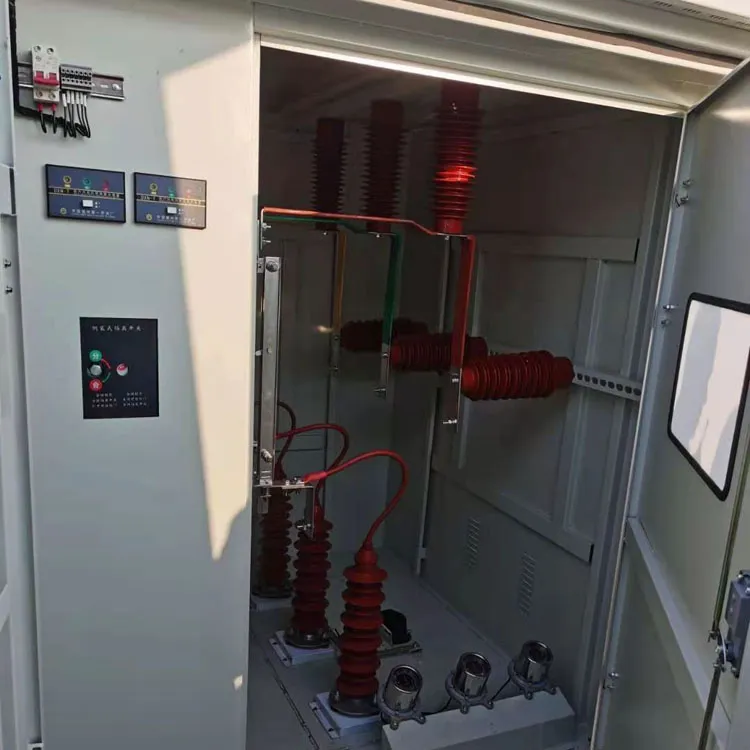

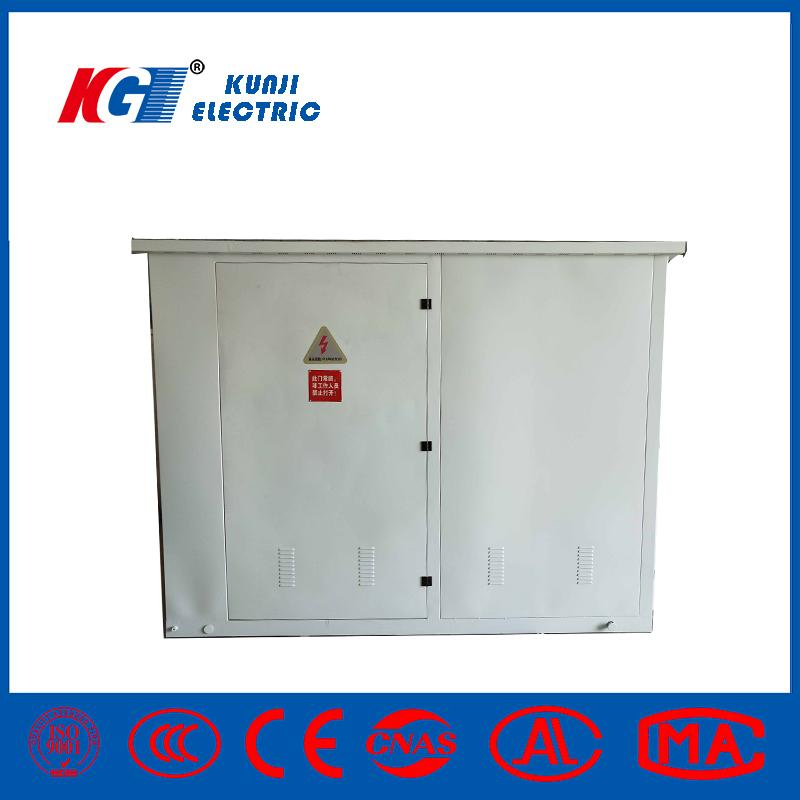

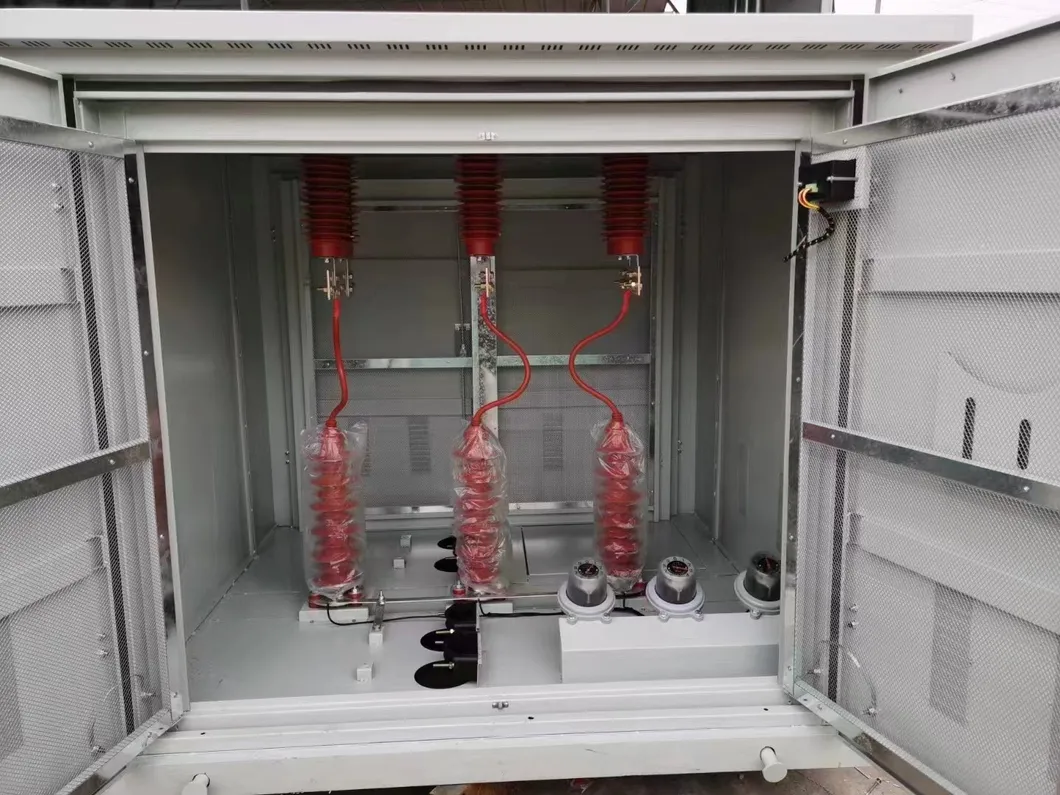

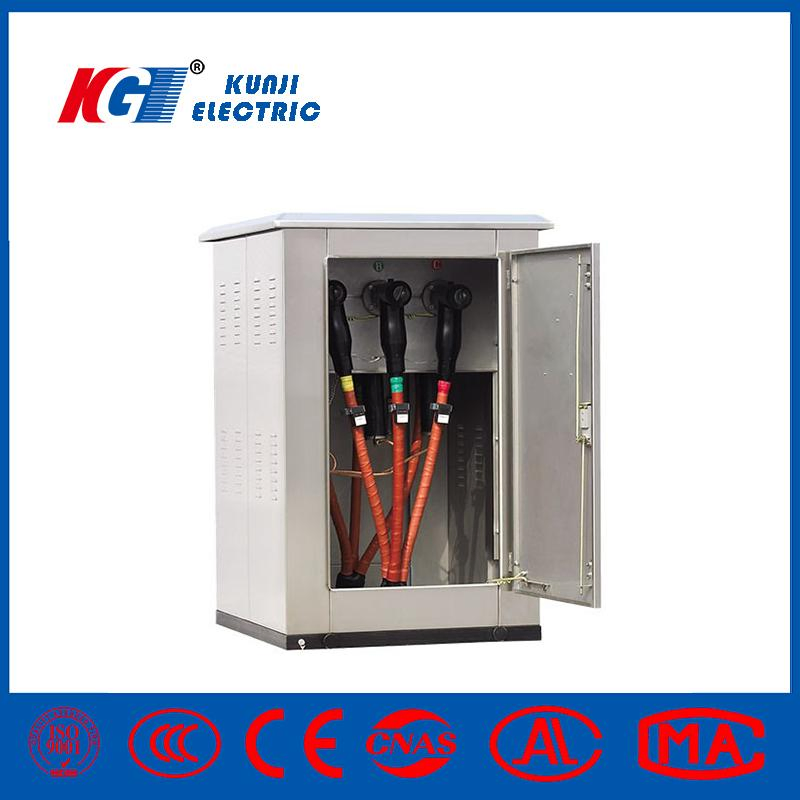

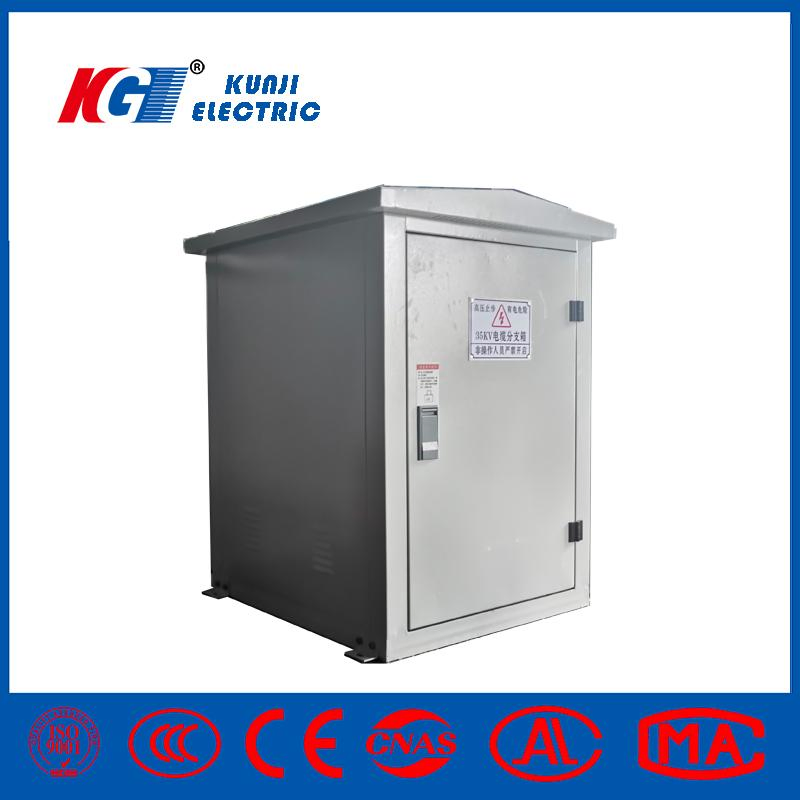

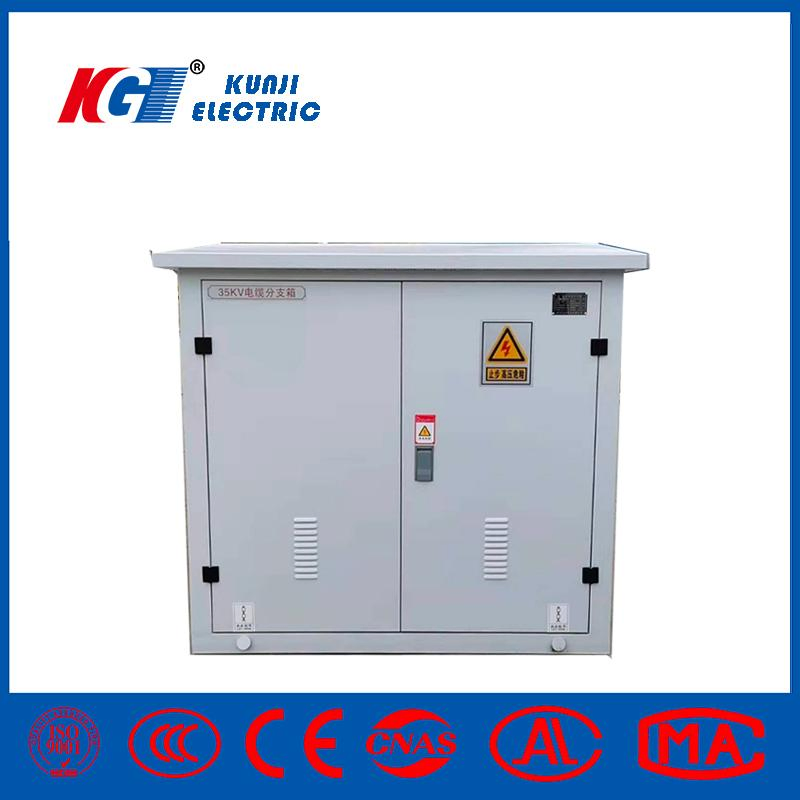

35KV High Voltage Outdoor Cable Distribution Box

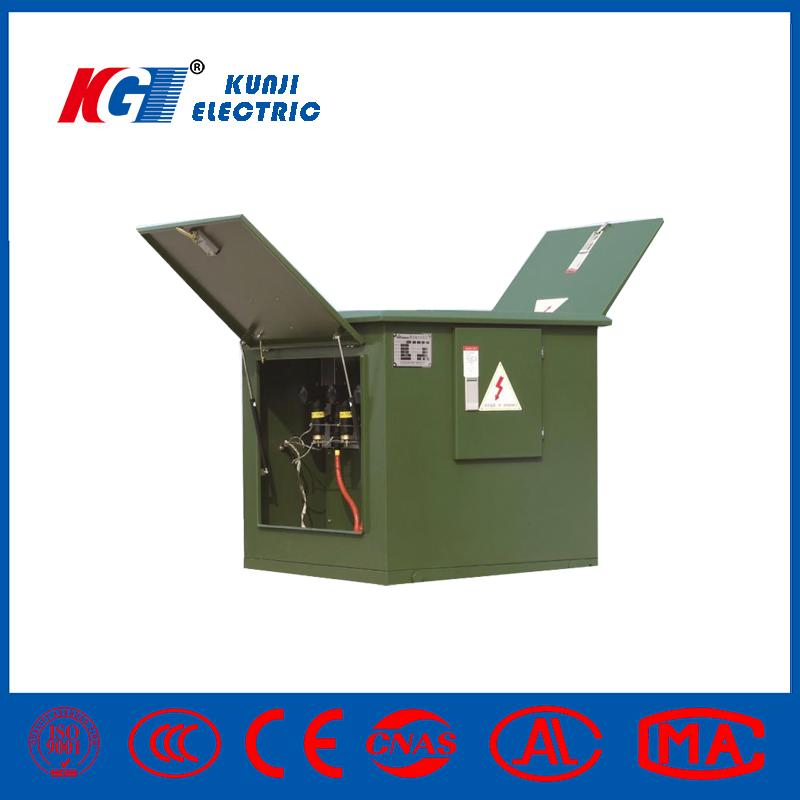

In recent years, cable branch box has been widely used in cable engineering equipment in power distribution network system. Its main characteristics are two-way door opening, the use of insulation through the wall sleeve as the connection busbar, with small length, clear cable arrangement, three-core cable does not need to cross large span and other remarkable advantages. Generally, the rated current is 630A and the cable joint is fixed with bolts. To a variety of different user requirements can provide satisfactory technical solutions.
35kv Cable Branch Box Features:
| TECHNICAL INDEX | TECHNICAL PARAMETER |
|---|---|
| Nominal voltage | 40.5KV |
| Rated current | 630A |
| Rated load breaking current | 630A |
| Rated short-time withstand voltage | 20KV/2S |
| Rated peak tolerable current | 50KV/0.3S |
| Rated short-circuit closing current | 50KV |
| Mechanical life | 5000times |
| Conductor protection class | IP67 |
| Adaption cable specification | 50mm2-630mm2 |
Altitude: no more than 2000m; (If there is any special request, please indicate it when ordering)
Ambient temperature: -25ºC ~ +40ºC
Relative humidity: daily average is not more than 95%, monthly average is not more than 90%
Seismic capacity: 8 degrees
No fire, explosion risk, serious pollution, chemical corrosion and violent vibration of the place.
