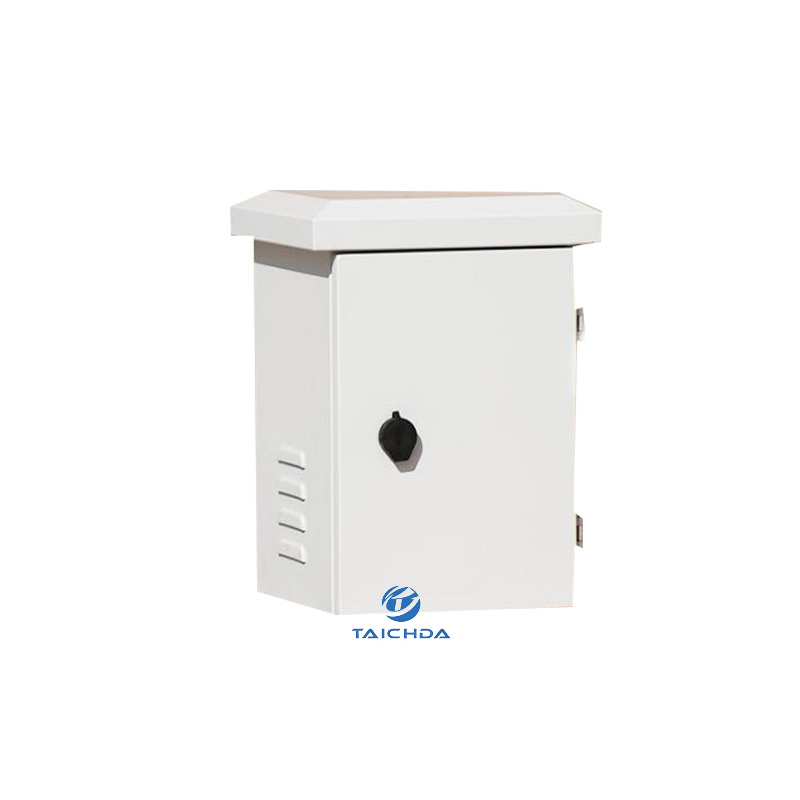

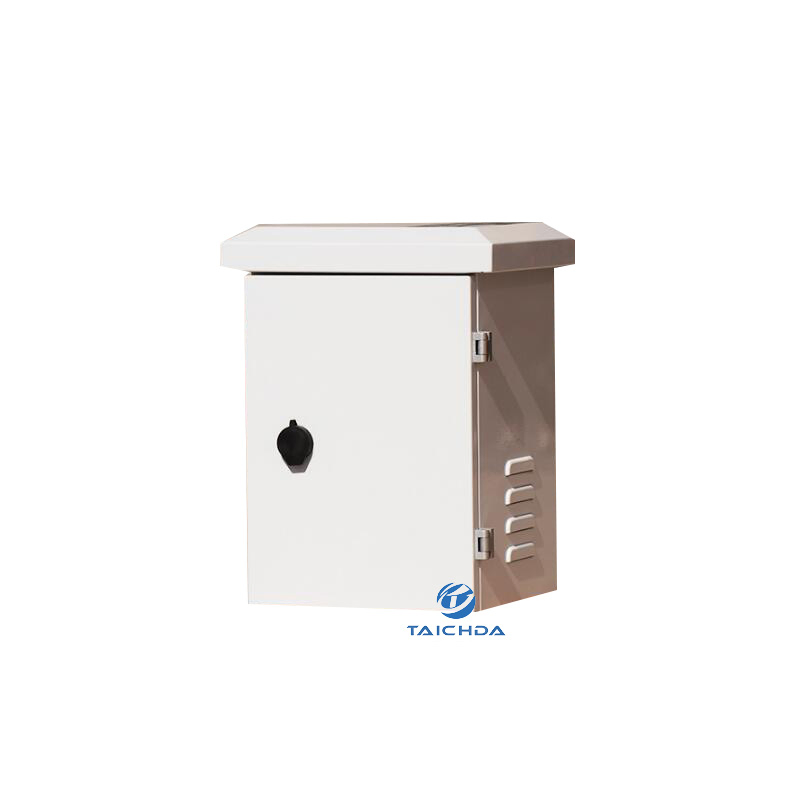

Outdoor Waterproof Wall-Mounted Metal Fabrication Power Control Supply Distribution Electrical Electric Cabinet Box
1 / 5
Outdoor Waterproof Wall-Mounted Metal Fabrication Power Control Supply Distribution Electrical Electric Cabinet Box
OverviewMain ProductsDetailed PhotosProduct DisplayProduct Data SheetProduction ProcessProduct DetailsProduct InspectionOur Factory And Workshop
Basic Info.
Model NO.
0014
Certification
ISO9001:2000
Form
All- packaged Type
Operation Voltage
High Voltage
Size
3 Unit
Application Range
Power Plants
Shell Material
Steel Plate
Shell Protection Grade
IP65
Thickness
1.2mm
Trade Terms
Fob, CIF, CFR
MOQ
200
Custom
Yes
Transport Package
Wooden Crate
Specification
customized
Trademark
customized
Origin
Fujian

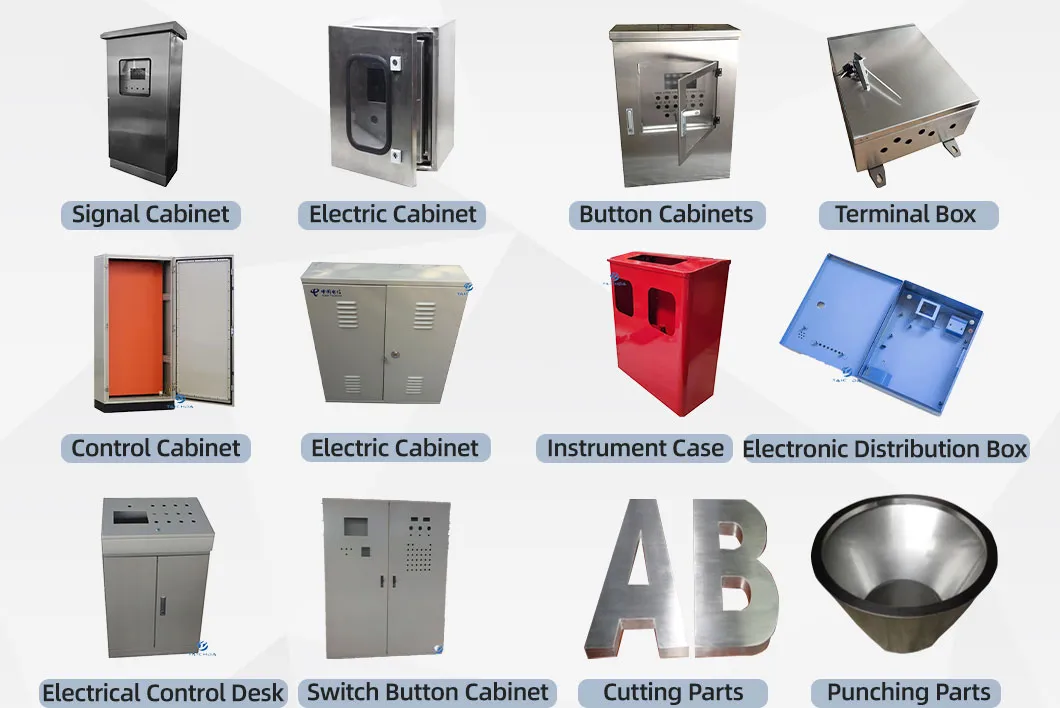

Main Products

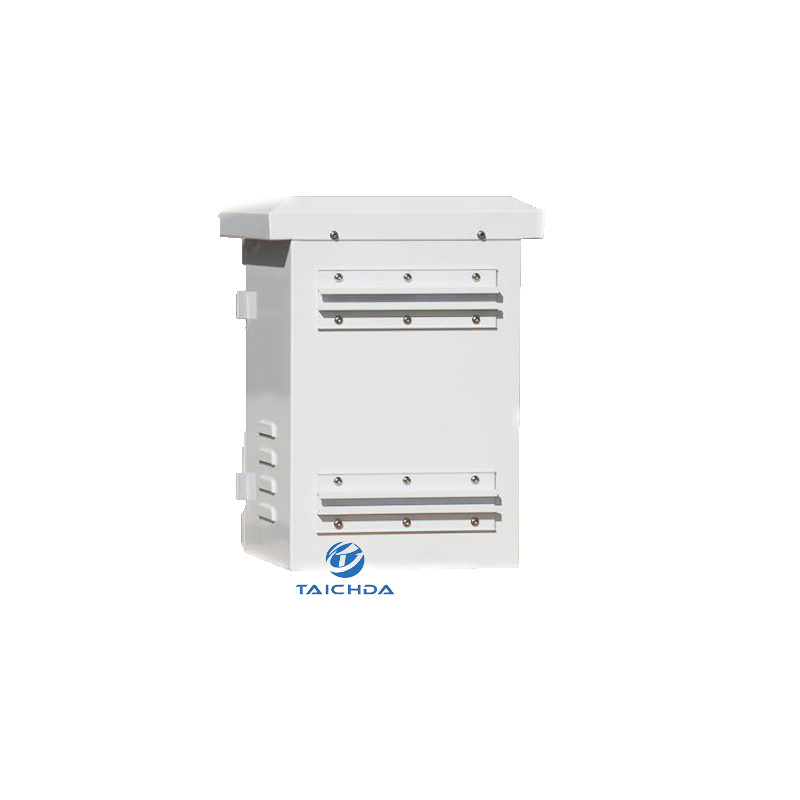

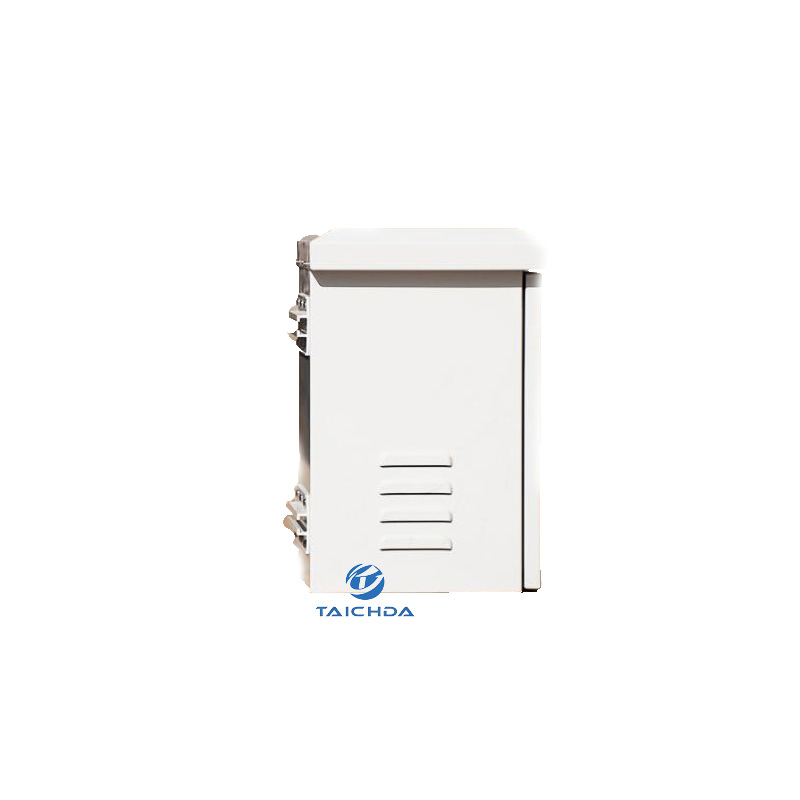

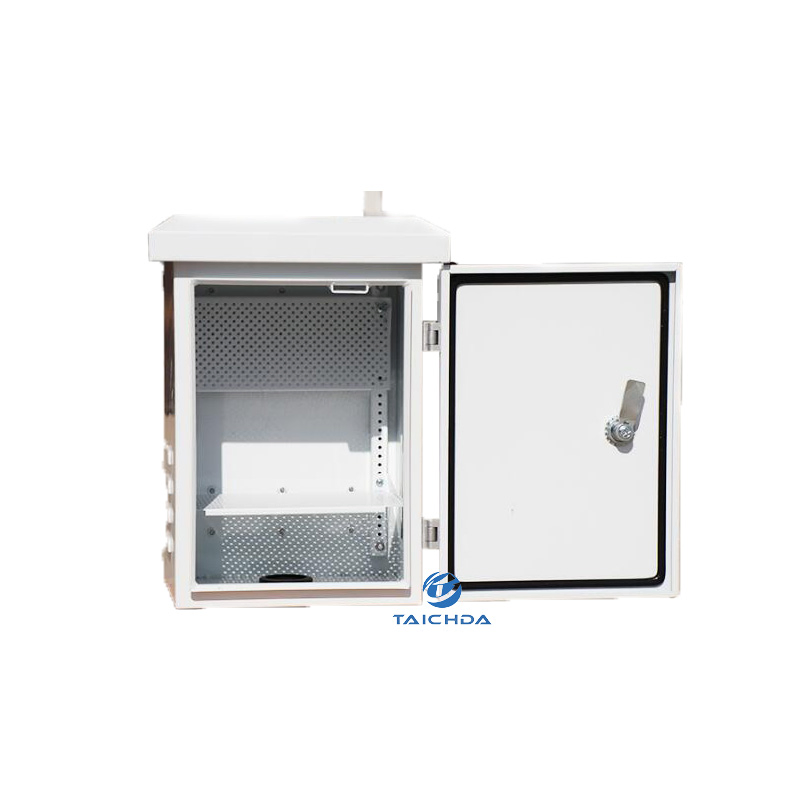

Detailed Photos

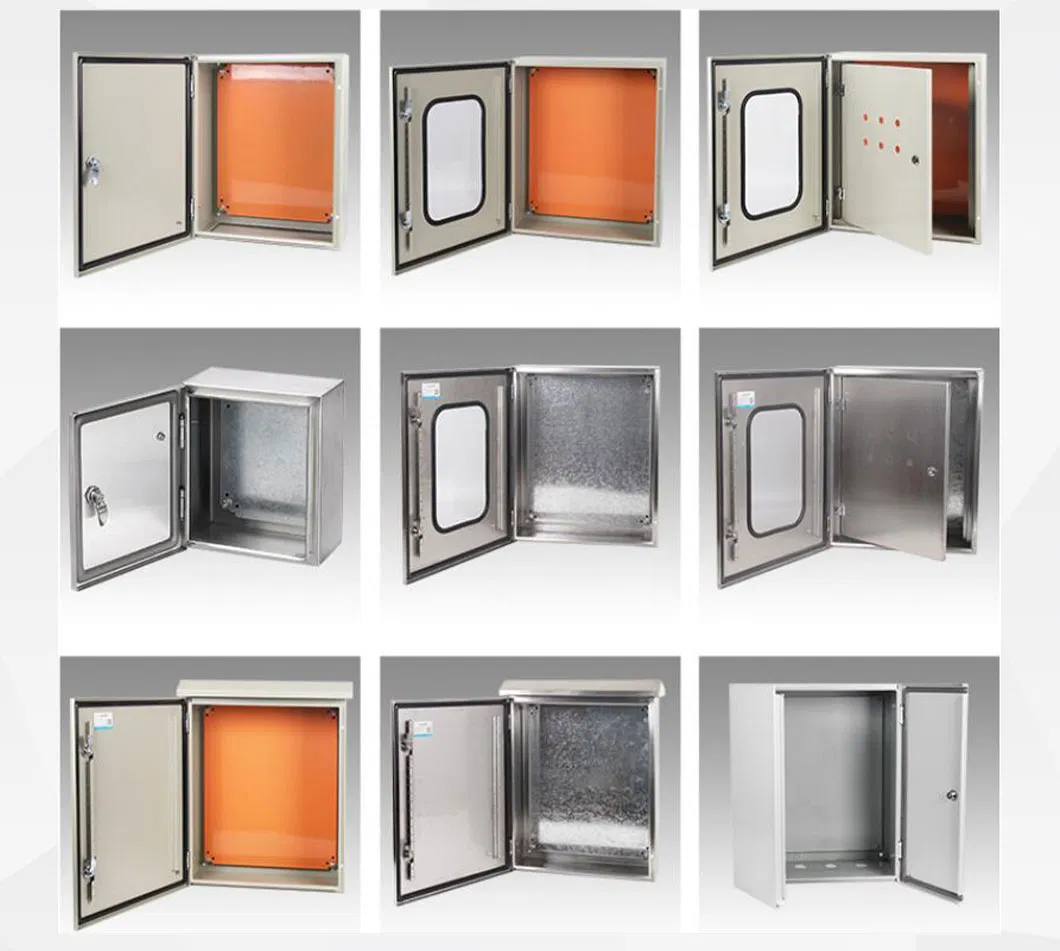

Product Display
Product Data Sheet
Stainless steel panel enclosure
Product features:
Material: Body and front door are made of stainless steel plate (SUS201, SUS304 or SUS316)
The back mounting plate is made of galvanized steel plate.
Thickness: 0.8mm, 1.0mm, 1.2mm, 1.5mm etc.
Surface treatment: satin.
Lock, hinges, bolts and nuts: stainless steel 304 material.
Impact resistance level: IK10
Protection level: IP65
Environmental Certification: RoHs
Model
W H D
Body/door Thickness
Mounting Plate Thickness
TCH252015
250x200x150
1.00mm
1.20mm
TCH302515
300x250x150
1.00mm
1.20mm
TCH302520
300x250x200
1.00mm
1.20mm
TCH303015
300x300x150
1.00mm
1.20mm
TCH303020
300x300x200
1.00mm
1.20mm
TCH304020
300x400x200
1.00mm
1.20mm
TCH403015
400x300x150
1.00mm
1.20mm
Model
W H D
Body/door Thickness
Mounting Plate Thickness
TCH403020
400x300x200
1.00mm
1.20mm
TCH404020
400x400x200
1.20mm
1.50mm
TCH406025
400x600x250
1.20mm
1.50mm
TCH406030
400x600x300
1.20mm
1.50mm
TCH504015
500x400x150
1.20mm
1.50mm
TCH504020
500x400x200
1.20mm
1.50mm
TCH504025
500x400x250
1.20mm
1.50mm
TCH505020
500x500x200
1.20mm
1.50mm
Model
W H D
Body/door Thickness
Mounting Plate Thickness
TCH604015
600x400x150
1.20mm
2.00mm
TCH604020
600x400x200
1.20mm
2.00mm
TCH604025
600x400x250
1.20mm
2.00mm
TCH605015
600x500x150
1.20mm
2.00mm
TCH605020
600x500x200
1.20mm
2.00mm
Model
W(mm)
H(mm)
D(mm)
No. of doors
TCH126/40
1200
600
400
1
TCH126/60
1200
600
600
1
TCH126/80
1200
600
800
1
TCH128/40
1200
800
400
1
TCH128/60
1200
800
600
1
TCH128/80
1200
800
800
1
TCH146/40
1400
600
400
1
Model
W(mm)
H(mm)
D(mm)
No. of doors
TCH146/60
1400
600
600
1
TCH146/80
1400
600
800
1
TCH148/40
1400
800
400
1
TCH148/60
1400
800
600
1
TCH148/80
1400
800
800
1
TCH166/60
1600
600
600
1
TCH166/80
1600
600
600
1
TCH186/40
1800
600
400
1
Model
W(mm)
H(mm)
D(mm)
No. of doors
TCH186/50
1800
600
500
1
TCH186/60
1800
600
600
1
TCH186/80
1800
600
800
1

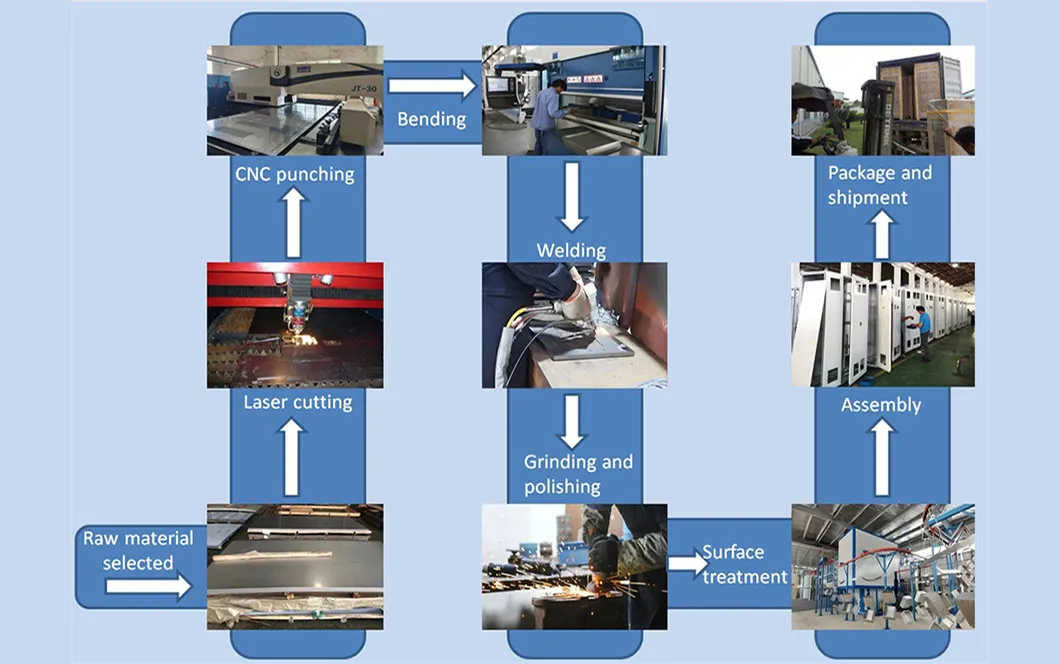

Production Process

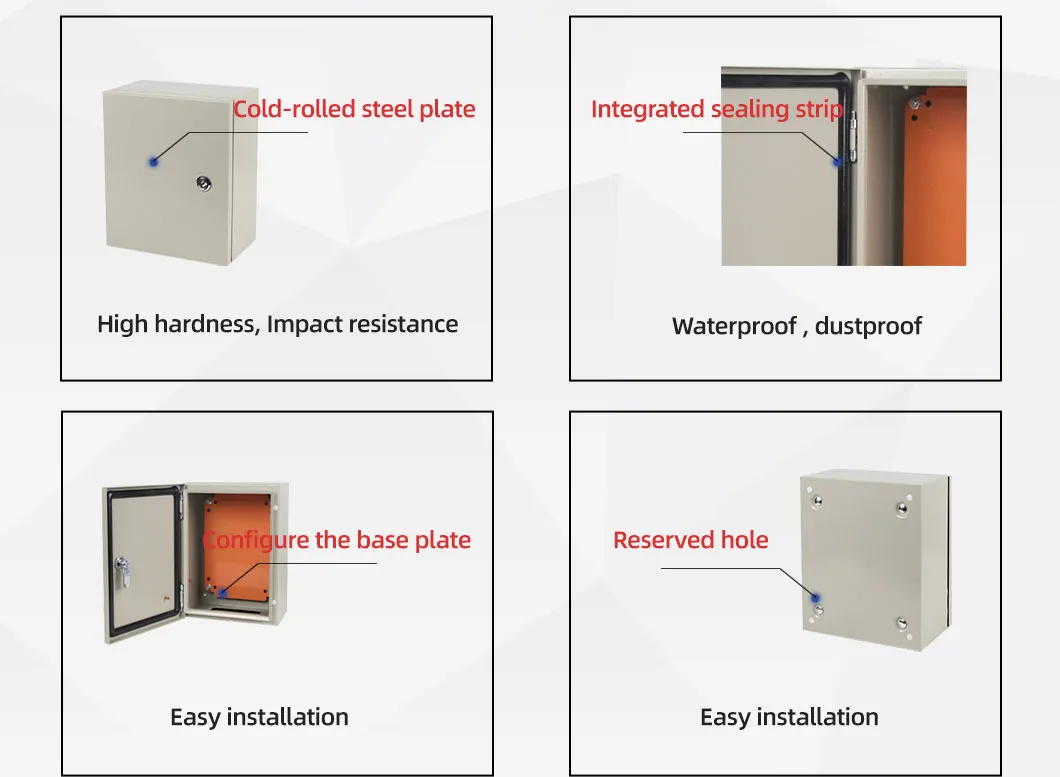

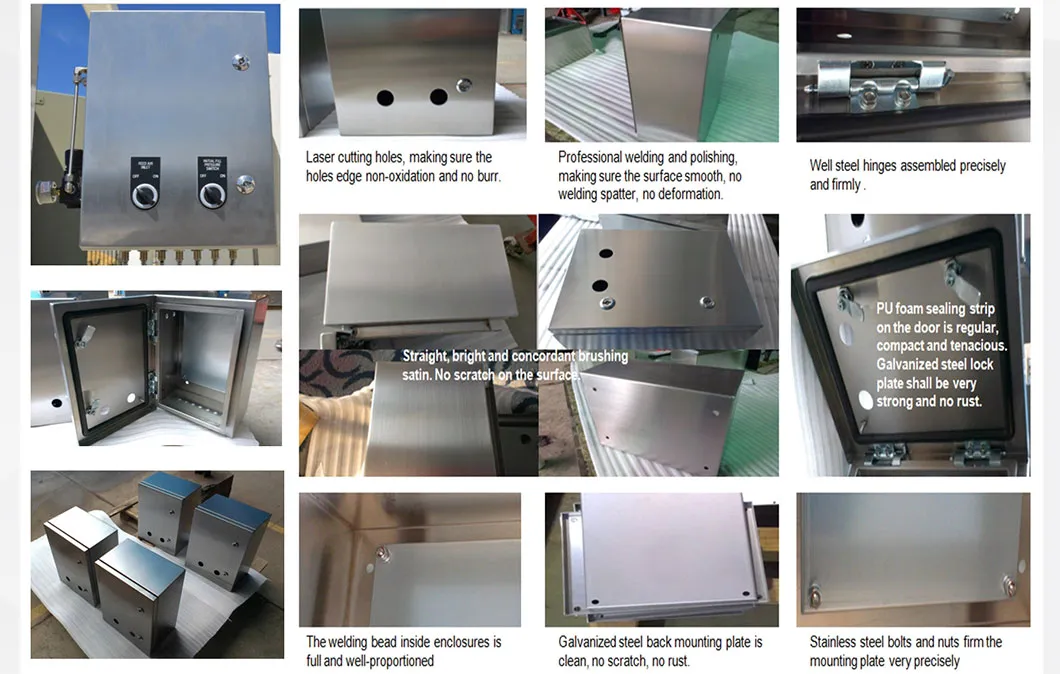

Product Details

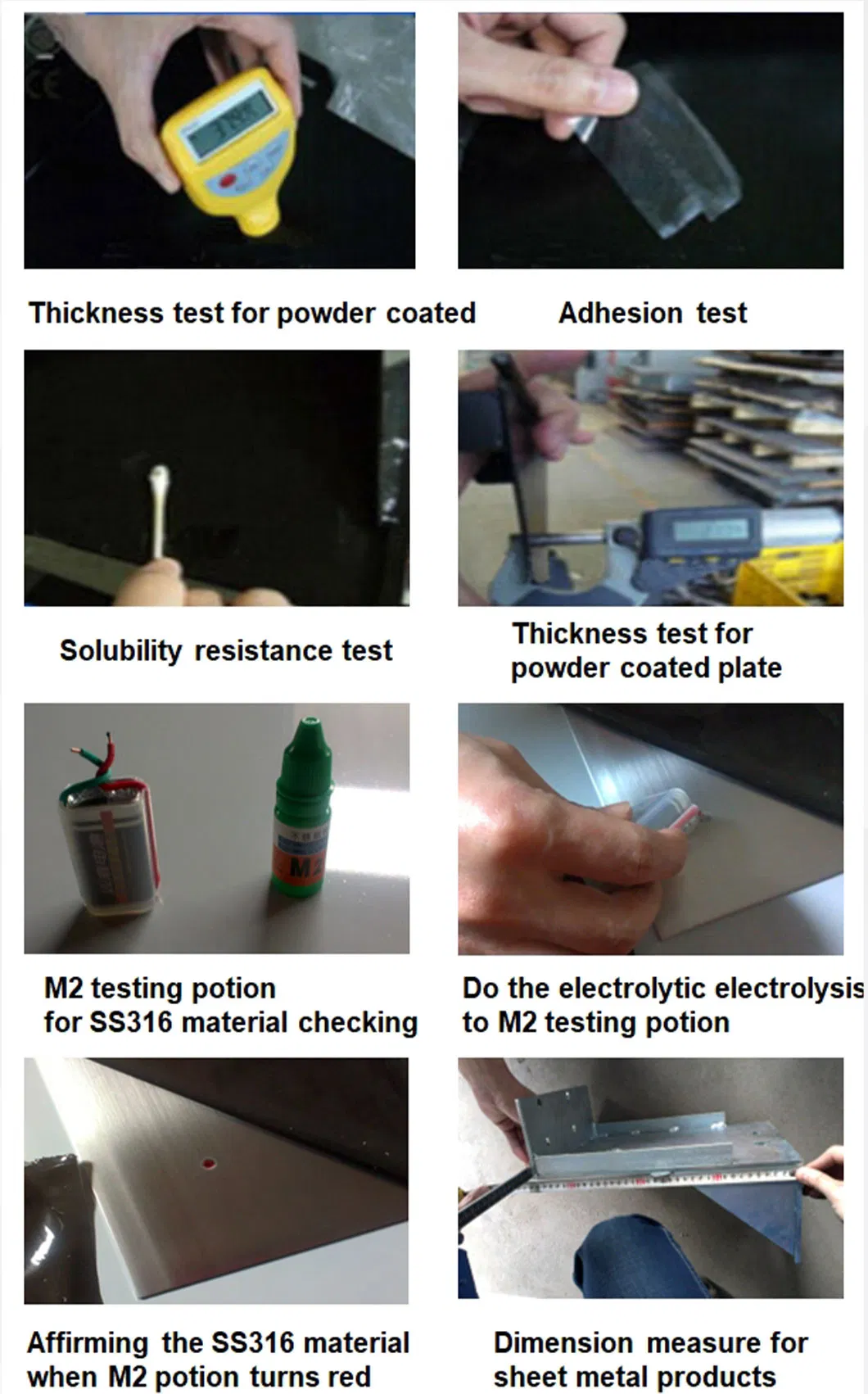

Product Inspection

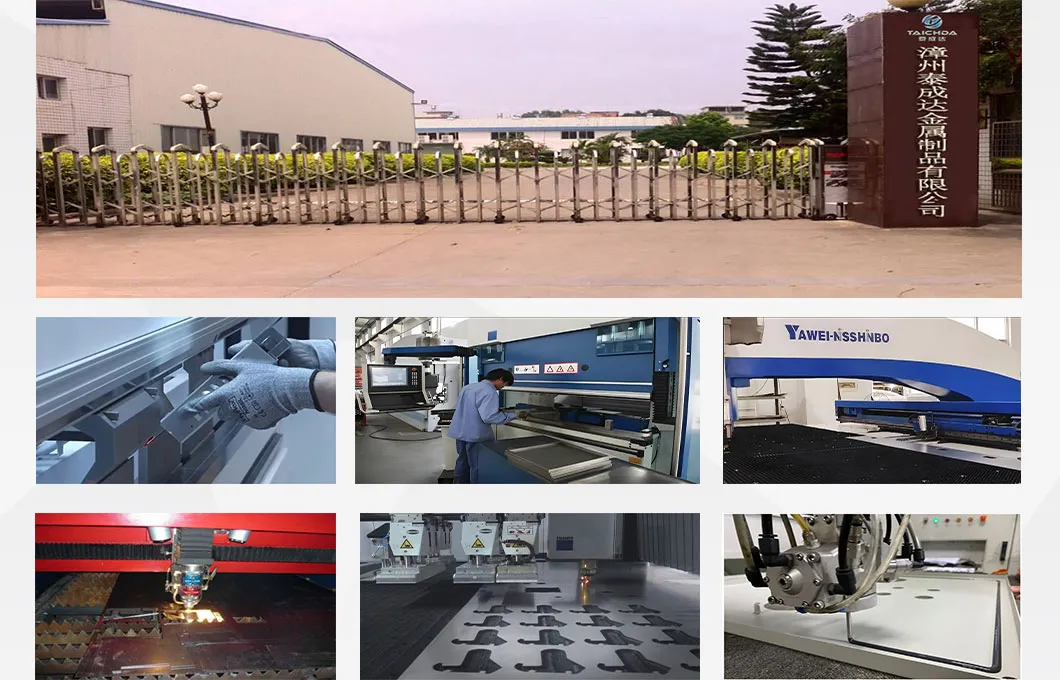

Our Factory And Workshop
We are a sheet metal fabricated manufacturer. Many kinds of steel cabinets and enclosures made of stainless steel and mild steel material here we do the custom production, such as electric control panel cabinets, gates operator covers, washroom accessories, switch button control cabinets, IP NEMA enclosures, RITTAL power control cabinets, distribution panel boxes, high and low voltage distribution cabinet, UPS power supply cabinet, power boxes, instrument case, meter boxes, console boxes, electrical operator tables, sheet metal laser cutting parts, punching parts, rolling circularity parts etc.
Most of these sheet metal enclosures and cabinets are used in Power Control System, Gates Operator System, Health Care System, Air Compressor System, Natural Gas System, Compressed Air Refrigeration System, Compressed Air Dryer, Water Air Conditioning System, Sterilization Machine, Frequency Conversion Pump Unit, Oil And Gas Industry and so on.
With more than 15 years experience, our products have been approved by ISO, SGS, CCC, RoHS, CE and IP65 certification. Good quality products with best price here will be always offered to you.
Certificate
Product Packaging
Frequently Asked Questions
Q1.Are you a factory or trading company?
We are a factory with 15 years of manufacturing experience!
Q2.May I have a sample first?
Yes, we would like to make a sample for your checking first. Mixed samples are acceptable.
Q3.What about the lead time?
It needs 3-5 working days for samples, and 15-20 working days for bulk orders usually.
Q4.Do you have any MOQ for order?
Low MOQ. It is determined according to the requests of different products.
Q5.Can you customize the metal products according to my design and make my own brand logo?
Yes. We are a sheet metal fabrication manufacturer, and we specialize in custom production. Please kindly send us your detailed requirements (drawings, photos, etc.) so we can manufacture according to your design. For the brand logo, we usually do silk screening, laser etching, etc. Please let us know your preferred style and size.
Q6.What quality certifications do your products have?
Our products have been certified with ISO, SGS, CCC, RoHS, CE, and IP65 standards, ensuring premium durability, high safety levels, and reliable performance.
