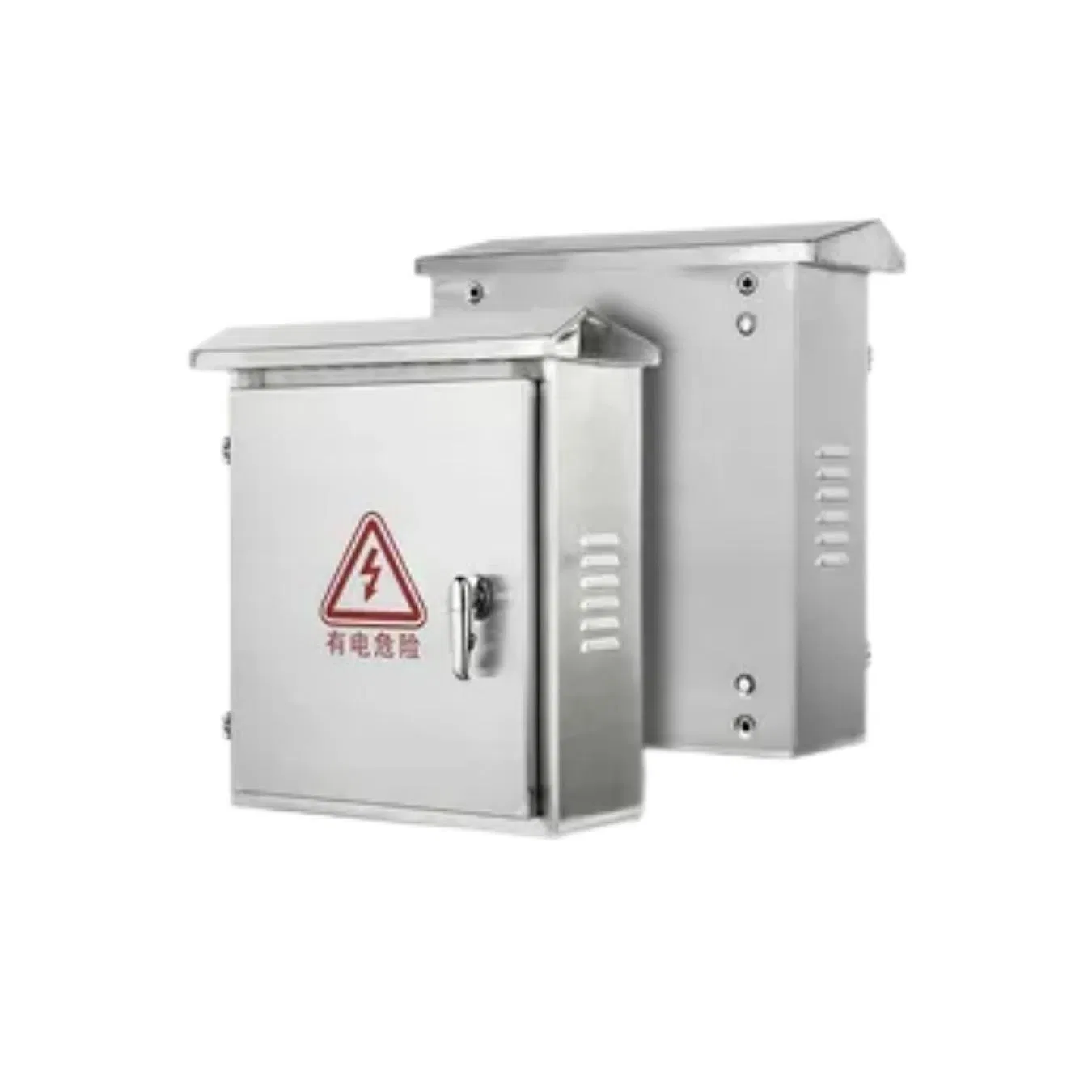

Outdoor Stainless Steel Power Distribution Cabinet Box, Outdoor Rainproof Box, Wall-Mounted Distribution Box 400*300*160mm 0.6/0.8mmthickness

Technical Specifications

Certification

VDE, CCC, CE

Form

All-packaged Type

Operation Voltage

Low Voltage

Size

1 Unit

Application Range

High-rise Buildings

Shell Material

Stainless Steel

Protection Grade

IP56

Surface Finish

Pickling Phosphating Powder Spraying

Material

Aluminium Profile

Thickness Option

1.0 / 1.2 / 1.5 / 2.0 mm

Transport Package

Export Packing

Specification

77 * 36 * 72

HS Code

7326909000

Production Capacity

50,000 Units Per Day

Packaging & Delivery

Package Size

40.00cm * 50.00cm * 30.00cm

Gross Weight

17.000kg

Detailed Configuration

Parameter	Specification Details	Parameter	Specification Details
Application Range	Automatic Machine, Medical Device, Industrial Mach	Operation Voltage	Low Voltage
Shell Material	Stainless Steel	Size Range	From 200X200X150mm to 1200X1200X400mm
Package Type	Carton Box	Thickness	1.0/1.2/1.5/2.0mm
Installation Method	Wall-Mount	Colour Options	Ral7032, Ral7035, or Ral2000

Product Features & Performance

The JXF control box is engineered for three-phase three-wire, three-phase four-wire, and three-phase five-wire electrical configurations running at 50Hz, with voltage ratings up to 500V and maximum load currents up to 250A. It serves as a comprehensive distribution control system, safeguarding against power leakage, motor overload, short circuits, and phase faults. Designed for optimal space efficiency and structural robustness, it delivers reliable operation across industrial facilities, metallurgy, petrochemical plants, commercial complexes, academic institutions, and residential zones.

Suitable for installation altitudes not exceeding 2,000 meters.
Operational ambient temperature ranges from -25°C up to +40°C.
Monthly average relative air humidity stays below 40% when at +20°C.
Vibration-resistant housing design minimizes external impact loads.
Designed for non-explosive, dust-free atmospheres without corrosive risks.
Versatile setups: outdoor/indoor variants, assembly-style, double-door structures.
IP Ingress Protection grade options: IP20, IP40, IP43, IP54, and IP65.

Product Showcase

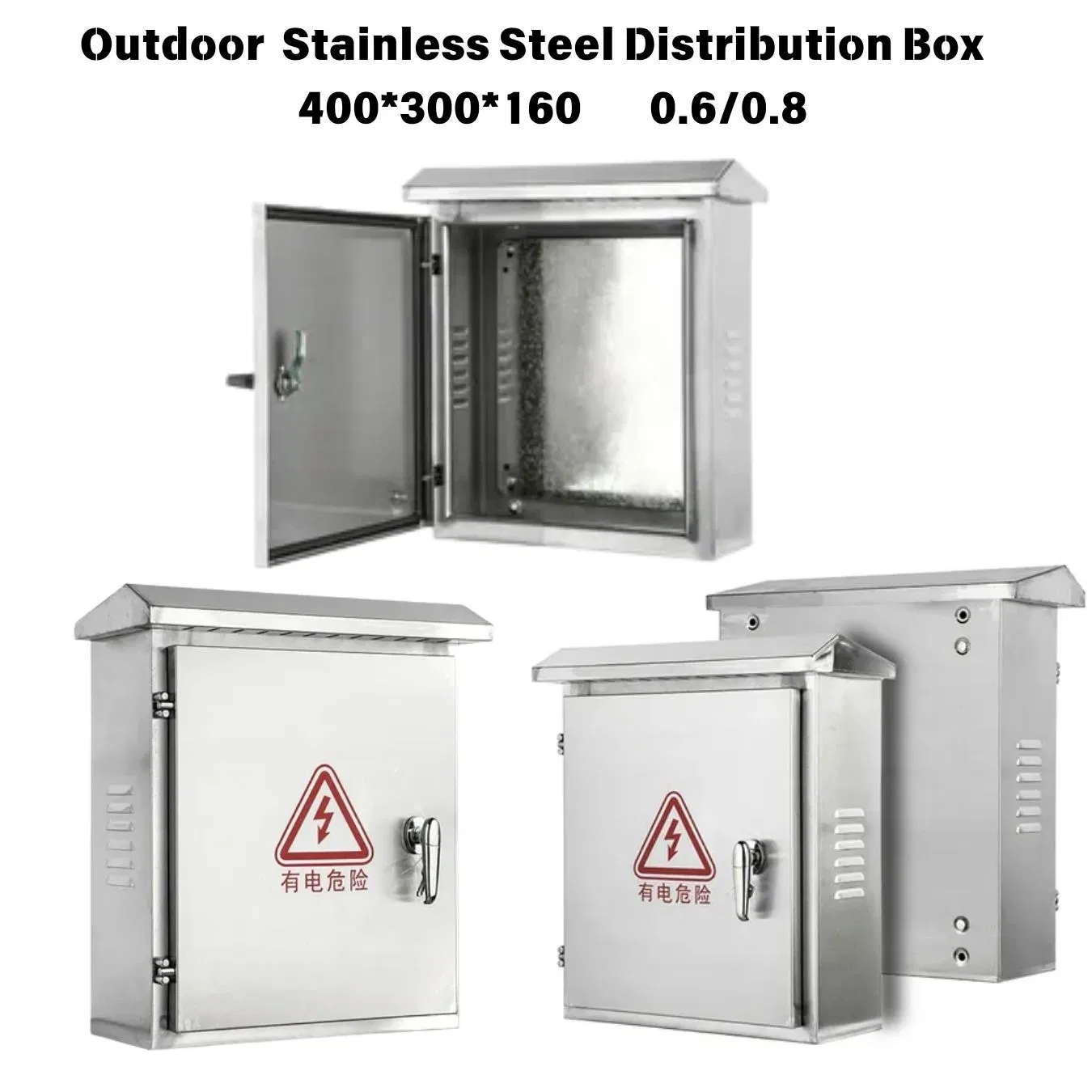

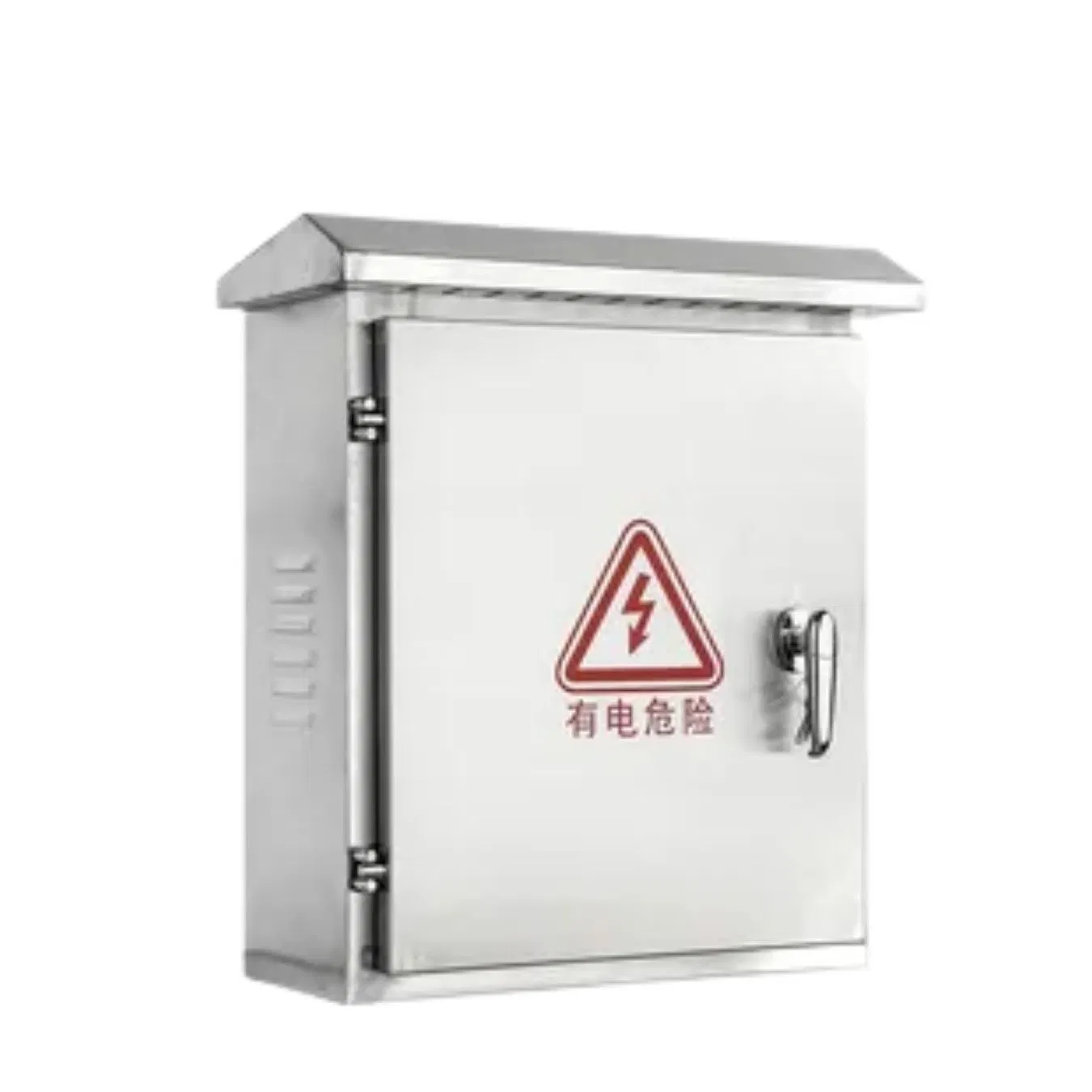

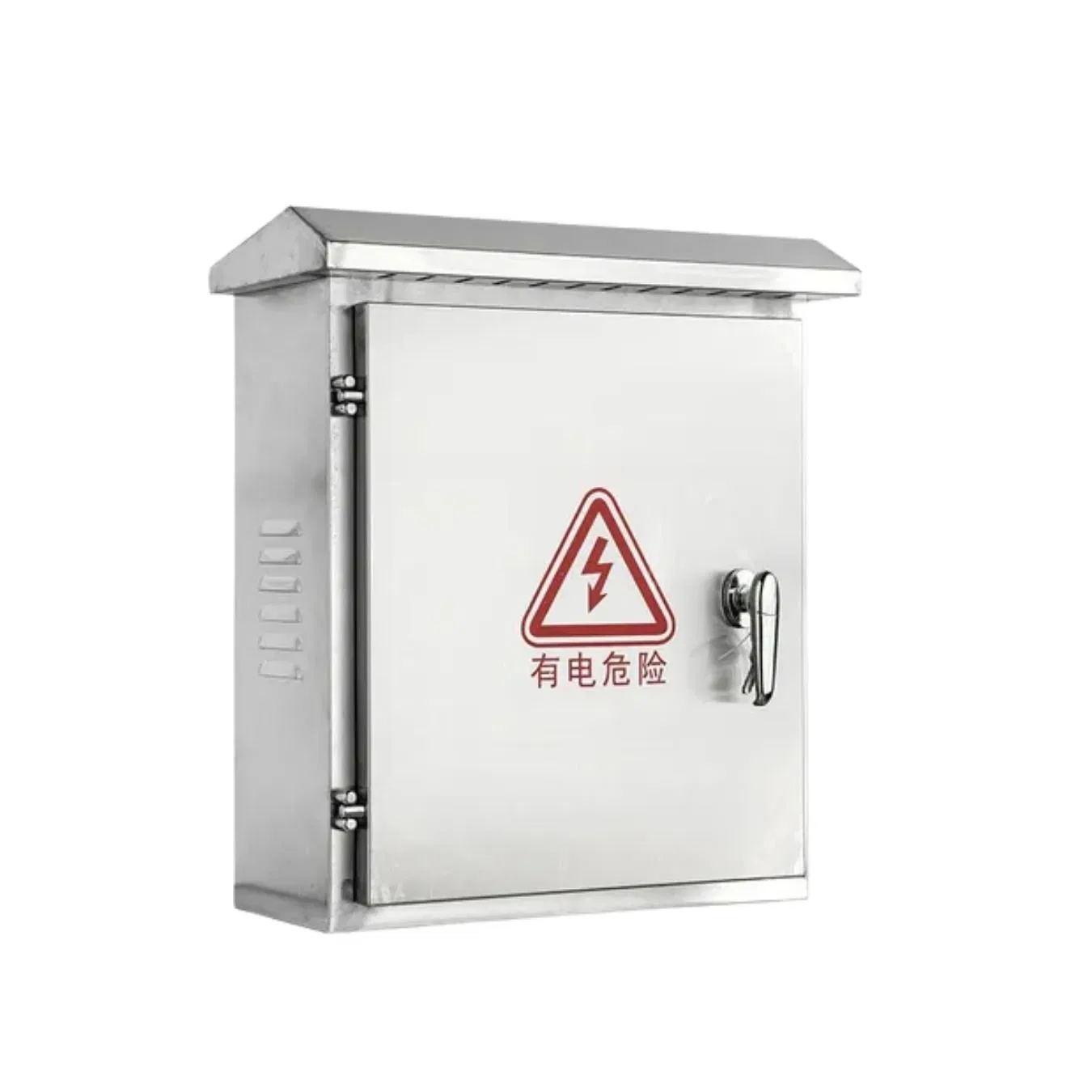

Outdoor Stainless Steel Power Distribution Cabinet Box, Outdoor Rainproof Box, Wall-Mounted Distribution Box

Outdoor Stainless Steel Power Distribution Cabinet Box, Outdoor Rainproof Box, Wall-Mounted Distribution Box Details

Outdoor Stainless Steel Power Distribution Cabinet Box Internal view

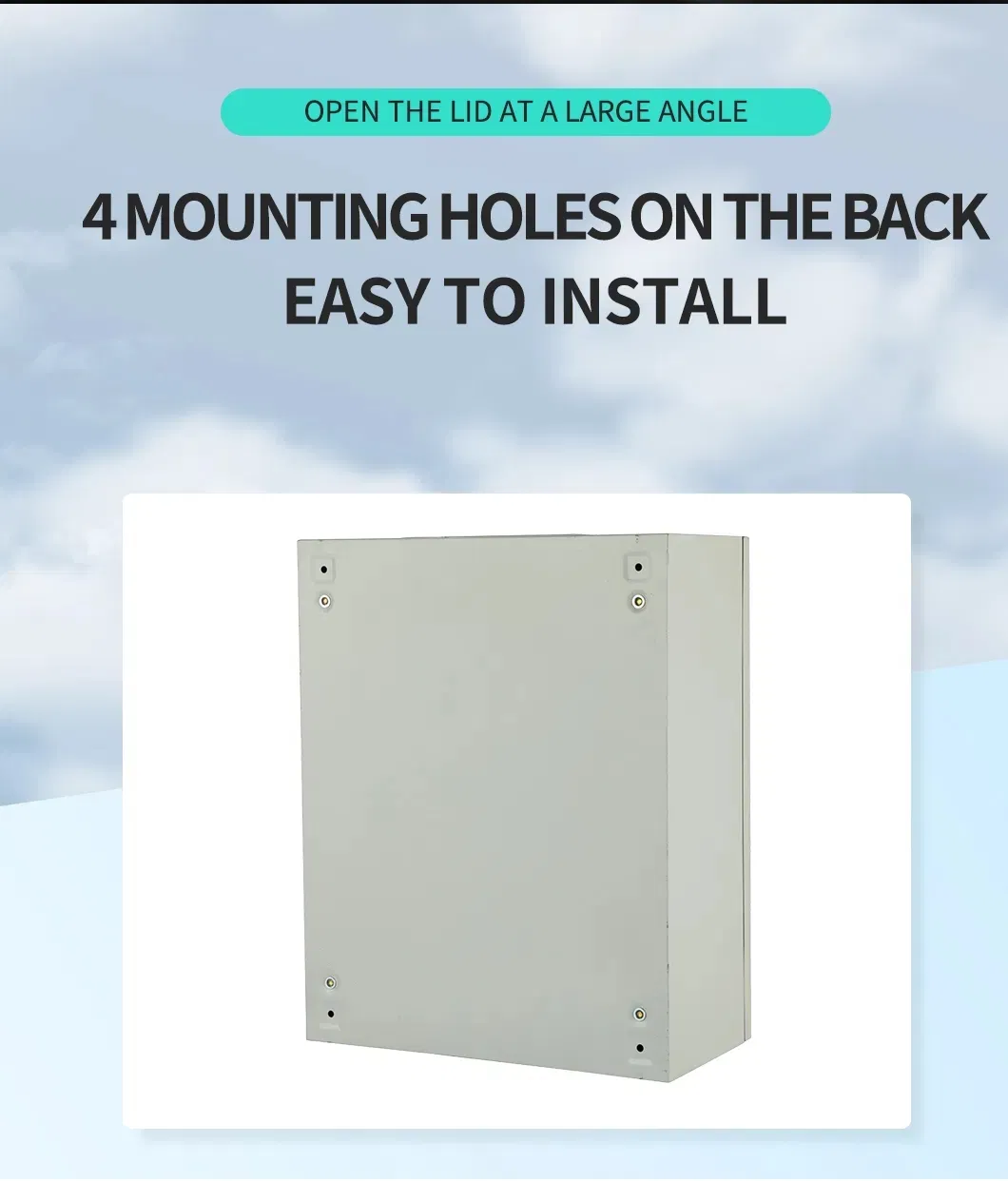

Outdoor Stainless Steel Power Distribution Cabinet Box Back view

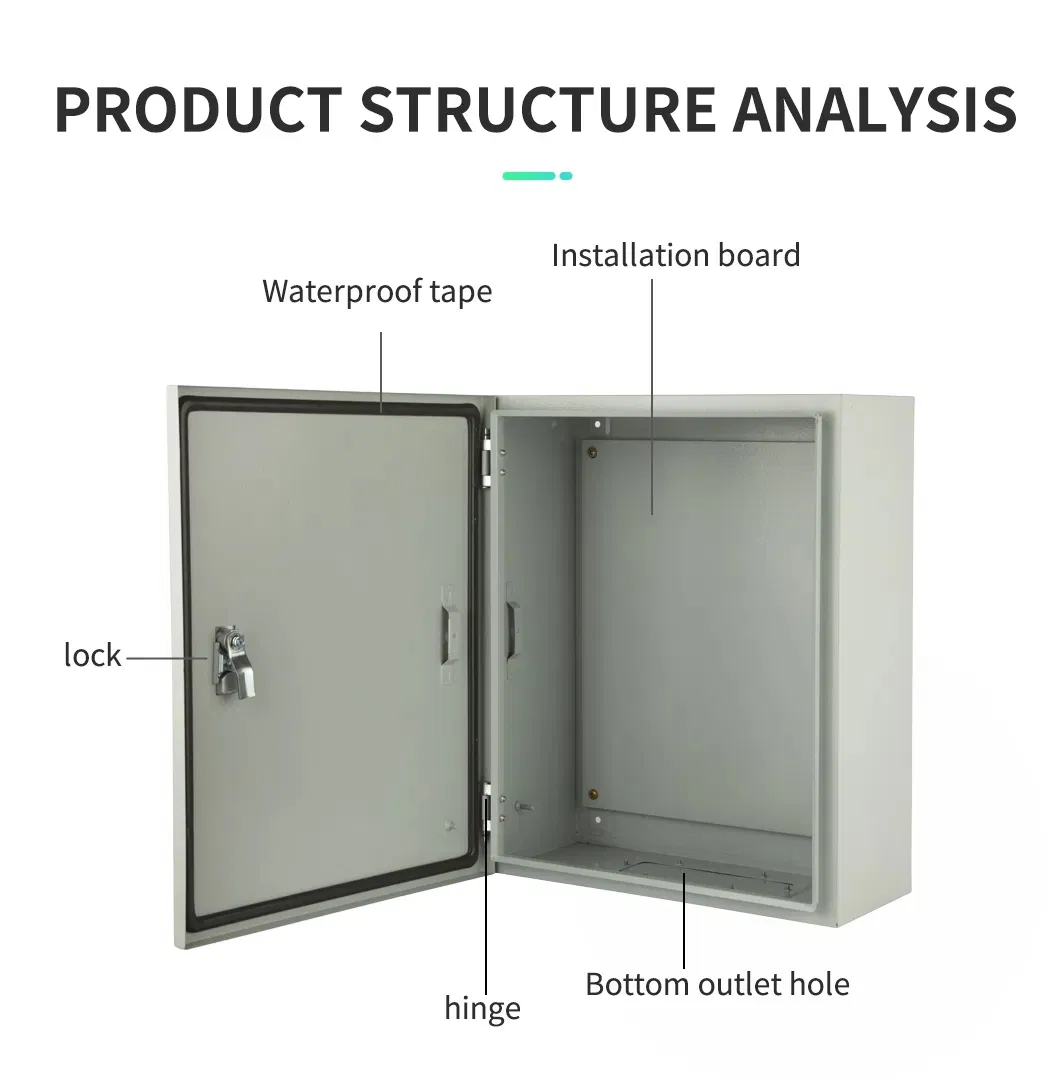

Outdoor Stainless Steel Power Distribution Cabinet Box Construction

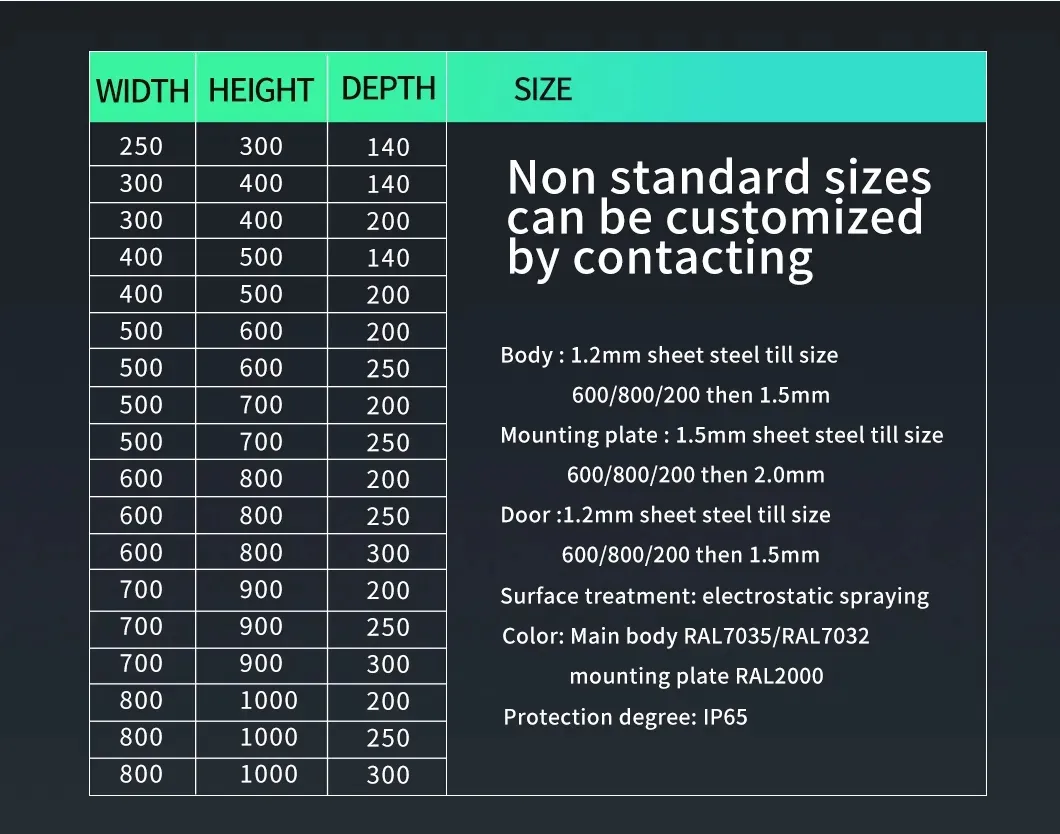

Outdoor Stainless Steel Power Distribution Cabinet Box Packaging

Frequently Asked Questions

What are the application scopes of the JXF control box?

The JXF control box is extensively applied in three-phase three-wire, four-wire, and five-wire electrical distribution systems with a frequency of 50Hz and voltage limits under 500V. It is optimized for power control, overload mitigation, leakage safety, phase failure protection, and short-circuit control across industrial, commercial, residential, and metallurgical environments.

What IP protection ratings are available?

To meet varied environmental requirements, the control boxes are designed with multiple ingress protection (IP) ratings, including IP20, IP40, IP43, IP54, and IP65. This ensures safe operation in both dust-heavy and outdoor rainy conditions.

What are the standard operational environmental limits?

The control box operates safely at altitudes up to 2000 meters, with ambient temperatures ranging between -25°C and +40°C. The relative humidity should not exceed 40% at +20°C. It must be installed in sites free from excessive vibration, shocks, and explosive gas/conductive dust.

Which structural styles and materials are utilized?

The enclosures are constructed from high-grade stainless steel and aluminum profiles, treated with pickling, phosphating, and powder spraying surface finishes. Structural designs include split, welded, and assembled forms, as well as double-door styles.

What are the size and thickness ranges?

Sizes range from 200X200X150mm up to 1200X1200X400mm, with wall thicknesses available in 1.0mm, 1.2mm, 1.5mm, and 2.0mm options to support wall-mount installation.
