Product Description

Basic Info.

Certification
ISO9001:2000, CCC
Form
Partly-welded Type
Operation Voltage
Low Voltage
Size
Customized
Application Range
Power Plants
Shell Material
Stainless Steel
Shell Protection Grade
IP66
Color
Silver
OEM Ability
Provide OEM
Certificates
CE CCC
Transport Package
Wooden Case/Carton
Origin
China
Production Capacity
5000 PCS/Month

Product Description

Material
SUS304 (201/316/others are optional)
Surface treatment
brushed finish
Ingress Protection
IP56 (according to GB4205-1993)
Standard configuration
door, box body, sealing strip, grounding set, mounting plate, lock & key
Thickness
box body: 1.5mm, door: 2.0mm, mounting plate: 2.5mm

FEATURES OF BAE series

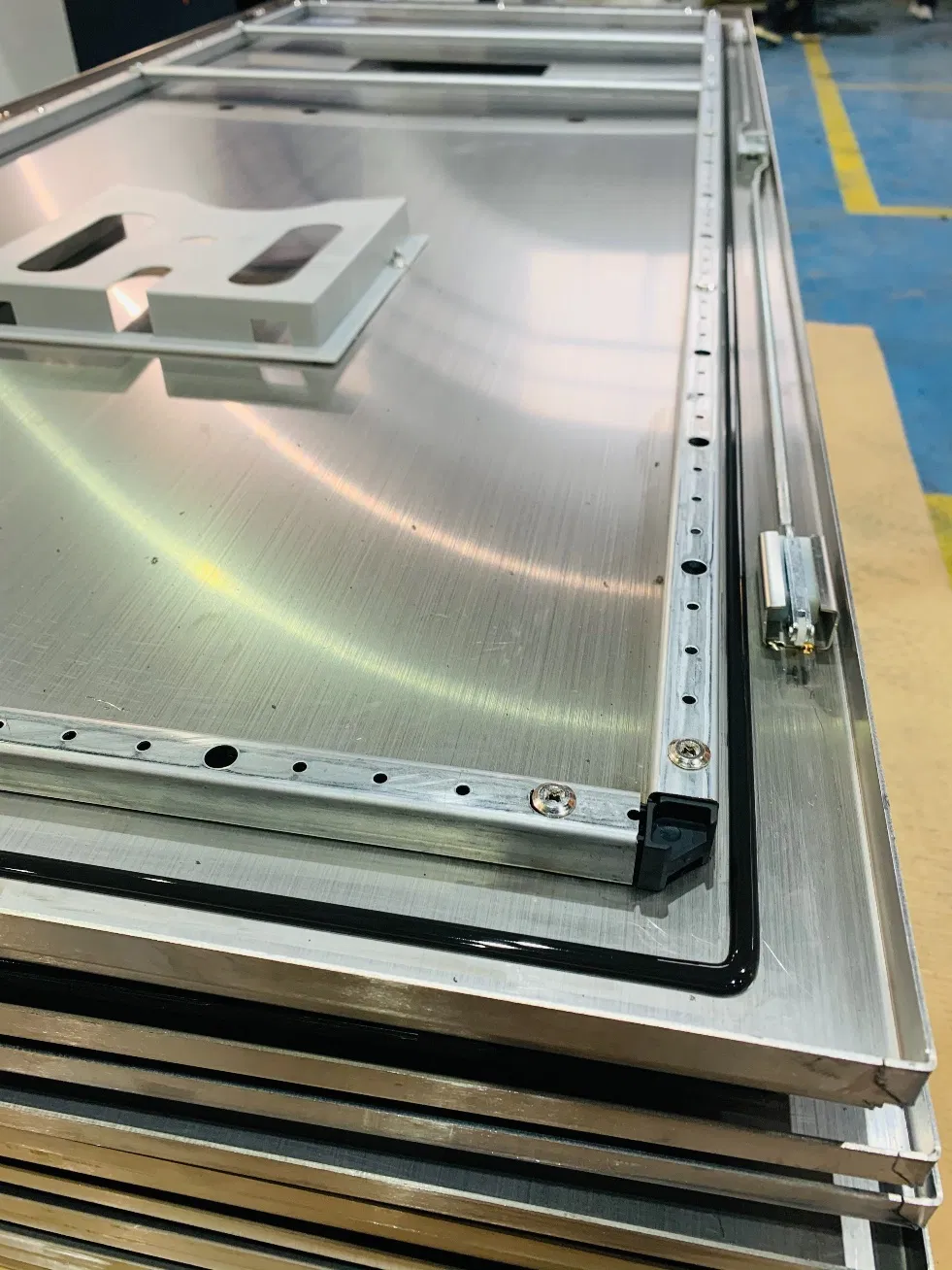

  • PU foaming sealing strip ensures a protection grade of IP56 to box body.
  • Galvanized mounting plate can also be used for wiring outside the box.
  • Multiple protection grooves are designed at the box opening can not only reinforce the structure, but also prevent the entry of dirt or water when the door is opened.

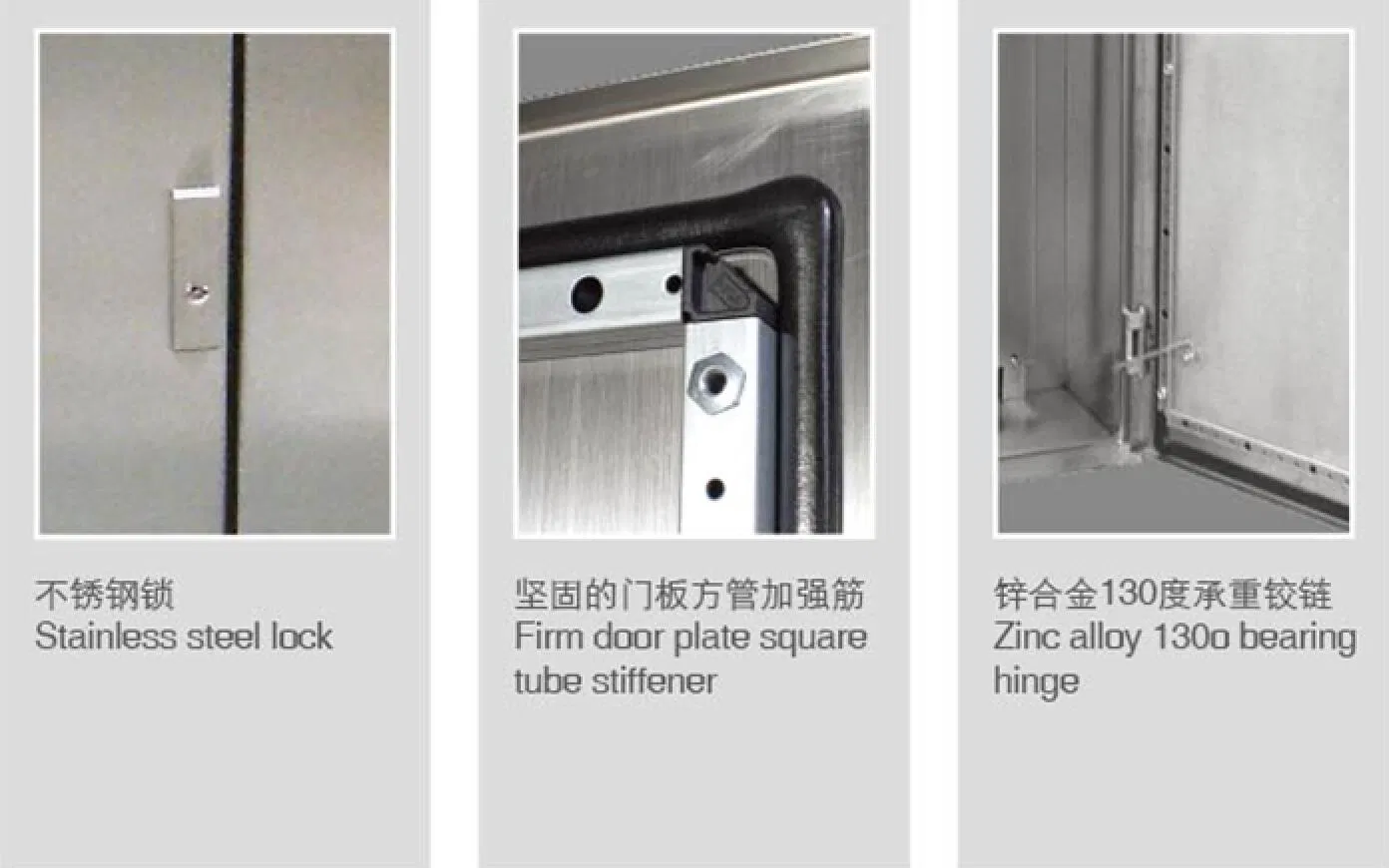

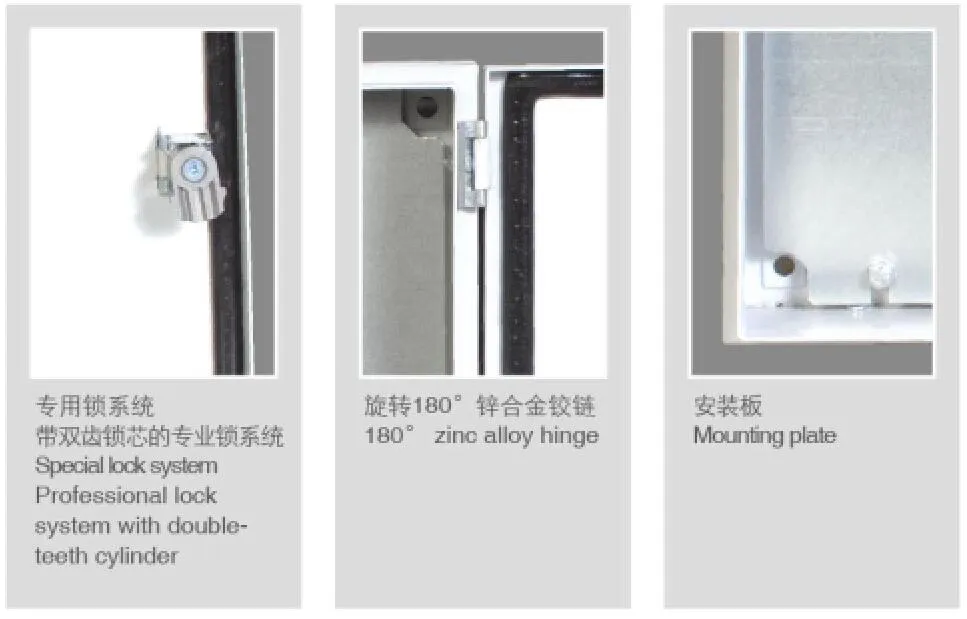

  • Special SUS304 stainless steel lock system with double-teeth cylinder shows high quality and ensures universality.
  • Surface wire drawing treatment (sand blasting is available in high-class box).

SPECIFICATIONS OF BAE series

No. Order No. Width (mm) Height (mm) Depth (mm) Lock (pcs)
1BAE20301203042003001201 single-point lock
2BAE20301553042003001551 single-point lock
3BAE20302103042003002101 single-point lock
4BAE30302103043003002101 single-point lock
5BAE30401203043004001201 single-point lock
6BAE30401553043004001551 single-point lock
7BAE30402103043004002101 single-point lock
8BAE38301553043803001551 single-point lock
9AE38302103043803002101 single-point lock
10BAE38382103043803802101 single-point lock
11BAE38602103043806002102 single-point lock
12BAE40401553044004001551 single-point lock
13BAE40502103044005002101 single-point lock
14BAE50502103045005002101 single-point lock
15BAE50503003045005003001 single-point lock
16BAE50602103045006002102 single-point lock
17BAE60382103046003802101 single-point lock
18BAE60383503046003803501 single-point lock
19BAE60602103046006002102 single-point lock
20BAE60602503046006002502 single-point lock
21BAE60603003046006003002 single-point lock
22BAE60603503046006003502 single-point lock
23BAE60762103046007602102 single-point lock
24BAE60762503046007602502 single-point lock
25BAE60763503046007603502 single-point lock
*Non-standard sizes can be customized.
Wooden Case/Carton distribution board Electrical Enclosure Wall Mounted Box
Wooden Case/Carton distribution board Electrical Enclosure Wall Mounted Box
Wooden Case/Carton distribution board Electrical Enclosure Wall Mounted Box
Wooden Case/Carton distribution board Electrical Enclosure Wall Mounted Box
Wooden Case/Carton distribution board Electrical Enclosure Wall Mounted Box
Wooden Case/Carton distribution board Electrical Enclosure Wall Mounted Box

Frequently Asked Questions (FAQ)

QWhat materials are used for the BAE series enclosures?
The standard material used is SUS304 stainless steel. However, options like SUS201, SUS316, and others can be provided based on your requirements.
QWhat Ingress Protection (IP) rating do these enclosures offer?
The BAE series enclosures feature an Ingress Protection rating of IP56 (according to GB4205-1993), which is secured with a high-quality PU foaming sealing strip. The general basic shell grade achieves up to IP66 protection.
QWhat is included in the standard configuration of the enclosure?
The standard configuration comes complete with the door, the box body, the sealing strip, a grounding set, a mounting plate, and a lock & key.
QAre custom sizes available for order?
Yes, while we offer a wide range of standard dimensions listed in our specifications table, non-standard sizes can be fully customized according to your specific project needs.
QWhat are the standard material thicknesses for the box components?
The standard thicknesses are 1.5mm for the box body, 2.0mm for the enclosure door, and 2.5mm for the galvanized mounting plate.
QHow does the design prevent dirt and water from entering when opening the door?
The enclosure features multiple protection grooves designed at the box opening. These grooves reinforce the overall structure and prevent any accumulated dirt or water from entering the box when the door is opened.
