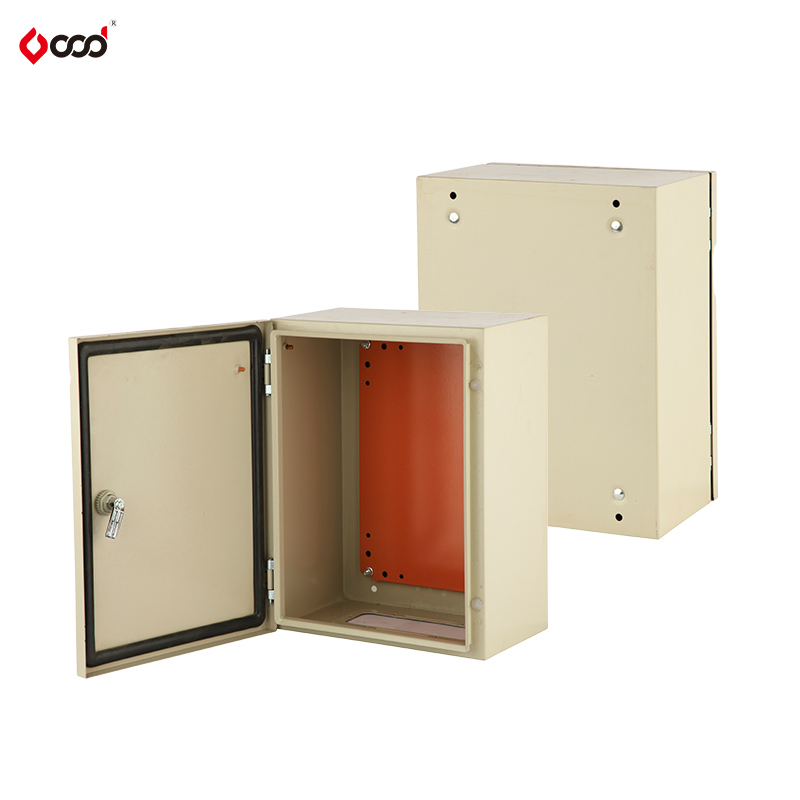

Multipurpose Power Distribution Box for Various Commercial and Residential Applications

1 / 5

Multipurpose Power Distribution Box for Various Commercial and Residential Applications

Customization:	Available
Type:	Power
Structure:	Distribution Box

Send Inquiry

Product Description

Basic Specifications

Model NO. customizable

Form Partly-welded Type

Operation Voltage Low Voltage

Size From 200X200X150mm to 1200X1200X400mm

Application Range Electrical

Shell Material Steel Plate

Shell Protection Grade IP55

Thickness 1.2mm / 1.5mm / 2.0mm

OEM Service Offered

Colour Ral7032 / Ral7035 / Ral2000

Customization Offered

Transport Package Carton

Specification Range From 200x200x150mm to 1400x1200x300mm

Production Capacity 100,000 Pieces/Year

Packaging & Delivery

Package Size 40.00cm * 20.00cm * 50.00cm

Package Gross Weight 10.000kg

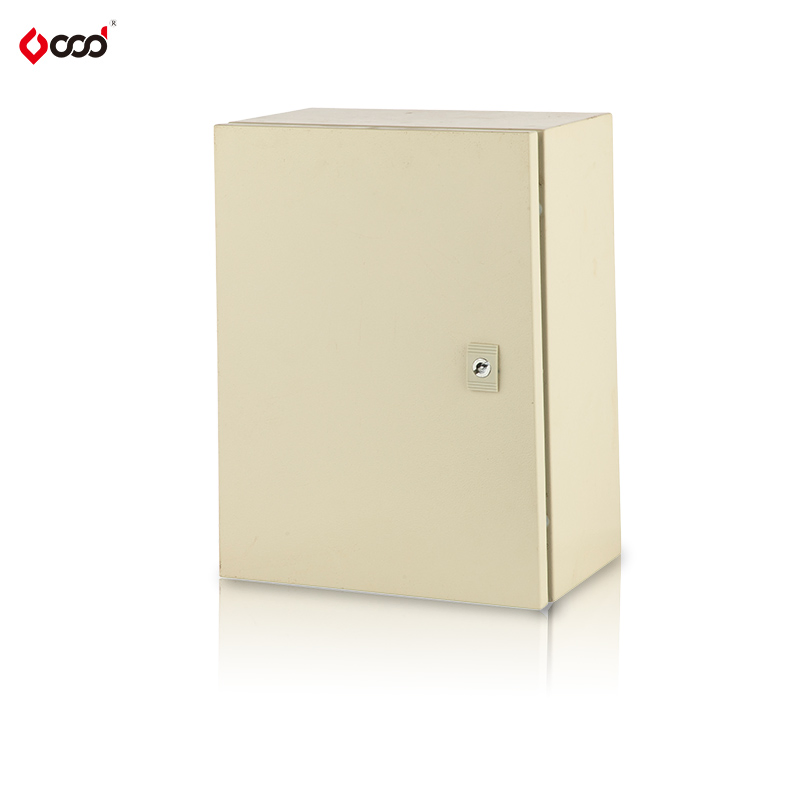

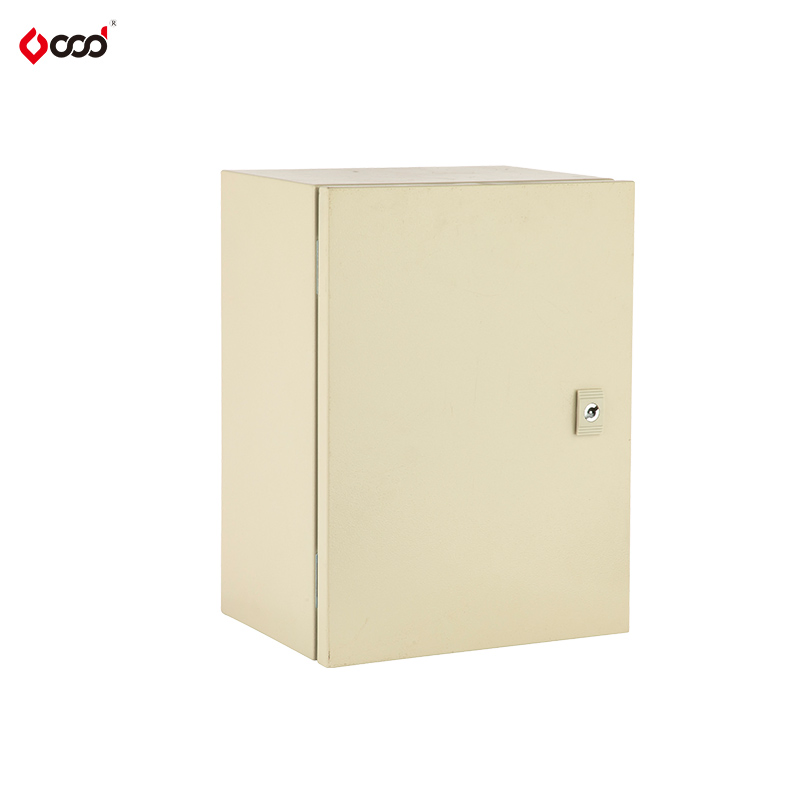

Product Display

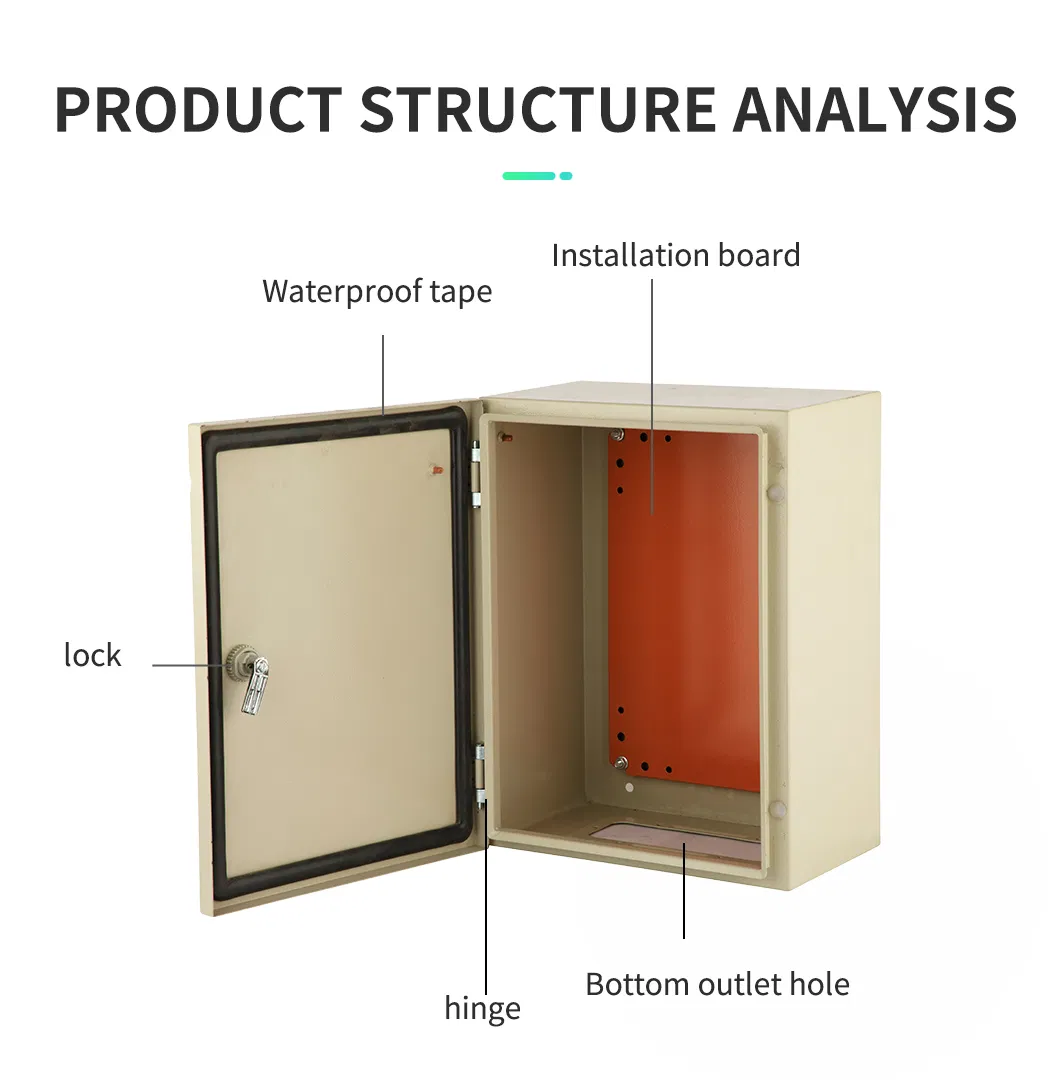

Multipurpose Power Distribution Box Layout

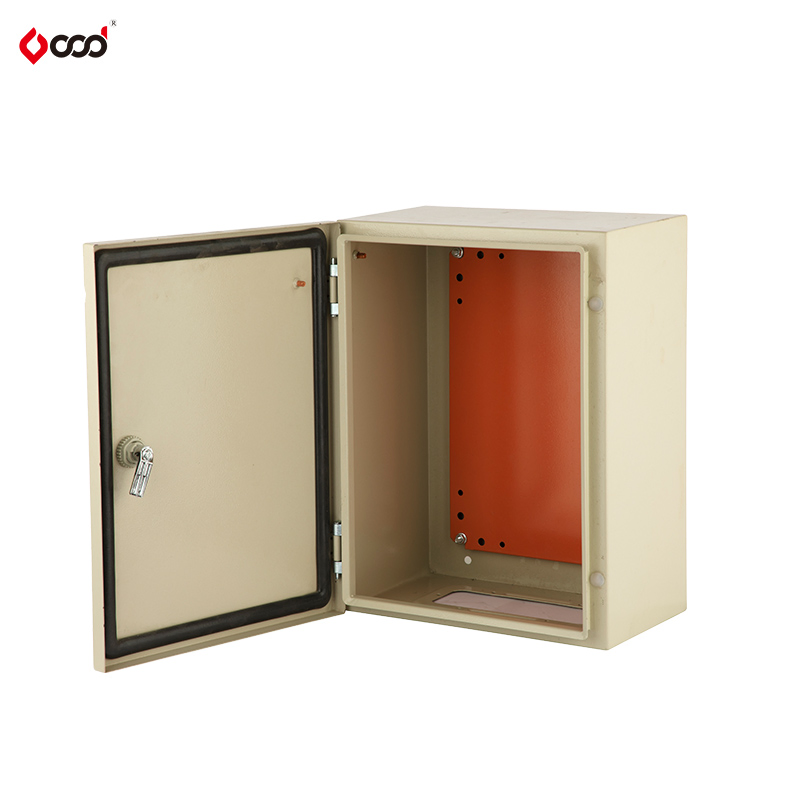

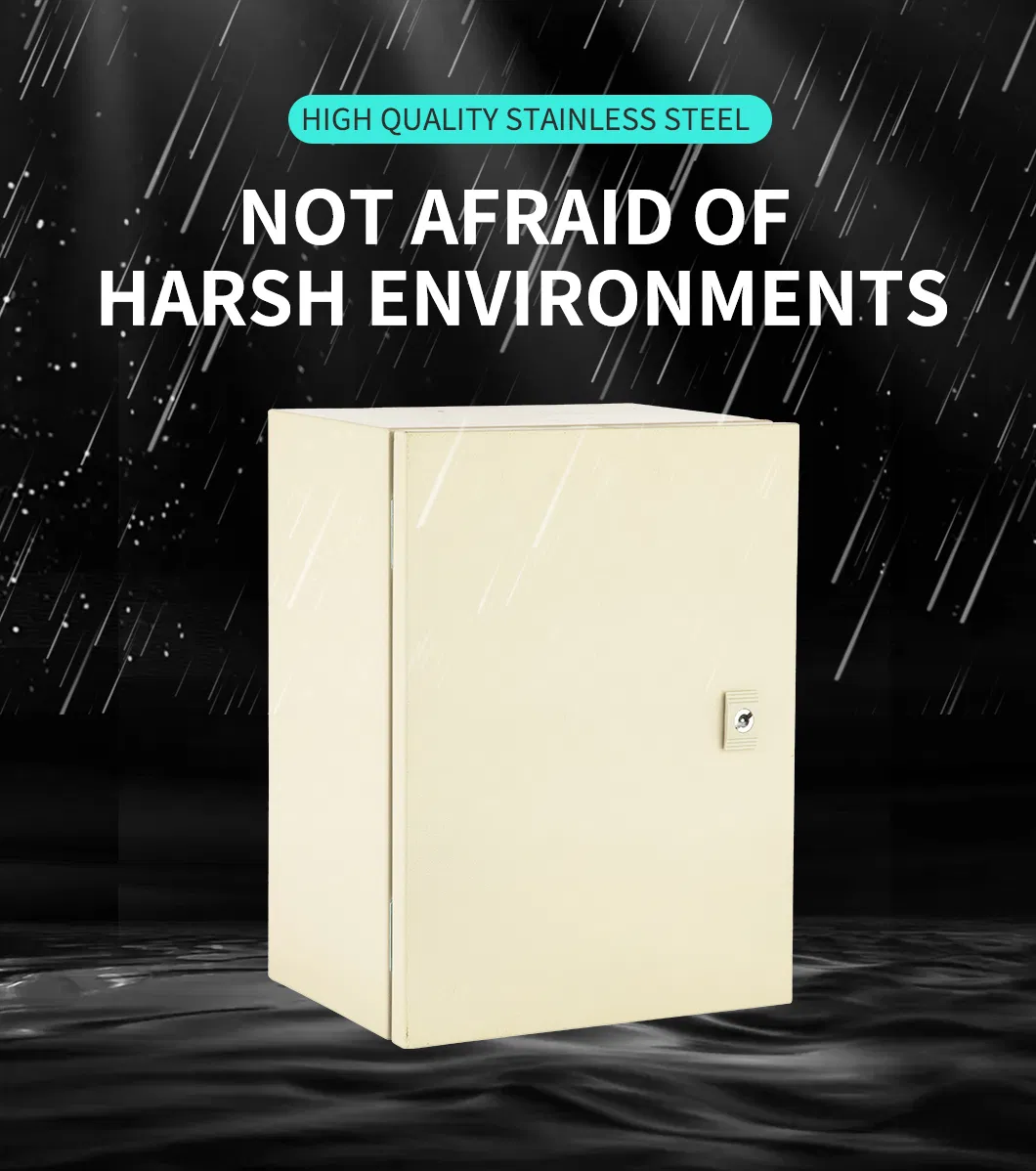

Multipurpose Power Distribution Box Details

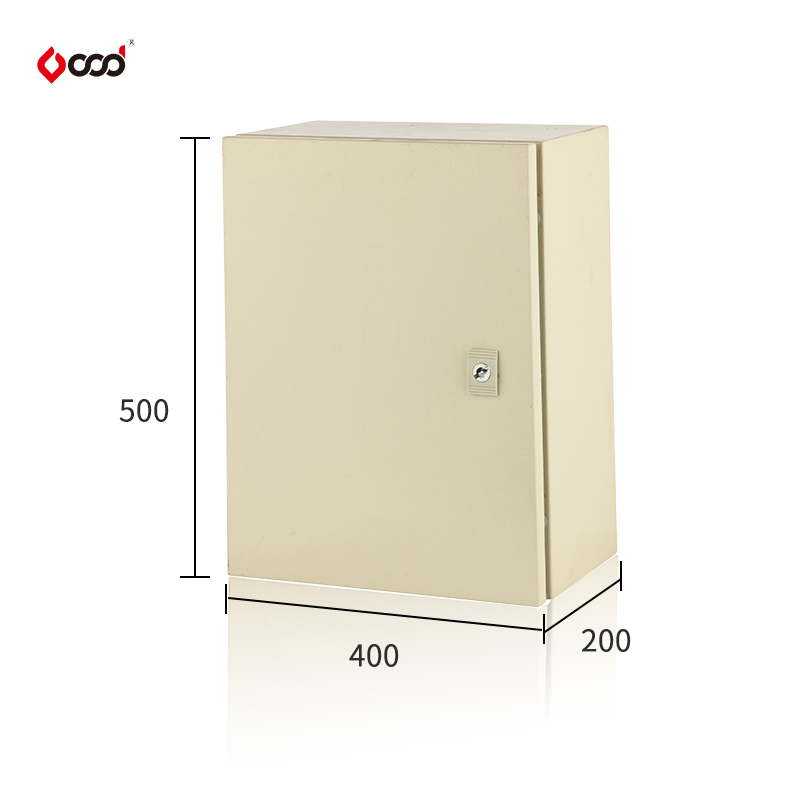

Multipurpose Power Distribution Box Dimensions

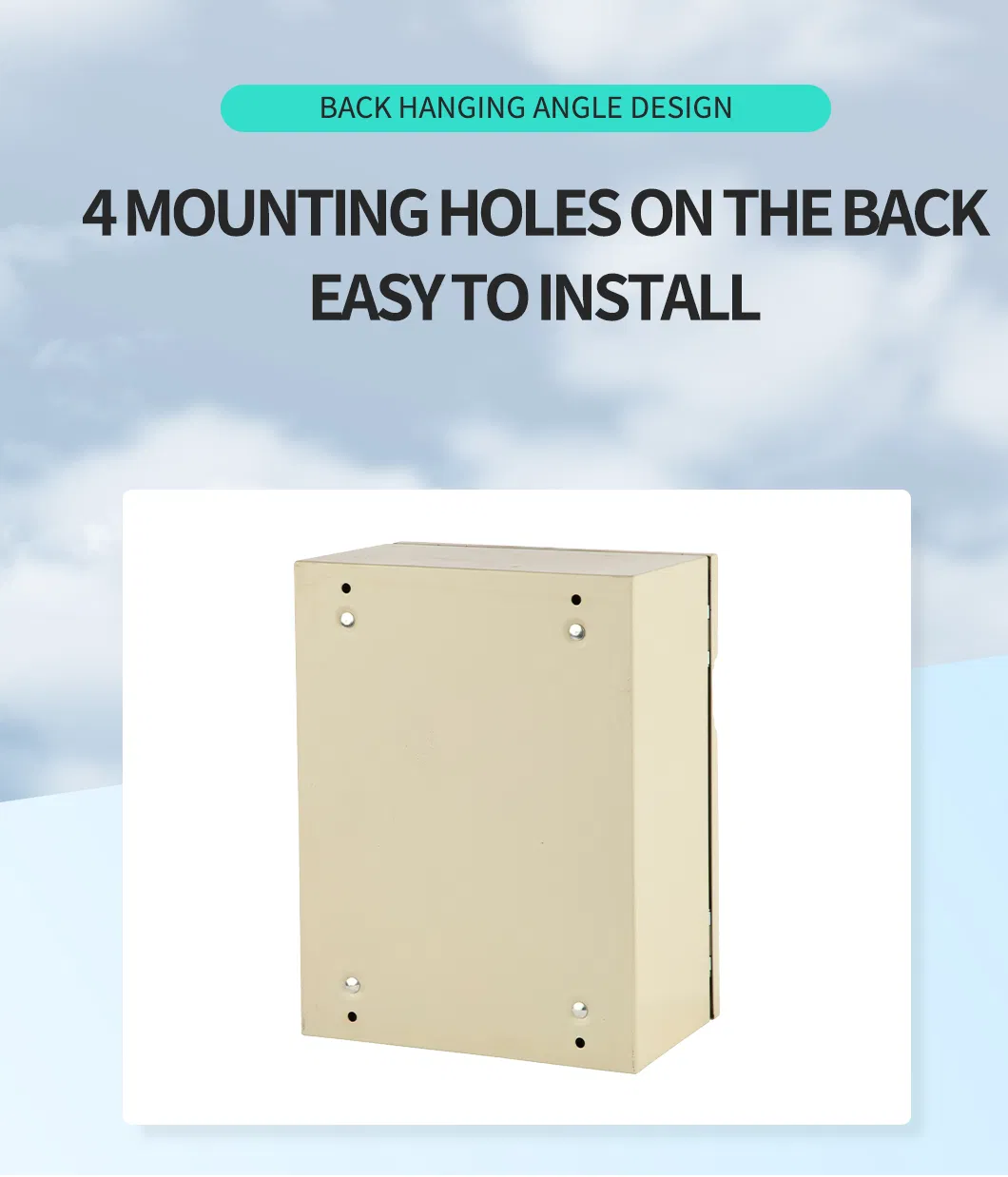

Multipurpose Power Distribution Box Back View

Product Parameters

Non-standard sizes can be fully customized upon request.

Width (mm)	Height (mm)	Depth (mm)
250	300	140
300	400	140
300	400	200
400	500	140
400	500	200
500	600	200
500	600	250
500	700	200
500	700	250
600	800	200
600	800	250
600	800	300
700	900	200
700	900	250
700	900	300
800	1000	200
800	1000	250
800	1000	300

Material Specifications

Body: 1.2mm sheet steel up to size 600/800/200, 1.5mm for larger dimensions.
Mounting Plate: 1.5mm sheet steel up to size 600/800/200, 2.0mm for larger dimensions.
Door: 1.2mm sheet steel up to size 600/800/200, 1.5mm for larger dimensions.
Surface Treatment: High-durability electrostatic spraying.
Colors: Main body available in RAL7035 or RAL7032; mounting plate finished in RAL2000.
Protection Degree: Rated at IP65 for optimal safety and performance.

Frequently Asked Questions

Can you print our own logo?

Yes, we provide complete OEM and ODM services. Custom logo printing and layout adjustments are supported based on your project requirements.

What information is required to get a accurate quote?

Please provide us with 2D or 3D technical drawings containing details on the material, dimension tolerances, surface treatments, specific technical requirements, quantity, and application, or supply us with physical samples. We will calculate and offer our best price within 48 hours.

How do I purchase the ideal product for my project?

If you have structural drawings, we can manufacture products directly according to those guidelines. If you do not have a finalized design plan, we can develop custom design drafts for you based on your operating requirements.

What is the typical delivery timeframe?

The delivery time is primarily dependent on the total order quantity. In general, the standard production and shipping dispatch will be completed within 15 to 30 days.

Is it possible to track the manufacturing progress remotely?

Yes. We provide full production monitoring by preparing detailed product schedules and sending regular weekly reports. These reports contain digital pictures and videos showing the precise machining progress of your order.

Which materials and protection standards do you offer?

We utilize high-quality sheet steel ranging from 1.2mm to 2.0mm thick, depending on size. Our enclosures feature high-grade electrostatic powder spray finishes in RAL7035, RAL7032, and RAL2000, and conform to IP65 and IP55 protection ratings.
