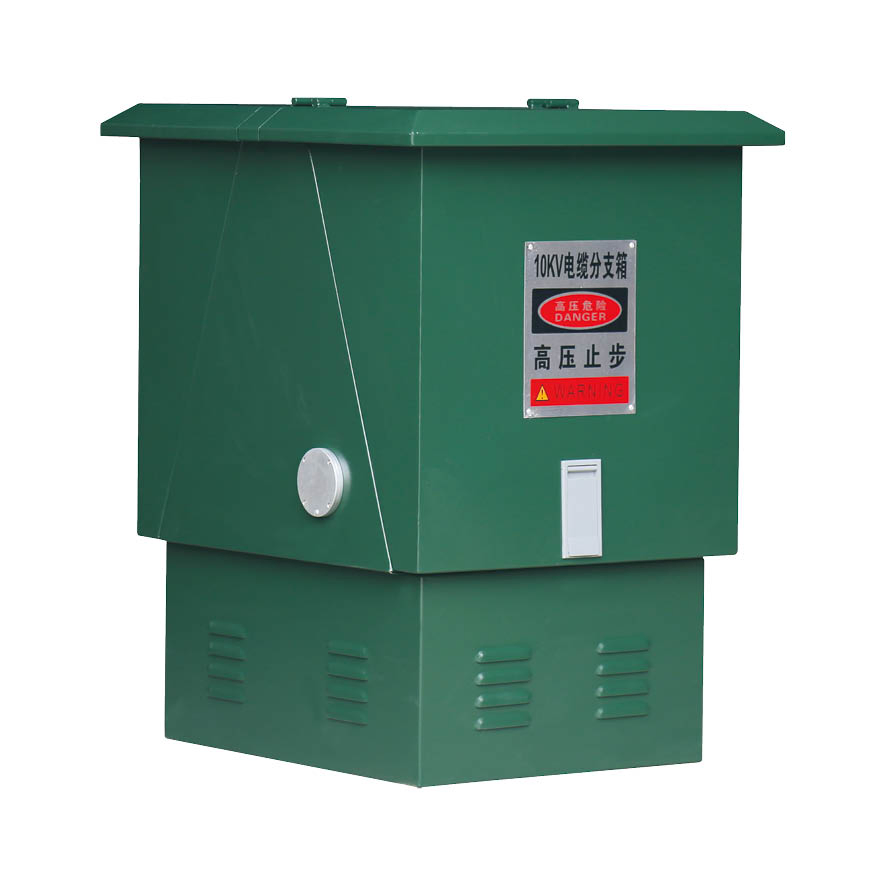

Kodery Customized Conductor Box Cable Branch Box Iron Outdoor High Low Voltage Stainless Steel Power Distribution Cable Branch Box

Basic Information

Certification ISO9001:2000, CCC

Form All-packaged Type

Operation Voltage High Voltage

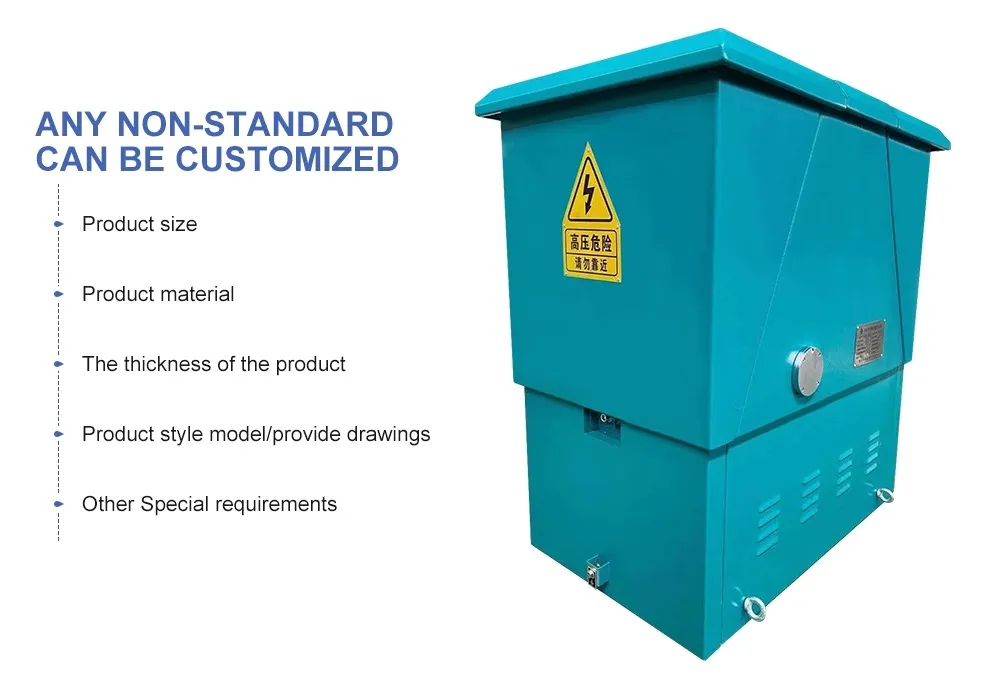

Size Customized

Application Range High-rise Buildings

Shell Material Stainless Steel

Shell Protection Grade IP44

Transport Package Wooden

Specification 950*650*1020

Origin China

HS Code 8537109090

Production Capacity 100,000 pcs/Year

Product Description

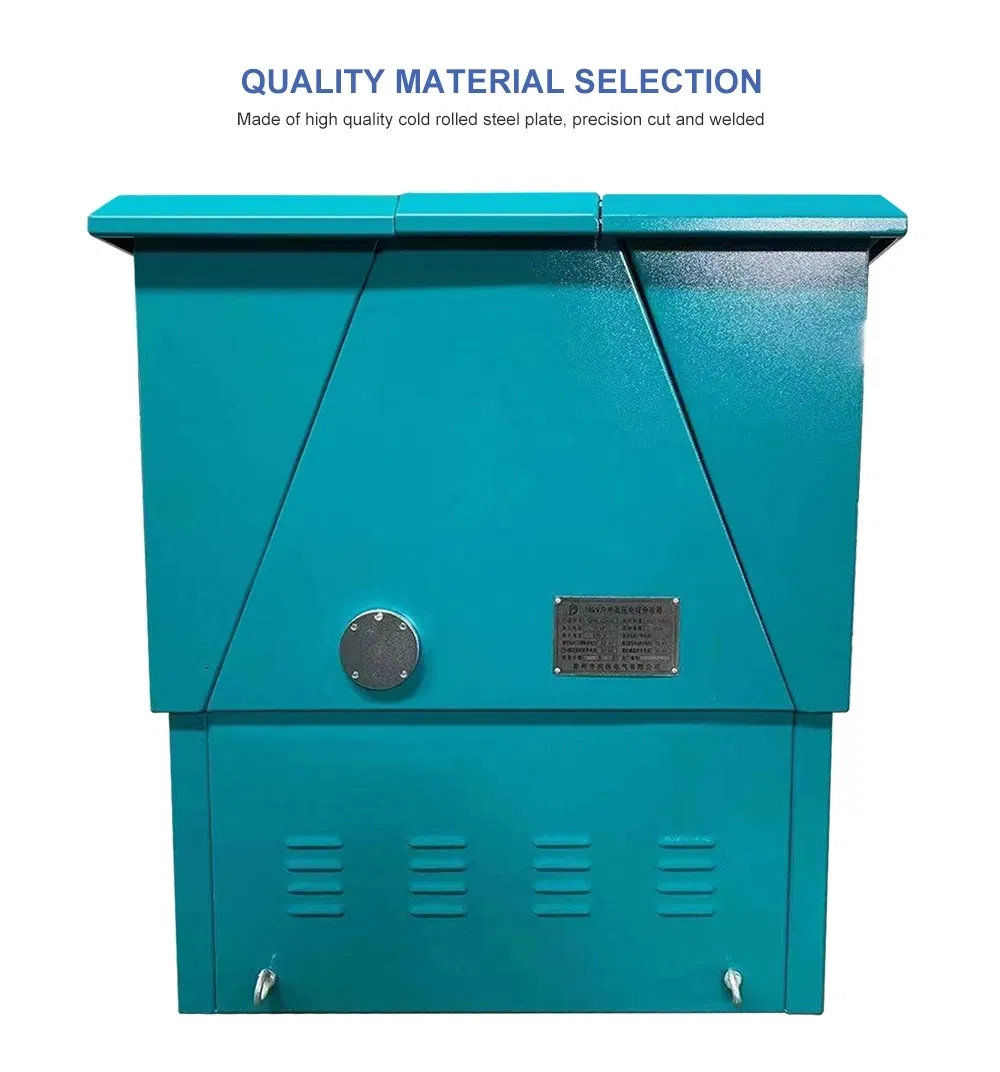

DFW type cable distribution box without switch is outdoor high voltage electrical equipment with 12kV rated voltage, 630A rated current, whose cabinet is built with 2 mm stainless steel, durable, for receiving and distribution of power purposes.

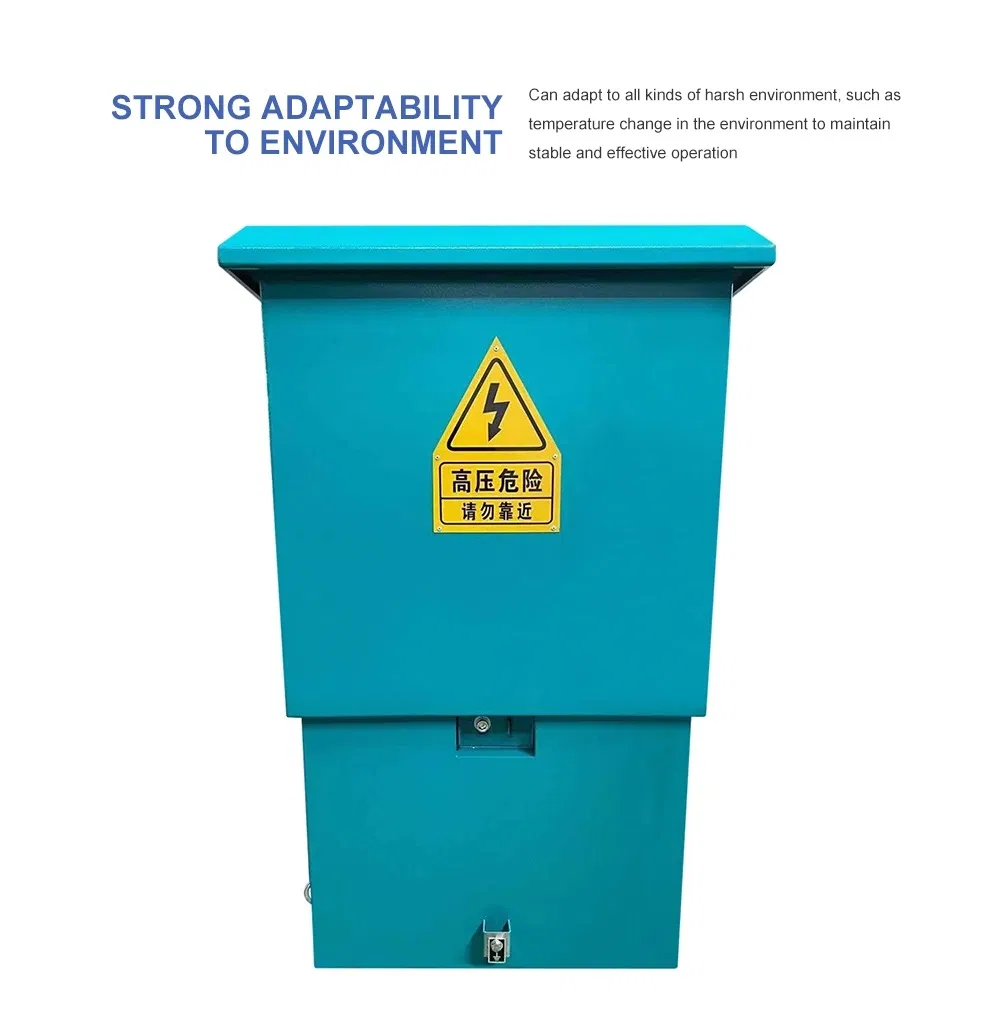

Anti harsh environment, anti condensation, frost, fog, salt contamination, corrosion resistance

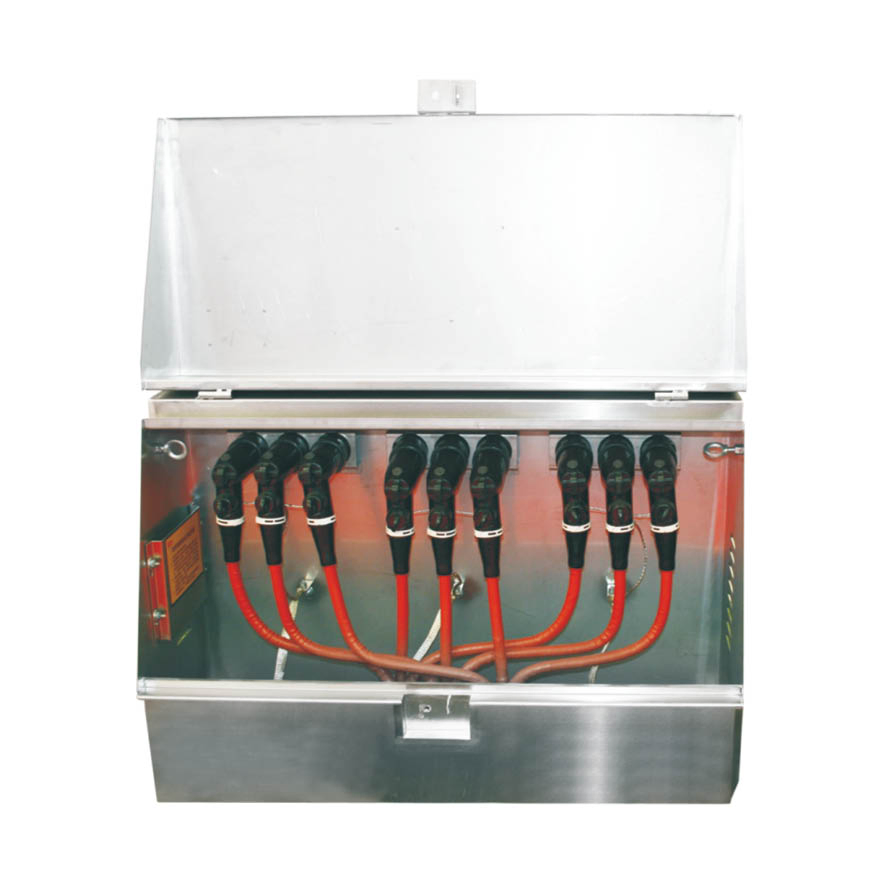

Live part is fully insulated, fully sealed structure

Simple connection, flexible and convenient, safe and reliable

Altitude ≤2000m

Ambient temperature -35ºC ~ +40ºC

Relative humidity Daily average ≤95%, Monthly average ≤90%

Seismic capacity 8 degrees

Product Parameters

Rated voltage	12 kV
Rated current	≤ 630A
Rated frequency	50 Hz
1min AC frequency withstand voltage	42 kV
Lightning surge withstand voltage	75 kV
Rated short-time withstand current (Valid values) 4s	20 kA
Rated short-circuit duration	4 s
Rated peak withstand current (peak)	50 kA
Partial discharge	1.1 Ur, ≤100pC
Loop resistance	≤65 μΩ
Shell Protection Grade	IP44
Applicable cable cross-sectional area	25~400 mm²

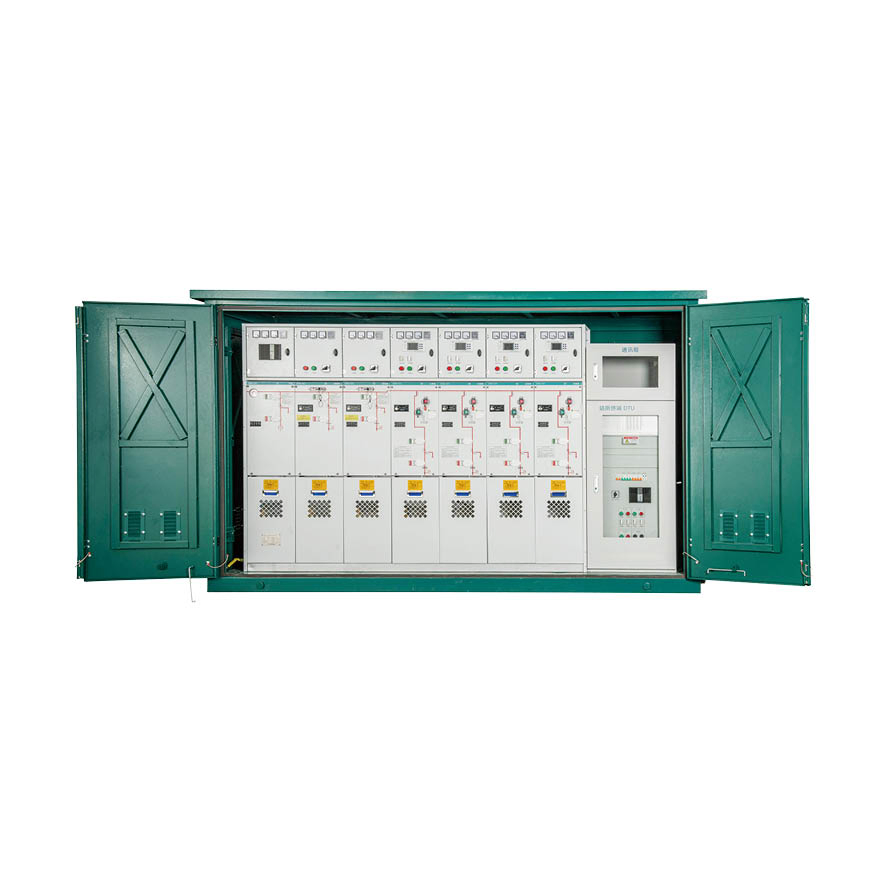

Power Distribution Cable Branch Box Structure

Design & Operational Strengths

The use of assembled switchgear.

Equipped with an observation window for easy observation of the equipment operating inside.

Equipped with a charged display device to facilitate observation of whether the equipment is charged.

The busbar chamber is provided with a pressure relief channel.

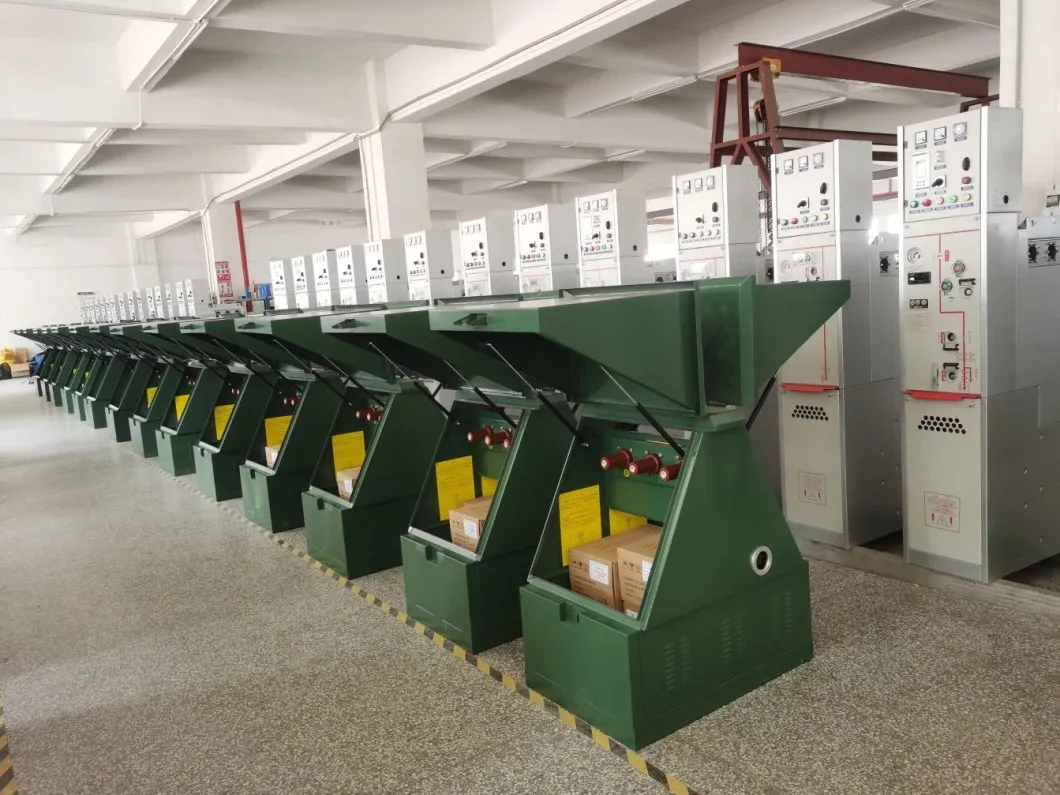

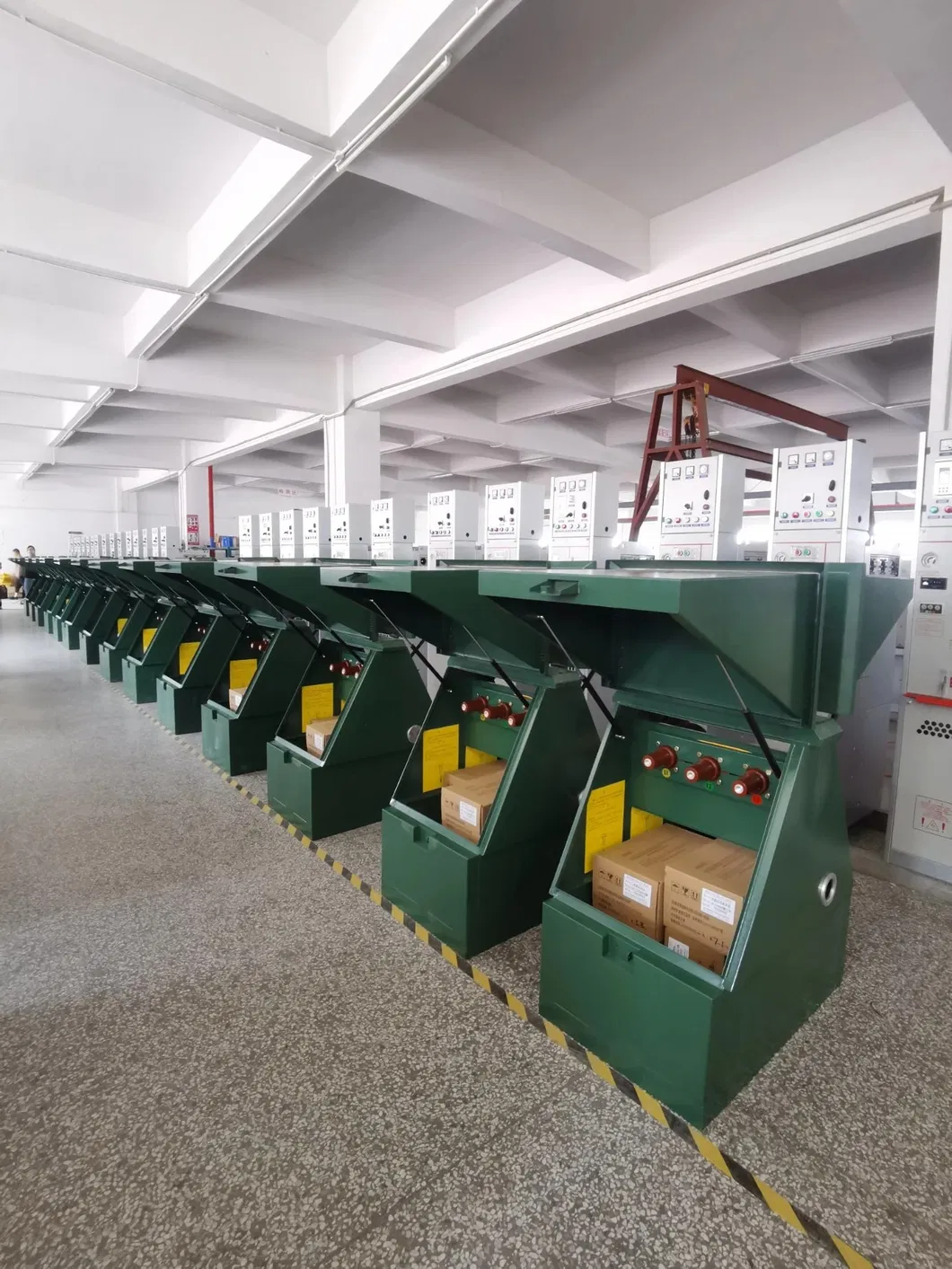

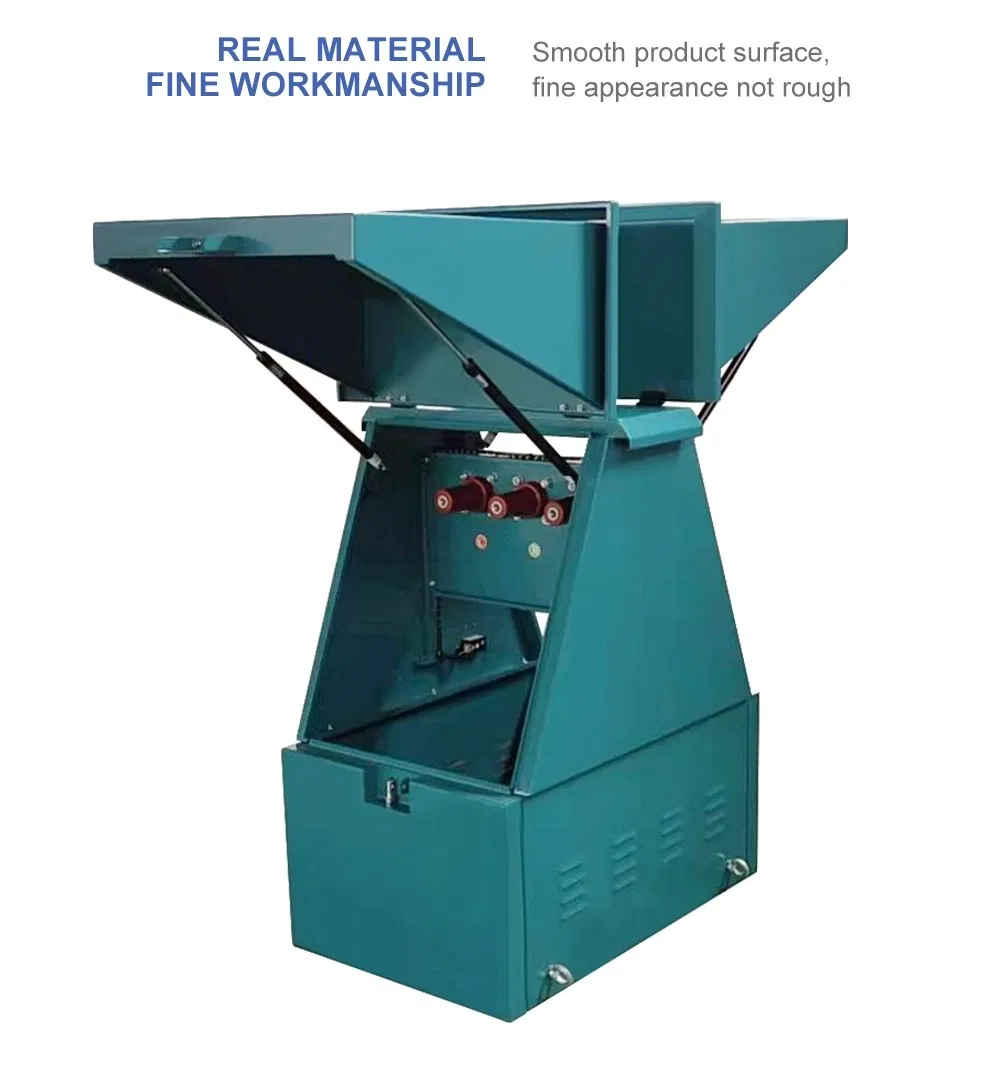

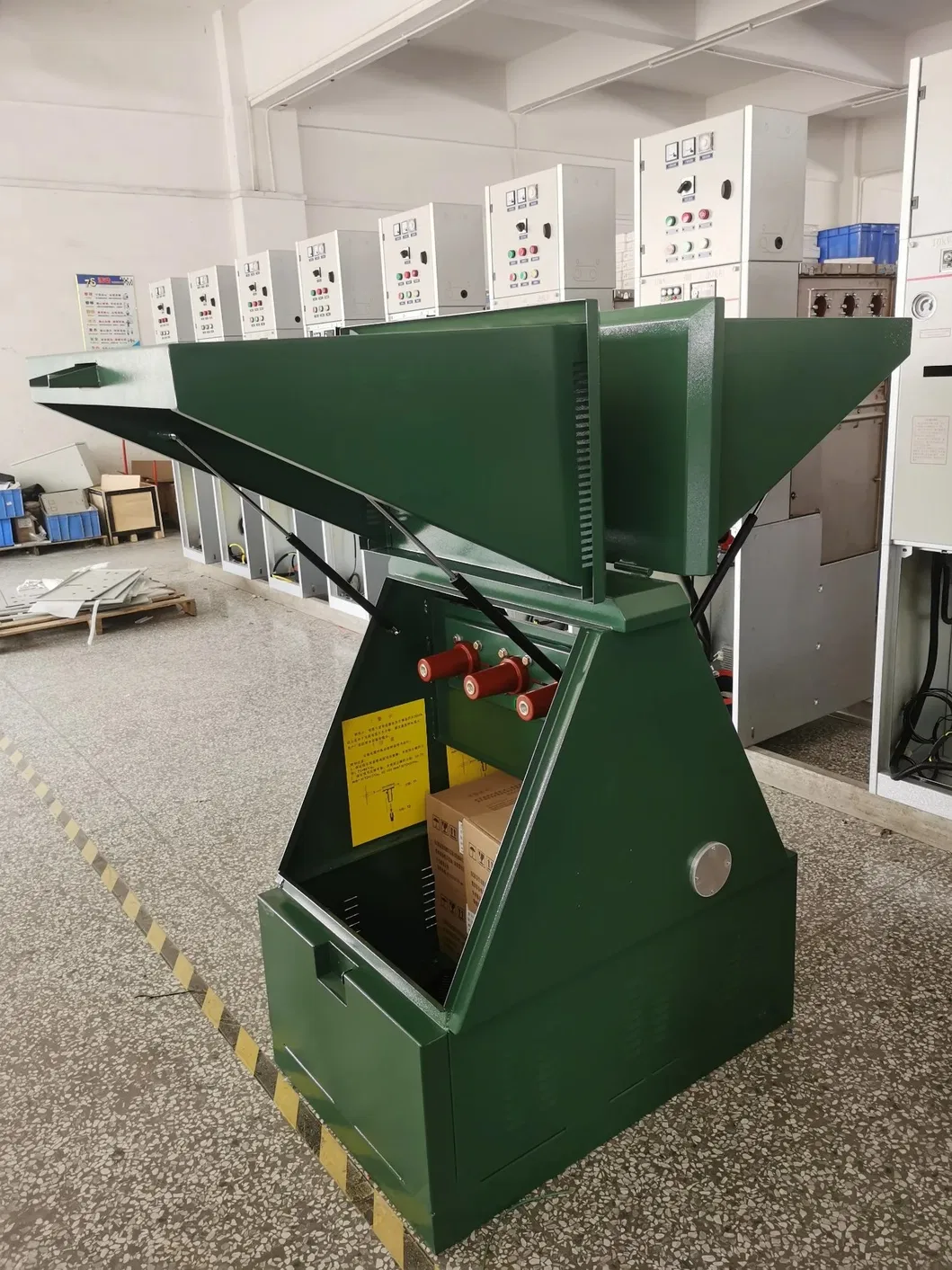

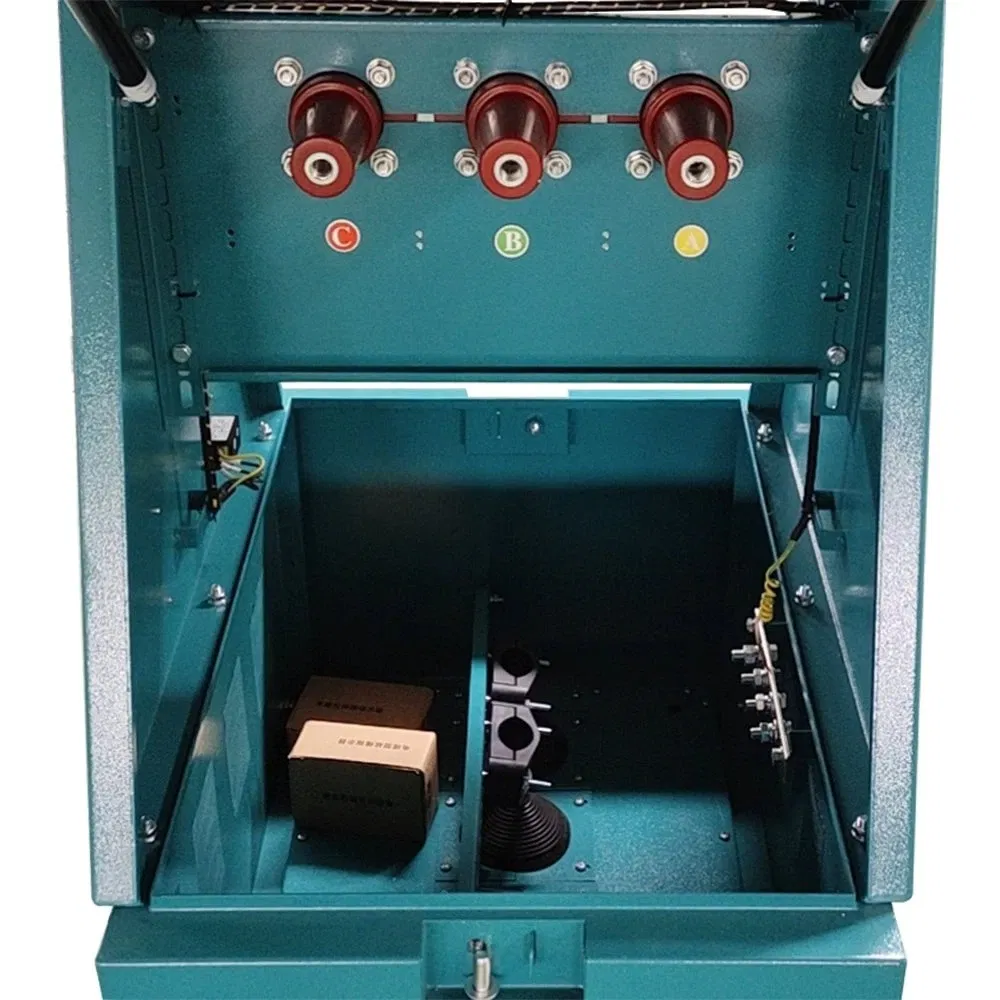

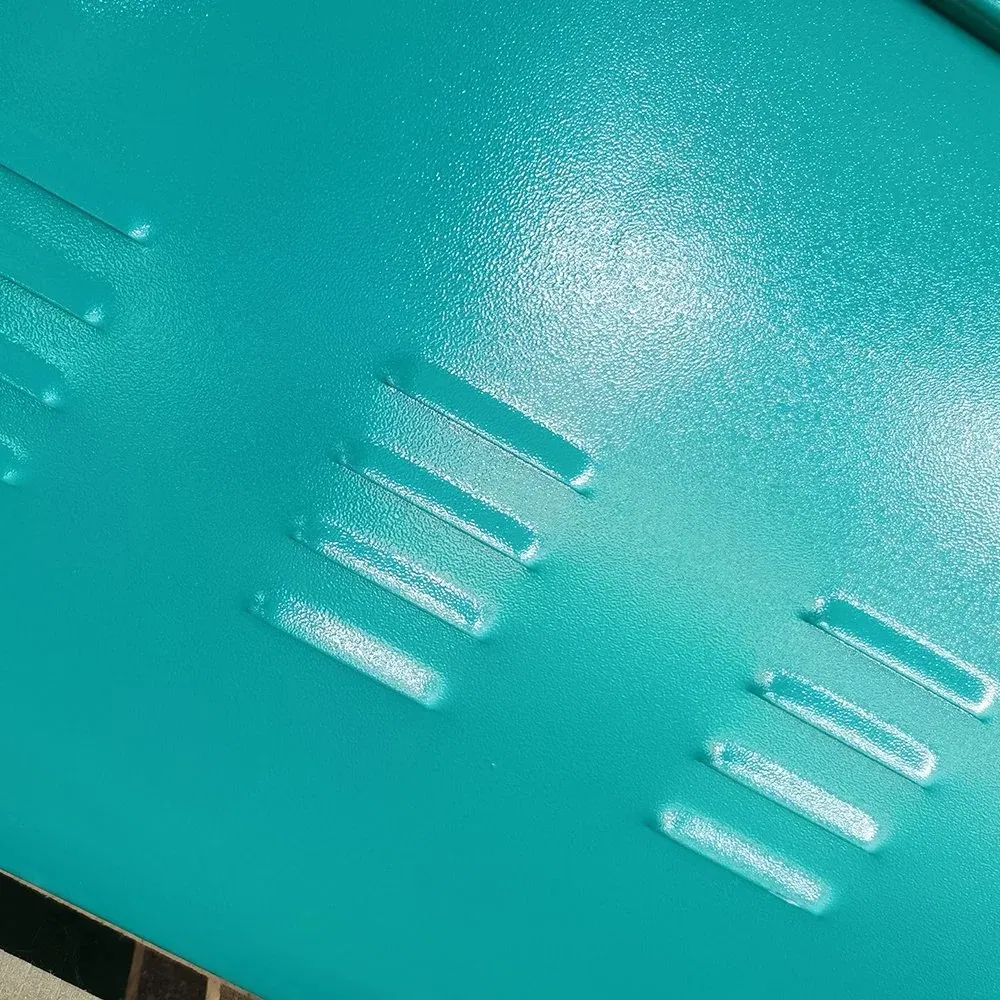

Detailed Photos

Frequently Asked Questions (FAQ)

What are the rated voltage and current capacities for this cable distribution box?

The DFW type cable distribution box has a rated voltage of 12kV and a rated current limit of up to 630A, making it ideal for high voltage outdoor power distribution purposes.

How does the shell material protect the device in extreme outdoor environments?

The cabinet is constructed using 2 mm thick stainless steel with an IP44 protection rating. It is specifically designed to resist harsh environments, condensation, frost, fog, salt contamination, and corrosion.

Is this high voltage cable distribution box fully insulated?

Yes, the live components within the cabinet are configured with a fully insulated and fully sealed structure, which ensures a safe, reliable, and durable connection.

What are the operational limit requirements for temperature and altitude?

The equipment operates efficiently under altitudes up to 2000m and within an ambient temperature range from -35ºC to +40ºC.

Are there observation windows or indicators for real-time monitoring?

Yes, it is equipped with a clear observation window for easy monitoring of internal switchgear operations, as well as a charged display device to show live voltage status safely.

Does the box design support pressure relief?

Yes, the internal busbar chamber is built with an integrated pressure relief channel to guarantee safety and prevent damage during pressure spikes.
