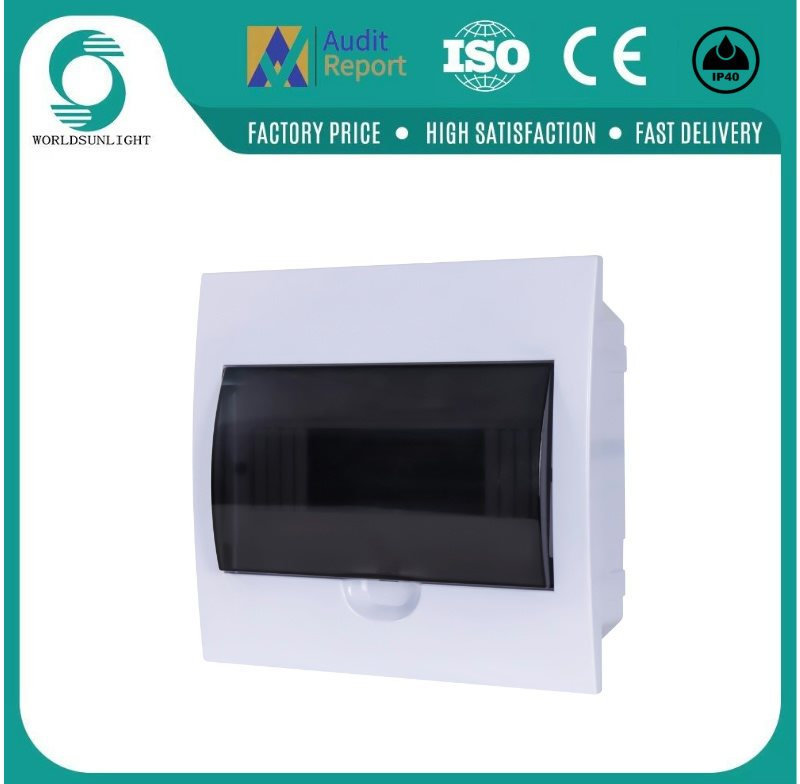

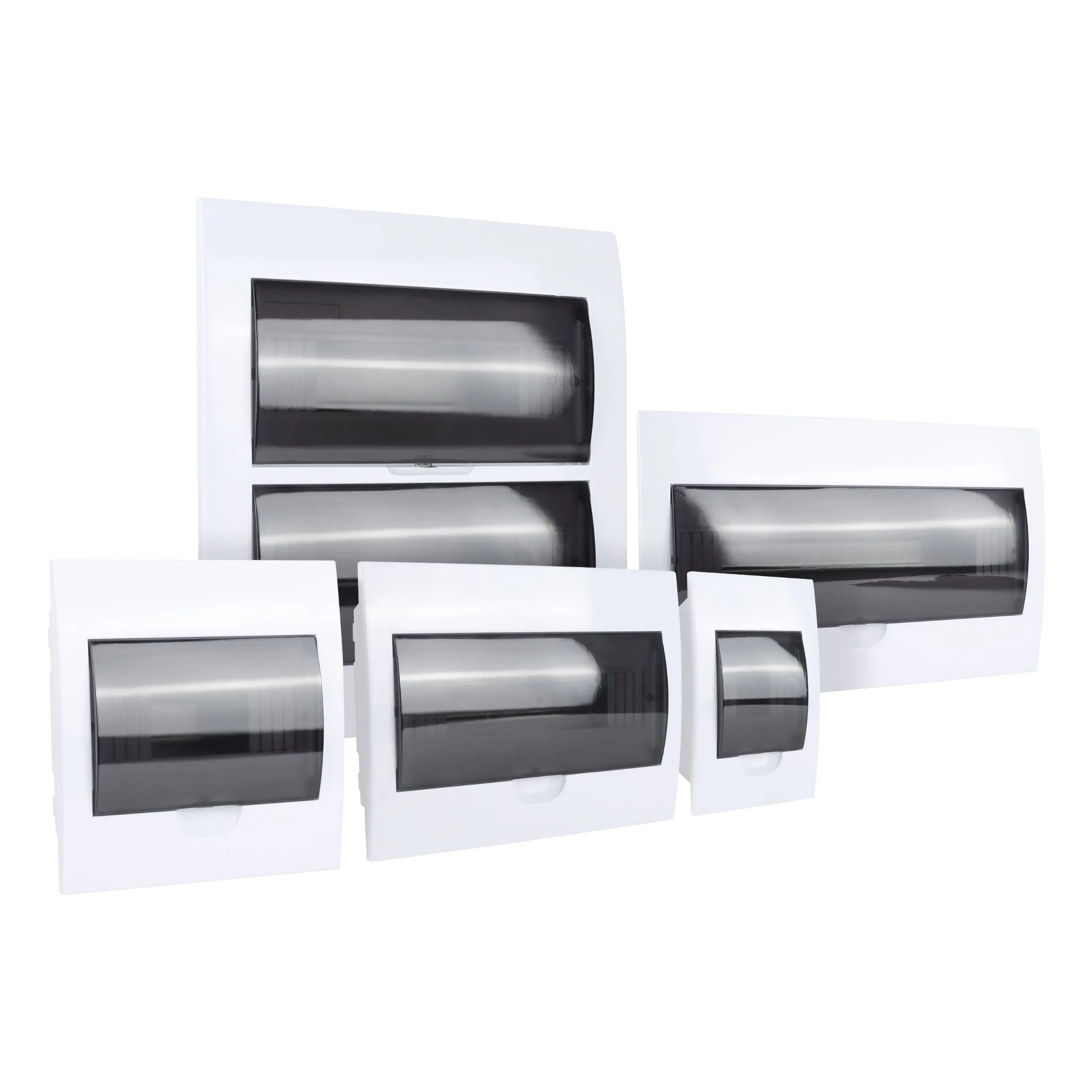

2/3/4/6/8/10/12/15/18/24/36 IP40 Worldsunlight Residential-Aesthetic Design MCB Distribution Box dB Enclosure

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Info.
Certification CE, Rosh, ISO9001
Size 2/3/4/6/8/10/12/15/18/24/36
Application Range Electrical Equipment
Shell Material ABS Body PC Cover
Shell Protection Grade IP40
Brand Worldsunlight
Standard IEC60439-3
Color Gray Body Transparent Cover
Window Transparent
Mounting Type Flush or Surface
Feature Adjustable 35mm DIN Rail for Flush Mount Products
Application to Protect Circuit Breakers Installed in The Panel
Transport Package Carton
Trademark WORLDSUNLIGHT
Origin China
Production Capacity 100000 PCS/Month
Packaging & Delivery
Package Size 47.50cm * 45.00cm * 60.50cm
Package Gross Weight 14.500kg
Product Description
This is classical distribution box which can be equipped with various modular electrics and widely used in household power distribution, industrial and commercial buildings.
Technical specifications
Standard IEC60439-3 IEC61000
Approval CE, RoHS, HF test, IK test, ISO9001
Protection grade IP40
Color of base White
The color of door Transparent
Mounting type Surface
Material ABS Body PC Cover
Guide 35MM standard din rail
Fire resistance 650ºC/30s, 960ºC/30s
Ambient temperature (°C ) -5 ~ +40, 50% humidity permitted under max +40°C
Storage temperature (°C ) -40 ~ +75
Remark Conventional is not flame retardant, flame retardant needs to be customized

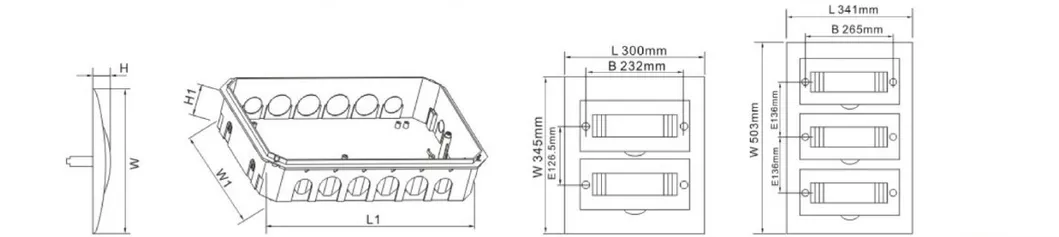

Model Product's size (mm) No. of breaker (pole) Net Weight (kg)
L (mm) W (mm) H (mm)
XL-MF 4WAY 136 222 27 4 0.29
XL-MF 6WAY 170 222 27 6 0.37
XL-MF 8WAY 207 222 27 8 0.44
XL-MF 10WAY 243 222 27 10 0.49
XL-MF 12WAY 279 222 27 12 0.55
XL-MF 15WAY 334 222 27 15 0.62
XL-MF 18WAY 398 251 27 18 0.86
XL-MF 24WAY 300 345 27 24 1
XL-MF 36WAY 300 484 27 36 2.84
IP40 Distribution Box
Distribution Box Inner View Distribution Box Details

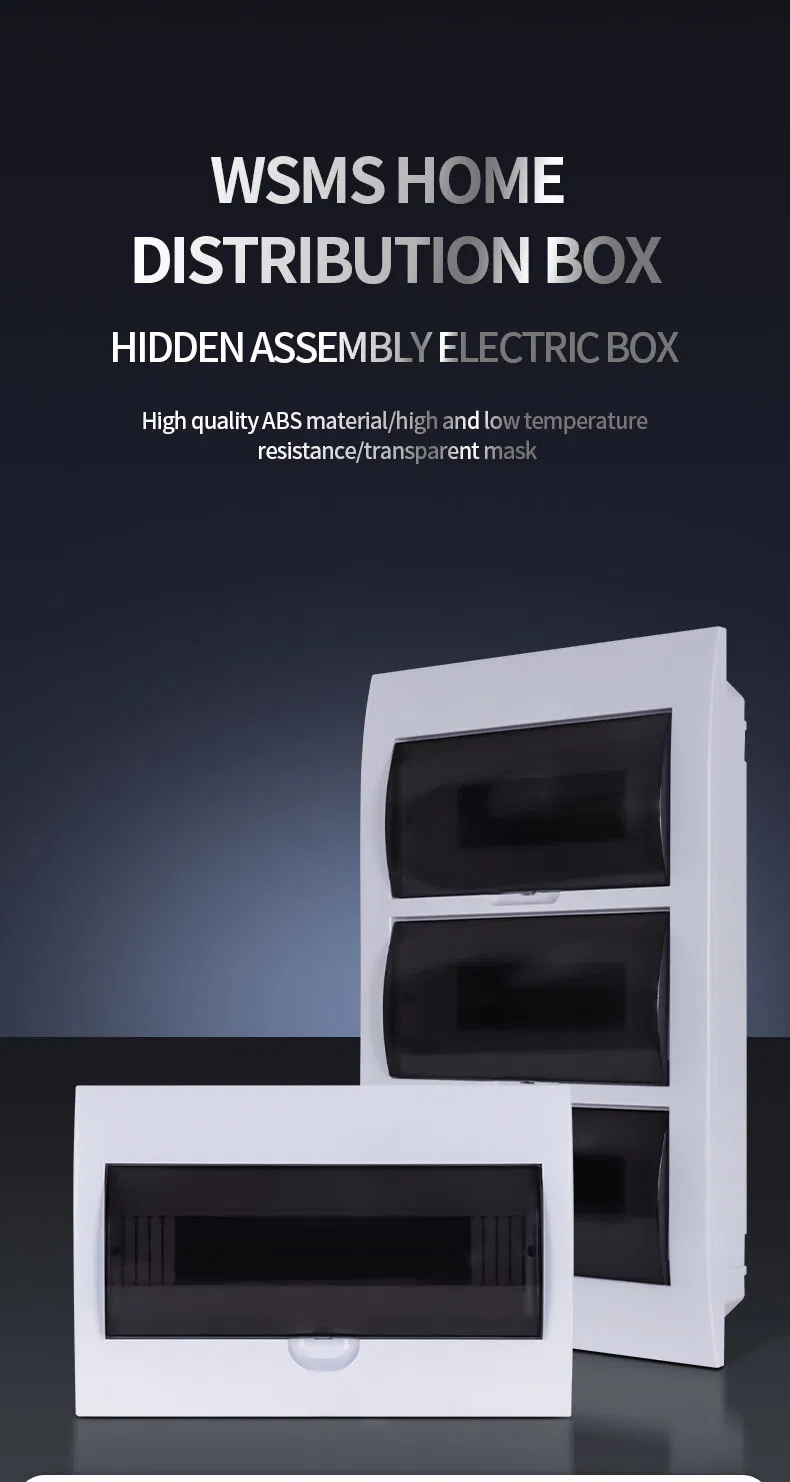

Distribution Box Assembly Distribution Box Components Distribution Box installation

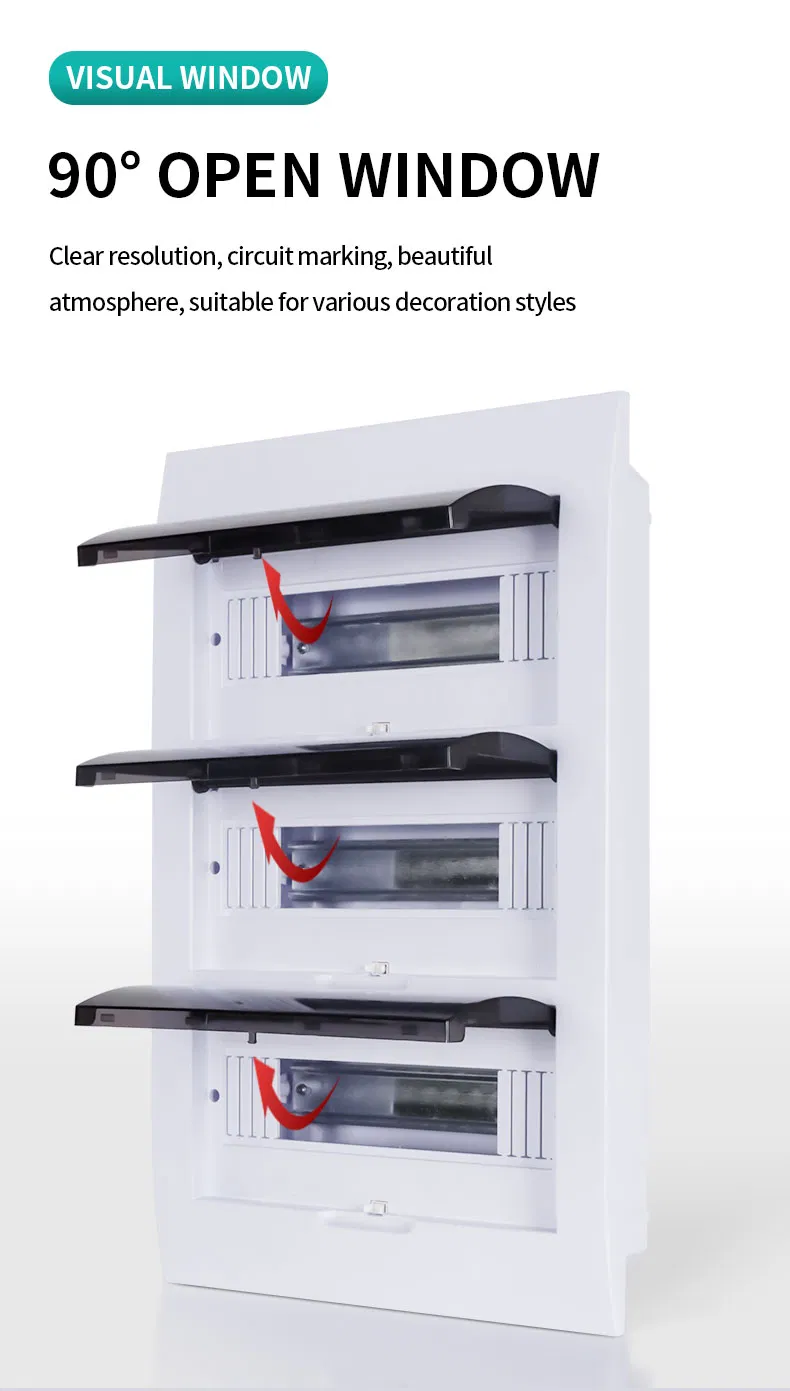

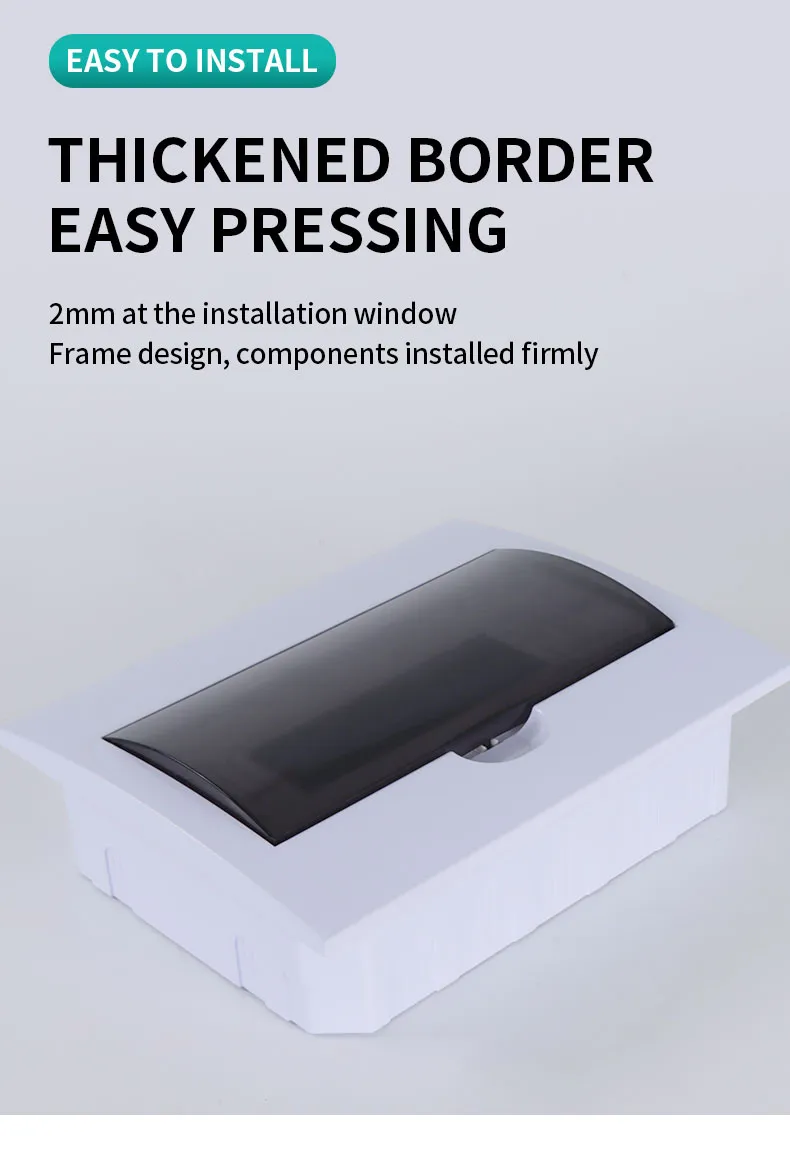

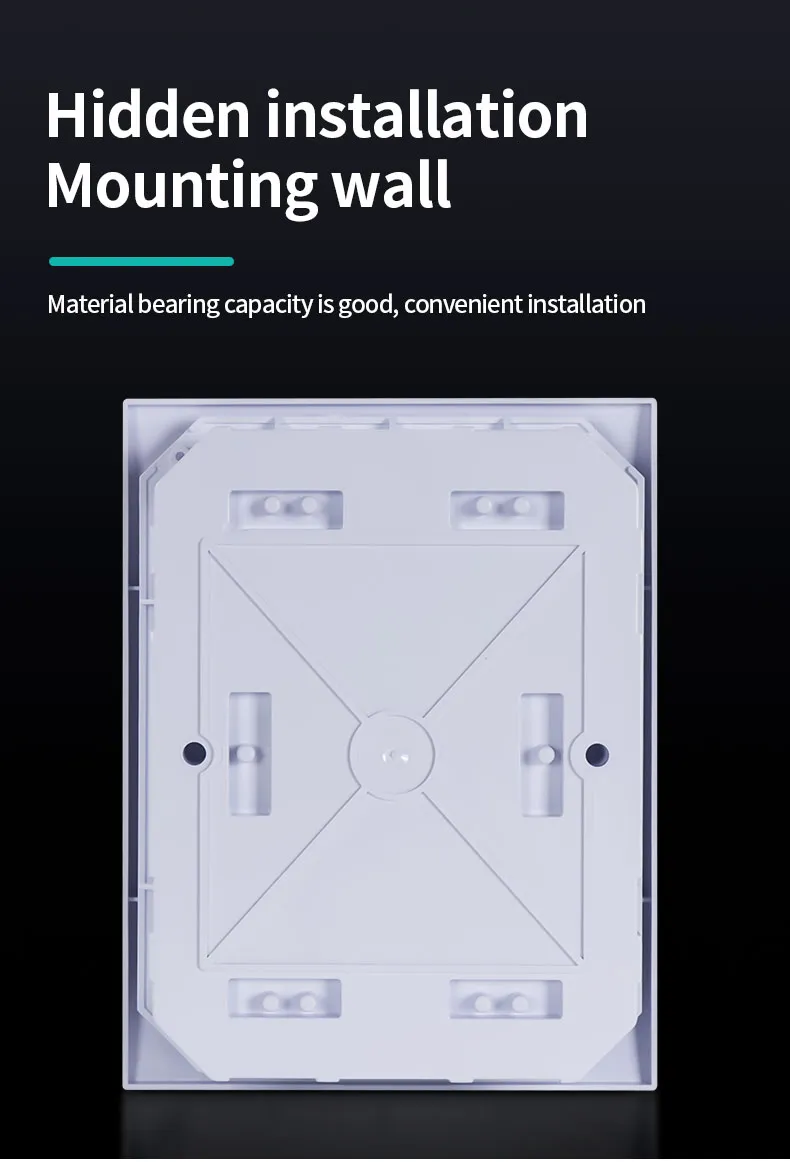

Distribution Box Structure Distribution Box Back Board Distribution Box Din Rail

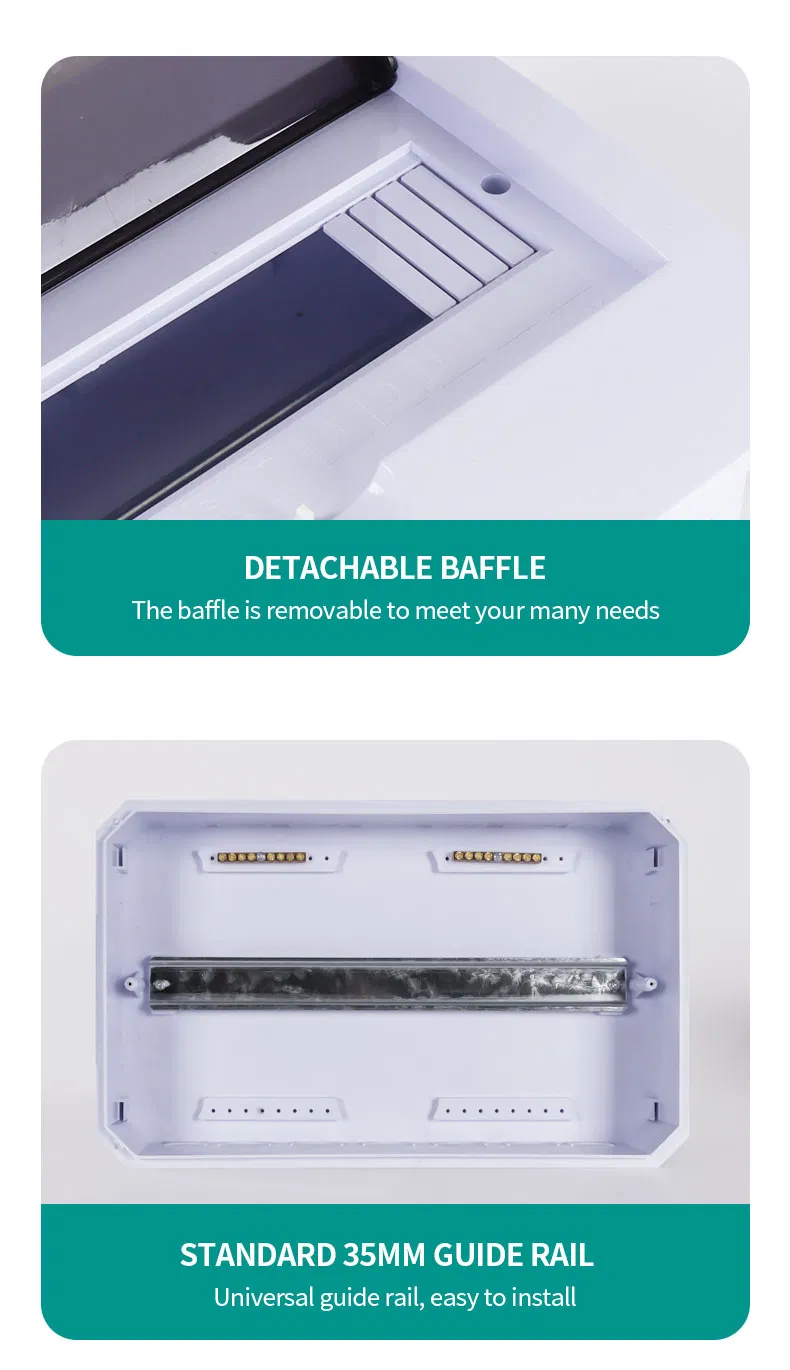

Distribution Box Ground Bar Distribution Box Installation Guide Distribution Box Side View
Distribution Box Layout Distribution Box Sizes
Our Service
Quick Reply
Average response time is 2.75 hours. We are dedicated to providing support round the clock.
Quick Delivery
Production lead time for order quantity under 1000 PCS is less than 7 days.
Photography Service
Free high-quality photos and videos of your products for your promotional use.
Production Visualization
We synchronize and update you regularly on the progress of your product production.
Barrier-free Communication
Staffed with English major level 8 team members to improve communication efficiency.
After-sales Service
Two-year warranty and timely feedback to guarantee trouble-free operation.
Certifications

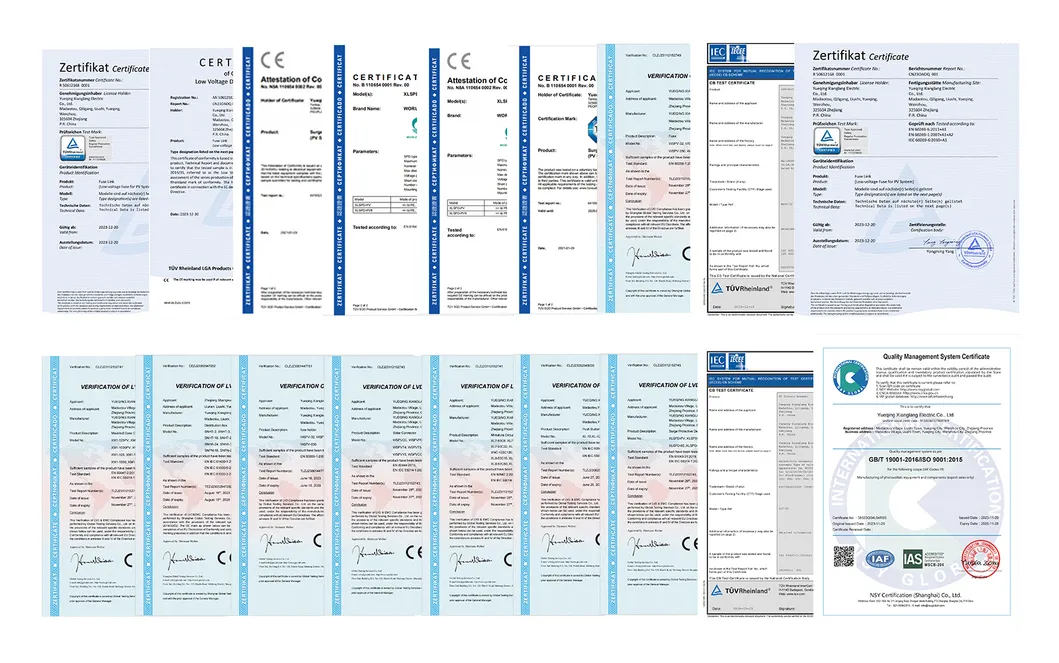

Certifications Grid
Company Profile

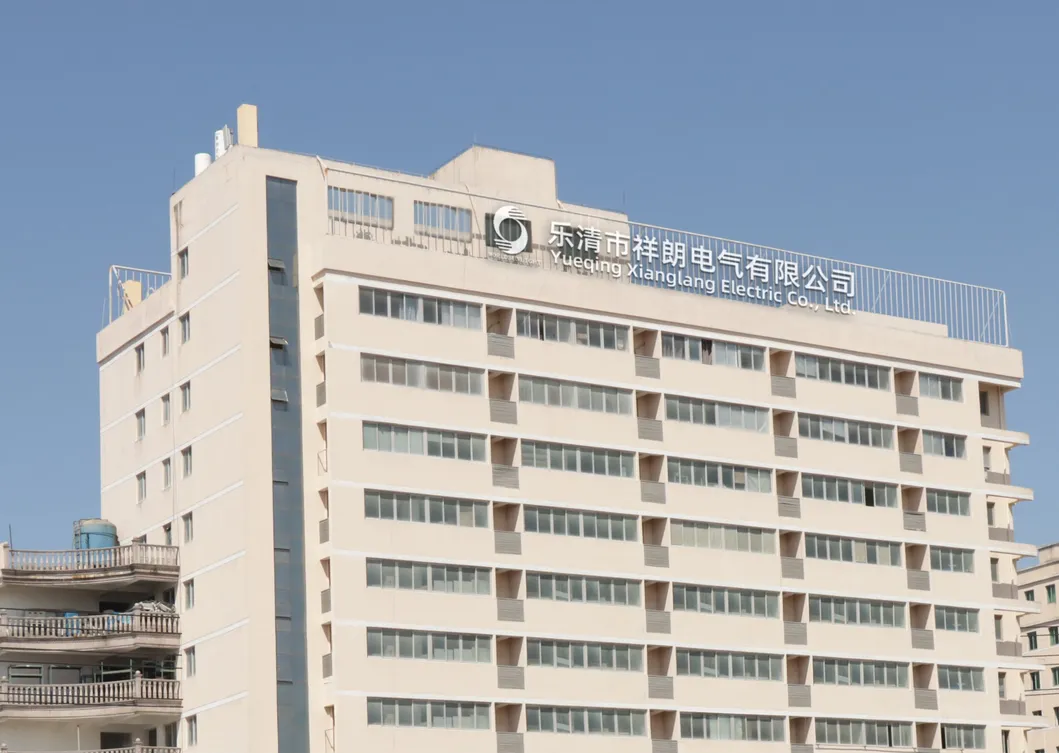

Factory Overview
With over a decade of experience in the solar accessories industry, we have been dedicated to the manufacturing and R&D of solar products. With a factory spanning 10,700 square meters, our annual output exceeds US$20 million. Specializing in miniature circuit breakers, SPDs, fuses, solar connectors, distribution boxes, and combiner boxes, we boast CE, TUV, IEC, and ISO9001 certifications. Each product undergoes stringent quality control and testing. With over 10,000 project experiences, we have earned a reputation for high-quality products, competitive pricing, prompt delivery, and exceptional after-sales service. We look forward to a long-term partnership and mutual growth with you.

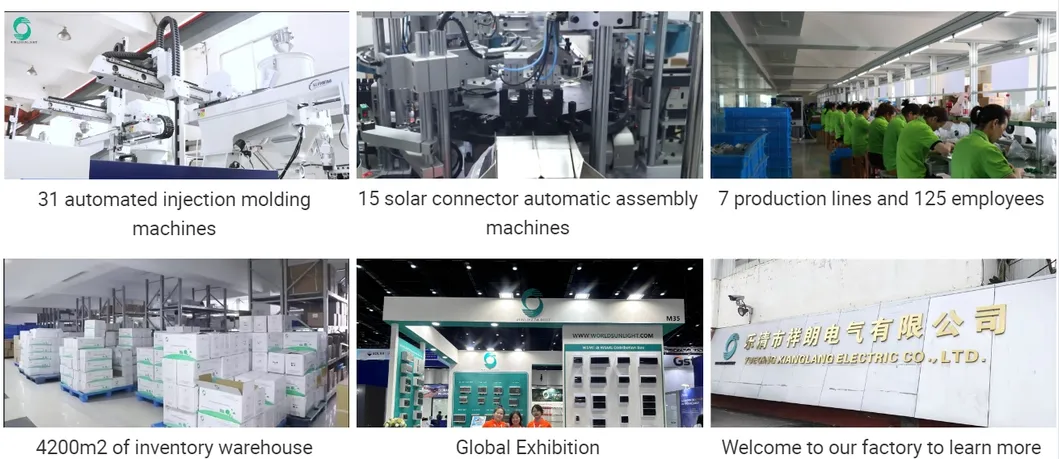

Manufacturing Line
Packaging & Shipping

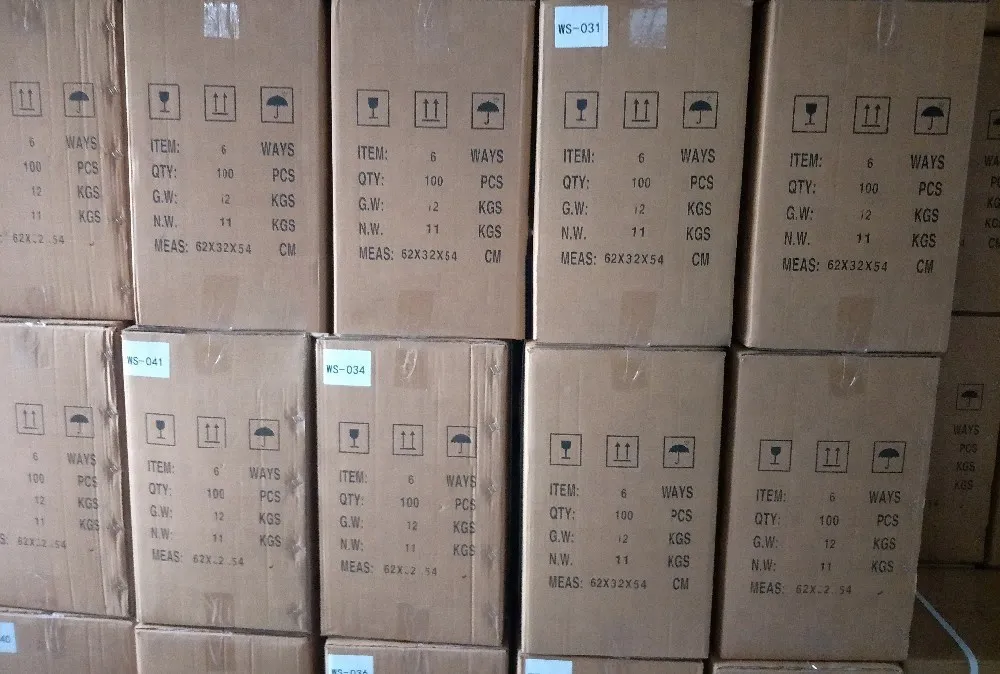

Packaging Box Detail Product Packaged Shipping Carton Box
Frequently Asked Questions
Q: When can I receive the quotation and detailed information after sending the inquiry?
A: A response with detailed information will be sent to you within 24 hours.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can offer samples free of charge, but we do not cover the cost of freight.
Q: How is the delivery timeline for orders?
A: Sample delivery takes about 3-5 days. For orders of more than 1000 pcs, it takes 7-15 days.
Q: What is the warranty period for your DISTRIBUTION BOX?
A: We offer a three-year warranty. Our quality control processes strictly follow IEC standards with raw material testing, process supervision records, finished product performance testing, and factory testing.
Q: What payment methods do you accept?
A: We accept multiple payment methods including T/T, PayPal, Western Union, L/C, and Trade Assurance.
Q: Do you provide OEM & ODM services?
A: Yes, we support both OEM & ODM. We can customize the mold for you and initiate production quickly. Please note that some items may have a Minimum Order Quantity (MOQ).
