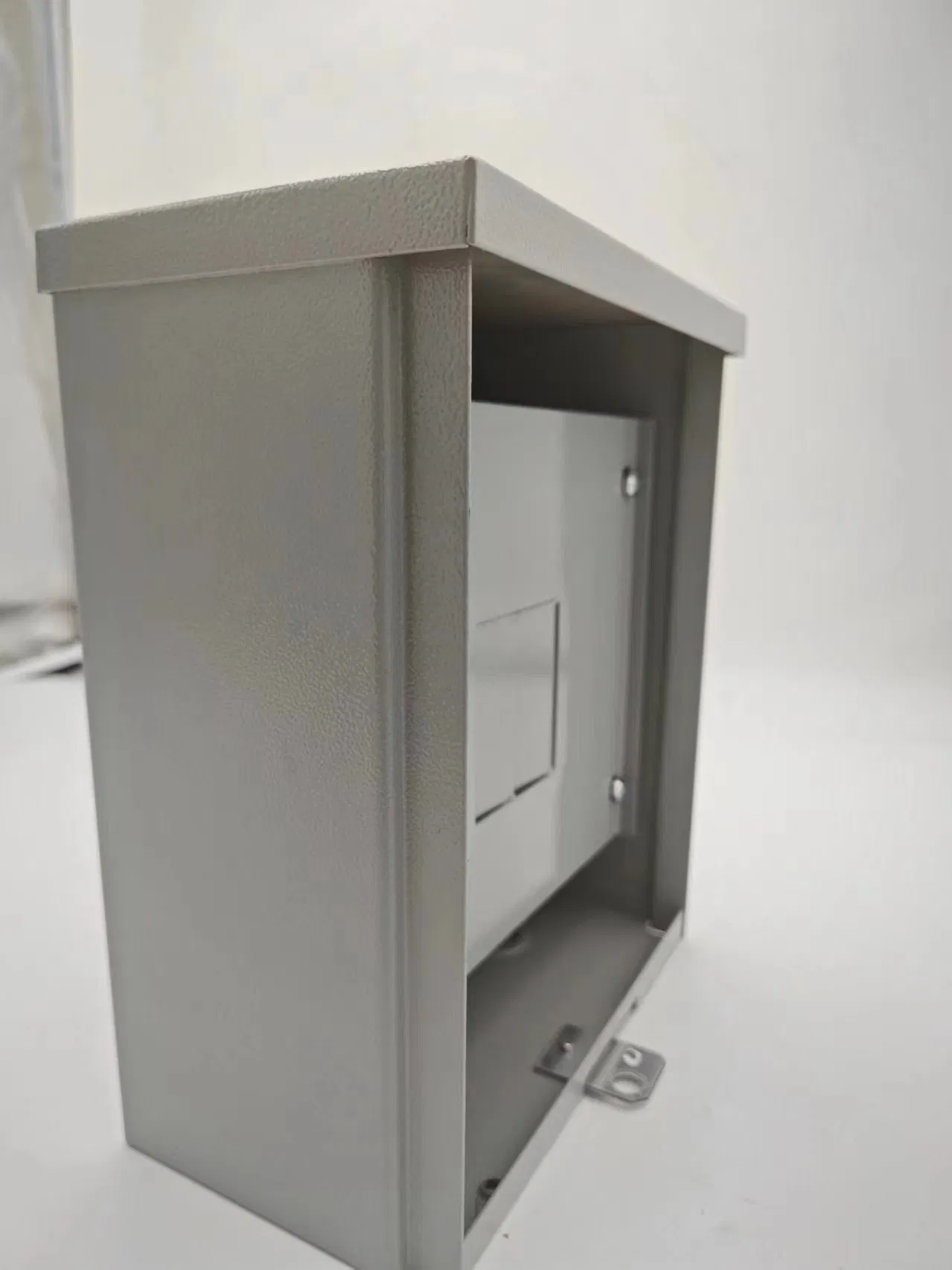

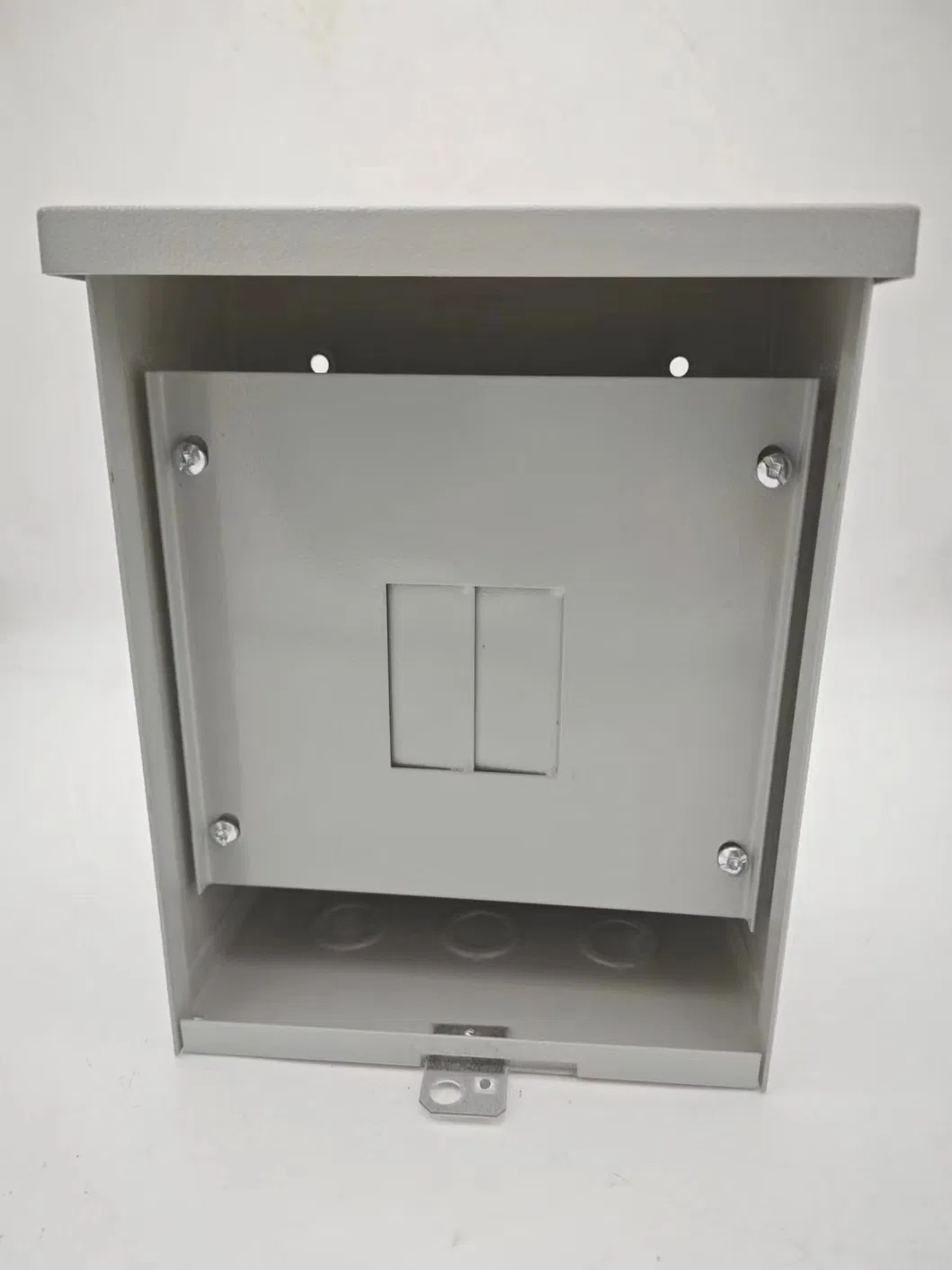

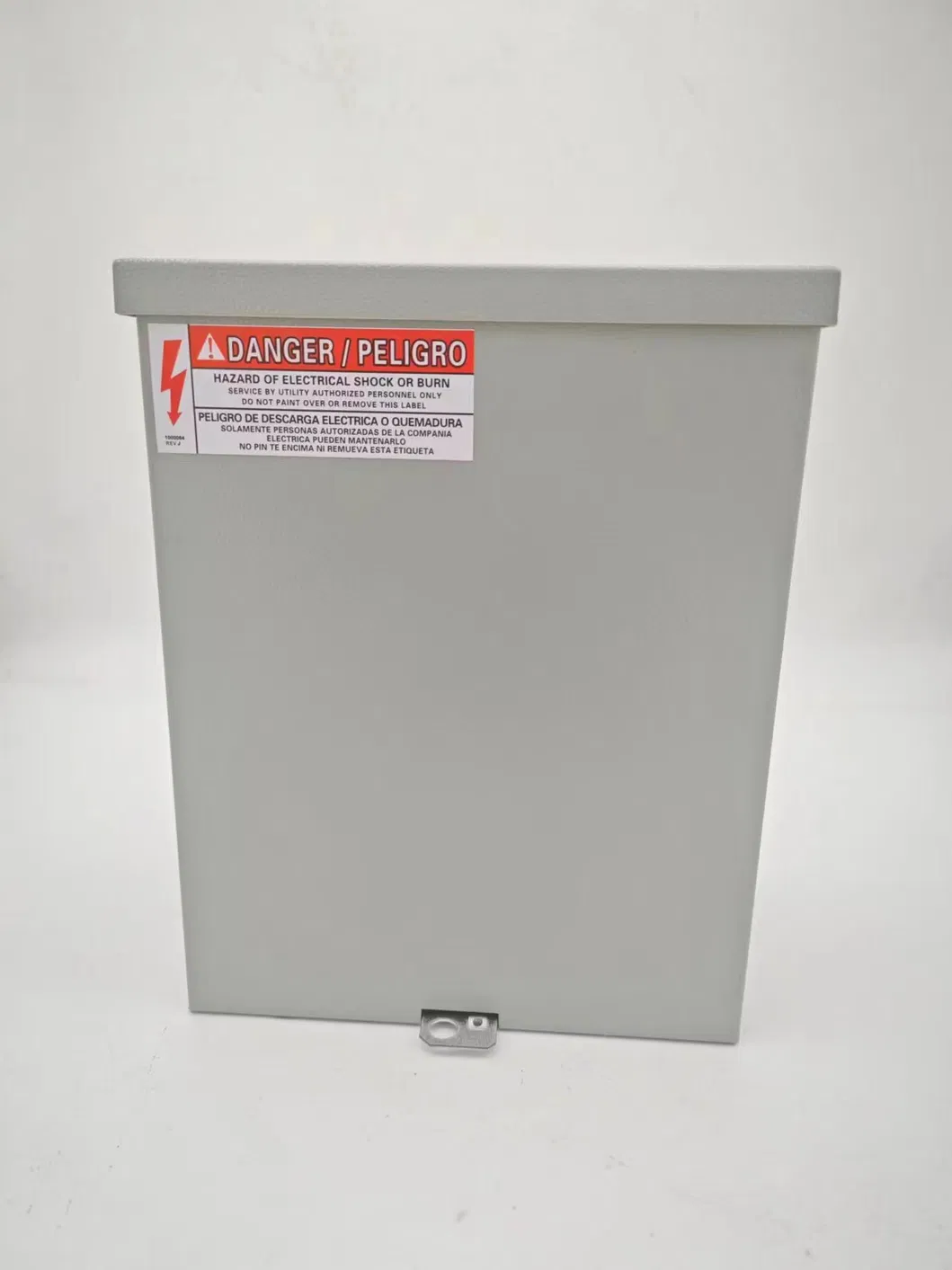

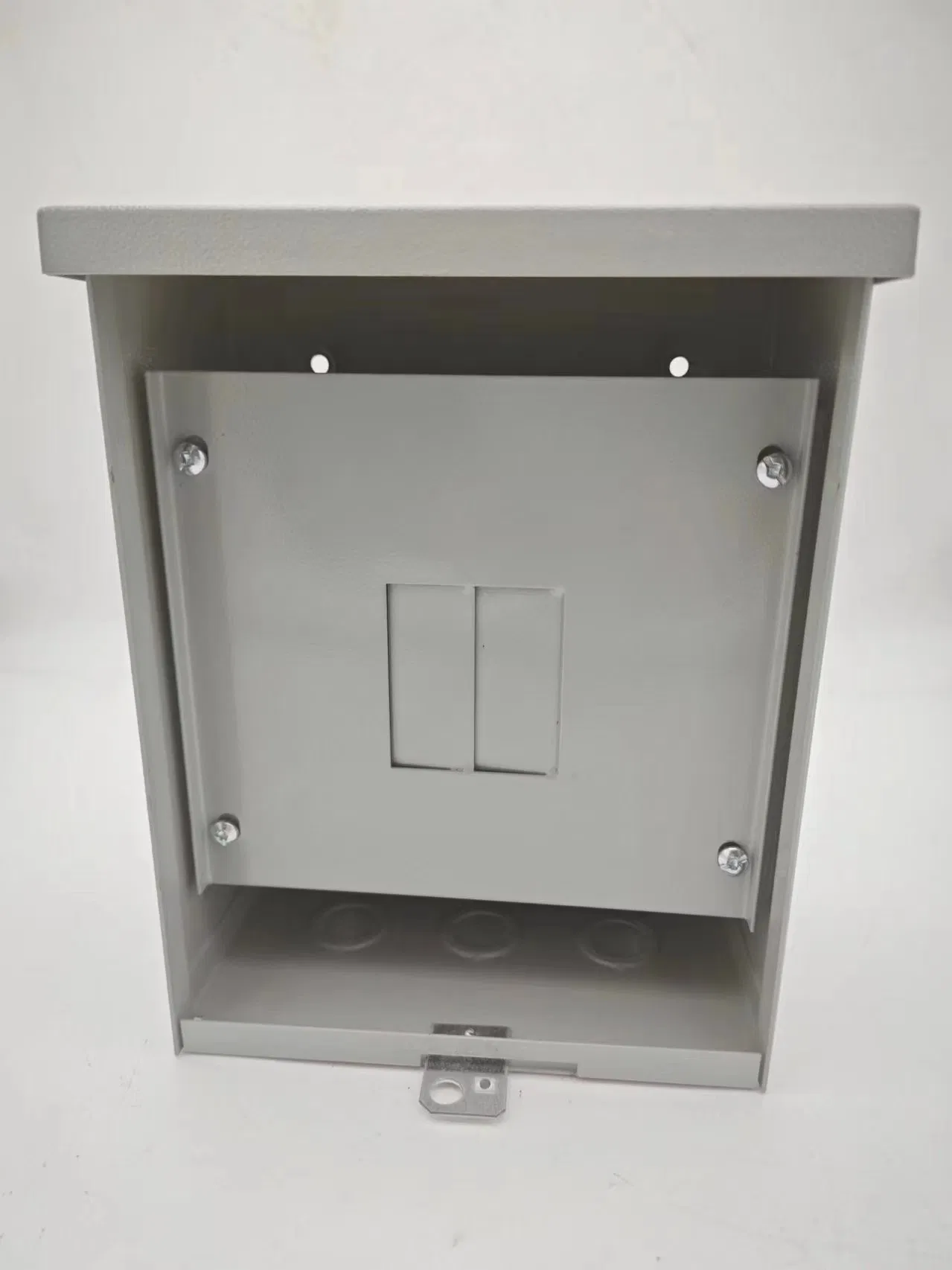

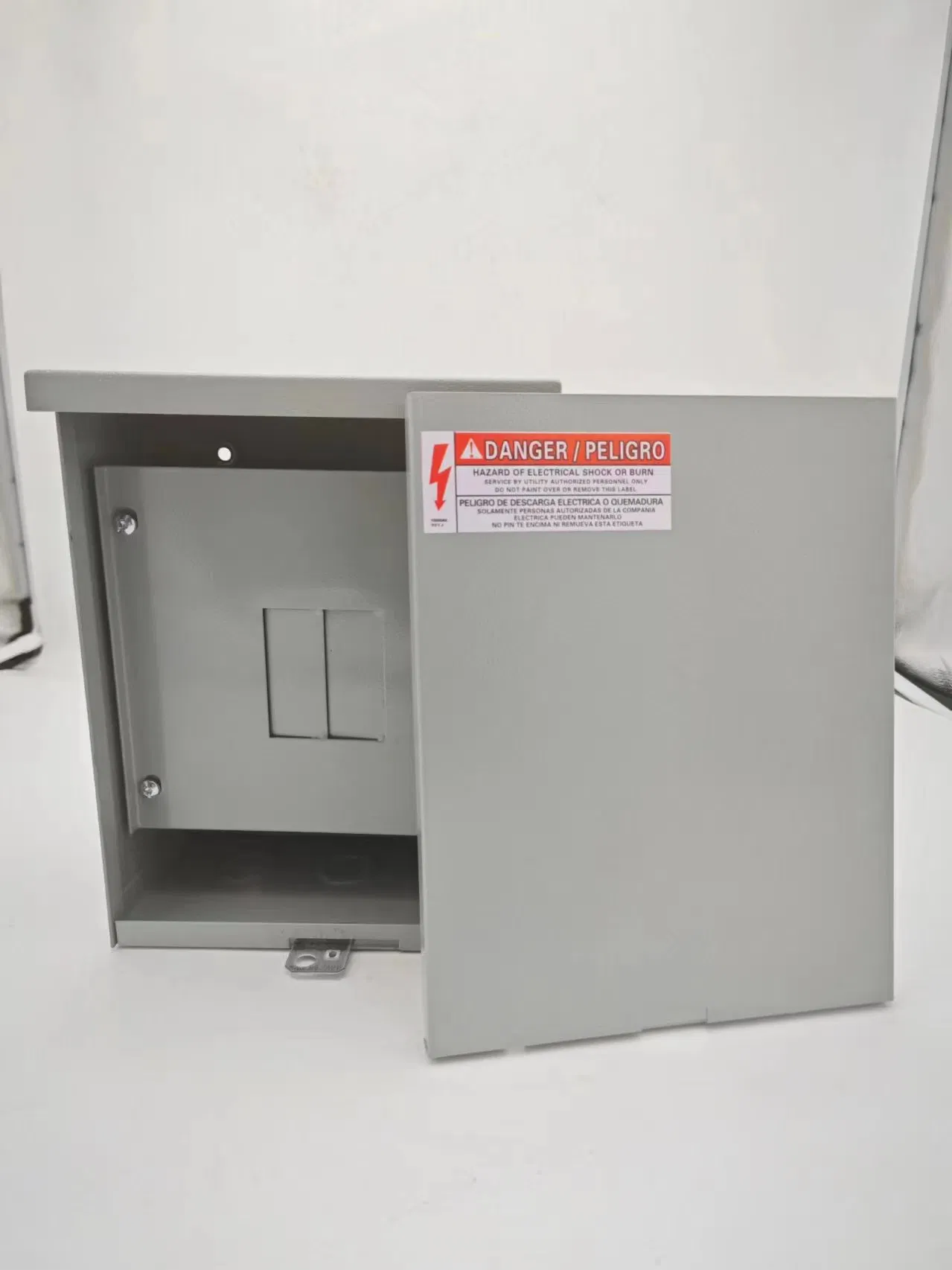

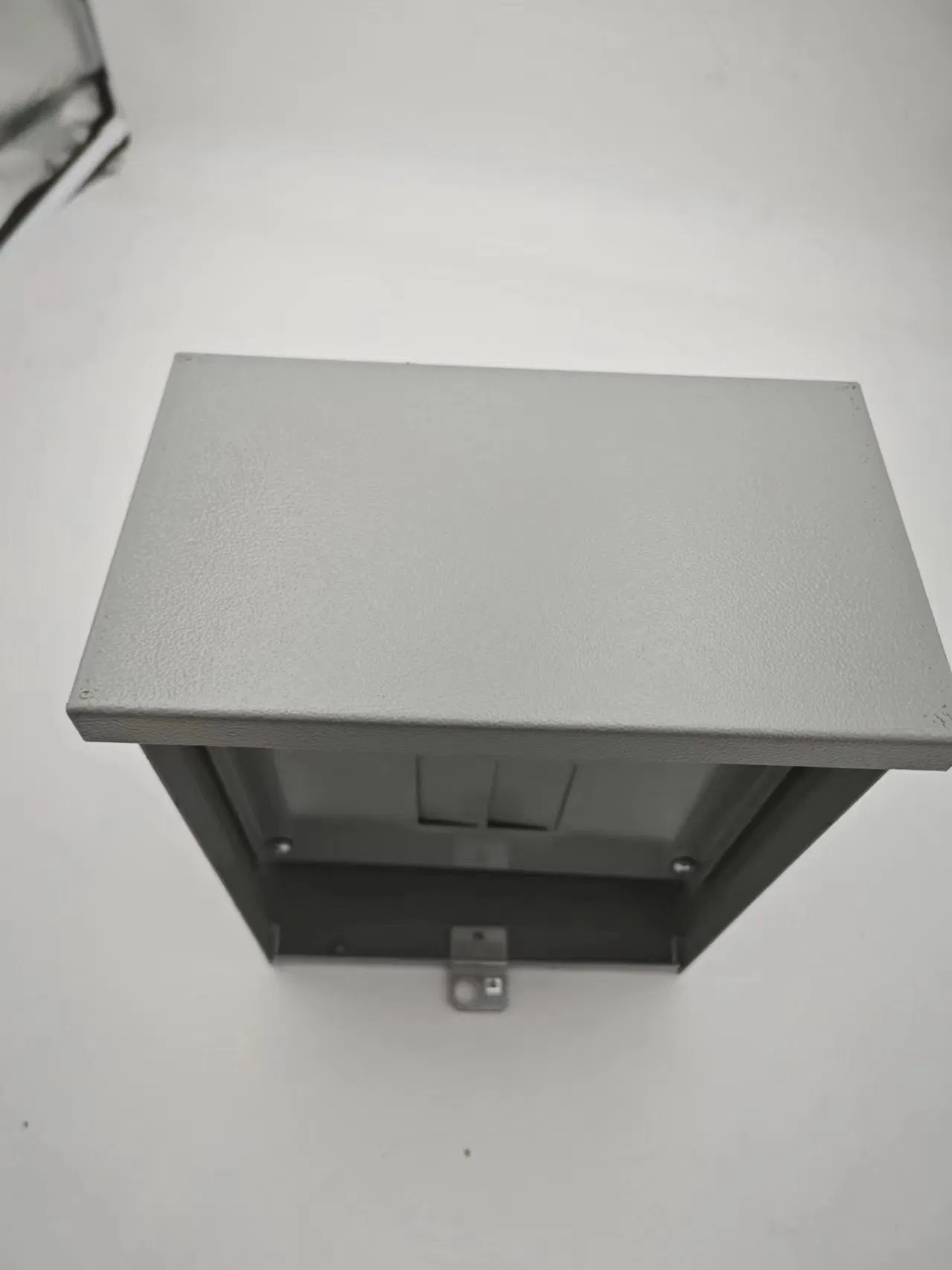

- Made from high quality electro-galvanized steel sheet of up to 1.0mm - 1.5mm thickness.
- Matt-finish polyester power coated painting.
- Knockouts provided on all sides of the enclosure.
- Accepts Mitsubishi, mini circuit breaker, including 1/2 pole circuit breaker.
- Suitable for single phase, three wire, 120/240V AC, rated current to 125A.
- Convertible to main switch.
- Enough space of enclosure offers wiring and avoids circuit heating.
- Flush and surface mounted design.
- Knockouts for cable entrance are provided on top, bottom of enclosure.
Application
TYE series Load Centers have been designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises. They are available in Plug-in designs for indoor applications.
Rating

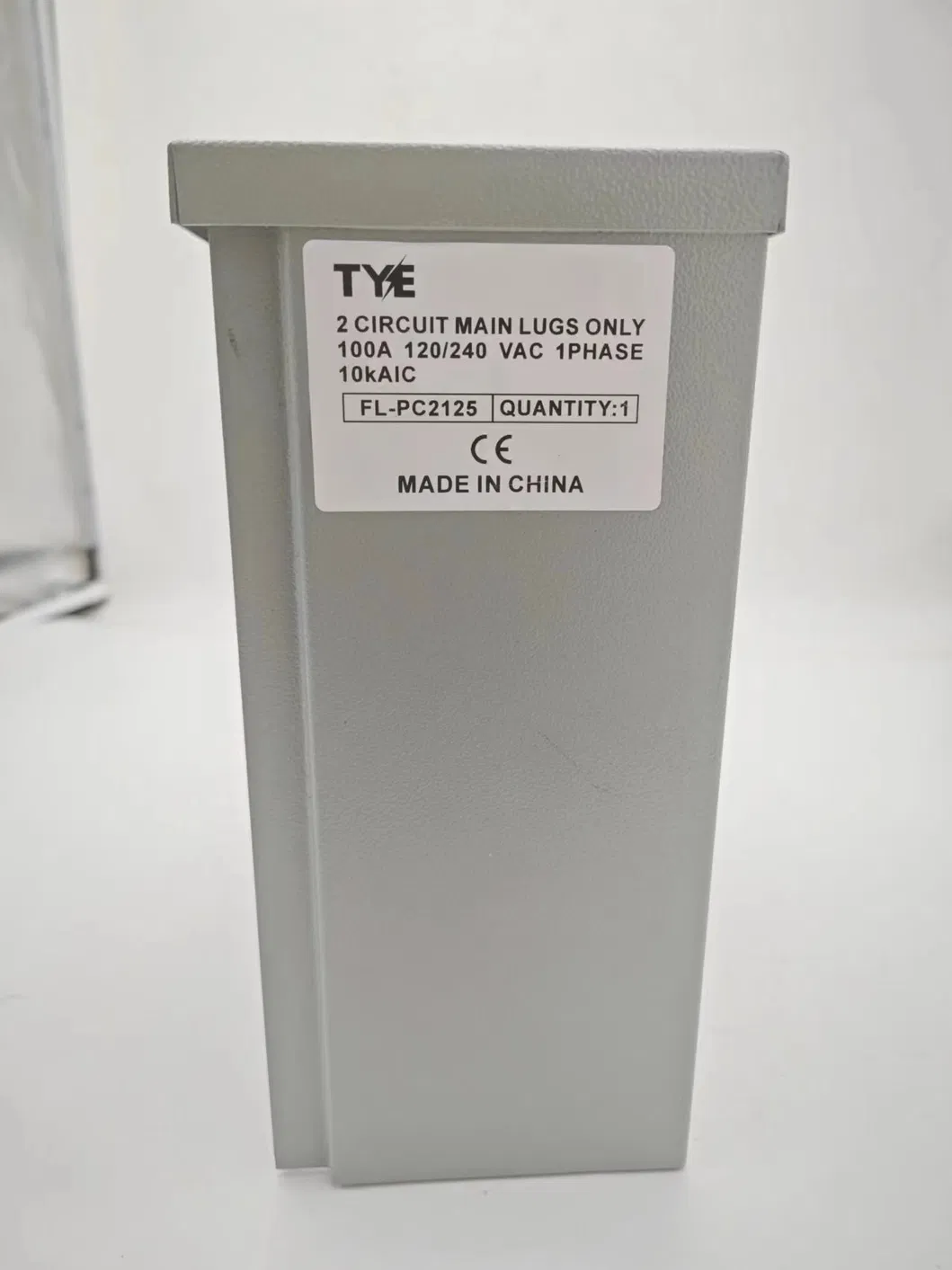

70A to 125A continuous current rating, 120V/240V, single phase.
Enclosure Spec

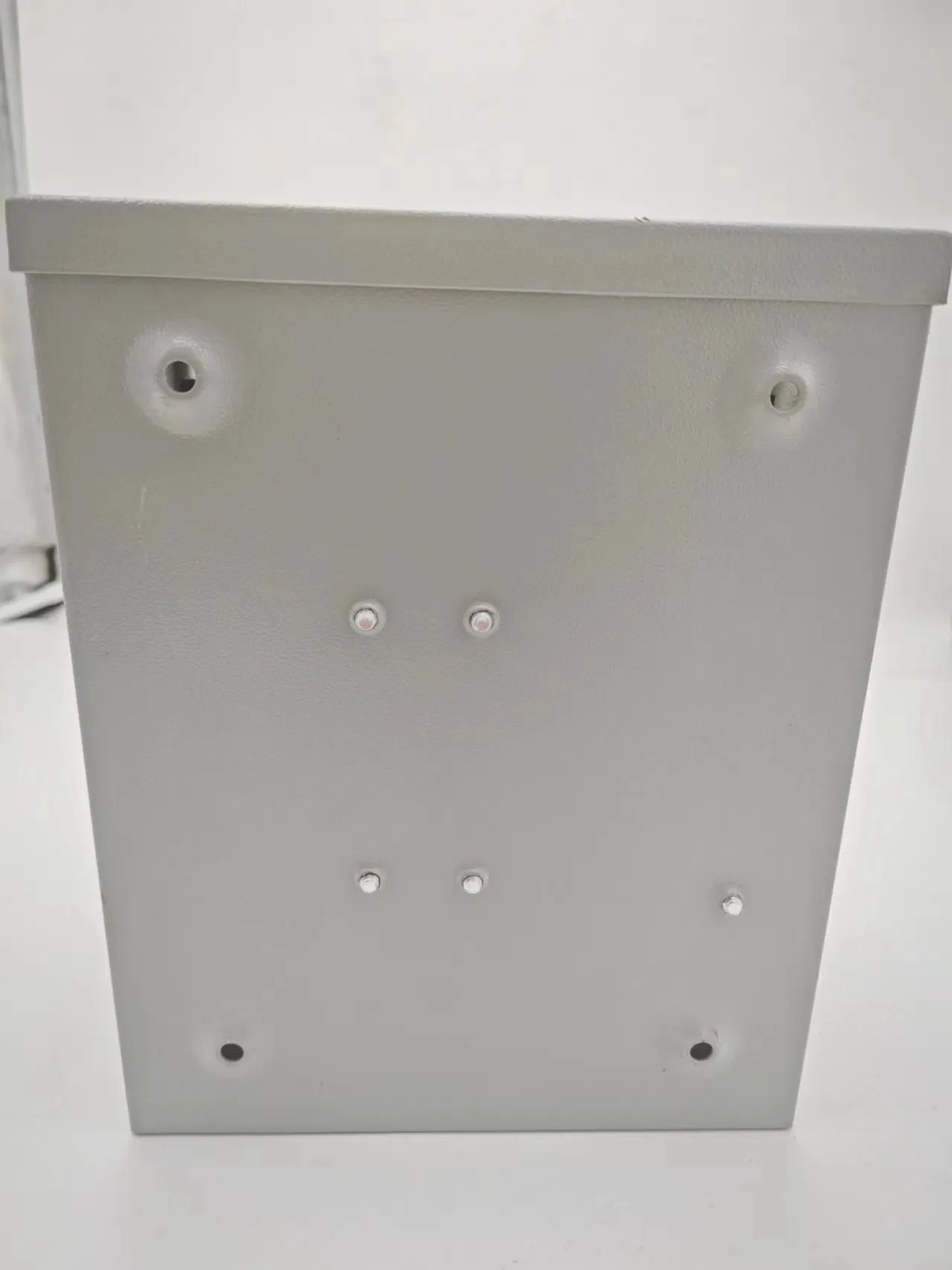

1~1.5mm Steel, light gray powder coat finish. Knockouts are provided on back and side of the enclosure.
Bus Bar & Block
Bus Bar: aluminum alloy tin plated. Block: made of ABS material or Bakelite.
TYE 2 WAY SPECIFICATION: 27*15*9
