| Model NO. | High Voltage Cable Branch Box |
| Form | All- packaged Type |
| Operation Voltage | High Voltage |
| Size | 1 Unit |
| Application Range | Power Plants |
| Shell Material | Aluminum Alloy |
| Shell Protection Grade | IP30 |
| Ambient Temperature | -25°C ~ +40°C |
| Altitude | No More Than 1000m |
| General Structure | High Voltage / Transformer / Low Voltage Unit |
| Application | Factory / Mining / City Lighting / School |
| Feature | Great Flexibility, Small Volume, Low Cost, Rapid |
| OEM/ODM | Accept |
| Warranty | 12 Months |
| Transport Package | Export Standard Wooden Case |
| Specification | 800*1500*2300 / Customized |
| HS Code | 8537209000 |
| Production Capacity | 50 Pieces/Week |
| Package Size | 1200.00cm * 1200.00cm * 1500.00cm |
| Package Gross Weight | 200.000kg |

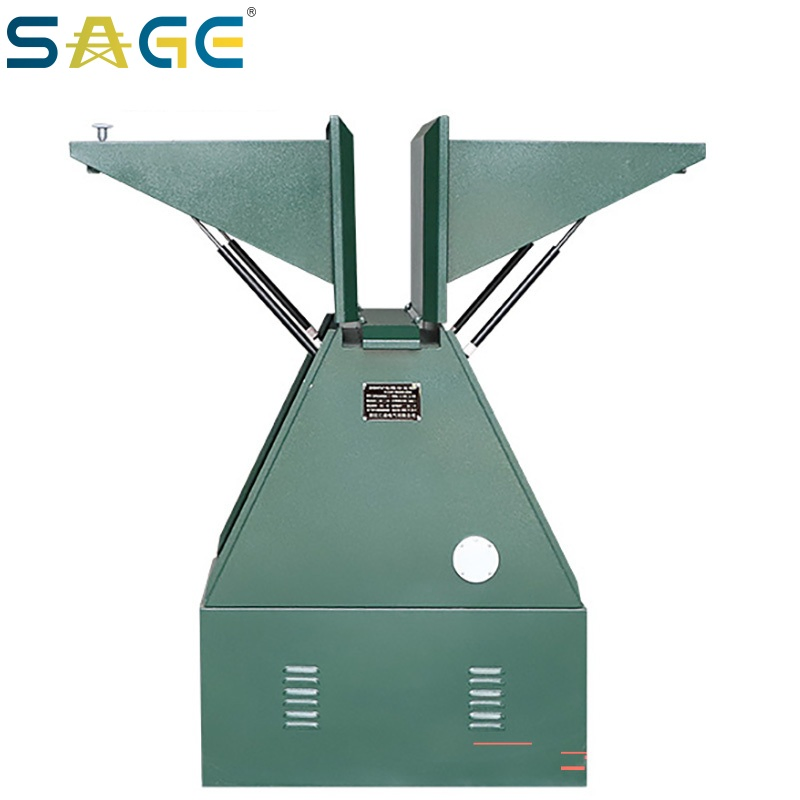

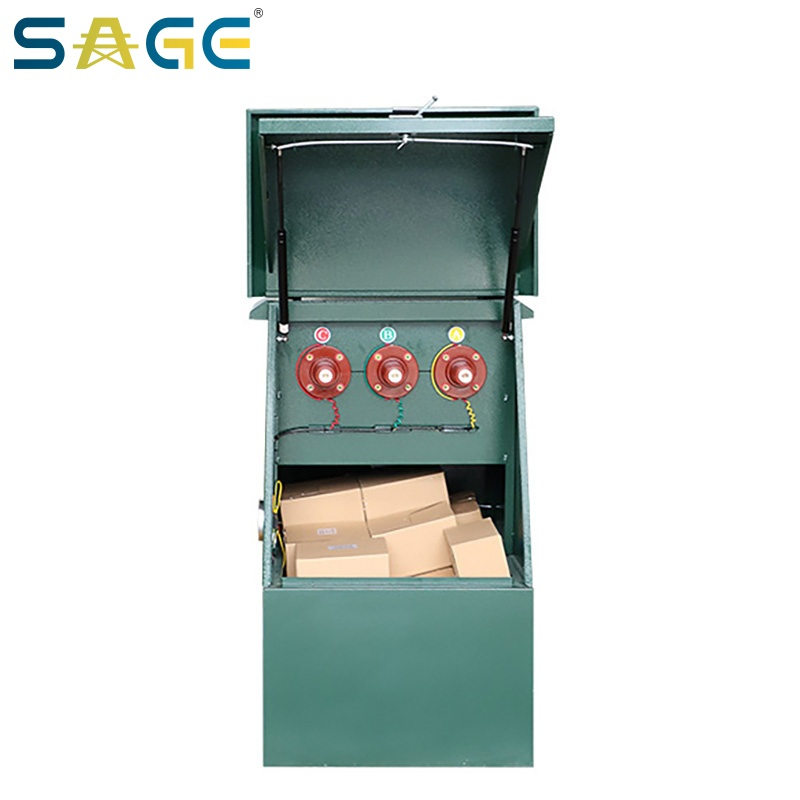

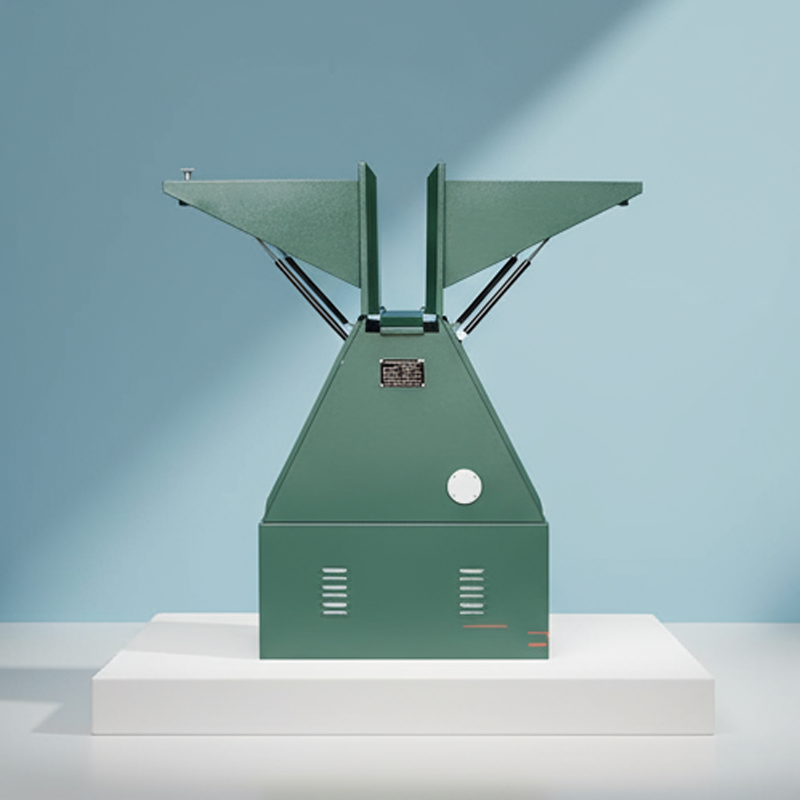

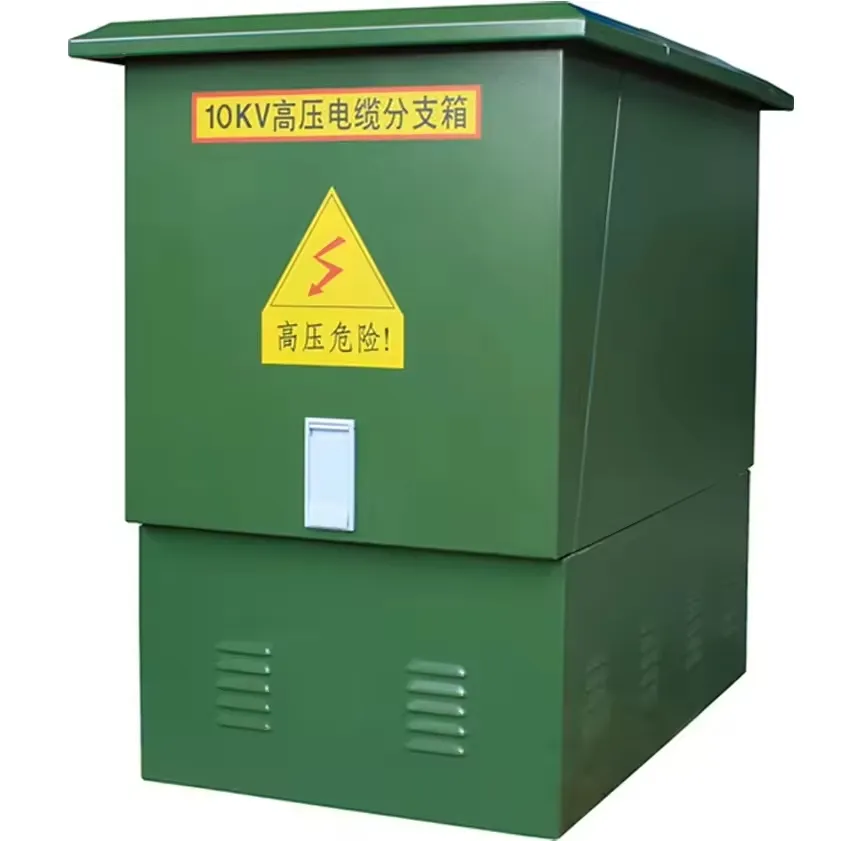

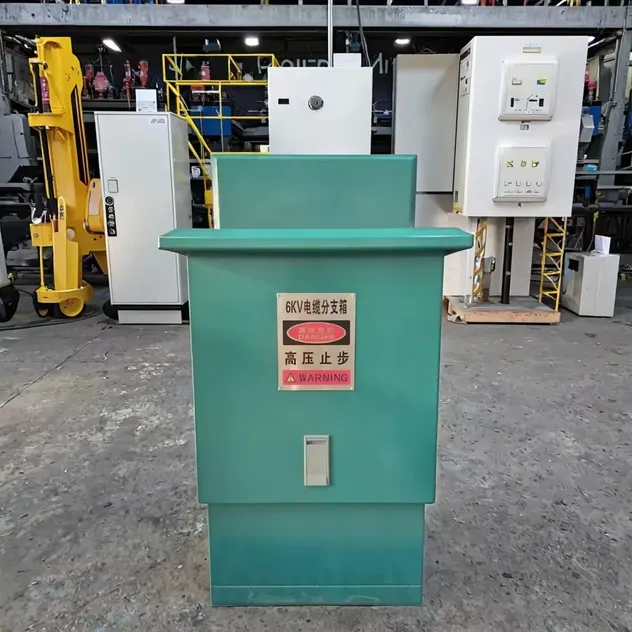

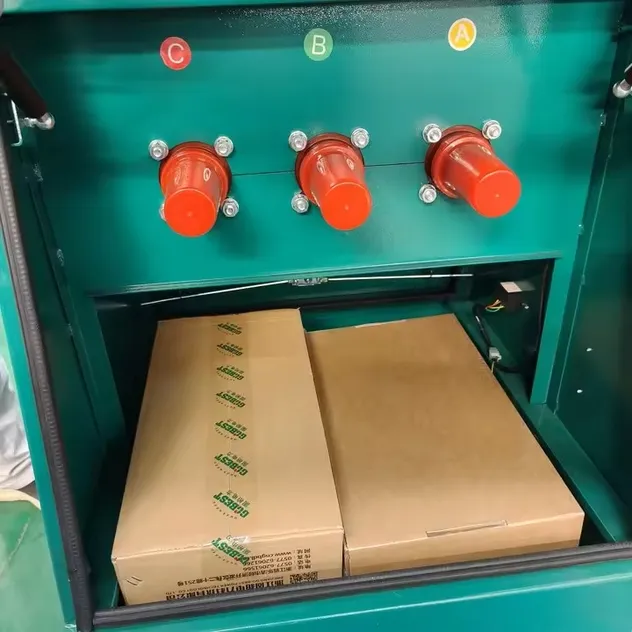

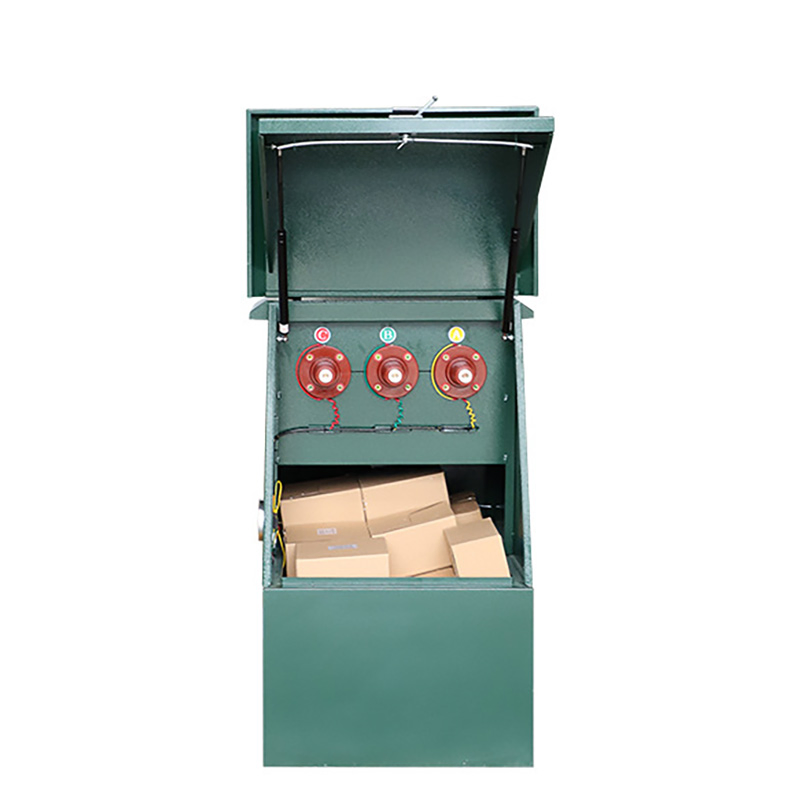

The manufactured European cable split-box is widely used in power distribution networks in recent years for cable engineering equipment. Its main characteristics include a two-way door, the use of wall bushing as a connection busbar with a small length, a clear cable row, and the significant advantage that the three-core cable does not require a large span cross. The cable connector used conforms to the DIN47636 standard, generally employing a rated current 630A bolted connection type cable joint.
*Note: If ordering this product exceeds the above conditions, please consult with us.
| Application | Outdoor, Industrial, Indoor, Electric Power Transmission | Current | 630A |
| Number of Sockets | 24 | Voltage Classification | 12kV |
| Model | DFW | IP Rating | IP33 |
| Lock Type | Customizable | Segmentation Ability | 35kV, 25kV, 10kV |
| Wind Speed | 34m/s | Rated Voltage | 12kV |
| Rated Current | 630A | Dynamic Stable Current | 50kA/0.3s |
| Thermal Stable Current | 20kA/3s | 1min Work Resistance | 42kV |
| 15min DC Withstand Voltage | 52kV | Lightning Withstand Voltage | 105kV |
| Box Protection | IP33 |
