Distribution Board/Wall Mounted Electric Box

Basic Specifications

Model NO.

BJS1

Operation Voltage

Low Voltage

Size Range

200x200x150mm to 1400x1200x300mm

Application Range

Electrical

Shell Material

Steel Plate

Protection Grade

IP66

Place of Origin

Zhejiang, China

Thickness

1.2mm, 1.5mm, 2.0mm

Paint Finish

Epoxy Polyester Coating

Color Options

RAL7035 or RAL7032

Lock

Available on Request

Certificate

CE, IEC, RoHS, TUV, SGS, IP68, IP66

OEM Service

Offered

Customised Size

Accepted

Transport Package

Carton

Specification

CE, IEC, ROHS, TUV, SGS, IP68, IP66

Origin

China

HS Code

8538900000

Production Capacity

10,0000 PCS/Month

Packaging & Delivery

Package Size

220.00cm * 220.00cm * 170.00cm

Package Gross Weight

11.000kg

Product Description

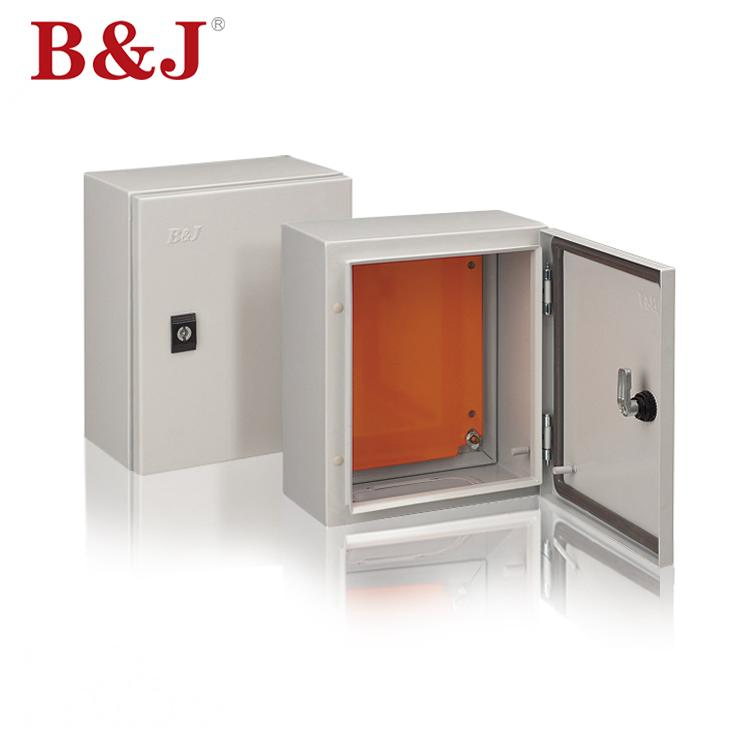

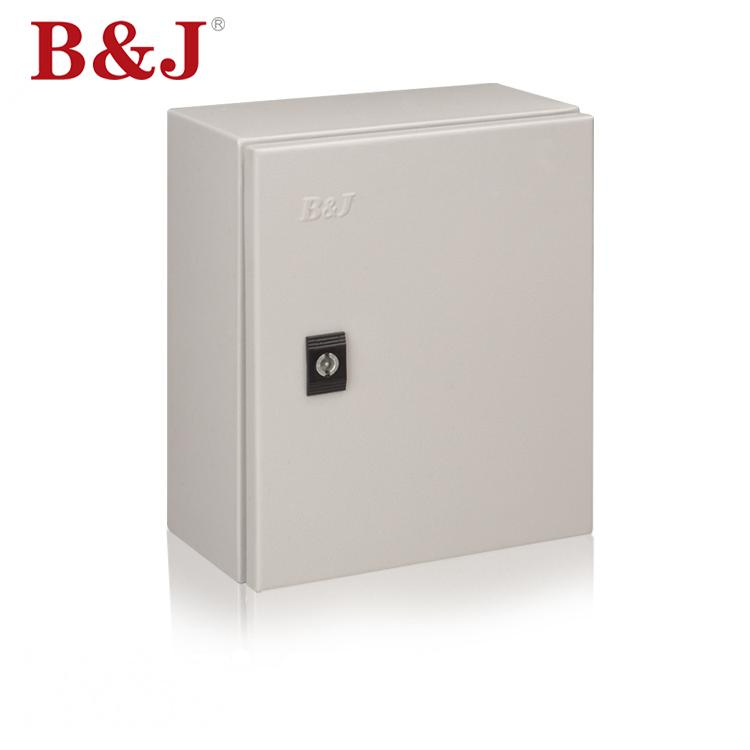

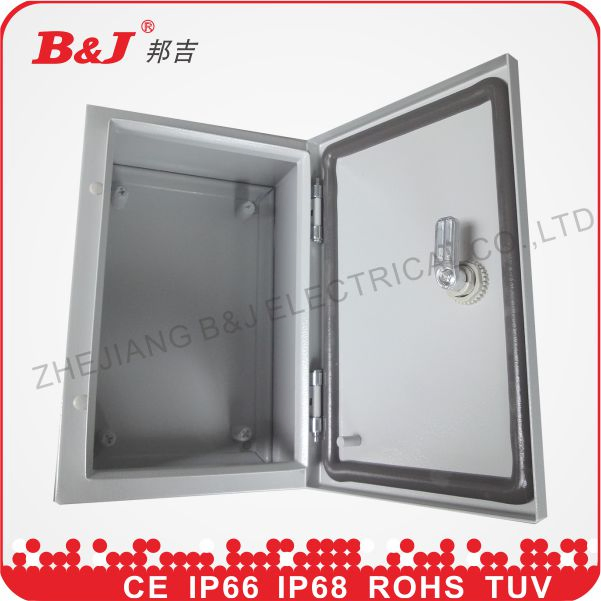

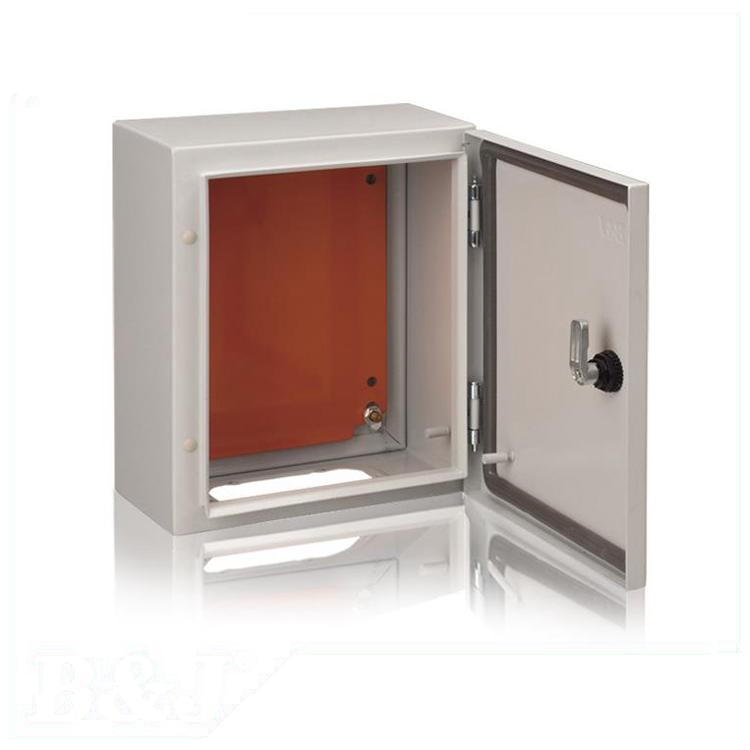

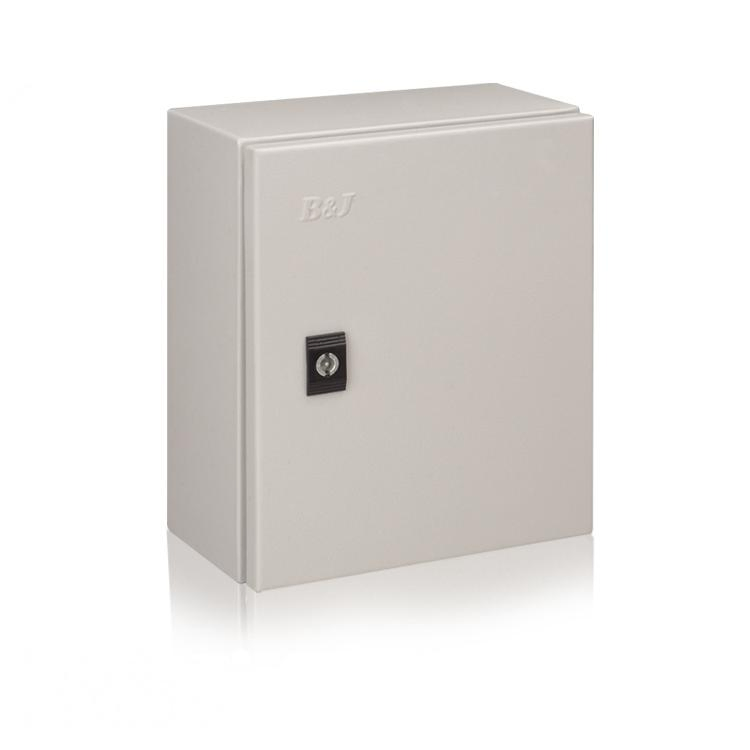

Distribution Board/Wall Mounted Electric Box

BJS1 Series Enclosure

High-quality wall-mounted distribution boards designed for robust electrical housing applications. Built with precise manufacturing specifications to guarantee ultimate reliability.

Material

Enclosure: sheet steel 1.2mm till size BJS1-88/300 then 1.5mm
Door: sheet steel 1.2mm till size BJS1-66/300 then 1.5mm
Mounting plate: 2.0mm

Surface Finish

Enclosure and door: Dipcoat-primed, powder-coated in textured RAL7032 or RAL7035 outside
Mounting plate: RAL2000 or galvanized

Protection

Protection degree: IP66
Impact resistance: IK10

Supply Includes

Enclosure of all-round solid construction, gland plate with sealing gasket, door with lock.

Warranty & Quality Service

100% Satisfaction Guarantee

1. Please contact us if there is any problem; we will resolve it ASAP.
2. This item comes with a 1-YEAR warranty. Equivalent replacements can be provided with the shipment of your next order if the products are broken due to non-artificial factors within 1 year (supporting photos are required).
3. Shipping and handling fees are non-refundable for return or exchange items.

✓

25 Years OEM & ODM Experience

✓

Spain Design

✓

Color Durability over 5 Years

✓

Professional Engineering Team

"Excellent design, Excellent make, Excellent service"

Model Dimensions Table (BJS1 Series)

NO.	Code No.	HEIGHT (mm)	WIDTH (mm)	DEPTH (mm)
1	BJS1-2020/150	200	200	150
2	BJS1-2520/150	250	200	150
3	BJS1-3020/150	300	200	150
4	BJS1-3020/200	300	200	200
5	BJS1-3025/150	300	250	150
6	BJS1-3025/200	300	250	200
7	BJS1-3025/250	300	250	250
8	BJS1-3030/150	300	300	150
9	BJS1-3030/200	300	300	200
10	BJS1-3030/250	300	300	250
11	BJS1-4030/150	400	300	150
12	BJS1-4030/200	400	300	200
13	BJS1-4030/250	400	300	250
14	BJS1-4030/300	400	300	300
15	BJS1-4040/150	400	400	150
16	BJS1-4040/200	400	400	200
17	BJS1-4040/250	400	400	250
18	BJS1-4040/300	400	400	300
19	BJS1-5030/150	500	300	150
20	BJS1-5030/200	500	300	200
21	BJS1-5030/250	500	300	250
22	BJS1-5030/300	500	300	300
23	BJS1-5040/150	500	400	150
24	BJS1-5040/200	500	400	200
25	BJS1-5040/250	500	400	250
26	BJS1-5040/300	500	400	300
27	BJS1-5050/150	500	500	150
28	BJS1-5050/200	500	500	200
29	BJS1-5050/250	500	500	250
30	BJS1-5050/300	500	500	300
31	BJS1-6040/150	600	400	150
32	BJS1-6040/200	600	400	200
33	BJS1-6040/250	600	400	250
34	BJS1-6040/300	600	400	300
35	BJS1-6050/150	600	500	150
36	BJS1-6050/200	600	500	200
37	BJS1-6050/250	600	500	250
38	BJS1-6050/300	600	500	300
39	BJS1-6060/150	600	600	150
40	BJS1-6060/200	600	600	200
41	BJS1-6060/250	600	600	250
42	BJS1-6060/300	600	600	300
43	BJS1-6060/400	600	600	400
44	BJS1-7040/200	700	400	200
45	BJS1-7040/201	700	400	300
46	BJS1-7050/150	700	500	150
47	BJS1-7050/200	700	500	200
48	BJS1-7050/250	700	500	250
49	BJS1-7050/300	700	500	300
50	BJS1-7060/200	700	600	200
51	BJS1-7060/250	700	600	250
52	BJS1-7060/300	700	600	300
53	BJS1-8060/200	800	600	200
54	BJS1-8060/250	800	600	250
55	BJS1-8060/300	800	600	300
56	BJS1-8080/200	800	800	200
57	BJS1-8080/250	800	800	250
58	BJS1-8080/300	800	800	300
59	BJS1-8080/400	800	800	400
60	BJS1-1060/200	1000	600	200
61	BJS1-1060/250	1000	600	250
62	BJS1-1060/300	1000	600	300
63	BJS1-1070/200	1000	700	200
64	BJS1-1070/250	1000	700	250
65	BJS1-1080/200	1000	800	200
66	BJS1-1080/250	1000	800	250
67	BJS1-1080/300	1000	800	300
68	BJS1-1010/250	1000	1000	250
69	BJS1-1010/300	1000	1000	300
70	BJS1-1010/400	1000	1000	400
71	BJS1-1260/200	1200	600	200
72	BJS1-1260/250	1200	600	250
73	BJS1-1260/300	1200	600	300
74	BJS1-1280/200	1200	800	200
75	BJS1-1280/250	1200	800	250
76	BJS1-1280/300	1200	800	300
77	BJS1-1210/250	1200	1000	250
78	BJS1-1210/300	1200	1000	300
79	BJS1-1210/400	1200	1000	400
80	BJS1-1210/300	1200	1200	300
81	BJS1-1210/400	1200	1200	400

Product Gallery

Frequently Asked Questions

Q1: What materials are used to construct the BJS1 series distribution boards?

A: The enclosure uses sheet steel (1.2mm up to size BJS1-88/300, and 1.5mm for larger sizes). The door uses sheet steel (1.2mm up to size BJS1-66/300, and 1.5mm for larger sizes). The internal mounting plate is 2.0mm thick.

Q2: What are the protection and impact ratings for this enclosure?

A: It features an IP66 protection degree, offering excellent dust and water resistance, and an IK10 impact resistance rating for superior durability.

Q3: What finishes are applied to the surfaces of the distribution board?

A: The enclosure and door are dipcoat-primed and powder-coated in textured RAL7032 or RAL7035 on the outside. The mounting plate is available in RAL2000 or galvanized finish.

Q4: What is included in the standard product delivery?

A: The standard package includes an all-round solid construction enclosure, a gland plate with a sealing gasket, and a door complete with a lock.

Q5: Are customized sizes available for specific project requirements?

A: Yes, customized sizes are fully accepted. Our standard options range from 200x200x150mm up to 1400x1200x300mm to match varied installations.

Q6: What does the product warranty cover?

A: We offer a 1-year warranty. If any product parts fail due to non-artificial factors within 1 year, equivalent replacements can be provided with the shipment of your next order. Supporting photos are required.
