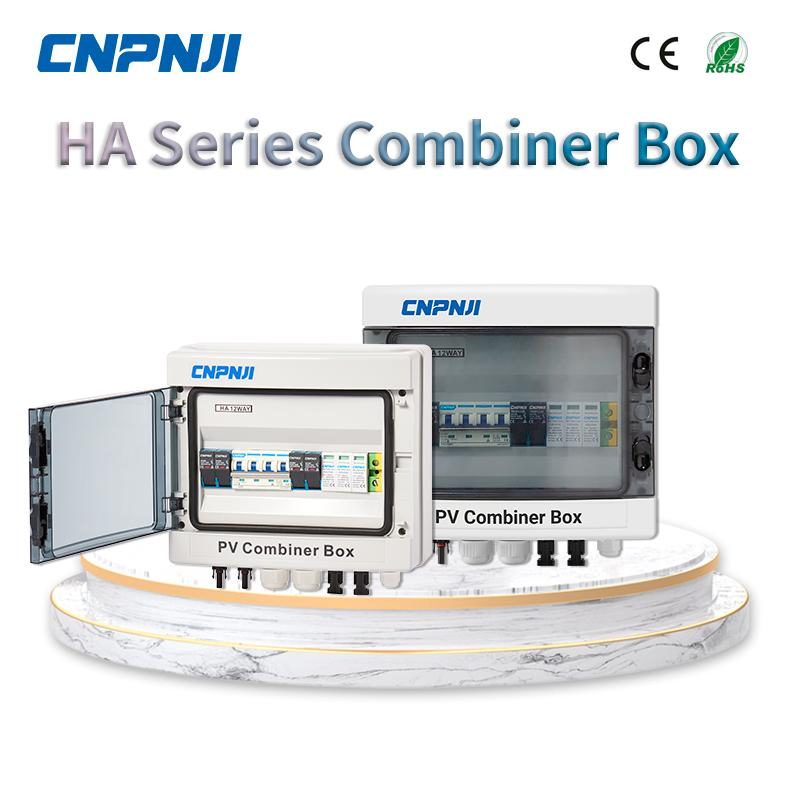

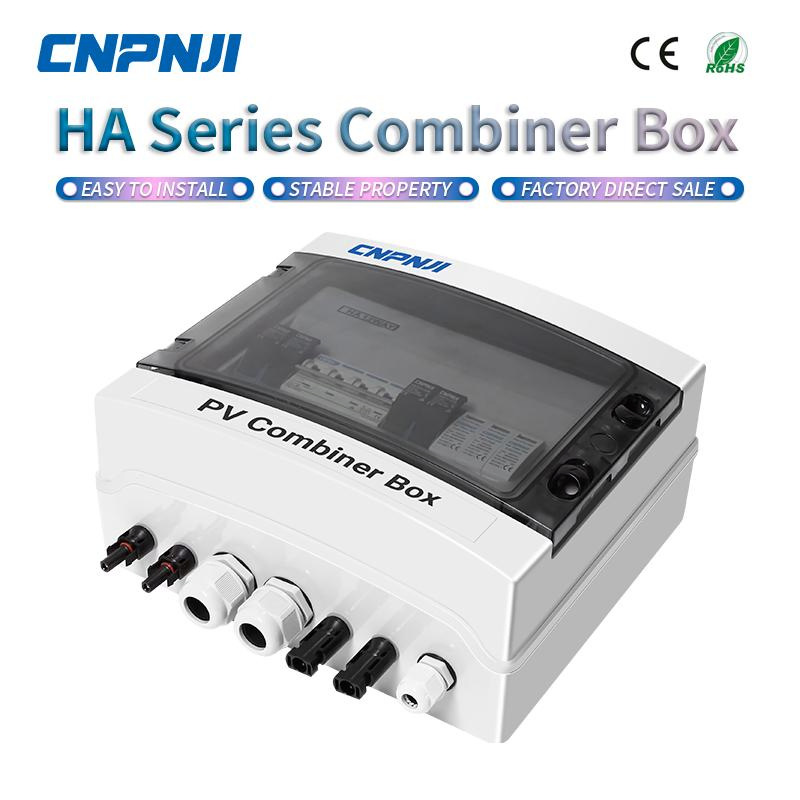

Cnpnji Power Distribution Box Smart Combiner Box for Solar Panel 2in 1out

1 / 5

Cnpnji Power Distribution Box Smart Combiner Box for Solar Panel 2in 1out

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview Product Description Hot Products Company Profile FAQ

iOverview

Basic Info

Model NO.

MGV-DCPV2

Certification

ISO9001:2000, CCC, TUV CE CQC

Form

All- packaged Type

Operation Voltage

High Voltage

Size

1 Uint

Application Range

Power Plants

Shell Material

Plastics

Shell Protection Grade

IP65

Name

PV Combiner Box

Input Current

20A (Each Circuit)

Max Output Current

40A

Strings

Voltage

1000V

Transport Package

Paper /Wooden Carton

Specification

300*260*150mm

Origin

China

HS Code

8537109090

Production Capacity

500PCS/Month

Packaging & Delivery

Package Size

39.00cm * 35.00cm * 17.00cm

Package Gross Weight

5.000kg

⚙Product Description

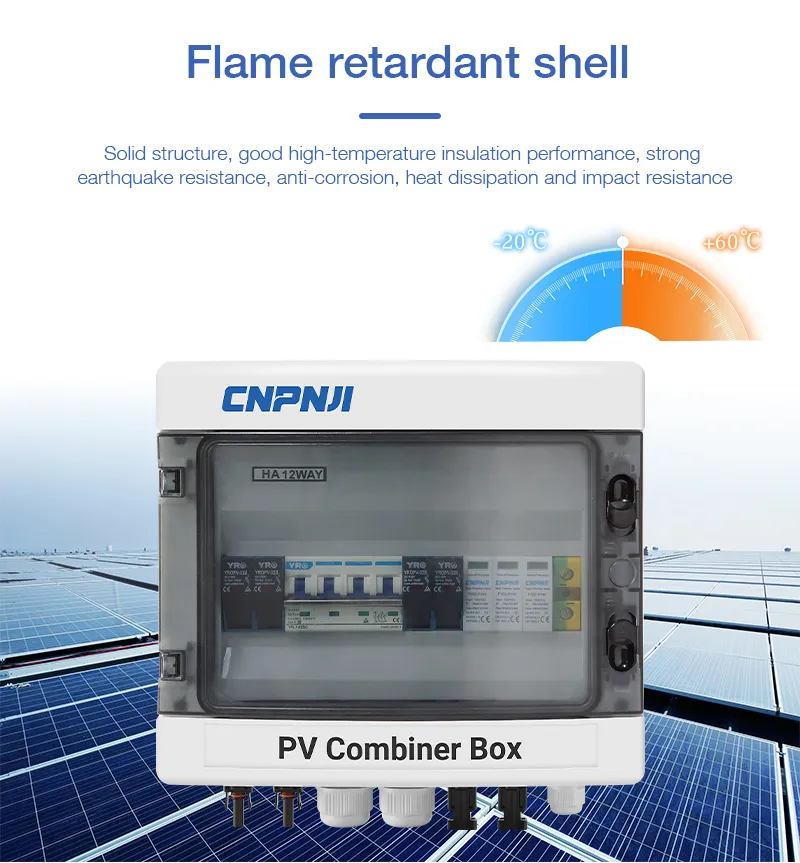

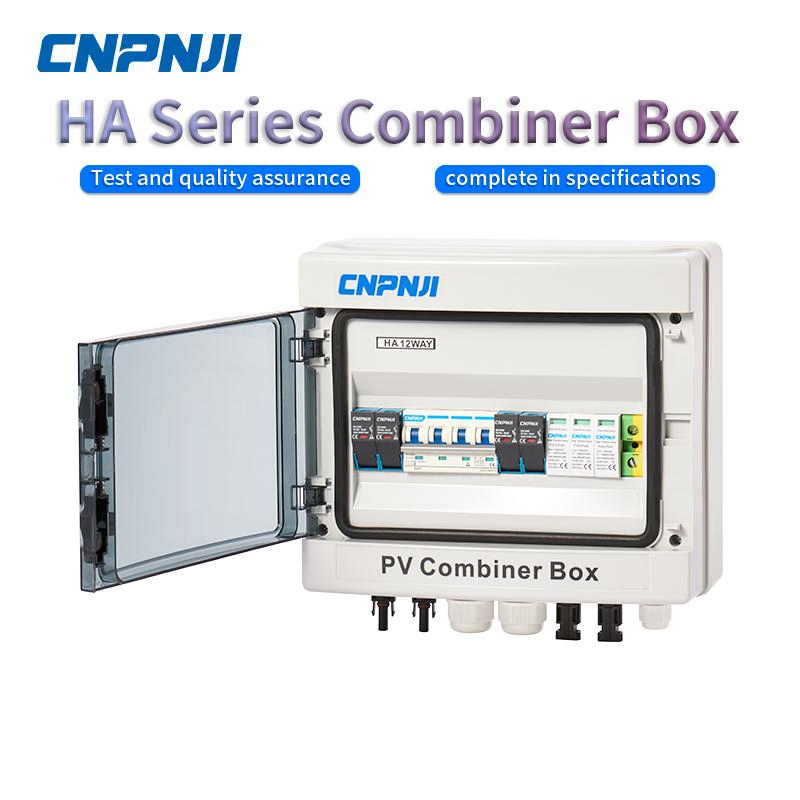

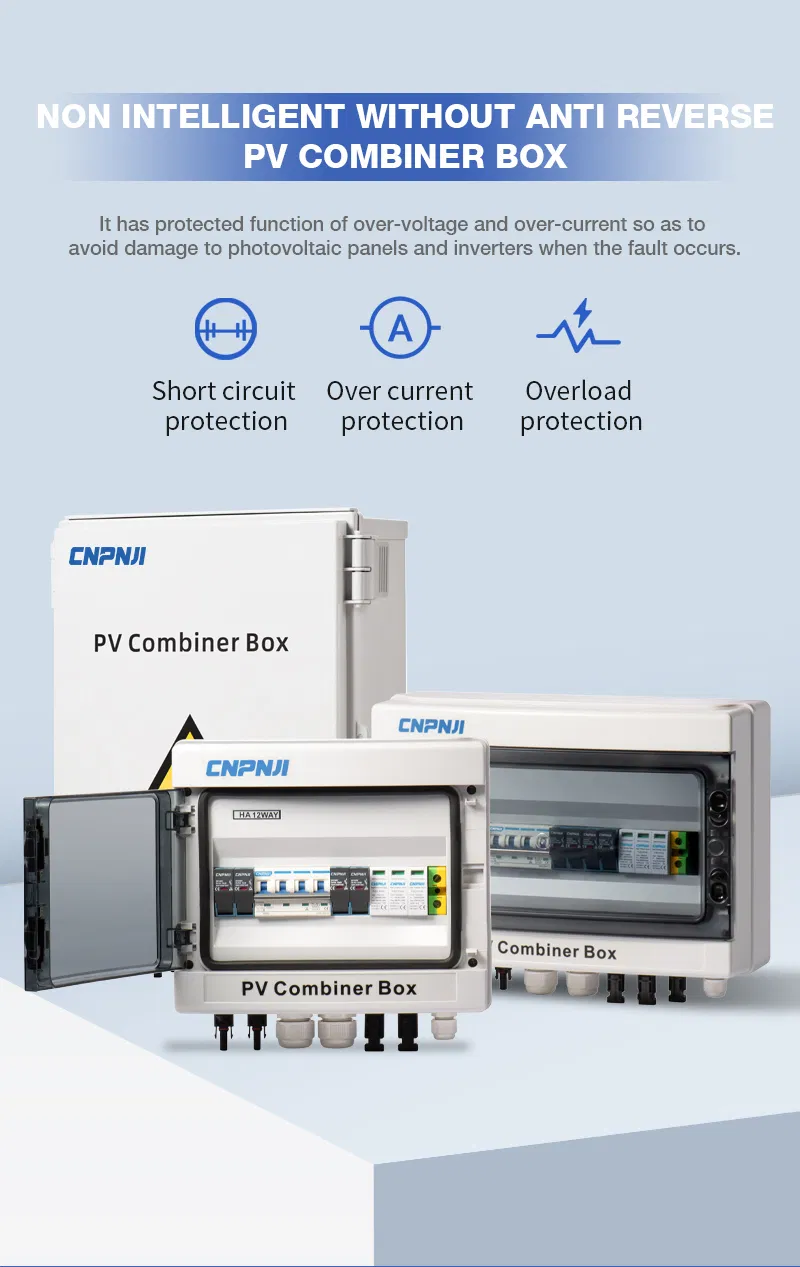

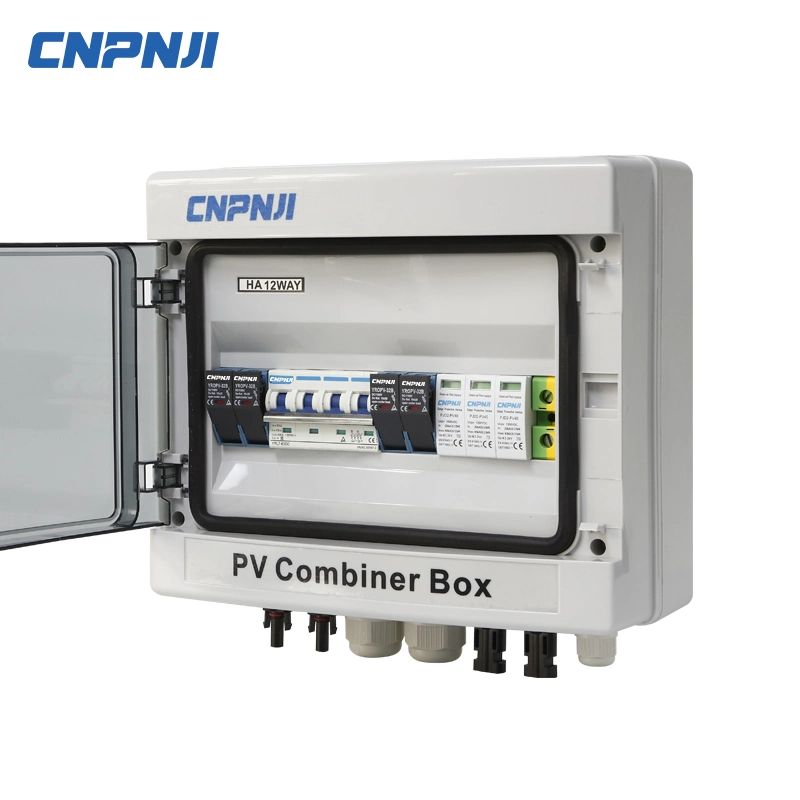

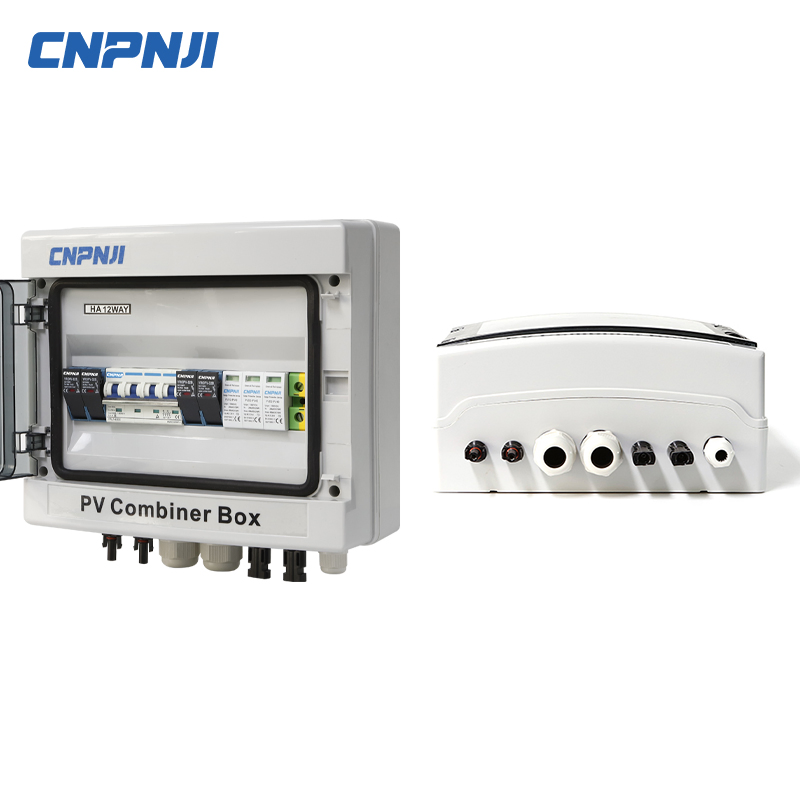

Power Distribution Box Smart Combiner Box for Solar Panel 2in 1out

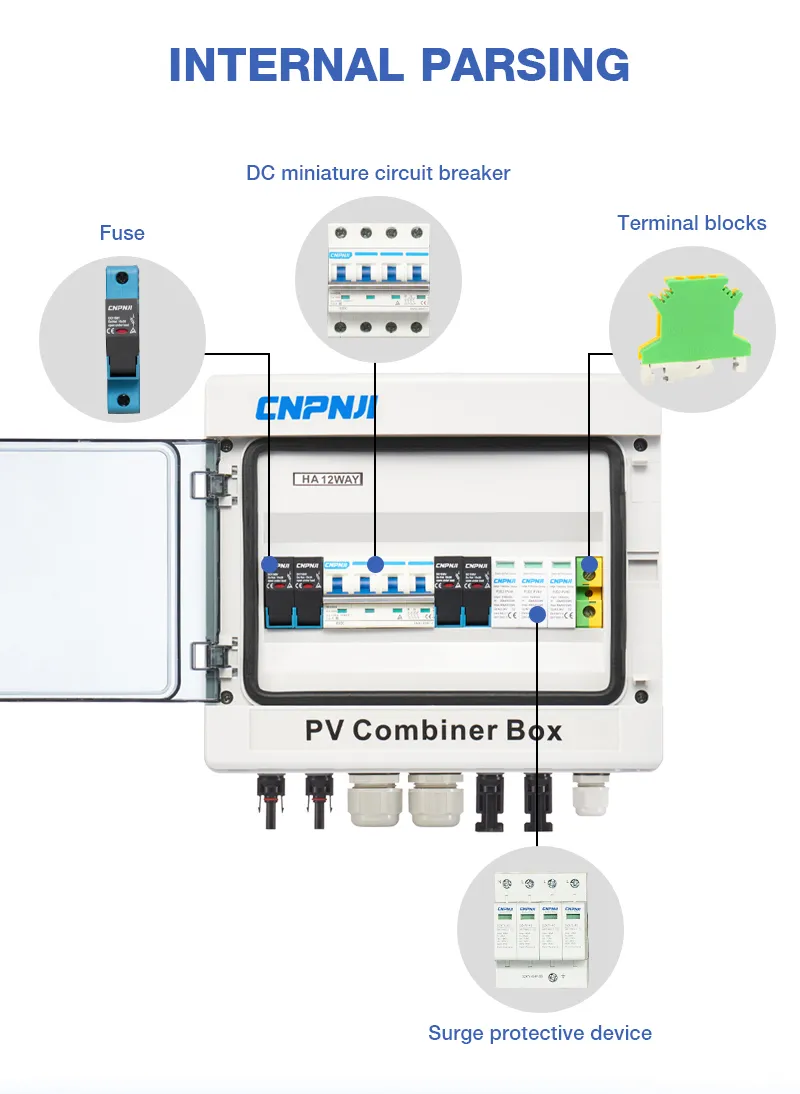

Technical Specifications
Name	PV combiner box
System maximum dc voltage	1000
Maximum input current for each string	20A
Maximum input strings	2
Maximum output switch current	40A
Number of inverter MPPT	1
Number of Output strings	1
Category of test	II grade protection
Nominal discharge current	20kA
Maximum discharge current	40kA
Voltage protection level	3.8kV
Maximum continuous operating voltage Uc	1000V
Poles	3P
Structure characteristic	Plug-push module
Operating Temperature	Wall mounting type
Installation method	Wall mounting type
