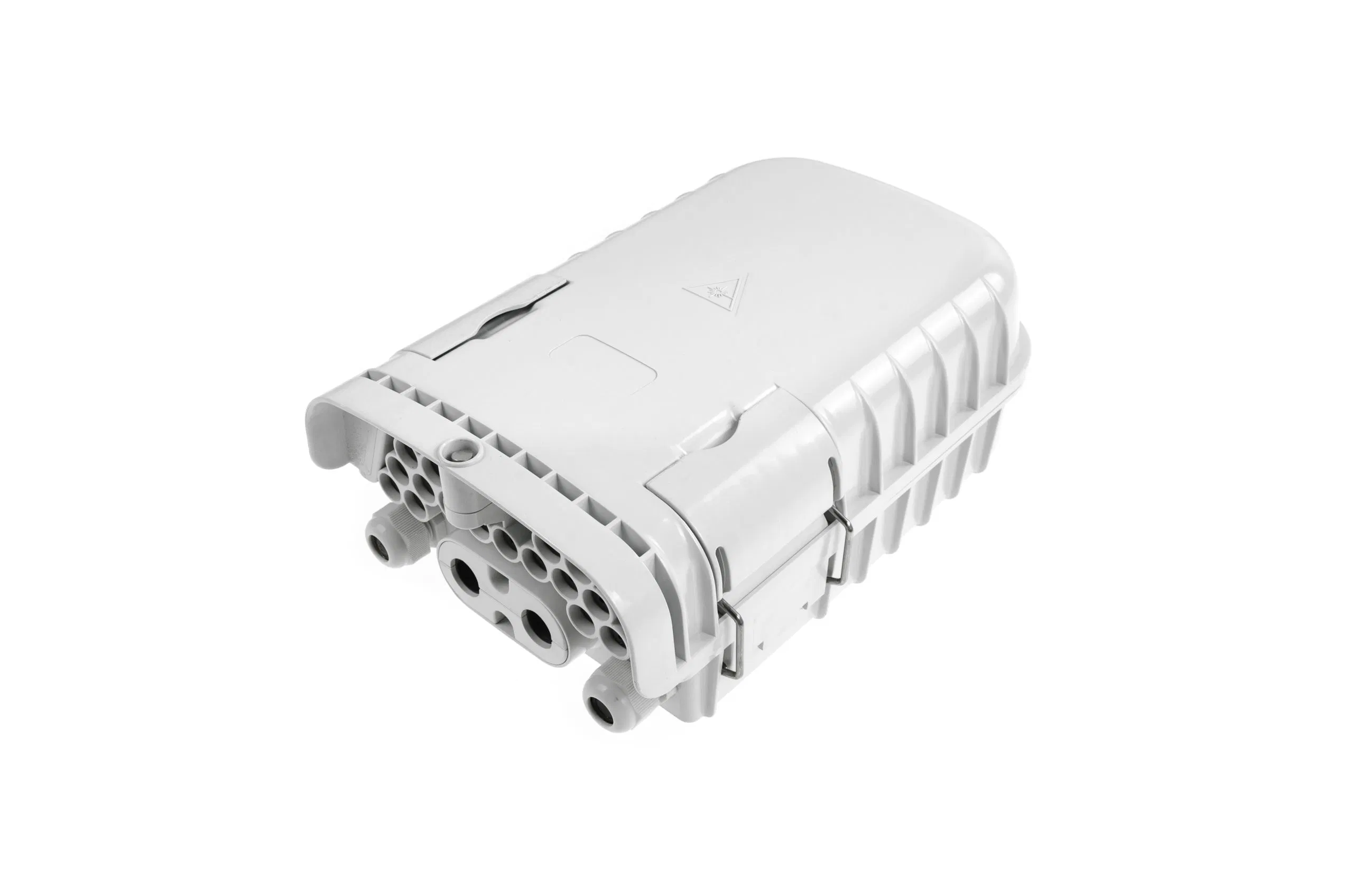

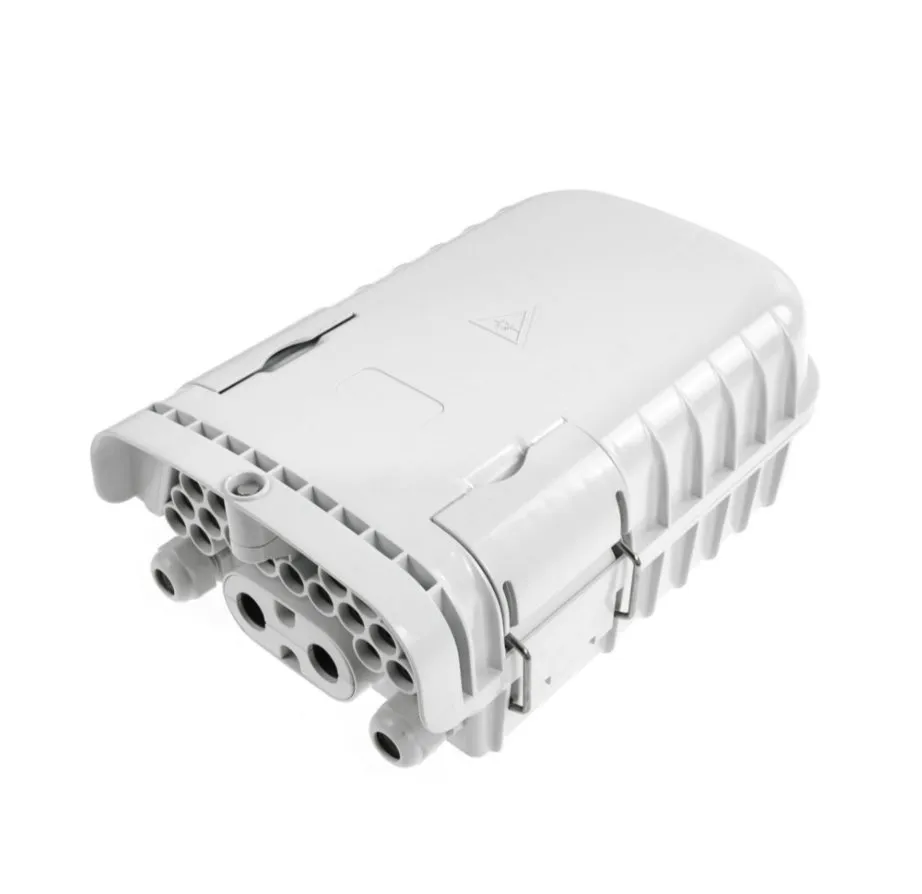

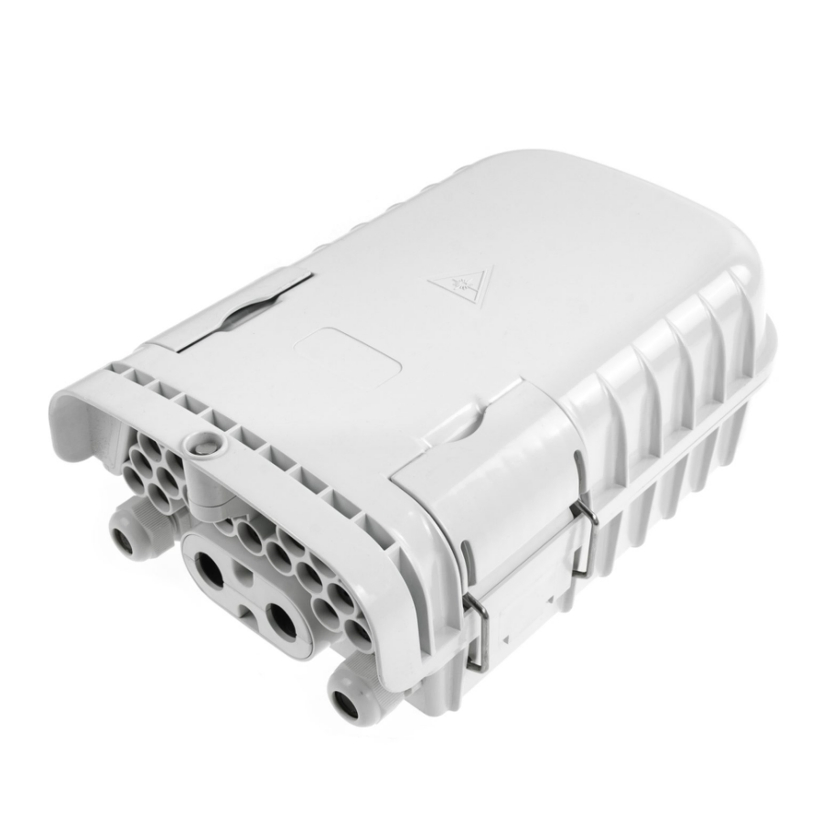

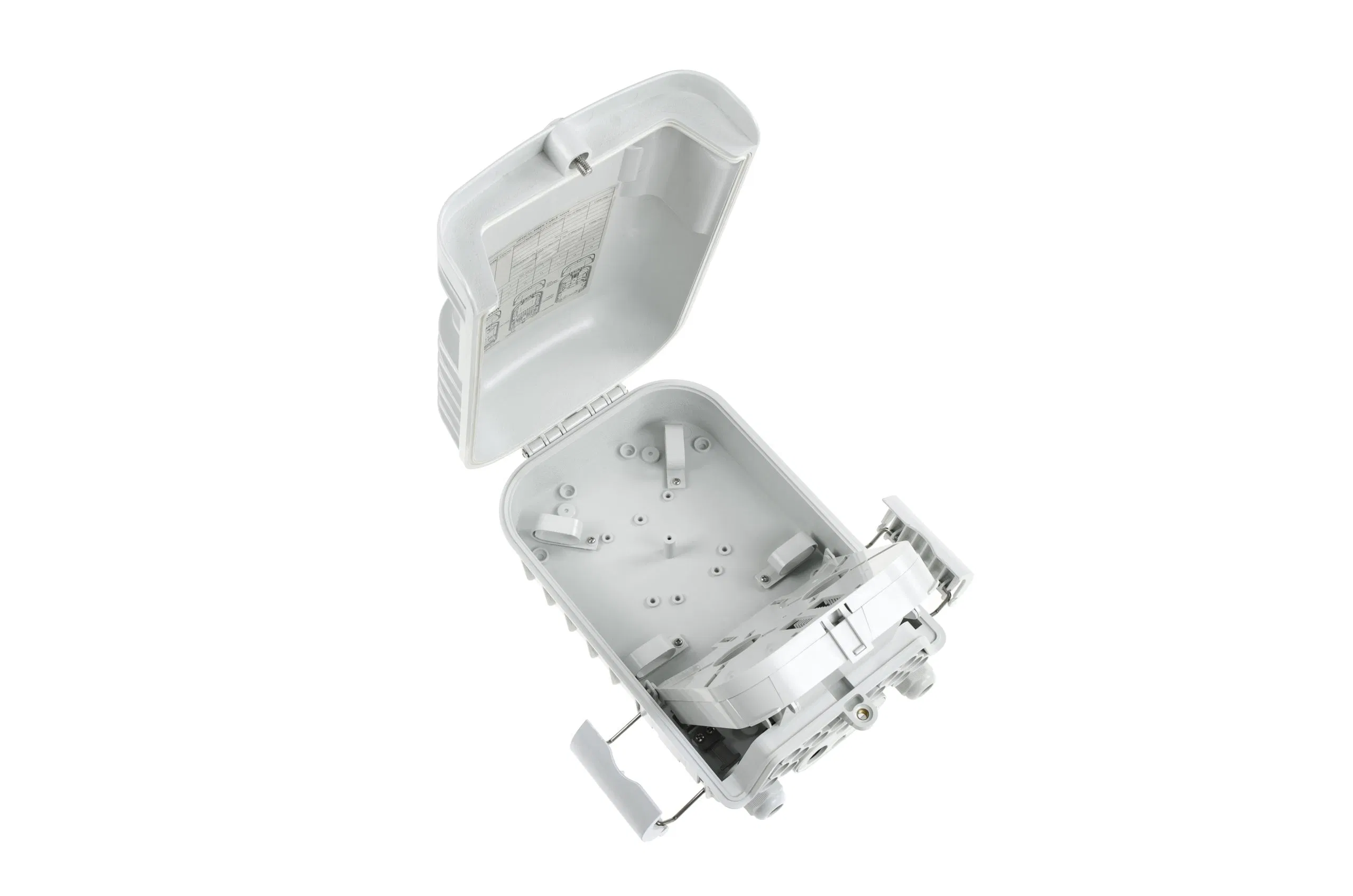

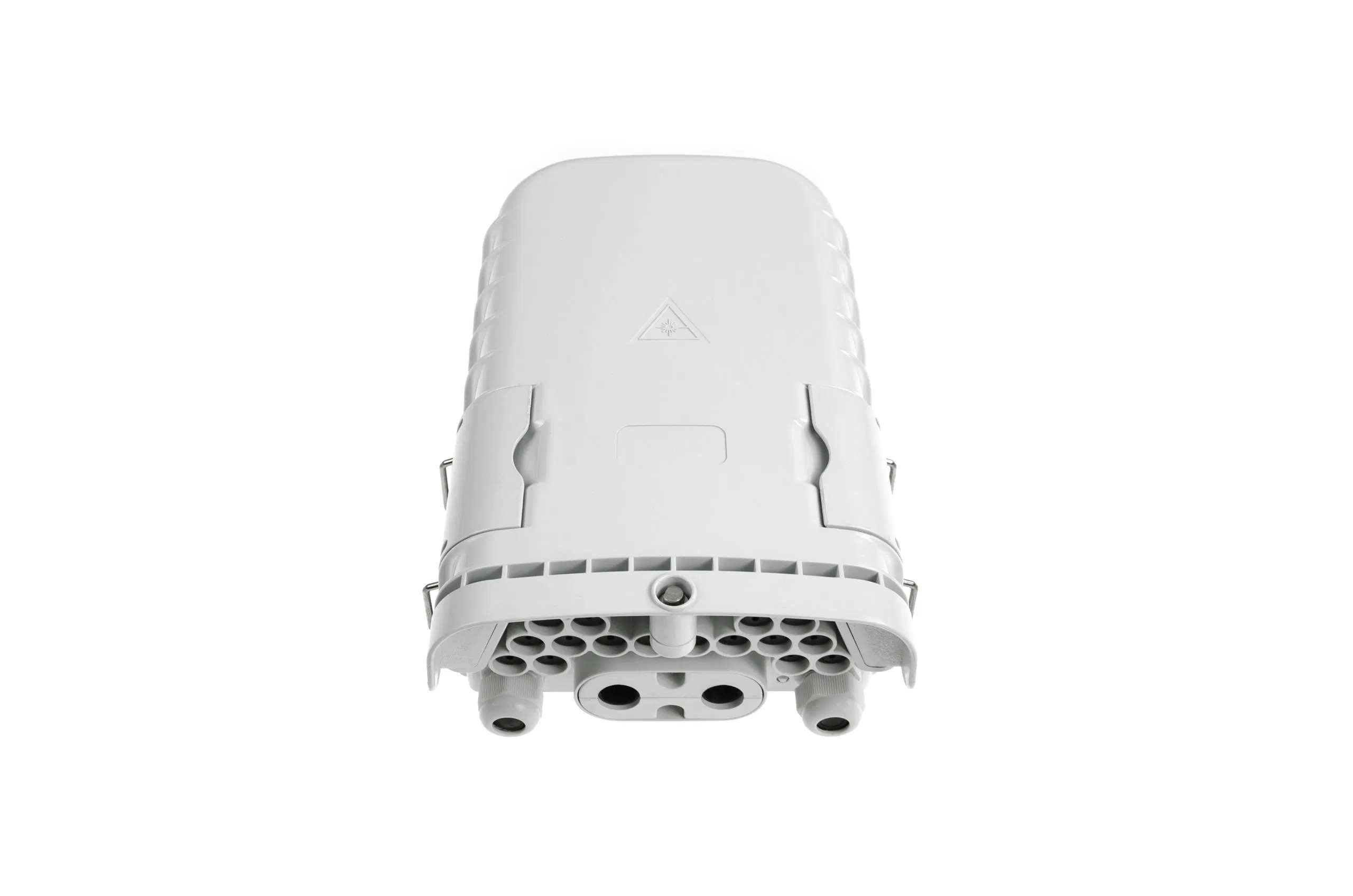

16 Ports Wall Mounted Fiber Optic Distribution Box with Mini or Lgx PLC Splitter

Basic Info.

Model NO.	HTB8063 16 Ports FiberDistribution Box
Certification	CE, ISO, RoHS
Condition	New
Material	ABS Plastic
Dimensions	287×172×102mm
Color	Light Gray (Standard)
Adapter Type Supported	Sc Simplex or LC Duplex
Operating Temperature	-40°c to +85°c
Cable Ports	2 Cable Inlet + 16 Drop Cable Outlet Ports
Splitter Type Supported	1×8 / 1×16 Mini PLC Splitter
Transport Package	Standard Packaging
Specification	16 SC ports, optional mini PLC Splitter
Origin	China
HS Code	8517629900
Production Capacity	50, 000 PCS/Month

Packaging & Delivery

Package Size	48.00cm * 35.00cm * 62.00cm
Package Gross Weight	15.000kg

Quality Assurance

All Terminal Box are 100% factory sealed, pressure-tested, and visually inspected before shipment. Certified under CE, RoHS, and ISO9001.

Product Description

The HTB8063 16 Ports Fiber Optic Distribution Box is designed for efficient and secure fiber cable management in FTTH networks. It supports up to 16 subscribers and integrates a 1×8 or 1×16 mini PLC splitter or LGX cassette. Made of flame-retardant ABS and rated IP65, this wall-mount box is suitable for indoor or sheltered outdoor environments.

1. Applications

FTTH (Fiber to the Home) subscriber connection
FTTx access networks
Indoor/outdoor wall-mounted fiber termination
Building entrance fiber distribution
Small office/home office (SOHO) installations
Fiber LAN and telecom equipment interface
Multi-dwelling unit (MDU) fiber management

2. Features

Integrated Design: Combines splicing, splitting, and cable termination in one unit.
Future-Ready: Splitter-ready with multiple configurations to accommodate growing network demands.
Secure Connections: Mechanical sealing for long-lasting performance and environmental protection.

16 Ports Wall Mounted Fiber Optic Distribution Box with Mini or Lgx PLC Splitter

Technical Parameters

Parameter	Details
Material	High-impact ABS/PC plastic.
Dimensions	287 × 172 × 102 mm.
Splice Capacity	16 fibers (1 tray, 16 fibers per tray).
Splitter Capacity	2 × 1:8 or 1 × 1:16 PLC splitters.
Adapter Ports	16 SC adapters.
Cable Diameter	φ2~φ13 mm
Weight	1.15 kg.
Protection Level	IP65.
Operating Temperature	-40°C to 60°C.
Color	Grey/Black.

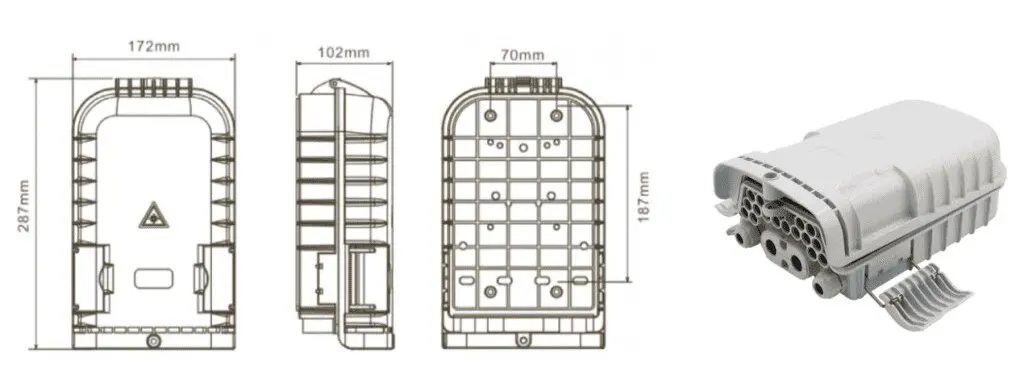

16 Ports Wall Mounted Fiber Optic Distribution Box Diagram

16 Ports Wall Mounted Fiber Optic Distribution Box Layout

3. Customization Options

Adapter types: SC/APC, SC/UPC, LC/UPC, LC/APC

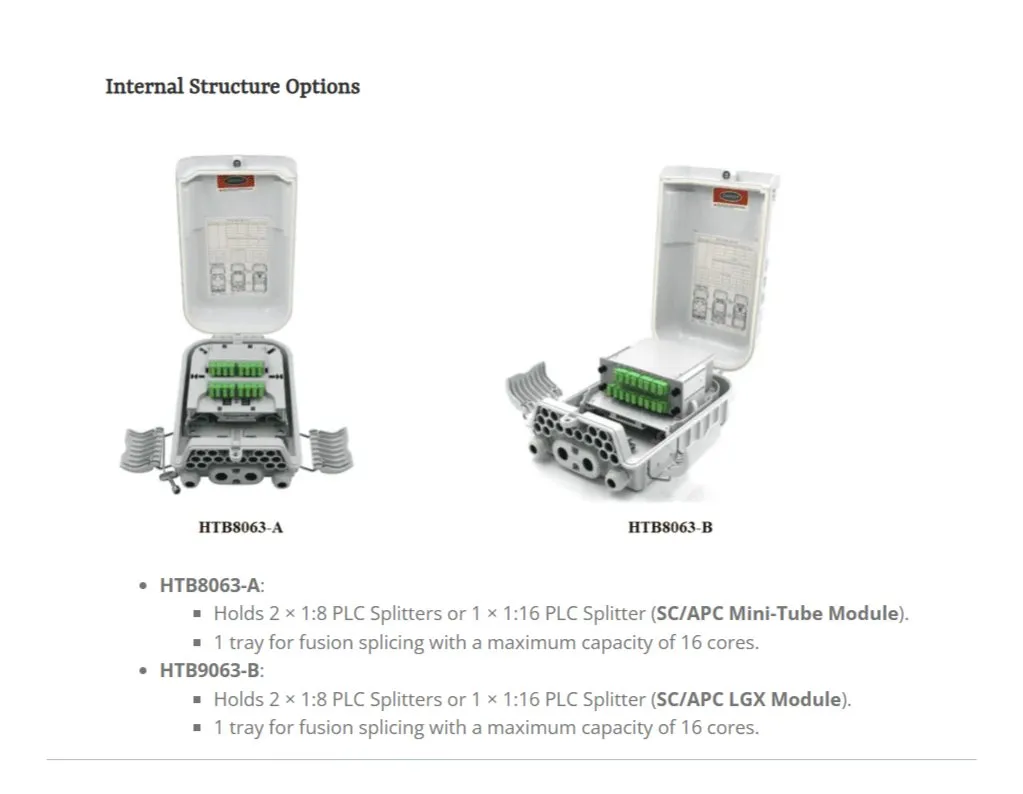

Splitter options: mini PLC or LGX cassette

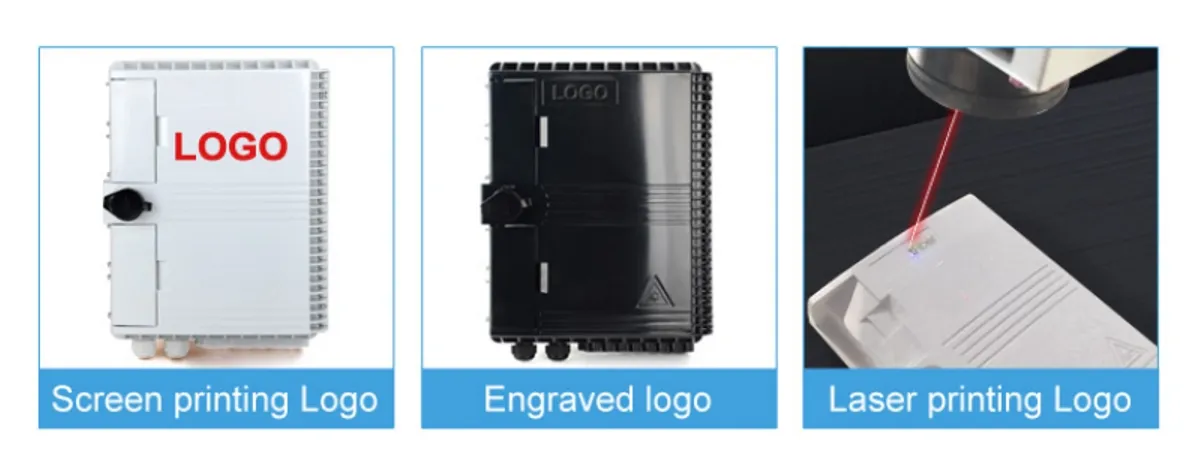

OEM branding and color options
Pre-connectorized with pigtails or splitters
Drop cable type and grommet selection

4. Packing & Delivery

Lead time: 7–12 working days depending on quantity
Packaging: Individual foam-protected box with carton shipping
Shipping: Sea freight, air cargo, express delivery (DHL/FedEx/UPS)

5. Feature Details

Waterproof Design: IP65-rated for reliable outdoor protection.

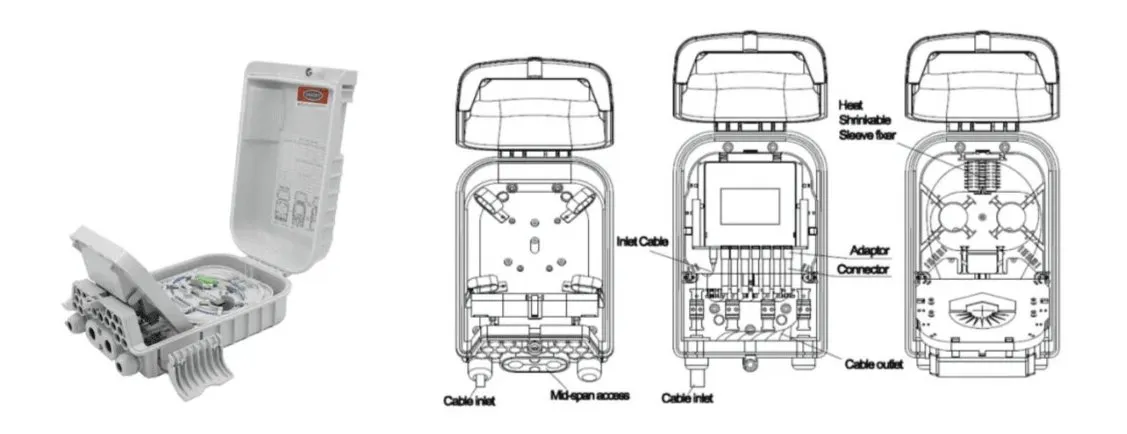

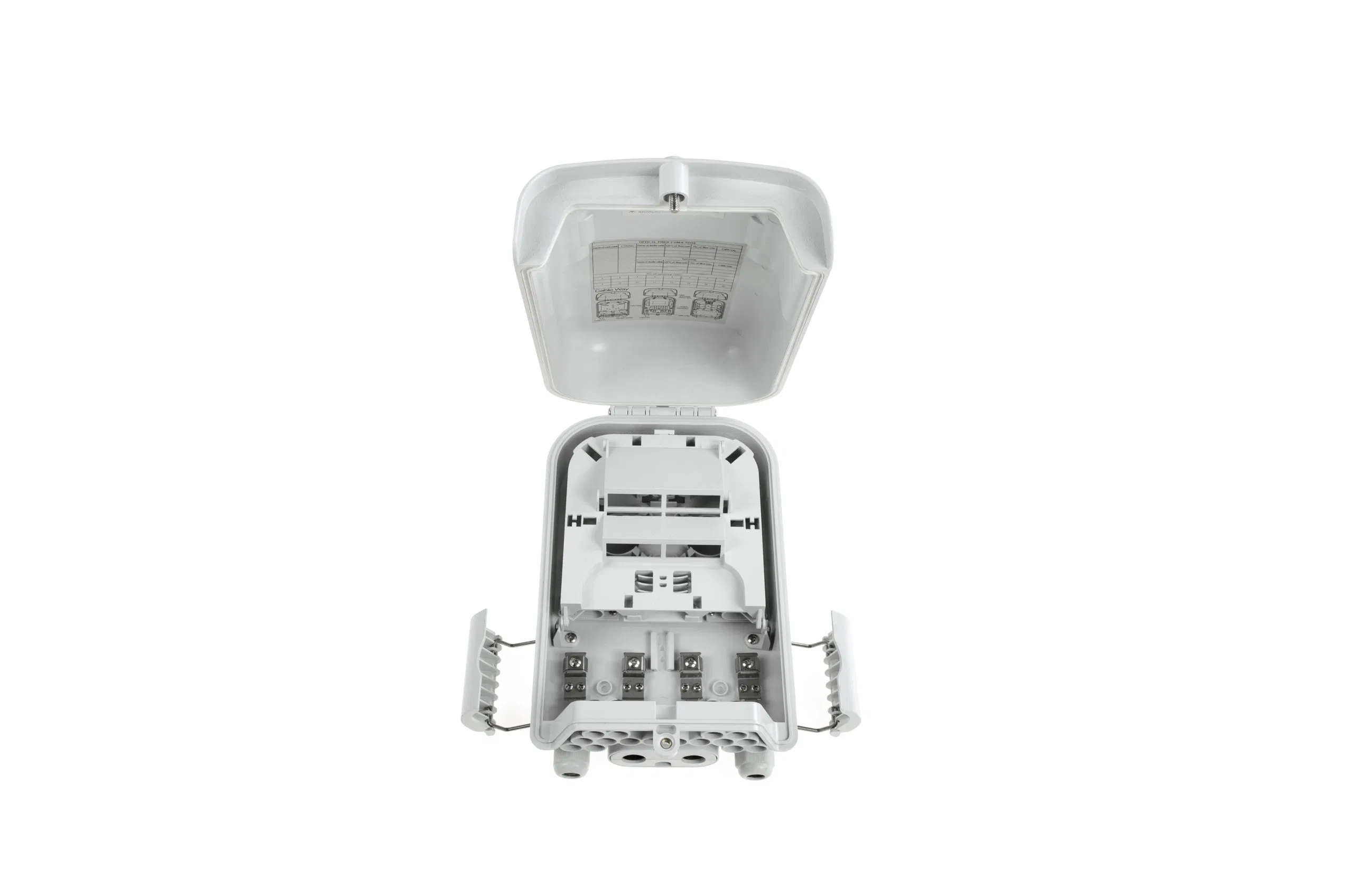

Integrated Components: Flap-up splice cassette and adapter holder for efficient management.
Durable Build: Stainless steel plates and anti-rusting bolts ensure long-lasting performance.
Enhanced Fiber Safety: Bend radius control of more than 40mm prevents signal loss.
Splitter Support: Accommodates 1 × 1:16 or 2 × 1:8 PLC splitters for network scalability.
Sealing Structure: Mechanical sealing with mid-span cable entry ensures robust connections.
Cable Ports: 4 inlet ports for feeder cables (φ2~φ13mm); 16 outlet ports for drop cables.
