SN Electrical
1 / 5
| Specifications | Size (CM) | Product Weight (g) | Packing Quantity | Dimensions | Volume |
|---|---|---|---|---|---|
| HT-2WAY | 5.4*12*9 | 180 | 100 | 56*28*48 | 0.046 |
| HT-3WAY | 7.5*15.4*9.2 | 202 | 100 | 72*153*90 | 0.056 |
| HT-5WAY | 12*16*9.3 | 265.5 | 60 | 50*46.5*49.5 | 0.086 |
| HT-8WAY | 20*15.5*9.3 | 399.5 | 30 | 56*41.5*48 | 0.1 |
| HT-12WAY | 25.5*20*11 | 660.5 | 20 | 56*41.5*52.5 | 0.141 |
| HT-15WAY | 31*20*11 | 803.4 | 15 | 65*32*57 | 0.129 |
| HT-18WAY | 36.5*20*11 | 887.6 | 15 | 65*37.5*57 | 0.151 |
| HT-24WAY | 36*28*11 | 1201.1 | 10 | 57.5*37.5*57 | 0.109 |

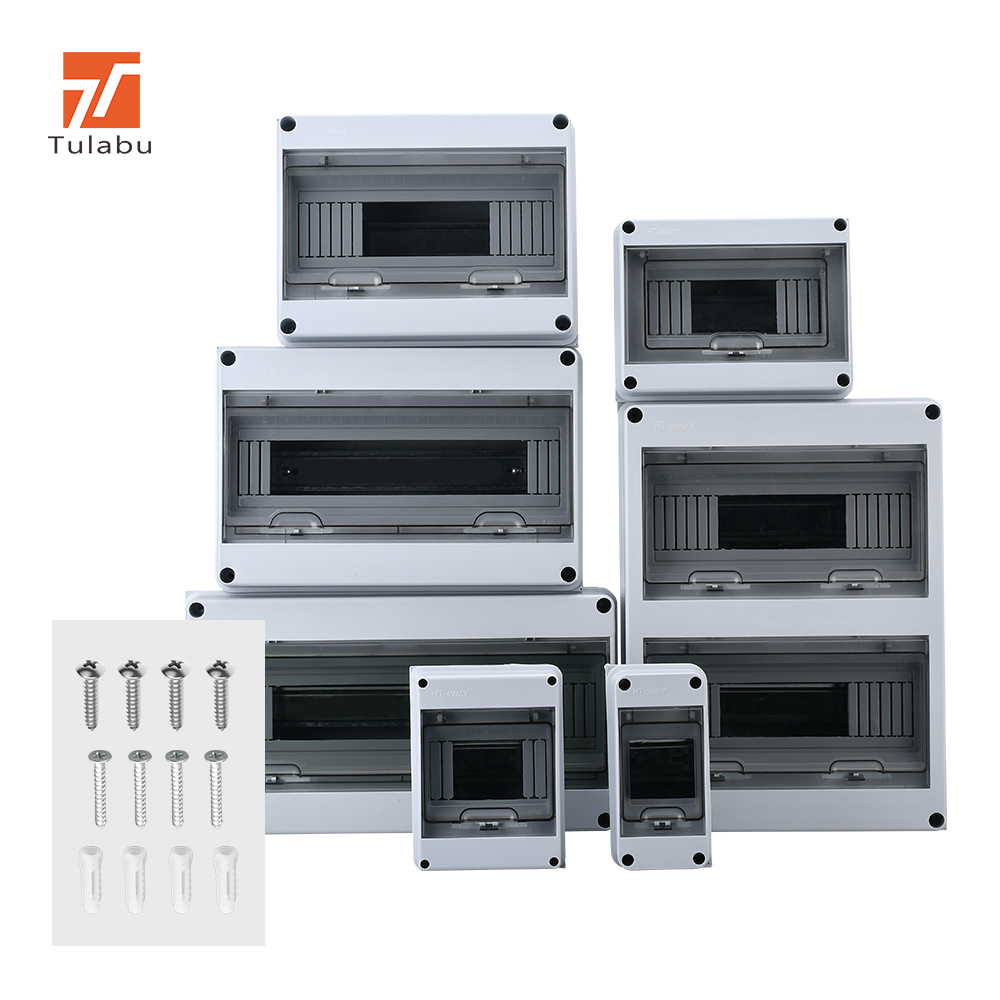

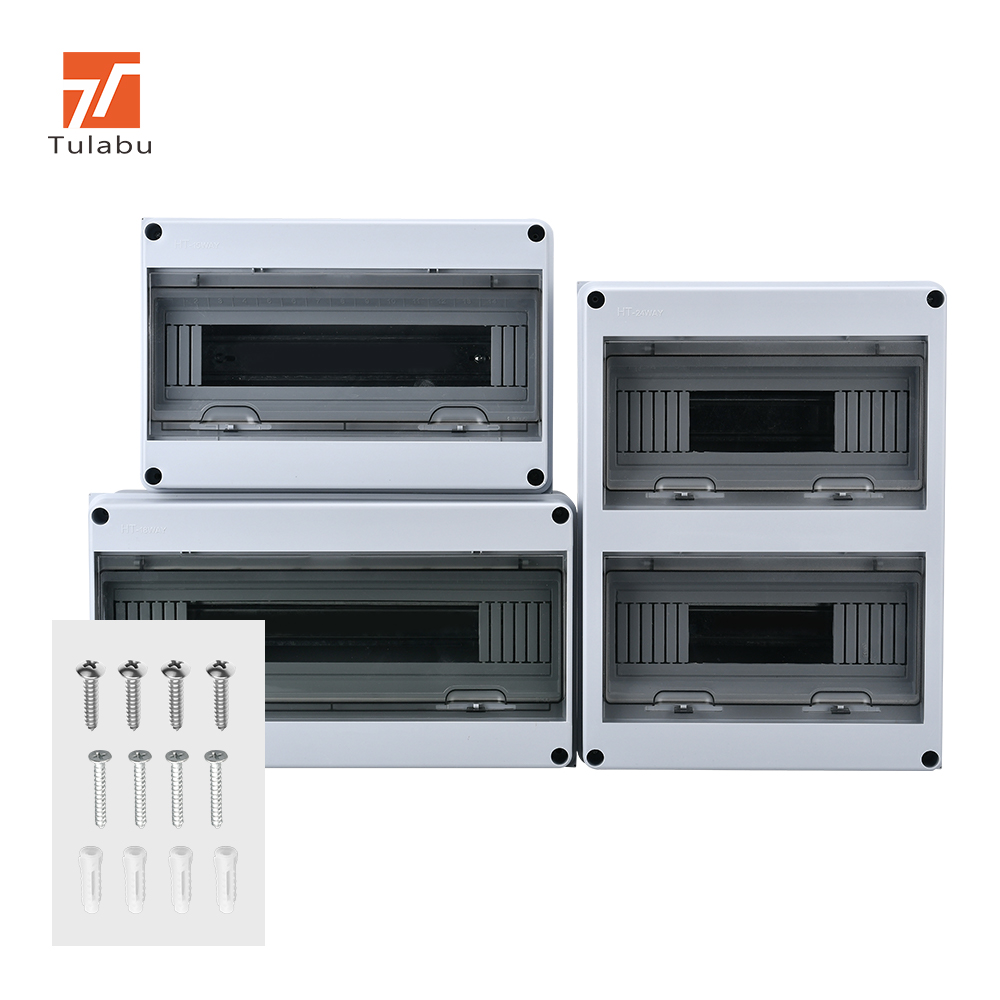

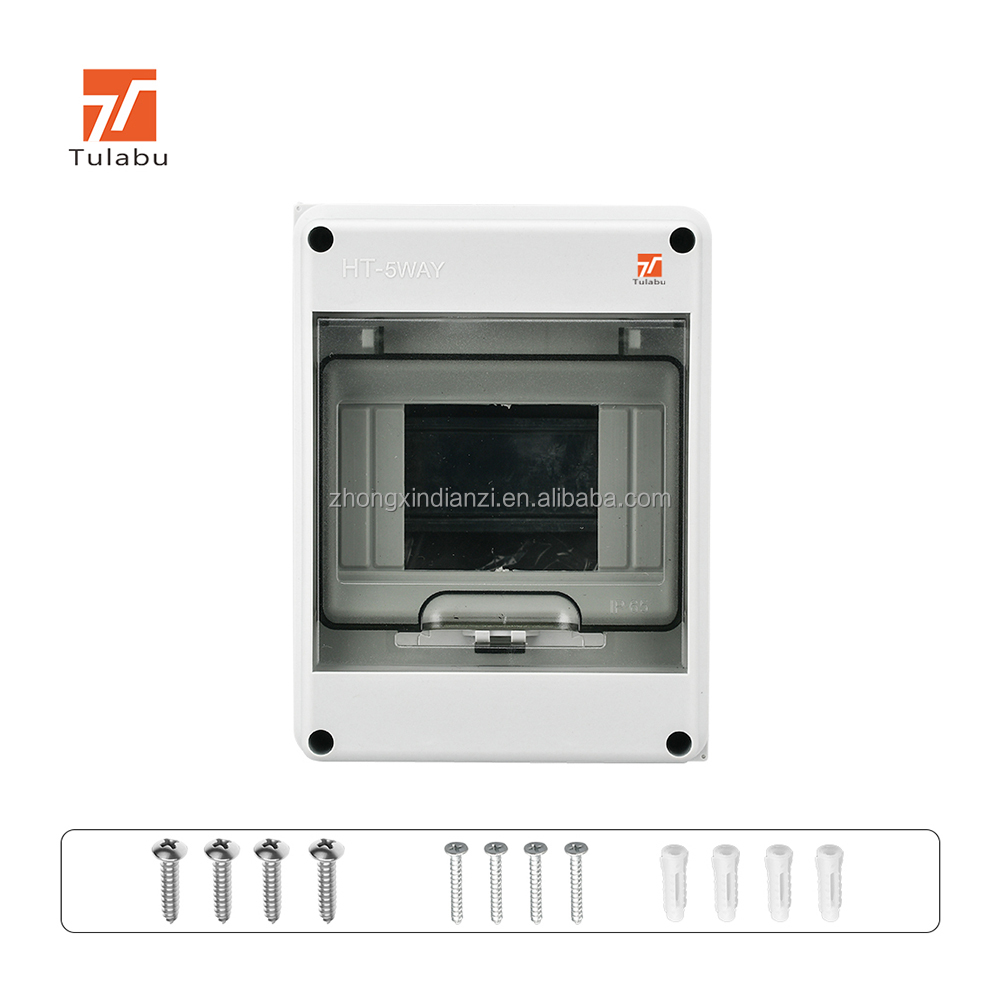

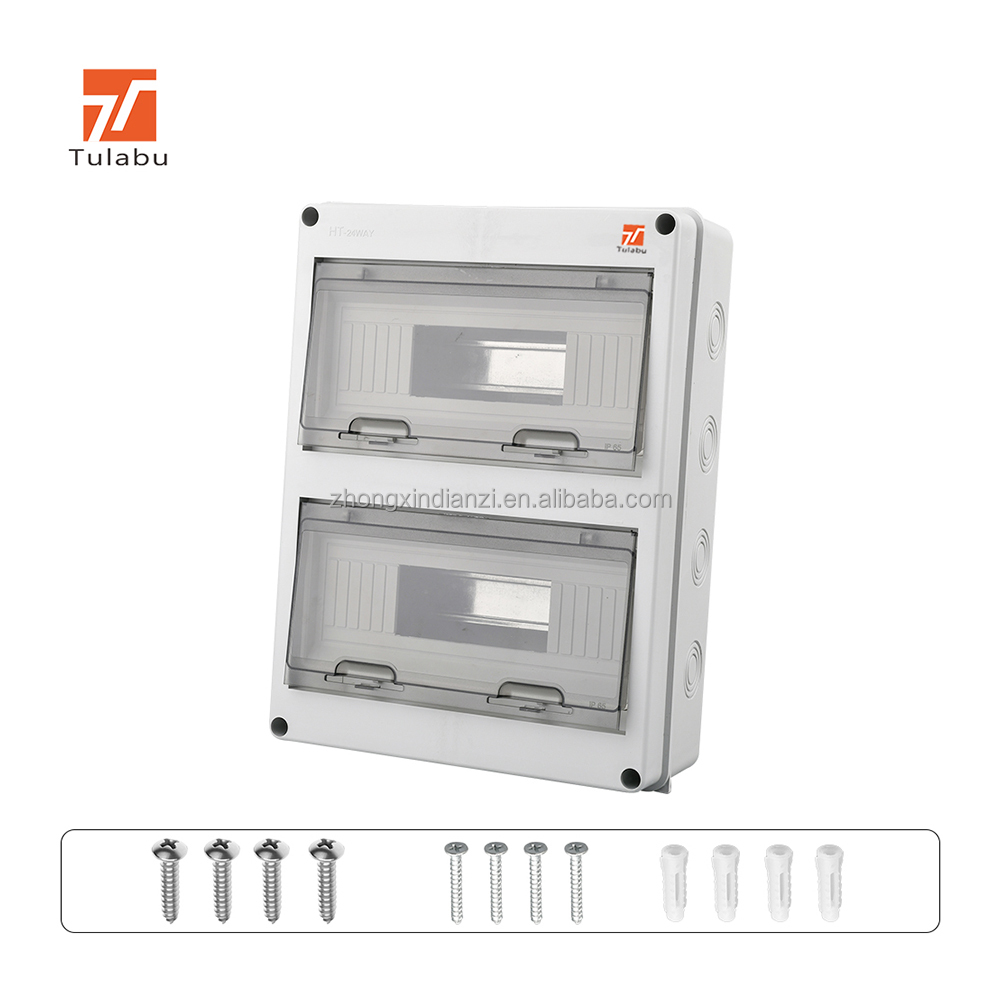

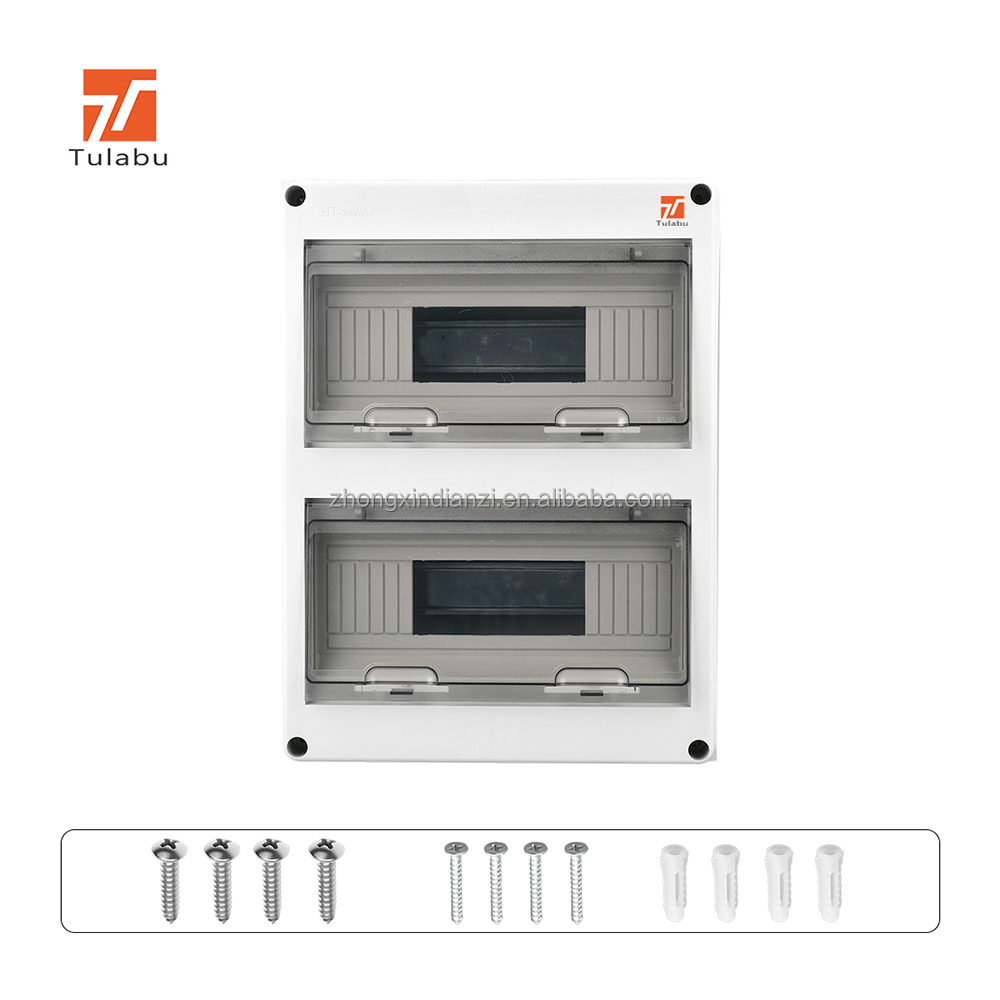

HT series 5way electrical equipment supplier waterproof distribution box mcb waterproof distribution box
An MCB (Miniature Circuit Breaker) waterproof distribution box is a protective electrical enclosure designed to safely house circuit breakers, switches, and other routing components, preventing dust, water, and moisture from causing electrical shorts or damage.
The body of the HT series distribution box is constructed from high-quality, impact-resistant ABS material, while the clear cover is made from durable PC material to allow easy visual monitoring of the internal circuits.
We offer configurations ranging from 2-way up to 24-way layouts, including specific 2-way, 3-way, 5-way, 8-way, 12-way, 15-way, 18-way, and 24-way sizes to match various residential and industrial circuit requirements.
Yes. These distribution boxes feature water-resistant sealing and robust constructions, ensuring they are weatherproof and suitable for both challenging outdoor and indoor applications.
The distribution box is designed for easy wall mounting. It comes with pre-marked cable entries and internal DIN rails for convenient installation of breakers and switches.
