| Specification | Details |
|---|---|
| Product name | Fiber Termination Box |
| Material | PC+ABS |
| Color | Grey |
| Dimension | 220*140*55mm |
| Suitable Adapter | LC, SC, ST, FC |
| Waterproof | IP-66 Protection level |
| Max Capacity | 16 core |
| Application | FTTH FTTB FTTX Network |
| Warranty | Limited life |
| Product Keywords | Point de branchement optique (PBO) |

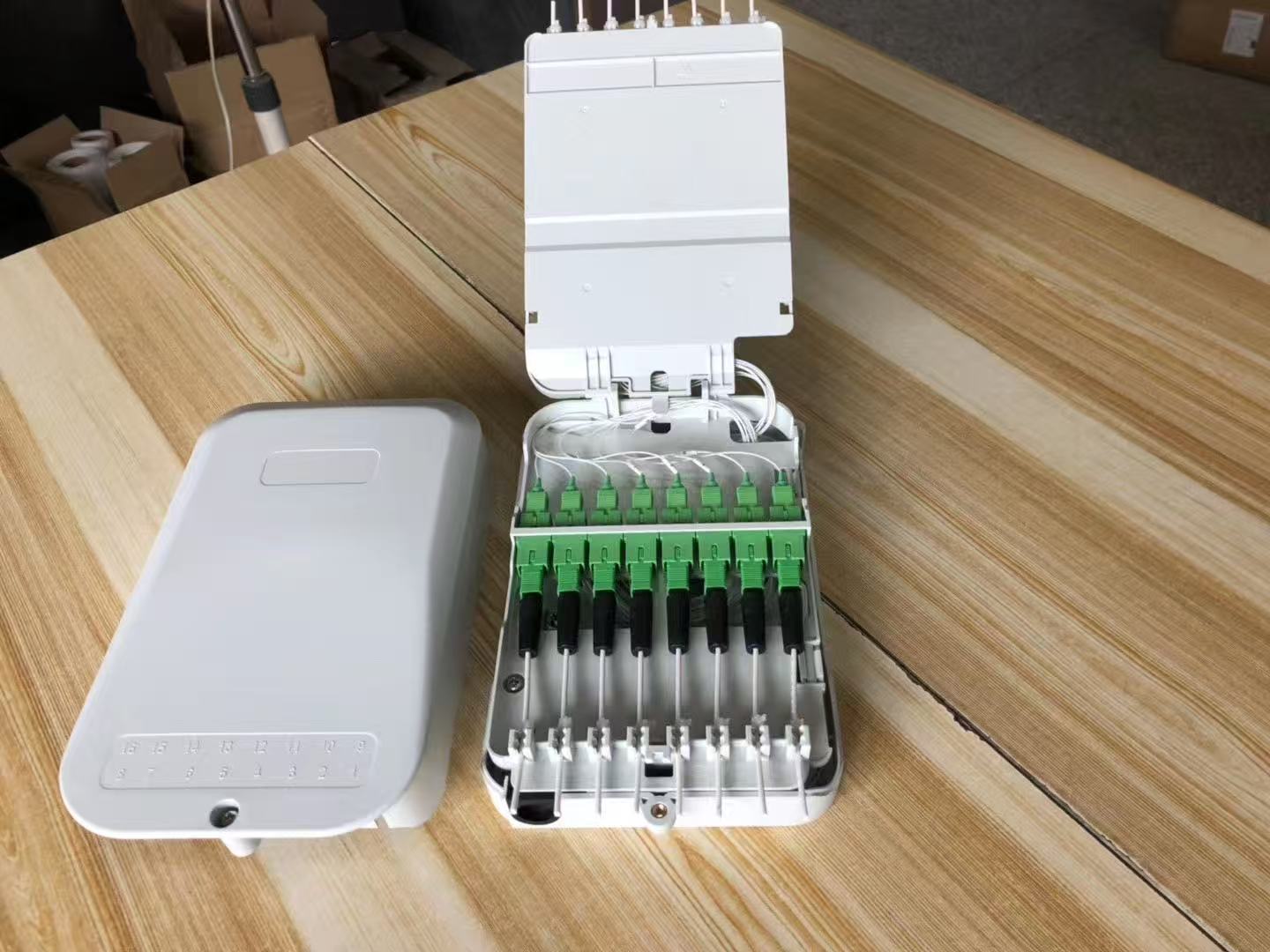

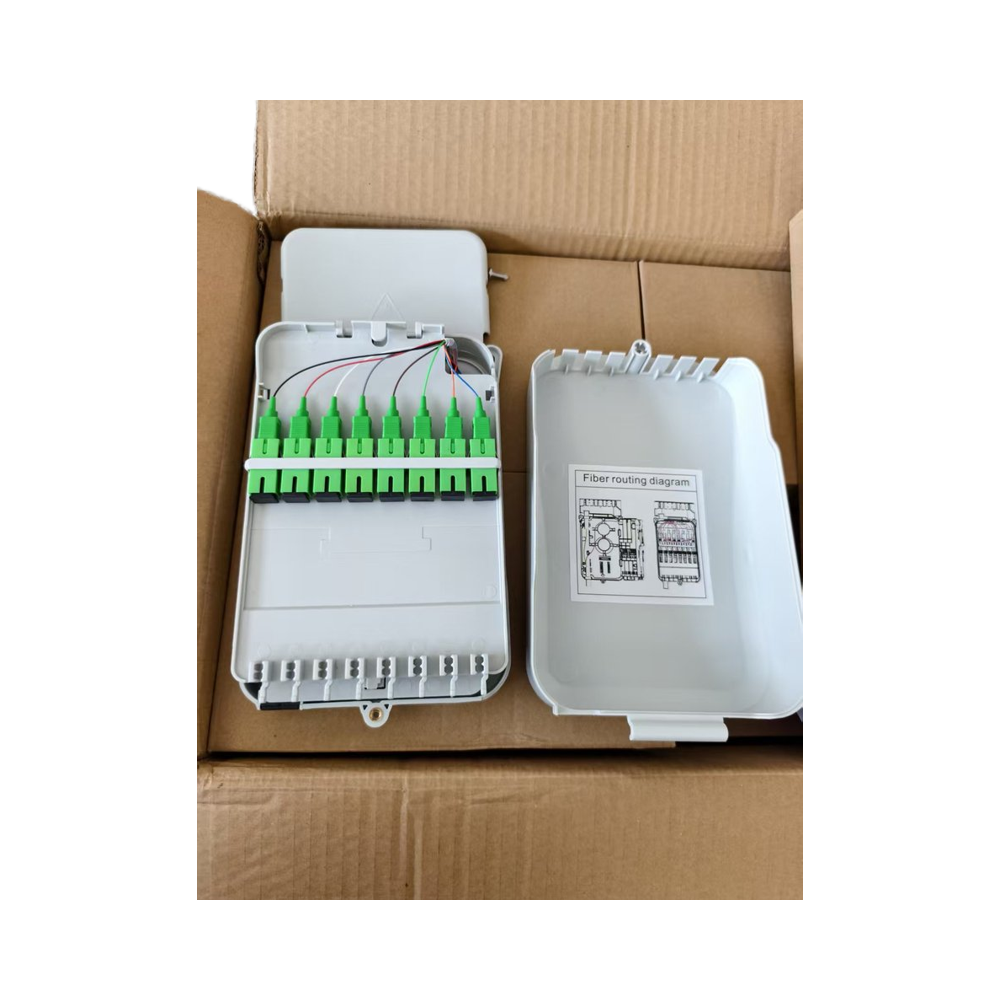

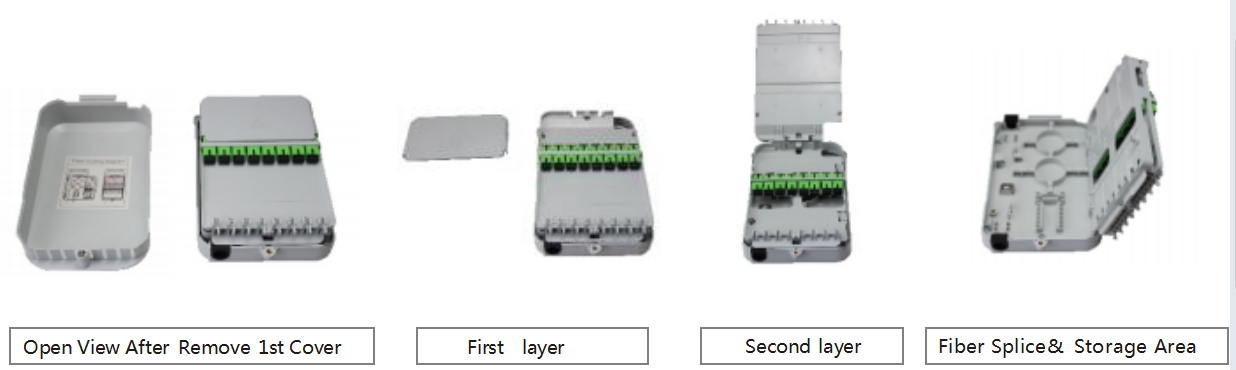

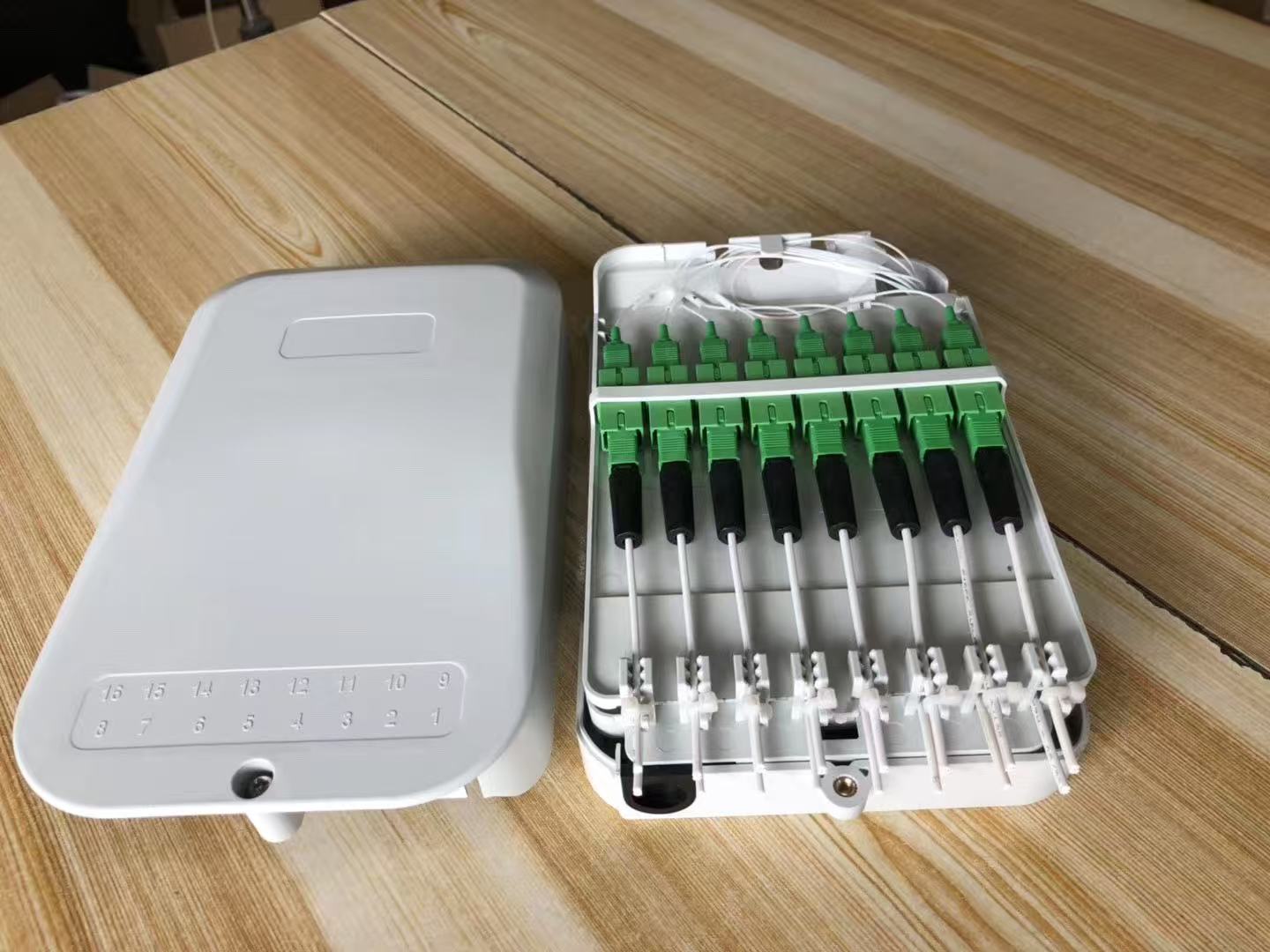

This termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitter, distribution, storage and cable connection in one solid protection box.
| Material | Size A*B*C (mm) | Splice Trays | Fiber Adapters | PLC Splitters | Cable Entrance | Weight | Color |
|---|---|---|---|---|---|---|---|
| PC+ABS | 212*133*53 | 1pcs x 16FO | 16(SC) or 32(LC) | 2pcs x 1:8 | 2 x Inlets (6-12mm) 16x Outlets (3-5mm) |
0.4kg | White |
| 220*140*55 | - | SC 16 Ports | 1X8 or 1x16 mini plc splitter |
| Material | Size (mm) | Max Capacity (SC) | Max Capacity (PLC) | Empty Weight |
|---|---|---|---|---|
| PC+ABS | 220*140*55 | 16 Ports | 1X8 or 1x16 mini plc splitter | 0.6kg |
IP65 waterproof, weather-resistant, and built to withstand harsh outdoor environments, ensuring the longevity and reliability of the distribution box.
The large capacity of this distribution box allows for the efficient management and distribution of up to 8 cores of optical fiber, supporting a wide range of FTTX applications and facilitating reliable connectivity.
The FDB-12E Wall Mounted Fiber Optic Terminal Box features state-of-the-art technology for optimal performance and seamless integration with modern network systems.
The product supports custom specifications, making it a great value for both individual and corporate users who desire a personalized and professional network solution.
This termination box is designed as a connection point between feeder cables and drop cables in FTTx network systems, supporting FTTH, FTTB, and FTTX applications.
Yes, it features an IP-66 waterproof protection level, making it highly robust and weather-resistant to withstand harsh outdoor conditions.
It is compatible with LC, SC, ST, and FC adapters. For splitters, you can install either 2 pcs of 1*8 splitters or 1 pc of 1*16 mini PLC splitter as an option.

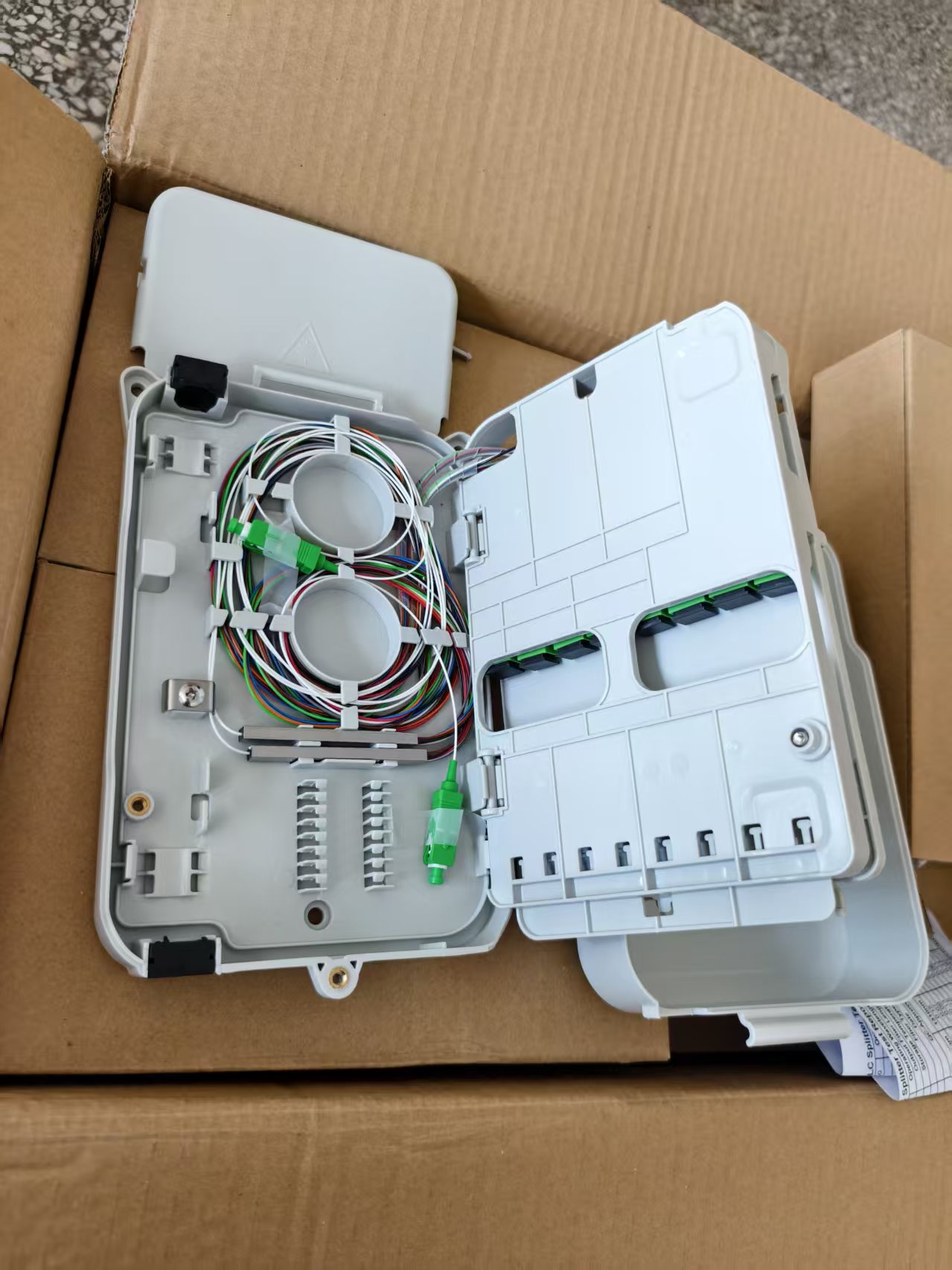

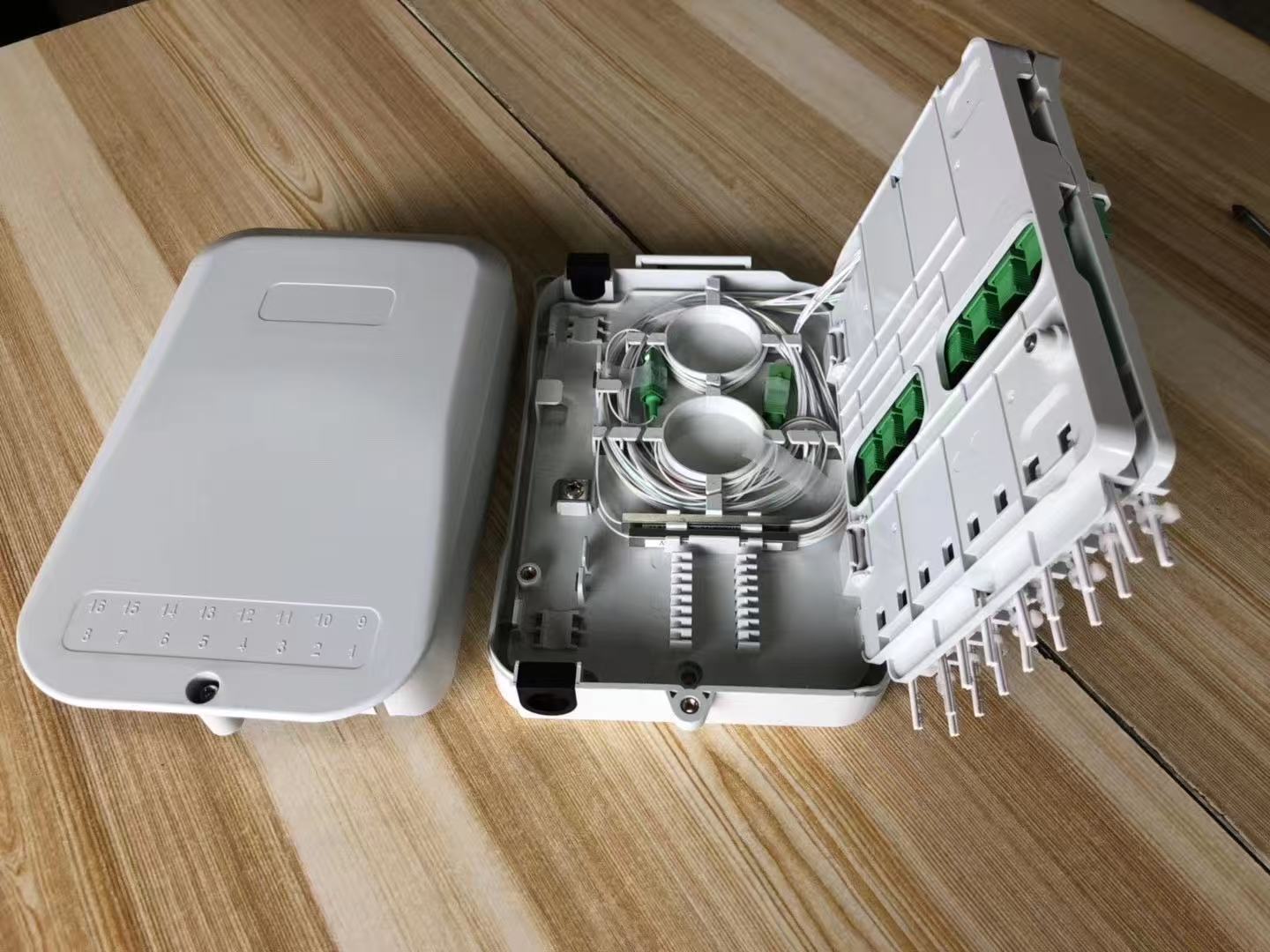

It is integrated with a splice cassette and cable management rods, ensuring that the fiber bend radius is kept at more than 40mm to prevent signal loss.
Quality is maintained through strict procedures, including always providing a pre-production sample before mass production and conducting a final inspection before shipment.
Delivery terms include FOB, EXW, FCA, and DDP. Accepted payment methods include T/T, MoneyGram, Credit Card, PayPal, Western Union, and Escrow, processing currencies like USD, EUR, GBP, and CNY.
