| System voltage | 400V/220V/230v | System voltage range | ±15% |
| Frequency | 50Hz ±5%/60Hz ±5% | Capacity specification | 10kvar/15Kvar |
| Module type | Rack/Wall Mounted | Incoming way | Upper incoming/Back incoming |
| Harmonics filtering rate | ≥90% | Harmonics filtering range | 2nd ~51st harmonics |
| Full response time | ≤5ms | Overload protection | Automatic current limit at 100% rated output |
| IP level | IP20 (customized) | Other protection | Over-voltage, under-voltage, over-temperature, over-current protection |
| Operating environment temp. | -25℃~40℃ | Storage/ transport temp. | -25℃~55℃ |
| Work humidity | Relative humidity 5~95%, no condensation | Altitude | 1000m and below |

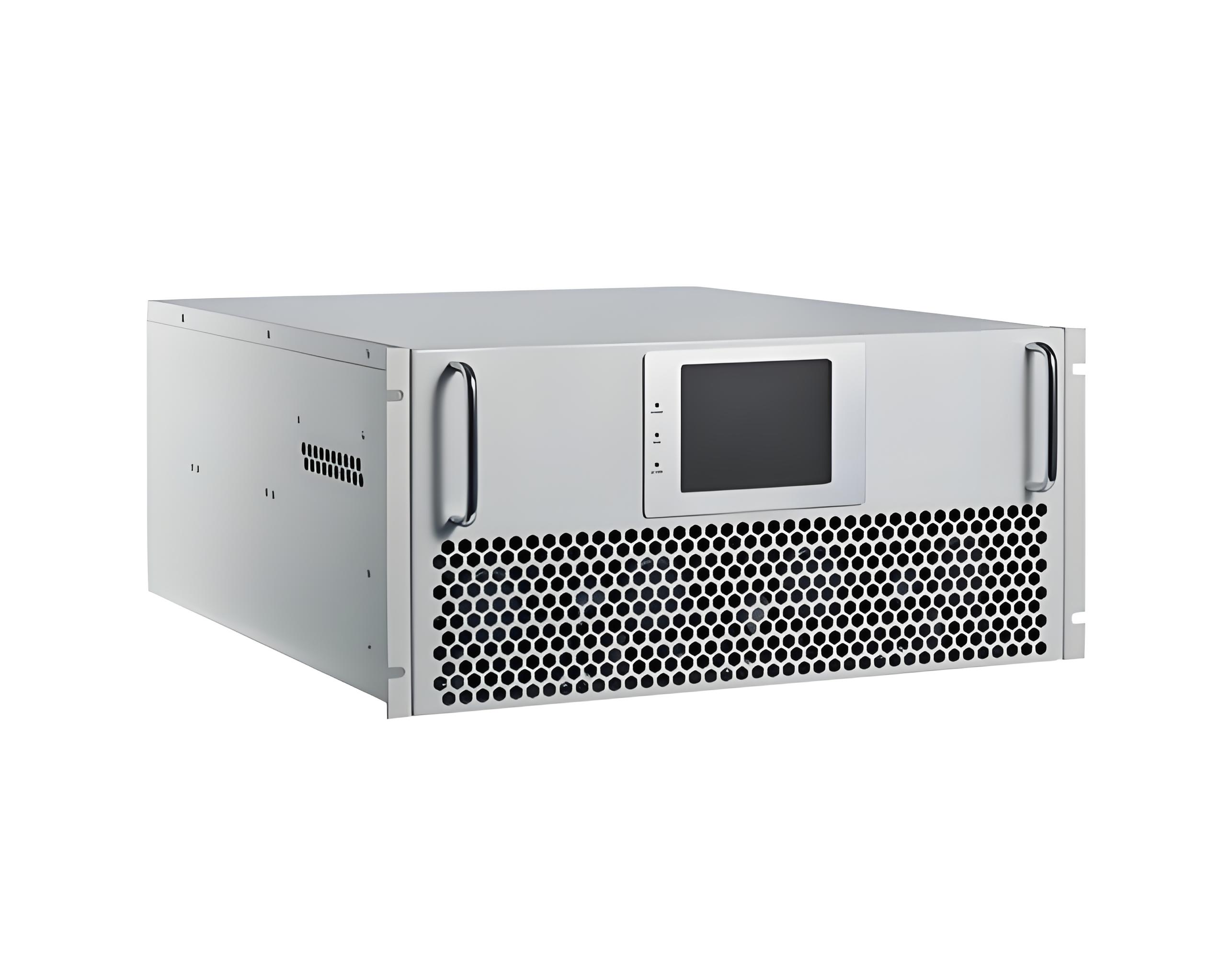

Lightweight and portable, easy to install, cost saving

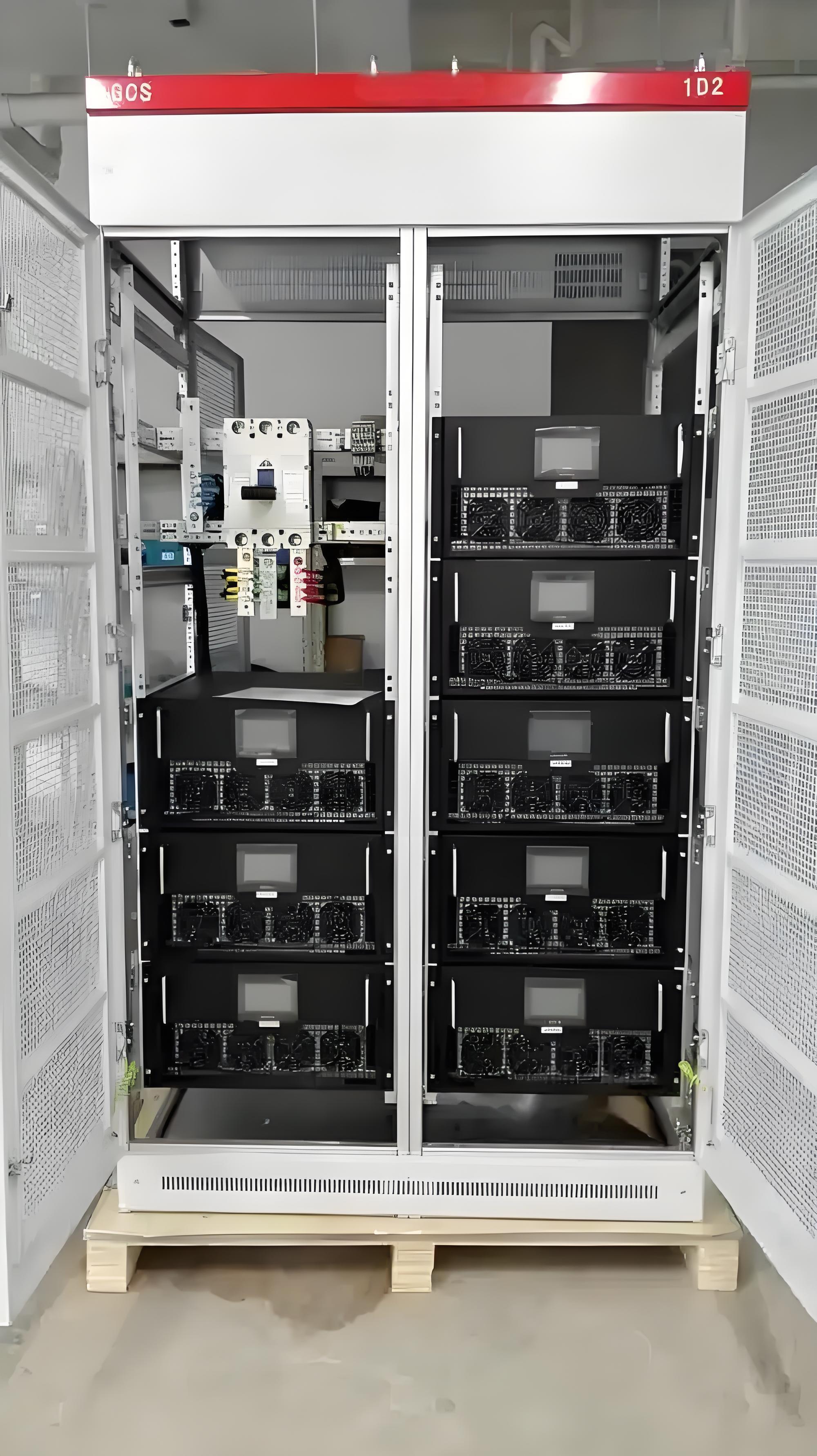

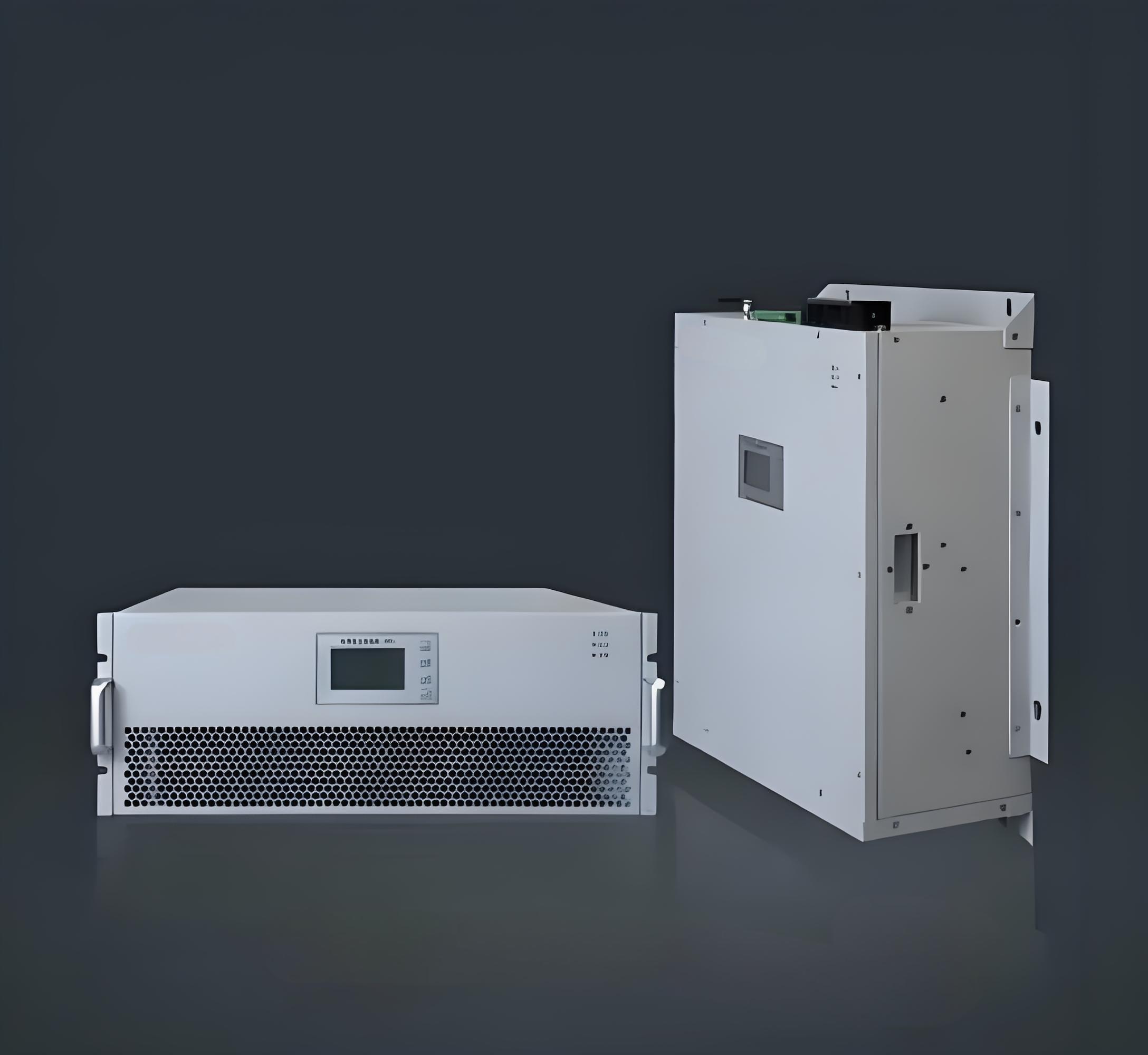

Suitable for various installation types such as rack mounted, wall mounted, and vertical
Small size, suitable for embedded installation projects, improving space utilization efficiency

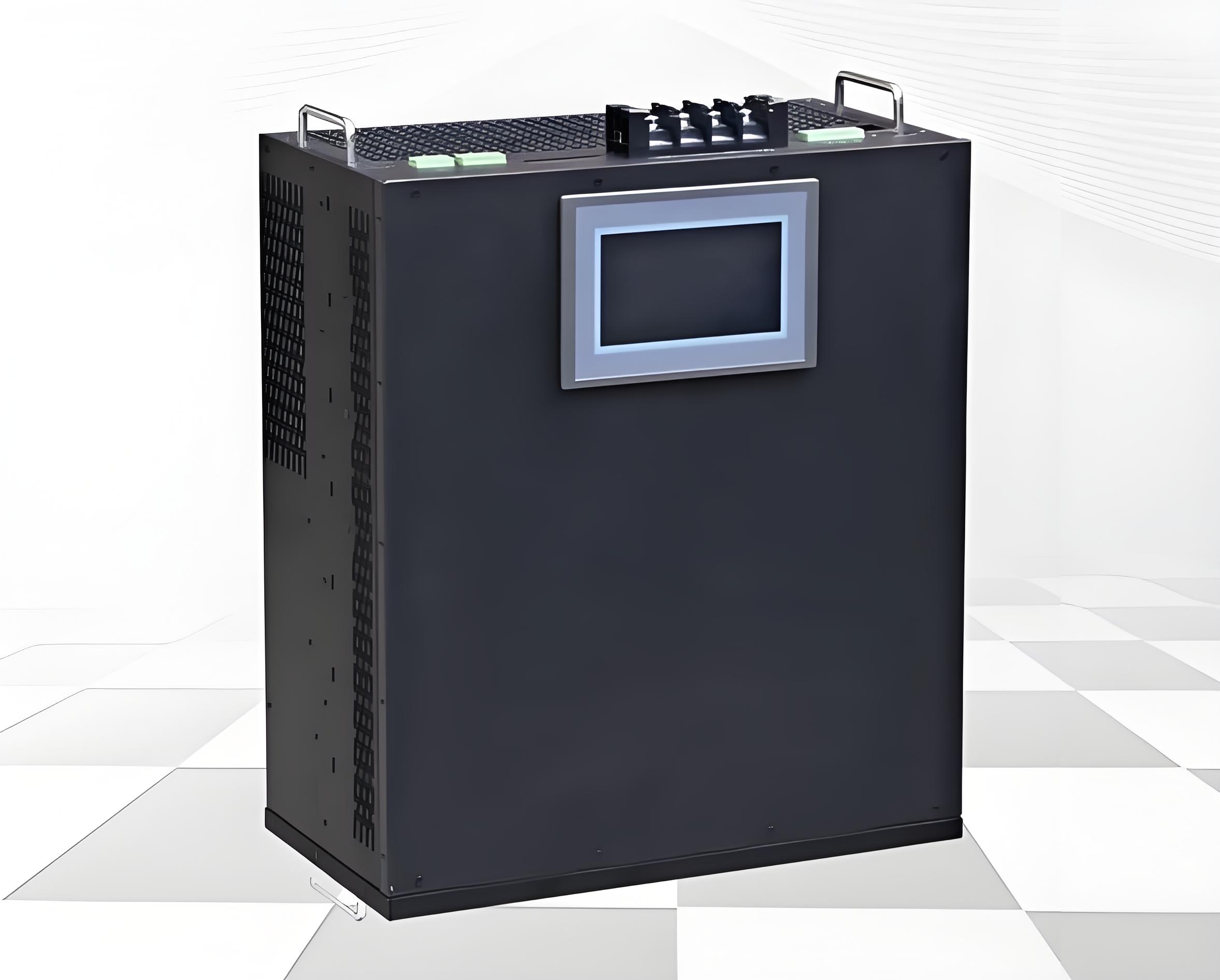

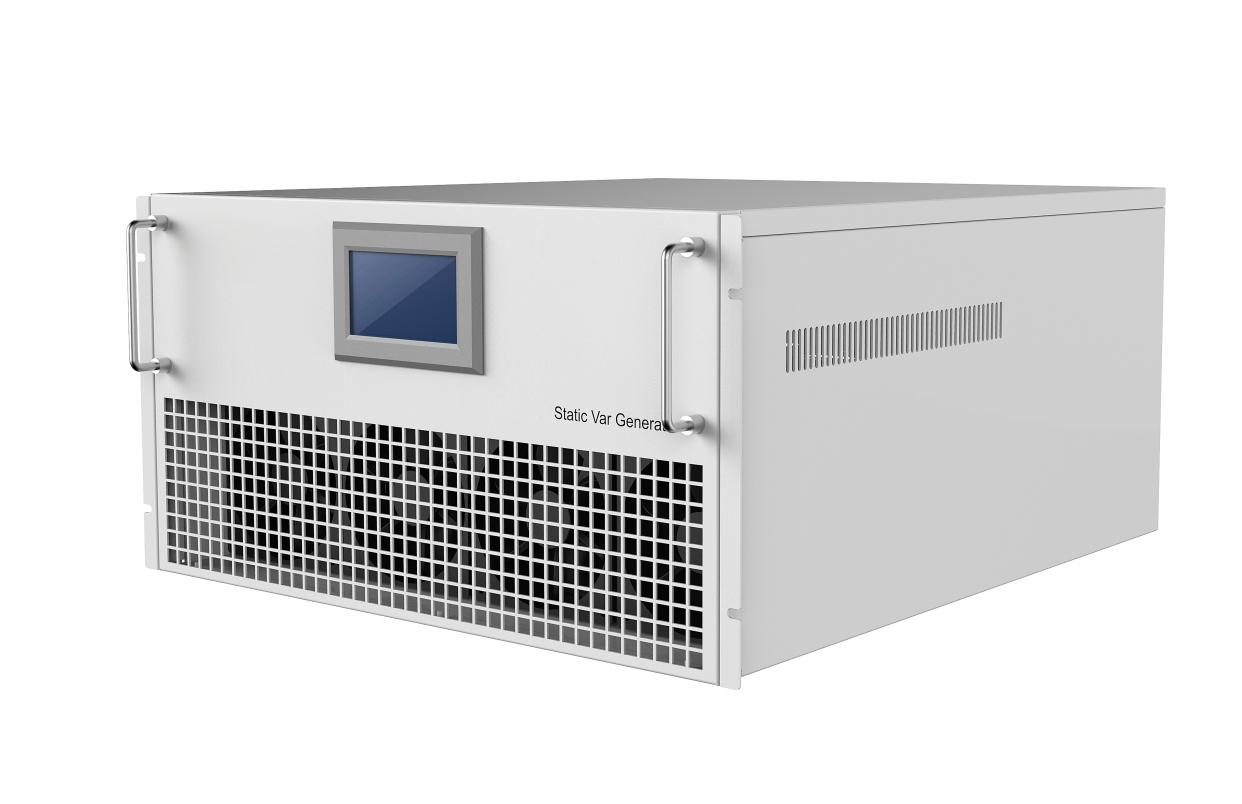

A: The Static Var Generator operates on a three-level topology circuit design. It is developed to provide comprehensive power quality solutions, which include stepless power factor correction, efficient harmonic elimination, and reliable load balancing.
A: We support modular capacities of 10kvar and 15kvar specifications. Additionally, the statcom SVG module capacity ranges from 25kvar to 100kvar, making it easy for users to achieve target reactive power compensation.

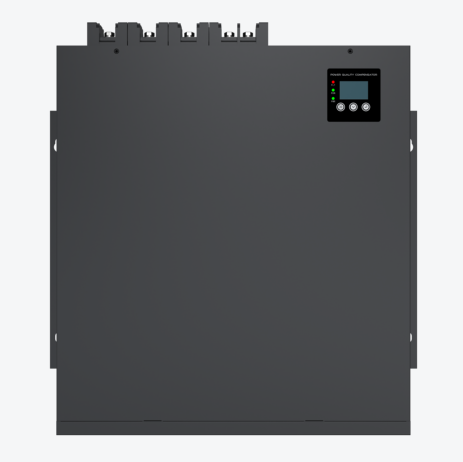

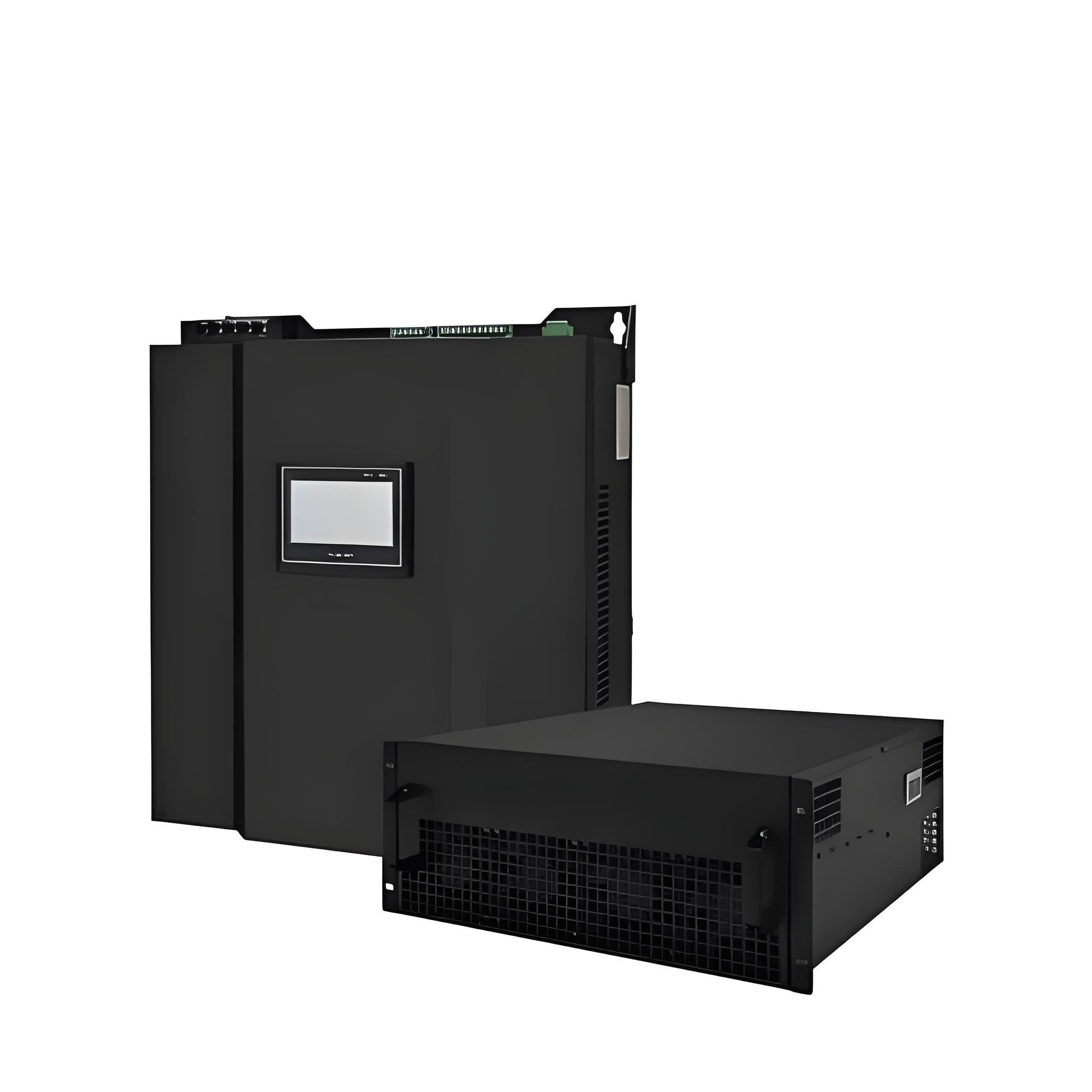

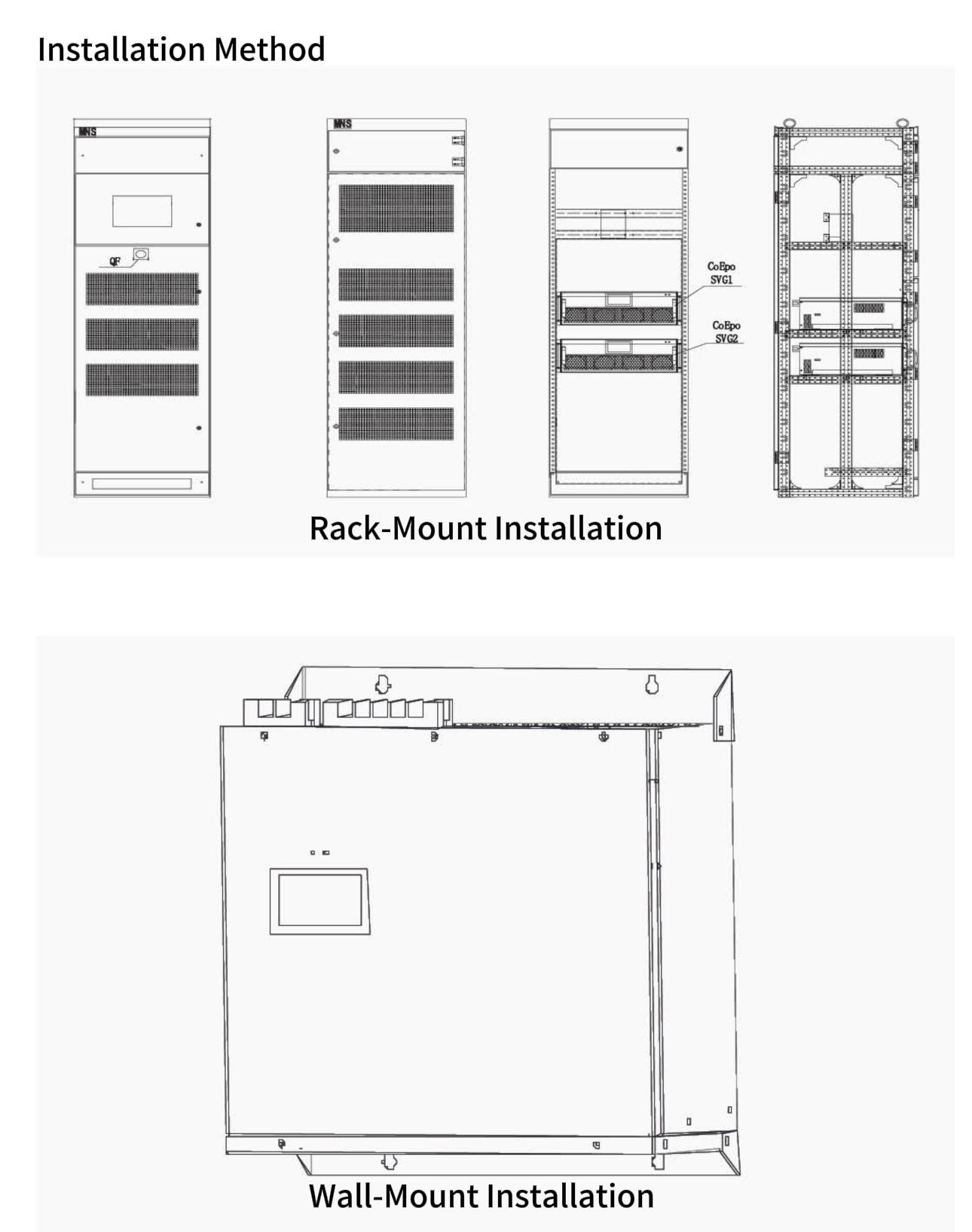

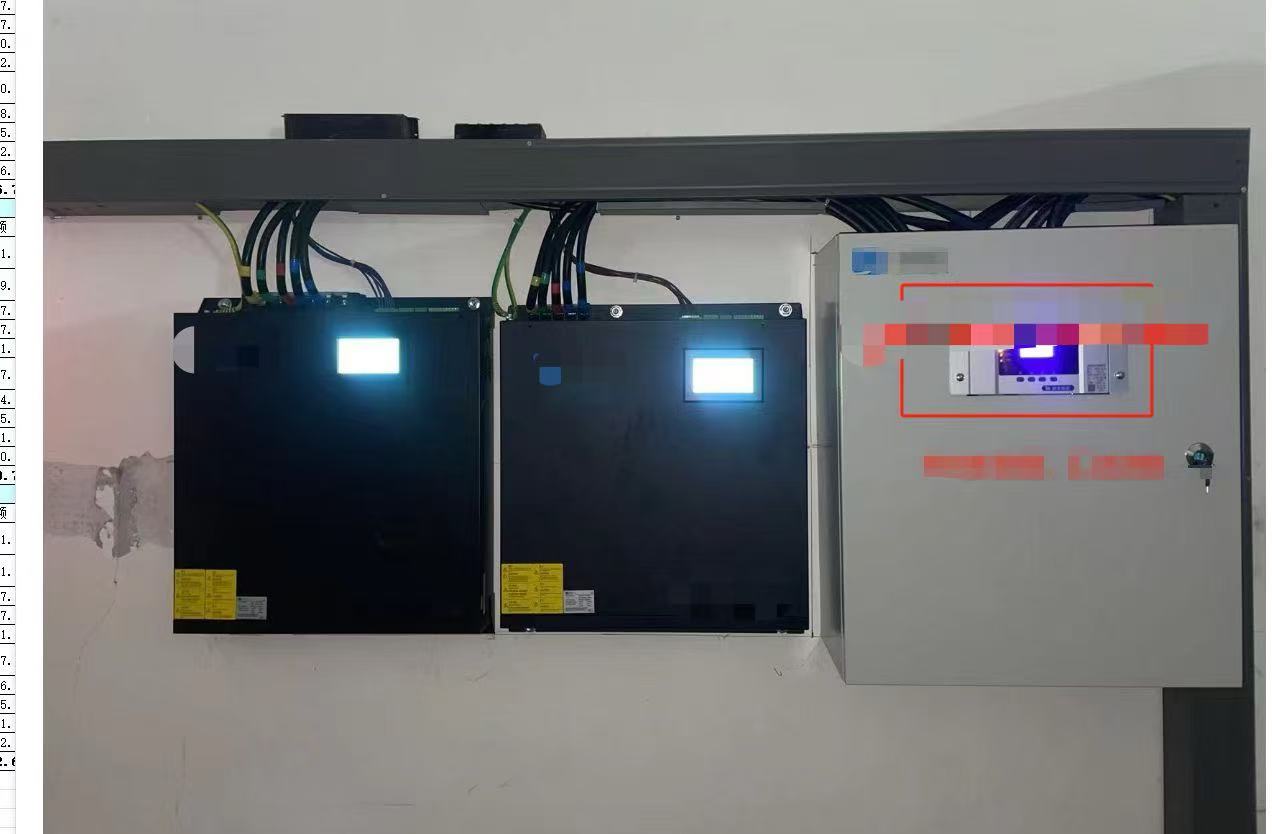

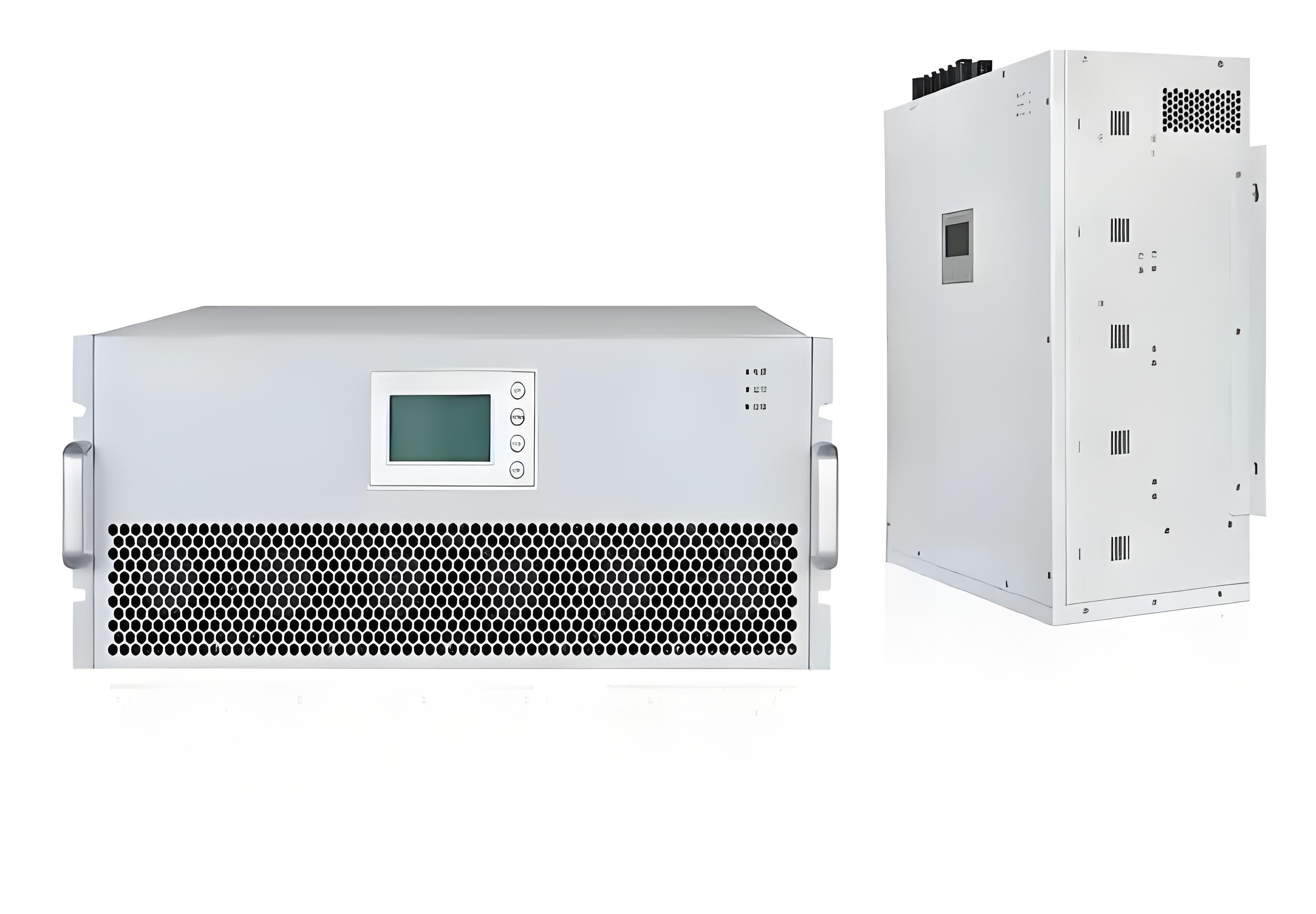

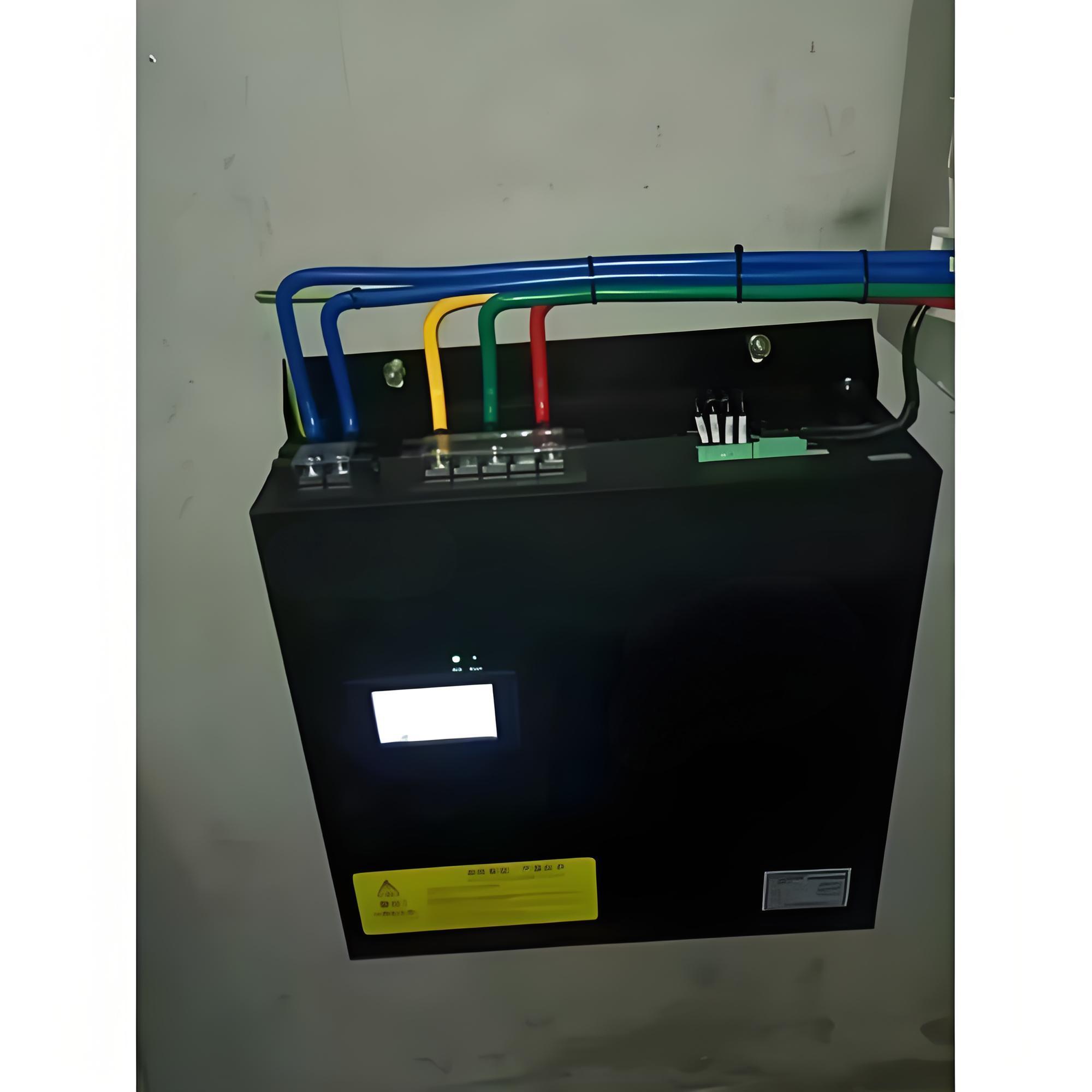

A: The system supports multiple flexible installation methods, including Rack mounted, Wall mounted, and Vertical installations, making it ideal for compact spaces and various project requirements.
A: Our SVG guarantees a harmonic filtering rate of ≥90%, managing the 2nd to 51st harmonics with a fast full response time of ≤5ms.
A: The module is equipped with automatic current limiting at 100% rated output for overload protection. It also features integrated over-voltage, under-voltage, over-temperature, and over-current protections.

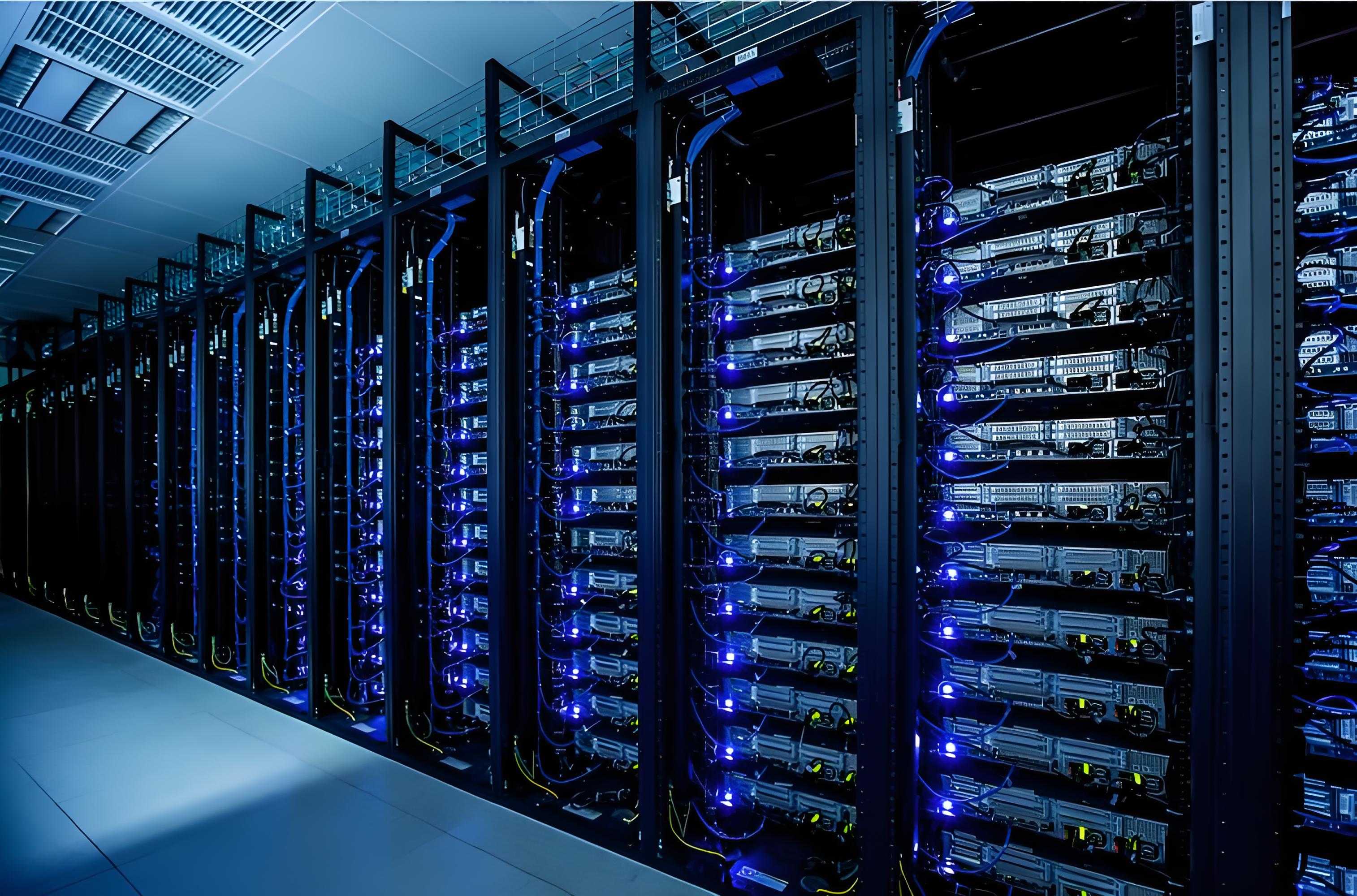

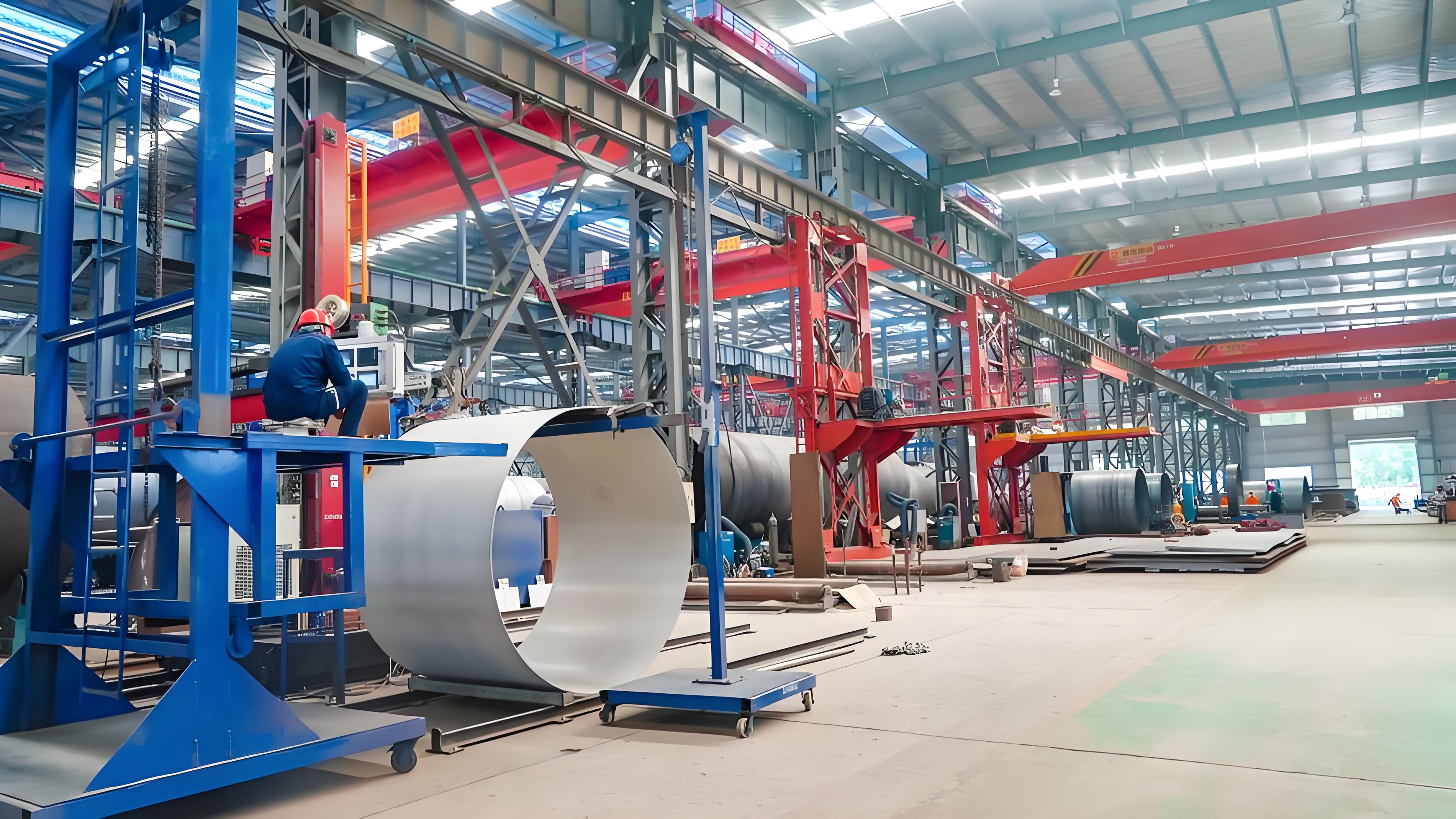

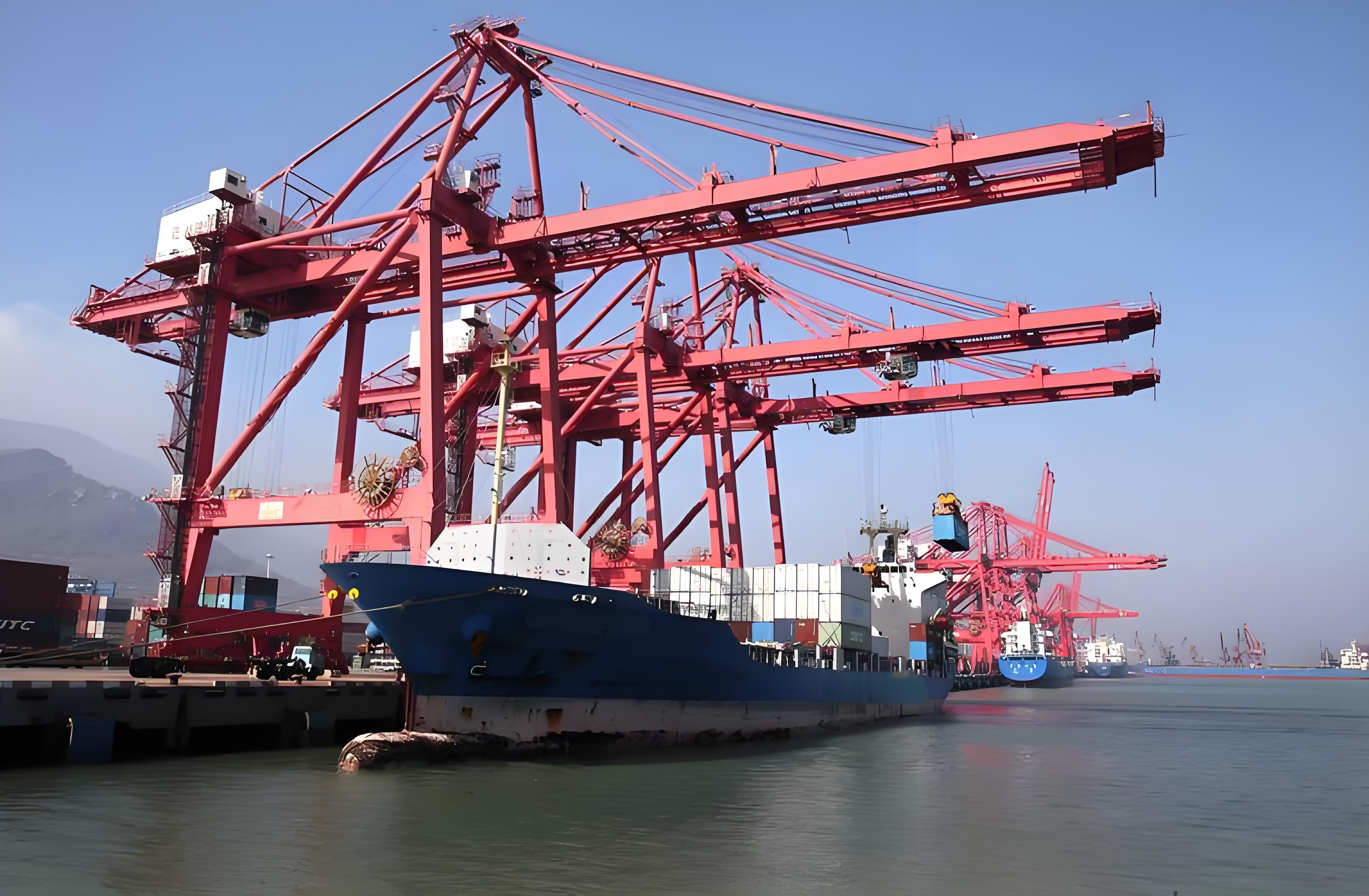

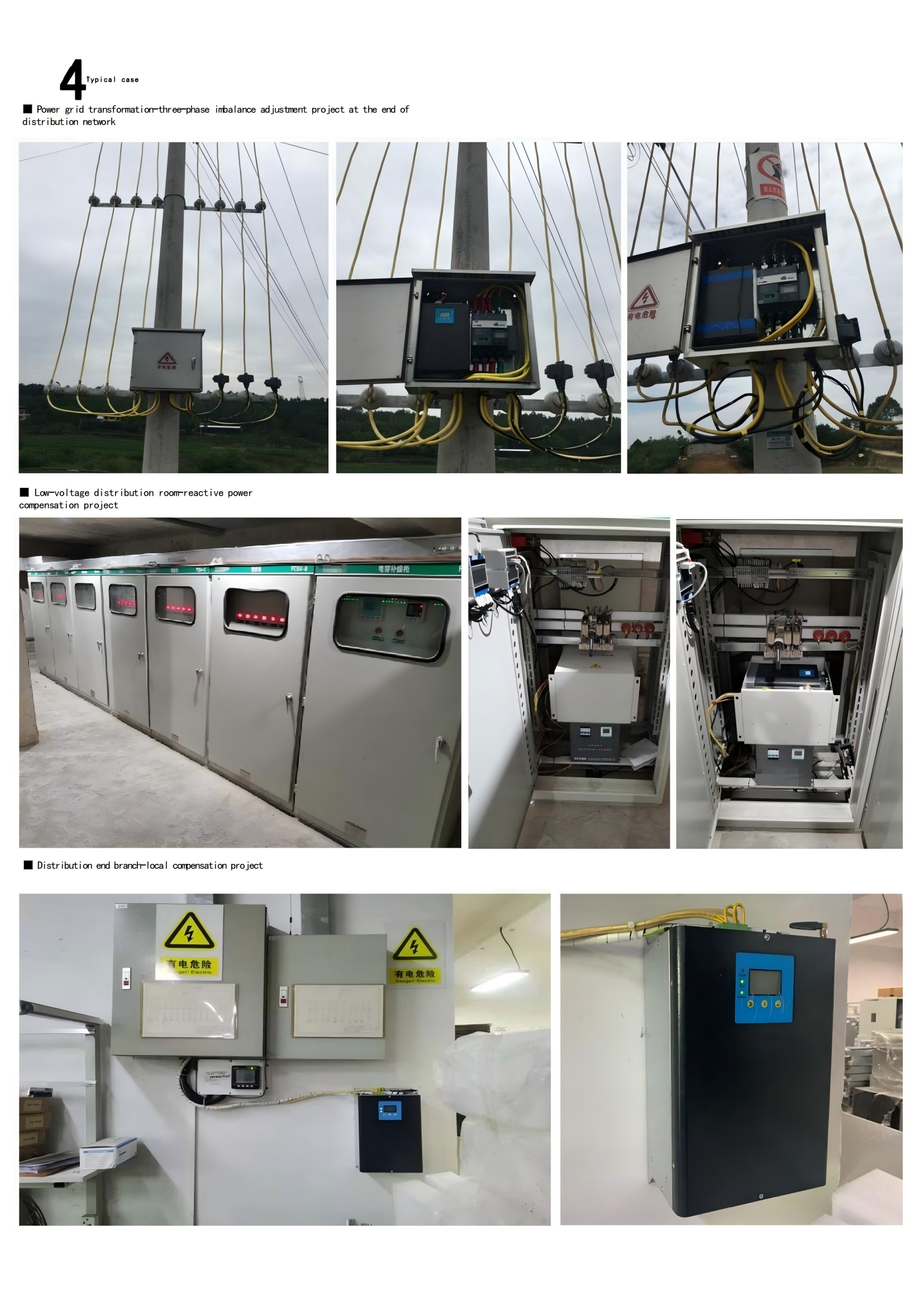

A: It is widely applicable to a range of environments including steel, metallurgy, mining, new energy, automotive, and water treatment industries, as well as data rooms, office buildings, port terminals, schools, and subways.
