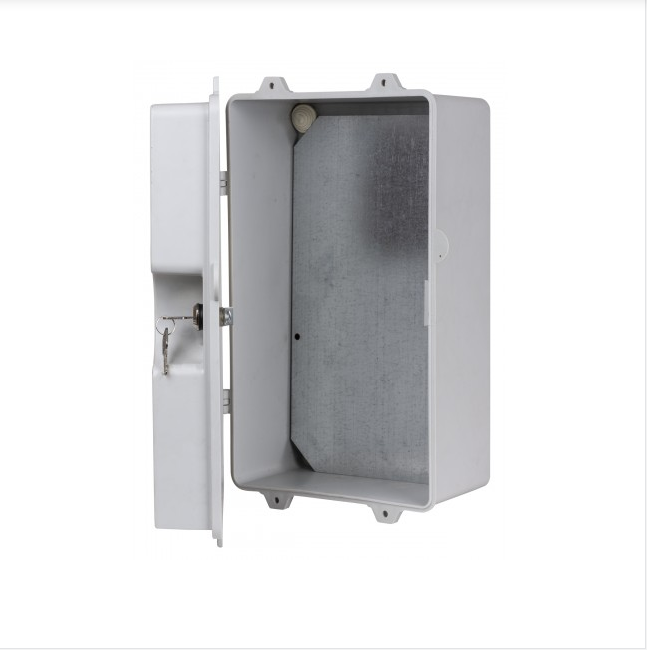

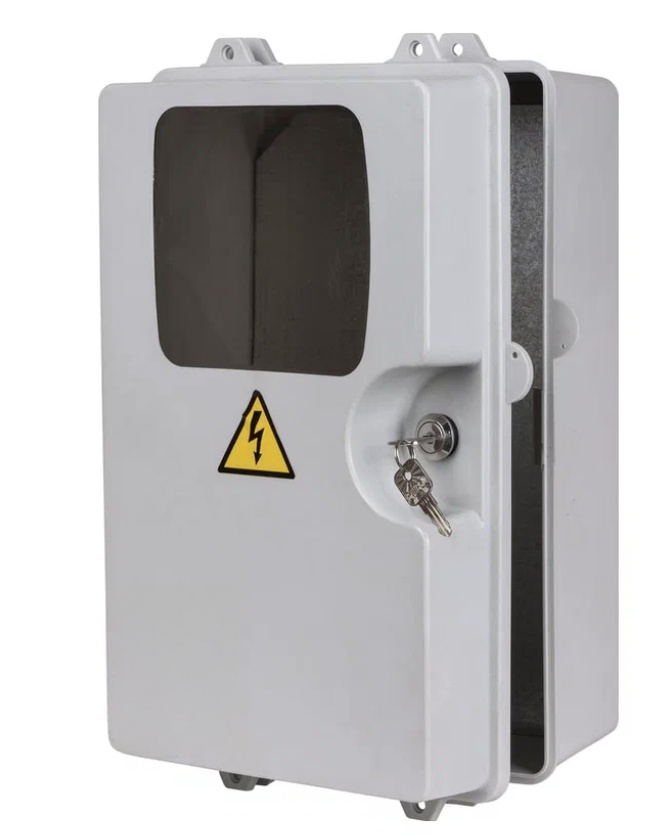

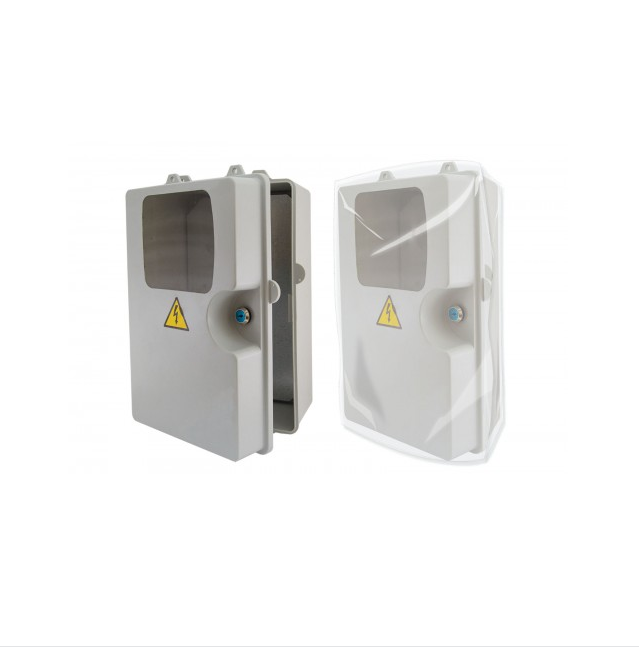

JINAO Outdoor Distribution Box with Multi-Factor Lock IP54 220V View Port
JINAO Outdoor Distribution Box with Multi-Factor Lock IP54 220V View Port
JINAO Outdoor Distribution Box with Multi-Factor Lock IP54 220V View Port
JINAO Outdoor Distribution Box with Multi-Factor Lock IP54 220V View Port
JINAO Outdoor Distribution Box with Multi-Factor Lock IP54 220V View Port
1 / 5
JINAO Outdoor Distribution Box with Multi-Factor Lock IP54 220V View Port
JINAO Outdoor Distribution Box with Multi-Factor Lock IP54 220V View Port
JINAO Outdoor Distribution Box with Multi-Factor Lock IP54 220V View Port
JINAO Outdoor Distribution Box with Multi-Factor Lock IP54 220V View Port
JINAO Outdoor Distribution Box with Multi-Factor Lock IP54 220V View Port

JINAO Outdoor Distribution Box with Multi-Factor Lock IP54 220V View Port

Send Inquiry

Product Description

Products Description
Meter box has excellent electrical insulation properties, mechanical properties, thermal stability, chemical resistance to corrosion. The advantage is long service life, flame retardant, smoke-free, modular design makes the installation is simple, low cost of integrated use.
Widely used in public power grid in the cable branch box, low voltage distribution box, pump control box, communication cabinet street lamp and traffic light control box, multi-function measuring box, integrated distribution box, capacitor compensation box terminal box, Distribution box, measuring boxes and so on. At present this product is very popular in North Africa.
Excellent Electrical Insulation & Thermal Stability
Modular Design for Simple Installation
Flame Retardant, Smoke-Free & Long Service Life

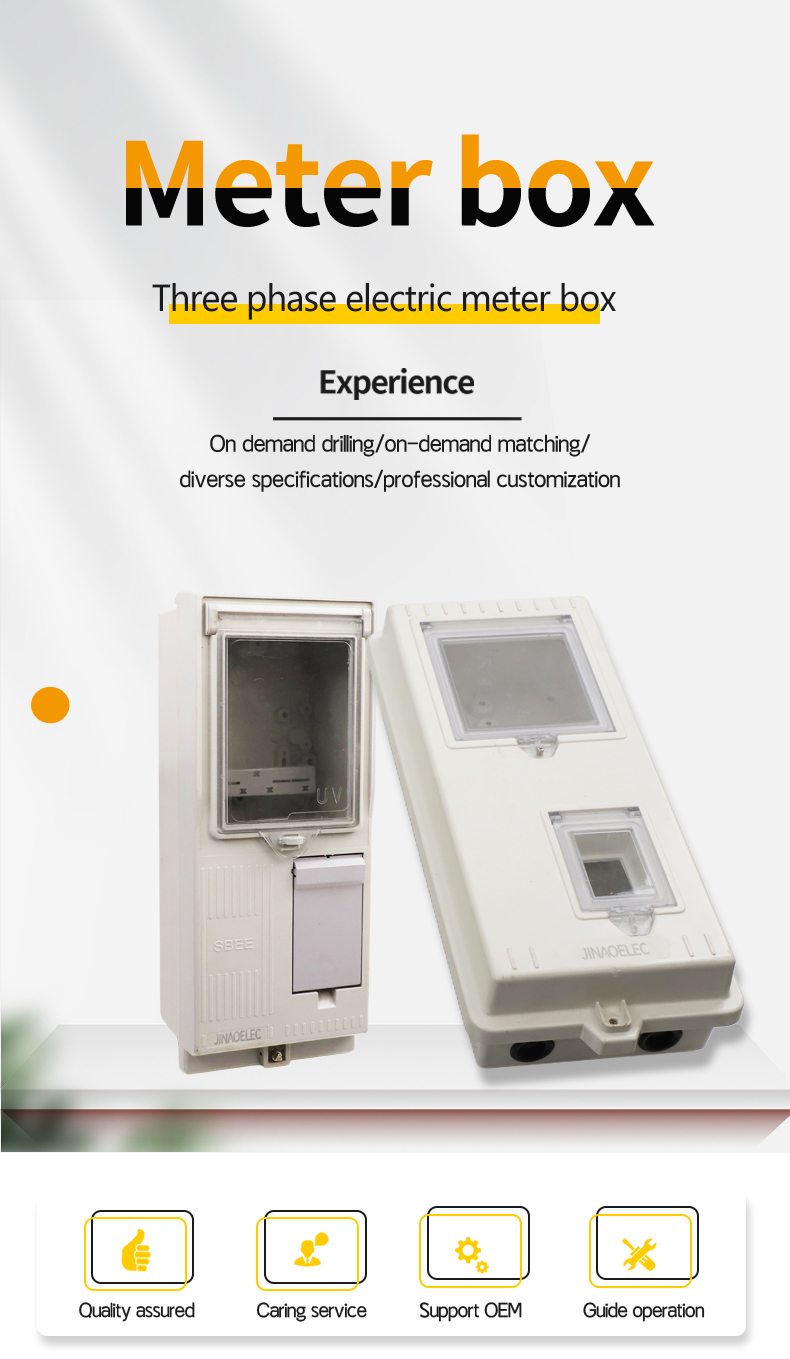

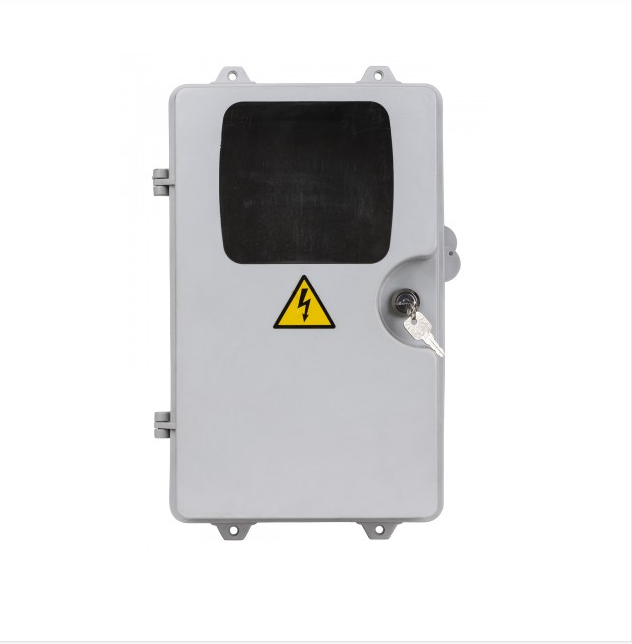

Fiberglass Meter Box

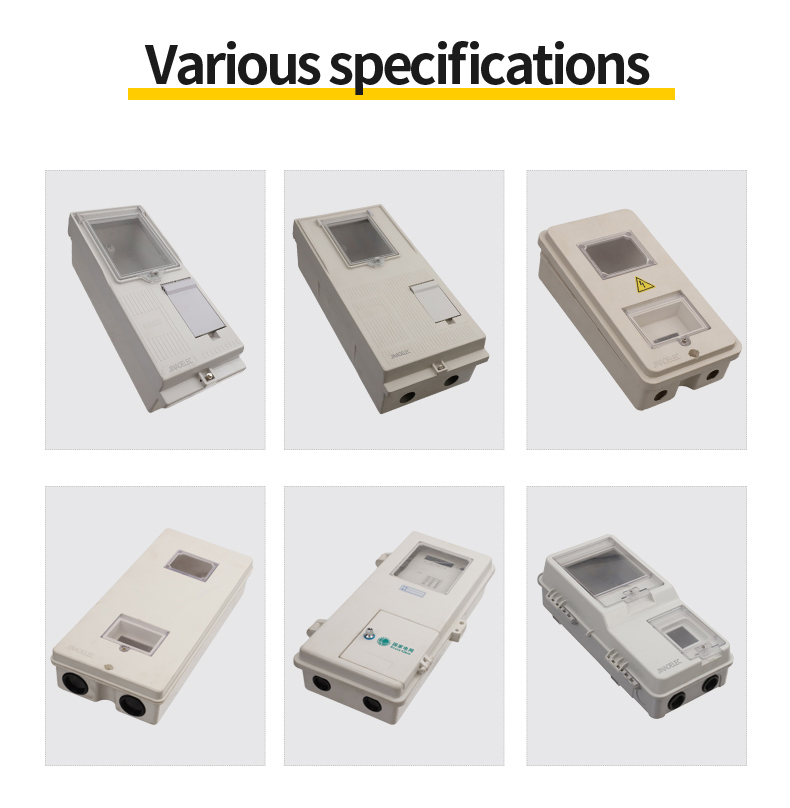

Meter Box Detail View

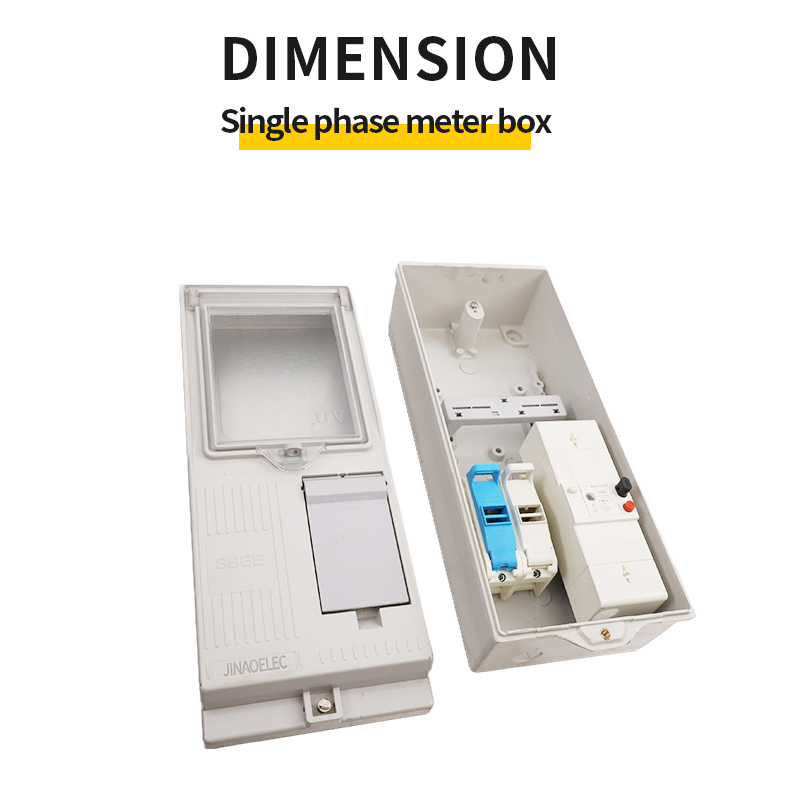

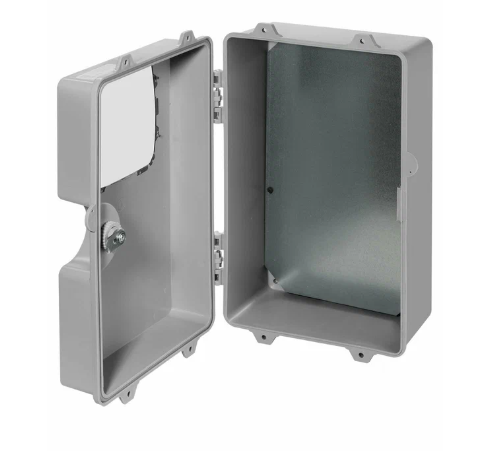

Distribution Box Open View
Technical Specifications
Name Fiberglass meter box distribution box db board
Model Single phase meter box, three meter box
Protection IP65 IK10
Material Glass fiber reinforced polyester. An insulating envelope (tank and door) made of polyester composite (SMC), reinforced with glass fibers, hot molded and high pressure.
Constitution
  • Allowing ventilation by natural convection.
  • 3 bosses for fixing the meter.
  • 2 bosses for circuit breaker fixing.
  • A gray hatch for access to the circuit breaker.
  • Equipped with a transparent polycarbonate window for reading the meter.
  • The cover is closed on the tank using a triangular, sealable brass safety screw.
  • 2 wire passes for 2 holes at the bottom for cable entry and departure.
Company Profile
Company Facility
Manufacturing Technique

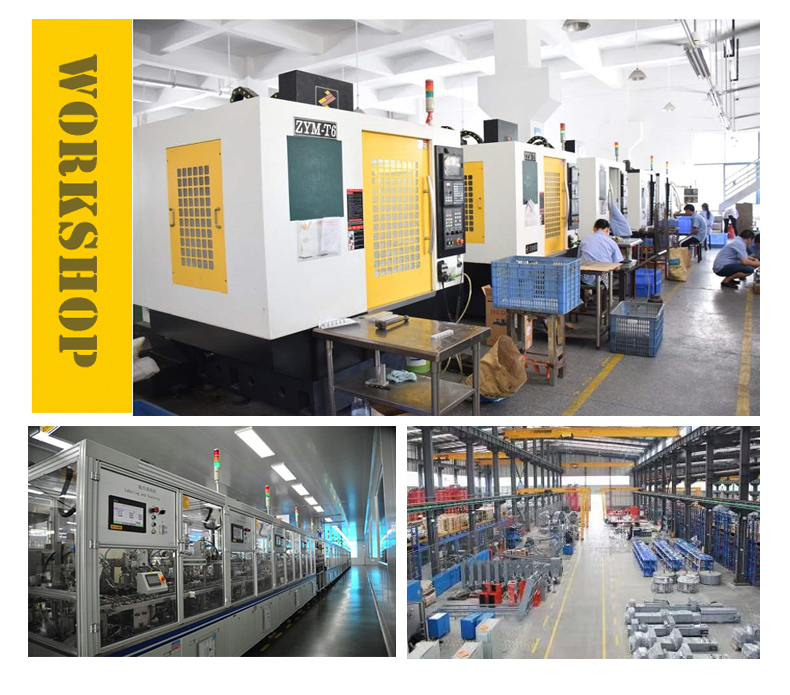

Production Process
Certifications
Product Certifications
Marketing Campaign
Exhibition and Marketing
FAQ
FAQ Overview
What material is used for the meter box, and what are its advantages?
The meter box is manufactured using Glass Fiber Reinforced Polyester (SMC) hot-molded under high pressure. This composite material offers excellent electrical insulation, high mechanical strength, thermal stability, and superior resistance to chemical corrosion, ensuring a long and maintenance-free service life.
What level of protection do these distribution boxes offer?
These boxes carry an IP65 protection rating, which ensures high resistance to water and dust ingress, and an IK10 impact protection rating, guaranteeing excellent durability against mechanical impacts and harsh outdoor conditions.
Are the meter boxes customizable for different meter phases?
Yes, we offer configurations compatible with both single phase meter and three phase meter setups to suit various utility requirements.
How is reading the meter facilitated after installation?
The box design includes a built-in transparent polycarbonate window which allows operators or customers to easily view and read the meter without opening the main enclosure.
What features are provided for security and access?
The enclosure cover is secured to the main body via a triangular, sealable brass safety screw. Additionally, there is a dedicated gray hatch providing easy, controlled access to the internal circuit breakers.
